2AW5W-C1BDash Camera

                                                                                             !                     "                                               # $      $"             $                      $      %   &'       #(         %                        %                          )*

REXING INC. 34 Ludwig St, Little Ferry, NJ 07643 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/04/11 U.S. Agent Designation REXING INC. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AW5W-C1B): Name and company of U.S. agent: REXING INC. Physical U.S. address of agent: 34 Ludwig St, Little Ferry, NJ 07643 FRN of U.S. agent: 0029828688 Phone of U.S. agent: 2032144881 Email address of U.S. agent: [email protected] REXING INC. acknowledges their obligation to accept service of process on behalf of REXING INC. with the FRN [0029828688] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Yuhe Sun General Manager REXING INC. Signature Yuhe Sun General Manager REXING INC. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

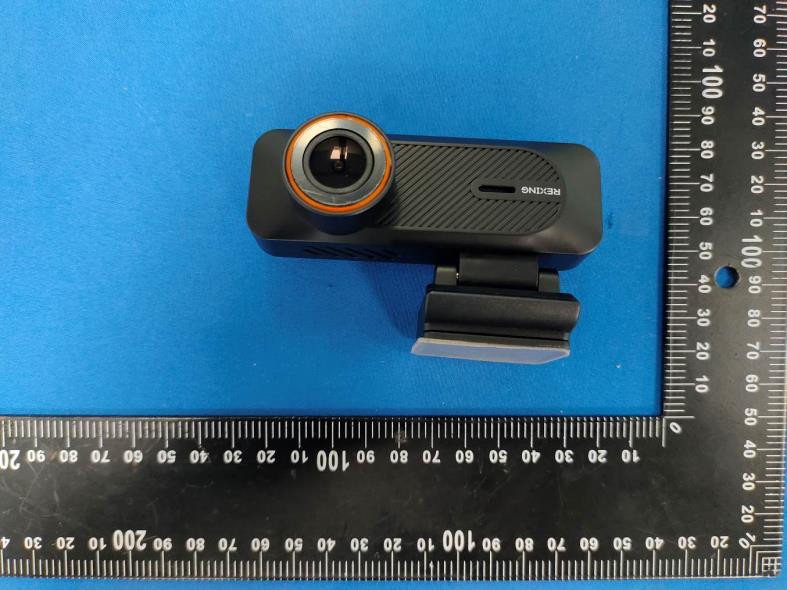

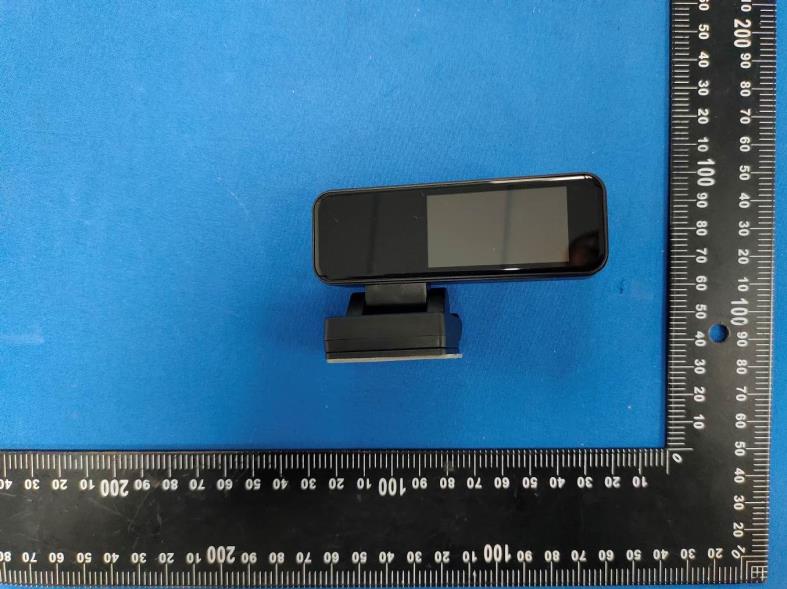

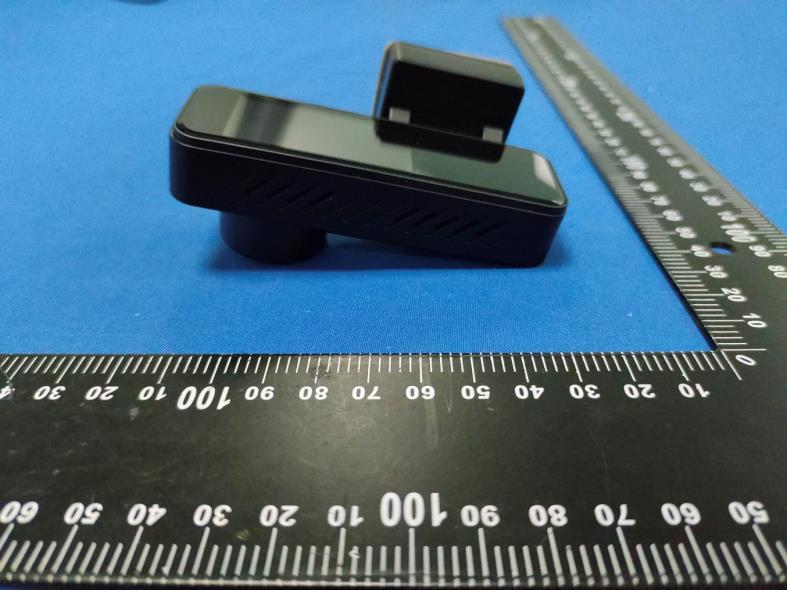

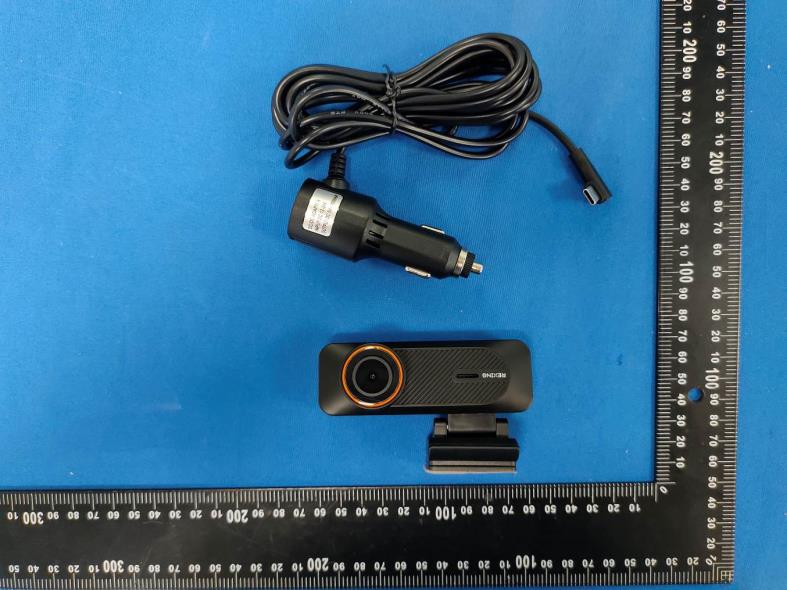

FCC ID:2AW5W-C1B External Photos of the EUT FCC ID:2AW5W-C1B FCC ID:2AW5W-C1B

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2AW5W-C1B

FCC ID:2AW5W-C1B Internal Photos of the EUT FCC ID:2AW5W-C1B FCC ID:2AW5W-C1B WIFI ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26032800702 2AW5W-C1B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 07, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : REXING INC. Address............................................ : 34 Ludwig St, Little Ferry, NJ 07643 Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Dash Camera Trade Mark ....................................... : REXING Manufacturer .................................... : KA FUNG TECHNOLOGY CO LIMITED Model/Type reference ...................... : C1B Listed Models ................................... : N/A Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26032800702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Dash Camera Model /Type : C1B Listed Models : N/A Applicant : REXING INC. Address : 34 Ludwig St, Little Ferry, NJ 07643 Manufacturer : KA FUNG TECHNOLOGY CO LIMITED Address : Rm.202, C5 Building, Hengfeng Industry Park, No.739 Zhoushi Rd, Hangcheng Subdistrict, Bao’an Dist., Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26032800702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26032800702 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels …

Text truncated - open the document above for the full version.

35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMode ChName Frequency[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdic t 11B Low 2412 AV 2310.000 -59.39 2.09 0.02 37.92 ≤54 PASS AV 2386.450 -55.4 2.09 0.02 41.91 ≤54 PASS AV 2390.000 -56.17 2.09 0.02 41.14 ≤54 PASS Peak 2310.000 -50.13 2.09 0.00 47.16 ≤74 PASS Peak 2386.060 -46.96 2.09 0.00 50.33 ≤74 PASS Peak 2390.000 -49.08 2.09 0.00 48.21 ≤74 PASS High 2462 AV 2483.500 -55.55 2.09 0.02 41.76 ≤54 PASS AV 2484.220 -55.2 2.09 0.02 42.11 ≤54 PASS AV 2500.000 -57.8 2.09 0.02 39.51 ≤54 PASS Peak 2483.500 -47.49 2.09 0.00 49.8 ≤74 PASS Peak 2487.410 -46.05 2.09 0.00 51.24 ≤74 PASS Peak 2500.000 -50.97 2.09 0.00 46.32 ≤74 PASS 11G Low 2412 AV 2310.000 -59.31 2.09 1.25 39.23 ≤54 PASS AV 2389.180 -58.46 2.09 1.25 40.08 ≤54 PASS AV 2390.000 -58.88 2.09 1.25 39.66 ≤54 PASS Peak 2310.000 -52.02 2.09 0.00 45.27 ≤74 PASS Peak 2329.380 -48.18 2.09 0.00 49.11 ≤74 PASS Peak 2390.000 -49.81 2.09 0.00 47.48 ≤74 PASS High 2462 AV 2483.500 -58.56 2.09 1.25 39.98 ≤54 PASS AV 2489.280 -57.8 2.09 1.25 40.74 ≤54 PASS AV 2500.000 -58.62 2.09 1.25 39.92 ≤54 PASS Peak 2483.500 -50.98 2.09 0.00 46.31 ≤74 PASS Peak 2493.020 -47.57 2.09 0.00 49.72 ≤74 PASS Peak 2500.000 -51.59 2.09 0.00 45.7 ≤74 PASS 11N20SISO Low 2412 AV 2310.000 -59.21 2.09 1.06 39.14 ≤54 PASS AV 2387.230 -58.18 2.09 1.06 40.17 ≤54 PASS AV 2390.000 -58.97 2.09 1.06 39.38 ≤54 PASS Peak 2310.000 -51.56 2.09 0.00 45.73 ≤74 PASS Peak 2331.330 -48.3 2.09 0.00 48.99 ≤74 PASS Peak 2390.000 -50.45 2.09 0.00 46.84 ≤74 PASS High 2462 AV 2483.500 -58.78 2.09 0.87 39.38 ≤54 PASS AV 2485.320 -58.01 2.09 0.87 40.15 ≤54 PASS AV 2500.000 -58.94 2.09 0.87 39.22 ≤54 PASS Peak 2483.500 -49.1 2.09 0.00 48.19 ≤74 PASS Peak 2492.030 -47.35 2.09 0.00 49.94 ≤74 PASS Peak 2500.000 -50.94 2.09 0.00 46.35 ≤74 PASS 40 Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak

Antenna Test Report Customer Project Antenna BAND2.4G Product DescriptionPCB Product No 3 This report is to measure the performance of BT antenna for IKAB .The antennaoperating frequency at (2400-2500MHZ) , All test data are showed as below. Content 1.Product Overview & Dimension 2. Test system 3. Antenna Matching Network 4.Test Result 4.1 S11 Parameter 4.2 Gain & Efficiency 4.3 Test coordinate 4.4 2D Pattern 4.5 OTA Data 4.6 WIFI Boot measured 5. Antenna Assembly & environmental processing 4 2.Test System Sequence Number Test Itemequipment S parameterVSWRAgilent 5071C & HP 8753 OTA TestTRP&TISCMW500 &CMW270 ETS& FT SG24 Gain & Efficiency Gain & Efficiency ETS&FT SG24 Agilent 5071C Test Result Sample status & coordinates S11 Frequency (MHz) 240024502500 Smith47.2249.8550.27 Log mag -18.58-17.96-15.59 VSWR1.271.281.39 Match network parameters 匹配网络未修改 O TA D ATA-2.4G ANT WIFI-2.4G Frequency ID1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz)2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0 Gain (dBi) 1.75 1.81 2.09 2.08 1.95 1.98 1.82 1.74 1.43 0.98 0.98 Efficiency (%) 47.16 48.33 47.67 47.23 46.91 47.18 47.13 46.68 45.42 44.77 44.70 3D Pattern O TA D ATA-2.4G ANT 深圳市汇影科技有限公司 天线，图纸 Thanks for your comment! Shenzhen Huiying Technology Co., Ltd. Room 212, 2nd Floor, Building A5, Hangcheng Information Port, Hangcheng Street, Bao'an District, Shenzhen City

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26032800701 2AW5W-C1B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 07, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : REXING INC. Address ............................................ : 34 Ludwig St, Little Ferry, NJ 07643 Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Dash Camera Trade Mark ....................................... : REXING Manufacturer .................................... : KA FUNG TECHNOLOGY CO LIMITED Model/Type reference ...................... : C1B Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26032800701 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Dash Camera Model /Type : C1B Listed Models : N/A Applicant : REXING INC. Address : 34 Ludwig St, Little Ferry, NJ 07643 Manufacturer : KA FUNG TECHNOLOGY CO LIMITED Address : Rm.202, C5 Building, Hengfeng Industry Park, No.739 Zhoushi Rd, Hangcheng Subdistrict, Bao’an Dist., Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26032800701 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description ................................................................................................................................. 8 3.5 Statement of th…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AW5W-C1B Company : REXING INC. EUT : Dash Camera Model Number : C1B Report No. : CTA26032800701 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.560 2404.440 2420.000 0.5 PASS 2437 15.880 2429.160 2445.040 0.5 PASS 2462 15.840 2454.120 2469.960 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.720 2420.640 0.5 PASS 2437 15.640 2429.120 2444.760 0.5 PASS 2462 15.880 2453.760 2469.640 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.404 2405.3524 2418.7564 --- --- 2437 13.402 2430.3406 2443.7426 --- --- 2462 13.415 2455.3109 2468.7259 --- --- 11G Ant1 2412 16.812 2403.6939 2420.5059 --- --- 2437 16.777 2428.6769 2445.4539 --- --- 2462 16.861 2453.6244 2470.4854 --- --- 11N20SISO Ant1 2412 17.900 2403.0988 2420.9988 --- --- 2437 17.875 2428.0726 2445.9476 --- --- 2462 17.894 2453.0547 2470.9487 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.03 ≤30.00 PASS 2437 14.18 ≤30.00 PASS 2462 14.37 ≤30.00 PASS 11G Ant1 2412 13.08 ≤30.00 PASS 2437 13.28 ≤30.00 PASS 2462 13.38 ≤30.00 PASS 11N20SISO Ant1 2412 12.83 ≤30.00 PASS 2437 12.96 ≤30.00 PASS 2462 13.06 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.12 ≤8.00 PASS 2437 -11.21 ≤8.00 PASS 2462 -10.84 ≤8.00 PASS 11G Ant1 2412 -18.11 ≤8.00 PASS 2437 -17.80 ≤8.00 PASS 2462 -18.09 ≤8.00 PASS 11N20SISO Ant1 2412 -18.76 ≤8.00 PASS 2437 -18.67 ≤8.00 PASS 2462 -18.08 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.65 -48.58 ≤-18.35 PASS High 2462 2.47 -56.16 ≤-17.53 PASS 11G Ant1 Low 2412 -3.40 -35.65 ≤-23.4 PASS High 2462 -3.11 -57.22 ≤-23.11 PASS 11N20SISO Ant1 Low 2412 -3.52 -35.39 ≤-23.52 PASS High 2462 -3.18 -57.69 ≤-23.18 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.87 1.87 --- PASS 30~1000 1.87 -67.24 ≤-18.13 PASS 1000~26500 1.87 -55.84 ≤-18.13 PASS 2437 Reference 1.88 1.88 --- PASS 30~1000 1.88 -67.94 ≤-18.12 PASS 1000~26500 1.88 -55.69 ≤-18.12 PASS 2462 Reference 0.93 0.93 --- PASS 30~1000 0.93 -67.65 ≤-19.07 PASS 1000~26500 0.93 -54.42 ≤-19.07 PASS 11G Ant1 2412 Reference -3.56 -3.56 --- PASS 30~1000 -3.56 -66.78 ≤-23.56 PASS 1000~26500 -3.56 -54.77 ≤-23.56 PASS 2437 Reference -3.58 -3.58 --- PASS 30~1000 -3.58 -68.26 ≤-23.58 PASS 1000~26500 -3.58 -55.11 ≤-23.58 PASS 2462 Reference -3.67 -3.67 --- PASS 30~1000 -3.67 -67.94 ≤-23.67 PASS 1000~26500 -3.67 -54.68 ≤-23.67 PASS 11N20SISO Ant1 2412 Reference -3.69 -3.69 --- PASS 30~1000 -3.69 -66.3 ≤-23.69 PASS 1000~26500 -3.69 -55.37 ≤-23.69 PASS 2437 Reference -4.52 -4.52 --- PASS 30~1000 -4.52 -67.67 ≤-24.52 PASS 1000~26500 -4.52 -55.4 ≤-24.52 PASS 2462 Reference -3.24 -3.24 --- PASS 30~1000 -3.24 -67.78 ≤-23.24 PASS 1000~26500 -3.24 -54.45 ≤-23.24 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.36 8.40 99.52 0.02 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.17 0.22 77.27 1.12 5.88 2462 0.18 0.22 81.82 0.87 5.56

FCC ID:2AW5W-C1B Test Setup Photos of the EUT
