REXING INC. 34 Ludwig St, Little Ferry, NJ, 07643 USA. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/09 U.S. Agent Designation REXING INC. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AW5W-M3M4): Name and company of U.S. agent: REXING INC. Physical U.S. address of agent: 34 Ludwig St, Little Ferry, NJ, 07643 USA. FRN of U.S. agent: 0029828688 Email address of U.S. agent: [email protected] REXING INC. acknowledges their obligation to accept service of process on behalf of REXING INC. REXING INC. with the FRN [0029828688] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Yuhe Sun General Manager REXING INC. Signature Yuhe Sun General Manager REXING INC. 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

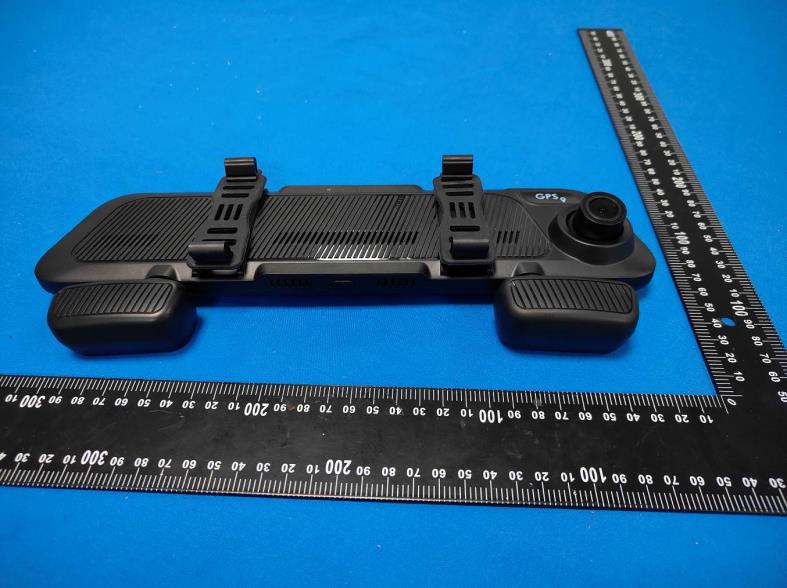

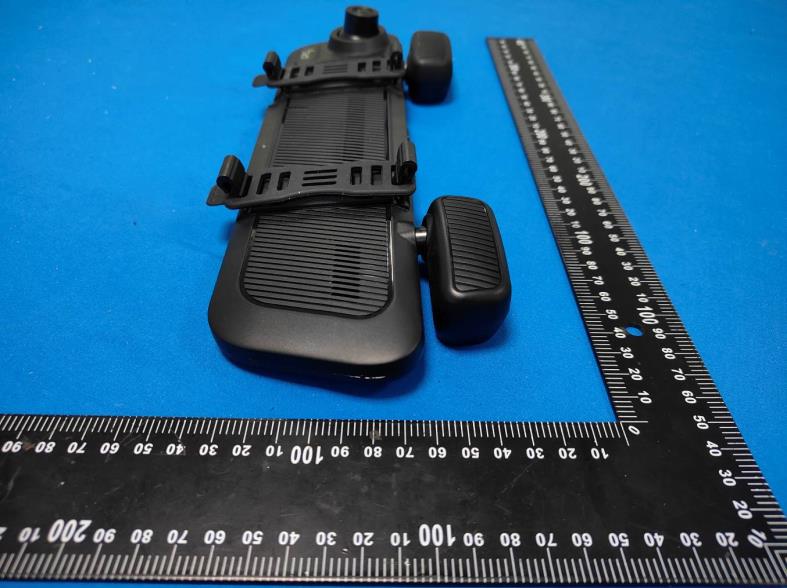

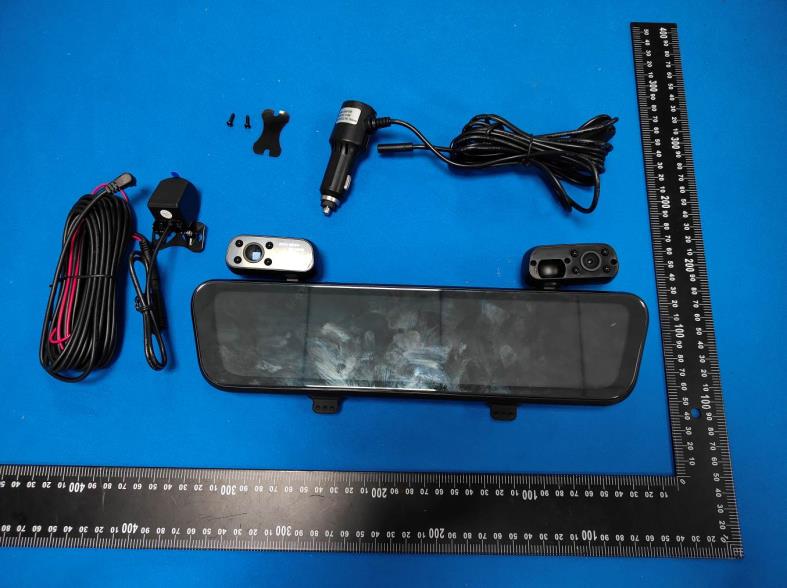

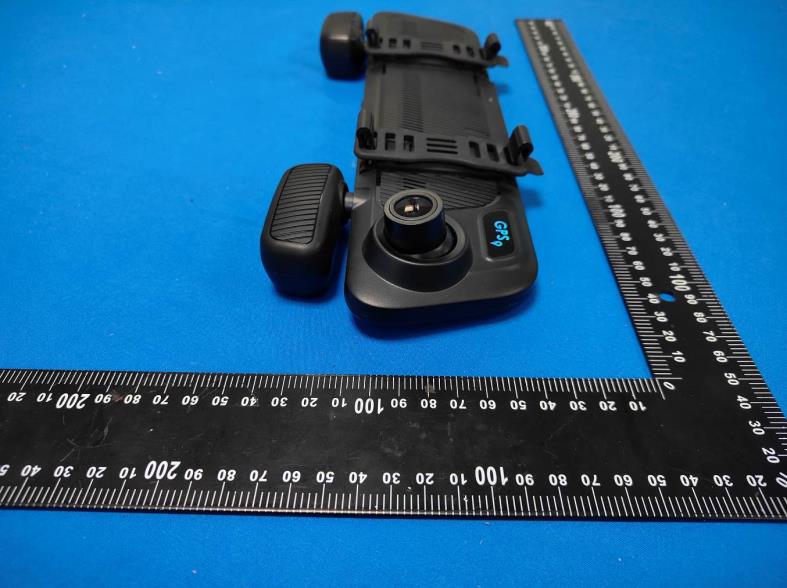

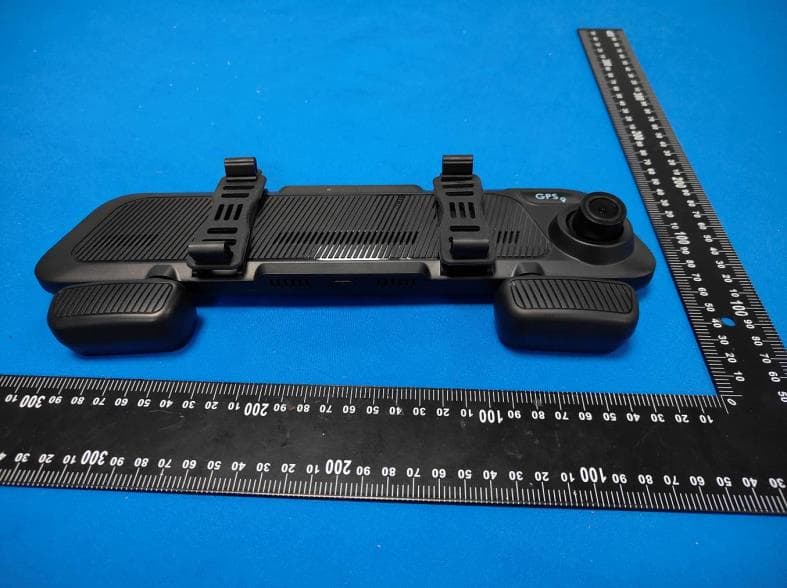

FCC ID:2AW5W-M3M4 External Photos of the EUT FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2AW5W-M3M4

FCC ID:2AW5W-M3M4 Internal Photos of the EUT 2.4G WIFI ANT FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4 FCC ID:2AW5W-M3M4

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA25122601002 2AW5W-M3M4 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 05, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : REXING INC. Address............................................ : 34 Ludwig St, Little Ferry, NJ 07643 Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Dash Cam Trade Mark ....................................... : REXING Manufacturer .................................... : KA FUNG TECHNOLOGY CO LIMITED Model/Type reference ...................... : M4 Listed Models ................................... : M3 Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25122601002 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Dash Cam Model /Type : M4 Listed Models : M3 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : REXING INC. Address : 34 Ludwig St, Little Ferry, NJ 07643 Manufacturer : KA FUNG TECHNOLOGY CO LIMITED Address : Rm.202, C5 Building, Hengfeng Industry Park, No.739 Zhoushi Rd, Hangcheng Subdistrict, Bao'an Dist., Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25122601002 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 MPE Calculation Method ......................................................................................... 7 4.3 Conducted Power Results ....................................................................................... 7 4.4 Manufacturing tolerance .......................................................................................... 8 4.5 Standalone MPE Result ........................................................................................... 8 4.6 Simultaneous Transmission for MPE Result ........................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25122601002 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.ct…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA antenna Model M4 Frequency range 2400-2500MHz Manufacturer REXING INC. Address 34 Ludwig St, Little Ferry, NJ 07643 ANT Peak Gain 1.21 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25122601001 2AW5W-M3M4 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 05, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : REXING INC. Address ............................................ : 34 Ludwig St, Little Ferry, NJ 07643 Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Dash Cam Trade Mark ....................................... : REXING Manufacturer .................................... : KA FUNG TECHNOLOGY CO LIMITED Model/Type reference ...................... : M4 Listed Models ................................... : M3 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25122601001 Page 2 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Dash Cam Model /Type : M4 Listed Models : M3 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : REXING INC. Address : 34 Ludwig St, Little Ferry, NJ 07643 Manufacturer : KA FUNG TECHNOLOGY CO LIMITED Address : Rm.202, C5 Building, Hengfeng Industry Park, No.739 Zhoushi Rd, Hangcheng Subdistrict, Bao'an Dist., Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25122601001 Page 3 of 40 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Test Description .....…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AW5W-M3M4 Company : REXING INC. EUT : Dash Cam Model Number : M4 Report No. : CTA25122601001 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.160 2431.960 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.760 2404.040 2419.800 0.5 PASS 2437 15.680 2429.160 2444.840 0.5 PASS 2462 15.960 2454.080 2470.040 0.5 PASS 11N20SISO Ant1 2412 16.720 2403.680 2420.400 0.5 PASS 2437 16.960 2428.480 2445.440 0.5 PASS 2462 16.960 2453.720 2470.680 0.5 PASS 11N40SISO Ant1 2422 35.200 2404.640 2439.840 0.5 PASS 2437 35.760 2419.240 2455.000 0.5 PASS 2452 35.920 2434.080 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.399 2405.3468 2418.7458 --- --- 2437 13.383 2430.3394 2443.7224 --- --- 2462 13.406 2455.3088 2468.7148 --- --- 11G Ant1 2412 16.831 2403.6822 2420.5132 --- --- 2437 16.814 2428.6560 2445.4700 --- --- 2462 16.861 2453.5927 2470.4537 --- --- 11N20SISO Ant1 2412 17.857 2403.1049 2420.9619 --- --- 2437 17.892 2428.0748 2445.9668 --- --- 2462 17.918 2453.0469 2470.9649 --- --- 11N40SISO Ant1 2422 36.066 2404.0443 2440.1103 --- --- 2437 36.052 2419.0592 2455.1112 --- --- 2452 36.072 2434.0446 2470.1166 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.45 ≤30.00 PASS 2437 13.48 ≤30.00 PASS 2462 13.65 ≤30.00 PASS 11G Ant1 2412 13.71 ≤30.00 PASS 2437 13.85 ≤30.00 PASS 2462 14.19 ≤30.00 PASS 11N20SISO Ant1 2412 13.66 ≤30.00 PASS 2437 14.00 ≤30.00 PASS 2462 14.07 ≤30.00 PASS 11N40SISO Ant1 2422 14.10 ≤30.00 PASS 2437 14.28 ≤30.00 PASS 2452 14.30 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.89 ≤8.00 PASS 2437 -13.03 ≤8.00 PASS 2462 -12.38 ≤8.00 PASS 11G Ant1 2412 -16.99 ≤8.00 PASS 2437 -17.93 ≤8.00 PASS 2462 -17.95 ≤8.00 PASS 11N20SISO Ant1 2412 -17.44 ≤8.00 PASS 2437 -17.71 ≤8.00 PASS 2462 -16.98 ≤8.00 PASS 11N40SISO Ant1 2422 -19.55 ≤8.00 PASS 2437 -20.27 ≤8.00 PASS 2452 -19.63 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.23 -48.04 ≤-18.77 PASS High 2462 1.54 -56.19 ≤-18.46 PASS 11G Ant1 Low 2412 -2.57 -34.87 ≤-22.57 PASS High 2462 -2.27 -57.26 ≤-22.27 PASS 11N20SIS O Ant1 Low 2412 -2.71 -34.57 ≤-22.71 PASS High 2462 -2.49 -56.9 ≤-22.49 PASS 11N40SIS O Ant1 Low 2422 -5.96 -33.85 ≤-25.96 PASS High 2452 -5.59 -57.48 ≤-25.59 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.07 0.07 --- PASS 30~1000 0.07 -42.74 ≤-19.93 PASS 1000~26500 0.07 -55.36 ≤-19.93 PASS 2437 Reference 1.00 1.00 --- PASS 30~1000 1.00 -68.05 ≤-19 PASS 1000~26500 1.00 -54.73 ≤-19 PASS 2462 Reference 1.19 1.19 --- PASS 30~1000 1.19 -39.14 ≤-18.81 PASS 1000~26500 1.19 -55.48 ≤-18.81 PASS 11G Ant1 2412 Reference -4.83 -4.83 --- PASS 30~1000 -4.83 -68.56 ≤-24.83 PASS 1000~26500 -4.83 -54.25 ≤-24.83 PASS 2437 Reference -2.75 -2.75 --- PASS 30~1000 -2.75 -67.68 ≤-22.75 PASS 1000~26500 -2.75 -55.14 ≤-22.75 PASS 2462 Reference -2.63 -2.63 --- PASS 30~1000 -2.63 -67.99 ≤-22.63 PASS 1000~26500 -2.63 -55.38 ≤-22.63 PASS 11N20SISO Ant1 2412 Reference -3.36 -3.36 --- PASS 30~1000 -3.36 -68.2 ≤-23.36 PASS 1000~26500 -3.36 -55.21 ≤-23.36 PASS 2437 Reference -3.19 -3.19 --- PASS 30~1000 -3.19 -68.08 ≤-23.19 PASS 1000~26500 -3.19 -54.82 ≤-23.19 PASS 2462 Reference -3.28 -3.28 --- PASS 30~1000 -3.28 -68.11 ≤-23.28 PASS 1000~26500 -3.28 -55.07 ≤-23.28 PASS 11N40SISO Ant1 2422 Reference -6.04 -6.04 --- PASS 30~1000 -6.04 -68.4 ≤-26.04 PASS 1000~26500 -6.04 -55.2 ≤-26.04 PASS 2437 Reference -6.33 -6.33 --- PASS 30~1000 -6.33 -67.88 ≤-26.33 PASS 1000~26500 -6.33 -55.54 ≤-26.33 PASS 2452 Reference -6.38 -6.38 --- PASS 30~1000 -6.38 -67.5 ≤-26.38 PASS 1000~26500 -6.38 -54.74 ≤-26.38 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 8.35 8.40 99.40 2437 8.35 8.40 99.40 2462 8.35 8.40 99.40 11G Ant1 2412 0.15 0.19 78.95 2437 0.15 0.20 75.00 2462 0.14 0.19 73.68 11N20SISO Ant1 2412 0.18 0.23 78.26 2437 0.18 0.22 81.82 2462 0.17 0.22 77.27 11N40SISO Ant1 2422 0.18 0.22 81.82 2437 0.18 0.22 81.82 2452 0.18 0.23 78.26 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.11 2.00 37.09 ≤54 PASS AV 2389.310 -56.23 2.00 40.97 ≤54 PASS AV 2390.000 -56.77 2.00 40.43 ≤54 PASS Peak 2310.000 -52.03 2.00 45.17 ≤74 PASS Peak 2385.800 -47.01 2.00 50.19 ≤74 PASS Peak 2390.000 -48.67 2.00 48.53 ≤74 PASS High 2462 AV 2483.500 -56.01 2.00 41.19 ≤54 PASS AV 2488.180 -55.96 2.00 41.24 ≤54 PASS AV 2500.000 -58.58 2.00 38.62 ≤54 PASS Peak 2483.500 -47.03 2.00 50.17 ≤74 PASS Peak 2487.850 -46.99 2.00 50.21 ≤74 PASS Peak 2500.000 -51.52 2.00 45.68 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.34 2.00 36.86 ≤54 PASS AV 2383.070 -58.7 2.00 38.50 ≤54 PASS AV 2390.000 -58.78 2.00 38.42 ≤54 PASS Peak 2310.000 -51.32 2.00 45.88 ≤74 PASS Peak 2340.820 -48.77 2.00 48.43 ≤74 PASS Peak 2390.000 -52.53 2.00 44.67 ≤74 PASS High 2462 AV 2483.500 -59.11 2.00 38.09 ≤54 PASS AV 2496.540 -58.47 2.00 38.73 ≤54 PASS AV 2500.000 -59.83 2.00 37.37 ≤54 PASS Peak 2483.500 -51.16 2.00 46.04 ≤74 PASS Peak 2497.750 -48.22 2.00 48.98 ≤74 PASS Peak 2500.000 -51.75 2.00 45.45 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.33 2.00 36.87 ≤54 PASS AV 2383.460 -58.71 2.00 38.49 ≤54 PASS AV 2390.000 -58.81 2.00 38.39 ≤54 PASS 49 Peak 2310.000 -52.96 2.00 44.24 ≤74 PASS Peak 2384.240 -49.13 2.00 48.07 ≤74 PASS Peak 2390.000 -52.22 2.00 44.98 ≤74 PASS High 2462 AV 2483.500 -59.71 2.00 37.49 ≤54 PASS AV 2484.110 -58.19 2.00 39.01 ≤54 PASS AV 2500.000 -59.1 2.00 38.10 ≤54 PASS Peak 2483.500 -50.92 2.00 46.28 ≤74 PASS Peak 2484.220 -47.74 2.00 49.46 ≤74 PASS Peak 2500.000 -51.22 2.00 45.98 ≤74 PASS 11N40SI SO Ant1 Low 2422 AV 2310.000 -59.89 2.00 37.31 ≤54 PASS AV 2389.700 -57.93 2.00 39.27 ≤54 PASS AV 2390.000 -59.07 2.00 38.13 ≤54 PASS Peak 2310.000 -52.15 2.00 45.05 ≤74 PASS Peak 2386.400 -47.77 2.00 49.43 ≤74 PASS Peak 2390.000 -49.8 2.00 47.40 ≤74 PASS High 2452 AV 2483.500 -58.42 2.00 38.78 ≤54 PASS AV 2484.625 -58.04 2.00 39.16 ≤54 PASS AV 2500.000 -59.04 2.00 38.16 ≤54 PASS Peak 2483.500 -50.2 2.00 47.00 ≤74 PASS Peak 2496.500 -46.88 2.00 50.32 ≤74 PASS Peak 2500.000 -52.22 2.00 44.98 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak

FCC ID:2AW5W-M3M4 Test Setup Photos of the EUT
