2AW5W-V1PPRODash Camera

V1P Pro Quick Start Guide Guide de démarrage rapide de la V1P Pro FR Guida di avvio rapido V1P Pro IT V1P Pro Schnellstartanleitung DE Guía de inicio rápido V1P Pro SP V1P Pro クイックスタートガイド JP 2 Table of Contents English Overview What’s in the Box Camera Overview Installation Basic Operation 日本語 概説 箱の中には何が入っていますか カメラの概説 画面のアイコン 基本操作 Français Aperçu Que contient la Boîte Aperçu de la Caméra Installation Opération de Base Italiano Descrizione Nella Confezione Descrizione Telecamera Installazione Funzionamento Base page 4 5 6 8 12 18 19 20 22 27 32 33 34 36 41 46 47 48 50 55 3 Español Visión General Qué hay en la Caja Resumen de la Cámara Instalación Operación Básica Deutsch Übersicht Verpackungsinhalt Kamera übersicht Installation Grundbedienungen 60 61 62 64 69 74 75 76 78 83 page 4 1. Overview Thank you for choosing REXING! We hope you love your new product as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. You can reach us via [email protected] or call us at (203) 800-4466. Our support team will respond you as soon as possible. Always a surprise in Rexing. Check us out here. https://www.facebook.com/rexingusa/ https://www.instagram.com/rexingdashcam/ https://www.rexingusa.com/support/registration/ FacebookInstagramSite 5 1. Overview 1. Rexing V1P Pro Dashboard Camera 2. Full HD Rear Camera 3. Rear Camera Cable (20ft) 4. Car Power Connector (12ft) 5. 3M Adhesive Mount 6. USB Cable 7. User Manual 8. Safety Guide 9. Cable Management Tool 2. What’s in the box 2. 5. 4. 6.3. 7.8. 9. 1. V1P Pro Quick Start Guide Guide de démarrage rapide de la V1P Pro FR Guida di avvio rapido V1P Pro IT V1P Pro Schnellstartanleitung DE Guía de inicio rápido V1P Pro SP V1P Pro クイックスタートガイド JP 6 3. Camera Overview 1. OK (Confirm) Button / Emergency Lock Button 2. Up Navigation Button / Record Button* 3. Power Button / Screen Toggle Butto 4. Down Navigation Button / Mic Button** 5. Menu Button / Mode Button 6. Micro SD Card Slot 7. Reset Button 8. USB Charging Port 9. Rear Camera Port 10. GPS Logger Port (not used by V1P Pro) *The camera is recording when the LED is flashing red. **The device is charging or powered on when the LED is solid white. 2.4.5. 3. 1. 9. 10. 6. 8. 7. 7 Screen Icons Recording (on) Recording Standby Status Exposure Value Loop Recording Time Video Resolution GPS Signal (not connected) Memory Card (inserted) Battery Charging WDR Mode (on) Time (24h) Current Date (DD/MM/YYYY) Recording Time (current clip) MIC (on) 8 4. Installation Step 1: Install the Dash Cam Place the 3M tape on the Mount and properly orient the Mount square to the roof and hood line of the vehicle. Important! Ensure the T-interlock on the Mount is oriented in the correct direction. Firmly press the Mount onto the windshield. Wait at least 20 minutes before mounting the camera. On the illustration Orient the mount as shown. Step 2: Insert the Memory Card The Rexing V1P Pro accepts [Class 10/UHS-1 or higher] Micro SD memory cards up to 256GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you’ve powered down the device. Gently push the memory card in until you hear a click, and allow the pring release to push the card out. Orient the mount as shown Press the Power button to turn the power off 9 Step 3: Power the Camera and Format the Memory Card Power the camera by connecting the charger to the car cigarette lighter and camera. To ensure the V1P Pro records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function. Always backup important data stored on the memory card before formatting. To format the memory card, make sure you have inserted your memory card, then turn on the device by connecting to a power source. Press REC to stop recording. Then press the MENU button twice to enter the System Setup Menu. Use the REC and MIC buttons and go to the Format setting. Press the OK button to confirm the selection. You may now disconnect from power. The camera will shut down after 3 seconds. The camera should begin recording automatically the next time it is powered on. Press the OK button to confirm formatting the card Press the Menu button twice 10 Step 4: Mount the Rear Camera Mount the rear camera as shown below. Use the provided rear camera cable to connect the rear camera to the front camera. Rear Camera Instalation Plug the Rear Camera into the Dashcam 11 Step 5: Installing the Camera onto the Windshield Place the camera on the mount and carefully route the power cable around the windscreen and tuck in under the trim. Plug the Car Charger Cable into a 12V DC power outlet or the car cigarette lighter. Connect car charger to the camera. The camera will auto-start recording once powered on. Route power cable to the Dashcam Plug Mini USB Connector to the Dashcam Plug charger into power outlet or cigarette lighter 12 5. Basic Operation Device Power The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and received a charge (i.e.: the vehicle is started). To turn the device on manually, press and hold the Power button until the welcome screen appears. The camera will automatically start recording when power on. Press and hold the Power button to turn the device on manually Menu Settings Power the camera On. If the camera is recording, press the REC button to stop recording. Hold the MODE button and toggle to the desired mode. Press the MENU button once to enter the settings menu for a Mode. Press the MENU button twice to enter the System Settings (Set up). 13 Video Recording The camera will automatically start recording when the device receives charge. The LED lights and red dot will blink red device when recording. Press the REC button to stop recording. The camera automatically starts recording when powered on Control playback with OK, REC and MIC button Play…

Text truncated - open the document above for the full version.

REXING INC. Agent Authorization Company: REXING INC. Address: 264 Quarry Rd Unit D Milford, CT 06460 USA Product Name: Dash Camera Model Number(s): V1P PRO, V1P Gen3 Product Description: Dash Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 28, 2021 Name: Yuhe Sun Title: General Manager Company: REXING INC.

REXING INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 28, 2021 Subject; Request for Confidentiality FCC ID: 2AW5W-V1PPRO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yuhe Sun Title: General Manager

Model Difference Declaration To Whom It May Concern, We, REXING INC.（Dash Camera) Trademark:REXING; Model Number: V1P PRO, V1P Gen3; All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different. Test sample model: V1P PRO for commercial purpose. Please contact me if you have any question. Name: Yuhe Sun Date: Jun. 28, 2021 Title: General Manager Signature of applicant:

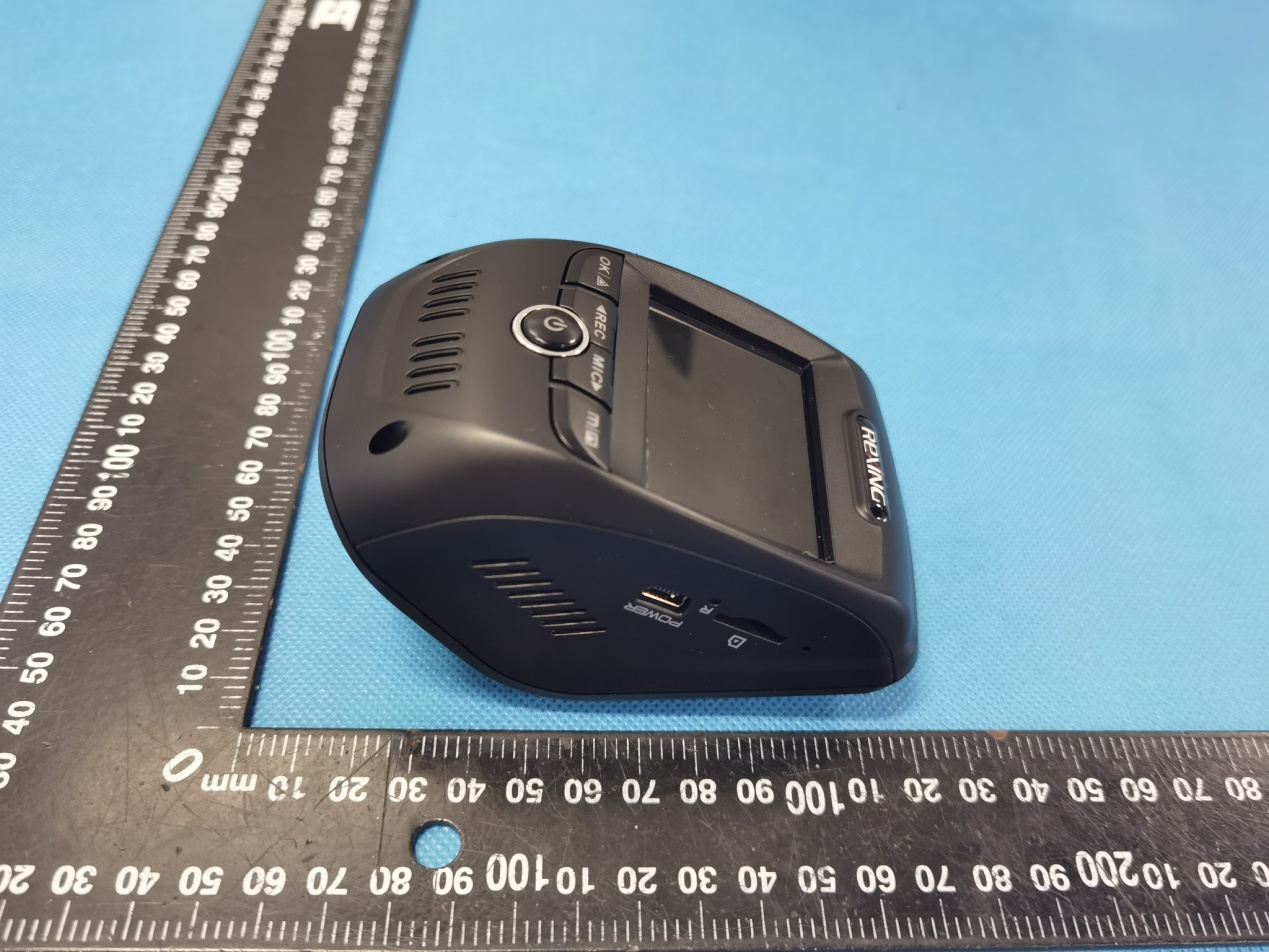

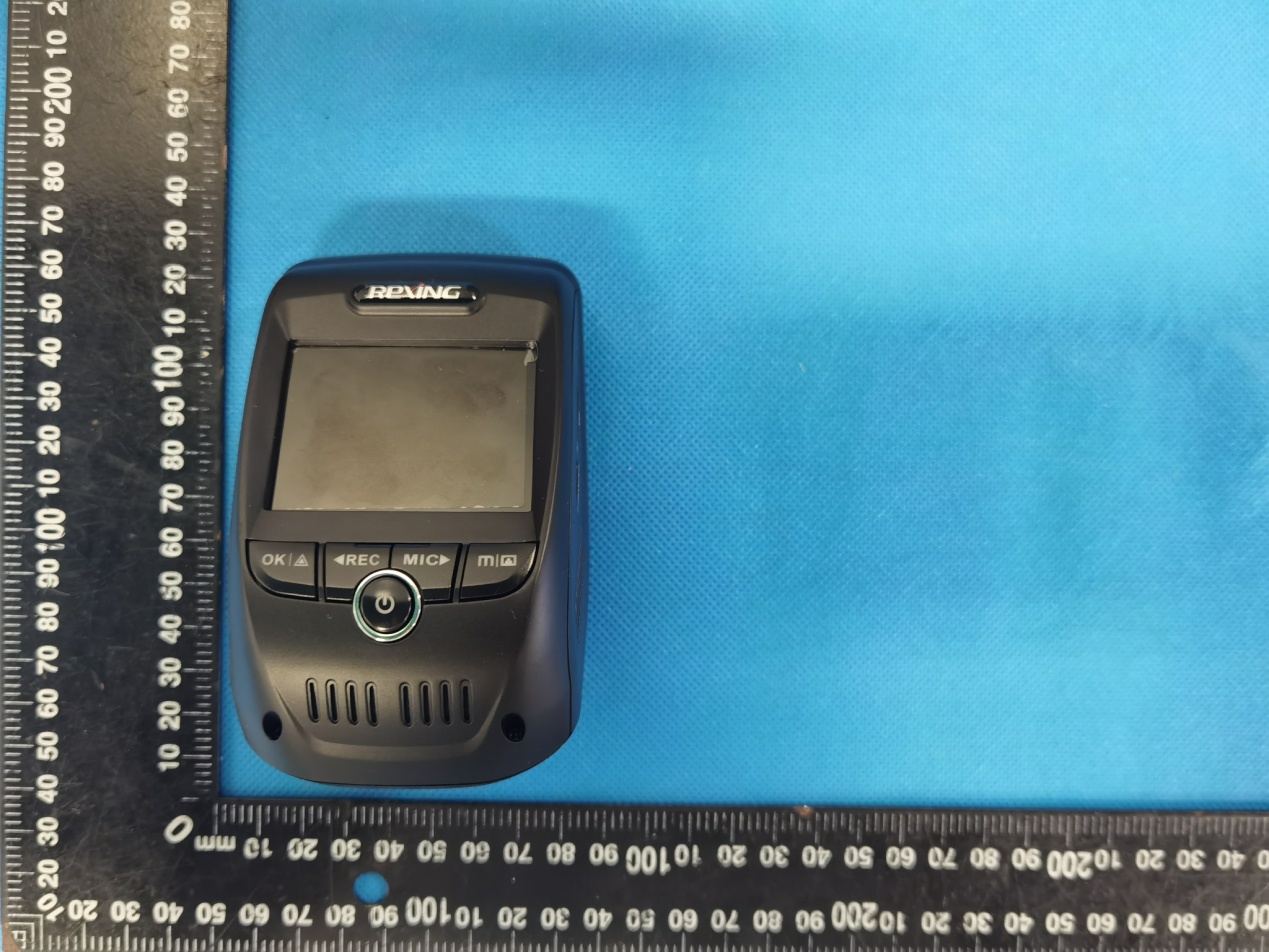

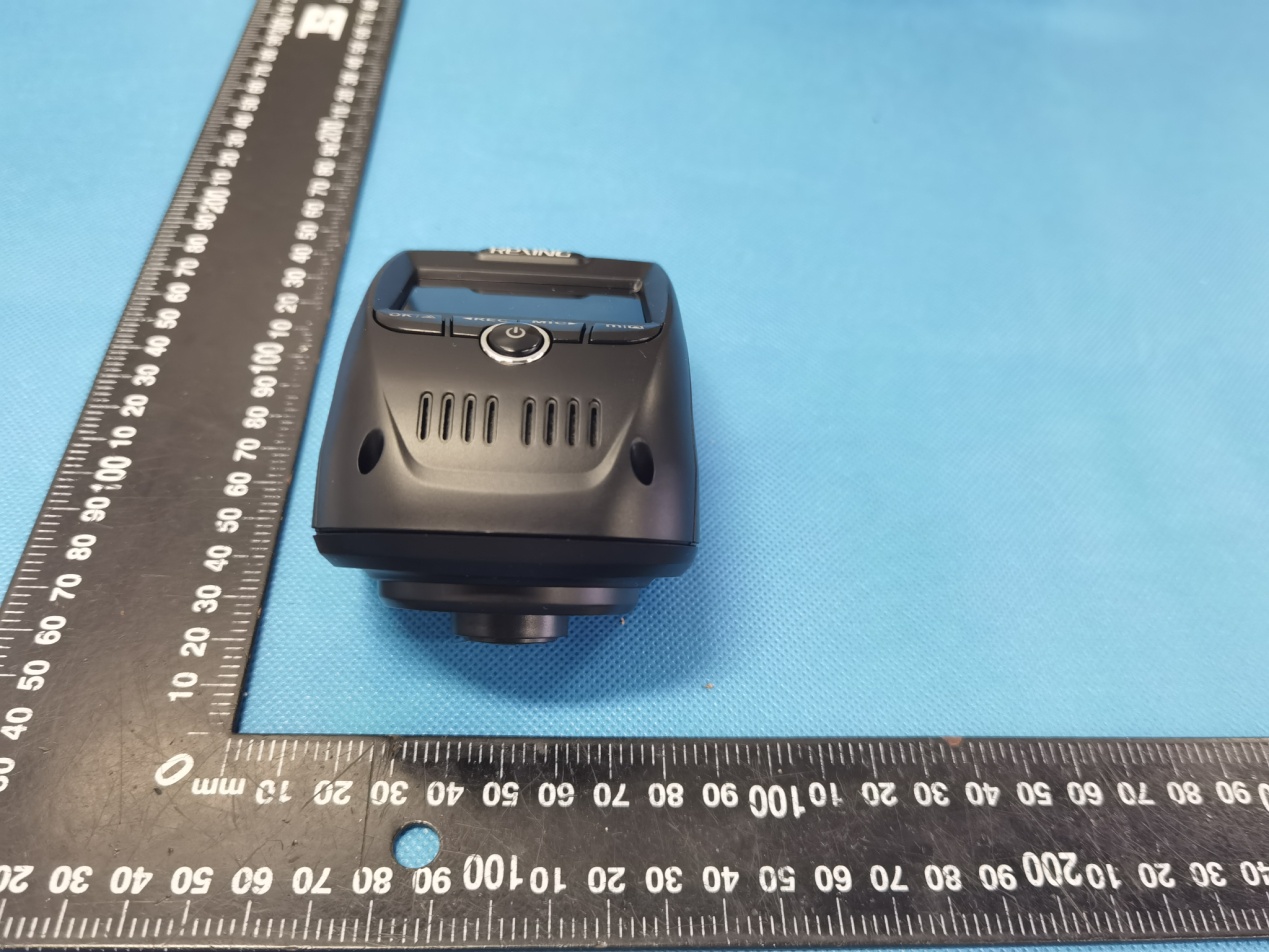

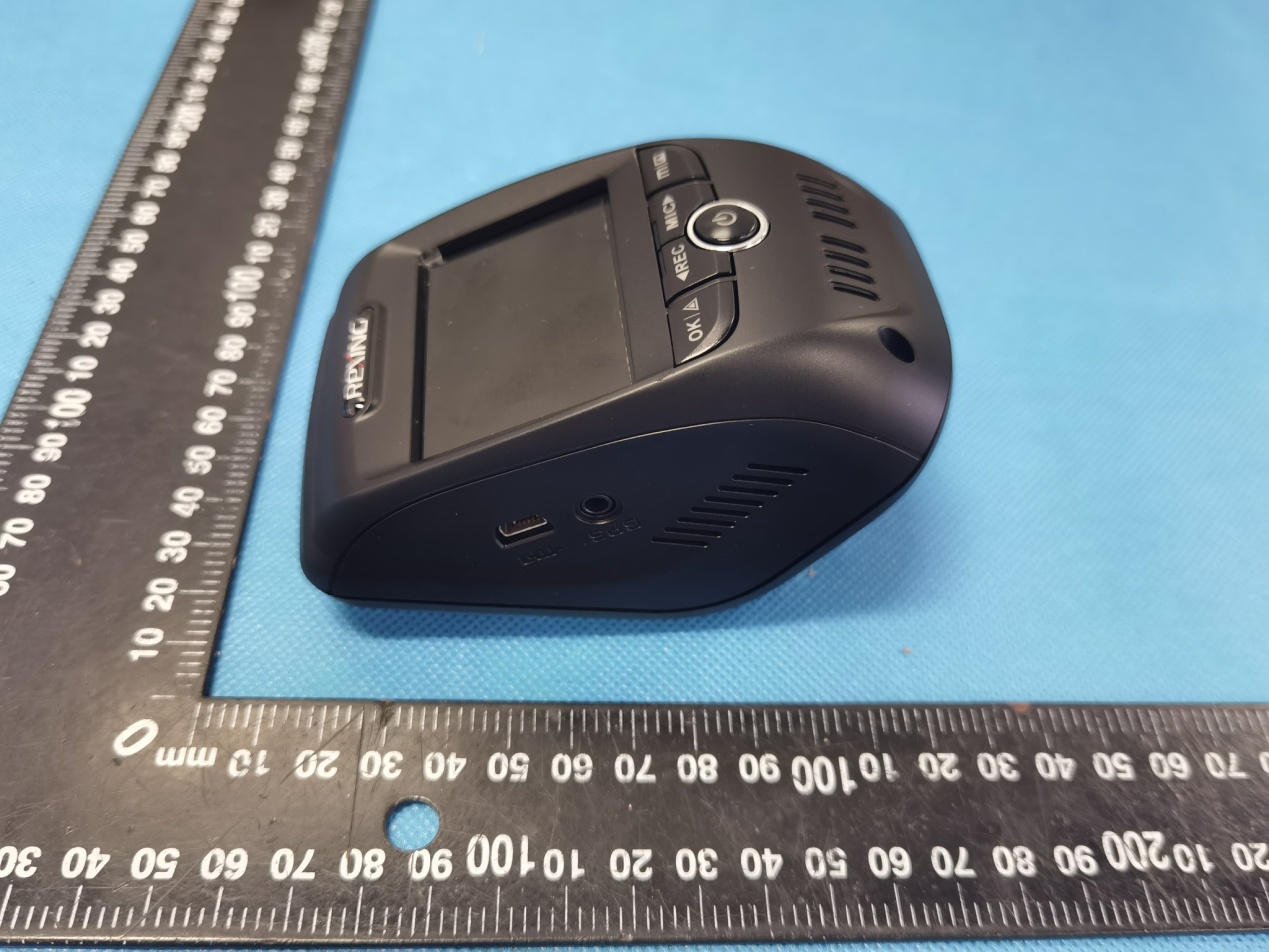

Annex A External Photos Report No.: HK2106081817‐E Page 1 of 3 Report No.: HK2106081817‐E Page 2 of 3 Report No.: HK2106081817‐E Page 3 of 3

FCC ID LABEL: Label Location FCC ID: 2AW5W-V1PPRO

Annex B Internal Photos Report No.: HK2106081817‐E Page 1 of 5 Report No.: HK2106081817‐E Page 2 of 5 Antenna Report No.: HK2106081817‐E Page 3 of 5 Report No.: HK2106081817‐E Page 4 of 5 Report No.: HK2106081817‐E Page 5 of 5

MPE ESTIMATION FCC ID: 2AW5W-V1PPRO 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 2.4G WiFi 2437 16.11 16±1(17) 50.12 0 1.0000 0.00997 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2106081817-E, antenna gain=0dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00997 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 70 Report No.: HK2106081817-E FCC TEST REPORT T est report On Behalf of REXING INC. For Dash Camera Model No.: V1P PRO, V1P Gen3 FCC ID: 2AW5W-V1PPRO Prepared for : REXING INC. 264 Quarry Rd Unit D Milford, CT 06460 USA Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jun. 10, 2021 ~ Jun. 18, 2021 Date of Report: Jun. 18, 2021 Report Number: HK2106081817-E Applican Address . Manufac t Address . Product d Trade Ma Product n Model an d Standard This publi the Shen source o f and will reproduc e Date of Te Date (s) o Date of Is Te s t R e su t’s name ... .................. ture's Nam .................. description rk: ame ............ d/or type re ds ............... ication may zhen HUA fthe materi not assu m ed material est ............. of performan ssue ............ ult ................ Te s Te c Aut TES ............... : ............... : me ............. : ............... : n ................. : eference . : ............... : y be reprod K Testing T al. Shenzhe me liability due to its p .................. nce of tests .................. .................. sting Engine chnical Man thorized Sig Page ST RESU REXING IN 264 Quarr KA FUNG Rm202, C Rd, Hangc RE XING Dash Ca m V1P PRO, FCC Rule s ANSI C63. uced in wh Technology en HUAK T for damag placement a ............. : ............. : ............. : ............. : eer : nager : gnatory : 2 of 70 ULT CER NC. ry Rd Unit D TECHNOL C5 Building, cheng Subd mera V1P Gen 3 s and Regu .10: 2013 ole or in p a y Co., Ltd. Testing Tech ges resultin and context. Jun. 10, 2 0 Jun. 18, 20 Pass RTIFICAT D Milford, CT OGY CO L , Hengfeng district, Bao 3 lations Part art for non-c is acknow hnology Co ng from the 021 ~ Jun. 1 021 (Gary Qi a (Eden Hu (Jason Zho Repor TION T 06460 US IMITED g Industry P ’an Dist., Sh 15 Subpart commercia wledged as o., Ltd. take e reader's 8, 2021 an) u) ou) rt No.: HK21 SA Park, No.73 henzhen Ch t C Section l purposes copyright o es no respo interpreta t 106081817-E 39 Zhoushi hina 15.247 as long as owner and nsibility for tion of the E Page 3 of 70 Report No.: HK2106081817-E TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.3. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. enera Information.................................................................................... 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 12 4. Test Results and Measurement Data .................................................... 13 4.1. CONDUCTED EMISSION ........................................................................................................................ 13 4.2. TEST RESULT ...................................................................................................................................... 15 4.3. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 17 4.4. EMISSION BANDWIDTH ......................................................................................................................... 19 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 25 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 31 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 41 4.8. ANTENNA REQUIREMENT ............................................................................................................. 67 4.9. PHOTOGRAPH OF TEST ................................................................................................................. 68 4.10. PHOTOS OF THE EUT ..................................................................................................................... 70 Page 4 of 70 Report No.: HK2106081817-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jun. 18, 2021 Jason Zhou Page 5 of 70 Report No.: HK2106081817-E 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. T…
