2AW97-X18Video Walkie-Talkie

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

SHENZHEN XINWU TECHNOLOGY LIMITED Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/09 U.S. Agent Designation SHENZHEN XINWU TECHNOLOGY LIMITED acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AW97-X18): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of SHENZHEN XINWU TECHNOLOGY LIMITED SHENZHEN XINWU TECHNOLOGY LIMITED with the FRN [0029866605] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature jin jiang vice president SHENZHEN XINWU TECHNOLOGY LIMITED Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

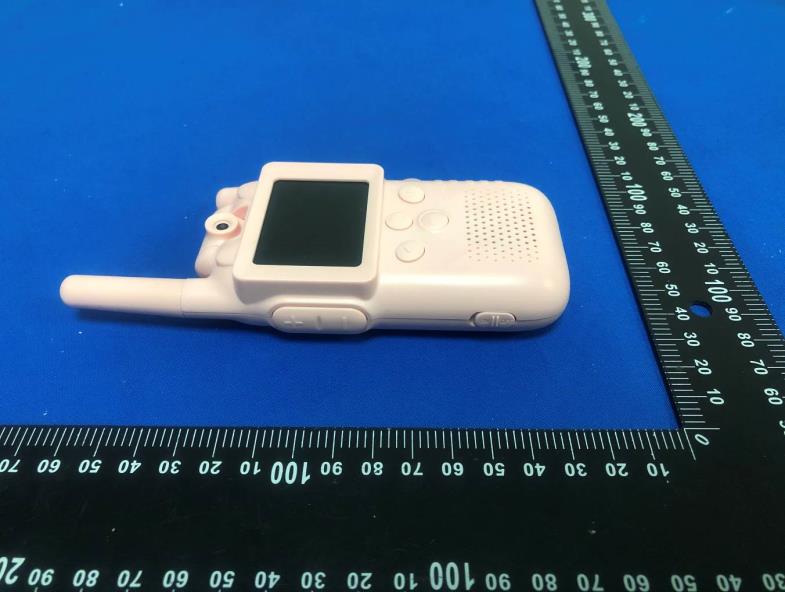

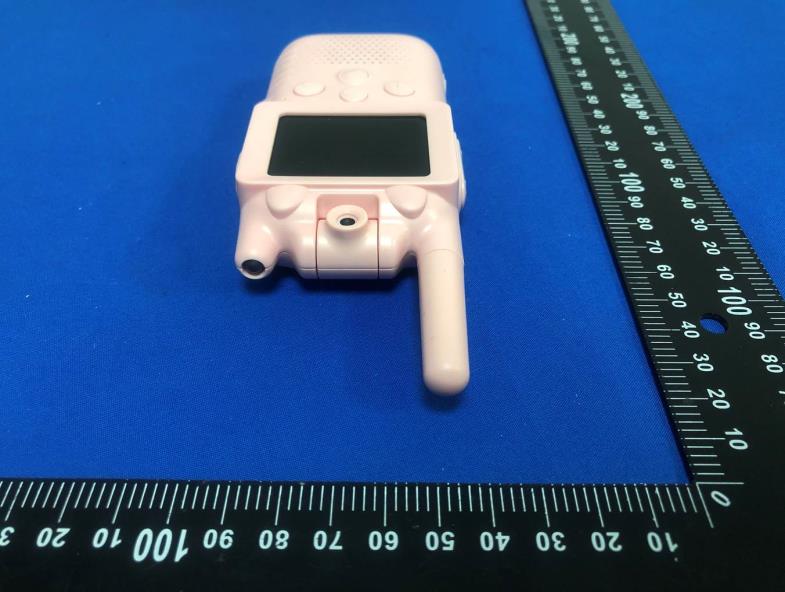

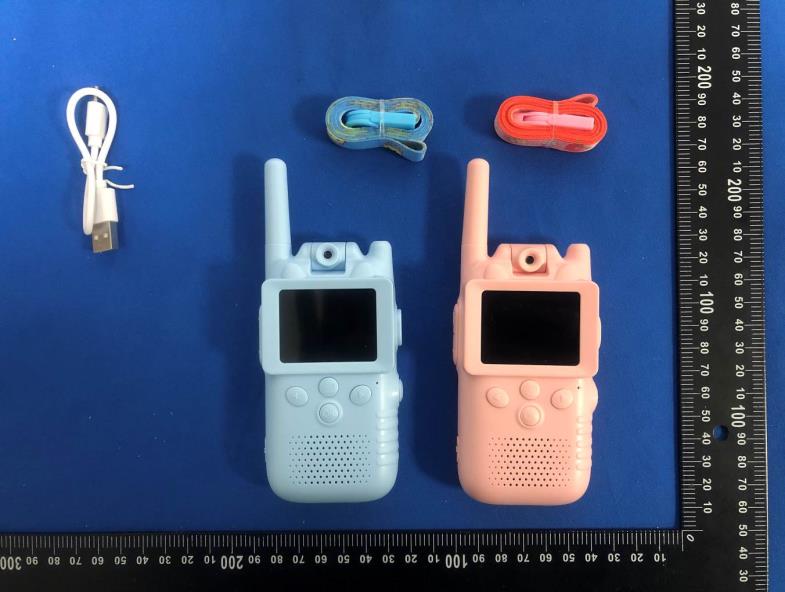

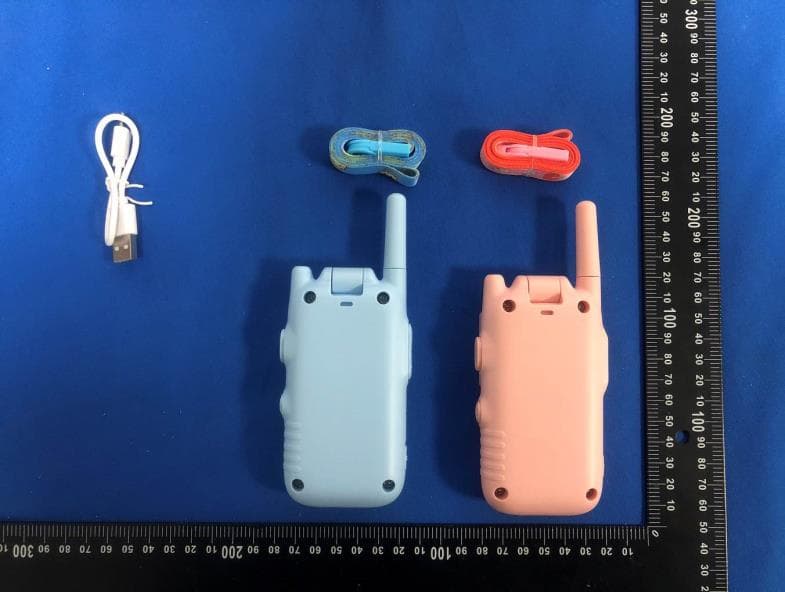

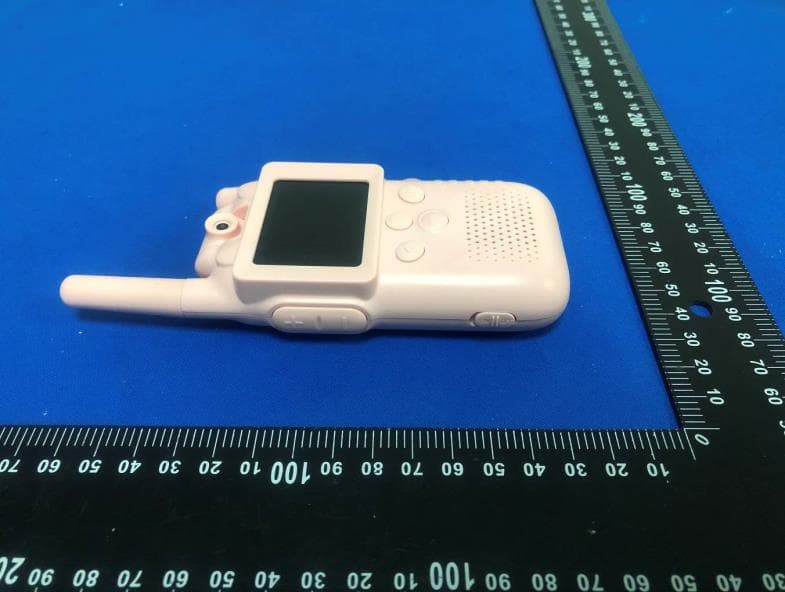

FCC ID:2AW97-X18 External Photos of the EUT FCC ID:2AW97-X18 FCC ID:2AW97-X18

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AW97-X18

FCC ID:2AW97-X18 Internal Photos of the EUT 2.4G WIFI ANT FCC ID:2AW97-X18 FCC ID:2AW97-X18

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25123000102 2AW97-X18 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 07, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : SHENZHEN XINWU TECHNOLOGY LIMITED Address............................................ : Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Video Walkie-Talkie Trade Mark ....................................... : N/A Manufacturer .................................... : SHENZHEN XINWU TECHNOLOGY LIMITED Model/Type reference ...................... : X18 Listed Models ................................... : Refer to page 2 Rating ............................................... : Input: 5V 1A Battery: 3.7V 600mAh 2.22Wh Result ............................................... : PASS Report No.: CTA25123000102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Video Walkie-Talkie Model /Type : X18 Listed Models : X1, X2, X3, X4, X5, X6, X7, X8, X11, X12, X13, X14, X15, X16, X17, X19, X20 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : SHENZHEN XINWU TECHNOLOGY LIMITED Address : Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Manufacturer : SHENZHEN XINWU TECHNOLOGY LIMITED Address : Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25123000102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25123000102 …

Text truncated - open the document above for the full version.

1 / 4 天线样品承认书 深圳市安创智联电子有限公司 公司地址： 深圳市宝安区新安街道留仙一路二巷 26 号百财科技园 L 栋 5 楼 5F 项目基本信息说明： 天线类型内置天线 天线规格铜管 + 同轴线 工作频段 2400-2500 户客芯伍科技 客户型号A1934-2.4G铜管天线 物料编码 产品规格 2.4G 单铜管天线，1.13 黑色线总长 82mm，剥线 2.5-1.3-1.3 本版A1.2 制作日期2025.12.24 核准/盖章结构审核RF 审核制编 客户确认签章： Add: 5F, Building L, Baicai Technology Park, No. 26, Lane 2, Liuxian 1st Road, Xin'an Street, Bao'an District, Shenzhen 2/4 1.天线测试设备 Antenna testing equipment 1 .1 暗室原理图 图 1 暗室系统装配测试连线图图 2 天线静态测试连接方法 1.2 暗室实体内部图1.3 测试仪器 1.4 产品图片 Product photo 3/4 2.主要技术指标 Main technical indicators 3.测试数据 Test data Frequency Efficiency /Gain/ dBi 240050.822.27 241050.352.03 242054.452.23 243055.592.34 244053.832.34 245050.752.3 246055.342.66 247057.63.02 248055.212.56 249054.082.62 250058.212.7 主要技术指标 1. 电气指标 ： Electeical spedification s 型号（Model）A1934-2.4G 铜管天线 2.频率范围(Freqrange)2400-2500 3.增益(Gain）≤3DBi 4. 水平波瓣宽度（Horizontal Beamwidth） / 5. 垂直波瓣宽度（Vertical Beamwidth） / 6.驻波比（VSWR）≤2 7.阻抗（Lmpedance）50Ω 8.极化方式（Polarization）垂直极化 9.最大功率（max.power）50W 10.接头型号(Connection）/ 11.防雷保护(Lightning protertion)直流接地 4/4 4.图档 Documentary materials

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25123000101 2AW97-X18 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 07, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : SHENZHEN XINWU TECHNOLOGY LIMITED Address ............................................ : Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Video Walkie-Talkie Trade Mark ....................................... : N/A Manufacturer .................................... : SHENZHEN XINWU TECHNOLOGY LIMITED Model/Type reference ...................... : X18 Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM/ OFDMA Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 5V 1A Battery: 3.7V 600mAh 2.22Wh Result ............................................... : PASS Report No.: CTA25123000101 Page 2 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Video Walkie-Talkie Model /Type : X18 Listed Models : X1, X2, X3, X4, X5, X6, X7, X8, X11, X12, X13, X14, X15, X16, X17, X19, X20 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : SHENZHEN XINWU TECHNOLOGY LIMITED Address : Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Manufacturer : SHENZHEN XINWU TECHNOLOGY LIMITED Address : Floor 6, Building 2,Chungu Science park,Meisheng Huigu Science Park,83 Dabao Road,Baoan District Shenzhen, 518101 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25123000101 Page 3 of 39 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory .............................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AW97-X18 Company : SHENZHEN XINWU TECHNOLOGY LIMITED EUT : Video Walkie-Talkie Model Number : X18 Report No. : CTA25123000101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.240 2431.920 2442.160 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.920 2404.080 2420.000 0.5 PASS 2437 15.920 2429.080 2445.000 0.5 PASS 2462 15.960 2454.040 2470.000 0.5 PASS 11N20SISO Ant1 2412 16.240 2404.200 2420.440 0.5 PASS 2437 16.800 2428.680 2445.480 0.5 PASS 2462 16.240 2454.200 2470.440 0.5 PASS 11N40SISO Ant1 2422 35.280 2404.560 2439.840 0.5 PASS 2437 36.000 2419.000 2455.000 0.5 PASS 2452 34.880 2434.400 2469.280 0.5 PASS 11AX20SISO Ant1 2412 18.520 2402.800 2421.320 0.5 PASS 2437 18.800 2427.680 2446.480 0.5 PASS 2462 18.440 2452.680 2471.120 0.5 PASS 11AX40SISO Ant1 2422 36.480 2404.240 2440.720 0.5 PASS 2437 36.480 2419.160 2455.640 0.5 PASS 2452 37.120 2433.840 2470.960 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 8 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 9 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 10 11 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.562 2405.2766 2418.8386 --- --- 2437 13.541 2430.2698 2443.8108 --- --- 2462 13.572 2455.2381 2468.8101 --- --- 11G Ant1 2412 16.927 2403.5849 2420.5119 --- --- 2437 16.845 2428.6387 2445.4837 --- --- 2462 16.923 2453.5595 2470.4825 --- --- 11N20SISO Ant1 2412 17.962 2403.0651 2421.0271 --- --- 2437 17.920 2428.0700 2445.9900 --- --- 2462 17.977 2453.0101 2470.9871 --- --- 11N40SISO Ant1 2422 36.082 2404.0727 2440.1547 --- --- 2437 36.072 2419.0676 2455.1396 --- --- 2452 36.116 2434.0036 2470.1196 --- --- 11AX20SISO Ant1 2412 18.985 2402.5645 2421.5495 --- --- 2437 18.895 2427.6031 2446.4981 --- --- 2462 19.009 2452.5256 2471.5346 --- --- 11AX40SISO Ant1 2422 37.682 2403.2677 2440.9497 --- --- 2437 37.734 2418.2364 2455.9704 --- --- 2452 37.709 2433.2745 2470.9835 --- --- 12 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 13 11G_Ant1_2412 11G_Ant1_2437 14 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 15 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 16 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 17 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 18 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 19 20 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 3.54 ≤30.00 PASS 2437 3.85 ≤30.00 PASS 2462 3.66 ≤30.00 PASS 11G Ant1 2412 3.37 ≤30.00 PASS 2437 3.73 ≤30.00 PASS 2462 3.65 ≤30.00 PASS 11N20SISO Ant1 2412 3.12 ≤30.00 PASS 2437 3.65 ≤30.00 PASS 2462 3.38 ≤30.00 PASS 11N40SISO Ant1 2422 4.20 ≤30.00 PASS 2437 4.41 ≤30.00 PASS 2452 4.31 ≤30.00 PASS 11AX20SISO Ant1 2412 3.70 ≤30.00 PASS 2437 4.10 ≤30.00 PASS 2462 3.95 ≤30.00 PASS 11AX40SISO Ant1 2422 4.60 ≤30.00 PASS 2437 4.67 ≤30.00 PASS 2452 4.77 ≤30.00 PASS 21 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -21.71 ≤8.00 PASS 2437 -21.40 ≤8.00 PASS 2462 -22.57 ≤8.00 PASS 11G Ant1 2412 -28.38 ≤8.00 PASS 2437 -27.74 ≤8.00 PASS 2462 -27.52 ≤8.00 PASS 11N20SISO Ant1 2412 -27.14 ≤8.00 PASS 2437 -28.05 ≤8.00 PASS 2462 -27.81 ≤8.00 PASS 11N40SISO Ant1 2422 -29.45 ≤8.00 PASS 2437 -30.05 ≤8.00 PASS 2452 -29.93 ≤8.00 PASS 11AX20SISO Ant1 2412 -29.53 ≤8.00 PASS 2437 -29.41 ≤8.00 PASS 2462 -29.58 ≤8.00 PASS 11AX40SISO Ant1 2422 -31.26 ≤8.00 PASS 2437 -31.45 ≤8.00 PASS 2452 -31.09 ≤8.00 PASS 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 23 11G_Ant1_2412 11G_Ant1_2437 24 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 25 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 26 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 27 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 28 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 29 30 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dB m] Verdic t 11B Ant1 Low 2412 -8.54 -58.32 ≤-28.54 PASS High 2462 -8.43 -58.13 ≤-28.43 PASS 11G Ant1 Low 2412 -13.04 -44.12 ≤-33.04 PASS High 2462 -12.85 -57.64 ≤-32.85 PASS 11N20SISO Ant1 Low 2412 -13.07 -44.7 ≤-33.07 PASS High 2462 -13.18 -57.69 ≤-33.18 PASS 11N40SISO Ant1 Low 2422 -15.83 -43.54 ≤-35.83 PASS High 2452 -15.60 -57.85 ≤-35.6 PASS 11AX20SIS O Ant1 Low 2412 -13.52 -43.38 ≤-33.52 PASS High 2462 -13.30 -58.21 ≤-33.3 PASS 11AX40SIS O Ant1 Low 2422 -16.03 -45.08 ≤-36.03 PASS High 2452 -15.78 -58.66 ≤-35.78 PASS 31 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 32 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 33 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 34 11AX20SISO_Ant1_Low_2412 11AX20SISO_Ant1_High_2462 35 11AX40SISO_Ant1_Low_2422 11AX40SISO_Ant1_High_2452 36 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -8.96 -8.96 --- PASS 30~1000 -8.96 -67.83 ≤-28.96 PASS 1000~26500 -8.96 -55.6 ≤-28.96 PASS 2437 Reference -8.37 -8.37 --- PASS 30~1000 -8.37 -67.86 ≤-28.37 PASS 1000~26500 -8.37 -55.72 ≤-28.37 PASS 2462 Reference -9.16 -9.16 --- PASS 30~1000 -9.16 -68.76 ≤-29.16 PASS 1000~26500 -9.16 -55.01 ≤-29.16 PASS 11G Ant1 2412 Reference -13.47 -13.47 --- PASS 30~1000 -13.47 -68.68 ≤-33.47 PASS 1000~26500 -13.47 -55.4 ≤-33.47 PASS 2437 Reference -13.10 -13.10 --- PASS 30~1000 -13.10 -68.52 ≤-33.1 PASS 1…

Text truncated - open the document above for the full version.

37 30~1000 -13.74 -68.5 ≤-33.74 PASS 1000~26500 -13.74 -55.84 ≤-33.74 PASS 2437 Reference -13.05 -13.05 --- PASS 30~1000 -13.05 -68.54 ≤-33.05 PASS 1000~26500 -13.05 -54.9 ≤-33.05 PASS 2462 Reference -14.36 -14.36 --- PASS 30~1000 -14.36 -68.47 ≤-34.36 PASS 1000~26500 -14.36 -55.39 ≤-34.36 PASS 11AX40SISO Ant1 2422 Reference -16.49 -16.49 --- PASS 30~1000 -16.49 -68.45 ≤-36.49 PASS 1000~26500 -16.49 -56.21 ≤-36.49 PASS 2437 Reference -16.14 -16.14 --- PASS 30~1000 -16.14 -68.47 ≤-36.14 PASS 1000~26500 -16.14 -55.32 ≤-36.14 PASS 2452 Reference -16.46 -16.46 --- PASS 30~1000 -16.46 -68.62 ≤-36.46 PASS 1000~26500 -16.46 -55.68 ≤-36.46 PASS 38 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 39 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 40 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 41 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 42 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 43 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 44 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 45 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 46 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 47 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 48 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 49 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 50 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 51 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 52 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 53 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference 54 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 11AX20SISO_Ant1_2462_0~Reference 55 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 56 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 57 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 58 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 59 11AX40SISO_Ant1_2452_1000~26500 60 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Factor [dBm] 11B Ant1 2412 8.35 8.40 99.40 0.03 2437 8.35 8.39 99.52 0.02 2462 8.34 8.39 99.40 0.03 11G Ant1 2412 0.15 0.20 75.00 1.25 2437 0.15 0.20 75.00 1.25 2462 0.15 0.20 75.00 1.25 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 2437 0.18 0.22 81.82 0.87 2462 0.17 0.22 77.27 1.12 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 2437 0.18 0.23 78.26 1.06 2452 0.18 0.22 81.82 0.87 11AX20SISO Ant1 2412 0.26 0.30 86.67 0.62 2437 0.26 0.30 86.67 0.62 2462 0.25 0.30 83.33 0.79 11AX40SISO Ant1 2422 0.18 0.23 78.26 1.06 2437 0.17 0.22 77.27 1.12 2452 0.18 0.22 81.82 0.87 61 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 62 11G_Ant1_2412 11G_Ant1_2437 63 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 64 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422

65 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 66 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 67 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 68 69 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.43 3.02 0.03 37.82 ≤54 PASS AV 2369.160 -59.43 3.02 0.03 38.82 ≤54 PASS AV 2390.000 -59.92 3.02 0.03 38.33 ≤54 PASS Peak 2310.000 -52.48 3.02 -- 45.34 ≤74 PASS Peak 2344.070 -49.53 3.02 -- 48.04 ≤74 PASS Peak 2390.000 -52.99 3.02 -- 43.71 ≤74 PASS High 2462 AV 2483.500 -59.66 3.02 0.03 38.59 ≤54 PASS AV 2499.290 -59.21 3.02 0.03 39.04 ≤54 PASS AV 2500.000 -59.77 3.02 0.03 38.48 ≤54 PASS Peak 2483.500 -49.73 3.02 -- 46.03 ≤74 PASS Peak 2493.350 -48.95 3.02 -- 49.12 ≤74 PASS Peak 2500.000 -50.98 3.02 -- 44.92 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.4 3.02 1.25 39.07 ≤54 PASS AV 2376.960 -59.6 3.02 1.25 39.87 ≤54 PASS AV 2390.000 -59.89 3.02 1.25 39.58 ≤54 PASS Peak 2310.000 -53.73 3.02 -- 45.9 ≤74 PASS Peak 2353.820 -49.82 3.02 -- 48.6 ≤74 PASS Peak 2390.000 -51.92 3.02 -- 45.14 ≤74 PASS High 2462 AV 2483.500 -60.23 3.02 1.25 39.24 ≤54 PASS AV 2496.870 -59.33 3.02 1.25 40.14 ≤54 PASS AV 2500.000 -60.21 3.02 1.25 39.26 ≤54 PASS Peak 2483.500 -52.47 3.02 -- 46.74 ≤74 PASS Peak 2486.750 -49.61 3.02 -- 47.97 ≤74 PASS Peak 2500.000 -51.85 3.02 -- 44.78 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.88 3.02 1.06 38.4 ≤54 PASS AV 2313.000 -59.54 3.02 1.06 39.74 ≤54 PASS AV 2390.000 -60.41 3.02 1.06 38.87 ≤54 PASS Peak 2310.000 -52.89 3.02 -- 44.92 ≤74 PASS Peak 2361.490 -49.28 3.02 -- 47.49 ≤74 PASS Peak 2390.000 -51.81 3.02 -- 45.9 ≤74 PASS High 2462 AV 2483.500 -59.31 3.02 1.12 40.03 ≤54 PASS AV 2487.300 -59.33 3.02 1.12 40.01 ≤54 PASS AV 2500.000 -59.64 3.02 1.12 39.7 ≤54 PASS Peak 2483.500 -53.41 3.02 -- 45.05 ≤74 PASS Peak 2491.700 -49.57 3.02 -- 47.9 ≤74 PASS Peak 2500.000 -49.98 3.02 -- 45.5 ≤74 PASS 70 11N40SI SO Ant1 Low 2422 AV 2310.000 -60.54 3.02 1.06 38.74 ≤54 PASS AV 2386.700 -59.36 3.02 1.06 39.92 ≤54 PASS AV 2390.000 -60.05 3.02 1.06 39.23 ≤54 PASS Peak 2310.000 -52.68 3.02 -- 45.58 ≤74 PASS Peak 2377.100 -49.15 3.02 -- 48.07 ≤74 PASS Peak 2390.000 -52.45 3.02 -- 44.46 ≤74 PASS High 2452 AV 2483.500 -60.22 3.02 0.87 38.87 ≤54 PASS AV 2486.625 -59.47 3.02 0.87 39.62 ≤54 PASS AV 2500.000 -60.31 3.02 0.87 38.78 ≤54 PASS Peak 2483.500 -52.05 3.02 -- 45.67 ≤74 PASS Peak 2483.750 -49.93 3.02 -- 47.88 ≤74 PASS Peak 2500.000 -50.41 3.02 -- 45.17 ≤74 PASS 11AX20 SISO Ant1 Low 2412 AV 2310.000 -60.03 3.02 0.62 38.81 ≤54 PASS AV 2361.490 -59.37 3.02 0.62 39.47 ≤54 PASS AV 2390.000 -60.23 3.02 0.62 38.61 ≤54 PASS Peak 2310.000 -51.31 3.02 -- 45.67 ≤74 PASS Peak 2347.580 -49.52 3.02 -- 47.88 ≤74 PASS Peak 2390.000 -51.71 3.02 -- 45.17 ≤74 PASS High 2462 AV 2483.500 -59.97 3.02 0.79 39.04 ≤54 PASS AV 2494.670 -59.31 3.02 0.79 39.7 ≤54 PASS AV 2500.000 -60.5 3.02 0.79 38.51 ≤54 PASS Peak 2483.500 -52.81 3.02 -- 45.67 ≤74 PASS Peak 2495.000 -49.39 3.02 -- 47.88 ≤74 PASS Peak 2500.000 -51.31 3.02 -- 45.17 ≤74 PASS 11AX40 SISO Ant1 Low 2422 AV 2310.000 -60.84 3.02 1.06 38.44 ≤54 PASS AV 2380.850 -59.26 3.02 1.06 40.02 ≤54 PASS AV 2390.000 -59.79 3.02 1.06 39.49 ≤54 PASS Peak 2310.000 -52.72 3.02 -- 45.67 ≤74 PASS Peak 2321.000 -48.97 3.02 -- 47.88 ≤74 PASS Peak 2390.000 -51.13 3.02 -- 45.17 ≤74 PASS High 2452 AV 2483.500 -59.96 3.02 0.87 39.13 ≤54 PASS AV 2498.000 -59.25 3.02 0.87 39.84 ≤54 PASS AV 2500.000 -60.13 3.02 0.87 38.96 ≤54 PASS Peak 2483.500 -51.11 3.02 -- 45.67 ≤74 PASS Peak 2486.750 -48.27 3.02 -- 47.88 ≤74 PASS Peak 2500.000 -52.68 3.02 -- 45.17 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, ac…
