2AWAS-901-00094Mavenir Dual-band B25B66 RRU

Mavenir Systems Inc
Mavenir Dual-band B25B66 RRU - FCC ID 2AWAS-901-00094 - Mavenir Systems Inc
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
May 04, 2023
Application Purpose
Original Equipment
Date of Application
Apr 27, 2023
Equipment Note
Mavenir Dual-band B25B66 RRU
Frequency Range
2120.00000000 - 2180.00000000
Company
Mavenir Systems Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Radio Installation Guide MR44MOA Version: February 2023 Introduction 3 Document description3 Copyright3 About the product 3 Product description3 Symbols in the manual3 Overviews 4 Product overview4 Interface panel overview4 In the box5 Brackets suitable for MR44MOA5 Tools needed6 Accessories 7 Safety 8 General safety8 Safety instructions for installation8 Electrical safety8 Personal protective equipment9 Maintenance9 Labels on the product9 Storage - Before installation9 To install the product10 Skills and requirements for personnel10 To transport the product to the installation site10 To unpack the product10 Minimum clearance distance10 To do before the installation10 Cables10 Environment requirement10 Installation process11 Installation requirements12 To install the radio on a pole with 603012 To install the radio on a wall with 603015 Installation of the cables 17 To install the earth cable17 To install the RET cable17 To install the power cable17 To install the Octis cable (SFP)18 To install the Antenna cable19 Disposal20 Dimensions20 Type plate20 To verify the radio installation on site21 Examine the grounding system21 Examine the radio21 Examine the power system22 Power up the radio22 Examine the radio after power up22 Introduction Document description This document describes installation of the Mavenir Micro Remote Radio Unit and is intended for approved installation personnel. Copyright Copyright © Mavenir 2023. All rights reserved. This document is protected by international copyright law and may not be reprinted, reproduced, copied, or utilized in whole or in part by any means including electronic, mechanical, or other means without the prior written consent of Mavenir. Whilst reasonable care has been taken by Mavenir to ensure the information contained herein is reasonably accurate, Mavenir shall not, under any circumstances be liable for any loss or damage (direct or consequential) suffered by any party as a result of the contents of this publication or the reliance of any party thereon or any inaccuracy or omission therein. The information in this document is therefore provided on an “as is” basis without warranty and is subject to change without further notice and cannot be construed as a commitment by Mavenir. The products mentioned in this document are identified by the names, trademarks, service marks and logos of their respective companies or organizations and may not be used in any advertising or publicity or in any other way whatsoever without the prior written consent of those companies or organizations and Mavenir. About the product Product description The product is a Macro Remote Radio Unit for wireless networks. The product has 5G NR technology and operates as a radio transceiver that connects to an operator at Network Operations Centre. Symbols in the manual Note Information that is necessary in a given situation. . Overviews Product overview Interface panel overview 1.Attachment holes8. Air Vent 2. 4.3-10 antenna ports (a, b, c, d) Female type9. Earth Cable Connector 3. SFP0 (In use)10. Power Label 4. SFP1 (Reserved - Not in use)11. Power Connector 5. Maintenance ports cover (Do not remove the cover.) 6. LED indicator 7. RET Connector In the box Brackets suitable for MR44MOA Pos.MPN (Manufacturer part Number) MINMax no. of radio units mounted at the same time A6030 400-00125-01 2 Tools needed ItemToolsUsed for 1 Torque wrench M6 8Nm, Torx T30Mounting bracket Torque wrench M6 8 Nm, socket 10 mmMounting bracket 2Wrench - 10 mm, 13 mm, 16 mm, 18 mm hex keyMiscellaneous 3Screwdrivers (Flat and Torx)Miscellaneous 4Power drillDrilling holes in walls 5Level barAttach the bracket to a wall 6Adjustable wrenchMiscellaneous 7Wire stripperCables 8KnifeMiscellaneous 9Steel tape measureMiscellaneous 10Optical connection cleanerSFP cable 11ESD Wrist StrapHandling cables 12TapeMiscellaneous 13Safety harnessClimbing 14Safety helmetSite safety Accessories AccessoriesMavenir Part No.Manufacturer and P/NQty Wall and Pole Bracket Options 400-00125-01MAFI 60301 External Optical connector 10/25 Gbps SFP. To be selected from Mavenir approved list of SFPs 1 SFP Boot Plug Kit125-00024-01Radiall OCTI1175001 External Power ConnectorAmphenol 10-761296-Z2S /Jonhon DY4T1402SNS2-04 1 External RET ConnectorAmphenol C091 31H008 101 4 U 1 Safety General safety •Make sure that the workers know all installation methods and safety precautions before they start work. •Before you install the product, you must first know all the components of the device and know how to do the installation. •Before you start the installation, put up warning signs •Before working on equipment that is connected to power, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals. •Read the installation manual carefully and understand the instructions before you install the product. •The information in this installation manual is not a replacement for professional knowledge and experience. If you do not feel safe in the situation that you are in, stop the installation. Turn to your Network Operation Centre. •The product can be hot. Wait for the unit to cool down before you do maintenance work. Always use protective gloves. •Do not install the product if you are tired, while under the influence of alcohol or drugs, medicine or anything that could have a negative effect on your vision, alertness, coordination or judgment. •Hazardous voltages can be present when the system is in operation. Use caution when you remove or install the product. •Observe all local and national electrical, environmental and workplace codes. Safety instructions for installation •Do not keep the product outdoors or remove the product from the box before you do the installation. •Stay alert, monitor what you are doing and use common sense when you install the product. A moment of inattention may result in serious personal …

Text truncated - open the document above for the full version.

Attestation Statements

2.9 11 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Mavenir Systems, Inc. Address: 1700 International Parkway, Suite 200 Richardson TX-75081 USA Product Name: Mavenir Dual-band B25B66 RRU FCC ID: 2AWAS-901-00094 Model(s): MR44MOA 2.911(d)(5)(i) Equipment Type We, [Mavenir Systems, Inc.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Joe Walker Date: 20-04-2023 Title and Company name: Associate Director Mavenir Systems, Inc. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Mavenir Systems, Inc. Address: 1700 International Parkway, Suite 200 Richardson TX-75081 USA Product Name: Mavenir Dual-band B25B66 RRU FCC ID: 2AWAS-901-00094 Model(s): MR44MOA 2.911(d)(5)(ii) Applicant filing We, [Mavenir Systems, Inc.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Joe Walker Date: 02-03-2023 Title and Company name: Associate Director Mavenir Systems, Inc. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

2.911 (d)(7)USA Agent v1.4 Section 2.911(d)(7) USA Agent for Service of Process Company name: Mavenir Systems, Inc. Address: 1700 International Parkway, Suite 200 Richardson TX-75081 USA Product Name: Mavenir Dual-band B25B66 RRU FCC ID: 2AWAS-901-00094 Model(s): MR44MOA 2.911(d)(7) USA Designated Agent for Service of Process We, [Mavenir Systems, Inc. ] (“the applicant”) designate [Mavenir Systems, Inc. FRN# 0027405760] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Mavenir Systems, Inc USA Address: 1700 intemational Parkway, Ste. 200 Richardson, TX 75081 FRN Number: 0027405760 Contact Name: Charles Gilbert, EVP Telephone No: (469) 916-4393 Email: [email protected] Applicant Company name: Mavenir Systems, Inc Address: 1700 intemational Parkway, Ste. 200 Richardson, TX 75081 FCC Grantee Code: 2AWAS Contact Name: Joe Walker Telephone No: +1 469 916 4393 Email: [email protected] 2.911 (d)(7)USA Agent v1.4 Signature: Title: Chief Legal Officer Signature: Title: Associate Director Date: March 27 ,2023 Date: March 27 ,2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Cover Letter(s)

Agent Authorization Company: Mavenir Systems, Inc. Address: 1700 International Parkway, Suite 200 Richardson TX-75081 USA Product Name: Mavenir Dual-band B25B66 RRU Model Number(s): MR44MOA We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 20-04-2023 Name: Joe Walker Title: Associate Director Company: Mavenir Systems, Inc.

Cover Letter(s)

MAVENIR Trust the Future Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 3/H/zo23 Subject; Request for Confidentiality FCC ID: 2AWAS-901-00094 To Whom It May Concern, Pursuant to the provisions of the Commission's rules Title 47 Sections $0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR $2.803 and the importation rules in Title 47 CFR $2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 DO1. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Kignature: Joe Walker Associate Director, Radio HW Program Mgmt, R&D 1700 International Parkway, Suite 200 Richardson, TX 75081 USA +1 469 916 4393 [email protected] mavenir.com

External Photos

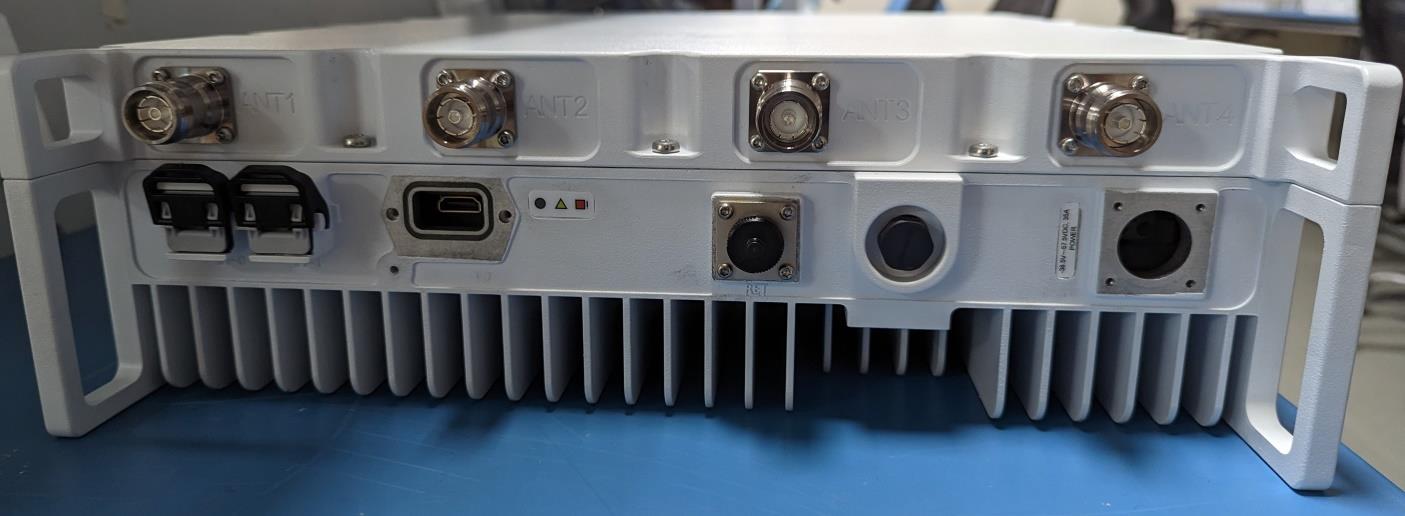

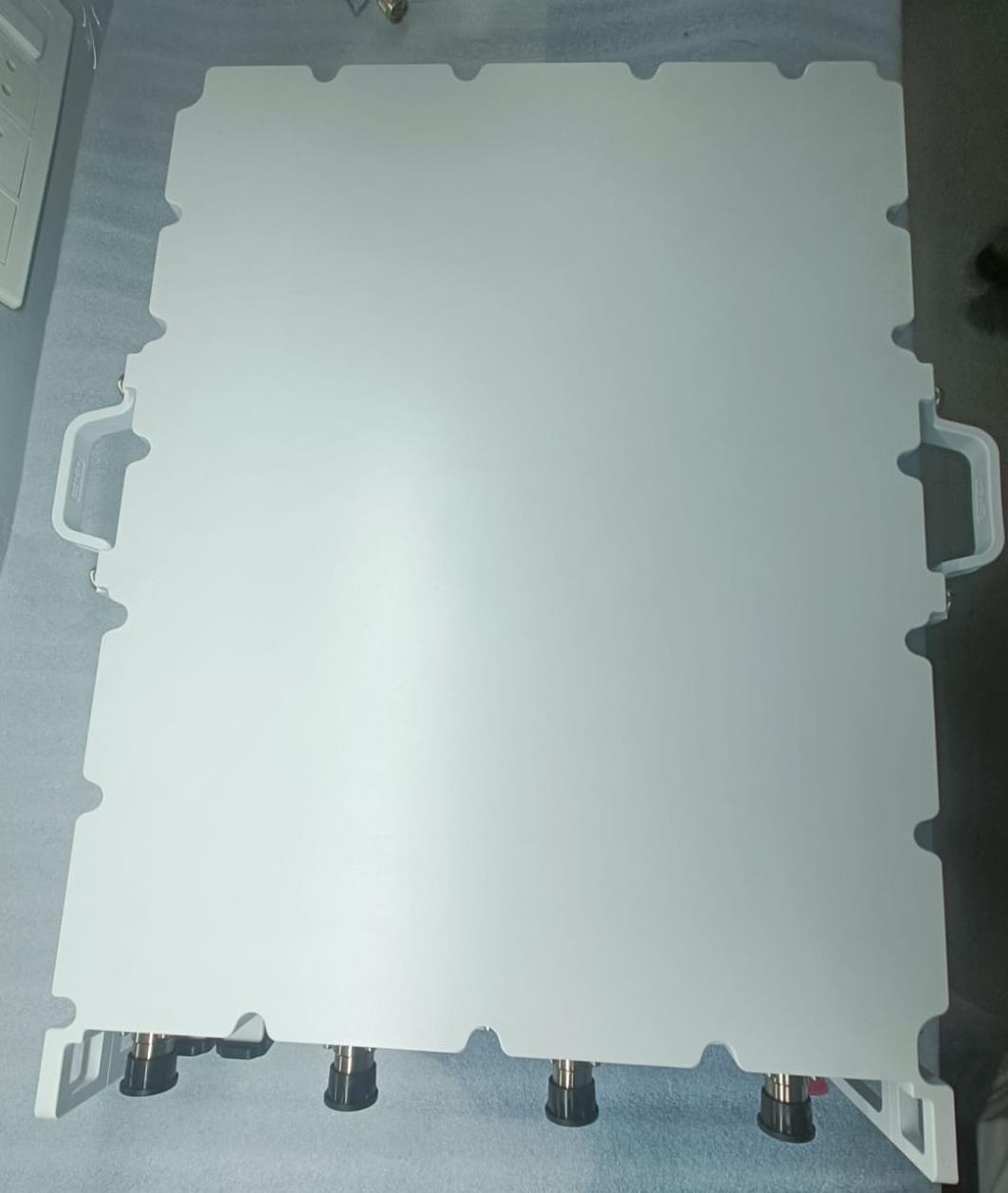

EXTERNAL PHOTOS EXTERNAL PHOTOS EXTERNAL PHOTOS

ID Label/Location Info

LABEL Label on EUT

Internal Photos

INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS INTERNAL PHOTOS

RF Exposure Info

RF EXPOSURE EVALUATION 1. PRODUCTINFORMATION Product Description Mavenir Dual-band B25B66 RRU Model Name MR44MOA FCC ID 2AWAS-901-00094 2. EVALUATION METHOD AND LIMIT 3. ASSESSMENT RESULT Frequency (MHz) Maximum EIRP (dBm) Maximum EIRP [mW] Distance [cm] Power Density = 1mW/cm2 Proposed Minimum RF Safety Distance [cm] 2120 MHz ~ 2180 MHz (LTE Band 66) (Ant1+2+3+4) 57.55 568852.93 212.76 212 Note: 1) Maximum turn-up output power is 46dBm per each port declared by the manufacturer. 2) The distance [cm] is calculated according to the Friis formula: D = SQRT (EIRP / (4π * S)), Where S = power density in mW/cm2 EIRP = Effective Isotropic ally Radiated Power in mW EIRP = Antenna Port Conducted Power (45.96dBm) + Antenna Gain (18.4 dBi) = 64.36dBm Calculated distance: D = SQRT (EIRP / (4π * S)) D =√45267.771÷ (4π*1)= 212.76 cm 3) Only the worst case recorded. 4. CONCLUSION The device complies with the FCC RF exposure requirements with minimum RF safety distance of 212cm for General Population / Uncontrolled Exposure

Test Report

Report No.: AAEMT/RF/230228-01-01 1 | P a g e Plot No.174, Udyog Vihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact:0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-PART27/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 FCC Test Report (Part 27) FCC ID:2AWAS-901-00094 Client Information: Applicant: Mavenir Systems, Inc. Applicant add.: 1700 International Parkway, Suite 200 Richardson TX-75081 USA. Product Information: EUT Name: Mavenir Dual-band B25B66 RRU Model No.: MR44MOA Brand Name: Standards: FCC PART 27 AA Electro Magnetic Test Laboratory Private Limited Add.: Plot No 174, Udyog Vihar - Phase 4, Sector 18, Gurgaon, Haryana, India Date of Receipt: Feb. 28, 2023 Date of Test: Feb. 28~ Apr. 13, 2023 Date of Issue: Apr. 19, 2023 Test Result: Pass Declaration of Conformity: Declaration of conformity of the results is based as per the standard limits This device described above has been tested by AA Electro Magnetic Test Laboratory Private Limited, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. *This test report must not be used by the client to claim product endorsement by any agency of the U.S. government. Prepared By: (+ signature) Ankur Kumar Reviewed & Approved by: (+ signature) Dr. Lenin Raja (Authorized Representative) (/ lenin83/) Report No.: AAEMT/RF/230228-01-01 2 | P a g e Plot No.174, Udyog Vihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact:0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-PART27/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 1 Contents Page COVER PAGE 1 CONTENTS 2 2 TEST SUMMARY 3 2.1 COMPLIANCE WITH FCC PART 27 3 2.2 MEASUREMENT UNCERTAINTY 4 2.3 TEST LOCATION 4 3 TEST FACILITY 5 3.1 DEVIATION FROM STANDARD 5 3.2 ABNORMALITIES FROM STANDARD CONDITIONS 5 4 GENERAL INFORMATION 6 4.1 GENERAL DESCRIPTION OF EUT 6 4.2 EUT CHANNELS AND FREQUENCIES LIST: 7 4.3 EUT PERIPHERAL LIST 8 4.4 TEST PERIPHERAL LIST 8 5 EQUIPMENTS LIST FOR ALL TEST ITEMS 9 5.1 EQUIVALENT ISOTROPICALLY RADIATED POWER MEASUREMENT 11 5.2 FREQUENCY STABILITY MEASUREMENT 13 5.3 OCCUPIED BANDWIDTH MEASUREMENT 15 5.4 BAND EDGE MEASUREMENT 33 5.5 PEAK TO AVERAGE RATIO 45 5.6 CONDUCTED SPURIOUS EMISSIONS 48 5.7 RADIATED SPURIOUS EMISSION 52 <RADIATED EMISSION BELOW OR EQUAL 1 GHZ> 53 <RADIATED EMISSION ABOVE 1 GHZ> 53 Report No.: AAEMT/RF/230228-01-01 3 | P a g e Plot No.174, Udyog Vihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact:0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-PART27/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 2 Test Summary 2.1 Compliance with FCC Part 27 TEST TEST REQUIREMENT LIMIT RESULT REMARK Equivalent Isotropic Radiated Power 2.1046; 27.50(d)(4) < 1640 watts/MHz PASS Meet the requirement of limit. Frequency Stability 2.1055; 27.54 N/A PASS Meet the requirement of limit. Occupied Bandwidth 2.1049; 27.53 See 5.3.1 PASS Meet the requirement of limit. Peak to average ratio 2.1046; 27.50(a) < 13 dB PASS Meet the requirement of limit. Band Edge Measurements 27.53 < -19.02 dBm PASS Meet the requirement of limit. Conducted Spurious Emissions 2.1051; 27.53 < -19.02 dBm PASS Meet the requirement of limit. Radiated Spurious Emissions 2.1053; 27.53 < -13 dBm PASS Meet the requirement of limit. Report No.: AAEMT/RF/230228-01-01 4 | P a g e Plot No.174, Udyog Vihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact:0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-PART27/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 2.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, the following measurements uncertainty Levels have estimated based on standards, the maximum value of the uncertainty as below: No. Item Uncertainty 1 Conducted Emission Test 2.82dB 2 Radiated Emission Test 2.79dB 3 Spurious Emissions, Conducted 0.76dB 4 Output Power 1.16dB 2.3 Test Location All tests were performed at: AA Electro Magnetic Test Laboratory Private Limited Plot No 174, Udyog Vihar - Phase 4, Sector 18, Gurgaon, Haryana, India Tel.: +91-0124-4235350 Report No.: AAEMT/RF/230228-01-01 5 | P a g e Plot No.174, Udyog Vihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact:0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-PART27/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 3 Test Facility The test facility is recognized, certified or accredited by the following organizations: ILAC / NABL Accreditation No.: TC-8597 Three 3m Semi-Anechoic Chamber, 1 full-Anechoic chamber and 2 Shielding Rooms of AA Electro Magnetic Test Laboratory Private Limited have been registered by National Accreditation Board for Testing and Calibration Laboratories (NABL). ILAC –A2LA Accreditation No.: 5593.01 Three 3m Semi-Anechoic Chamber, 1 full-Anechoic chamber and 2 Shielding Rooms of AA Electro Magnetic Test Laboratory Private Limited have been registered American Association of Laboratory Accreditation ( A2LA.) FCC- Recognition No.: 137777 Three 3m Semi-Anechoic Chamber, 1 full-Anechoic chamb…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup photograph

Contact Information

Applicant

Joseph Walker(Associate Director, Radio HW Program Mgmt, R&D)
[email protected]469-916-4393Fax: 469-916-4397

Technical Contact

Mavenir Systems, Inc.
[email protected]

United States

Test Firm

AA Electro Magnetic Test LaboratoryJackie Deng
[email protected]911244235350

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
2272.12 GHz - 2.18 GHz559.76 W17M8W7D0.121 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is EIRP. The antenna used with this transmitter must be installed to provide a minimum separation distance of at least 212 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-users must be provided with operating procedures for satisfying RF exposure compliance.
