2AWCB-KT-T03AWUSmart Multi-color Table Lamp

SmartMulti-color TableLamp UserManual Thankyouforpurchasingourproducts.Toensurethat youcanfullyunderstandandusethisproduct,please readthemanualcarefully.Afterreading,pleasekeep itforfuturereference. ∅175 360 60° ∅175 Structuresize 1xUserManual 1xAdaptor 1xProduct Sparepartslist 01 03 Keys'Function Wireless chargingarea Timingkey CCTshiftkey Timingindicatelamp/Wifi connectingindicatelamp Wirelesscharging indicatelamp RGBdynamic modelkey RGBshiftkey Mainswitch/Knob 02 Parameters ModelNoKT-T03A KT-T03AW KT-T03AWU ProductSize D175mm*H360mm（D6.89"*H14.17"） AdaptorInput 100-240Vac50/60Hz AdaptorOutput 12Vdc/1A12Vdc/2A12Vdc/3A LampPower 8W8W8W USBOutput NANA5Vdc/2.4A WirelessCharging NA10WMax10WMax ProductMaterialPC+ABS+FePC+ABS+FePC+ABS+Fe LightSourceType LEDLEDLED LuminousFlux500lm@4000K500lm@4000K500lm@4000K CCT2000K-5700K2000K-5700K2000K-5700K RaRa>80Ra>80Ra>80 RGB 16million colors 16million colors 16million colors WorkingTemp 0 ~ +40°C Lifetime25000H WirelessConnecting Wi-FiIEEE802.11b/g/n2.4GHz SystemSupporting Android4.4或iOS9.0及以上版本 ItemIcon Controlway Function Main switch/Knob ClickSwitchON/OFF Rotating WhitelightorRGBlight3%-100% dimming; Timingkey Click 15mins→30mins→45mins→60minstiming forchoice； Hold Hold“TimingKey”for>5S,enter re-connectingmodel,meanwhilewill restorethefactorysettings; CCTswift key Click 2000K/4000K/5700Kavailable,clickone time,changeaCCTsequentially; RGBswift key Click SevenRGBcolorsforchoice,Eachclick changeacolor; RGBdynamic modelkey Click Initially,isColorautomatically jumpingchangingmodel;Can select/editdifferentdynamicmodels; Factory setting Hold Hold>5S,enterre-connectingmodel, meanwhilewillrestorethefactory settings; 04 Wirelesschargingperformanc WirelesschargingSupporteddevices 05 ControltheLampwithApp Step1：SetupInstructions Installthe“SmartLife”Appandregister anaccount. 1.Downloadthelatestversionof“SmartLife” appfromtheAppleStore/GooglePlayStore,or viaScanningtheQRcode. 2.Openthe“SmartLife”app,tap“Register” andfollowtheon-screyour“SmartLife”account. NOTE：Findmoreappinformationonhttps://smartapp.tuya.com. Step2：PreparetheLampforConnection Connecttheadaptertothelamp,poweronandturnonthelamp，you willsee4pcsindicatorflashingquicklyingreen,whichmeansthat thelampisreadytobeconnected.Iftheseisnoflashinggreen light,pleasepresstheTimerbuttonformorethan5seconds untiltheflashinggreenlightappears. Step3：AddtheLamptoSmartLife 1.Tap“+”intheupperrightcornerofAppinterface， Tap“Lighting(BLE+Wi-Fi)”(showninFigure1)；EnteryourWiFi accountandpassword(showninFigure2) Figure1Figure2 Tap“Lighting(BLE+Wi-Fi)” EnteryourWiFiaccountand password,Tap“nextstep” *EPPfixedfrequencyvoltageregulationsolution,fast, Chargingstableandsafecharging. performanc*Compatiblewith(5W),(7.5W),(10W)wirelesssmart chargingagreement. Charging distance <3.5mm Charging indicatelamp Whencharging,theredlightisalwayson;Aftercharging iscompleted,thegreenlightisalwayson;After removingthechargingdevice,Theindicatorlightisoff. metalmaterials detect Automaticdetectionofequipment,ifthereismetal foreignmatter,chargingindicatorflicker,stopcharging. Duringthechargingprocessofthechargingdevice,if Temperature protection thetemperatureexceedsthesettemp,itwill automaticallyentertheprotectionstateandterminate charging;Afterthetemperaturedropsbelowthesetvalue, itwillresumechargingautomatically. Apple/Power Huawei/PowerXiaomi/Power Samsung/PowerGoogle/Power iphone8/7.5W Mate20Pro/10WMIX2S/5WS7/10WPixels3/10W iphone8Plus/7.5W Mate30/10WMIX3/5WS8/S8+/10WPixels3L/10W iphoneX/7.5W Mate30Pro/10WXiaomi9/10WS9/S9+/10WPixel4h/10W iphoneXR/7.5W P30Pro/10WXiaomi10/10WS10/S10+/10WPixel4XL/10W iphoneXS/7.5W Xiaomi10Pro /10W Note/10W iphoneXSMax/7.5W Note8/10W iphone11/7.5W Note9/10W iphone11Pro/7.5W *Unlimitedabovebrandsandmodels,supportallmobilephonewithQI certificationMax10Wwirelessfastcharge,butPartofthemobilephone thedevicehasaprivateprotocollimit,whichsupportsaminimumof5W wirelesscharging. 3.Waittilltheprompt“Addsuccessfully”appearsandthelamp willappearinyour“SmartLife”app.(showninFigure4) NOTE:Ifyouhavetroublesettingupthelamp,pleasefindthe “Helpcenter”bytapping“Me”onthebottom-righeofthe interface. Step4：AppOperationInstructions 1.Selectthelampandtheappwilltakeyoutothelampcontrol screen.Atthebottomyouwillseefourselectioninterfaces: “Dimming”,“Scene”,“Music”and“More”. Confirmindicator blinkmode ThelampofAdd successful Indicatorrapidly blink/slowlyblink modeselection Figure4Figure3 2.Tap“confirmindicatorrapidlyblink”iftheindicatoronthe lampdoesflashquicklyingreen.iftheindicatorisflashing slowly,tap“EZMode”intheupperrightcorner,changeto“AP Mode”,andthenonthenextscreentap“confirmindicatorslowly blink”.(showninFigure3) 06 Lightrhythmturn on/off Timingturnon/off thelight NOTE:Afterthelamp connectedtoyour cellphone,it'slight canrhythmingwith themusicfromthe connectedcellphone. Customscene model Scenemodels Figure8Figure7 3.“Scene”interface(showninFigure7)and“Music”interface (showninFigure8). SwitchON/OFF ColorContrlo ColorTemperature Control BrightnessControl Brightness Control Clicktoknowmore detailsofthe device,orrename thelamp,shareit toyourfamilies Figure6Figure5 2.Leftandrightsliding“dimming”interface,Switchingbetween whitelightandRGBcontrolinterface，Youcancontrolwhite lightandRGBlightseparately.(showninFigure5andFigure6) 07 08 ControlthelampwithThird-partyApp 1.ThislampiscompatiblewiththefollowingThird-partyApps: 09 Cautions 2.Beforeyougetstartedconnectingthelamp withathird-partyapp,pleasemakesure: *YouhavesetuptheLamp,includingassigning anametoit.Aneasy-to-understandnamewill helpyouconnecttothethird-partyappmuch moreeasily. *Thelampconnectstothesamewirelessnetwork withthethird-partyapp. 3.Opentheappofyourthird-partyplatformand followitsinstructionstoaddthelamp.You Figure9 Inordertopreventaccidentssuchasdamage,fall,electric shock,fire,etc.,whichmaythreatenpersonalsafety,please usetheproductaccordingtotheinstruction. 1、Donotusetheproductinplacesclosetoheatsourceorin directsunlight. 2、Pleaseunplugtheadaptertoensuresafetybeforenotusing …

Text truncated - open the document above for the full version.

SHENZHENSHI KAIXIN GUANGDIAN CO.,LTD Models Declaration Letter Signature: Date: 2020-10-27 Name: Title: Manager Company: SHENZHENSHI KAIXIN GUANGDIAN CO.,LTD We： FCC ID: 2AWCB-KT-T03AWU Company:SHENZHENSHI KAIX IN GUANGDIAN CO.,LTD Address:Software Building, No . 9 GaoxinZhong Yi Road, High- Tech Park, Nanshan district, Shenzhen China Product name:Smart Multi-color Table Lamp Trademark :N/A Modeland/or type reference:KT-T03AWU,KT-T03AW,KT-T03EWU, KT-T03EW,KT-T03A Difference:The RF circuit principle and in ternal structure are the same, only Key panel appearance colors different .

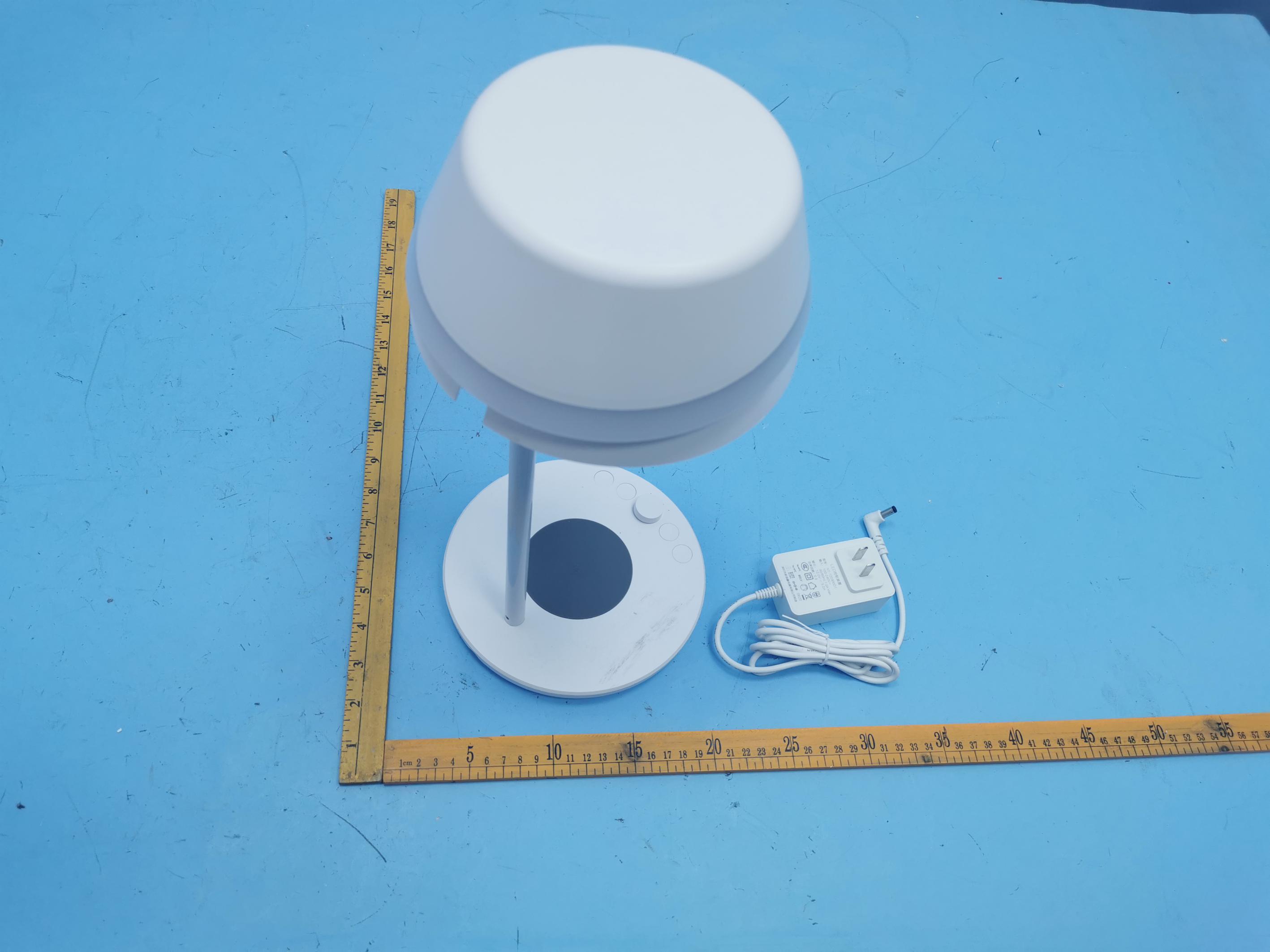

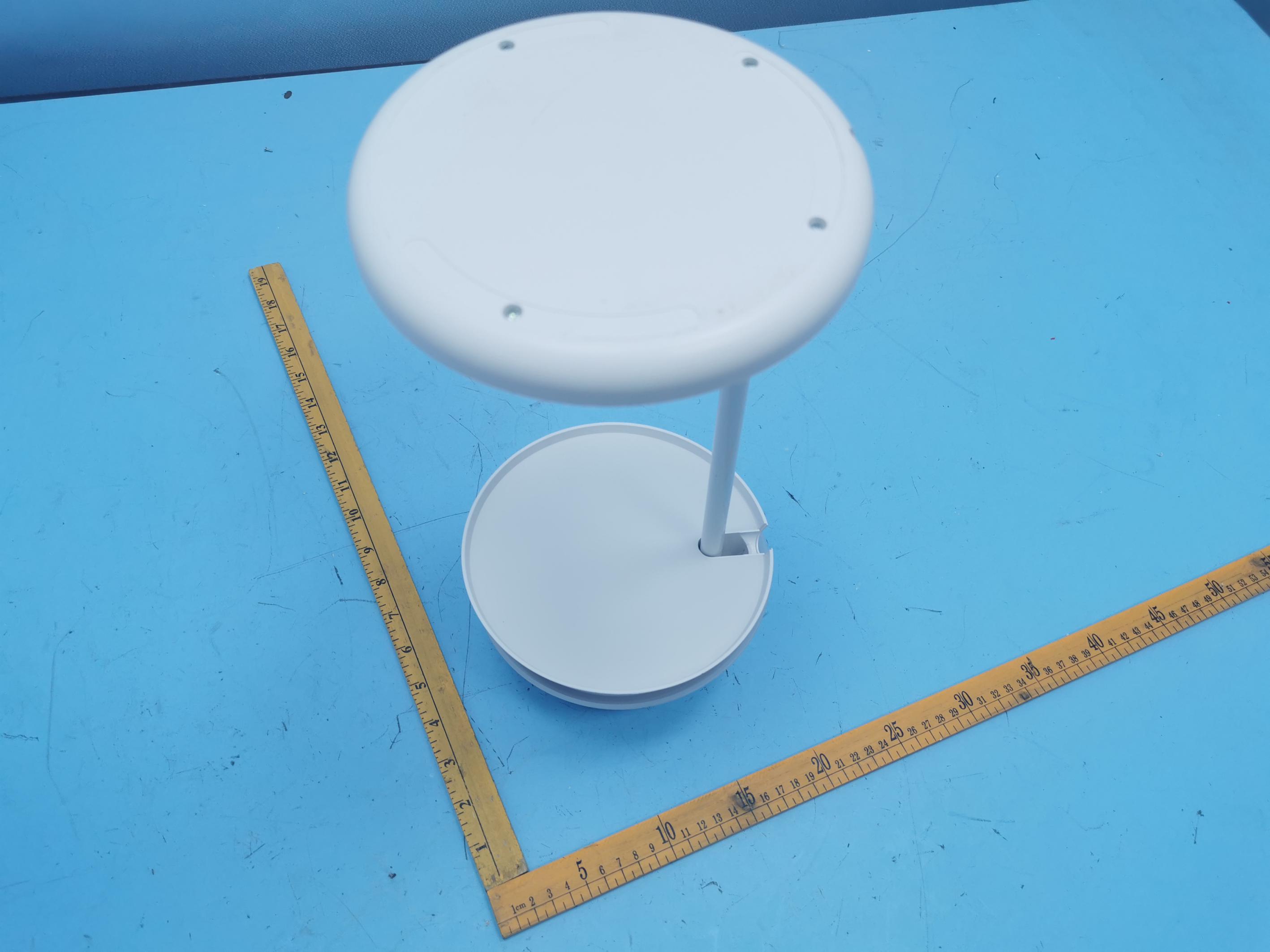

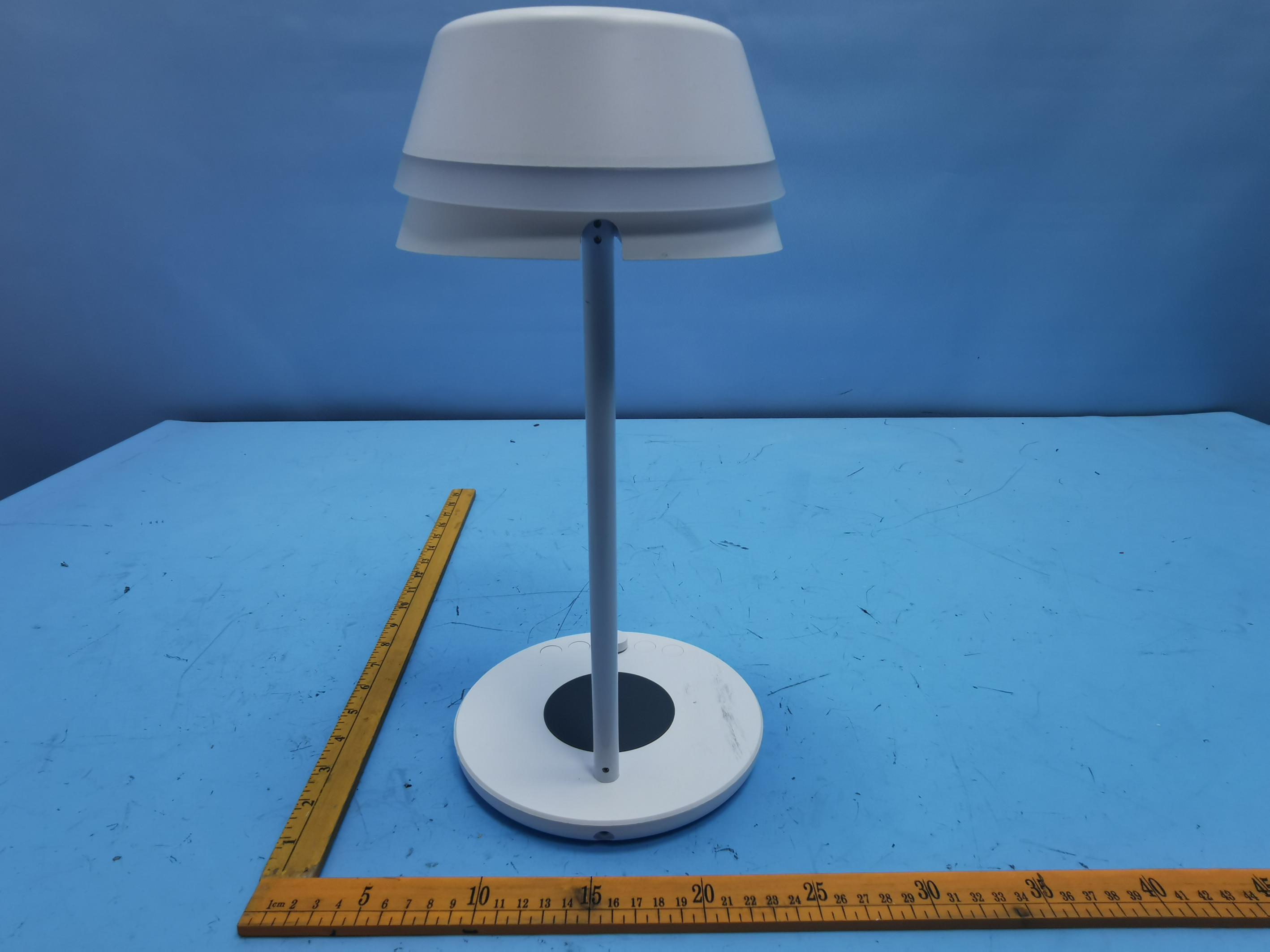

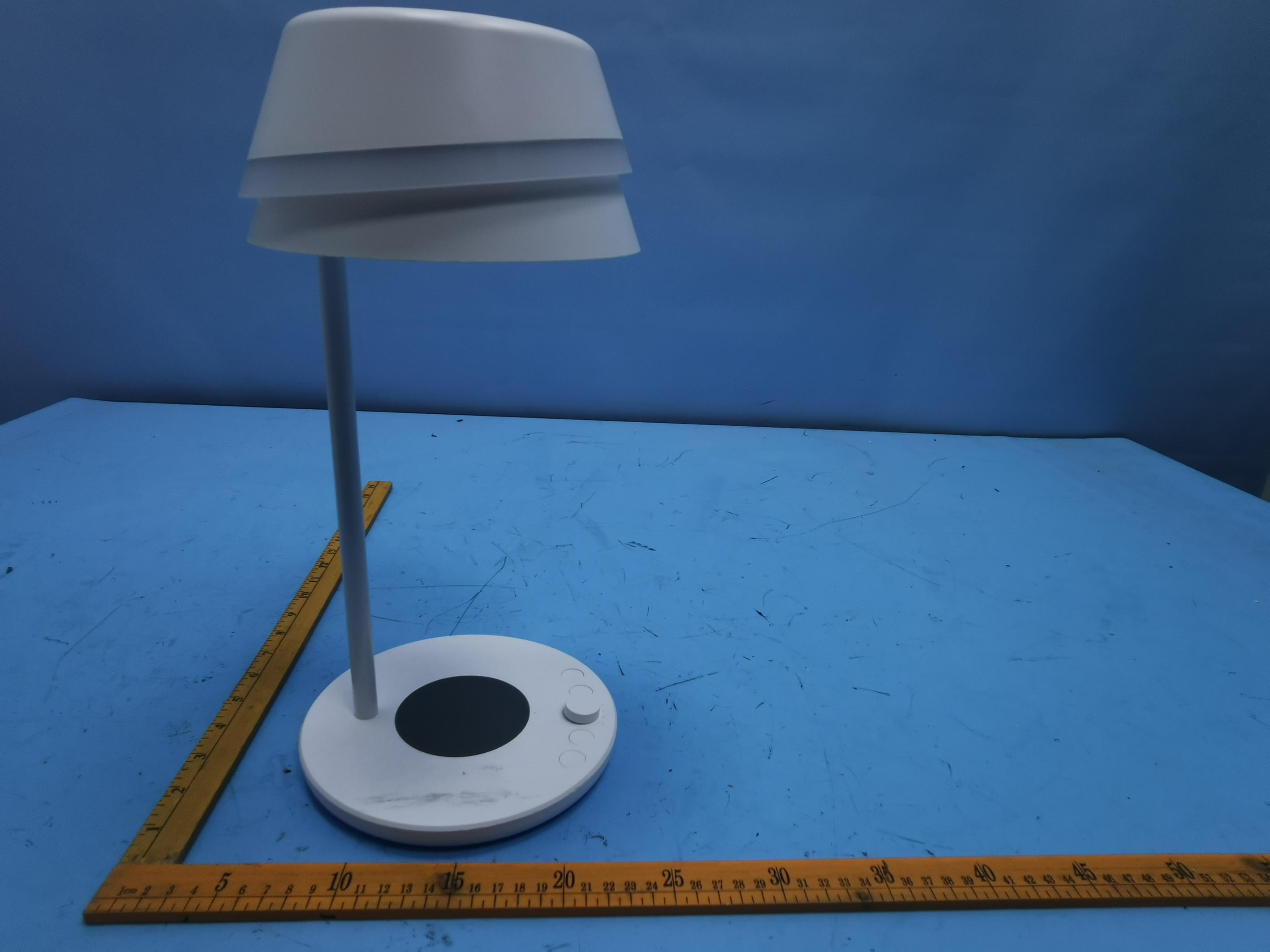

Page 1 of7 PHOTOGRAPHSOFEUT ALLVIEWOFEUT TOPVIEWOFEUT Page2of7 BOTTOMVIEWOFEUT FRONTVIEWOFEUT Page3of7 BACKVIEWOFEUT LEFTVIEWOFEUT Page4of7 RIGHTVIEWOFEUT ----ENDOFREPORT----
