2AWCY-L05Smart led bulb

User Manual 1. Color temperature,Color, brightness, saturation can be adjusted 2.APP (IOS & Android) remote control 3. Support Amazon Echo, Google Assistant, TmallGenie voice control, IFTTT 4. Timing control, grouping control 5. One-key scene, automatic scene 6. Device sharing control, home sharing control 7.16 million colors + cool colors +warm color s >Functional >Parameter Input Voltage:AC110~250V 50/60Hz Wifi Type: 2.4GHz 802.11b/g/n Working Temp:-20~50°C -01- GUOJIAJIA MODEL:L05W Smart led bulb >Install the APP"Cloud Intelligence” The free app "Cloud Intelligence"is compatible with mobile devices that support iOS 8.0 above. Android 4. 4 above. You may find the APP. "Cloud Intelligence" on Apple App store, Google Play,or Scan the QR code below and install it. Follow the on-screen instructions to register and login to set your smart home. >Connecting Your Bulb to a Wi-Fi Network 1. Disconnect the power and install the bulb. 2. Turn on the power and you will see the light of the bulb flash (twice per second). If not, please perform the power on and off within ten seconds, and perform this oper -ation three times in succession (according to the APP guide) to make it flash slowly. 3. Open the "Cloud Intelligence" APP, click "Add Device" or "+" in the upper right corner of the page, and select "Manual Add"(pic1-2) 4. Then select “Bulb Light” to ensure the light cycle flashes and confirm in the applic -ation (Note: After the light flashes for 5 se -conds, turn on the light bulb again, it will automatically switch to the last control state, then exit the add device status. )(pic3) A. Easy Mode(Recommend) -02--03- 5. Select local WIFI and enter the correct password. (The device only supports 2.4 Ghz WIFI), click "Next" 6. Click "Confirm, Next"(pic 4) 7. Wait for the device to be added successfu -lly (pic5-6) ①② ③ ④ ⑤⑥ -04--05- >Control Your Smart Bulb in APP Note: The instructions in this manual are for your reference only. The app will be updated from time to time. Always follow the instructions in the app to complete Wi-Fi setup and know more about the functions. (APP control interface) -06--07- 1.If the connection fails in "Easy Mode", change to "Nearby Device Mode" and the mode is on the "Add Device" page. 2. Please turn on / off the light within ten seco -nds, and perform it three times in succession (according to the APP guide) to make it flash slowly, and then the corresponding bulb light that needs to be added will appear in the app, click " 3. Select local WiFi and enter the correct pass -word, click "Next" 4. Click "Confirm, Next" 5. Wait or the device to be added successfully B. Nearby device mode ⑦ -08--09- >Control Your Smart Bulb with Alexa /Google Assistant/IFTTT 1.Bind
device IFTTT voice speaker settings Purchase
a
device
that
supports
the
"Cloud
Intelligence"
APP
binding,
add
it
to
the
device
list
on
the
homepage,
and
rename
it,
such
as
"My
Light". 2.Create
Applet You
must
first
download
the
IFTTT
APP
and
create
a
New
Applet,
using
the
device
as
a
trigger
or
action. 3.Have
found“Cloud Intelligence” Search
for
Service
"Cloud
Intelligence",
enterthe
account
number
and
password
of
the
"Cloud
Intelligence"
APP,
and
asso -ciate"Cloud
Intelligence"
with
"IFTTT". 4.Complete
automation
setup After
the
association,
you
can
set
the
device
bound
to
the
"Cloud
Intelligence"
APP
to
Trigger
or
Action,
and
build
your
own
cloud
intelligence,
such
as: Set
light
to
cool
white
when
rain
comes Dim
the
light
at
9
PM Power
on
your
outlet
at
sunset. Amazon Echo speaker settings 1.Bind
device Purchase
a
device
that
supports
the
"Cloud
Intellgence"
APP
binding,
add
it
to
the
device
list
on
the
homepage,
and
rename
it,
such
as
"My
Light". 2.
Turn
on
"Cloud
Intelligence"
skills
(Pic8-10) You
have
to
own
an
Amazon
Echo
speaker,
then
search
for
"Cloud
Intelligence"
in
the
Skills
of
the
Alexa
app
and
click
"Enable". 3.Linked
account Enter
the
account
and
password
of
the
"Cloud
Intelligence"
APP
to
associate
"Cloud
Intelligence"
with
"Alexa".(pic11) 4.Voice
control
equipment(Pic
12) After
association,
you
can
perform
voice
control
on
the
devices
bound
to
the
"Cloud
Intelligence"
APP,
such
as: "Alexa,
turn
on
/
off
my
light." -10- -11- “Alexa,
brighten
/
dim
my
light." "Alexa,
set
my
light
to
yellow." "Alexa,
set
my
light
to
warm
white." ⑧ ⑨ 11 12 ⑩ -12- Google Home speaker settings 1.Bind
device Purchase
a
device
that
supports
the
"Cloud
Intelligence"
APP
binding,
add
it
to
the
device
list
on
the
homepage,
and
rename
it,
such
as
"My
Light". 2.
Turn
on
"Cloud
Intelligence"
skills You
have
to
have
a
Google
Home
speaker,
then
search
for
"Cloud
Intelligence"
in
the
Home
control
of
the
Google
Home
(or
Google
Assistant)
app. 3.Linked
account
Enter
the
account
and
password
of
the
"Cloud
Intelligence"
APP
to
associate
"Cloud
Intelligence"
with
"Google
Assistant". 4.Voice
control
equipment After association, you can perform voice control on the devices bound to the "Cloud Intelligence" APP, such as: "OK, Google, turn on / off my lights." "OK, Google, dim my lights to fifty percent." "OK, Google, turn my lights [color]." "OK, Google, lock the front door." 1. Cannot connect to Wi-Fi ·Check if you have selected a 2.4 GHz wifi which is the same that your phone is con -nected with.(If your router is dual band, make sure your phone and the smart bulb are connected to the 2. 4 G signal.) ·Check if you have entered the correct Wi Fi password. ·Check if there are any internet problems. If necessary, reset your Wi-Fi router and try again. 2. Cannot control the devices with Alexa/ Google voice control. ·Check if there are any internet problems ·Check if you have enabled"Cloud intellig -ence" in Alexa or Google APP. ·Check if you are using proper commands when talking to Alexa/Google Assistant, repeat your question, speak clearly to Alexa/ Google Assistant in English. ·Check if you have modified the name of >Troubleshooting -13- of the bulb in "Cloud intelligence"app. If yes, you need to rediscover…

Text truncated - open the document above for the full version.

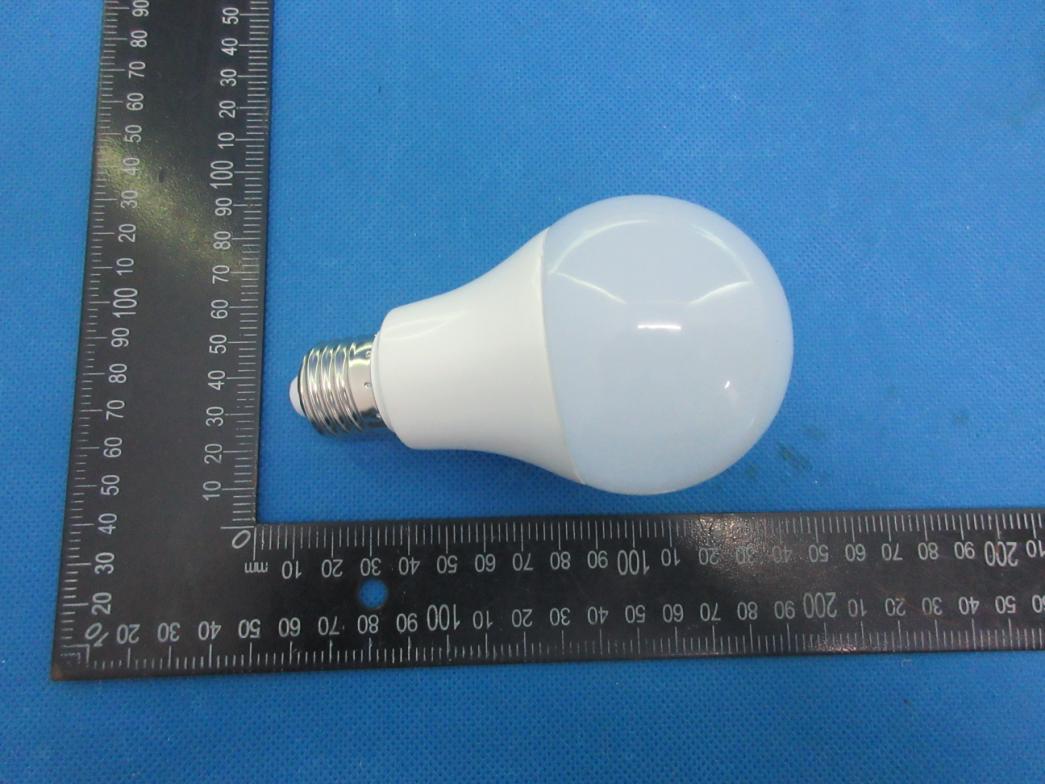

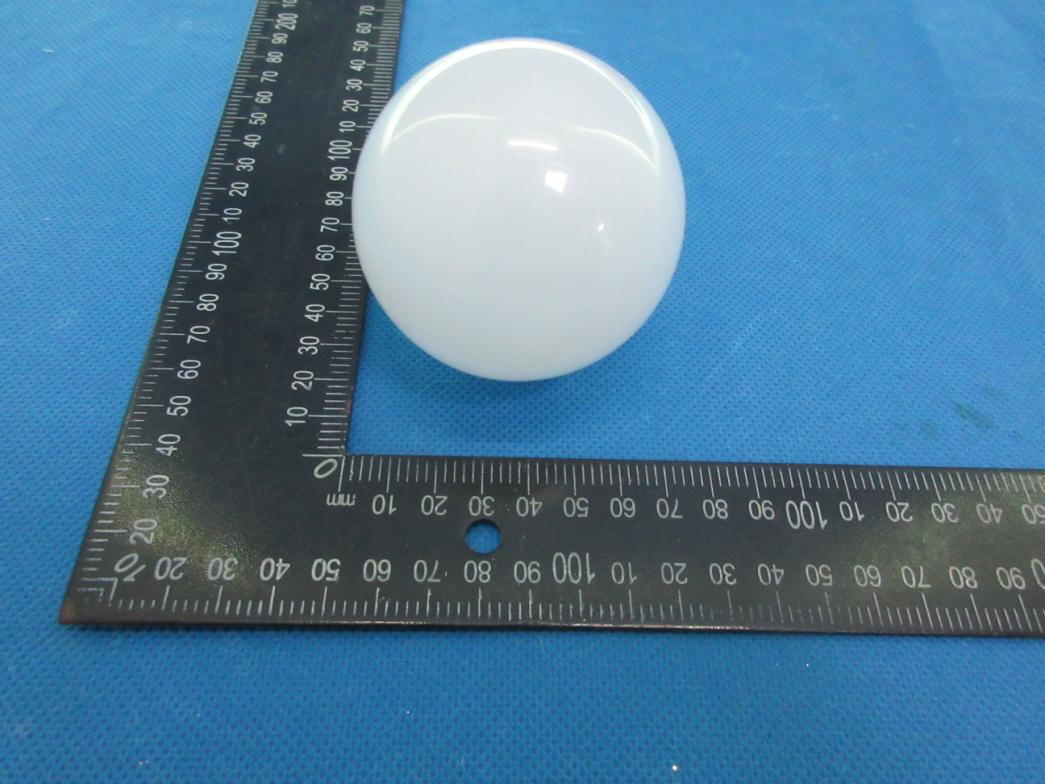

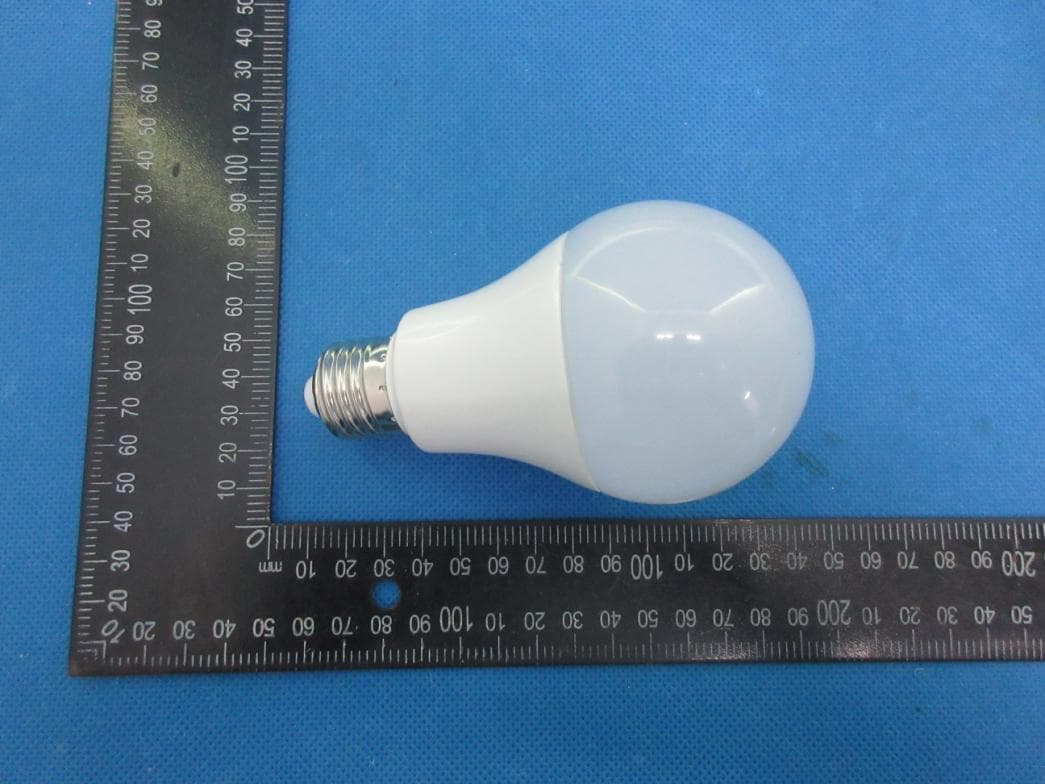

S19122703923 Model: L05 N20191017V1 Photo 1 Photo 2 S19122703923 Model: L05 N20191017V1 Photo 3 Photo 4 S19122703923 Model: L05 N20191017V1 Photo 5 Photo 6

SMART LED BULD Model:L05 10W E27 F RGB&2800~6500K 110~250V AC 850LM FCC ID:2AWCY-L05 2 1 . 0 0 m m 29.50 mm SMART LED BULD Model:L05 10W E27 F RGB&2800~6500K 110~250V AC 850LM FCC ID:2AWCY-L05

S19122703923 Model: L05 N20191017V1 Photo 1 Photo 2 S19122703923 Model: L05 N20191017V1 Photo 3 Photo 4 S19122703923 Model: L05 N20191017V1 Photo 5 Photo 6 S19122703923 Model: L05 N20191017V1 Photo 7 ANT

version01 Shenzhen Chaoran Technology Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: L05,L05W, GJJ-L05W-001D, GJJ-L05W-001F, GJJ-L05W-001, GJJ-L05W-002, L05W-001D, L05W-001F, L05W-001,L05W-002, L04, L04W, GJJ-L04W-001, GJJ-L04W-002, L04W-001, L04W-002, L02, L02W, GJJ-L02W-001, GJJ-L02W-002, L02W-001, L02W-002 FCC ID: 2AWCY-L05 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna:PCB Antenna (1/4 wave antenna) built into the housing) WIFI: Gain of the antenna: 1.5 dBi Frequency range: 2412 to 2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Chaoran Technology Co., Ltd. Address:Building 20, Tongfuyu Industrial Zone, Kengzi Longtian, Pingshan New District, City:Shenzhen ZIP / Postal code: Country:China Place:Tel AvivDate: 05/20/2020 Name: Emily mou Signature:

FCC ID: 2AWCY-L05 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. MAX OUTPUT POWER wifi Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 802.11b 2412 Ant 1 15.26 30 Pass NVNT 802.11b 2437 Ant 1 14.03 30 Pass NVNT 802.11b 2462 Ant 1 14.92 30 Pass NVNT 802.11g 2412 Ant 1 11.08 30 Pass NVNT 802.11g 2437 Ant 1 9.98 30 Pass NVNT 802.11g 2462 Ant 1 11.11 30 Pass NVNT 802.11n(HT20) 2412 Ant 1 11.11 30 Pass NVNT 802.11n(HT20) 2437 Ant 1 9.88 30 Pass NVNT 802.11n(HT20) 2462 Ant 1 11.41 30 Pass NVNT 802.11n(HT40) 2422 Ant 1 9.75 30 Pass NVNT 802.11n(HT40) 2437 Ant 1 9.27 30 Pass NVNT 802.11n(HT40) 2452 Ant 1 9.75 30 Pass M easurement Result O peration Frequency: WIFI: 2412-2462MHz for 802.11b/g/11n(HT20); 2422-2452MHz for 802.11(HT40) Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 1.5dBi, R=20cm conducted power Evaluation result Power density (dBm)(mW)(dBi)Numeric 2412 15.26 15±116 39.8111.501.410.01121 2437 14.03 15±116 39.8111.501.410.01121 2462 14.92 15±116 39.8111.501.410.01121 2412 11.08 11±112 15.8491.501.410.00451 2437 9.98 11±112 15.8491.501.410.00451 2462 11.11 11±112 15.8491.501.410.00451 2412 11.11 11±112 15.8491.501.410.00451 2437 9.88 11±112 15.8491.501.410.00451 2462 11.41 11±112 15.8491.501.410.00451 2422 9.75 10±111 12.5891.501.410.00351 2437 9.27 10±111 12.5891.501.410.00351 2452 9.75 10±111 12.5891.501.410.00351 802.11n(H40 ) (mW/cm2 )(mW/cm2) Antenna Gain 802.11b Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) 802.11g 802.11n(HT 20) Conclusion: For the max result : 0.0112≤ 1.0 for Max Power Density, compliance RF ex posure.. Signature: Date: 2020-05-20 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.
