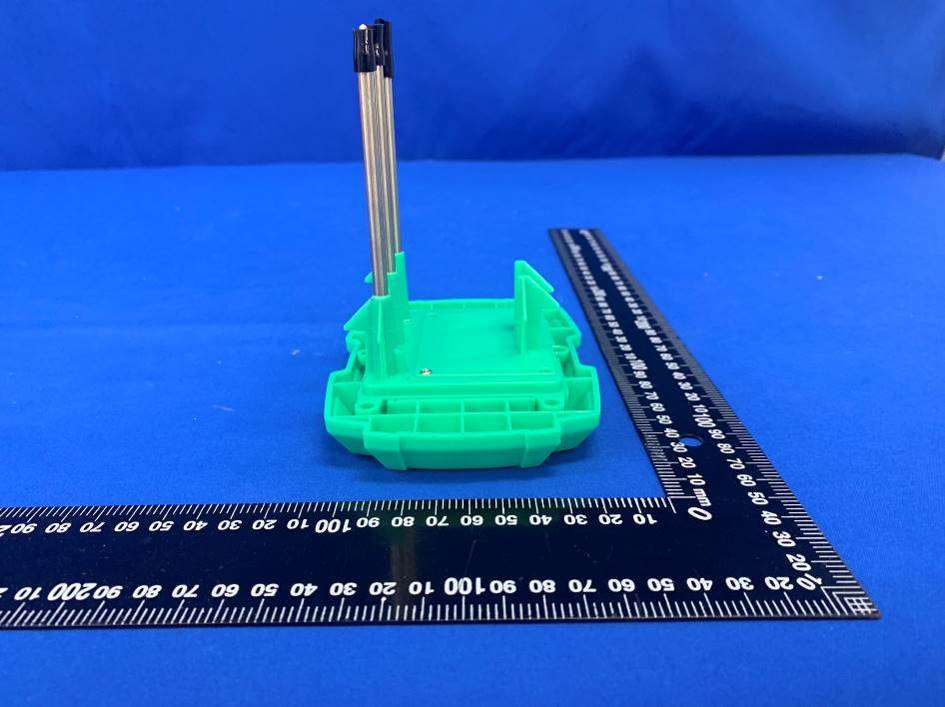

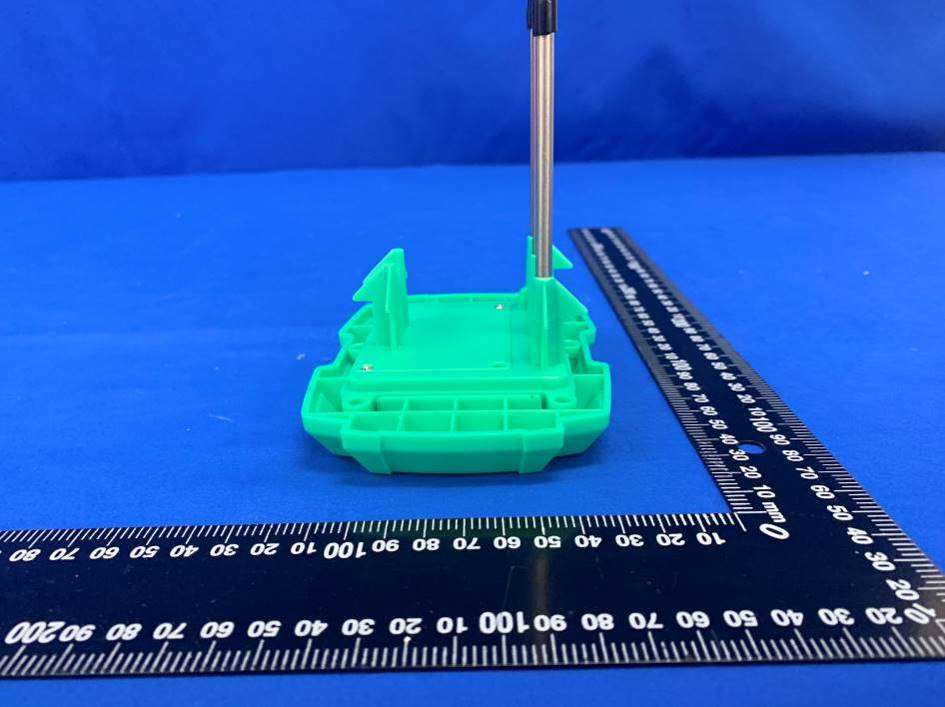

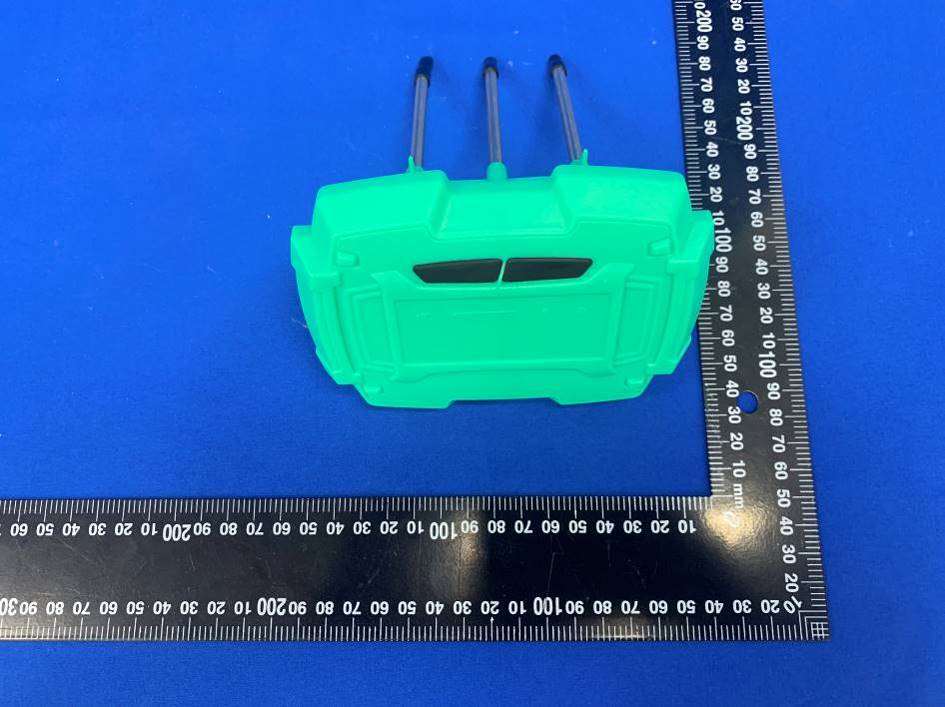

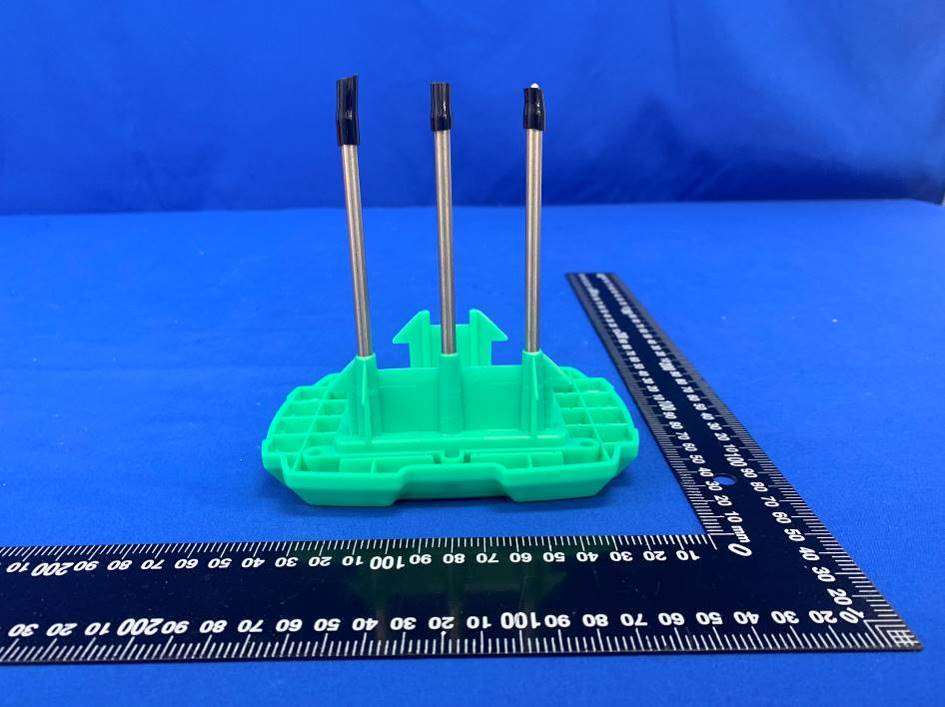

2AWDBTCS005FRFSoil Moisture Sensor

尺寸:10×10cm Model No. ICS0001W RAINPOINT WI-FI IRRIGATION SOIL MOISTURE SENSOR USER MANUAL MAIN FUNCTION ● Check ing the soil humidity and temperat ure through Cont rol Master APP ● Check the current soil moist ure through the sensor button ● 5 LED lights indicate 5 levels of soil moist ure levels: 20%, 40%, 60% 80% and 100% ● Set the “Stopping Watering Moist ure Level” t hrough the sensor, default humidity level is 60% ● RF connection with rainpoint Wi-Fi Water Timer ● Low battery power indicator ● IP67 water proof SPECIFICATION OPERATING ● P ower by 3 x AAA 1.5V alkaline batteries, batteries life over 1 year ● Da Up to 60 meters depending obstacles between soil sensor and tap timer ta update every 5 minutes ● R F frequency 433. 92MHz FSK ● S oil Moist ure Range 0% ~ 100% (Volume Water Content)ac curacy ≤5% (0% ~ 50%) or ≤10% (51% ~ 100%) ● S oil T emperat ure Range -10 ~ 60 6. After conf irm connected, screw the battery door, insert into the earth where you needed. The dist ance between Soil Sensor and Wifi Water Time must within 100 meters in open area. 2. When wake up the LED light, pres s the Left button, user can set the “Stop Watering Soil Moist ure Level”, default humidity is at 60%. After setting, press Right button or wait for 20 seconds to conf irm. A. Connection 1.After connected our Wi-Fi water timer with APP, click the Water Timer icon, switch to “Sensor” interface. 2. “Sensor” interface will show Soil sensor icon and Rain sensor icon. The switch button is in gray color, it means the sensor haven’t connect yet. 3. Screw off the sensor battery door and inst all the batteries to the soil sensor near our Wi-Fi water timer. After inst alling the batteries, the GREEN LED light will t urn on for few seconds. 4. After the green LED light turn off, please press and hold the button at the back of the sensor for five seconds until the RED LED light turn on, it means the sensor is ready for connect ing. 5. When the RED light turn on, please tap the soil sensor button at the App,it will automatically search and connect the sensor, it will t ake around 10 seconds. After connected, the soil sensor icon will t urn to green color and show the battery power level in APP. Switch to “Paramet er” interface, user will see the soil data. B. Setting s oil sensor Left key is to set humidity level Right key is confirm button/ test now button 1. After finishing connect ion, press and hold the two buttons for 5 seconds, user can wake up the program, the LED light will show the current Soil moist ure level. 5 LED lights indicate 5 levels of soil moist ure levels: 20%, 40%, 60% 80% and 100% (Volume Water Content). 3. When wake up the LED light, pres s the Right button, user can check the current soil moist ure level. (User can view the accurate data through our APP). C. Auto running Aft This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired operation. MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. er setting the“Stop Watering Soil Moist ure Level” and pair successfully , the Wi-Fi water timer will automatically stop watering plan once the Soil moist ure reach the setting level. FaultResolvent Press and hold the button behind the sensor, the red light is not on Humidity level cannot be set WiFi water timer is not connected with mobile phone Both black buttons must be held for 3 seconds to wake up the program to set

Declaration on model difference 产品差异声明 We, Fujian Baldr Technology Co., Ltd the undersigned hereby declare that the device's schematics ，PCB layout and all other electrical aspects of the device are identical. The only differences is model no. for trading purpose. 我们在下面签名并据此确认:以下产品型号之间的差异仅为型号不同，其它设计完全相同。 Product Name: Soil Moisture Sensor Models: TCS005FRF / TCS005ARF Name : Chris Liu Company: FUJIAN BALDR TECHNOLOGY CO.,LTD

2020-07-16 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Soil Moisture Sensor TCS005FRF / TCS005ARF FCC ID: 2AWDBTCS005FRF ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature: Name: Chris Liu Applicant: FUJIAN BALDR TECHNOLOGY CO.,LTD Address: Zone D, Floor 2, Production Workshop, No.36, Jinrong North Road, Jianxin Town, Cangshan District, Fuzhou, CN TEL: 0086-591-3872 1182 FAX:0086-591-2805 9327

2020-07-16 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Chris Liu Applicant: FUJIAN BALDR TECHNOLOGY CO.,LTD Address: Zone D, Floor 2, Production Workshop, No.36, Jinrong North Road, Jianxin Town, Cangshan District, Fuzhou, CN TEL: 0086-591-3872 1182 FAX:0086-591-2805 9327

尺寸：40*25mm FUJIAN BALDR TECHNOLOGY CO.,LTD Powered by 3 AAA 1.5V alkaline batteries Model No. TCS005FRF FCC ID: 2AWDBTCS005FRF LOT No.202005 www.rainpointus.com

Antenna
