2AWDJ-BLM5150Bluetooth device

Datasheet iBeacon 型号：BLM5150 Suzhou Beelinker Technology Co,.Ltd Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 1 MODEL NO/DESCRIPTION Product Name iBeacon Product Mode BLM5150 Version 1.0 Release Date 2022.11 Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 2 LIST 1. Product Description ..................................................................................... 3 2. Production Features .................................................................................... 3 3. Application Scenario .................................................................................... 4 4. Characteristics ............................................................................................. 4 5. Electrical Parameters ................................................................................... 5 6. Configuration Toolkit ................................................................................... 7 7. Certification ................................................................................................. 8 8. Package ........................................................................................................ 8 9. Quality Assurance ........................................................................................ 9 10. Contact ...................................................................................................... 10 11. Statement .................................................................................................. 11 Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 3 1. Product Description With more than 10 years in-house design and practice experience in the iBeacon market, we bring the latest Bluetooth 5.1 technology, patented power saving solutions and Texas Instrument CC2640 chip into our latest product. To meet the security sensitive scenarios, it features the data security access in bi-direction communication and encryption by the random seed. It pass the Apple iBeacon standards. For the outlet, the housing is a rotating cylinder and made of ABS. By using a snapped bracket, It’s very flexible to replace the battery and can be used in varies of environment. Product Outlet Product Outlet 2. Production Features ★ Ultra-low power consuming, 2 years without recharge (0db, 500ms interval) ★ Support on/off function,support one key alarm,low power alarm ★ RFID(13,56Mhz) proximity sensing function is provided,it can support acceleration sensor function,large-scale applications,stable and reliable Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 4 3. Application Scenario Combined with Bluetooth gateway, it is widely used in indoor real-time positioning of personnel and materials, such as external personnel positioning, hospital valuable equipment positioning, storage materials positioning management; Intelligent inspection and check-in, such as automatic inspection of factory security personnel, vehicle and employee check-in, meeting check-in and other scenes. 4. Characteristics Model BLM5150 Water & Dust Protection IP67 Housing Materials ABS Outlet Color White Dimension 85×53.6×4.1mm Weight 17.64g(With Battery) Battery One-time Lithium-Manganese battery(800mAh) Installation Hanging rope to wear Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 5 5. Electrical Parameters Model BLM5150 Quiescent Current 1uA Typical current , Transmitting 6.1mA Typical current Receiving 5.9mA Battery Model One-time Lithium-Manganese battery Battery Capacity 800mAH Battery Life 2 years（0dBm&500ms） Operation Temperature -20°C～60°C Operation Frequency 2.4 GHz Bluetooth Transmit Power -21~2dBm(Typical 0dBm) Broadcast Period 20ms~10s(Typical 500ms) Signal Range Typical 100 meter Security Only compliable to OEM APP(with security access) Application Supported OS Requires iOS 7.0 or later Requires Android 4.3 or later Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 6 Key Status Description 1. Power on: Off state, press the button twice, the green light is on for 2 seconds, enter the working state. 2. Shutdown: In working state, press the button for four times, the red light will be on for five seconds and then go off, entering the shutdown state. 3. Alarm: In working state, long press the key for 2 seconds, the green light blinks at a frequency of 200ms for 2 seconds and then goes out, entering the alarm state. The alarm lasts for 30 seconds, and other events cannot be processed during the alarm. Status switching Key status LED Status off on Press it twice The green light is on for 2seconds and then goes off on off Short press once Keep the red light on for 5 seconds and then turn it off on alarm Hold on for 2 seconds The green light blinks at a frequency of 200ms for 2 seconds an then goes off.The alarm lasts for 30 seconds Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 7 6. Configuration Toolkit Our company has app/ applet tools (ios/android platform) that can support the configuration parameters of this product. The configurable parameters include UUID,major, minor, transmission power and transmission interval. The figure below is a typical configuration interface. If the customer has the field configuration requirements, please ask our technical support. Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 8 7.Certification 8.Package Package Open Carton Chart Quantity 48pcs Gross 1kg Size 285*120*40mm Website： www.beelinker.com Address：No.399,Linquan Street,SIP,Suzhou,Jiangsu TEL:0512-62997201-8831 9 9.Quality Assurance The factory is certified to ISO9001. Every sample will be verified (Transmit power, power consumption, reliable test) before shipp…

Text truncated - open the document above for the full version.

Suzhou BeeLinker Technology Co., Ltd (2023.01.09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Bluetooth device / BLM5150 / FCC ID: 2AWDJ-BLM5150 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Wei Wang Title: Manager

Suzhou BeeLinker Technology Co., Ltd (2023.01.09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Wei Wang Title: Manager

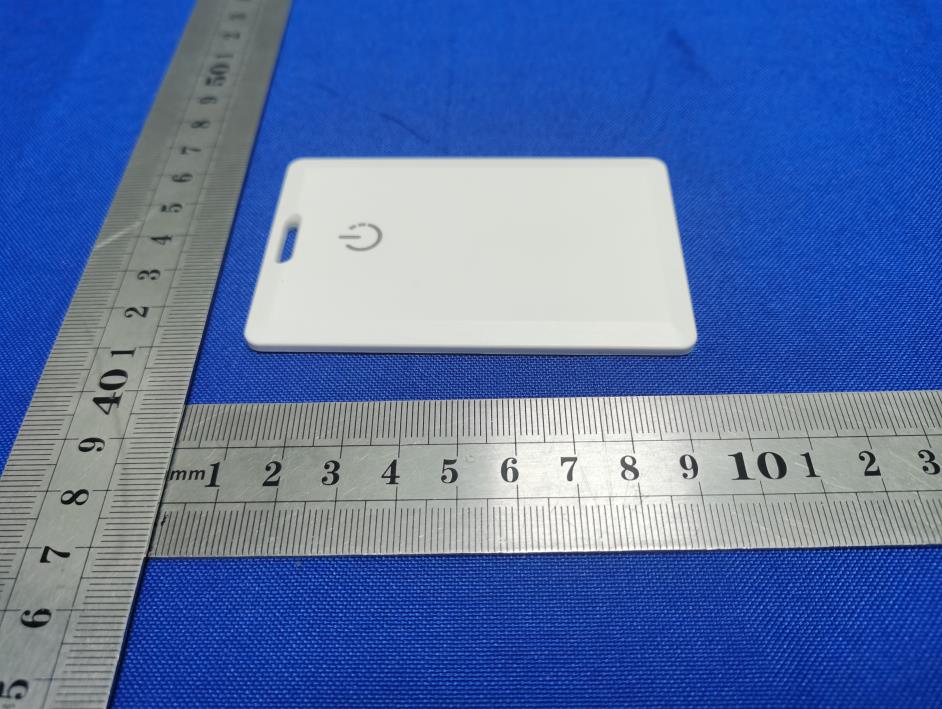

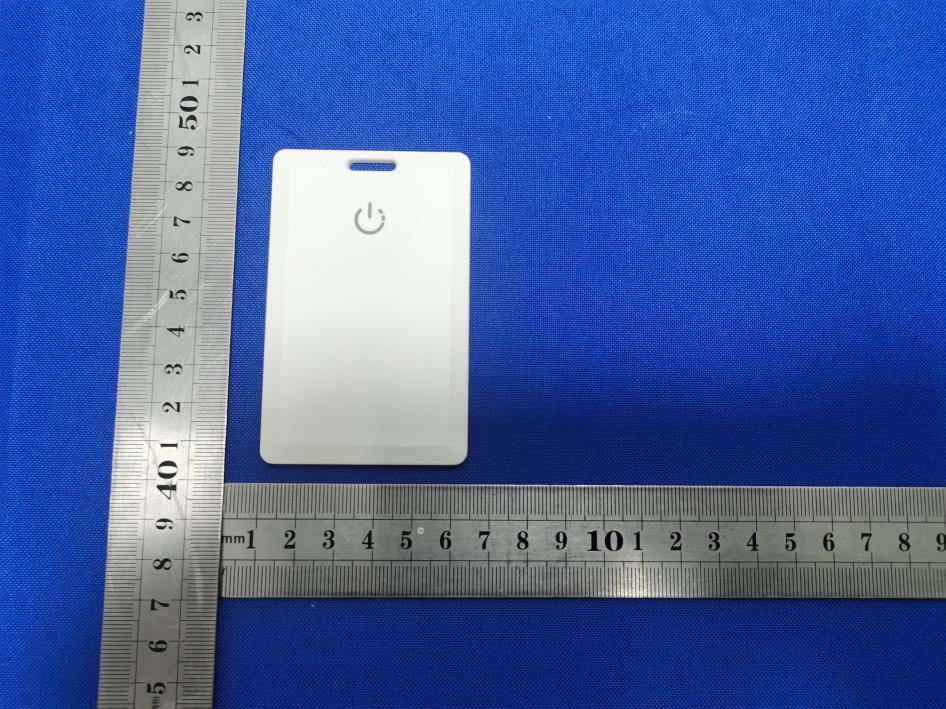

External Photos

FCC ID LABEL: Label Location: FCC ID: 2AWDJ-BLM5150 Model No.: BLM5150 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2AWDJ-BLM5150 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -0.654 0.86 0±1 1.00 1.26 <5 0.39023 3.00 YES 2.44 -0.442 0.90 0±1 1.00 1.26 <5 0.39330 3.00 YES 2.480 -0.688 0.85 0±1 1.00 1.26 <5 0.39651 3.00 YES GFSK Conclusion: For the max result : 0.39651≤ FCC Limit 3.0 for 1g SAR.

Onboardantennaspecificationdocument 1.Detaileddimensionsofonboardantenna:    2.Features  Dimensions:14.43mm*5.9 9mm 50 ohm impe dance Maximum gain:1.29 dBi Working in the 2. 4GHz frequency band 3、 the antenna S parameters 10dB working bandwidth:58MHz Central frequency band S11:[email protected] 4,the antenna impedance and VSWR Central frequency pointVSWR : [email protected] Central frequency point impedance: 50ohm @2.438GHz 5.Antenna gain Maximal directional gain:1.29dBi E face:
