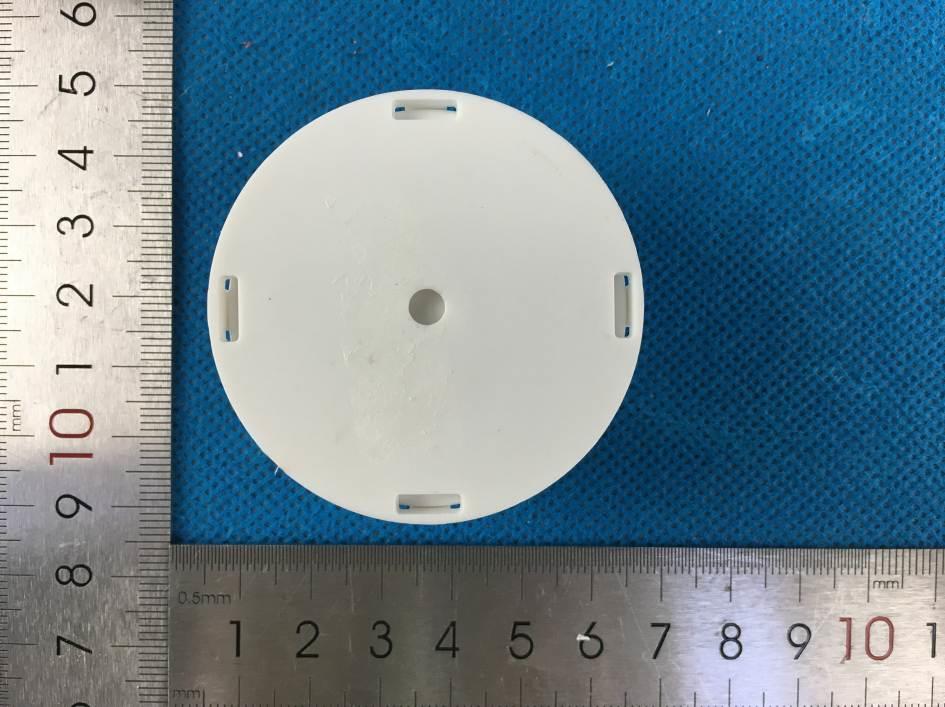

2AWDJ-BLM5200Bluetooth device

iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 IBeacon Datasheet Model：BLM5200 SuZhou Beelinker Technology Inc iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 MODEL NO/DESCRIPTION Product Name iBeacon Product Model BLM5200 Version 1.0 Release Date 2019.10 iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 LIST 1. Product Description ..................................................................................................................................... 4 2. Production Features .................................................................................................................................... 4 3. Application Scenario ................................................................................................................................... 5 4. Characteristics ............................................................................................................................................... 5 5. Electrical Parameters ................................................................................................................................... 6 6. Configuration Toolkit .................................................................................................................................. 7 7. Certification ................................................................................................................................................... 8 8. Package ........................................................................................................................................................... 8 9. Quality Assurance ........................................................................................................................................ 9 10. Contact ............................................................................................................................................................ 9 iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 1. Product Description With more than 10 years in-house design and practice experience in the iBeacon market, we bring the latest Bluetooth 4.2 technology, patented power saving solutions and Texas Instrument CC2640 chip into our latest product. To meet the security sensitive scenarios, it features the data security access in bi-direction communication and encryption by the random seed. It pass the Apple iBeacon standards. For the outlet, the housing is a rotating cylinder and made of ABS. By using a snapped bracket, It’s very flexible to replace the battery and can be used in varies of environment. Product Outlet Product Architecture 2. Production Features ★ Ultra-low power consuming, 5 years without recharge (0db, 500ms interval) ★ Rotating cylinder housing, snapped bracket, flexible to change the battery ★ Proven solution and widely used in the market iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 3. Application Scenario Widely used in the Wechat Ecosystem. Applicable for the advertisement popup and coupon release. Portable Guide Machine in the Tourist spots and museum. SMS popup and interaction based on the Position of Interest. Navigation in the building and smart patrol check. 4. Characteristics Model BLM5200 Water & Dust Protection IP53 Housing Materials PC Outlet Color White Dimension Φ50.30×24.95mm Weight 42g(With Battery) Battery ER14250H*2 (Li) Operating Voltage DC3.6V Installation Glue or Screw iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 5. Electrical Parameters Model BLM5200 Quiescent Current 1uA Typical current , Transmitting 6.1mA Typical current Receiving 5.9mA Battery Model ER14250H*2 Battery Capacity 2400mAH Battery Life 5 years（0dBm&500ms） Operation Temperature -20°C～70°C Operation Frequency 2.4 GHz Bluetooth Transmit Power -21~2dBm(Typical 0dBm) Broadcast Period 20ms~10s(Typical 500ms) Signal Range Typical 100 meter Security Only compliable to OEM APP(with security access) Application Supported OS Requires iOS 7.0 or later Requires Android 4.3 or later iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 6. Configuration Toolkit We supply the application software in the iPhone&IPad to configure and calibration the product. The supported parameters include UUID, Major, Minor, Transmit Power, Messages Interval Period. The Golden Sample is shown as below. We also provide the technical support if customer needs additional requirement. iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 7. Certification Radio Certification （No：2019-12412） 8. Package Package Open Carton Chart Quantity 120 pcs Gross 5.5kg Demission 290*170*190mm iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 9. Quality Assurance The manufactory is certified to ISO9001. Every sample will be verified (Transmit power, power consumption, reliable test) before shipping. 10. Contact Disclaim: This manual is only for reference. All rights reserved by the Beelinker Technology Inc. iBeacon BLM5200 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 Appendix FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approve…
