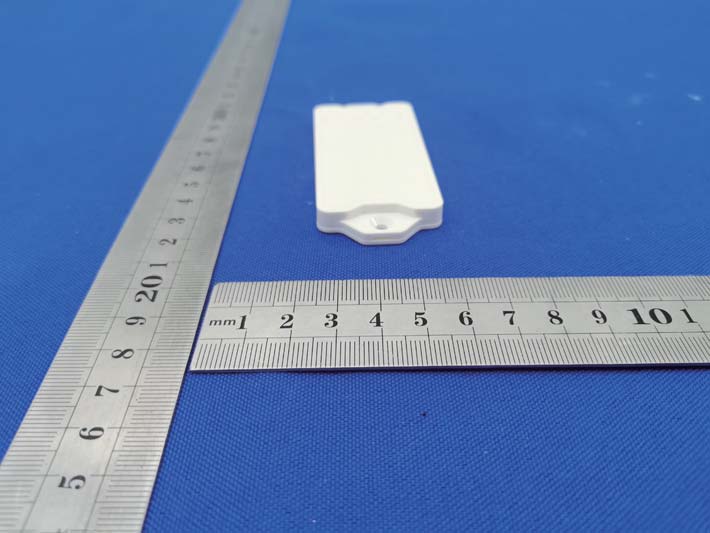

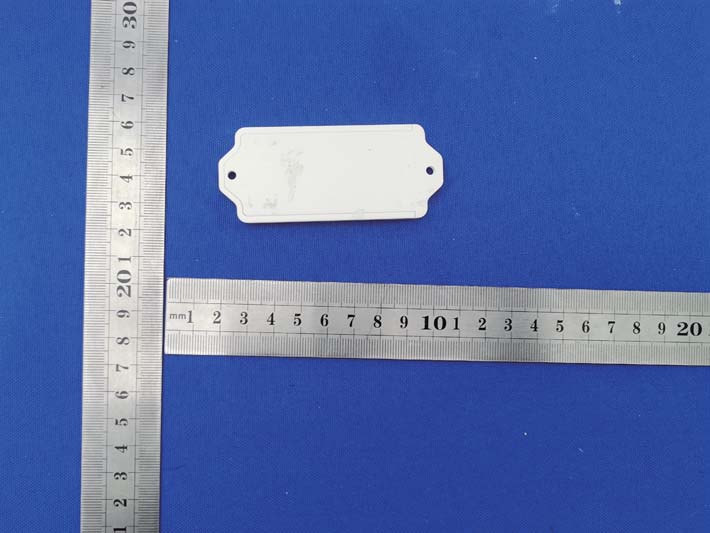

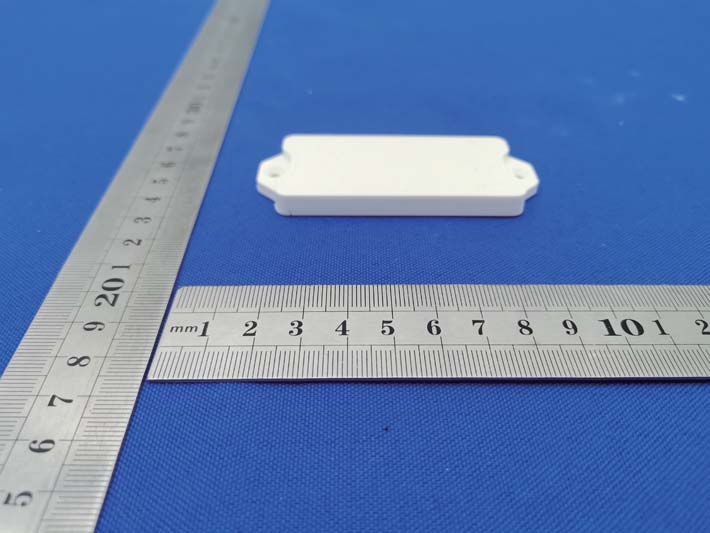

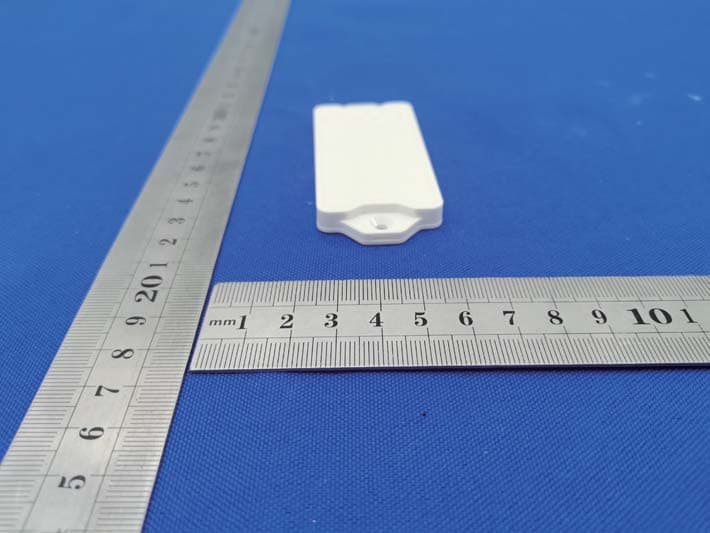

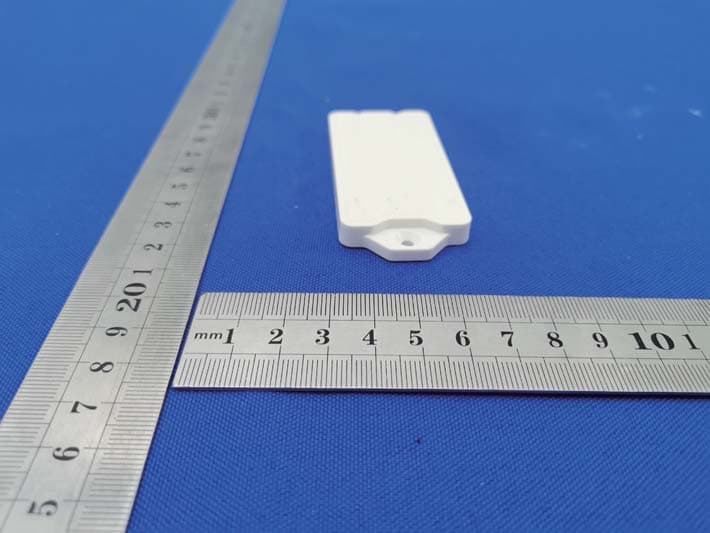

2AWDJ-BLM5500Bluetooth device

iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 IBeacon Datasheet Model：BLM5500 SuZhou Beelinker Technology Inc iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 MODEL NO/DESCRIPTION Product Name iBeacon Product Model BLM5500 Version 1.0 Release Date 2021.1 iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 LIST 1. Product Description ..................................................................................................................................... 4 2. Production Features .................................................................................................................................... 4 3. Application Scenario ................................................................................................................................... 5 4. Characteristics ............................................................................................................................................... 5 5. Electrical Parameters ................................................................................................................................... 6 6. Configuration Toolkit .................................................................................................................................. 7 7. Certification ................................................................................................................................................... 8 8. Package ........................................................................................................................................................... 9 9. Quality Assurance ........................................................................................................................................ 9 10. Contact .......................................................................................................................................................... 10 iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 1. Product Description With more than 10 years in-house design and practice experience in the iBeacon market, we bring the latest Bluetooth 5.1 technology, patented power saving solutions and Texas Instrument CC2640 chip into our latest product. To meet the security sensitive scenarios, it features the data security access in bi-direction communication and encryption by the random seed. It pass the Apple iBeacon standards. For the outlet, the housing is a rotating cylinder and made of ABS. By using a snapped bracket, It’s very flexible to replace the battery and can be used in varies of environment. Product Outlet 2. Production Features ★ Ultra-low power consuming, 2 years without recharge (0db, 1s interval) ★ Ultrasonic plastic sealing, waterproof grade IP53 ★ Buckle base screw or magnetic suction installation ★ Proven solution and widely used in the market iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 3. Application Scenario It is widely used in wechat "shake" the surrounding areas, such as customer advertising, coupon push and other precision marketing; online explanation of tourist attractions and Museum; location-based information push and interaction; indoor navigation service, intelligent inspection and other scenes. 4. Characteristics Model BLM5500 Water & Dust Protection IP53 Housing Materials PC Outlet Color White Dimension 83×34×6.5mm Weight 21g(With Battery) Battery CR3032 Operating Voltage DC3.0V Installation Button base / magnet iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 5.Electrical Parameters Model BLM5500 Quiescent Current 1uA Typical current , Transmitting 6.1mA Typical current Receiving 5.9mA Battery Model CR3032 Battery Capacity 500mAH Battery Life 2 years（0dBm&1s） Operation Temperature -20°C～70°C Operation Frequency 2.4 GHz Bluetooth Transmit Power -21~1dBm(Typical 0dBm) Broadcast Period 20ms~10s(Typical 500ms) Signal Range Typical 100 meter Security Only compliable to OEM APP(with security access) Application Supported OS Requires iOS 7.0 or later Requires Android 4.3 or later iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 6. Configuration Toolkit Our company has app/ applet tools (ios/android platform) that can support the configuration parameters of this product. The configurable parameters include UUID, major, minor, transmission power and transmission interval. The figure below is a typical configuration interface. If the customer has the field configuration requirements, please ask our technical support. iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 7. Certification Radio Certification （No：2019-12412） CE FCC 7 iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 8. Package 9. Quality Assurance The manufactory is certified to ISO9001. Every sample will be verified (Transmit power, power consumption, reliable test) before shipping. Package Open Carton Chart Quantity 10 pcs Gross 250g Demission 114*102*41mm iBeacon BLM5500 Website： www.beelinker.com Address：No. 399, Linquan Street, SIP, Suzhou, Jiangsu TEL:0512-62997201-8831 10. Contact Disclaim: This manual is only for reference. All rights reserved by the Beelinker Technology Inc. FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwocond itions:(1)Thisdevicemaynotcaus eharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay caus eun desiredoperation. A…
