2AWDM-A17DDash cam

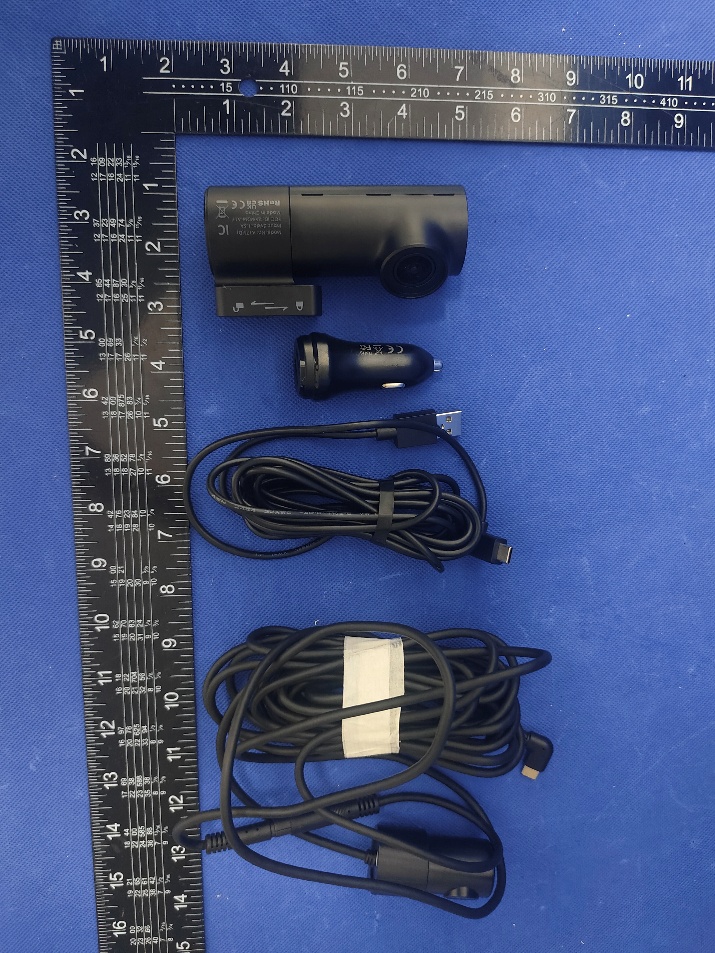

User Manual Model No: A17S = Single Front Dash Cam A17DDual Dash Cam Front and Rear = Contents: Safety Instructions What’s In The Box At A Glance microSD Card Use Warranty & Support 1 2 3 8 4 5 6 9 /01 /02 /03 /12 /04 /05 /08 /19 /24 APP FAQs 11 /25 Power Supply Installation 7 /09 1. 2. 3. 4. Heat Shortcut Keys & LED Indicators Voice Prompt GPS 5. WiFi 6. HDR 7. Glare and Reflections 8. Tinted rear windshield 9. Parking monitor 10. Watch recordings via PC 11. Reset 12. Firmware Upgrading 10 1 Safety Instructions Please read and understand all instructions hereunder before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Page / 01 Set Time Zone correctly 2 Warranty & Support Your opinion matters! Support: Item NOT as described? Damaged or defective? Missing items? Any issues whatsoever? Page / 02 Thanks for choosing COXPAL! Contact us via before returning the item, we will help you resolve any issues ASAP. Customer satisfaction is our eternal pursuit. [email protected] Warranty: From the date of purchase on, the product is warranted for 18 months. Meanwhile, COXPAL offers lifetime technical support for all our users. Product Registration Program: COXPAL has Product Registration Program to help customers extend warranty by 6 months. Visit and register your product to extend the warranty from 18 months to 24 months. www.coxpal.com Also find us here User Manual Model No: A17S = Single Front Dash Cam A17DDual Dash Cam Front and Rear = 3 What’s In The Box Page / 03 A. 1 * Main camera B. 1 * USB power cable, length 3.5m (11feet) C. 1 * Dual USB car charger, 5Vdc/3.1A D. 1 * Crowbar E. 1 * Rear cam with 0.5m (1.64feet) cable F. 1 * Mount with 3M sticker A B C D E FH J GIK G. 1 * User manual H. 1 * Spare 3M sticker for the mount I . 4 * Electrostatic sticker J. 1 * Spare 3M sticker for rear cam K. 1 * Rear cam cable, length 5.5m (18feet) 4 At A Glance Page / 04 Mount with 3M sticker, detachable Speaker Card slot for microSD card Front camera lens, 330 degree rotatable USB-C 1: Power & Data sync USB-C 2: Rear cam Left LED indicator: To show WiFi & audio status Right LED indicator: To show various video recording status Microphone Left button: Video lock/unlock | WiFi on/off | Reset Right button: Mute/Unmute | Activate format mode | Restart 330° 5 microSD Card Capacity 128GB 256GB 512GB 4K@30 front + 2K@30 rear Page / 05 This camera supports genuine microSD card up to 512GB with a speed rating of UHS-1 U3 or above. For 64GB or 128GB or 256GB or 512GB new card, please beforehand format it to FAT32. The card can be formatted by this camera: Press and hold right button 3 seconds to activate formatting mode; Press right button to confirm formatting. To avoid triggering "card error", old card also needs to be formatted if: There are other irrelevant files in it. It is used with phone card reader, because the phone could possibly generate some system files in it. Critically important to use high quality microSD card: SanDisk MAX Endurance Recommended. SanDisk Extreme SanDisk Extreme PRO Samsung EVO Plus Mainstream but small probability of encountering card problem. Samsung PRO Endurance Samsung PRO Ultimate Other cards NOT recommended, although some of them can work flawlessly. ● ● ● ● Typical recording time in normal recording mode: (Bitrate = Normal) 4K@30 front (Bitrate = Normal) 2K@30 front (Bitrate = Normal) 5.8H 11.6H 23.2H 8.9H 17.8H 35.6H 16.5H 33H 66H If card slow or card error : “””” It is 99.99% a card problem, you can use PC tools like “H2TESTW” or “ATTO Disk Benchmark”to verify its actual writing speed. If “card slow” or “card error” is low frequent: Please format microSD card and ignore it. If “card slow” or “card error” is high frequent: Please replace it with a new microSD card. 2 tips: Ideally have a spare microSD card for alternate use or emergency use. Format the card every 2 weeks to ensure it works properly and stores the data securely, meanwhile, empty “Event” folder to have more available storage space. ● ● ● Page / 06 Normal read and write speedNormal read but abnormal write speed According to our camera software working mechanism, “card slow” or “card error” only appears when the camera detected the problem of microSD card. There are usually 2 strategies to deal with card problem by dash cams, our camera adopts the 2nd: 1) No prompt: Bypass directly, the camera goes on recording, but the video clip at that time can not be saved properly; . 2) Give prompt: The problem needs to be addressed firstly, then the camera starts to record again. . ● DO NOT remove, or insert the card when this camera is powered on which may cause card corruption and data loss. Insert the card with the gold contacts facing the back side of the camera, push the card until it clicks into the place. To remove the card, gently push its top edge inward until it clicks, then pull it out of the card slot. Insert microSD card: Page / 07 Page / 08 Important to use qualified power supply to avoid camera randomly on/off: 6 Power Supply Why original USB car charger is important ? Original USB car charger + Original USB power cable Non-original USB car charger + Original USB power cable In-car USB port + Original USB power cable Computer USB port + Power cable Original 3-wire hardwire kit Non-original 3-wire hardwire kit if USB Type-C connector ACC definition is A5/B5. ● ● Actual output of original USB car charger is 5.1V-5.3V (5.2V ±0.1V). Actual output of other USB car chargers or in-car USB ports is 4.75V-5.25V (5V ±5%). Because of 11feet (3.5m) long power cable used by the dash cam, the voltage will drop a lot. Hence, if the actual output voltage of other USB car chargers or in-car USB ports is for example 5V or below, the dash cam will not receive 4.75V, then it will randomly turn on/off. ● ● Because original USB power cable is qualified to pass 2A current, we are not sure if other USB power cables are qualified to pass 2A current too. Why original USB pow…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AWDM-A17D COXPAL A17D, COXPAL A17S We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement without expiration date US-American Point of Contact Applicant/Approval Holder Signature Date: 2026-07-03 Signature Date: 2026-07-03 Company Name: WeFa Selection Trade Technology Co., LTD Winpal Electronics Co., Ltd FRN: 0033767856 0029563020 Contact Name: Joson Ye Fabio He Address: 30 N. GOULD ST. STE N SHERIDAN WY, SHERIDAN, WY 82801, United States R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen 518102, China Phone: (302) 371 9847 +86-138 2356 3721 Email: [email protected] [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AWDM-A17D COXPAL A17D, COXPAL A17S We, Applicant Company Name: Winpal Electronics Co., Ltd Address: R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen 518102, China Phone: +86-138 2356 3721 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-06-30 Signature Date Name / Title: Fabio He / General Manager Company: Winpal Electronics Co., Ltd Address: R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen 518102, China Phone: +86-138 2356 3721 Fax: +86-755-23228105 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2AWDM-A17D COXPAL A17D, COXPAL A17S Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Haiyun Standard Technical CO., Ltd. Contact Name: Tim Zhang Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China Phone: +86-18824863674 Email: [email protected] Signature: Date: 2026-06-23

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AWDM-A17D COXPAL A17D, COXPAL A17S For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-06-30 Signature Date Name / Title: Fabio He / General Manager Company: Winpal Electronics Co., Ltd Address: R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen 518102, China Phone: +86-138 2356 3721 Fax: +86-755-23228105 E-Mail: [email protected]

Winpal Electronics Co., Ltd R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen 518102, China Date: June 30, 2026 FCC ID: 2AWDM-A17D Model Number: COXPAL A17D, COXPAL A17S To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Winpal Electronics Co., Ltd hereby declare that our product (Dash cam) Model Number: COXPAL A17D, COXPAL A17S board, Schematic, Hardware version, Radio modular, Software version, structure and internal photos are same, the only difference is COXPAL A17D is a dual channel dash cam which includes main camera and the rear cam and COXPAL A17S is a single channel dash cam which includes main camera only. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Printed Name of Signature / Title: Fabio He / General Manager Company: Winpal Electronics Co., Ltd Address: R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen 518102, China Phone: +86-138 2356 3721 Fax: +86-755-23228105 Email: [email protected]

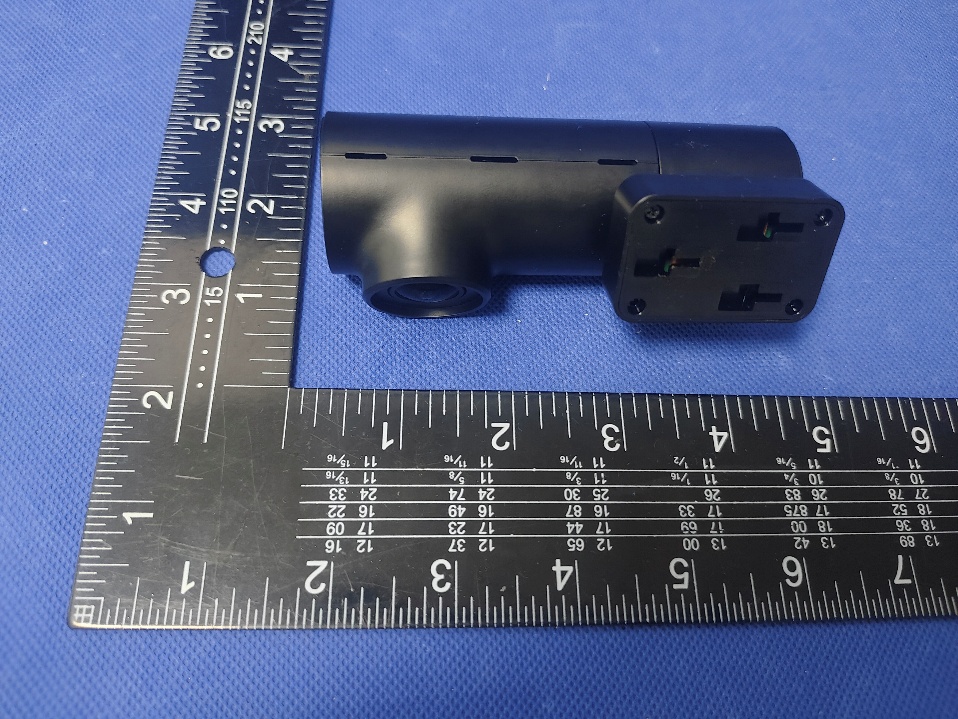

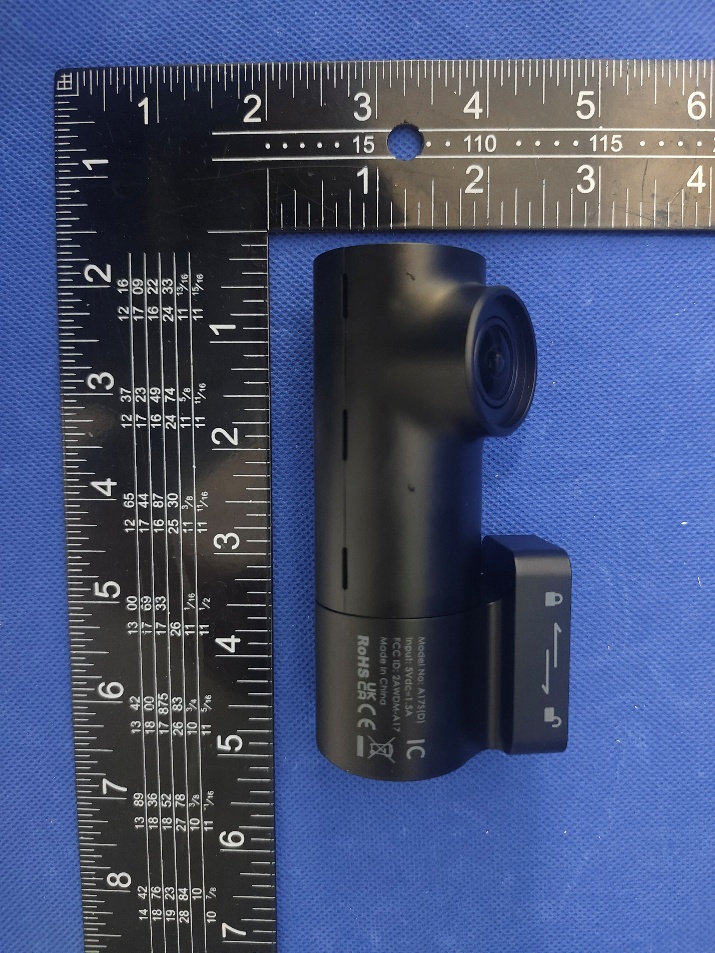

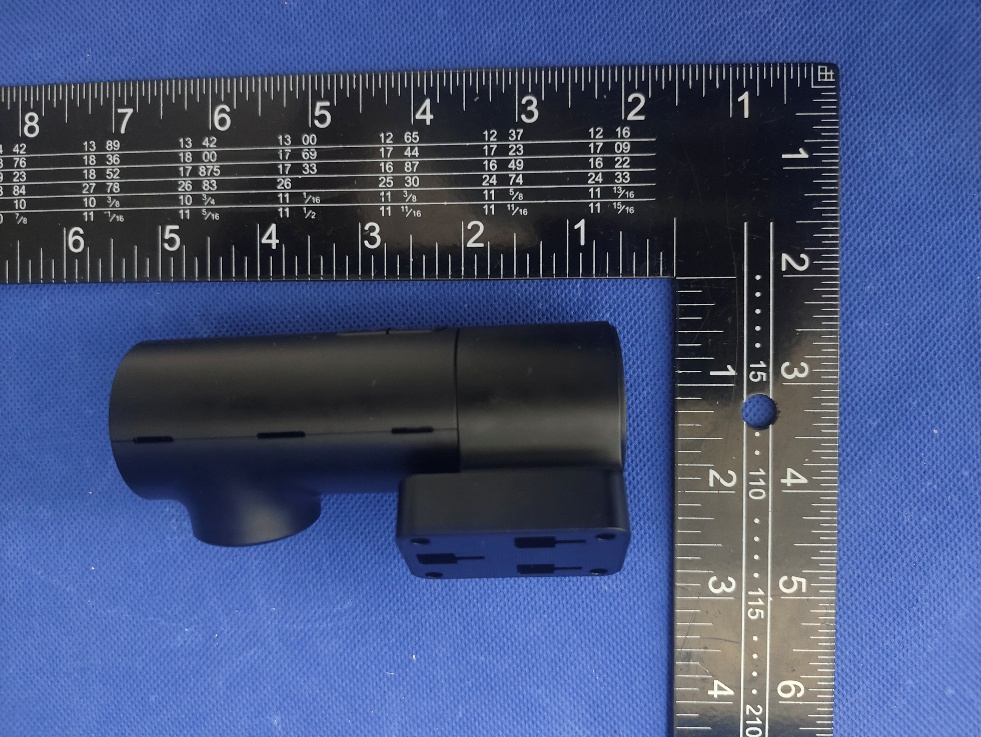

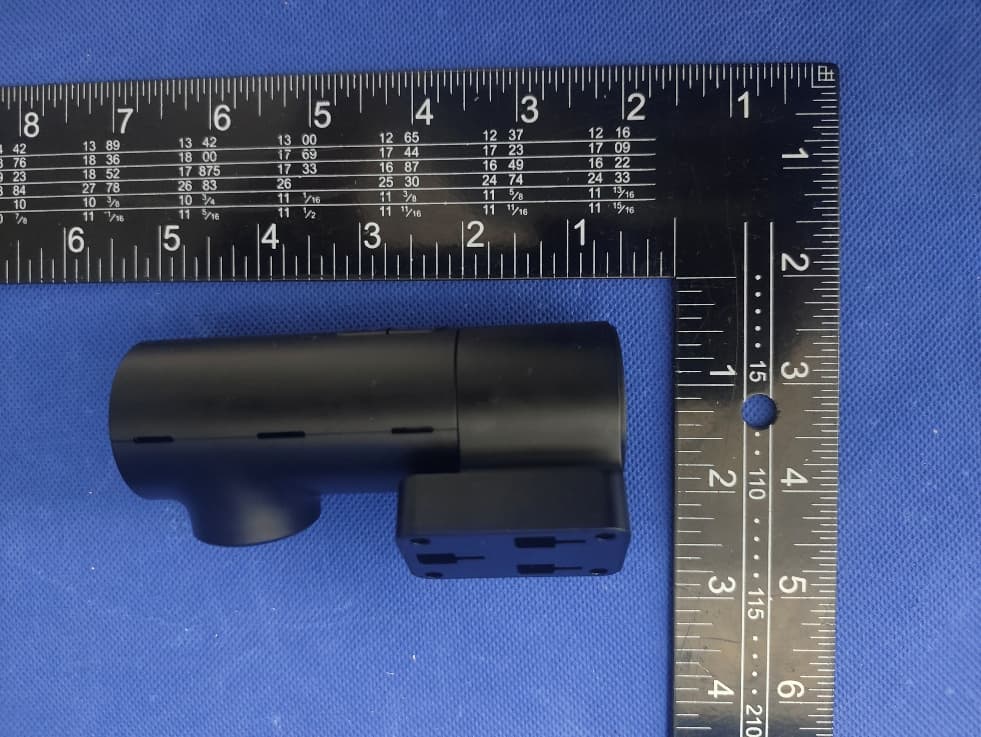

External Photos Model: COXPAL A17D Model: COXPAL A17S Note: COXPAL A17D represents Dual Dash Cam Front and Rear, while COXPAL A17S represents Single Front Dash Cam, The host is exactly the same. FCC ID: 2AWDM-A17D

Internal Photos FCC ID: 2AWDM-A17D GPS Antenna

WIFI Antenna

HY-FCC 2.1091 Ver.1.1 Page 1 of 5 Report No.: RF260512009-01-003 FCC RF EXPOSURE REPORT FCC ID: 2AWDM-A17D Test Report No...........:RF260512009-01-003 Product(s) Name.........:Dash Cam Model(s)....................:COXPAL A17D, COXPAL A17S Trade Mark................:COXPAL Applicant...................:Winpal Electronics Co.,Ltd. Address.....................:R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen, China 518102 Receipt Date..............:2026.06.15 Test Date...................:2026.06.16 ~ 2026.06.22 Issued Date................:2026.06.23 Standards..................:FCC Guidelines for Human Exposure IEEE C95.1 FCC Title 47 Part 2.1091 KDB 447498 D01 General RF Exposure Guidance v06 Testing Laboratory......:Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By:Checked By:Approved By: Jason HuangBlack DingTim Zhang HY-FCC 2.1091 Ver.1.1 Page 2 of 5 Report No.: RF260512009-01-003 History of this test report Original Report Issue Date: 2026.06.23 ● No additional attachment ○ Additional attachments were issued following record Attachment No.Issue DateDescription HY-FCC 2.1091 Ver.1.1 Page 3 of 5 Report No.: RF260512009-01-003 1.. MPE CALCULATION METHOD Radio Frequency Exposure Limit Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm²) 300-1,500----f/1500 1,500-100,000----1.0 Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4G WIFI Antenna gainAntenna Type 3.13dBiFPC antenna For 5G WIFI Antenna gainAntenna Type 3.55dBiFPC antenna HY-FCC 2.1091 Ver.1.1 Page 4 of 5 Report No.: RF260512009-01-003 2.. TEST RESULTS Worst case as below Freq. Maximum conducted output power Directional Antenna Gain Calculated maximum EIRP MPE Limit MPE Value Operating Mode (MHz)(dBm)(dBi)(dBm)(mW)(mW/cm 2 ) 2.4G Wifi2412-246214.233.1317.3654.4510.0108 5.2G Wifi5180-524011.093.5514.6429.1110.0058 5.8G Wifi5745-582512.023.5515.5736.0610.0072 Note: 1. The calculated distance is 20 cm. 2. The 2.4G Wifi function can not transmit at the same time with the 5G Wifi function Result: Complies HY-FCC 2.1091 Ver.1.1 Page 5 of 5 Report No.: RF260512009-01-003 Statement 1. The report is invalid without the official seal or special seal of Shenzhen Haiyun Standard Technical Co., Ltd. (hereinafter referred to as the unit). 2. The report is invalid without the signature of the approver. 3. The report is invalid if altered arbitrarily. 4. The report shall not be partially copied without the written approval of the unit. 5. The reported test results are only valid for the tested samples. 6. If there is any objection to the test report, it shall be submitted to the test unit within 15 days from the date of receiving the report, and the overdue shall not be accepted. Shenzhen Haiyun Standard Technical Co., Ltd. Address: Room 110, 111, 112, 113, 115, 116, Block B, Jinyuan Business Building, No. 302, Xixiang Avenue, Labor Community, Xixiang Street, Baoan District, Shenzhen, China （END OF REPORT）

Shenzhen Tianyiyuan Elec& Technology co., Ltd Recognition book SPECIFICATION FOR APPROVAL Name: FPC Antenna Item No: TYY-TX1807 antenna company: Shenzhen Tianyiyuan Elec& Technology co., Ltd Company address: Sixth Floor, No. 50A Fengtang Avenue, Xintian Community, Fuhai Street, Bao'an District, Shenzhen, China drawing Customer approve MADECHECKEDAPPROVED QIUjackMiketang DATE: 2026.06.24DATE Shenzhen Tianyiyuan Elec& Technology co., Ltd 1、Specifications The report provides a test of the electrical performance parameters of theTYY-TX1807Technical parameters of antenna electrical appliancesantenna, which is a science and technology model.TYY-TX1807 WIFI Built in antenna,WIFIAntenna is made bycopper pipe+RF Line composition。 （As follows 1 Shown） Electrical technical parameters Electrical SpecificationsElectrical Specifications 频率范围 2400 ～ 2500MHz Frequency Range 5725～5850MHz VSWR ≤2.0 VSWR ≤2.0 GAIN3.13dBiGAIN3.55dBi Input Impedance50 ΩInput Impedance50 Ω Mechanical SpecificationsMechanical Specifications Antenna ColorBLACKAntenna ColorBLACK Input connectorIPEX-3Input connectorIPEX-3 Cable length35mmCable length35mm Working Temperature -40°C~+85°C Working Temperature -40°C~+85°C Working Humidity20~80%Working Humidity20~80% Chart 1 TYY-TX1807Product size Chart 2 TYY-TX1807 Antenna finished(Line length 35+/-2mm 3-IPEX) Shenzhen Tianyiyuan Elec& Technology co., Ltd 2. Electrical properties 2.1WIFIAntenna matching circuit This item matching circuit is provided by the customer。 Element number 1234 WIFIoptimumNC0ohmNC Original (spare)50 ohm matching (inductance capacitance / sunlord Darfon) Chart3 Agilent E5071C network analyzer 1 2 RF 4 3 ShenzhenTianyiyuanElec&Technologyco.,Ltd ratio 2.3Bobbi(VSWR)test 2.3.1.Testsetup ConnecttheVSWRtestdeviceare:AgilentE5071Cnetworkanalyzerfrom50ohmcoaxialCable 120mmlongBrass&testfixtureProcessingtestfixture:50ohmantennaleadstoSMA-Jconnectorfromthetest pointontheplatePCBwitharigidcable,andaConnectthechoketube,andthensequentiallyconnectedwithotherdevices. Chart4WIFIVSWR standardLowfrequencyHighfrequency frequency(MHz)24002500515057005850 VSWR1.61.11.32.31.5 ShenzhenTianyiyuanElec&Technologyco.,Ltd Chart5OTAMicrowavedarkroom Chart6Testenvironment:OTA743darkroom,W500/8960/8753ES /5071C,themachineisplacedwithitsbacktotheturntable4meters awayfromthestandardhorn ShenzhenTianyiyuanElec&Technologyco.,Ltd WIFIpassivetestreport. ShenzhenTianyiyuanElec&Technologyco.,Ltd Chart7Three-dimensionalrendering(efficiencyandgain) ShenzhenTianyiyuanElec&Technologyco.,Ltd 3,recommendationsandconclusions Thisreportisbasedontheantennaelectricalperformance measuredbythecustomerbasedonthefinalversionofthemodel projectofShenzhenWanPaiElectronicsCo.,LTD Ascanbeseenfromtheabovetestdata,theantennaprovidesgood electricalperformance. Tianyiyuanislookingforwardtoyourconfirmation.Thankyou foryourcooperation!

HY-FCC Part 15E-5G WIFI Ver.1.1 Page 1 / 119 Report No.: RF260512009-01-002 RF TEST REPORT FCC ID: 2AWDM-A17D Test Report No...........:RF260512009-01-002 Product(s) Name.........:Dash Cam Model(s)....................:COXPAL A17D, COXPAL A17S Trade Mark................:COXPAL Applicant...................:Winpal Electronics Co.,Ltd. Address.....................:R602, Building A1, Huafeng HiTech Industrial Park Hangkong Road, Gushu, Xixiang, Baoan, Shenzhen, China 518102 Receipt Date..............:2026.06.15 Test Date...................:2026.06.16 ~ 2026.06.22 Issued Date................:2026.06.23 Standards..................:47 CFR FCC Part 15, Subpart E(Section 15.407); ANSI C63.10: 2020 Testing Laboratory......:Shenzhen Haiyun Standard Technical Co., Ltd. Prepared By:Checked By:Approved By: Jason HuangBlack DingTim Zhang HY-FCC Part 15E-5G WIFI Ver.1.1 Page 2 / 119 Report No.: RF260512009-01-002 Table of Contents History of this test report................................................................................4 1. General Information ...................................................................................5 1.1Applicant .................................................................................................................. 5 1.2Manufacturer ........................................................................................................... 5 1.3Basic Description of Equipment Under Test ............................................................5 2. Summary of Test Results ..........................................................................6 2.1Summary of Test Items ...........................................................................................6 2.2Application of Standard ...........................................................................................6 2.3Test Instruments ...................................................................................................... 7 2.4Operation Mode ....................................................................................................... 8 2.5Test Condition ......................................................................................................... 8 2.6Duty Cycle of Test Signal ........................................................................................8 2.7Measurement Uncertainty .....................................................................................20 2.8Test Location ......................................................................................................... 20 2.9Description of Support Units ..................................................................................20 3. Test Procedure And Results ...................................................................21 3.1AC Power Line Conducted Emission.....................................................................21 3.1.1Limit ....................................................................................................................................................... 21 3.1.2Test Procedure ...................................................................................................................................... 21 3.1.3Test Setup.............................................................................................................................................. 21 3.1.4Test Result ............................................................................................................................................. 21 3.2Radiated Emission.................................................................................................22 3.2.1Limit ....................................................................................................................................................... 22 3.2.2Test Procedure ...................................................................................................................................... 23 3.2.3Test Setup.............................................................................................................................................. 24 3.2.4Test Result ............................................................................................................................................. 25 3.3Spectrum Bandwidth .............................................................................................72 3.3.1Limit ....................................................................................................................................................... 72 3.3.2Test Procedure ...................................................................................................................................... 72 3.3.3Test Setup.............................................................................................................................................. 73 3.3.4Test Result ............................................................................................................................................. 74 3.4Conducted Output Power ....................................................................................102 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 3 / 119 Report No.: RF260512009-01-002 3.4.1Limit ..................................................................................................................................................... 102 3.4.2Test Procedure .................................................................................................................................... 102 3.4.3Test Setup............................................................................................................................................ 103 3.4.4Table of Parameters of Text Software Setting .....................................................................................103 3.4.5The Result.......................................................................................…

Text truncated - open the document above for the full version.

HY-FCC Part 15E-5G WIFI Ver.1.1 Page 71 / 119 Report No.: RF260512009-01-002 HORIZONTAL The high frequency, which started from 18GHz to 40GHz, was pre-scanned and the result which was 20dB lower than the limit line was not recorded in this report. HY-FCC Part 15E-5G WIFI Ver.1.1 Page 72 / 119 Report No.: RF260512009-01-002 3.3 Spectrum Bandwidth 3.3.1 Limit FCC Part15, Subpart E (15.407) SectionTest ItemLimit Frequency Range (MHz) 26 dB Bandwidth-5150-5250 26 dB Bandwidth-5250-5350 26 dB Bandwidth-5470-5725 26 dB Bandwidth-5725-5850 15.407(a) 15.407(e) 6 dB BandwidthMinimum 500 kHz5725-5850 3.3.2 Test Procedure Test Method ●Conducted Measurement○Radiated Measurement Test Channels ●Lowest, Middle and Highest Channel○ Lowest and Highest Channel Environmental conditions ●Normal○Normal and Extreme Note:●:Test ○:No Test a) The EUT was directly connected to the tonscend test system and antenna output port as show in the block diagram below. b) the spectrum analyser is set as follow: For 26 dB Bandwidth Centre FrequencyThe centre frequency of the channel under test RBW≥1% x Nominal Channel Bandwidth VBW≥3 x RBW Frequency span2 x Nominal Channel Bandwidth Detector ModePeak Trace ModeMax Hold Sweep TimeAuto Couple For 6 dB Bandwidth Centre FrequencyThe centre frequency of the channel under test RBW100 kHz VBW300 kHz Frequency span2 x Nominal Channel Bandwidth Detector ModePeak Trace ModeMax Hold Sweep TimeAuto Couple HY-FCC Part 15E-5G WIFI Ver.1.1 Page 73 / 119 Report No.: RF260512009-01-002 c) Wait for the trace to stabilize then find the peak value of the trace and place the analyser marker on this peak. d) Use the -26/-6dB bandwidth function of the spectrum analyser to measure the -26/-6dB Bandwidth of the EUT. This value shall be recorded. e) Make sure that the power envelope is sufficiently above the noise floor of the analyser to avoid the noise signals left and right from the power envelope being taken into account by this measurement. 3.3.3 Test Setup HY-FCC Part 15E-5G WIFI Ver.1.1 Page 74 / 119 Report No.: RF260512009-01-002 3.3.4 Test Result 26 dB Bandwidth TestModeAntennaFrequency[MHz]26db EBW [MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict 11AAnt1518018.3205170.7605189.080------ 11AAnt1520018.4005190.8005209.200------ 11AAnt1524018.1605231.0005249.160------ 11AAnt1574518.4805735.8405754.320------ 11AAnt1578518.2805775.9205794.200------ 11AAnt1582518.3605815.8805834.240------ 11N20SISOAnt1518019.2005170.4405189.640------ 11N20SISOAnt1520018.9605190.5205209.480------ 11N20SISOAnt1524019.2805230.4005249.680------ 11N20SISOAnt1574519.3605735.4005754.760------ 11N20SISOAnt1578519.3205775.4405794.760------ 11N20SISOAnt1582519.2405815.4005834.640------ 11N40SISOAnt1519040.4005169.7605210.160------ 11N40SISOAnt1523040.2405210.0805250.320------ 11N40SISOAnt1575540.4005734.8405775.240------ 11N40SISOAnt1579540.5605774.3605814.920------ 11AC20SIS O Ant1518019.3605170.4005189.760------ 11AC20SIS O Ant1520019.4405190.3205209.760------ 11AC20SIS O Ant1524019.3205230.4405249.760------ 11AC20SIS O Ant1574519.4805735.2805754.760------ 11AC20SIS O Ant1578519.3205775.4005794.720------ 11AC20SIS O Ant1582519.0805815.4805834.560------ 11AC40SIS O Ant1519040.3205169.9205210.240------ 11AC40SIS O Ant1523040.7205209.5205250.240------ 11AC40SIS O Ant1575540.2405735.0005775.240------ 11AC40SIS O Ant1579540.2405774.6005814.840------ 11AC80SIS O Ant1521080.0005170.1605250.160------ 11AC80SIS O Ant1577579.8405735.1605815.000------ HY-FCC Part 15E-5G WIFI Ver.1.1 Page 75 / 119 Report No.: RF260512009-01-002 11A-Ant1-5180 11A-Ant1-5200 11A-Ant1-5240 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 76 / 119 Report No.: RF260512009-01-002 11A-Ant1-5745 11A-Ant1-5785 11A-Ant1-5825 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 77 / 119 Report No.: RF260512009-01-002 11N20SISO-Ant1-5180 11N20SISO-Ant1-5200 11N20SISO-Ant1-5240 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 78 / 119 Report No.: RF260512009-01-002 11N20SISO-Ant1-5745 11N20SISO-Ant1-5785 11N20SISO-Ant1-5825 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 79 / 119 Report No.: RF260512009-01-002 11N40SISO-Ant1-5190 11N40SISO-Ant1-5230 11N40SISO-Ant1-5755 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 80 / 119 Report No.: RF260512009-01-002 11N40SISO-Ant1-5795 11AC20SISO-Ant1-5180 11AC20SISO-Ant1-5200 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 81 / 119 Report No.: RF260512009-01-002 11AC20SISO-Ant1-5240 11AC20SISO-Ant1-5745 11AC20SISO-Ant1-5785 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 82 / 119 Report No.: RF260512009-01-002 11AC20SISO-Ant1-5825 11AC40SISO-Ant1-5190 11AC40SISO-Ant1-5230 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 83 / 119 Report No.: RF260512009-01-002 11AC40SISO-Ant1-5755 11AC40SISO-Ant1-5795 11AC80SISO-Ant1-5210 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 84 / 119 Report No.: RF260512009-01-002 11AC80SISO-Ant1-5775 HY-FCC Part 15E-5G WIFI Ver.1.1 Page 85 / 119 Report No.: RF260512009-01-002 Occupied channel bandwidth TestModeAntennaFrequency[MHz]OCB [MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict 11AAnt1518016.4825171.76335188.2453------ 11AAnt…
