W4G Stick Datalogger Quick Installation Manual Version: 1.0 1 Quick Installation Manual 1 W4G stick Delivery Content Install the datalogger1 Connect the datalogger to the corresponding 4-pin COM port of the inverter. A Solis 5K inverter is used here as an example. Please follow the instructions below: Match the joint Install the datalogger: Step 1: Match the joint, and then insert the datalogger to the inverter COM port. Step 2:Rotate the black ring in clockwise. Only rotate the black ring at the connection end, not rotate the main body. NOTE 2 1 1.1
Install the datalogger If you need to collect data from multiple inverters, please follow the inverter user manual to establish a communication connection with the inverter using the RS485 communication cable in a "daisy chain" manner. Daisy chain connection of multiple inverters RS485RS485RS485 ... ... COM After the datalogger is installed on the inverter, if the inverter is powered on, you need to set the inverter slave address, the default slave address of the inverter is 01, and each inverter on the communication circuit needs to be assigned with different slave address(like 01,02,03,04...). Inverter 1Inverter 2Inverter n NOTE The device must be installed away from the strong magnetic field produced by large electrical appliances such as microwave oven, refrigerator, telephone, metal walls, etc. Otherwise, the communication quality may be affected. It may also be affected by lighting storm. 1.2
Install with multiple inverters ≈ LED indicators Description LED Status Meanings Trying to connect with server Trying to connect with inverter Successfully connected Successfully connected Datalogger is powered up normally Abnormal connection Abnormal connection Datalogger is powered up abnormally Flashing Flashing ON ON ON OFF OFF OFF Shows the connection status between the datalogger and the server. Shows the connection status between datalogger and the inverter. Shows the power supply status of the datalogger. LED Lights Status: Internet Indicators (NET) Inverter COM Indicators Power Indicator (COM) (PWR) The button on the back is used for [RESET] connection. ·Short press will send the data immediately. ·Long press for 5 seconds will enter into config mode for connection router. ·Long press for 10 seconds will reset the connection. Internet Indicators color: green means wifi mode,blue means 4G mode. The three constantly ON LED lights indicate the datalogger is working normally. Button Instruction: LED and Button 2 Select Mode If you only want to use 4G, please refer to the 4G operation steps. If you only want to use WiFi, please refer to the WIFI operation steps. If you want to use 4G+ WiFi, please perform the 4G operation steps first, and then perform the WiFi connection operation steps. (Priority is given to WIFI. When there is no WIFI or weak WIFI signal, the 4G communication will be automatically switched (if the 4G signal is weak, it will be reduced to 2G for communication). When the WIFI network is restored, the WiFi communication will be automatically switched back.) 3 3.1
4G Configuration 1. SIM card provided by Ginlong, SIM card has been built in, No other settings are required. SIM card not provided by Ginlong, The SIM card needs to be installed manually, Some SIM cards will automatically recognize APN, if cannot be connected normally, please follow the following steps to set the APN. 2. Log in to SolisCloud, Click Me then click Tool. 3. Click Local Operation. 4. Click Connect With Bluetooth. 5. Select the Device. 6. Choose “Set current APN”. 7.
Enter
the
APN, User Name and Password (If APN is no User Name and Password, unnecessary to fill in). 8. If the prompt is OK, Configuration Complete. NOTE Please check APN, User Name and
Password carefully. The wrong APN, User Name and Password will also prompt OK. 3.2
WiFi Configuration Step 1: Use you phone to scan the QR code to download and register the Solis Cloud APP. Or directly download from APP Store or Google Play Store by searching "Solis Cloud”. Solis Cloud 2. Log in to SolisCloud, Click Me then click Tool. 3. Click Local Operation. 4. Click Connect With Bluetooth. 5. Select the Device. 6. Choose “Set the username and password of the currently connected WiFi”. 7. Enter the WiFi name and WiFi password. 8. If the prompt is OK, Configuration Complete. NOTE Please check WiFi name and WiFi password carefully. The wrong name and password will also prompt OK. Step2: Select Owner or Organization for email address registration. Create the Solis Cloud Account 4 Step 1: Click the “”.Register Register Step3: Enter the email to get the verification code, than enter your account and password, last click the "".Register Owner Register Register Organization Register Create Plant Step1: Enter the main page of Solis Cloud APP, click “”at the top right corner and select "" .+Add plant 5 Add plant Step 2: Input the information of the plant as required. Then click "".Done Done Step 3: Confirm the plant information. Click "".Create plant Step 4: Click “” to enter the plant View plant homepage , then add the datalogger. View plant Add Step 5: Scan the SN number of the datalogger or manually input it. √× Note: Scan the , NOT the .datalogger SNinverter SN Step 6: Plant creation succeeds. Click "Continue to bind" to check the monitoring data. If the plant has multiple dataloggers, please click "".View Plant Continue to bind View Plant 6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Th…

Text truncated - open the document above for the full version.

GinlongTechnologiesCo.,Ltd. SDoCAttestationLetter To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2AWE8-S1-W4G Productdescription:W4GStick Typedesignation:G1-W4G-ST,S1-W4G-ST Trademark:solis ToWhomItMayConcern: HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartwillbe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Client’sSignature: RuyiPan Date:2022.12.9 GinlongTechnologiesCo.,Ltd.

GinlongTechnologiesCo.,Ltd. Rev11/20/07 ConfidentialityLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AWE8-S1-W4G PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram CircuitSchematic OperationDescription BOM G1-W4G-ST_BlockDiagram G1-W4G-ST_CircuitSchematic G1-W4G-ST_OperationDescription G1-W4G-ST_BOM Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow foraperiodof180days: ExhibitTypeFileName UserManual ExternalPhotos InternalPhotos TestSetupPhotos AntennaTestSetupPhotos G1-W4G-ST_UserManual G1-W4G-ST_ExternalPhotos G1-W4G-ST_InternalPhotos G1-W4G-ST_TestSetupPhotos AntennaTestSetupPhotos Client’sSignature: RuyiPan Date:2022.12.14 GinlongTechnologiesCo.,Ltd.

GinlongTechnologiesCo.,Ltd. POALetter FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 FCCApplicationforFCCID:2AWE8-S1-W4G ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.onour behalf,toapplytotheFederalCommunicationsCommissiononourequipment.Anyandallacts carriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethesameeffectasacts ofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,theapplicant, arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof 1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefits pursuanttothatsection. Client’sSignature: RuyiPan Date:2022.12.9 GinlongTechnologiesCo.,Ltd.

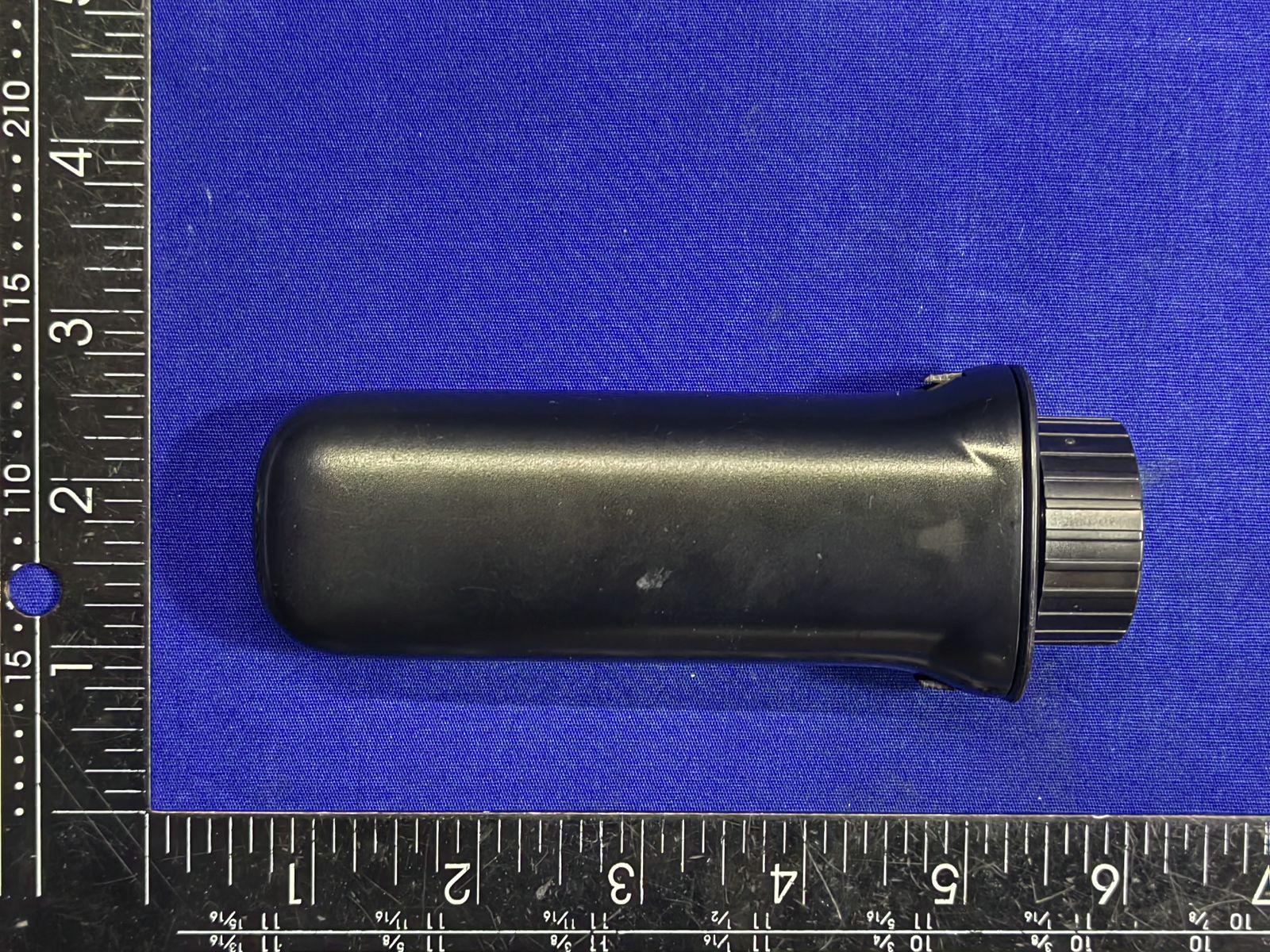

Page1of3 EXTERNALPHOTOS Page2of3 Page3of3 -----TheEnd-----

Page1of6 INTERNALPHOTOS 3G/4G Antenna Page2of6 BLE/WIFI Antenna Page3of6 Page4of6 Page5of6 Page6of6 -----TheEnd-----

FCCID:2AWE8-S1-W4G 1.RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b). LimitsforMaximumPermissibleExposure(MPE). Frequency Range(MHz) ElectricField Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2. Pout=outputpowertoantennainmW. G=Numericgainoftheantennarelativetoisotropicantenna. Pi=3.1416. R=distancebetweenobservationpointandcenteroftheradiatorin20cm. PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotal. powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. 2.EUTTECHNICALDESCRIPTION CharacteristicsDescription Product W4GStick ModelNumber G1-W4G-ST,S1-W4G-ST (Note:Theonlydifferenceinmodelsisthemodel'sname,allother informationisthesame.Themaintestmodelappliedforthisreportis G1-W4G-ST) PowerSupplyDC5V TemperatureRange -30°C~65°C DeviceType BLEV4.2 DataRate1Mbps ModulationGFSK OperatingFrequencyRange2402-2480MHz NumberofChannels40Channels AntennaTypePCBAntenna AntennaGain3.42dBi IEEE802.11WLAN ModeSupported 802.11b 802.11g 802.11n(20MHzchannelbandwidth) 802.11n(40MHzchannelbandwidth) Modulation DSSSwithDBPSK/DQPSK/CCKfor802.11b OFDMwithBPSK/QPSK/16QAM/64QAMfor802.11g/n OperatingFrequency Range 2412-2462MHzfor802.11b/g/n(HT20) 2422-2452MHzfor802.11n(HT40) NumberofChannels 11channelsfor802.11b/g/n(HT20) 7Channelsfor802.11n(HT40) AntennaTypePCBAntenna AntennaGain3.42dBi OperationBand: WCDMAB2/B4/B5 Modulation: QPSKforWCDMA/HSUPA/HSDPA OperatingFrequency Range(s): WCDMABand2:Tx1850-1910MHz/Rx1930-1990MHz WCDMABand4:Tx1710-1755MHz/Rx2110-2155MHz WCDMABand5:Tx824-849MHz/Rx869-894MHz SupportedChannel Bandwidth: 5MHz AntennaType:FPCAntenna AntennaGain: WCDMABand2:2.56dBi WCDMABand4:2.56dBi WCDMABand5:2.56dBi OperationBand: LTEB2/B4/B5/B12/B13/B14/B66/B71 Modulation: QPSK/16QAMforLTE OperatingFrequency Range(s): LTEBand2:Tx:1850-1910MHz,Rx:1930-1990MHz LTEBand4:Tx:1710-1755MHz,Rx:2110-2155MHz LTEBand5:Tx:824-849MHz,Rx:875-885MHz LTEBand12:Tx:699-716MHz,Rx:729-746MHz LTEBand13:Tx:777-787MHz,Rx:746-756MHz LTEBand14:Tx:788-798MHz,Rx:758-768MHz LTEBand66:Tx/Rx:1710-1780MHz LTEBand71:Tx/Rx:663-698MHz SupportedChannel Bandwidth: LTEBand2 1.4MHz,3MHz,5MHz,10MHz,15MHz, 20MHz LTEBand4 1.4MHz,3MHz,5MHz,10MHz,15MHz, 20MHz LTEBand51.4MHz,3MHz,5MHz,10MHz LTEBand121.4MHz,3MHz,5MHz,10MHz LTEBand135MHz,10MHz LTEBand145MHz,10MHz LTEBand66 1.4MHz,3MHz,5MHz,10MHz,15MHz, 20MHz LTEBand715MHz,10MHz,15MHz,20MHz AntennaType:FPCAntenna AntennaGain: LTEBand2:2.56dBi LTEBand4:2.56dBi LTEBand5:2.56dBi LTEBand12:2.56dBi LTEBand13:2.56dBi LTEBand14:2.56dBi LTEBand66:2.56dBi LTEBand71:2.56dBi 3.MeasurementResult Mode Max Conducted Power(dBm) Antenna gain(dBi) Antenna GainNumeric R (cm) Evaluation result (mW/cm2) Power densityLimits (mW/cm2) BLE6.193.422.198200.00181 2.4GWIFI14.523.422.198200.01241 WCDMAB223.242.561.803200.07561 WCDMAB423.172.561.803200.07441 WCDMAB522.892.561.803200.06980.5509 LTEB223.012.561.803200.07171 LTEB423.162.561.803200.07431 LTEB523.702.561.803200.08410.5498 LTEB1223.622.561.803200.08260.4665 LTEB1323.522.561.803200.08070.5197 LTEB1423.512.561.803200.08050.5270 LTEB6623.162.561.803200.07431 LTEB7123.612.561.803200.08240.4437 Note:Allthemodesaretested,onlytheworstdataaredescribedinthetable. Conclusionofsimultaneoustransmitter: Bothofthemodule1andmodule2cantransmitsimultaneously,theformulaofcalculatedthe MPEis: CPD1/LPD1+CPD2/LPD2+......etc.<1 CPD=Calculationpowerdensity LPD=Limitofpowerdensity Thereforetheworst-casesituationis0.0124/1+0.0841/0.5498=0.1654,whichislessthan1,this confirmedthatthedevicecomplywithFCC1.1310MPElimit. -----TheEnd-----

******END******

ReportNo.ENS2209290160W00203RPage1of33Ver.1.0 $印章$ TESTREPORT ProductName：W4GStick ModelNumber：G1-W4G-ST,S1-W4G-ST FCCID：2AWE8-S1-W4G Preparedfor:GinlongTechnologiesCo.,Ltd. Address:No.57JintongRoad,BinhaiIndustrialPark,Xiangshan Ningbo,Zhejiang315712P.R.China Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Bldg69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2209290160W00203R Date(s)ofTests:November14,2022toDecember5,2022 DateofIssue:December7,2022 $ 二维码 $ ReportNo.ENS2209290160W00203RPage2of33Ver.1.0 TABLEOFCONTENTS 1TESTRESULTCERTIFICATION ............................................................................................................................... 4 2EUTTECHNICALDESCRIPTION ............................................................................................................................. 5 3SUMMARYOFTESTRESULT..................................................................................................................................6 4TESTMETHODOLOGY..............................................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS................................................................................7 4.2MEASUREMENTEQUIPMENTUSED.............................................................................................................7 4.3DESCRIPTIONOFTESTMODES .................................................................................................................... 8 5FACILITIESANDACCREDITATIONS .................................................................................................................... 12 5.1FACILITIES..........................................................................................................................................................12 5.2LABORATORYACCREDITATIONSANDLISTINGS....................................................................................12 6TESTSYSTEMUNCERTAINTY..............................................................................................................................13 7SETUPOFEQUIPMENTUNDERTEST...............................................................................................................14 7.1RADIOFREQUENCYTESTSETUP1 ........................................................................................................... 14 7.2RADIOFREQUENCYTESTSETUP2 ........................................................................................................... 14 7.3RADIOFREQUENCYTESTSETUP3...........................................................................................................14 7.4SUPPORTEQUIPMENT...................................................................................................................................16 8TESTREQUIREMENTS...........................................................................................................................................17 8.1RFPOWEROUTPUT........................................................................................................................................17 8.2EFFECTIVE(ISOTROPIC)RADIATEDPOWER .......................................................................................... 18 8.3MODULATIONCHARACTERISTICS .............................................................................................................. 20 8.4OCCUPIEDBANDWIDTH................................................................................................................................21 8.5BANDEDGECOMPLIANCE............................................................................................................................23 8.6OUTOFBANDEMISSIONSATANTENNATERMINALS...........................................................................24 8.7FIELDSTRENGTHOFSPURIOUSRADIATION.........................................................................................25 8.8FREQUENCYSTABILITY ................................................................................................................................. 31 8.9PEAKTOAVERAGERATIO ............................................................................................................................. 32 ReportNo.ENS2209290160W00203RPage3of33Ver.1.0 ModifiedInformation VersionReportNo.RevisionDateSummary Ver.1.0ENS2209290160W00203R/OriginalReport ReportNo.ENS2209290160W00203RPage4of33Ver.1.0 1TESTRESULTCERTIFICATION Applicant: GinlongTechnologiesCo.,Ltd. Address: No.57JintongRoad,BinhaiIndustrialPark,XiangshanNingbo,Zhejiang315712 P.R.China Manufacturer: GinlongTechnologiesCo.,Ltd. Address: No.57JintongRoad,BinhaiIndustrialPark,XiangshanNingbo,Zhejiang315712 P.R.China ProductName: W4GStick ModelNumber: G1-W4G-ST,S1-W4G-ST (Note:Theonlydifferenceinmodelsisthemodel'sname,allotherinformationis thesame.ThemaintestmodelappliedforthisreportisG1-W4G-ST) Trademark : solis MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart22,SubpartH FCC47CFRPart24,SubpartE FCC47CFRPart27 PASS ThedevicedescribedaboveistestedbyEMTEK(Shenzhen)Co.,Ltd.todeterminethemaximumemission levelsemanatingfromthedeviceandtheseverelevelsofthedevicecanendureanditsperformance criterion.ThemeasurementresultsarecontainedinthistestreportandEMTEK(Shenzhen)Co.,Ltd.is assumedfullofresponsibilityfortheaccuracyandcompletenessofthesemeasurements.Also,thisreport showsthattheEUT(EquipmentUnderTest)istechnicallycompliantwiththeabovetablestandards requirement. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwrittenapproval ofEMTEK(Shenzhen)Co.,Ltd. DateofTest:November14,2022toDecember5,2022 Preparedby: UnaYu/Editor Reviewer: JoeXia/Supervisor Approved&AuthorizedSigner: LisaWang/Manager ReportNo.ENS2209290160W00203RPage5of33Ver.1.0 2EUTTECHNICALDESCRIPTION ProductName:W4GStick ModelNumber: G1-W4G…

Text truncated - open the document above for the full version.

ReportNo.ENS2209290160W00204RPage 1 of 41 Ver.1.0 $印章$ TESTREPORT ProductName：W4GStick ModelNumber：G1-W4G-ST,S1-W4G-ST FCCID：2AWE8-S1-W4G Preparedfor:GinlongTechnologiesCo.,Ltd. Address:No.57JintongRoad,BinhaiIndustrialPark,Xiangshan Ningbo,Zhejiang315712P.R.China Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Bldg69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2209290160W00204R Date(s)ofTests:November14,2022toDecember5,2022 DateofIssue:December7,2022 $ 二维码 $ ReportNo.ENS2209290160W00204RPage 2 of 41 Ver.1.0 TABLEOFCONTENTS 1TESTRESULTCERTIFICATION ............................................................................................................................... 4 2EUTTECHNICALDESCRIPTION ............................................................................................................................. 5 3SUMMARYOFTESTRESULT..................................................................................................................................7 3.1TESTITEMS...............................................................................................................................................................7 4TESTMETHODOLOGY..............................................................................................................................................8 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS................................................................................8 4.2MEASUREMENTEQUIPMENTUSED ............................................................................................................. 8 4.3DESCRIPTIONOFTESTMODES .................................................................................................................... 9 5FACILITIESANDACCREDITATIONS....................................................................................................................15 5.1FACILITIES..........................................................................................................................................................15 5.2LABORATORYACCREDITATIONSANDLISTINGS....................................................................................15 6TESTSYSTEMUNCERTAINTY..............................................................................................................................16 7SETUPOFEQUIPMENTUNDERTEST ............................................................................................................... 17 7.1RADIOFREQUENCYTESTSETUP1 ........................................................................................................... 17 7.2RADIOFREQUENCYTESTSETUP2...........................................................................................................17 7.3RADIOFREQUENCYTESTSETUP3...........................................................................................................17 7.4SUPPORTEQUIPMENT...................................................................................................................................19 8TESTREQUIREMENTS...........................................................................................................................................20 8.1RFPOWEROUTPUT ........................................................................................................................................ 20 8.2EFFECTIVE(ISOTROPIC)RADIATEDPOWER .......................................................................................... 21 8.3MODULATIONCHARACTERISTICS..............................................................................................................23 8.4OCCUPIEDBANDWIDTH................................................................................................................................24 8.5BANDEDGECOMPLIANCE............................................................................................................................26 8.6OUTOFBANDEMISSIONSATANTENNATERMINALS...........................................................................27 8.7FIELDSTRENGTHOFSPURIOUSRADIATION ......................................................................................... 29 8.8FREQUENCYSTABILITY ................................................................................................................................. 39 8.9PEAKTOAVERAGERATIO.............................................................................................................................40 ReportNo.ENS2209290160W00204RPage 3 of 41 Ver.1.0 ModifiedInformation VersionReportNo.RevisionDateSummary Ver.1.0ENS2209290160W00204R/OriginalReport ReportNo.ENS2209290160W00204RPage 4 of 41 Ver.1.0 1TESTRESULTCERTIFICATION Applicant: GinlongTechnologiesCo.,Ltd. Address: No.57JintongRoad,BinhaiIndustrialPark,XiangshanNingbo,Zhejiang315712 P.R.China Manufacturer: GinlongTechnologiesCo.,Ltd. Address: No.57JintongRoad,BinhaiIndustrialPark,XiangshanNingbo,Zhejiang315712 P.R.China ProductName: W4GStick ModelNumber: G1-W4G-ST,S1-W4G-ST (Note:Theonlydifferenceinmodelsisthemodel'sname,allotherinformationis thesame.ThemaintestmodelappliedforthisreportisG1-W4G-ST) Trademark : solis MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart22,SubpartH FCC47CFRPart24,SubpartE FCC47CFRPart27 FCC47CFRPart90 PASS ThedevicedescribedaboveistestedbyEMTEK(Shenzhen)Co.,Ltd.todeterminethemaximumemission levelsemanatingfromthedeviceandtheseverelevelsofthedevicecanendureanditsperformance criterion.ThemeasurementresultsarecontainedinthistestreportandEMTEK(Shenzhen)Co.,Ltd.is assumedfullofresponsibilityfortheaccuracyandcompletenessofthesemeasurements.Also,thisreport showsthattheEUT(EquipmentUnderTest)istechnicallycompliantwiththeabovetablestandards requirement. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwrittenapproval ofEMTEK(Shenzhen)Co.,Ltd. DateofTest:November14,2022toDecember5,2022 Prep…

Text truncated - open the document above for the full version.

Page 1 of 115 WCDMA Band2 Test Data Report No. ENS2209290160W00203R Page 17 and Page 19 AppendixA: Effective (Isotropic) Radiated Power Output Data Report No. ENS2209290160W00203R Page 32 AppendixB: Peak-to-Average Ratio Report No. ENS2209290160W00203R Page 22 AppendixC: 26dB Bandwidth andOccupied Bandwidth Report No. ENS2209290160W00203R Page 23 AppendixD: Band Edge Report No. ENS2209290160W00203R Page 24 AppendixE: Conducted SpuriousEmission Report No. ENS2209290160W00203R Page 31 AppendixF: Frequency Stability Page 2 of 115 AppendixA: Effective (Isotropic) Radiated Power Output Data Test Result BandChannelPower(dBm)Limit(dBm)Verdict Band2926223.1233.01PASS Band2940023.1833.01PASS Band2953823.2433.01PASS BandChannelSubTestPower(dBm)Limit(dBm)Verdict Band29262122.1433.01PASS Band29262221.5633.01PASS Band29262321.5833.01PASS Band29262421.5933.01PASS Band29400122.1933.01PASS Band29400221.5633.01PASS Band29400321.5833.01PASS Band29400421.5933.01PASS Band29538122.2233.01PASS Band29538221.6333.01PASS Band29538321.6333.01PASS Band29538421.6333.01PASS BandChannelSubTestPower(dBm)Limit(dBm)Verdict Band2 9262121.3233.01PASS Band2 9262220.4633.01PASS Band2 9262320.6533.01PASS Band2 9262420.7833.01PASS Band2 9262521.8833.01PASS Band2 9400121.3633.01PASS Band2 9400220.5933.01PASS Band2 9400320.2333.01PASS Band2 9400421.4133.01PASS Band2 9400522.0233.01PASS Band2 9538121.3633.01PASS Page 3 of 115 Band2 9538220.5933.01PASS Band2 9538320.2333.01PASS Band2 9538421.3533.01PASS Band2 9538521.8533.01PASS Page 4 of 115 AppendixB:Peak-to-Average Ratio Test Result BandChannelPeak-to-Average Ratio(dB)Limit(dB)Verdict Band292623.1213PASS Band294003.0313PASS Band295383.0913PASS BandChannelSubTestPeak-to-Average Ratio(dB)Limit(dB)Verdict Band2926213.0913PASS Band2926223.6713PASS Band2926233.6713PASS Band2926243.7213PASS Band2940013.1113PASS Band2940023.6813PASS Band2940033.6413PASS Band2940043.713PASS Band2953813.2113PASS Band2953823.8813PASS Band2953833.8813PASS Band2953843.9213PASS BandChannelSubTestPeak-to-Average Ratio(dB)Limit(dB)Verdict Band2 926214.6213PASS Band2 926224.9513PASS Band2 926235.3213PASS Band2 92624513PASS Band2 926254.2313PASS Band2 940013.5813PASS Band2 940023.1213PASS Band2 940033.6413PASS Band2 940043.1613PASS Band2 940054.2513PASS Band2 953814.0713PASS Page 5 of 115 Band2 953825.4213PASS Band2 953834.9313PASS Band2 953845.3513PASS Band2 953854.6813PASS Page 6 of 115 Test Graphs Band2-9262 Band2-9400 Band2-9538 Page 7 of 115 Band2-9262-1 Band2-9262-2 Band2-9262-3 Band2-9262-4 Page 8 of 115 Band2-9400-1 Band2-9400-2 Band2-9400-3 Page 9 of 115 Band2-9400-4 Band2-9538-1 Band2-9538-2 Page 10 of 115 Band2-9538-3 Band2-9538-4 Page 11 of 115 Band2-9262-1 Band2-9262-2 Band2-9262-3 Band2-9262-4 Page 12 of 115 Band2-9262-5 Band2-9400-1 Band2-9400-2 Page 13 of 115 Band2-9400-3 Band2-9400-4 Band2-9400-5 Page 14 of 115 Band2-9538-1 Band2-9538-2 Band2-9538-3 Page 15 of 115 Band2-9538-4 Band2-9538-5 Page 16 of 115 AppendixC:26dB Bandwidth and Occupied Bandwidth Test Result BandChannel Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit(MHz)Verdict Band292624.14374.734---PASS Band294004.14614.728---PASS Band295384.14364.716---PASS BandChannelSubTest Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit(MHz)Verdict Band2926214.14574.732---PASS Band2926224.14944.719---PASS Band2926234.14214.709---PASS Band2926244.14014.710---PASS Band2940014.14094.716---PASS Band2940024.13994.711---PASS Band2940034.13954.712---PASS Band2940044.13354.703---PASS Band2953814.13644.706---PASS Band2953824.13944.706---PASS Band2953834.13874.699---PASS Band2953844.13574.698---PASS BandChannelSubTest Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit(MHz)Verdict Band2926214.15184.722---PASS Band2926224.14844.726---PASS Band2926234.15074.728---PASS Band2926244.15014.716---PASS Band2926254.13914.718---PASS Band2940014.15344.737---PASS Band2940024.14374.712---PASS Band2940034.14144.712---PASS Page 17 of 115 Band2940044.14694.722---PASS Band2940054.13874.721---PASS Band2953814.17004.744---PASS Band2953824.16904.735---PASS Band2953834.17164.744---PASS Band2953844.16334.731---PASS Band2953854.16194.832---PASS Page 18 of 115 Test Graphs Band2-9262 Band2-9400 Band2-9538 Page 19 of 115 Band2-9262-1 Band2-9262-2 Band2-9262-3 Band2-9262-4 Page 20 of 115 Band2-9400-1 Band2-9400-2 Band2-9400-3 Page 21 of 115 Band2-9400-4 Band2-9538-1 Band2-9538-2 Page 22 of 115 Band2-9538-3 Band2-9538-4 Page 23 of 115 Band2-9262-1 Band2-9262-2 Band2-9262-3 Band2-9262-4 Page 24 of 115 Band2-9262-5 Band2-9400-1 Band2-9400-2 Page 25 of 115 Band2-9400-3 Band2-9400-4 Band2-9400-5 Page 26 of 115 Band2-9538-1 Band2-9538-2 Band2-9538-3 Page 27 of 115 Band2-9538-4 Band2-9538-5 Page 28 of 115 AppendixD:Band Edge Test Result BandChannelFrequency (MHz)Result (dBm)Limit(dBm)Verdict Band292621850.00-18.96-13PASS Band295381910.00-19.87-13PASS BandChannelSubTestFrequency (MHz)Result (dBm)Limit(dBm)Verdict Band2926211850.00-19.89-13PASS Band2926221850.00-20.42-13PASS Band2926231850.00-21.03-13PASS Band2926241850.00-21.49-13PASS Band2953811910.00-21.30-13PASS Band2953821910.00-21.25-13PASS Band2953831910.00-21.87-13PASS Band2953841910.00-21.98-13PASS BandChannelSubTestFrequency (MHz)Result (dBm)Limit(dBm)Verdict Band2926211850.00-20.44-13PASS Band292…
