2AWEY-A11Wireless Bluetooth Earphones

Wireless Bluetooth Earphones A11 (BTS1505TWS) Instruction Manual Specification Wireless Version: 5.0 Support Protocols: A2DP1.3/HFP1.6/HSP1.2/AVRCP1.6/D11.3 Bluetooth Frequency: 2.4G Working Distance: 10m Playing/Talking time: 5hours Charging box capacity: 250mA Earbuds battery: 35mA Operation: Auto Power On, Auto Pair Whenopen the charging case, the earbuds will be Power On Automatically,after a few seconds, the 2 earbuds will be pair automatically. And then you search the Bluetooth devices by your phones, will detect the earbuds’ name: BTS1505TWS, Click it to connect to your phones. Main Function: 1, Phone calls Answer Call/Hang up Call:Touch Oncethe earbuds. Decline: Touch and hold 2 seconds the earbuds. 2, Listening to Music Play or Pause: Touch once to start and stop track. Preview Track: Double Touch leftearbud. Next Track: Double Touch rightearbud. 3, Voice Enable Triple Touch the earbuds to enable voice function on your phone. 4, Power Off Long touch the earbuds 5 seconds, then theearbuds will be power off. It would be power off automatically when the earbuds away from your Bluetooth device over 3 minutes, So do not worry the power exhausted. In Power off model, touch the earbuds around 2 seconds, it will be Power On. 5, Charging: A. Earbuds charging: Put the earbuds into the charging case and close the cover, the earbuds will be turn off automatically till full. B. Charging case charging: Connect the charging case via USB cable to a USB charger or device with USB port, During charging, the Led light flash Orange, then turn solid when fully charged. Precautions 1. The earbuds should be stored in a dry and ventilated environment, to avoid oil, water, moisture and dust affecting product performance. 2. Avoid using stimulus, organic solvents or items containing these ingredients to clean the earbuds. 3. The use of earbuds should be correctly as per the specification, pay attention to use the influence of environment on the earbuds. In order to ensure the smooth connection, it’s recommended that the distance between the earbuds and phones within 10 meters. 4. If the earbuds failed to connect or with poor connection, please do not take apart the earbuds or the accessories on your own, Otherwise, no warranty. 5. Regarding charging earbuds. Please use the standard USB cable or pointed charging cable from our company to charge the earbuds. 6. In order to ensure normal use, please ensure sufficient power of the earbuds. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Co m Ad d Kow Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: HO dress: Rm. wloon, Ho oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: HO ONGKONG .803, Chev ong Kong, e: Wireless er(s): A11, B ription: Wi MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Robert Lu o CEO HONGKO NGKONG C Agen CHOICE E valier Hou China s Bluetooth BTS1505TW reless Blue bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect o NG CHOIC CHOICE EL nt Auth LECTRON use, 45-51 h Earphone WS, A12, A etooth Ear Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of CE ELECTR LECTRONIC horizat ICS CO., L Chatham es A13, A10 phones ourt, Pleasa certification forward all i agencies as and all acts our own. RONICS CO CS CO., LT tion TD Road Sou anton, Califo of above na information s required a s carried ou Date: O., LTD D uth, Tsim ornia 94566 amed equip related to t nd to discu ut by MiCOM May. 07, 20 Sha Tsui, 6, USA, to pment. the approva ss any M Labs on 021 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: C of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AWEY-A om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio r understand pondence du ents and thi zation is iss ely, ure: Robert Lu o EO HONG ing Techno cations Com s Road 046 for Confiden A11 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri ding that all uring the ce s informatio sued. o GKONG CH logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption l measurem ertification re on will be av OICE ELEC ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for CTRONICS s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e S CO., LTD Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: May. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 07, 2021 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, HONGKONG CHOICE ELECTRONICS CO., LTD(Wireless Bluetooth Earphones) Trademark:N/A; Model Number:A11, BTS1505TWS, A12, A13, A10;All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different for commercial purpose. Test sample model: A11. Please contact me if you have any question. Name: Robert Luo Date: May. 07, 2021 Title: CEO Signature of applicant:

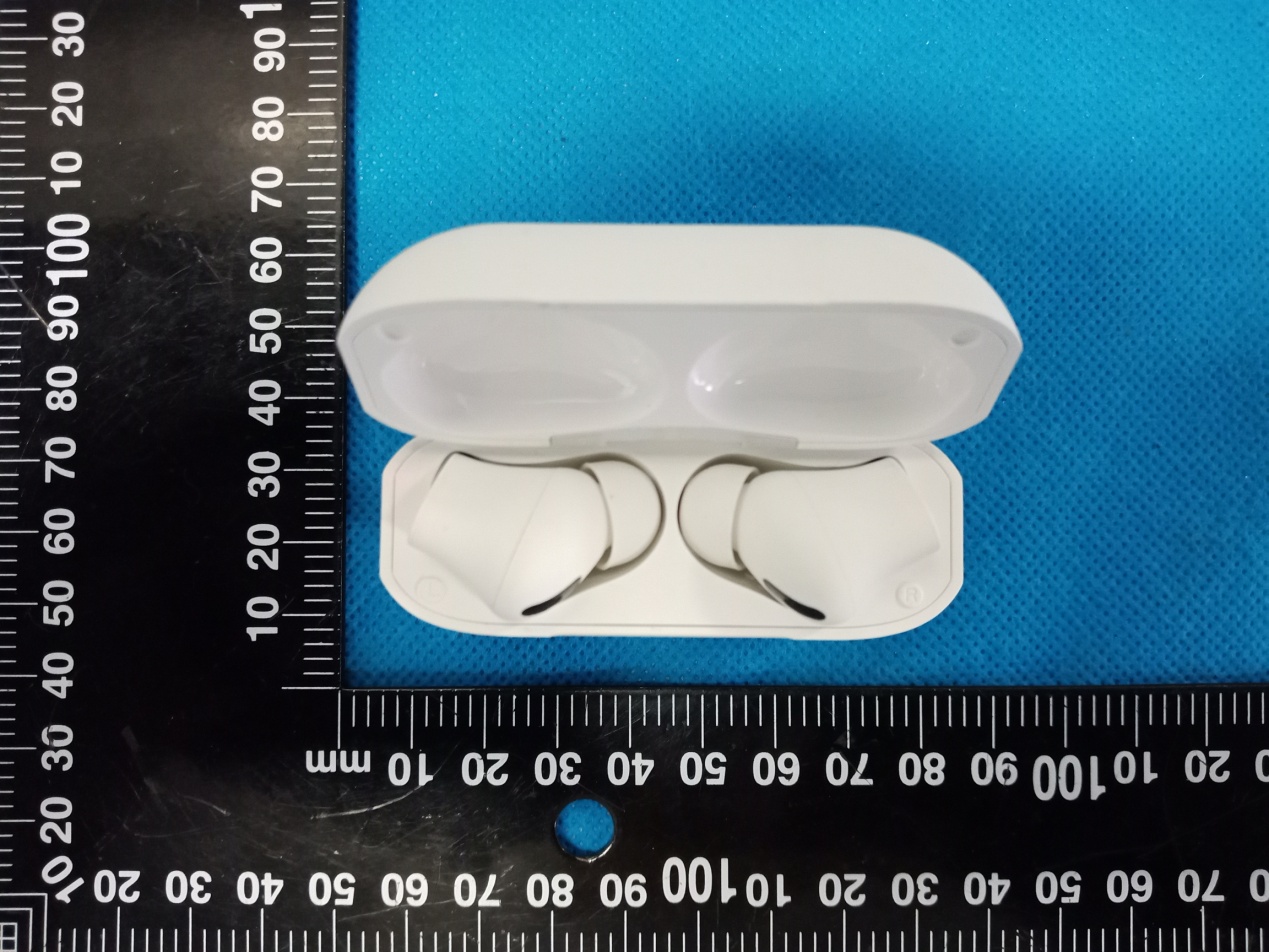

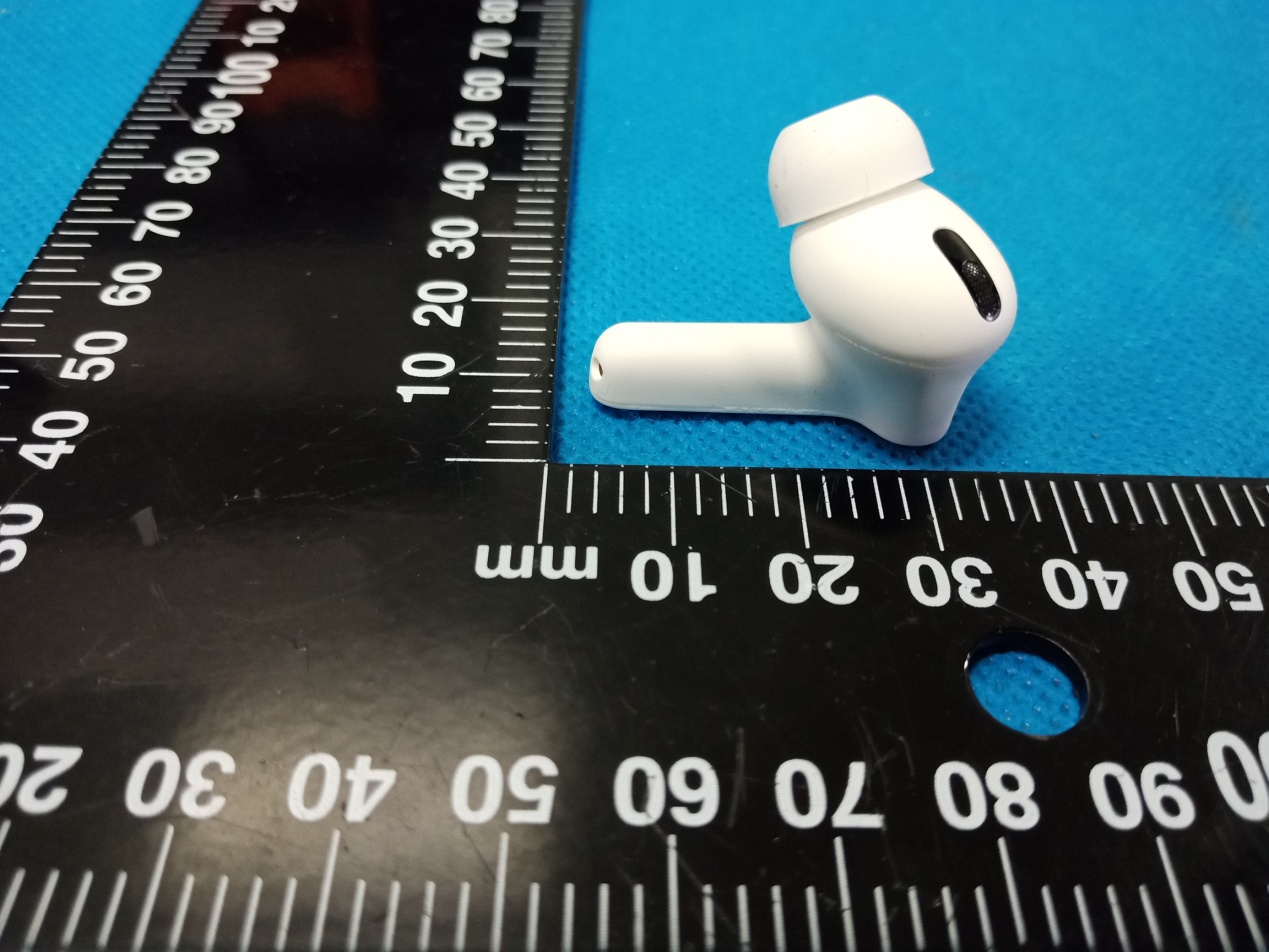

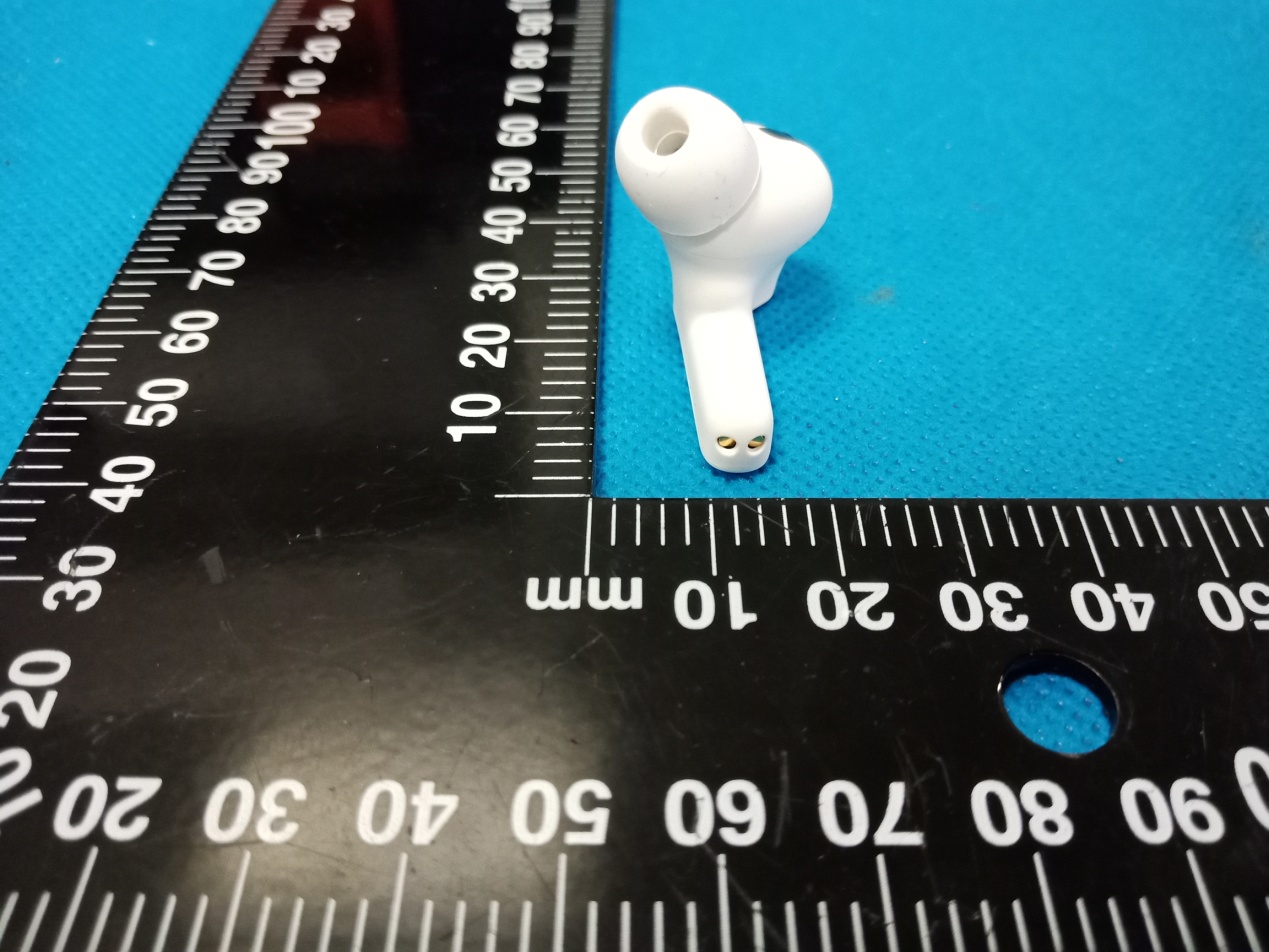

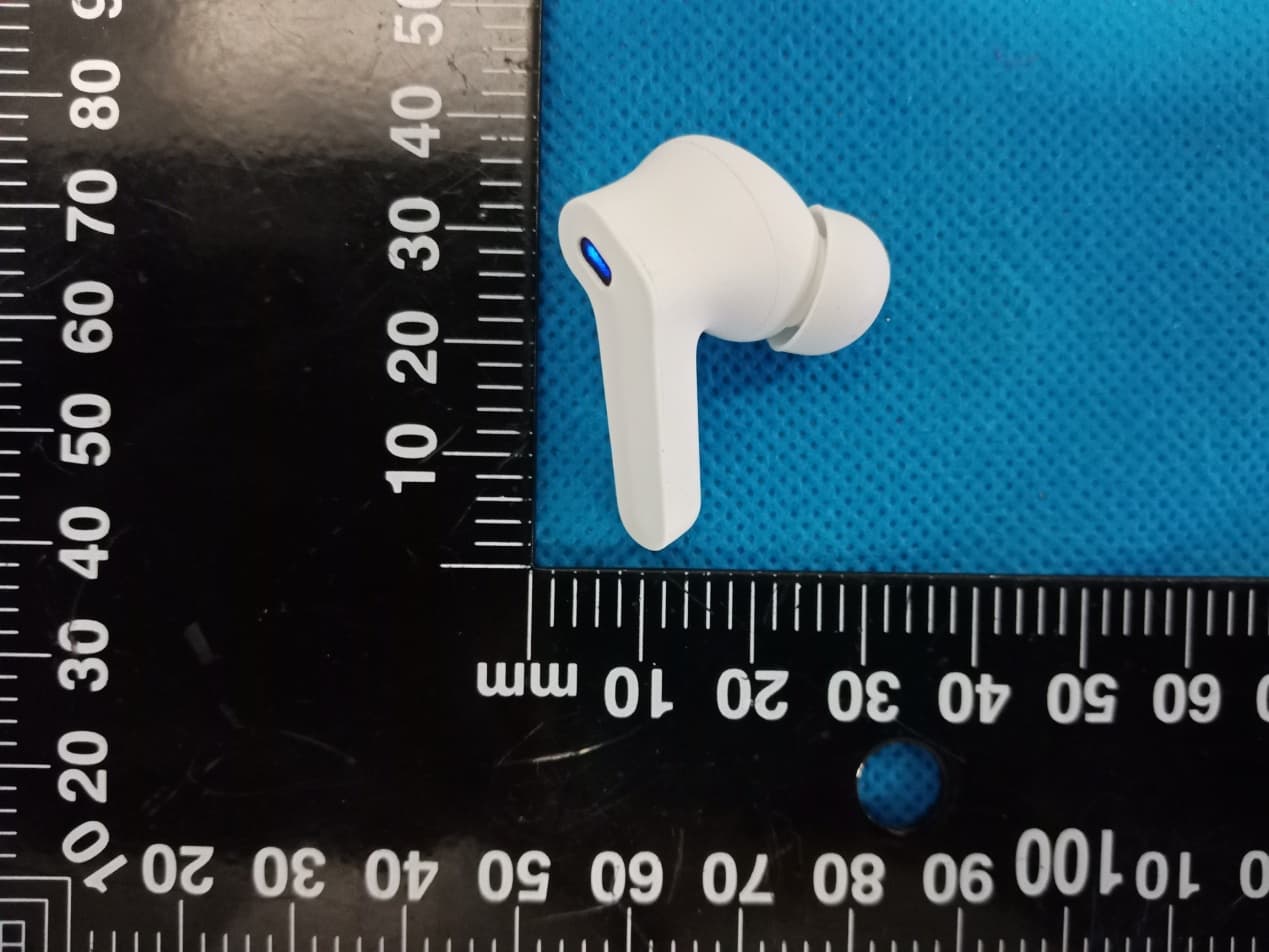

Annex A External Photos Report No.: HK2104161152‐E Page 1 of 4 Report No.: HK2104161152‐E Page 2 of 4 Report No.: HK2104161152‐E Page 3 of 4 Report No.: HK2104161152‐E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AWEY-A11

Annex B Internal Photo Report No.:HK2104161152-E Page 1 of 3 Antenna Antenna Report No.:HK2104161152-E Page 2 of 3 Report No.:HK2104161152-E Page 3 of 3

FCC RF Exposure EUT Description: Wireless Bluetooth Earphones Model No.: A11 FCC ID: 2AWEY-A11 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR 5.255 4.5±1(5.5) 3.548 5 1.1 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2104161152-E antenna gain=1dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 1.1 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 45 Report No.: HK2104161152-E TEST REPORT FCC PART 15 SUBPART C 15.247 T est report On Behalf of HONGKONG CHOICE ELECTRONICS CO., LTD For Wireless Bluetooth Earphones Model No.: A11, BTS1505TWS, A12, A13, A10 FCC ID: 2AWEY-A11 Prepared for : HONGKONG CHOICE ELECTRONICS CO., LTD Rm.803, Chevalier House, 45-51 Chatham Road South, Tsim Sha Tsui, Kowloon, Hong Kong, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China Date of Test: Apr. 16, 2021 ~ Apr. 25, 2021 Date of Report: Apr. 25, 2021 Report Number: HK2104161152-E Page 2 of 45 Report No.: HK2104161152-E TEST RESULT CERTIFICATION Applicant’s name ....... HONGKONG CHOICE ELECTRONICS CO., LTD Address ....................... . Rm.803, Chevalier House, 45-51 Chatham Road South, Tsim Sha Tsui, Ko wloon, Hong Kong, China Manufacture's Name . . Shenzhen Caiyu Electronics Technology Co., Ltd. Address ........................ 301, A1 Building, Huafeng Zhigu, Hangkong Road, Hangcheng Street, Ba o'An district , Shenzhen, China Product description Trade Mark: N/A Product name ................ Wireless Bluetooth Earphones Model and/or type reference ................... . A11, BTS1505TWS, A12, A13, A10 Standards ................... . 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ................................. . Date (s) of performance of tests ... .Apr. 16, 2021 ~ Apr. 25, 2021 Date of Issue ................................ .Apr. 25, 2021 Test Result .................................... . Pass Prep ared by: Project Engineer Reviewed b y: Project Supervisor Approved b y: T echnica l Di rector Page 3 of 45 Report No.: HK2104161152-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ................................................................................................................................................... 5 1.3. TEST FACILITY ........................................................................................................................................................... 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ............................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ............................................................................................ 8 2.4. EQUIPMENTS USED DURING THE TEST .................................................................................................................... 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................................ 9 2.6. MODIFICATIONS ...................................................................................................................................................... 9 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ............................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ................................................................................................................ 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................................................... 25 3.4. 20DB BANDWIDTH ................................................................................................................................................ 26 3.5. FREQUENCY SEPARATION ...................................................................................................................................... 29 3.6. NUMBER OF HOPPING FREQUENCY ...................................................................................................................... 31 3.7. TIME OF OCCUPANCY (DWELL TIME) ..................................................................................................................... 33 3.8. OUT‐OF‐BAND EMISSIONS ..................................................................................................................................... 36 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................................... 41 3.10. ANTENNA REQUIREMENT..............................................................................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
