4G Car DVR Model: ES-D6 Main Features: * 4G / GPS Tracking / DVR / Remote Live Video * Remote Playback / Support App & PC Platform * Track Playback / Dual-way Talking / Two Camera * Support Parking Monitoring / Low Power Protect * Support Vibration Alarm / Anti-theft Alarm * Support Geofence Alarm / Over-speed Alarm Specification: Model ES-D 6 Hardware CPU MT6761 ARMCortex-A53, 2.0GHz (Quad Core) OS Android 9.0 RAM LPDDR4 1GB RAM Memory Flash 4GB Micro SD Card Max 256G Rear Camera Optional Button ON/OFF Interface BMW wire interface Network / Data Network FDD-LTE(4G), WCDMA(3G) 4G Frequency FDD-LTE B2/B4/B5/B12/B17 3G Frequency WCDMA B2/B4/B5 GPS Location GPS, A-GPS, BeiDou Data Service HSDPA, HSPA+, LTE Main Functions GPS Tracker Support, App & PC Platform DVR Full HD 1080P with 25fps, Loop-Recording Cameras Forward Camera: 1080P, adjustable viewing angle 140° Rear Camera: 720P, viewing angle 13 0° Wi-Fi 802.11b/g/n (WLAN), 2.4G G-Sensor Support TS Streaming Support, TS Streaming Record MIC & Speaker Support Dual-way Talking Remote Monitoring App & Platform, Remote Video and Remote Image Playback Support APP playback with WiFi and Remotely Live View P2P Live View, Front-Car/Rear-Car Live View streaming Via APP History Tracking Playback Support One Month Vibration Alarm Support Over-speed Alarm Support Geofence Alarm Support Park Monitoring Support Time-Lapse Photography Platform Report History tracking report, Ignition on/off report, Alarm report Power Supply Support DC12-30V input Others Operating Temperature -20°C~70°C Operating Humidity 0~90%, Non-Condensed FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Agent Authorization Company: SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address: Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao ’an District, Shenzhen,GuangDong, China Product Name: 4G Car DVR Trade Mark: AddSecure Model Number(s ): AddSecure FFC LTE NA, ES-D6, ES-D6 Plus, ES-D5, ES-D5 Plus, AddSecure FFC LTE EU/AU We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-28 Name: JUNFENG WEI Title: Product Manager Company: SHENZHEN EVERSMART TECHNOLOGY CO., LTD.

SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Tel: 0755-85250592 E-mail: [email protected] Series Models Description Date: 2021/01/28 To: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2AWF3ES-AST-P100 Dear Sir/Madam, We, SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, s tructure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: 4G Car DVR Model no.: AddSecure FFC LTE NA, ES-D6, ES-D6 Plus, ES-D5, ES-D5 Plus, AddSecure FFC LTE EU/AU Sincerely, Name: JUNFENG WEI/ Product Manager Company: SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address: Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Phone: 0755-85250592 E-Mail: [email protected]

SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-01-28 Subject; Request for Confidentiality FCC ID: 2AWF3ES-AST-P100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: JUNFENG WEI Title: Product Manager

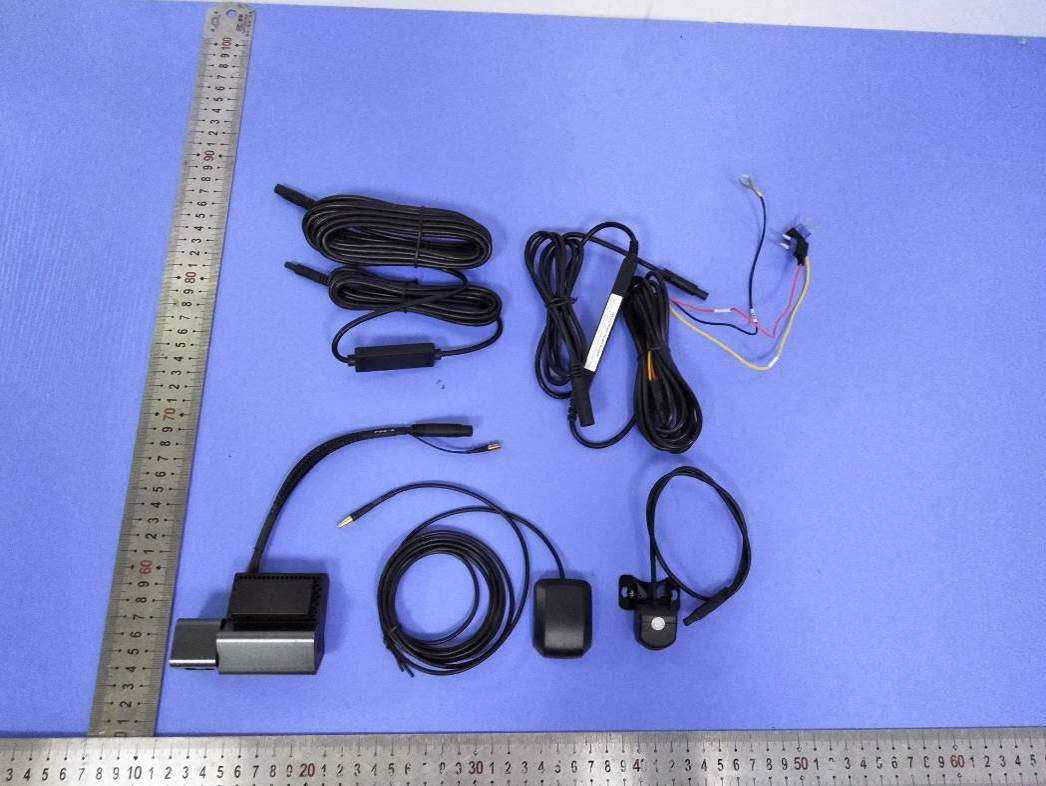

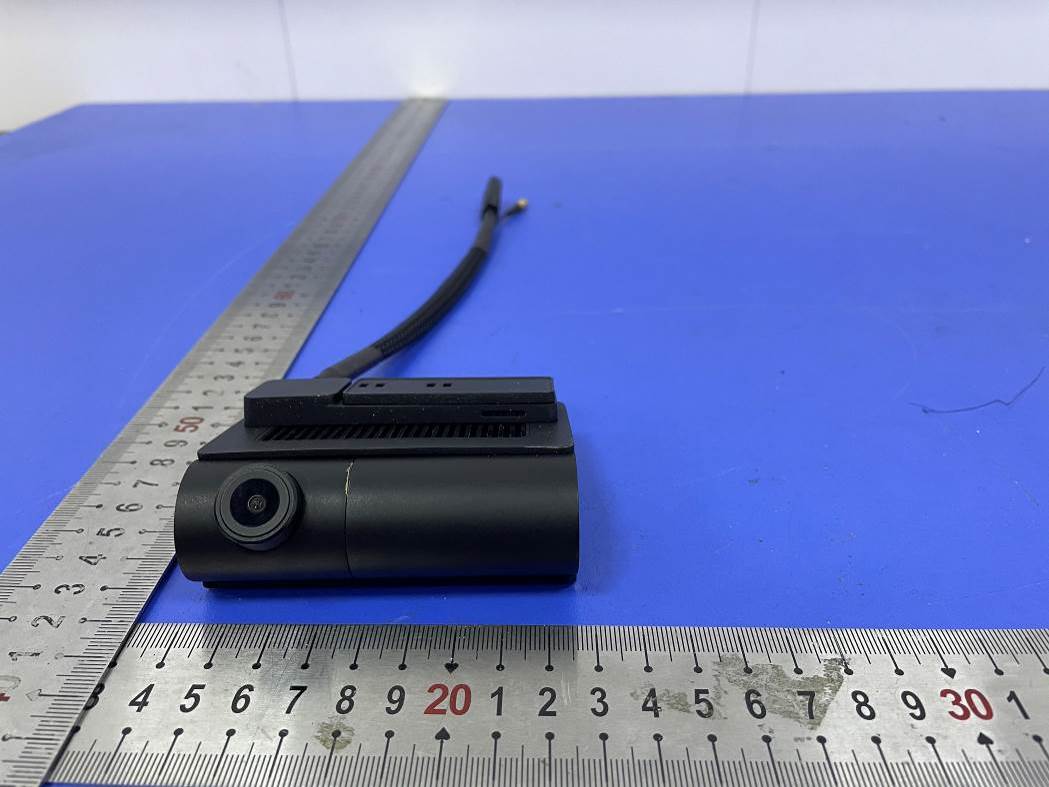

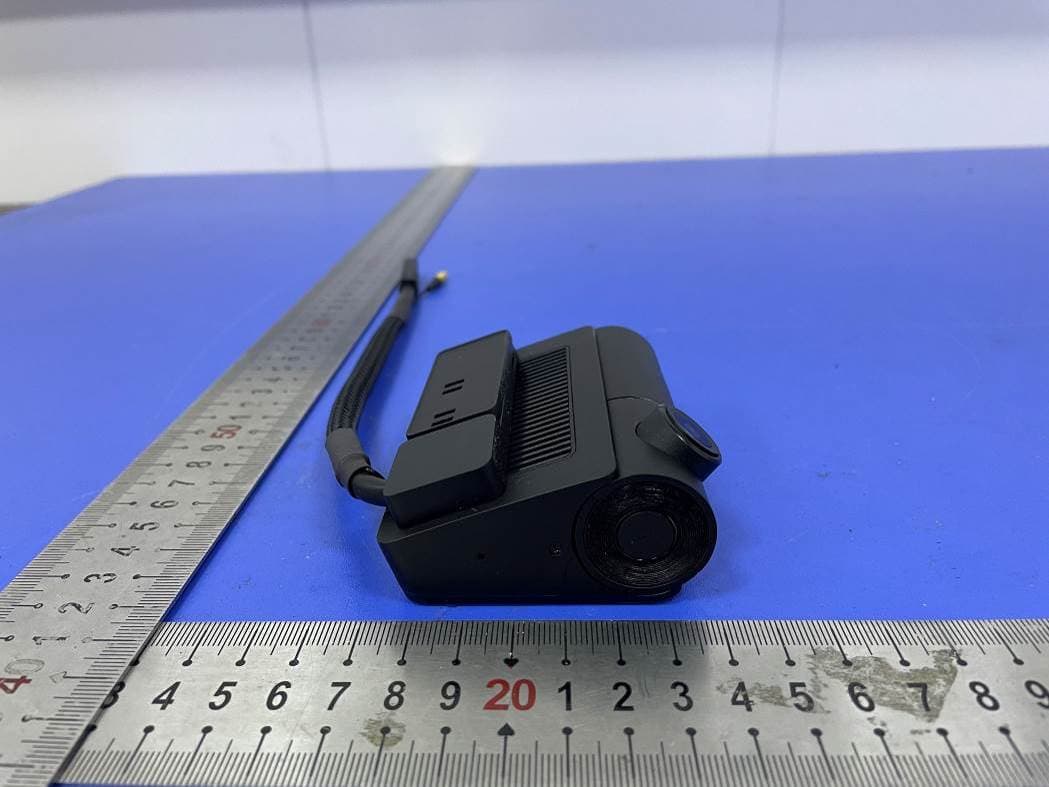

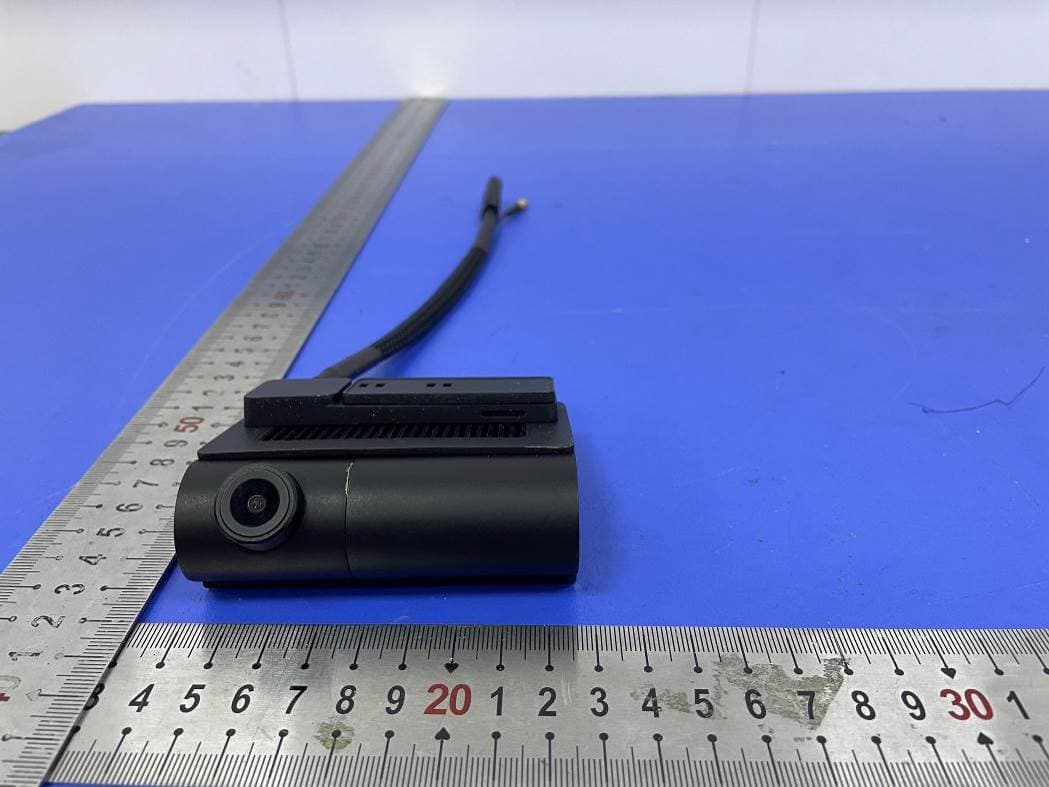

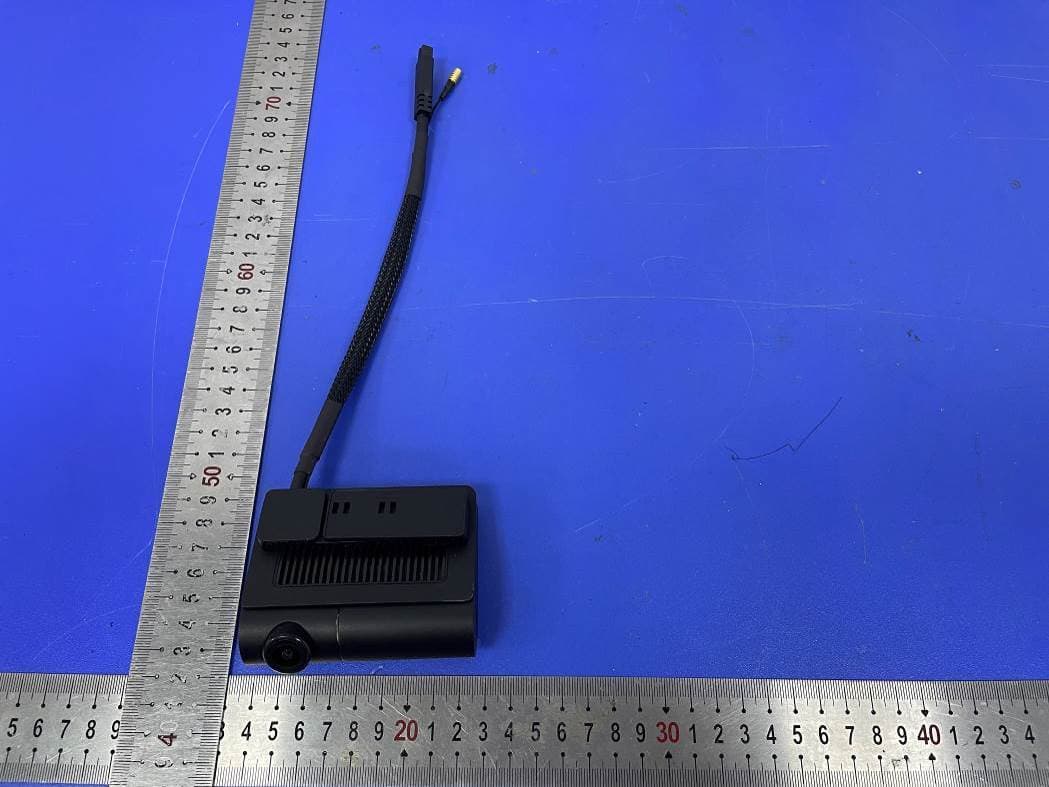

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 4.0cm*W6.0cm Label Location 4G Car DVR Model No.: AddSecure FFC LTE NA FCC ID: 2AWF3ES- AST-P100

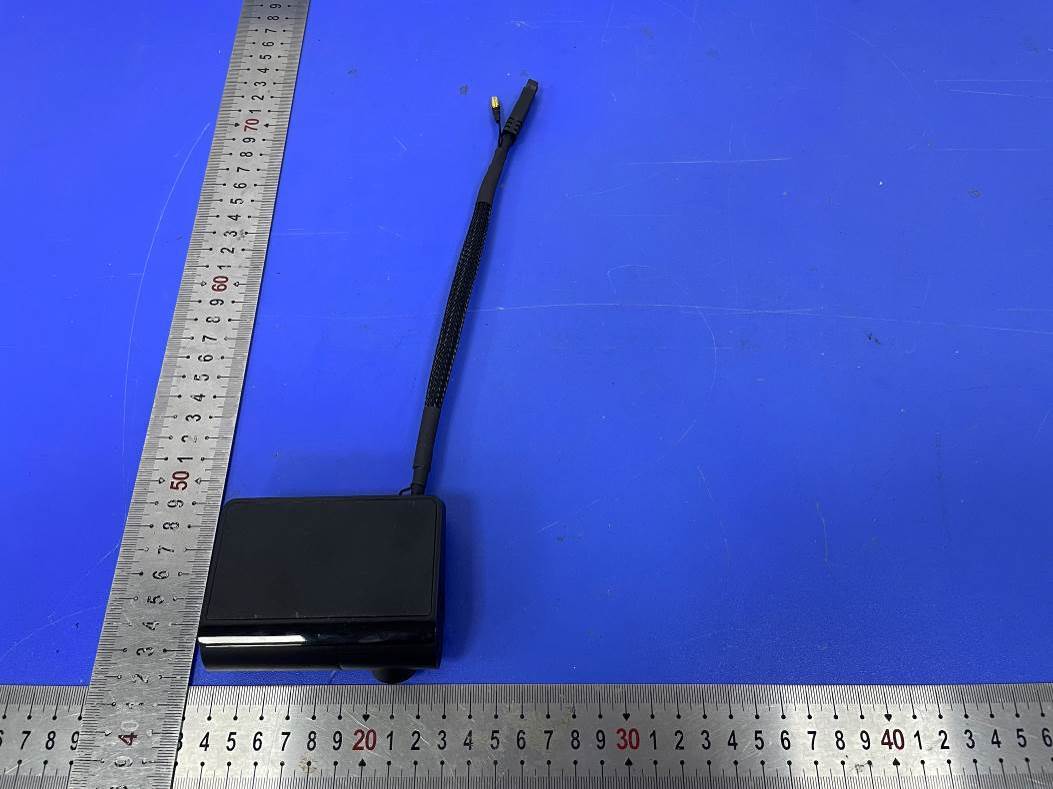

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2AWF3ES-AST-P100 Fig.3 Fig.4 LTE Diversity ANT WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 Fig.5 Fig.6 WIFI ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-AST-P100 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES‐AST‐P100 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AWF3ES-AST-P100 Product name 4G Car DVR Test Model AddSecure FFC LTE NA Additional Models No. ES-D6, ES-D6 Plus, ES-D5, ES-D5 Plus, AddSecure FFC LTE EU/AU Models Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Modulation Type 802.11b: DSSS; 802.11g/n: OFDM, QPSK for WCDMA; QPSK, 16QAM for LTE Antenna Gain PIFA Antenna, -1.2dBi(Max.) For 2.4G WIFI PIFA Antenna; -1.78dBi (max.) For WCDMA Band II -1.78dBi (max.) For WCDMA Band IV -1.78dBi (max.) For WCDMA Band V PIFA Antenna; 1.1dBi (max.) For E-UTRA Band 2 1.1dBi (max.) For E-UTRA Band 4 1.1dBi (max.) For E-UTRA Band 5 1.1dBi (max.) For E-UTRA Band 12 1.1dBi (max.) ForE-UTRA Band 17 Hardware version P100_Vx Software version P100.NO.ES.RTL_D8_YE22.V1.2021xxxx.xxxxxx UMTS Operation Frequency Band UMTS FDD Band II/IV/V LTE Operation Frequency Band LTE FDD band 2, 4, 5, 12,17 GSM/EDGE/GPRS Not Supported WCDMA Release VersionR8 HSDPA Release Version Release 8 HSUPA Release Version Release 6 DC-HSUPA Release Version Not Supported LTE Release Version R9 LTE/UMTS Power Class Class 3 WLAN FCC Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11 g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) WLAN FCC Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g/n20:2412-2462MHz IEEE 802.11n40:2422-2452MHz Antenna Type External Antenna Extreme temp. Tolerance-20°C to +70°C GPS function Not Supported FM function Not Supported NFC Function Not Supported Extreme vol. Limits 10.2VDC to 13.8VDC (nominal: 12VDC) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES‐AST‐P100 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far‐field plane‐wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane‐wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES‐AST‐P100 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97‐01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Cellular Wi‐Fi Router can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes PIFA Antenna 2400 MHz –2500 MHz‐1.2dBiWLAN ANT PIFA Antenna 600 MHz –3000 MHz‐1.78dBiWCDMA ANT PIFA Antenna 600 MHz –3000 MHz1.1dBiLTE Main ANT 6. Conducted Power [2.4GWLAN Max Peak Conducted Power] Mode Channel Frequency(MHz) Max Conduc…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 135 Appendix B: Test Data for E-UTRA Band 2 Product Name: 4G Car DVR Trade Mark: AddSecure Test Model: AddSecure FFC LTE NA Environmental Conditions Temperature: 22.3 C Relative Humidity: 53.5% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan B.1 Conducted Output Power Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 21.36 20.62 PASS 1 3 21.41 20.80 PASS 1 5 21.28 20.72 PASS 3 0 21.28 20.23 PASS 3 2 21.41 20.35 PASS 3 3 21.42 20.35 PASS 6 0 20.39 19.36 PASS MCH 1 0 22.23 21.27 PASS 1 3 22.30 21.25 PASS 1 5 22.14 21.03 PASS 3 0 22.33 21.24 PASS 3 2 22.29 21.24 PASS 3 3 22.29 21.16 PASS 6 0 21.34 20.58 PASS HCH 1 0 23.02 21.98 PASS 1 3 22.74 22.00 PASS 1 5 22.60 21.86 PASS 3 0 22.65 21.91 PASS 3 2 22.63 22.16 PASS 3 3 22.53 21.78 PASS 6 0 21.74 20.64 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 135 Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 21.35 20.66 PASS 1 7 21.27 21.03 PASS 1 14 21.45 20.91 PASS 8 0 20.54 19.50 PASS 8 4 20.55 19.52 PASS 8 7 20.49 19.69 PASS 15 0 20.51 19.55 PASS MCH 1 0 22.82 22.08 PASS 1 7 22.51 22.03 PASS 1 14 22.47 21.92 PASS 8 0 21.62 20.75 PASS 8 4 21.50 20.59 PASS 8 7 21.38 20.61 PASS 15 0 21.43 20.55 PASS HCH 1 0 22.85 21.72 PASS 1 7 22.87 21.87 PASS 1 14 23.00 21.63 PASS 8 0 21.96 20.56 PASS 8 4 21.73 20.93 PASS 8 7 21.81 20.93 PASS 15 0 21.91 20.93 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 135 Conducted Output Power Test Result (Channel Bandwidth: 5 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 21.28 20.28 PASS 1 12 21.83 20.34 PASS 1 24 21.70 20.34 PASS 12 0 20.50 19.58 PASS 12 6 20.60 19.72 PASS 12 13 20.73 19.76 PASS 25 0 20.60 19.90 PASS MCH 1 0 23.07 21.39 PASS 1 12 22.80 21.55 PASS 1 24 22.31 21.11 PASS 12 0 21.79 20.83 PASS 12 6 21.51 20.47 PASS 12 13 21.44 20.58 PASS 25 0 21.61 20.75 PASS HCH 1 0 22.57 21.54 PASS 1 12 22.86 21.34 PASS 1 24 23.04 21.51 PASS 12 0 21.77 20.78 PASS 12 6 21.85 20.53 PASS 12 13 22.00 21.04 PASS 25 0 21.97 20.80 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 135 Conducted Output Power Test Result (Channel Bandwidth: 10 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 21.37 21.52 PASS 1 24 21.79 21.04 PASS 1 49 22.60 22.51 PASS 25 0 20.81 19.89 PASS 25 12 20.86 19.92 PASS 25 25 21.33 20.38 PASS 50 0 21.06 20.13 PASS MCH 1 0 23.52 23.02 PASS 1 24 22.48 22.17 PASS 1 49 22.06 21.53 PASS 25 0 22.12 21.26 PASS 25 12 21.69 20.63 PASS 25 25 21.40 20.36 PASS 50 0 21.72 20.78 PASS HCH 1 0 22.72 21.19 PASS 1 24 22.83 21.36 PASS 1 49 22.95 21.76 PASS 25 0 21.89 20.89 PASS 25 12 22.02 20.96 PASS 25 25 22.08 21.11 PASS 50 0 21.86 20.83 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 135 Conducted Output Power Test Result (Channel Bandwidth: 15 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 22.66 22.10 PASS 1 37 22.12 22.06 PASS 1 74 23.65 23.57 PASS 37 0 21.86 20.06 PASS 37 18 21.22 20.25 PASS 37 38 22.08 21.12 PASS 75 0 21.45 20.49 PASS MCH 1 0 23.84 23.67 PASS 1 37 22.68 22.16 PASS 1 74 22.90 22.35 PASS 37 0 22.41 21.41 PASS 37 18 21.86 20.89 PASS 37 38 21.26 20.33 PASS 75 0 21.78 20.84 PASS HCH 1 0 22.33 21.13 PASS 1 37 23.18 22.01 PASS 1 74 22.95 21.95 PASS 37 0 21.56 20.69 PASS 37 18 21.90 20.97 PASS 37 38 21.99 21.04 PASS 75 0 21.74 20.78 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 135 Conducted Output Power Test Result (Channel Bandwidth: 20 MHz) Modulation Channel RB Configuration Average Power [dBm] QPSK Average Power [dBm] 16QAM Verdict Size Offset QPSK / 16QAM LCH 1 0 23.77 21.14 PASS 1 49 23.03 21.56 PASS 1 99 24.25 22.90 PASS 50 0 21.19 20.16 PASS 50 25 21.92 21.13 PASS 50 50 22.79 21.89 PASS 100 0 22.03 21.05 PASS MCH 1 0 23.98 22.90 PASS 1 49 22.91 21.72 PASS 1 99 22.01 21.48 PASS 50 0 22.50 21.56 PASS 50 25 21.75 20.74 PASS 50 50 21.31 20.16 PASS 100 0 22.00 21.04 PASS HCH 1 0 21.72 20.44 PASS 1 49 22.77 21.29 PASS 1 99 22.73 21.39 PASS 50 0 21.23 20.30 PASS 50 25 21.70 20.53 PASS 50 50 22.02 21.11 PASS 100 0 21.69 20.73 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AWF3ES-AST-P100 Report No.: LCS201214172AEC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 135 B.2 Peak-to-Average Ratio Peak-to Average Ratio Test Result (Channel B…
