3G Car DVR FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Agent Authorization Company: SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address: Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao ’an District, Shenzhen,GuangDong, China Product Name: 3G Car DVR Trade Mark: eversmart, RTL SCORPION Model Number(s): ES-C11 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-28 Name: JUNFENG WEI Title: Product Manager Company: SHENZHEN EVERSMART TECHNOLOGY CO., LTD.

SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-28 Subject; Request for Confidentiality FCC ID: 2AWF3ES-C11 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: JUNFENG WEI Title: Product Manager

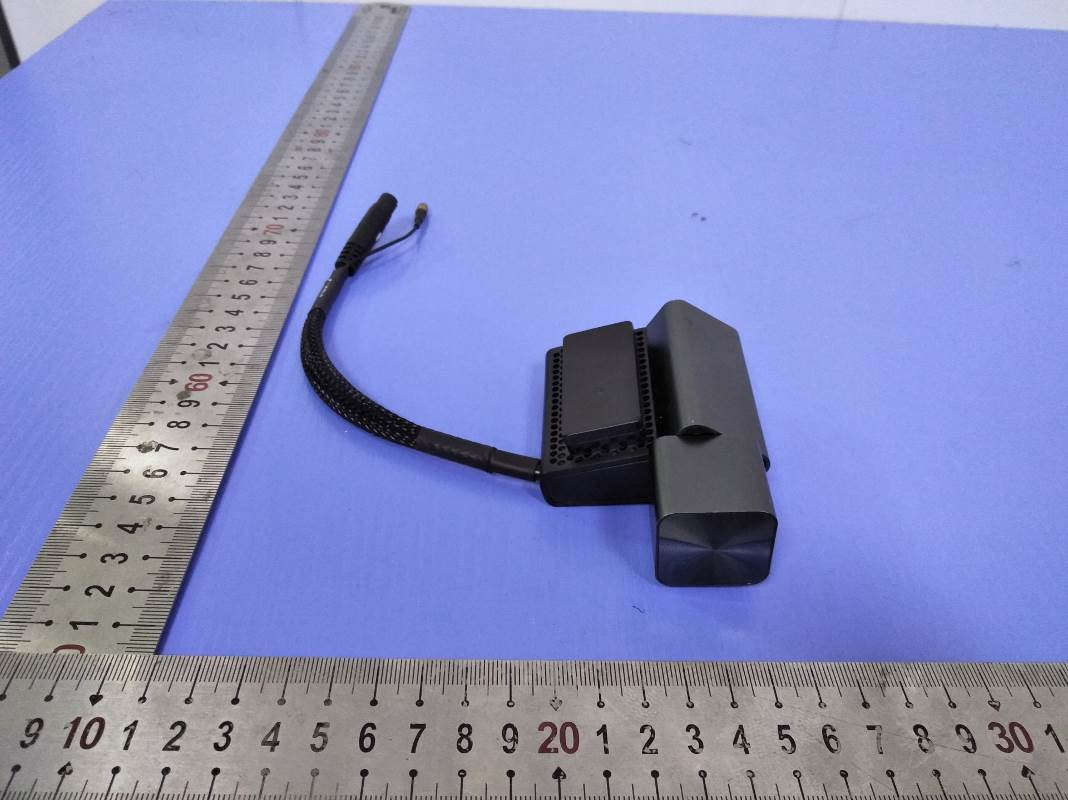

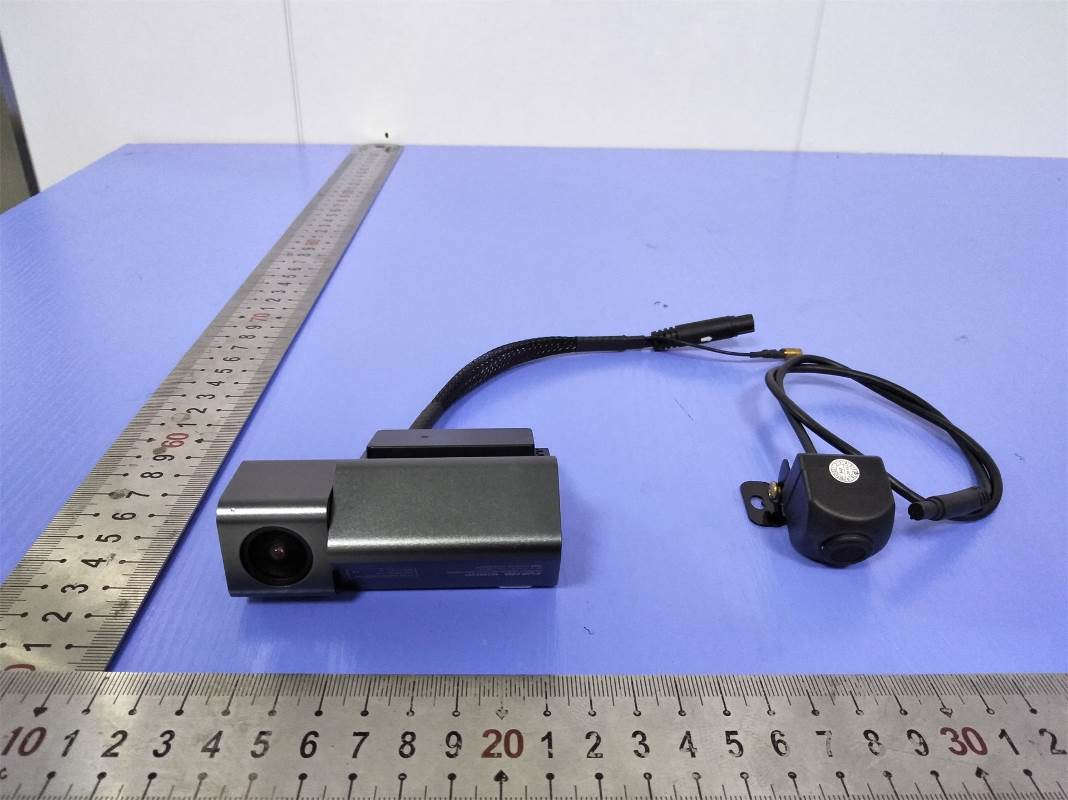

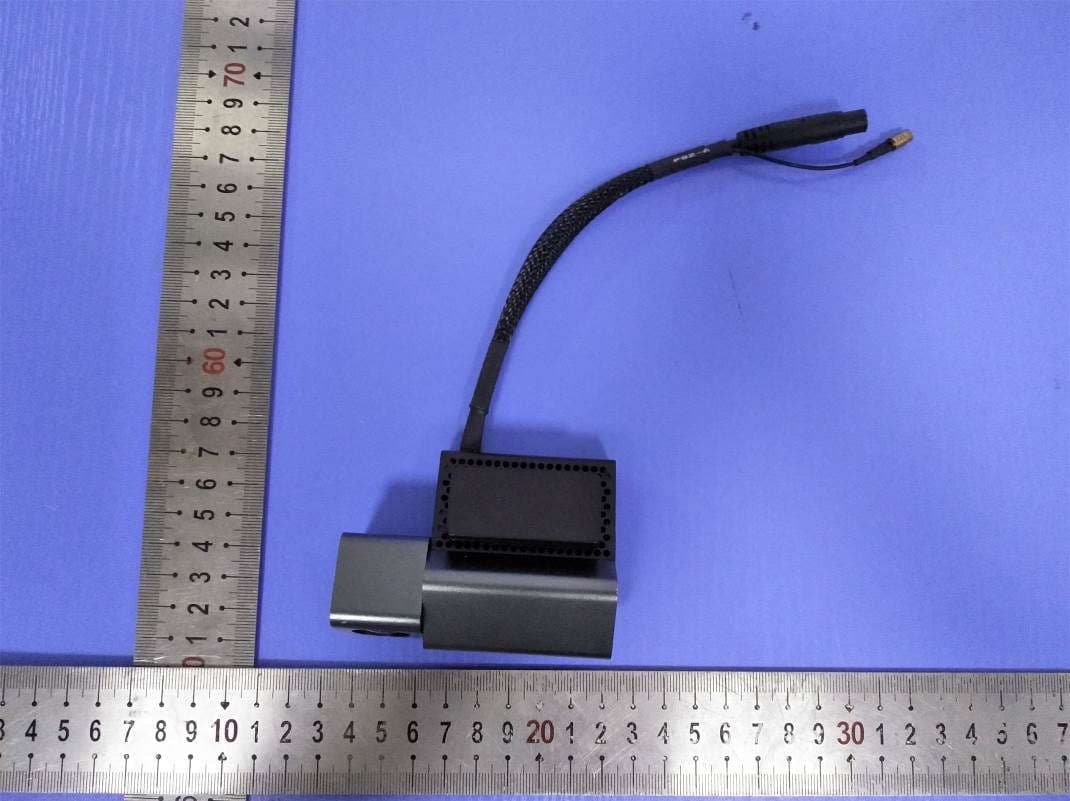

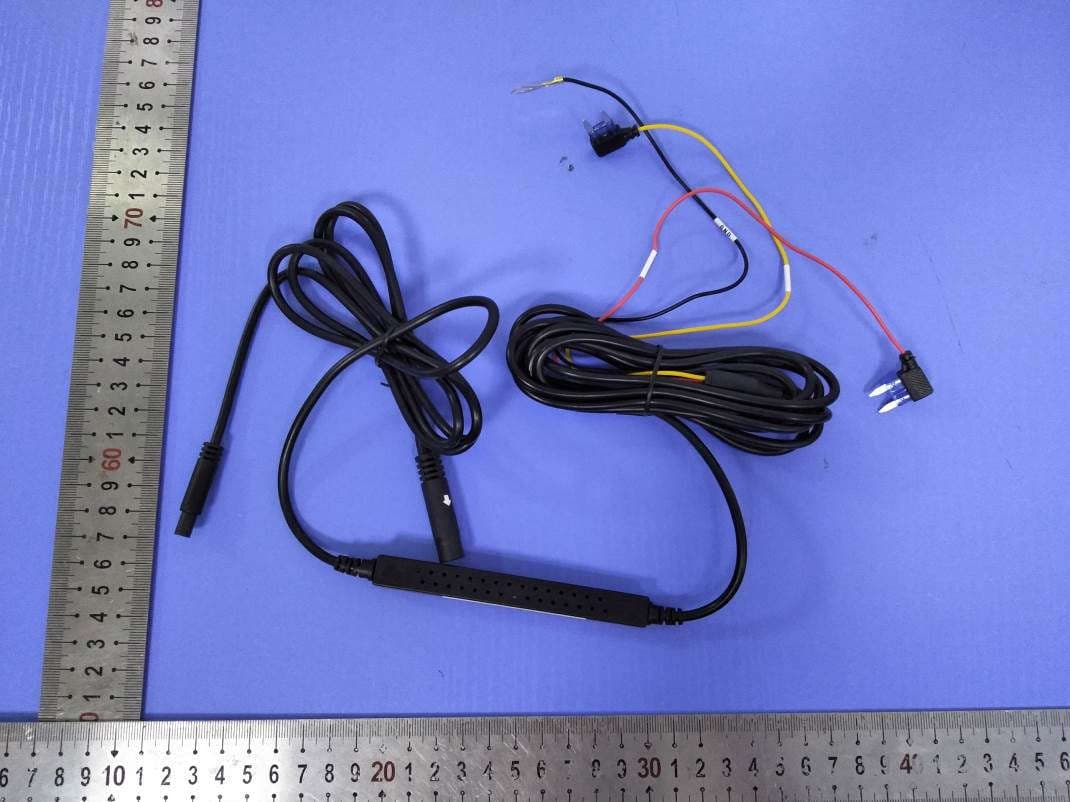

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location 3G Car DVR Model No.: ES-C11 FCC ID: 2AWF3ES-C11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Fig. 7 Fig. 8 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Maximum Permissible Exposure Report 1. Product Information FCC ID 2AWF3ES-C11 Name of EUT 3G Car DVR Model Number ES-C11 Model Declaration N/A Test Model ES-C11 Modulation Type GMSK for GSM/GPRS; 8-PSK for EDGE; QPSK for UMTS Antenna Gain 0dBi (max.) For GSM 850; 0dBi (max.) For PCS 1900; 0dBi for WCDMA Band II; 0dBi for WCDMA Band V; Hardware version / Software version / GSM/EDGE/GPRS Operation Frequency Band GPRS850/GPRS1900/EDGE850/EDGE1900 UMTS Operation Frequency Band UMTS FDD Band II/ V GSM/EDGE/GPRS Supported GPRS/EDGE GSM Release Version R99 GSM/EDGE/GPRS Power Class GSM850:Power Class 4/ PCS1900:Power Class 1 GPRS/EDGE Multislot Class GPRS/EDGE: Multi-slot Class 12 GPRS operation mode Class B WCDMA Release Version R99 HSDPA Release Version Release 8 HSUPA Release Version Release 7 DC-HSUPA Release Version Not Supported Antenna Type Internal Antenna For 2G,3G GPS function Support and only RX FM function Not Supported NFC Function Not Supported Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES-D4 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna Internal Antenna 600 MHz – 3000 MHz 0 dBi GSM/WCDMA 6. Conducted Power [GSM Max Average Power] Test Mode Channel Frequency (MHz) Max Average Power (dBm) GSM 850 Low 824.2 32.42 Middle 836.6 32.38 High 848.8 32.39 GSM 1900 Low 1850.2 32.40 Middle 1880.0 32.37 High 1909.8 32.41 [WCDMA Max Average Power] Test Mode Channel Frequency (MHz) Max Average Power (dBm) WCDMA Band II Low 1852.4 23.43 Middle 1880 23.53 High 1907.6 23.48 WCDMA Band V Low 826.4 22.27 Middle 836.4 22.09 High 846.6 22.58 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 7. Manufacturing Tolerance [GSM Max Average Power] Test Mode Channel Max Average Power (dBm) ANT Max. Tune Up Power (dBm) GSM 850 LCH 32.42 32.0±1.0 MCH 32.38 32.0±1.0 HCH 32.39 32.0±1.0 GSM 1900 LCH 32.40 32.0±1.0 MCH 32.37 32.0±1.0 HCH 32.41 32.0±1.0 [WCDMA Max Average Power] Test Mode Channel Max Average …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEA FCC TEST REPORT FCC Part 22 /Part 24 Report Reference No. .................... : FCC ID. ............................................ : Date of Issue. ................................. : LCS200401243AEA 2AWF3ES-C11 May 15, 2020 Testing Laboratory Name .............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address............................................. : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Applicant’s name ............................ : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address............................................. : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Test specification .......................... : Standard ........................................... : FCC Part 22: Public Mobile Services FCC Part 24: Personal Communication Services Test Report Form No ....................... : LCSEMC-1.0 TRF Originator .................................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ....................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : 3G Car DVR Trade Mark ....................................... : eversmart, RTL SCORPION Test Model ........................................ : ES-C11 Listed Models .................................. : / Ratings.............................................. : Input: DC 12-24V Output: DC 4.2V, 2A(Max) Hardware version ............................. : / Software version .............................. : / Frequency .......................................... GSM 850MHz; PCS 1900MHz Result ................................................ : PASS Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 43 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEA T E S T R E P O R T Test Report No. : LCS200401243AEA May 15, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : 3G Car DVR Test Model : ES-C11 Listed Models : / Model Declaration : / Applicant : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Manufacturer : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Factory : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 43 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEA Revison History Revision Issue Date Revisions Revised By 000 May 15, 2020 Initial Issue Gavin Liang This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 43 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEA Contents 1 TEST STANDARDS .................................................................... 5 2 SUMMARY ............................................................................... 6 2.1 General Remarks 6 2.2 Product Description 6 2.3 Equipment under Test 7 2.4 Short description of the Equipment under Test (EUT) 7 2.5 Internal Identification of AE used during the test 7 2.6 Normal Accessory setting 8 2.7 EUT configuration 8 2.8 Related Submittal(s) / Grant (s) 8 2.9 Modifications 8 2.10 General Test Conditions/Configurations 8 3 TEST ENVIRONMENT ................................................................. 9 3.1 Address of the test laboratory 9 3.2 Test Facility 9 3.3 Environmental conditions 9 3.4 Test Description 9 3.5 Equipments Used during the Test 11 3.6 Measurement uncertainty 12 4 TEST CONDITIONS AND RESULTS ............................................. 13 4.1 Output Power 13 4.2 Radiated Spurious Emssion 17 4.3 Occupied Bandwidth and Emission Bandwidth 21 4.4 Band Edge Complicance 24 4.5 Spurious Emission on Antenna Port 27 4.6 Frequency Stability Test 37 4.7 Peak-to-Average Ratio (PAR) 40 5 TEST SETUP PHOTOGRAPHS OF EUT ......................................... 43 6 EXTERIOR PHOTOGRAPHS OF THE EUT ..................................... 43 7 INTERIOR PHOTOGRAPHS OF THE EUT ...................................... 43 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 43 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEA 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 22: Private Land Mobile Radio Services. FCC Part 24: Pub…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEB FCC PART 22/24 TEST REPORT FCC Part 22 / Part 24 Report Reference No. .................... : FCC ID. ............................................ : Date of Issue. ................................. : LCS200401243AEB 2AWF3ES-C11 May 15, 2020 Testing Laboratory Name .............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ............................................. : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Applicant’s name ............................ : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address ............................................. : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Test specification .......................... : Standard ........................................... : FCC Part 22: Public Mobile Services FCC Part 24: Personal Communication Services Test Report Form No ....................... : LCSEMC-1.0 TRF Originator .................................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ....................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : 3G Car DVR Trade Mark ....................................... : eversmart, RTL SCORPION Test Model ........................................ : ES-C11 Listed Models ................................... : / Ratings .............................................. : Input: DC 12-24V Output: DC 4.2V, 2A(Max) Modulation ....................................... : QPSK Hardware version.............................. : / Software version .............................. : / Frequency ........................................ : UMTS Band II / UMTS Band V Result ................................................ : PASS Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEB T E S T R E P O R T Test Report No. : LCS200401243AEB May 15, 2020 ______________________________________________________________________________________________ Date of issue Equipment under Test : 3G Car DVR Test Model : ES-C11 Listed Models : / Model Declaration : / Applicant : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Manufacturer : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Factory : SHENZHEN EVERSMART TECHNOLOGY CO., LTD. Address : Floor 3, Building C, Seven Star Creative Workshop, BaoTian Road 1, Xixiang, Bao’an District, Shenzhen,GuangDong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEB Revison History Revision Issue Date Revisions Revised By 000 May 15, 2020 Initial Issue Gavin Liang This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEB Contents 1 TEST STANDARDS .................................................................... 5 2 SUMMARY ............................................................................... 6 2.1 General Remarks 6 2.2 Product Description 6 2.3 Equipment under Test 7 2.4 Short description of the Equipment under Test (EUT) 7 2.5 Internal Identification of AE used during the test 7 2.6 Normal Accessory setting 7 2.7 EUT configuration 7 2.8 Related Submittal(s) / Grant (s) 8 2.9 Modifications 8 2.10 General Test Conditions/Configurations 8 3 TEST ENVIRONMENT ................................................................ 9 3.1 Address of the test laboratory 9 3.2 Test Facility 9 3.3 Environmental conditions 9 3.4 Test Description 9 3.5 Equipments Used during the Test 11 3.6 Measurement uncertainty 12 4 TEST CONDITIONS AND RESULTS ............................................. 13 4.1 Output Power 13 4.2 Radiated Spurious Emssion 16 4.3 Occupied Bandwidth and Emission Bandwith 19 4.4 Band Edge Compliance 21 4.5 Spurious Emssion on Antenna Port 23 4.6 Frequency Stability Test 29 4.7 Peak-to-Average Ratio (PAR) 31 5 TEST SETUP PHOTOS OF THE EUT ............................................ 33 6 EXTERNAL PHOTOS OF THE EUT .............................................. 33 7 INTERNAL PHOTOS OF THE EUT ............................................... 33 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 Report No.: LCS200401243AEB 1 TEST STANDARDS The tests were performed according to fol…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWF3ES-C11 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
