2AWG8-ST-W102PROSocial Distancing Smart Bracelet

Pedometer Movement Sleep monitoring Count the steps, mileage, and calories for 24 hours of a day. Heart rate Heart rate, blood oxygen, blood pressure in real time. Long press the touch area to turn on sleep monitoring function. If this function is on, long press the touch area to turn off. Ending sleep time counting. Initial stateOutdoor runningIndoor runningWalkingPause Binding Bracelet How to wear it The best Bracelet should be worn behind styloid process of ulna. Sensor Ulnar Styloid left hand Smart Bracelet Instruction Please read this user manual carefully before use 版本02 This manual is used as a general manual. Different models of products have different functions. Please refer to the actual product for product functions. In order to ensure pairing of devices successfully, the mobile phone should be kept close with the device. 1. Scan the QR code below or search "Skyring Health" through mobile app market , follow the prompts to download and install. Mobile system requirements: Android 4.3 / IOS 9.0 and above. 2. Open the downloaded app, create and log in the account, and select adding devices on the "device" page to complete the addition and pairing of devices. 1.Operation method: Make sure the power of your bracelet is normal for the first time. If the device can't be started normally with low power, please charge the device. The bracelet will start automatically. 2.Charging mode: (1) Remove the strap from the bracelet body (2) Put the end of the main body of the bracelet with the charging metal into the USB port to make the charging metal contact with the metal in the USB port, so as to charge correctly (please pay attention to the direction) 3.Device connection The first time you use the bracelet, you need to connect the app for calibration. After the connection is successful, the bracelet will automatically synchronize the time, otherwise the time is not accurate and the data cannot be transmitted. USB charging head Functional specification 123 Power on Body temperature measurement Power offDistance detection When the screen is off，long press the touch area. long press the touch area at the Turn Off interface. The default setting is off, long press the touch area to turn on If this function is on, long press the touch area to turn off. Initial stateAfter measuring body temperature. When body temperature ≥37.3 the temperature data turns red. FAQ 1 Why can't I connect my bracelet to my mobile phone? If you can't connect to the phone for a long time, you can try the following methods and then reconnect: A. Restart the Bluetooth; B. Restart the cellphone; C. Check if the bracelet is turned on; 2Why doesn't bracelet fail to charge? Please check if the bracelet is connected correctly and plug in the USB charger. Precautions 1. Please don’t drop or hit with hard objects, otherwise it may cause grinding of the machine surface, data loss or other hardware damage 2.Please don’t try to disassemble or modify this machine, it will cause quality problems or hinder product warranty; 3.Please don’t clean the bracelet with chemicals or detergents, as this will damage the machine surface and corrode the paint; 4.It is forbidden to use overloaded power supply , bend or squeeze the power cord with heavy objects to avoid heat and fire; 5.It shouldn’t be worn while bathing and showering 6.The battery of the bracelet is not removable. Do not expose the bracelet to a place with high moisture and extremely high or low temperature for a long time 7.Please connect the bracelet when synchronizing the date. 546 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. 7 Lithium polymer 401425 100mAh Main engine and manual TPU strap Battery type Battery model Battery capacity Packing list Wristband material Equipment type Display Product weight Bracelet width Waterproof grade Smart Bracelet 1.14 inch TFT 20G (excluding strap) 18mm Not waterproof Measured value of temperature,(Oxygen saturation and blood pressure) are not reference for clinic, diagnostics or treatment proposals.

Skyring Smart Technologies(Shenzhen) Co., Ltd. Add: 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China Date: 2021-5-18 FCC ID: 2AWG8-ST-W102PRO Dear Sir/Madam, We, Skyring Smart Technologies(Shenzhen) Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Social Distancing Smart Bracelet Model no.: ST-W102 Pro, ST-W102 Sincerely, Name/Title： yifu Wang/Manager Company: Skyring Smart Technologies(Shenzhen) Co., Ltd. Address: 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China Phone: (86)755-26911990 Fax: (86)755-26911990 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-18> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AWG8-ST-W102PRO ST-W102 Pro For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： yifu Wang/Manager Company: Skyring Smart Technologies(Shenzhen) Co., Ltd. Address: 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China Phone: (86)755-26911990 Fax: (86)755-26911990 E-Mail: [email protected]

Skyring Smart Technologies(Shenzhen) Co., Ltd. 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-18 To whom it may concern: We, Skyring Smart Technologies(Shenzhen) Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AWG8-ST-W102PRO including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： yifu Wang/Manager Company: Skyring Smart Technologies(Shenzhen) Co., Ltd. Address: 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China Phone: (86)755-26911990 Fax: (86)755-26911990 E-Mail: [email protected]

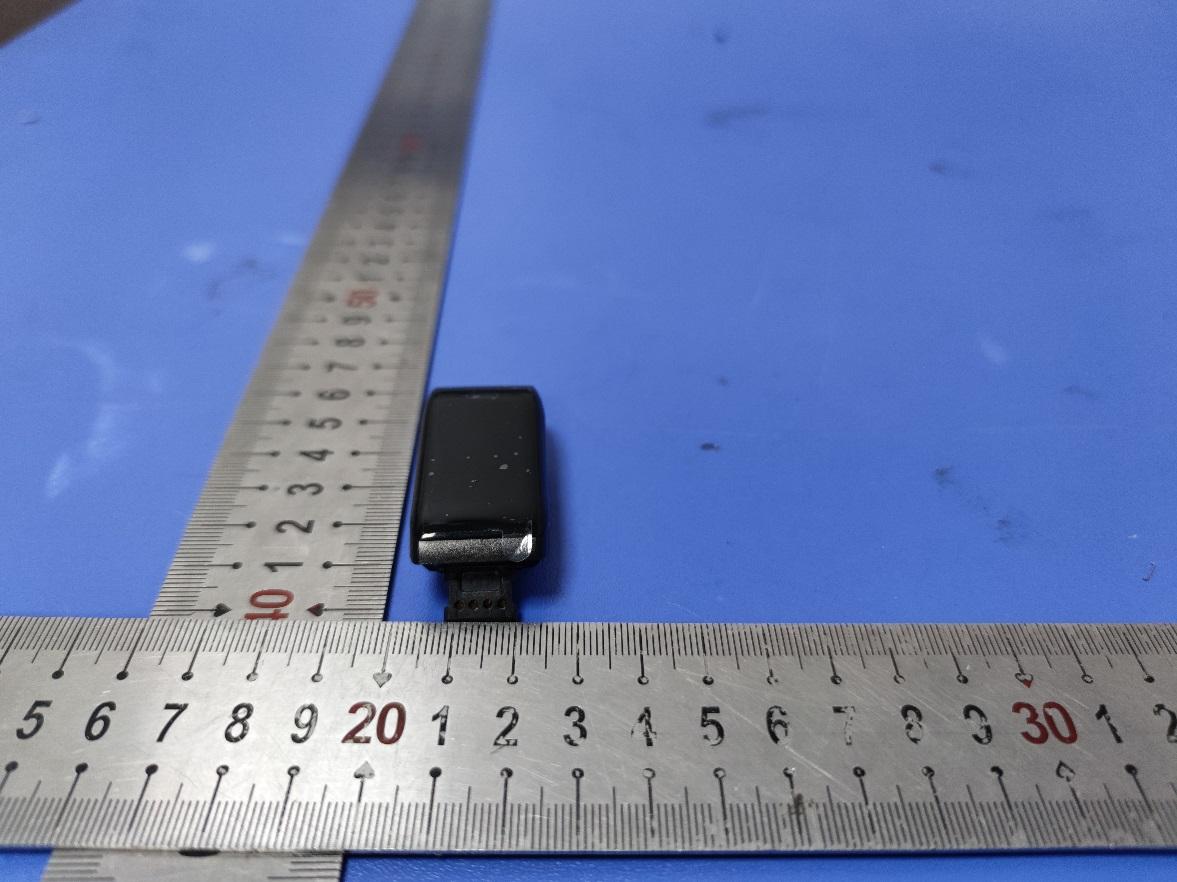

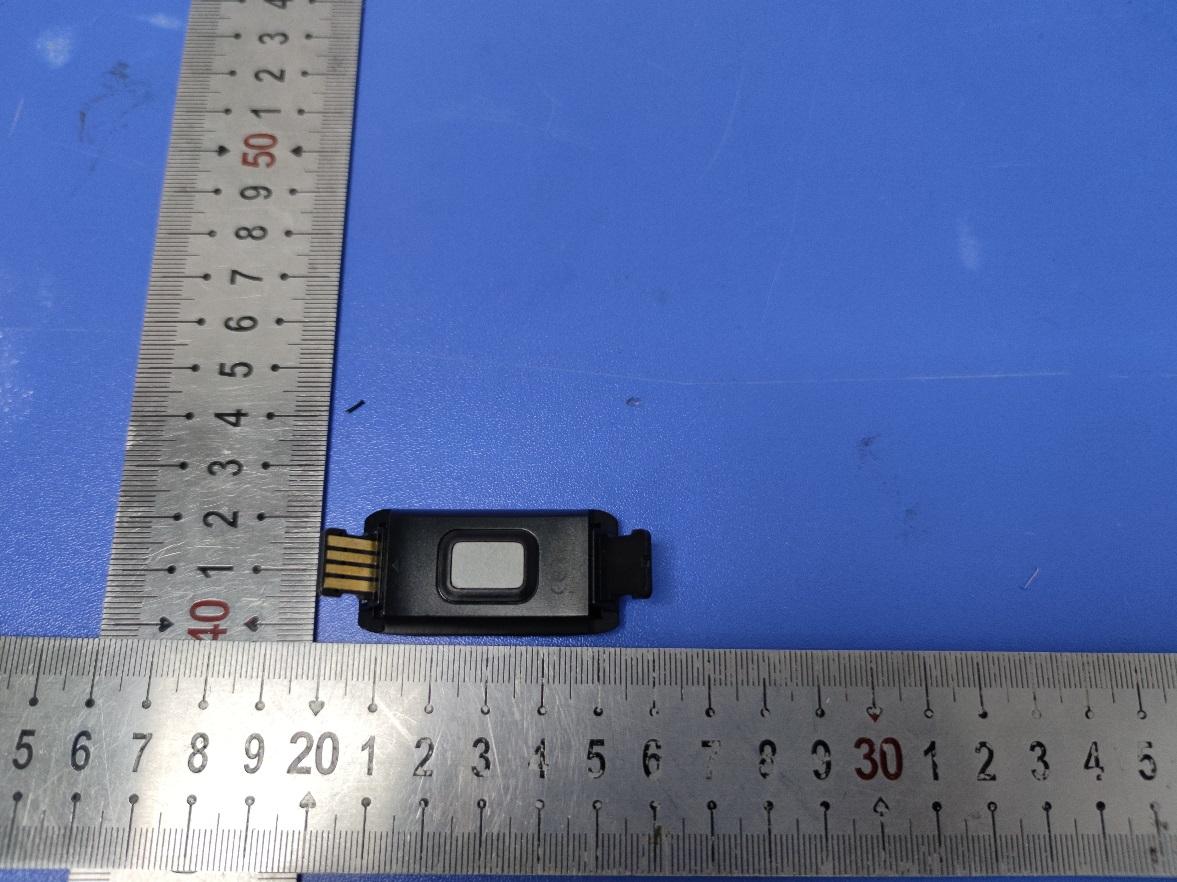

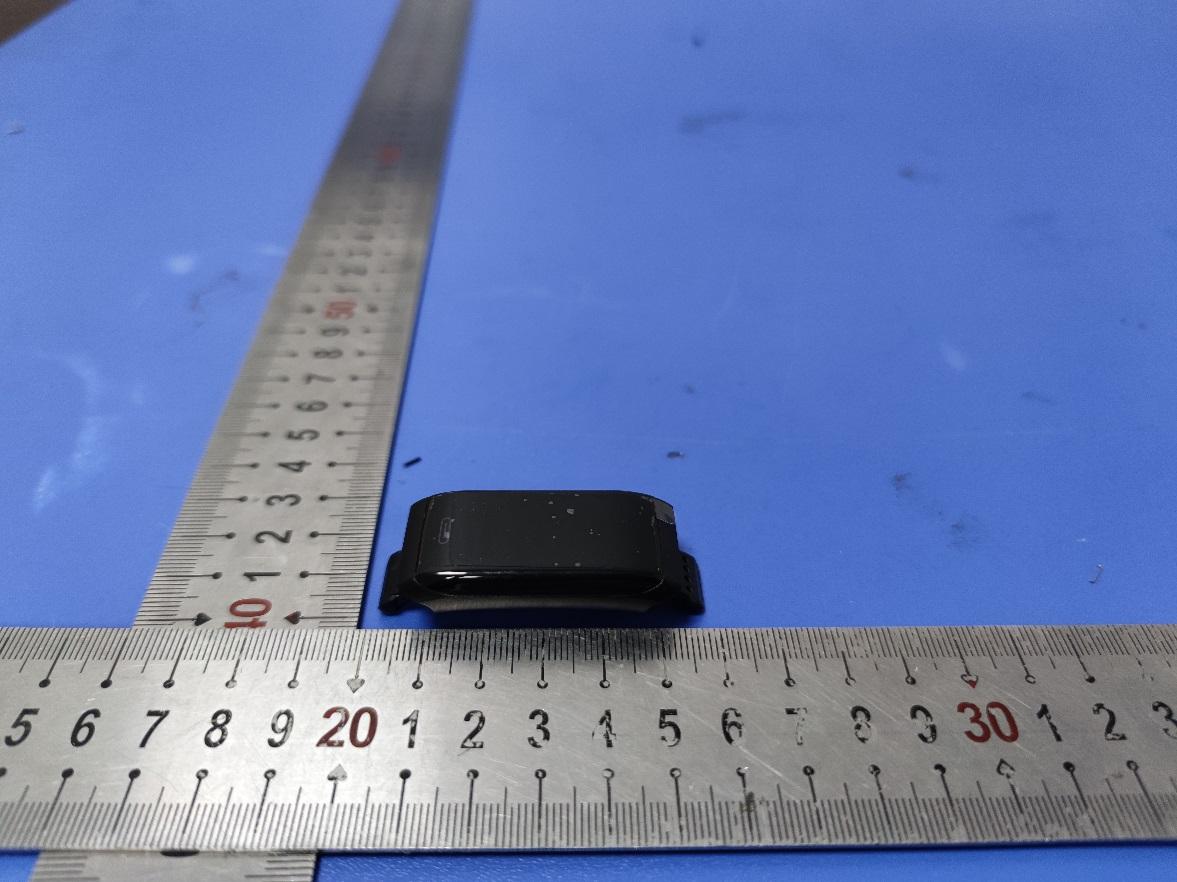

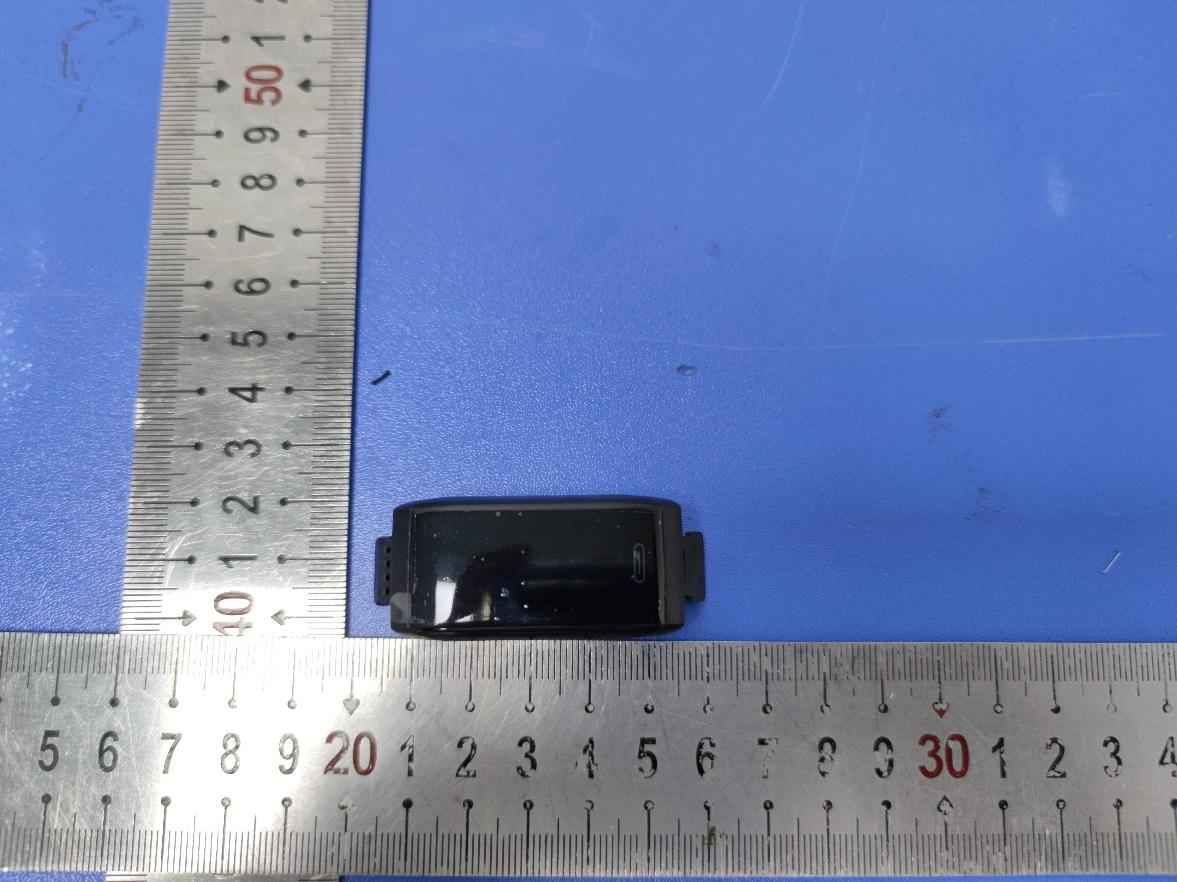

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L0.5cm*W1.0cm Label Location Social Distancing Smart Bracelet Model No.: ST-W102 Pro FCC ID: 2AWG8-ST-W102PRO

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Fig.5 Fig.6 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AWG8-ST-W102PRO Product name : Social Distancing Smart Bracelet Test Model : ST-W102 Pro Power supply : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 100mAh Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V4.2(DTS) Channel Spacing : 2MHz for Bluetooth V4.2(DTS) Modulation Type : GFSK for Bluetooth V4.2(DTS) Bluetooth Version : V4.2 Antenna Type : PCB Antenna Antenna Gain : 0dBi(Max.) Hardware version : V1.2 Software version : V1.4 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.347 19 2440 -1.411 39 2480 -1.771 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -1.0 -1.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 1 of 14 Appendix B RF Test Data for BT V4.2(BLE) (Conducted Measurement) Product Name: Social Distancing Smart Bracelet Trade Mark: N/A Test Model: ST-W102 Pro Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -1.347 30 PASS BT LE MCH -1.411 30 PASS BT LE HCH -1.771 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -17.042 8 PASS BT LE MCH -15.876 8 PASS BT LE HCH -16.361 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6466 ≥0.5 PASS BT LE MCH 0.6506 ≥0.5 PASS BT LE HCH 0.6460 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -2.158 -37.788 -22.158 PASS BT LE MCH -2.266 -37.463 -22.266 PASS BT LE HCH -2.432 -37.532 -22.432 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -2.502 -49.521 -22.5 PASS BT LE HCH -2.263 -48.097 -22.26 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.95 2.0 0 52.31 PEAK 74 PASS Ant1 2310.0 -53.32 2.0 0 41.93 AV 54 PASS Ant1 2390.0 -42.73 2.0 0 52.53 PEAK 74 PASS Ant1 2390.0 -52.61 2.0 0 42.65 AV 54 PASS 2480 Ant1 2483.5 -41.75 2.0 0 53.51 PEAK 74 PASS Ant1 2483.5 -51.48 2.0 0 43.77 AV 54 PASS Ant1 2500.0 -42.20 2.0 0 53.06 PEAK 74 PASS Ant1 2500.0 -52.13 2.0 0 43.13 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For Skyring Smart Technologies (Shenzhen) Co., Ltd. Social Distancing Smart Bracelet Test Model: ST-W102 Pro Additional Model No.: Please Refer to Page 6 Prepared for : Skyring Smart Technologies (Shenzhen) Co., Ltd. Address : 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China 518057 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 27, 2021 Number of tested samples : 2 Sample No. : 210426088A-1, 210426088A-2 Serial number : Prototype Date of Test : April 27, 2021 ~ April 29, 2021 Date of Report : May 07, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210426088AEA Date of Issue ................................... : May 07, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Skyring Smart Technologies (Shenzhen) Co., Ltd. Address ........................................... : 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China 518057 Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Social Distancing Smart Bracelet Trade Mark .......................................................................................................................................... : N/A Test Model .......................................................................................................................................... : ST-W102 Pro Ratings ................................................................................................................................................ : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 100mAh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model........................... : ST-W102 Pro EUT......................................... : Social Distancing Smart Bracelet Applicant............................... : Skyring Smart Technologies (Shenzhen) Co., Ltd. Address.................................. : 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China 518057 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Skyring Smart Technologies (Shenzhen) Co., Ltd. Address................................... : 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China 518057 Telephone............................... : / Fax.......................................... : / Factory................................... : Skyring Smart Technologies (Shenzhen) Co., Ltd. Address................................... : 6F GDC Building, 9Gaoxin Centeral Avenue 3rd, Nanshan District, Shenzhen, P.R.China 518057 Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210426088AEA May 07, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 May 07, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO Report No.: LCS210426088AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWG8-ST-W102PRO _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
