2AWGR-FRICONT13Bluetooth Earphones

介绍 蓝牙无线通信的技术介绍 蓝牙是一种支持设备短距离通信（通常在10M内）的 无线电技术。能在包括手机、无线耳机、电脑等众多IT数码 设备之间进行无线信息交换。利用“蓝牙”技术能有效地简 化设备之间的通信，数据传输从而变得更加迅速高效。 蓝牙耳机使用方法 非常感谢您使用AWEI T13智能触控真无线运动蓝牙 耳机，在使用本产品之前，请详细阅读本手册。 24 蓝牙规格 蓝牙版本: V5.0 支持协议: HSP、HFP、A2DP、AVRCP 待机时间: 300 h 通话时间: 4.5 h 音乐播放时间: 4 h 充电时间: 1.5 h 充电电压: DC 5V 蓝牙工作频率: 2.402G-2.480G 环境温度: -20/+45°C 传输距离: 10m 耳塞电池容量：50mAh / 3.7V 充电舱电池容量：300mAh / 3.7V 喇叭规格 驱动单元：6mm 灵敏度：92dB ± 3dB 阻抗：32Ω ± 15% 频率响应范围：20-20000Hz 6 蓝牙耳机使用方法 5 产品规格 蓝牙耳机使用方法 操作说明 开机：左右耳机从充电舱拿出即开机/触摸3秒多功能键。 关机：左右耳机放入充电舱会自动关机/触摸4秒多功能键。 产品特征 1.IPX4级防水/防汗功能。 2.蓝牙5.0方案，低功耗，超强兼容性。 3.支持麦克风通话免提功能。 4.真正的双耳无线，您也可以选择单耳或双耳模式来使用。 5.支持无线充电的充电舱 附件清单 2X 蓝牙耳机 1X 说明书 1X 便携式充电舱 1X USB充电线 7 来电接听电话：触摸一下多功能键 来电拒接电话：触摸2秒多功能键 挂断电话：触摸一下多功能键 播放：触摸一下多功能键 暂停：触摸一下多功能键 音量+：长触右耳多功能键 音量-：长触左耳多功能键 下一曲：双触右耳多功能键（播放状态） 上一曲：双触左耳多功能键 （播放状态） 末号重播：双触多功能键(暂停状态) Siri: 三触多功能键 按键定义 1. 耳机 充电时，绿灯长亮； 充满电后， 灯灭； 配对时， 绿白灯交 替闪烁。 2.充电舱 充电时,指示灯慢闪； 充满电后， 指示灯（4颗）长亮； 低 电时，第一颗指示灯慢闪；放电时，显示充电舱电量。 指示灯状态 蓝牙配对 单耳连接： 1.把充电舱中的耳机只拿出其中一个。 2.打开手机蓝牙， 搜索到 “AWEI T13”点击配对连接。（与手 机连接成功后耳机进入白灯单次闪烁并听到提示音 “Connected”） 双耳连接： 1. 把充电舱的耳机（两个）拿出，双耳自动开机互连，主耳 机伴有绿白灯闪烁，耳机进入配对模式。(表示机子在搜索状 态中，此时可以打开手机或其它蓝牙设备进行连接。) 2.打开手机或其它蓝牙设备， 搜索到 “AWEI T13” 点击手 机配对连接。 （当完成配对时， 您会听到 “Connected” ） 3.自动回连: 开机时自动回连已配对手机。（前提是手机蓝 牙要打开，手机蓝牙没有清除与本设备的配对记录） 真正的无线耳塞带充电舱 智能触控 使用说明(JL) T13 810 9 11 在使用时，请阅读以下建议有助于您遵守保修条款，并延 长产品的使用寿命。 声明：为提高产品性能我们会进行产品升级，本说明内容可 能会有所变更，恕不另行通知，敬请见谅。感谢您的选购！ 如产品不能正常工作，请将其送至AWEI的授权维修机构 ，工作人员会热心帮您解决问题。 安全与保养 ★ 保持产品干燥，勿将产品放在潮湿的地方，以免影响产 品内部电路； ★ 不要将产品放置在太阳晒射或者高温的地方，高温会缩 短电子部件的使用寿命损坏电池，使某些塑料部件变形 ； ★ 不要将产品放在过冷的地方，以免损坏内部电路板 ★ 不要试图拆开产品，尤其是非专业人员，可能会损坏产 品； ★ 不要跌落、强烈震动、用硬体撞击产品，以免损坏内部电 路； ★ 不要使用烈性化学制品、清洁剂清洁机器； ★ 不要用尖体在产品表面上乱划，以免损坏外壳和影响外 观； ★ 不要对机器连续充电超过10小时，以免影响使用寿命； 一、七天包退细则 A.包退原则：用户在AWEI直属专营店或经AWEI授权的分销 店所购买的产品，自购买之日起7天内，产品未受到任何 人为或外力的损害而发生的产品质量问题，厂家包退货 。 B.退货流程：用户将产品、包装和票据完整地拿到（或自费 邮寄到）购买地点给卖家检测⸺卖家按质保鉴定规则 检测，鉴定该产品实属产品质量问题⸺卖家退还用户 购买产品时所付的费用。 二、十五天包换细则 A.包换原则：用户在AWEI直属专营店或经AWEI授权的分销 店所购买的产品，自购买之日起15天内，产品未受到任 何人为或外力的损害而发生的产品质量问题，厂家包换 货。 B.换货流程：用户将产品、包装和票据完整地拿到（或自费 邮寄到）购买地点给卖家检测⸺卖家按质保鉴定规则 检测，鉴定该产品实有产品质量问题⸺卖家为用户更 换货品并开具新票据。 产品售后服务指南 @2019年保留AWEI所有权，其LOGO “AWEI”“AWEI 用维 ”“AIVEI”“用维”属深圳市雅乐电子有限公司在中国及其 他国家和地区注册的商标，仿冒必究！ 产品执行标准：Q/YL 001-2015 香港雅乐国际有限公司 监制 深圳市雅乐电子有限公司 出品 厂址：中国深圳市龙华区大浪裕景泰科技工业园 消费者服务热线/传真： 电话：+86-755-82999998 传真：+86-755-83777998 合作邮箱：[email protected] 售后服务 : [email protected] 获取更多信息请访问: www.awei.hk 国外社区 : twitter : https://www.twitter.com/aweiearphone facebook : https://www.facebook.com/aweiproducts instagram : http://www.instagram.com/aweiearphone AWEI 三、十二个月包修细则 A.包修原则：用户在AWEI直属专营店或经AWEI授权的 AWEI产品保修卡（请认真填写完整）产品售后服务指南 分销店所购买的产品，自购买之日起十二个月内，产品未 受到任何人为或外力的损害而发生的产品质量问题，厂 家包修。 B.包修流程：用户将产品、包装和票据完整地拿到（或自费 邮寄到）购买地点给卖家检测⸺卖家按质保鉴定规则 检测，鉴定该产品有产品质量问题⸺卖家填写产品质 保卡并盖公章⸺卖家将产品邮寄给厂家维修⸺厂家 维修好邮寄给卖家⸺卖家通知用户取货。 四、质保鉴定规则 A.无质保产品：包装盒、收纳袋、耳机夹、耳套等附属部件； 不在三包期内的产品；非AWEI授权或非正规渠道所购 买的产品；非AWEI正品；赠品；被人为损害的产品；被外 力损害的产品。 B.质保鉴定：查三包期（以票据为证）⸺查正品（进AWEI官 方网站查防伪编码）⸺查产品损坏情况（有无明显人为 造成的破损、有无被水、火、化学物品或重物损害的痕迹 ）⸺查产品质量（在符合产品使用的情况下测试效果是 否与产品描述相符）⸺查购买渠道（限厂家查证)。 产品型号条形码 用户名字用户电话 用户住址 商家名称商家电话 商家地址 购买日期报修日期 损坏情况维修时间 备注 官方微信查真伪 您好！ 1 尊敬的AWEI用户： 感谢您选用AWEI产品！您的选择对于我们至关重 要，这意味着AWEI又增加了一名新用户。希望通过 我们的产品和服务，为您带来上佳的体验。也希望 您在产品体验过程中，通过官方客户热线、微博、 微信、等提出好的意见和建议，帮助AWEI不断完善 产品和服务。 如果您在产品使用过程中遇到任何问题，请参照 服务流程，方便、快捷地获取帮助。您的支持是我 们成长的动力，您的每一次认可和评价都是对 AWEI莫大的鼓励。谢谢！ 用维营销团队 真正的无线耳塞带充电舱 智能触控 使用说明(JL) T13 您好！ 注意事项 连接手机后如有一只耳机没有声音时：请将手机蓝牙关 闭，两个耳机放回充电舱，再把两个耳机拿出充电舱处于开 机状态，1-10秒后两个耳机配对成功进入白灯单次闪烁即 可,再按1-2步骤操作连接手机即可。 1. 本机出厂时已对双耳进行配对，因此，您收到耳机（ 两个）时，只需将耳机从充电舱取出即可使用。 2. 如遇到双耳无法自动配对时（即双耳同时绿白灯交 替闪烁), 需要手动对机子进行重新配对：请长触耳机 （两个）多功能键至指示灯绿白灯交替闪烁(TWS配对 状 态 ），双触R耳机进行配对。 3. TWS配对成功后，L耳机指示灯白灯慢闪，R耳机指示 灯绿白灯交替闪烁。此时即可连接手机使用。（如配 对不成功，请把耳机放回充电舱进行复位再取出来 进行操作）。 注： 3 产品示意图 3 充电舱 LED指示灯/麦克风 充电指示灯 DC 5V 充电端口 真无线耳塞 L R 触控区域、多功能键 触摸一下接听电话 触摸2秒拒绝来电 触摸一下挂断电话 触摸一下播放 触摸一下暂停 长触为减音量 双触为上一曲 L 长触为加音量 双触为下一曲 R L/R 24657 Introduction Thank you for purchasing the model AWEI T13 smart touch true wireless sport earbuds. Please read this manual before use. Bluetooth wireless communications Technology introduction How To Use How To UseHow To Use Specifications Bluetooth Specifications Bluetooth Version: V5.0 Profile Support: HSPHFPA2DPAVRCP Stand-by Time: 300 h Talk Time: 4.5 h Music Play Time: 4 h Charging Time: 1.5 h Charging Voltage: DC 5V Frequency Range: 2.402G-2.480G Ambient Temperature: -20/+45 Transmission Distance: 10m Earbuds Battery Capacity50mAh / 3.7V Charging Case Battery Capacity300mAh / 3.7V Driver Specification Driver Unit6mm Sensitivity92dB ± 3dB Impedance32Ω ± 15% Frequency Response20-20000Hz Power on: Take out earbuds from charging case to turn on / long touch the MFB 3 second. Power off: Put earbuds into the charging case, they would turn off automatically / long touch the MFB 4 second. User Manual 1. Waterproof IPX4 Level, Sweat-proof. 2. V5.0 chip, low power consumption, super compatibility. 3. Hands-free function. 4. True wireless earbuds, You can use by single or a pair. 5. Wireless charging charging case Products Features 1. Earbuds Charging, the green light on; Full charge, the light off; Pairing, the green and white light blinking; 2. Charging Case When charging, the indicator light flashes slowly.After full charging, the 4 indicator lights is bright;When low power, the first light flashes slowly.When discharging, it shows charging case battery capacity. Status lights Accessories List 2X Wireless Earbuds 1X User Manual 1X Portable Charging Case 1X USB Charging Cable Answer incoming call: Touch the MFB Reject incoming call: Long touch the MFB for 2 seconds Hang up the phone: Touch the MFB Play: Touch the MFB Pause: Touch the MFB Vol + : Long touch the R MFB Vol - : Long touch the L MFB Next Track: Double touch the R MFB (Play status) Previous Track: Double touch the L MFB (Play status) Last number redial: Double touch the MFB (Pause status) Siri: Touch the multifunction button three times Button Definition SMART TOUCH USER MANUAL (JL) T13 Bluetooth is a kind of wireless technology which support short distance communications (work normally within a distance of 10M) with it you can exchange inf…

Text truncated - open the document above for the full version.

Shenzhen Dingming Technology Co., Ltd. Agent Authorization Company: Shenzhen Dingming Technology Co., Ltd. Address: Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Product Name: Bluetooth Earphones Trade Mark: Fricon Model Number(s): Fricon T13 FCC ID: 2AWGR-FRICONT13 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-21 Name: Zhifeng Xu Title: Selection Supervisor Company: Shenzhen Dingming Technology Co., Ltd.

Shenzhen Dingming Technology Co., Ltd. Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Date: May 21, 2020 FCC ID: 2AWGR-FRICONT13 Model Number: Fricon T13 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Dingming Technology Co., Ltd. hereby declare that our product (Bluetooth Earphones) Model Number: Fricon T13 will disable Bluetooth Lower Energy function (Bluetooth V5.0 LE) by software and only open Bluetooth Classics function (Bluetooth V5.0) although Bluetooth modular AC6936D support both Bluetooth Lower Energy (Bluetooth V5.0 LE) and Bluetooth Classics (Bluetooth V5.0) due to marketing purposes. End-user will only use Bluetooth Classics (Bluetooth V5.0) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Zhifeng Xu/ Selection Supervisor Company: Shenzhen Dingming Technology Co., Ltd. Address: Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Phone: 13242065623 Fax: 13242065623 E-Mail: [email protected]

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-21 Subject; Request for Confidentiality FCC ID: 2AWGR-FRICONT13 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Title: Zhifeng Xu Selection Supervisor Shenzhen Dingming Technology Co., Ltd.

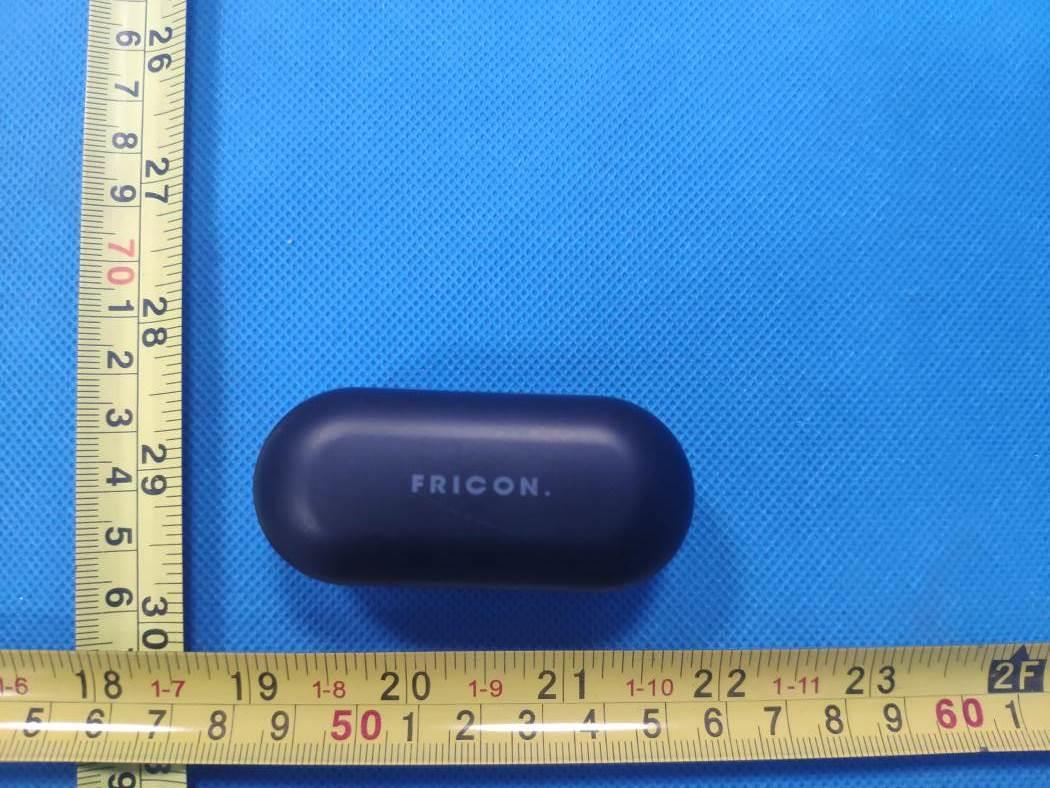

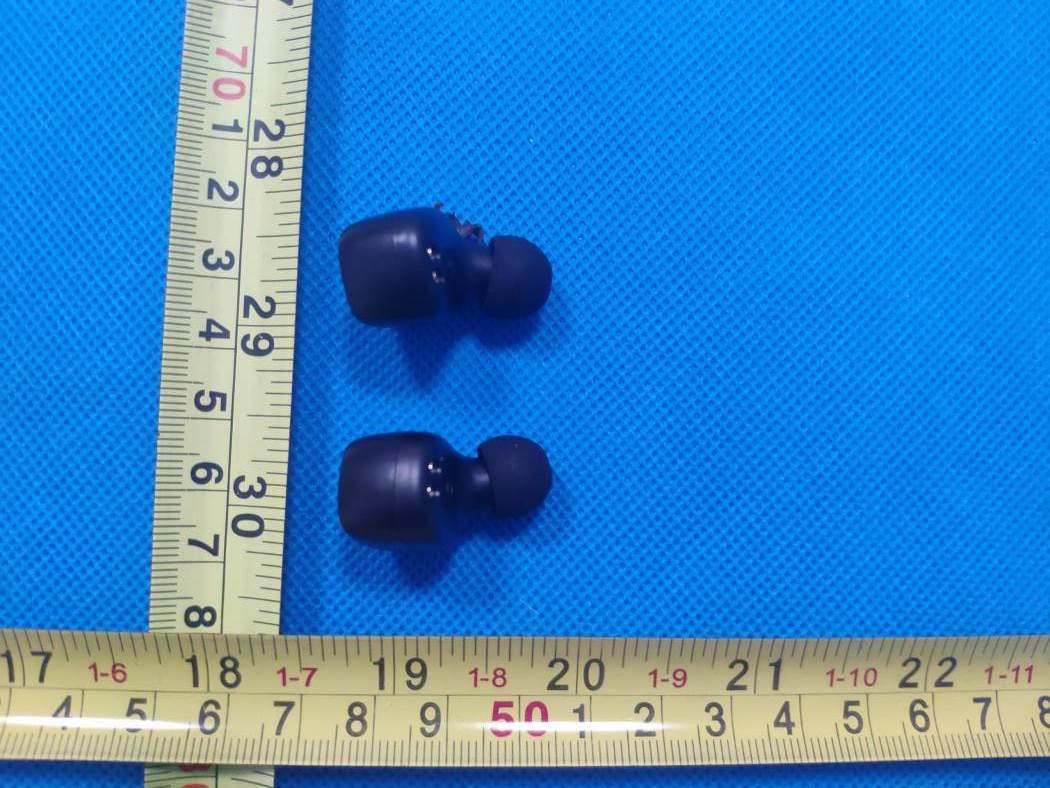

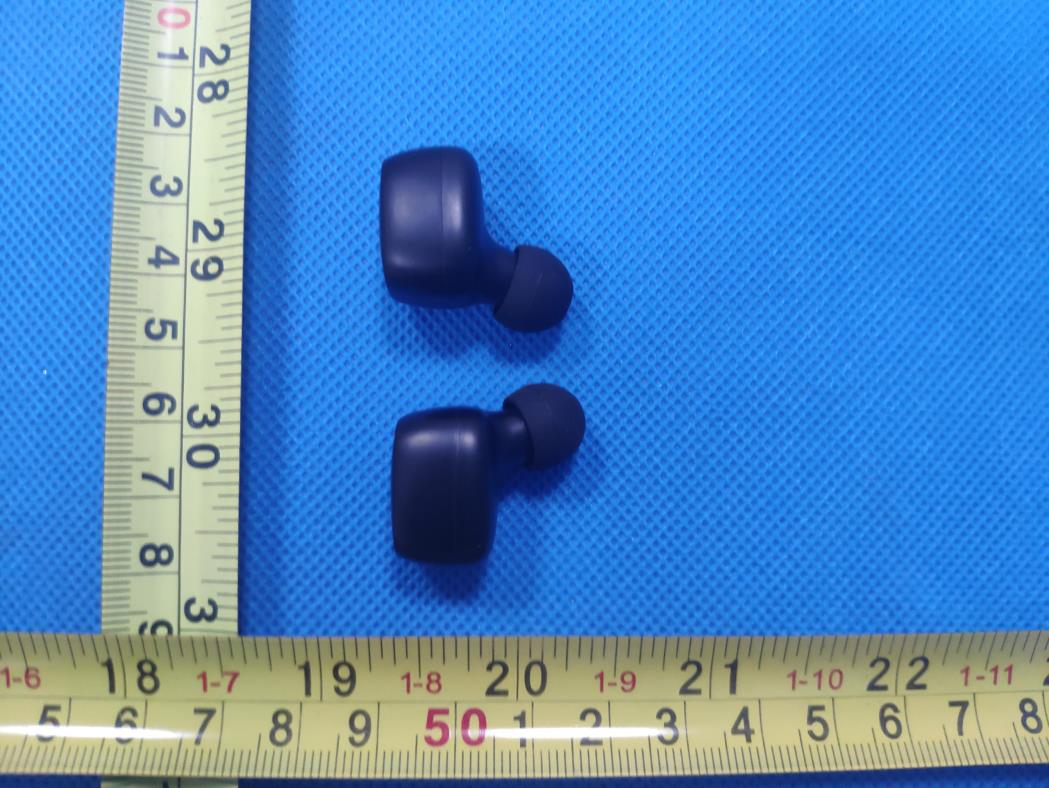

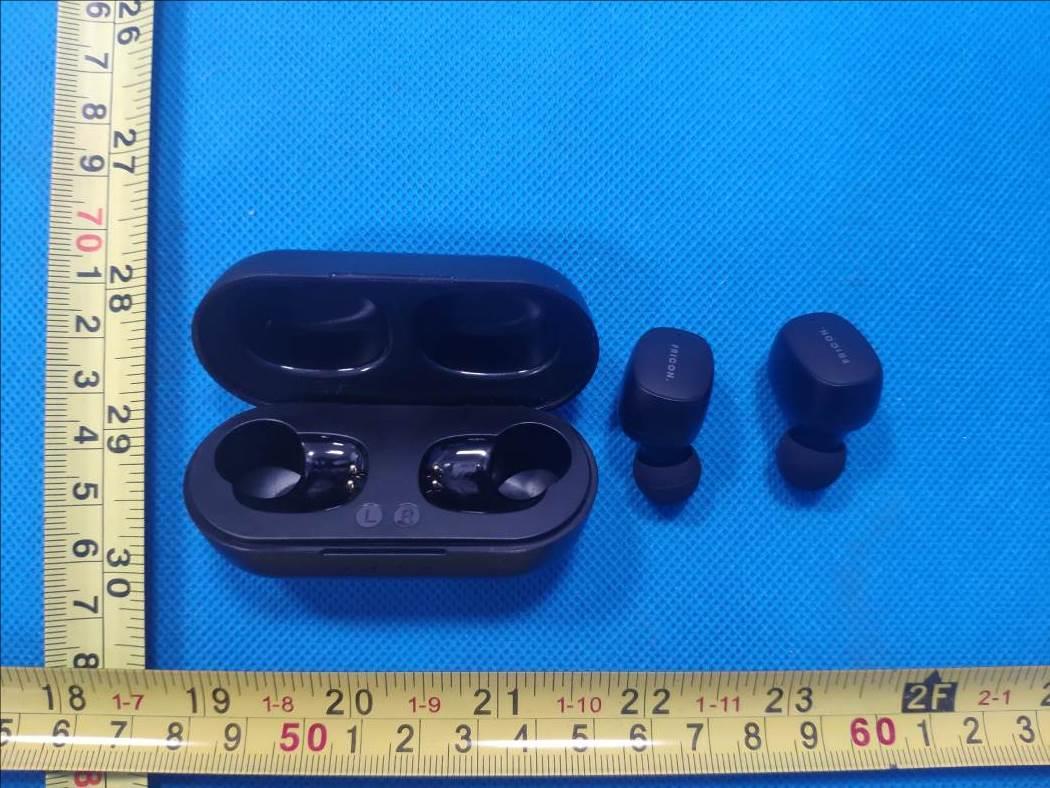

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L4.5cm*W1.5cm Label Location FCC ID: 2AWGR-FRICONT13 Model: Fricon T13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AWGR-FRICONT13 Name of EUT Bluetooth Earphones Model Number Fricon T13 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Test Model Fricon T13 Hardware version V1.0 Software version V1.0 BT Modulation Type GFSK, π/4-DQPSK for Bluetooth V5.0 (BDR/EDR) Antenna Type Internal Antenna Antenna Gain 1.2dBi Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a). The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b). The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Max Peak Conducted Power (dBm) GFSK 0 2402 -5.493 39 2441 -4.482 78 2480 -4.324 π/4DQPSK 0 2402 -4.561 39 2441 -3.540 78 2480 -3.391 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -5.0 -4.0 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -4.0 -3.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.480 5 -3.0 0.5012 0.158 < 3.0 Yes π/4DQPSK 2.480 5 -2.0 0.6310 0.199 < 3.0 Yes Remark: 1. RF output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 1 of 34 Appendix A RF Test Data for BT V5.0 (BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Earphones Trade Mark: Fricon Test Model: Fricon T13 Environmental Conditions Temperature: 23.5 C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Tom Liu Supervised by: Jayden.Zhuo A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -5.493 21 PASS MCH -4.482 21 PASS HCH -4.324 21 PASS π/4DQPSK LCH -4.561 21 PASS MCH -3.540 21 PASS HCH -3.391 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 2 of 34 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 3 of 34 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 4 of 34 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 5 of 34 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.78108 0.7778 Not Specified PASS MCH 0.78164 0.7754 Not Specified PASS HCH 0.78213 0.7777 Not Specified PASS π/4DQPSK LCH 1.1606 1.209 Not Specified PASS MCH 1.1606 1.193 Not Specified PASS HCH 1.1591 1.211 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 6 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 7 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 8 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 9 of 34 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.000 0.52 PASS MCH 1.000 0.52 PASS HCH 0.998 0.52 PASS π/4DQPSK LCH 1.000 0.81 PASS MCH 1.002 0.80 PASS HCH 1.000 0.81 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 10 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 11 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 12 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 13 of 34 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 14 of 34 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.930 106.7 0.31 0.4 PASS DH5 MCH 2.925 106.7 0.31 0.4 PASS DH5 HCH 2.920 106.7 0.31 0.4 PASS π/4DQPSK 2DH5 LCH 2.930 106.7 0.31 0.4 PASS 2DH5 MCH 2.930 106.7 0.31 0.4 PASS 2DH5 HCH 2.930 106.7 0.31 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 15 of 34 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 16 of 34 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 17 of 34 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 18 of 34 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -6.607 -54.229 -26.61 PASS MCH -5.736 -57.403 -25.74 PASS HCH -5.543 -56.296 -25.54 PASS π/4DQPSK LCH -6.599 -58.214 -26.60 PASS MCH -5.722 -53.769 -25.72 PASS HCH -5.532 -54.084 -25.53 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 19 of 34 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 20 of 34 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 21 of 34 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 22 of 34 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 23 of 34 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 24 of 34 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 25 of 34 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -5.724 Off -44.877 -25.72 PASS -5.541 On -60.709 -25.54 PASS HCH 2480 -4.746 Off -42.839 -24.75 PASS -4.878 On -43.181 -24.88 PASS π/4DQPSK LCH 2402 -5.902 Off -45.388 -25.93 PASS -5.580 On -58.003 -25.58 PASS HCH 2480 -4.736 Off -43.032 -24.75 PASS -4.485 On -43.156 -24.49 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 26 of 34 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 27 of 34 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 28 of 34 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 29 of 34 π/4DQPSK/HCH/No Hop π/4DQPSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Page 30 of 34 A.8 Restrict-band band-edge measurements Test Mode Hopping Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off 2310.0 -61.136 2 0 36.12 PEAK 74 PASS Off 2310.0 -71.774 2 0 25.49 AV 54 PASS Off 2390.0 -51.252 2 0 46.01 PEAK 74 PASS Off 2390.0 -64.308 2 0 32.95 AV 54 PASS Off 2483.5 -40.000 2 0 57.26 PEAK 74 PASS Off 2483.5 -50.504 2 0 46.76 AV 54 PASS Off 2500.0 -55.174 2 0 42.09 PEAK 74 PAS…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Report No.: LCS200514038AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 36 FCC TEST REPORT FOR Shenzhen Dingming Technology Co., Ltd. Bluetooth Earphones Test Model: Fricon T13 Prepared for : Shenzhen Dingming Technology Co., Ltd. Address : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 14, 2020 Number of tested samples : 2 Serial number : Prototype Date of Test : May 14, 2020 ~ May 19, 2020 Date of Report : May 19, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Report No.: LCS200514038AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS200514038AEA Date of Issue .................................. : May 19, 2020 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Dingming Technology Co., Ltd. Address .......................................... : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Bluetooth Earphones Trade Mark ..................................... : Fricon Test Model ..................................... : Fricon T13 Ratings ........................................... : EARBUDS: DC 3.7V By Battery(50mAh) Recharged by DC 5V, 100mA BOX: DC 3.7V By Battery(300mAh) Recharged By DC 5V, 300mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Report No.: LCS200514038AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200514038AEA May 19, 2020 Date of issue Test Model........................... : Fricon T13 EUT......................................... : Bluetooth Earphones Applicant............................... : Shenzhen Dingming Technology Co., Ltd. Address.................................. : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Dingming Technology Co., Ltd. Address................................... : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Dingming Technology Co., Ltd. Address................................... : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, HuangBei Street, Luohu District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Report No.: LCS200514038AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 May 19, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 Report No.: LCS200514038AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ...................................................................................................................... 6 1.2 SUPPORT EQUIP…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-FRICONT13 _______________________________________________________________________________________________ This report shall not be repro…
