24657 Introduction Thank you for purchasing the model AWEI T10 smart touch true wireless sport earbuds. Please read this manual before use. Bluetooth wireless communications Technology introduction How To Use How To UseHow To Use Specifications Bluetooth Specifications Bluetooth Version: V5.0 Profile Support: HSPHFPA2DPAVRCP Stand-by Time: 300 h Talk Time: 5 h Music Play Time: 4 h Charging Time: 1.5 h Charging Voltage: DC 5V Frequency Range: 2.402G-2.480G Ambient Temperature: -20/+60 Transmission Distance: 10m Earbuds Battery Capacity45mAh / 3.7V Charging Case Battery Capacity300mAh / 3.7V Driver Specification Driver Unit6mm Sensitivity92dB ± 3dB Impedance16Ω ± 15% Frequency Response20-20000Hz Power on: Take out earbuds from charging case to turn on / long touch the MFB 3 second. Power off: Put earbuds into the charging case, they would turn off automatically / long touch the MFB 4 second. User Manual 1. Waterproof IPX4 Level, Sweat-proof. 2. V5.0 chip, low power consumption, super compatibility. 3. Hands-free function. 4. True wireless earbuds, You can use by single or a pair. Products Features 1. Earbuds Charging, the green light on; Full charge, the light off; Pairing, the green and white light blinking; 2. Charging Case When charging, the indicator light flashes slowly.After full charging, the 4 indicator lights is bright;When low power, the first light flashes slowly.When discharging, it shows charging case battery capacity. Status lights Accessories List 2X Wireless Earbuds 1X User Manual 1X Portable Charging Case 1X USB Charging Cable Answer incoming call: Touch the MFB Reject incoming call: Long touch the MFB for 2 seconds Hang up the phone: Touch the MFB Play: Touch the MFB Pause: Touch the MFB Vol + : Long touch the R MFB Vol - : Long touch the L MFB Next Track: Double touch the R MFB (Play status) Previous Track: Double touch the L MFB (Play status) Last number redial: Double touch the MFB (Pause status) Siri: Touch the multifunction button three times Button Definition 3 Overview Of Headset LED Indicator / Microphone Charging Indicator DC 5V Charging Port Touch Area, MFB Button Touch And Answer The Phone Touch 2 Second To Reject The Phone Touch 1 Second To Hang Up Touch 1 second to play Touch 1 second to pause Long Touch For Vol - Double Touch For Previous Track L Long Touch For Vol + Double Touch For Next Track R L R TRUE WIRELESS EARBUDS WITH CHARGING CASE SMART TOUCH USER MANUAL (JL) T10 Bluetooth is a kind of wireless technology which support short distance communications (work normally within a distance of 10M) with it you can exchange information by wireless between many IT digital devices like mobile phones / wireless earphones / computers etc. Bluetooth technology effectively simplify the communications which makes device and data transmission quickly and effectively. Please read suggests below in order to helping prolong the product lifespan and clearly understand the warranty clauses. Keep the product dry, do not put it in humid circumstance to avoid short circuit. Do not expose it to the sun or high heat. High heating will short lifespan of electronic components, damage battery and deform some plastic parts. Do not put it in cold circumstance to avoid damage to PCB board. Do not attempt to take apart the product, especially non-professionals. Do not fall, vibrate strongly,strike with hard objects, to avoid damage to inner electronic circuit. Do not use high chemical products,detergent to clean the item. Do not scratch the surface with sharp items to avert damaging the case and appearance. Do not make it charging 10 hours continuously for the sake of lifespan. If the product can not work properly, please send it to AWEI authorized maintenance agents. Our staff will help to solve the problems for you. Statement: In order to improve product performance we will upgrade products, the content may change without notice, please forgive! Thank you for your purchase. Safety And Maintenance @2019 AWEI Electronics All rights reserved by AWEI.The trademark of Shenzhen Yale Electronics Co.,Ltd registered in China and other countries,Counterfeit will investigate! Product Execution Standard: Q/YL 001-2015 Supervised by H.K. Yale International Co., ltd Produced by Shenzhen Yale Electronics Co., ltd Factory Add: 4th Floor, Buidling 2, Yujingtai Industrial Park, Huaxing Road, Longhua District, Shenzhen, China. Customer service hotline/ Fax: Tel：+86-755-82999998 Fax：+86-755-83777998 Cooperation mailbox：[email protected] After-sales service：[email protected] For more information please visit: www.awei.hk Contact: twitter : https://www.twitter.com/aweiearphone facebook : https://www.facebook.com/aweiproducts instagram : http://www.instagram.com/aweiearphone AWEI AWEI Warranty Card (please fill this carefully) Model No.Barcode User NameTEL Address SellerSeller Tel Seller Add Date of purchase Date for Maintenance Damage situation Maintenance time Remark A. Guarantee of Refund: Within 7 days since the date of purchase, the manufacturer promises to refund if the product bought from AWEI immediate store or authorized distributor shops is in quality problem (artifical and external force damage excluded). B. Refund Procedure: Please take the product, whole set of package and original invoice to (or please freight pre-paid to) the shop you bought the product for checking. The seller will check by Quality Assurance Identification Rules to clarify the problem. If yes, the seller should refund the money to the user paid for the product. 1. 7 Days Refund Policy A. Guarantee of Replacement: Within 15 days since the date of purchase, the manufacturer promises to replace if the product bought from AWEI immediate store or authorized distributor shops is in quality problem (artifical and external force damage excluded). B. Replacement Procedure: Please take the product, whole set of package and original invoice to (or please freight pre-paid to) the shop you bought the product for checking. The seller will che…

Text truncated - open the document above for the full version.

Shenzhen Dingming Technology Co., Ltd. Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Date: May 19, 2020 FCC ID: 2AWGR-SNOKYT10 Model Number: Snoky T10 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Dingming Technology Co., Ltd. hereby declare that our product (Bluetooth Earphones) Model Number: Snoky T10 will disable Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) and Bluetooth Classics function (8-DPSK) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK) although Bluetooth modular AC6936D support both Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) and Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) due to marketing purposes. End-user will only use Bluetooth Classics function (GFSK, π/4-DQPSK) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: ZhiFeng Xu / Selection Supervisor Company: Shenzhen Dingming Technology Co., Ltd. Address: Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Phone: 13242065623 Fax: 13242065623 E-Mail: [email protected]

<Shenzhen Dingming Technology Co., Ltd.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-5-19 Subject; Request for Confidentiality FCC ID: 2AWGR-SNOKYT10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ZhiFeng Xu Title: Selection Supervisor

Shenzhen Dingming Technology Co., Ltd. Letter of Authorization Company: Shenzhen Dingming Technology Co., Ltd. Address: Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Product Name: Bluetooth Earphones Model Number: Snoky T10 FCC Identifier: 2AWGR-SNOKYT10 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: ZhiFeng Xu Date: 2020-05-19 Title: Selection Supervisor Signature of applicant:

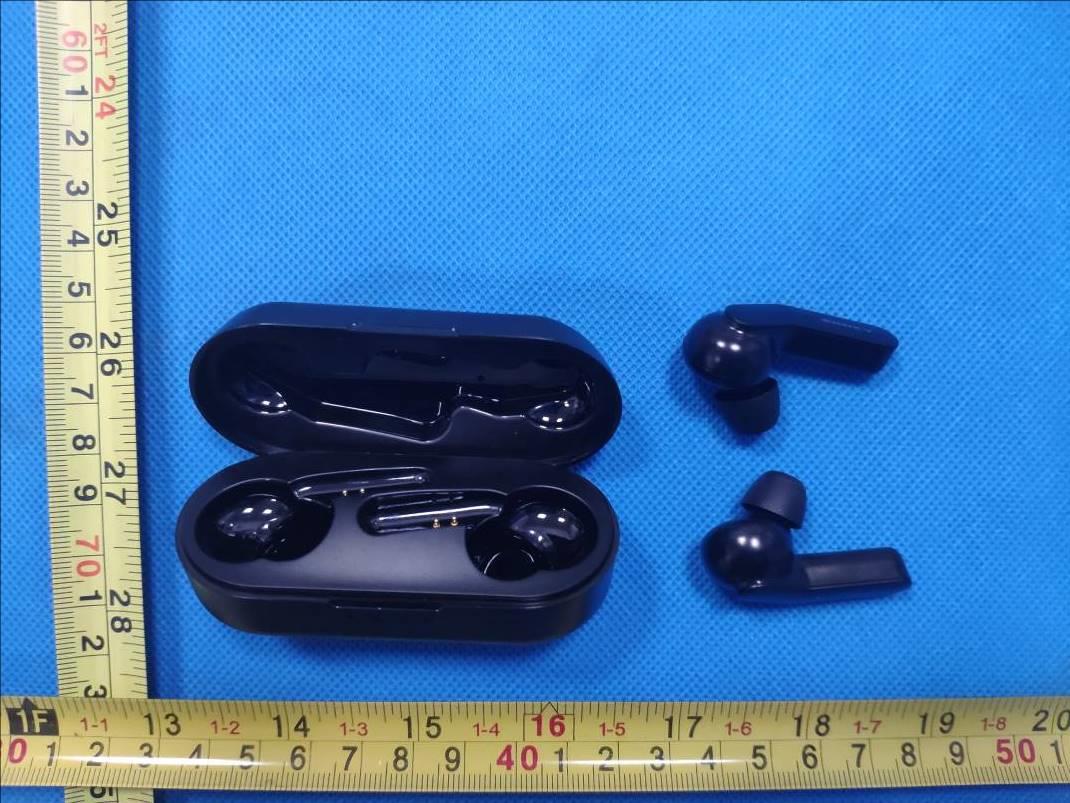

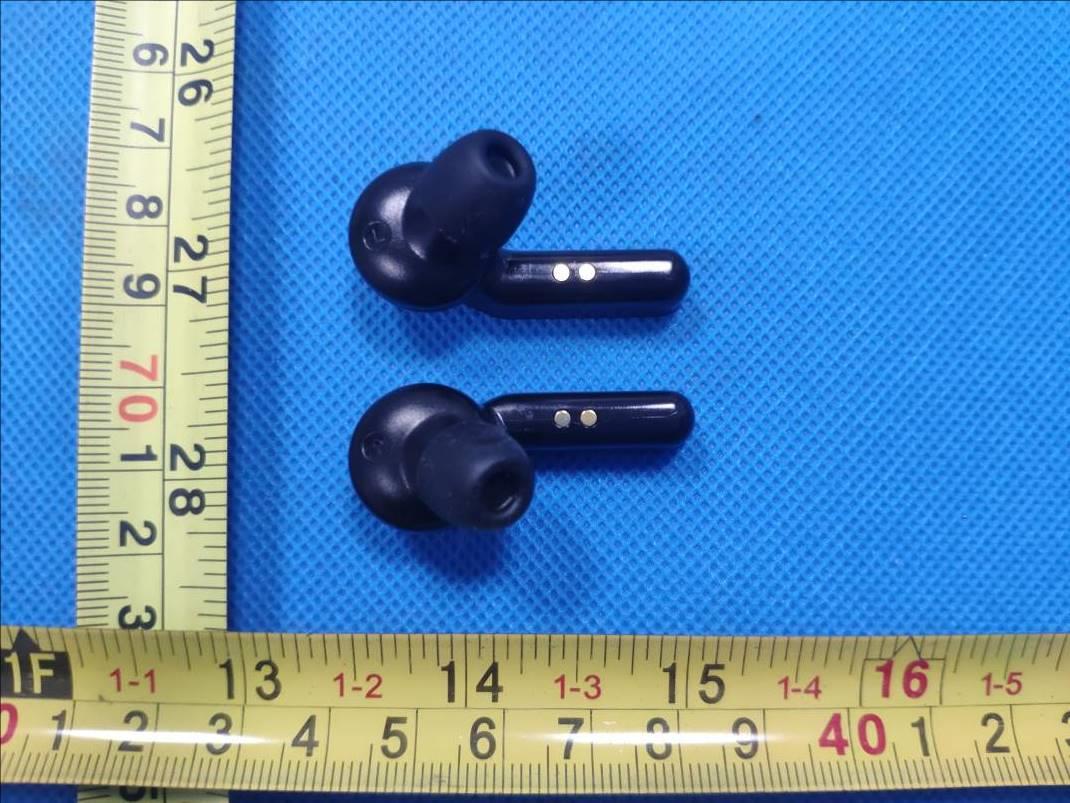

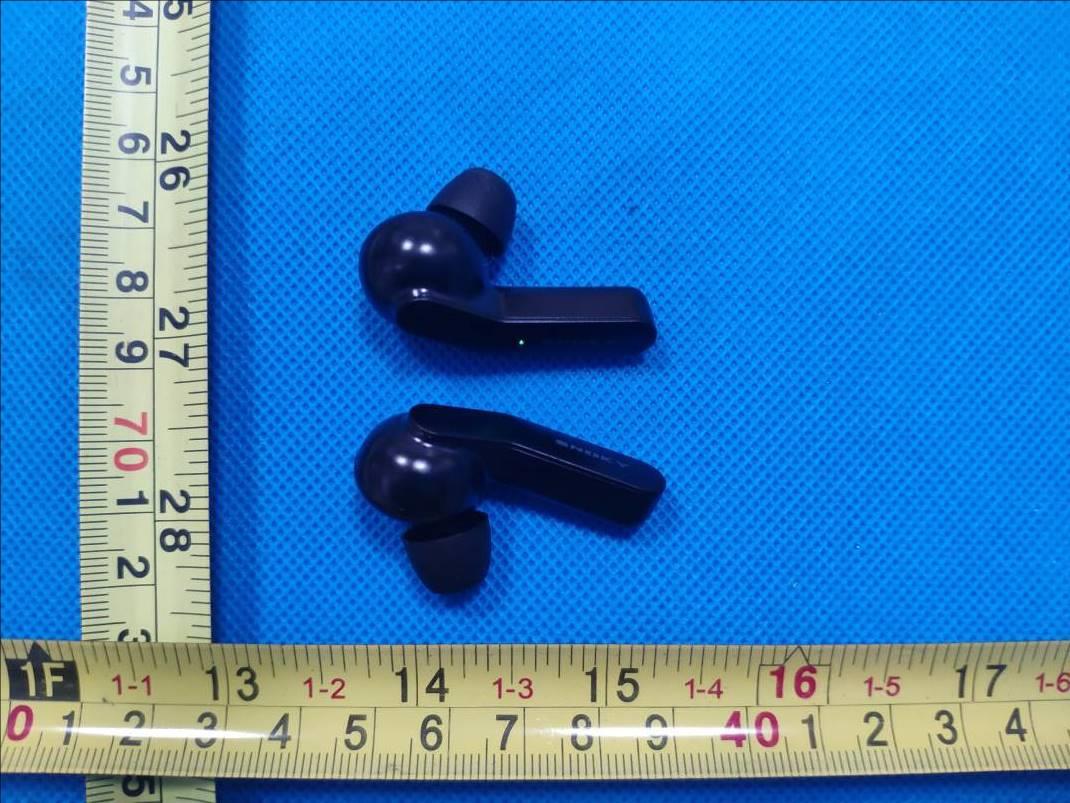

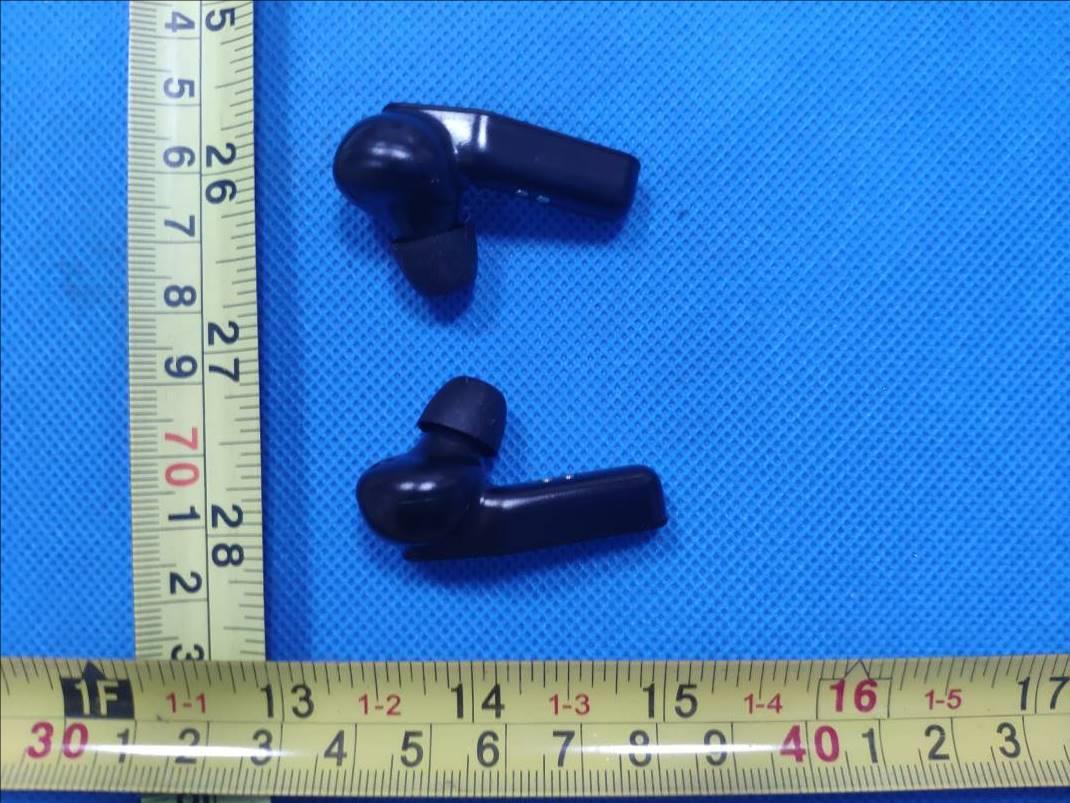

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERNAL PHOTOGRAPHS OF THE EUT Fig. 1 Fig. 2 Charge unit (Charge base station) The left and the right are the same. EUT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 1.0cm*W: 0.5cm Label Location FCC ID: 2AWGR-SNOKYT10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AWGR-SNOKYT10 Product name Bluetooth Earphones Model number Snoky T10 Power supply EARBUDS: DC 3.7V By Battery(45mAh) Recharged by DC 5V 100mA BOX: DC 3.7V By Battery(300mAh) Recharged By DC 5V 300mA Modulation Type GFSK, π/4-DQPSK for V5.0 (BT Classics) Antenna Type Internal Antenna Antenna Gain 1.2 dBi (maximum) Hardware version V1.0 Software version V1.0 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -6.231 39 2441 -5.322 78 2480 -5.146 π/4-DQPSK 0 2402 -5.280 39 2441 -4.396 78 2480 -4.279 5. Manufacturing Tolerance GFSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -6.0 -6.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -5.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.450 5 -5.0 0.3162 0.1 < 3.0 Yes π/4-DQPSK 2.450 5 -4.0 0.3981 0.1 < 3.0 Yes Remark: (1). RF output power including tune up tolerance; (2). When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 1 of 35 Appendix A RF Test Data for BT V5.0 (BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Earphones Trade Mark: Snoky Test Model: Snoky T10 Environmental Conditions Temperature: 23.4 C Relative Humidity: 53% ATM Pressure: 100.0 kPa Test Engineer: Chuang Wang Supervised by: Jayden Zhuo A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -6.231 21 PASS MCH -5.322 21 PASS HCH -5.146 21 PASS π/4DQPSK LCH -5.280 21 PASS MCH -4.396 21 PASS HCH -4.279 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 2 of 35 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 3 of 35 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 4 of 35 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 5 of 35 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.80953 0.8351 Not Specified PASS MCH 0.81209 0.8358 Not Specified PASS HCH 0.81273 0.8355 Not Specified PASS π/4DQPSK LCH 1.1591 1.207 Not Specified PASS MCH 1.1605 1.194 Not Specified PASS HCH 1.1619 1.210 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 6 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 7 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 8 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 9 of 35 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.000 0.557 PASS MCH 1.004 0.557 PASS HCH 1.002 0.557 PASS π/4DQPSK LCH 1.000 0.805 PASS MCH 1.000 0.796 PASS HCH 1.000 0.807 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 10 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 11 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 12 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 13 of 35 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 14 of 35 π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 15 of 35 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.920 106.7 0.312 0.4 PASS DH5 MCH 2.925 106.7 0.312 0.4 PASS DH5 HCH 2.920 106.7 0.312 0.4 PASS π/4DQPSK 2DH5 LCH 2.930 106.7 0.313 0.4 PASS 2DH5 MCH 2.920 106.7 0.312 0.4 PASS 2DH5 HCH 2.930 106.7 0.313 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 16 of 35 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 17 of 35 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 18 of 35 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 19 of 35 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -6.270 -60.765 -26.27 PASS MCH -5.505 -59.901 -25.51 PASS HCH -5.410 -65.315 -25.41 PASS π/4DQPSK LCH -6.358 -61.212 -26.36 PASS MCH -5.498 -59.395 -25.50 PASS HCH -5.405 -61.800 -25.41 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 20 of 35 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 21 of 35 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 22 of 35 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 23 of 35 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 24 of 35 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 25 of 35 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 26 of 35 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -6.081 Off -47.164 -26.08 PASS -6.880 On -48.862 -26.88 PASS HCH 2480 -5.080 Off -45.329 -25.08 PASS -5.297 On -45.756 -25.30 PASS π/4DQPSK LCH 2402 -6.351 Off -47.003 -26.35 PASS -6.440 On -48.174 -26.44 PASS HCH 2480 -5.254 Off -47.641 -25.25 PASS -5.319 On -51.473 -25.32 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 27 of 35 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 28 of 35 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 29 of 35 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 30 of 35 π/4DQPSK/HCH/No Hop π/4DQPSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Page 31 of 35 0BA.8 Restrict-band band-edge measurements Test Mode Hopping Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off 2310.0 -60.310 2.0 0 36.92 PEAK 74 PASS Off 2310.0 -71.850 2.0 0 25.38 AV 54 PASS Off 2390.0 -52.201 2.0 0 45.03 PEAK 74 PASS Off 2390.0 -64.602 2.0 0 32.63 AV 54 PASS Off 2483.5 -40.336 2.0 0 56.89 PEAK 74 PASS…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Report No.: LCS200514039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR Shenzhen Dingming Technology Co., Ltd. Bluetooth Earphones Test Model: Snoky T10 Prepared for : Shenzhen Dingming Technology Co., Ltd. Address : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 14, 2020 Number of tested samples : 2 Serial number : Prototype Date of Test : May 14, 2020 ~ May 19, 2020 Date of Report : May 19, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Report No.: LCS200514039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS200514039AEA Date of Issue .................................. : May 19, 2020 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Dingming Technology Co., Ltd. Address .......................................... : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Bluetooth Earphones Trade Mark ..................................... : Snoky Test Model ..................................... : Snoky T10 Ratings ........................................... : EARBUDS: DC 3.7V By Battery(45mAh) Recharged by DC 5V 100mA BOX: DC 3.7V By Battery(300mAh) Recharged By DC 5V 300mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Report No.: LCS200514039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200514039AEA May 19, 2020 Date of issue Test Model........................... : Snoky T10 EUT......................................... : Bluetooth Earphones Applicant............................... : Shenzhen Dingming Technology Co., Ltd. Address.................................. : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Dingming Technology Co., Ltd. Address................................... : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Dingming Technology Co., Ltd. Address................................... : Room E, 9th Floor, Block A, Wenjin Zhongjinxiu Building, Huangbei Street, Luohu District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Report No.: LCS200514039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 May 19, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWGR-SNOKYT10 Report No.: LCS200514039AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ...........................................................................…
