2AWH3BW24A-AS24 Inch 2-in-1 LCD Bar Display

User Manual 24 Inch 2-in-1 LCD Bar Display Before connecting,operating or adjusting this product, please read the User Manual. Please keep this manual for future reference. BW24A-AS Contents Warning and Precautions.............................................................2-8 Wall Hanging Instruction............................................................9-10 Accessories..................................................................................10 Buttons and Interfaces..................................................................11 Specification.................................................................................12 Basic Operations.....................................................................12-14 1.Desktop....................................................................................12 2.Apps.........................................................................................13 3.Setting......................................................................................13 4.ADB Function...........................................................................14 Troubles Shooting....................................................................15-16 Warning and Precautions Electricity can provide many useful functions, but improper use will also cause harm to personal and property security, both the design and manufacturing of this product are based on the highest require- ments of safety, improper use may cause harm, such as electric shock, fire damage, etc. To avoid such dangerous, please comply with the following instructions when users are installing, operating and cleaning. In order to ensure your personal safety and prolong the service life of the product, please read carefully before start using safety warning clause. 1.Read this instruction Before operating the unit, please read and understand all instructions. 2.Keep this instruction Please store this safety and operation instruction in safe place for future use. 3.Heed all warnings Please strictly abide by all the safety warning related to this product in this manual. 4. Follow the instruction Please follow all instructions. 5.Accessories Please use the attachments or accessories designated by manufacturer. Do not utilize the accessories recommended by illegal manufacturer, otherwise may cause accident. 6.Power supply The power supply utilized in this unit is marked on the power supply label. If you are not sure the power supply type in your area, please consult the local dealer or electric power company. To better protect the product, in the thunderstorm weather or when this unit is not utilized for a long time or when unattended for a long time, please unplug the power plug of this unit and disconnect the antenna, which will help to protect the product from damaged by lightning or power cord surging. When need to utilize this unit with another type of power supply, please replace the power cord and consult to local dealer. Power outlet shall be installed in the place where is easy to connect and close to the unit. Please utilize the power cord desig- nated by the dealer to ensure the safety and electromagnetic com- patibility. When the unit is needed to connect with VCR or computer, please turn off the power supply of this unit to avoid electric shock. 7.Power cord protection Please protect the power cord, especially the connection position among plug, socket and power cord with this unit should not be trampled. 8.Overload As for the wall socket and power outlet, do not overload use, to avoid fire or electric shock. 9.Objects fell into or liquid splashed into Don't insert objects from the ventilation hole or the hole of this unit.This unit has high pressure, the inserted object may cause electric shock or parts short circuit inside the unit. So don't let water drop or liquid spill into the unit. 10.Maintenance Please contact maintenance issues to the authorized service personnel. When the unit is damaged by the followings, the unit is needed to be repaired: the power cord or power plug is damaged; liquid splashed into or solid fell into the unit, the unit is exposed to the rain or damp environment or the unit is dropped. 11.Conditions requiring maintenance When any of the following conditions occurs, please pull the plug from the AC socket and contact the professional maintenance personnel for repair. a.Power cord or plug damages; b.When liquid splashed into or solid fell into; c.When the unit is exposed in rain or water; d.When do not operate according to the instructions described in the operation manual; do not carry out operation not regulated in operation manual, improper adjustment or setting may cause damage to the unit, at this time, it needs rectification or adjustment by professional technical personnel. e.When the unit falls or the case has any damage; f.When the unit displays abnormal conditions or significant chang- es, which indicates that the unit needs to be repaired. 12.Replace parts When the product's parts need to be replaced, please confirm that the parts utilized by maintenance personnel is designated by manu- facturer, or original parts with same characteristics and perfor- mance. Usage of unlicensed parts may cause fire, shock and/or other hazards. 13.Safety inspection When maintenance service is completed, please ask maintenance personnel to check safety performance of unit to confirm that the unit is under normal state. 14.Wall hanging When the unit needs to be hung on wall or ceiling, please make sure to install according to the method provided by the manufactur- er. This concerns safety issues. 15.Holder Please utilize the wheelbarrow, foot rest, tripod, holder or table des- ignated by manufacturer or sold with the unit. Do not place it on unstable trolley, holder, tripod or table. Placing the unit on unstable surface may cause the unit to fall and injure personnel or damage the product. Please follow the manufacturer's installation instruc- tions wh…

Text truncated - open the document above for the full version.

Beijing BOE Sales Co.,LTD Address: No.12 Xihuanzhong RD, BDA, Beijing,100176,China Tel: 010-60983810; Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2020-12-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Beijing BOE Sales Co.,LTD, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Fangzhou Zhang Product Manager

Beijing BOE Sales Co.,LTD Address: No.12 Xihuanzhong RD, BDA, Beijing,100176,China Tel: 010-60983810; Email: [email protected] FCC Confidential Authorization Date: 2020-12-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AWH3BW24A-AS In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Beijing BOE accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: FangzhouZhang Product Manager

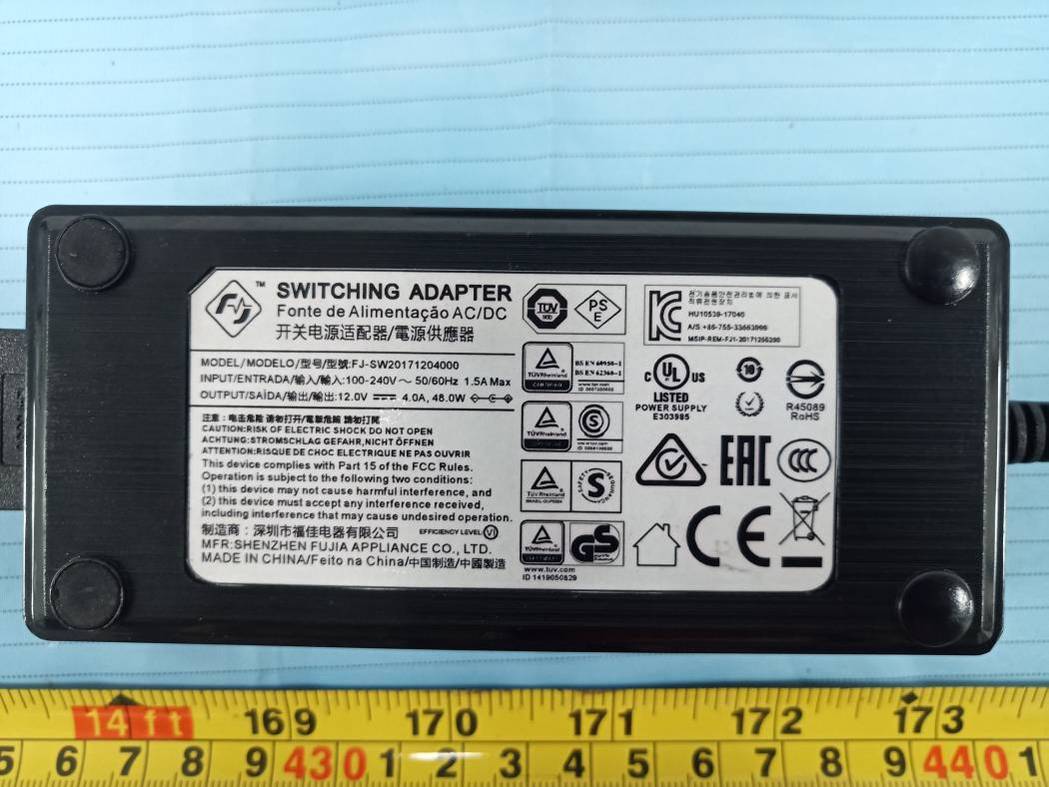

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 1 of 6 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 5 of 6 Antenna Antenna Port Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 6 of 6

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 1 of 6 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 2 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 5 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Page 6 of 6

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201111008-00B FCC Part 15.247 Page 11 of 47 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Mode Frequency (MHz) Antenna Gain Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) Wi-Fi 2412-2462 0.5 1.12 11.0 12.59 20 0.003 1.0 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Beijing BOE Sales Co.,LTD No.12 Xihuanzhong RD,BDA,Beijing,100176,China FCC ID: 2AWH3BW24A-AS Report Type: Original Report Product Type: 24 Inch 2-in-1 LCD Bar Display Re port Number: RSZ201111008-00B Re port Date: 2020-12-09 Reviewed B y: Nancy Wang RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201111008-00B FCC Part 15.247 Page 2 of 47 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 17 APPLICABLE STANDARD ...…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201111008-RF Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
