M ultifunctional Treadmill Instruction Manual Please read this manual carefully before using the product and keep it. Running belt adjustment method 1 . When running belt lean to the left, adjusting screw on the left 1-2 turns along the clockwise. Then, test running; If still lean to the left, repeat the above steps until back to the center. 2.When running belt lean to the right, adjusting screw on the right 1-2 turn s alo ng the clockwise. Then, test running; If still lean to the right, repeat the above steps until back to the center. 3.When the running belt too tight, it will cause stronger resistance. Please adjust both sides screws 1-2 turns along the counterclockwise, loosen the belt until stopping skidding or pausing; When the running belt too loose, please adjust both sides screws 1-2 turns along the clockwise. Use the treadmill lubricant Location is in the middle of the lower surface of the running belt. When add lubricant, please inject to the center of running board, then put down the belt, pressing the hole by hands, rotating the belt to apply evenly. 11 T hank you very much for purchasing this product, to be able to use the product, be sure to read this manual. Treadmill main parameters 1.Running Area: 980*390mm 2.Max User’s Weight: 100KG 3.Set up Size: (L*W*H)1300*655*1230mm 4.Folding Size: (L*W*H)520*655*1270mm 5.Motor : 0.5hp 6.Speed: 1-12.8 7.Mode: “Manual”; “T ime countdown”; “Distance countdown”; “Calories countdown”; “Auto”. In accordance with Monitor instruction. 8.12 sport modes can be set up by own needs. Safety Warning Please don’t use this machine with illness, fatigue and drunk. Children should use this machine under adults accompany. Please wear comfortable clothes, avoid flip flop or skirt when using this machine. Please start from suitable sport as excessive exercise may affect health. Loading capacity is 100KG, overload may cause damage. Attention It’s common home use machine, please avoid commercial use. Please avoid using this machine at fire source location. Please exercise in wide space without any danger. When use in the floor, please be sure cover the carpet to avoid damage to the surface. When not use, please don’t set it on the place as follows: A. Overheat, over cold place. B. Outdoors, direct sunlight place . C . Gas stove, near the fire place. D. Cold and more moisture places. E. Child touch place. F. Soot, water vapor place. Please don’t use this machine on the uneven places. Treadmill Common Error Messages Prompt Description E01: communication blocked between Electronic and controller. Solution When communication line is blocked between Electronic and under controller Please connect again or change communication line When Electronic without signal Change Electronic to repair When under controller without signal Change under controller to repair E02: The controller does not detect the voltage of the motor line. Solution Motor cable is not connected Check connection No voltage output or abnormal by under controller Change under controller to repair Motor is bad Change motor E03: When the motor is running, the controller can’t test the speed signal. Solution Motor cable is not connected Check connection Under controller with abnormal signal Change under controller to repair E05: When the motor is running, current exceeds the rated current. Solution Treadmill motor load exceeds the rated current Recommend within the rated current of the motor Treadmill motor assembly structure problems, causing the motor blocked or resistance Check the structure of treadmill By limiting control system failure Change under controller to repair E07: Monitor can’t test the signal of security lock. Solution Safety Magnet off Please set magnet safety lock correctly Electronic Safety lock system malfunction Change electronic to repair 1 10 9 . Each numerical display range： Initial Set initial value Setting range Display Range T ime(min:sec) 0:00 45:00 1:00-45:00 0:00~45.00 Speed(km/h) 0.0 N/A N/A 1- 12.8 Distance(km) 0.0 1.0 1.0-99.0 0.0-99.9 Pulse(sec/min) P N/A N/A 40-199 Calories(Kcal) 0 50 20-990 0-999 Schedule 1: P1-P12 Program motion map Packing Details Frame Manual + Screw package Electronic Panel Transport wheel bracket The following is a multifunctional accessories Massager machine Connecting rod Massager bracket Dumbbell Dumbbell rack Foam  Screw package(multifunctional) K A 9 2 Assembly steps First step: Base assembly With screw E(4 pcs), washer C(4 pcs) and cap nut F(4 pcs) to carry round bracket fixed to the base. Second step: Expand Frame When expanded, first to pull the pin on the column N FIG pull out, the other hand supporting frame slowly on the ground, and the locking knob with M Fig target, to prevent movement when shaking. B. Countdown mode 1. Enter time countdown mode: In the initial standby mode press Kin selection time countdown mode, where the time window 30:00 minutes and flashing speed by +/- keys set the desired run time, set the range of 8: 00-99 : 00 minutes, press the start button to enter the running time countdown mode. 2. Enter distance countdown mode: In the initial standby mode, press the mode button to select the mode from the countdown, this time from the window 1.0 kilometers and flashes, the distance traveled by the speed +/- key set the desired setting range 1.0 to 99.0 kilometers, press Start key to enter the distance countdown mode. 3. Enter calories countdown mode: In the initial standby mode, press the mode button to select the calorie countdown mode, then 50 calories window displays and flashing speed by +/- keys to set the required run-calorie, setting range from 20 to 990, press the Start button to enter calorie countdown mode. C. Auto mode Enter auto mode: In the initial setting mode or standby state, press the key to enter the program automatic program selection. At this time window 30:00 minutes and flashes through speed +/- keys set the desired run time, set the range of 8: 00 ~ 99: 00 minutes, press the Start…

Text truncated - open the document above for the full version.

Zhejiang Aluk Fitness Equipment CO., Ltd. No 165 Meilong Road, West City YongKang Zhejiang Tel: 0579-89267576 E-mail: [email protected] Series Models Description Date: 2020/06/10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AWHN-A7-A7S Dear Sir/Madam, We, Zhejiang Aluk Fitness Equipment CO., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, s tructure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: The treadmill Model no.: A7S, A7 Sincerely, Name: Xu Guangzheng / general manager Company: Zhejiang Aluk Fitness Equipment CO., Ltd. Address: No 165 Meilong Road, West City YongKang Zhejiang Phone: 0579-89267576 Fax: 0579-89267576 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-10> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AWHN-A7-A7S A7S, A7 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions BOM The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Xu Guangzheng / general manager Company: Zhejiang Aluk Fitness Equipment CO., Ltd. Address: No 165 Meilong Road, West City YongKang Zhejiang Phone: 0579-89267576 Fax: 0579-89267576 E-Mail: [email protected]

Zhejiang Aluk Fitness Equipment CO., Ltd. No 165 Meilong Road, West City YongKang Zhejiang Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 06/10/2020 To whom it may concern: We, Zhejiang Aluk Fitness Equipment CO., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AWHN-A7-A7S including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Xu Guangzheng /General Manager Company: Zhejiang Aluk Fitness Equipment CO., Ltd. Address: No 165 Meilong Road, West City YongKang Zhejiang Phone: 0579-89267576 Fax : 0579-89267576 Email: [email protected]

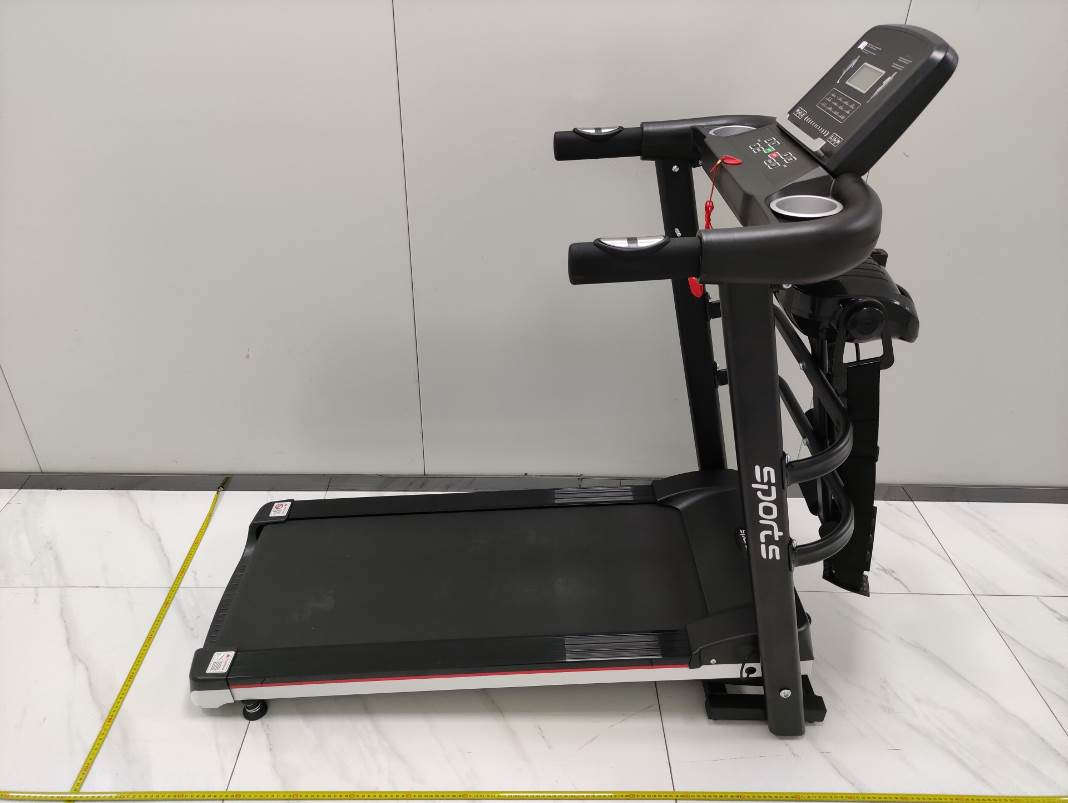

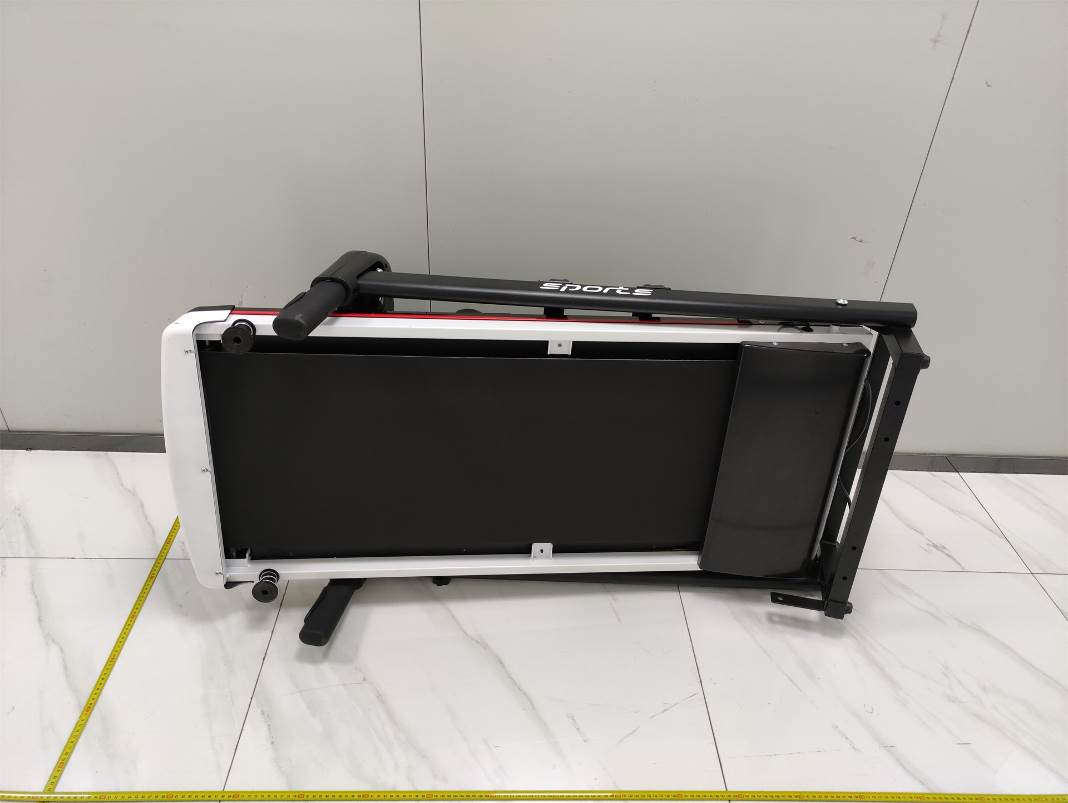

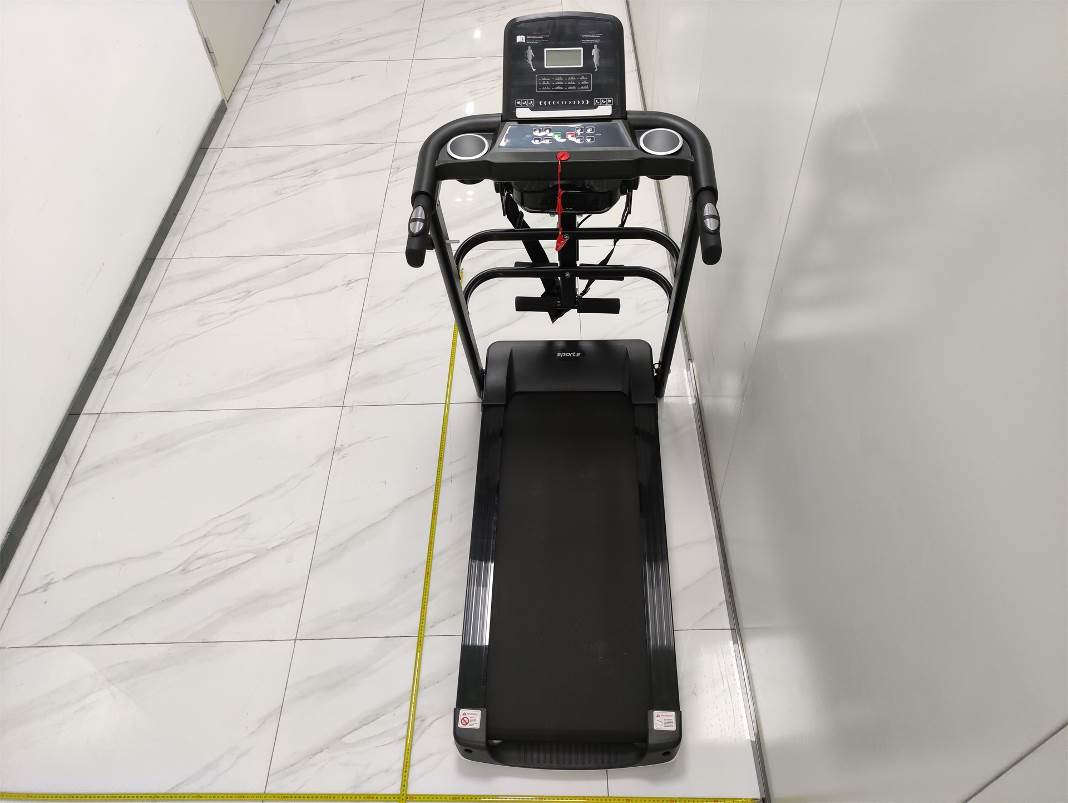

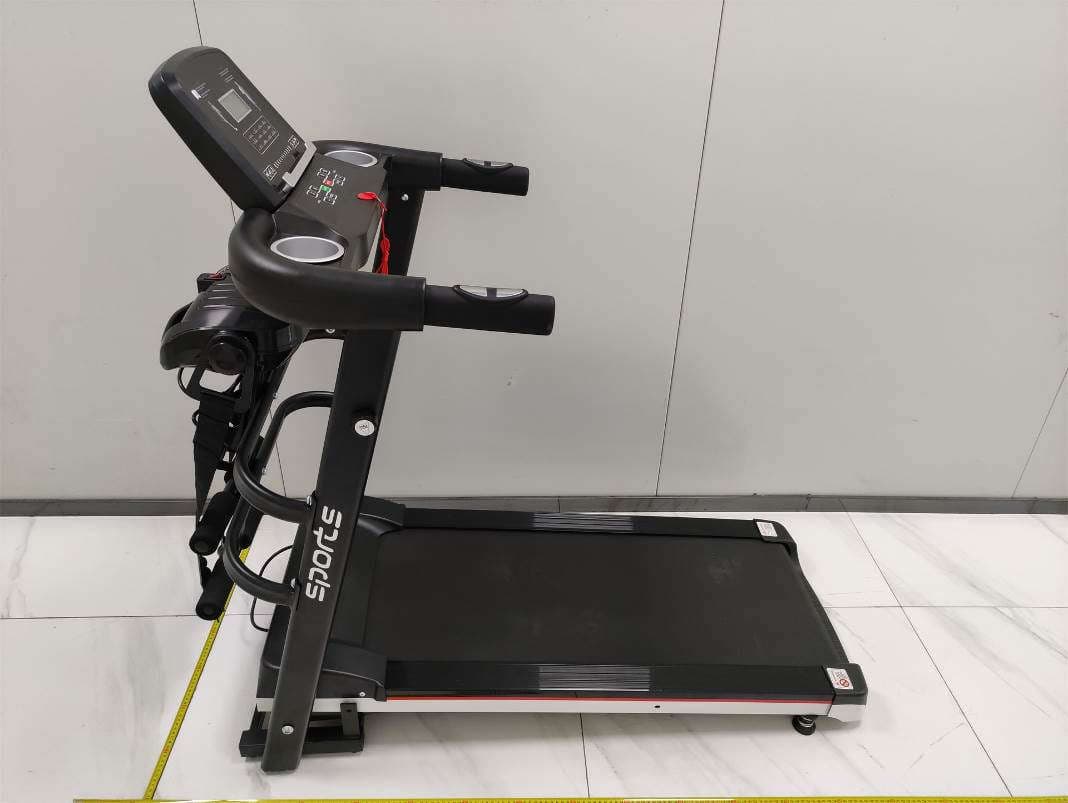

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Label and Location Size: L6.0cm*W4.0cm Label Location The treadmill Model No.: A7S FCC ID: 2 AW H N-A7-A7S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 9 Fig. 10 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AWHN-A7-A7S Product name The treadmill Test Model A7-327 Power supply Input: DC 5V Modulation Type GFSK, π/4-DQPSK for Bluetooth V4.2 (DSS) Antenna Type PCB Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / Bluetooth Operation frequency 2402MHz ~ 2480MHz Bluetooth Version V4.2 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: Mobile Device 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 3.403 39 2441 1.991 78 2480 0.372 π/4DQPSK 0 2402 2.949 39 2441 1.429 78 2480 -0.289 5. Manufacturing Tolerance [BT Classics] GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 1.0 0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 1.0 0 Tolerance ±(dB) 1.0 1.0 1.0 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.402 5 4.0 2.5119 0.7786 < 3.0 Yes π/4DQPSK 2.402 5 3.0 1.9953 0.6185 < 3.0 Yes Remark: 1. RF output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. 6.2 Simultaneous Transmission for SAR Exclusion The sample support one BT modular and one antenna, no need consider simult…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA Appendix A RF Test Data for BT V3.0(BDR/EDR) (Conducted Measurement) Product Name: The treadmill Trade Mark: IRUN Test Model: A7S Environmental Conditions Temperature: 23.1 ° C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: SCOUT WU Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 3.403 21 PASS MCH 1.991 21 PASS HCH 0.372 21 PASS π/4DQPSK LCH 2.949 21 PASS MCH 1.429 21 PASS HCH -0.289 21 PASS Page 1 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA Test Graphs GFSK/LCH GFSK/MCH Page 2 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK/HCH π/4DQPSK/LCH Page 3 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK/MCH π/4DQPSK/HCH Page 4 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9482 Not Specified PASS MCH 0.9466 Not Specified PASS HCH 0.9506 Not Specified PASS π/4DQPSK LCH 1.324 Not Specified PASS MCH 1.323 Not Specified PASS HCH 1.324 Not Specified PASS Test Graphs GFSK/LCH Page 5 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK/MCH GFSK/HCH Page 6 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK/LCH π/4DQPSK/MCH Page 7 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK/HCH Page 8 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.221 0.634 PASS MCH 1.046 0.622 PASS HCH 1.220 0.634 PASS π/4DQPSK LCH 1.008 0.883 PASS MCH 1.042 0.883 PASS HCH 1.064 0.883 PASS Test Graphs GFSK/LCH Page 9 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK/MCH GFSK/HCH Page 10 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK/LCH π/4DQPSK/MCH Page 11 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK/HCH Page 12 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop Page 13 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.309 0.4 PASS 2DH5 MCH 2.9 106.7 0.309 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH Page 14 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK_DH5/MCH GFSK_DH5/HCH Page 15 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH Page 16 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK _2DH5/HCH Page 17 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.867 -37.431 -17.133 PASS MCH 1.315 -37.089 -18.685 PASS HCH -0.133 -37.101 -20.133 PASS π/4DQPSK LCH -0.142 -36.442 -20.142 PASS MCH -1.575 -36.938 -21.575 PASS HCH -3.513 -38.109 -23.513 PASS GFSK_LCH_Graphs Pref Page 18 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA Puw Page 19 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK_MCH_Graphs Pref Puw Page 20 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK_HCH_Graphs Pref Puw Page 21 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK_LCH_Graphs Pref Puw Page 22 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK_MCH_Graphs Pref Puw Page 23 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK_HCH_Graphs Pref Puw Page 24 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 2.816 Off -49.370 -17.18 PASS -0.109 On -49.292 -20.11 PASS HCH 2480 -0.012 Off -49.143 -20.01 PASS -2.300 On -49.014 -22.3 PASS π/4DQPSK LCH 2402 -0.013 Off -49.261 -20.01 PASS -0.321 On -48.797 -20.32 PASS HCH 2480 -2.927 Off -48.713 -22.93 PASS -2.255 On -48.439 -22.26 PASS Page 25 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop Page 26 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA GFSK/HCH/No Hop GFSK/HCH/Hop Page 27 of 34 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop Page 28 of 34 SHENZHEN LCS COMPLIANCE TESTING …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA FCC TEST REPORT For Zhejiang Aluk Fitness Equipment CO., Ltd. The treadmill Test Model: A7S Additional Model No.: A7 Prepared for : Zhejiang Aluk Fitness Equipment CO., Ltd. Address : No 165 Meilong Road, West City YongKang Zhejiang Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 25, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : May 25, 2020 ~ June 03, 2020 Date of Report : June 05, 2020 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200522021AEA Date of Issue .................................. : June 05, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Zhejiang Aluk Fitness Equipment CO., Ltd. Address .......................................... : No 165 Meilong Road, West City YongKang Zhejiang Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and sou rce of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : The treadmill Trade Mark ..................................... : IRUN Test Model ...................................... : A7S Ratings ........................................... : Input: AC120V/60Hz Result ............................................ : Positive Compiled by: Supervised by: Approved by: Ray Yang / File administrators Jin Wang/ Technique principal Gavin Liang/ Manager This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA FCC -- TEST REPORT Test Model............................... : A7S EUT......................................... : The treadmill Applicant............................... : Zhejiang Aluk Fitness Equipment CO., Ltd. Address.................................. : No 165 Meilong Road, West City YongKang Zhejiang Telephone............................... : Fax.......................................... : Manufacturer........................ : Zhejiang Aluk Fitness Equipment CO., Ltd. Address................................... : No 165 Meilong Road, West City YongKang Zhejiang Telephone............................... : Fax.......................................... : Factory................................... : Zhejiang Aluk Fitness Equipment CO., Ltd. Address................................... : No 165 Meilong Road, West City YongKang Zhejiang Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200522021AEA June 05, 2020 Date of issue This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA Revision History Revision Issue Date Revisions Revised By 000 June 05, 2020 Initial Issue Gavin Liang This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWHN-A7-A7S Report No.: LCS200522021AEA TABLE OF CONTENTS Description .............................................................................................................................. Page 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMENT OF THE…
