2AWIWPADDYALERTPADDY ALERT

EN FR ES IT Owner’s manual Manuel d’utilisation Instrucciones Istruzioni d’uso 000121300000 2 English Français Español Italiano pag.3 pag.3 pag.3 pag.3 EN FR ES IT 3 ENGLISH Owner’s manual 4 About the product PADDY ALERT Keyring is an accessory device operating with the PADDY Smart Pad phone APP: it works as a reminder in case the driver leaves both the mobile phone and the child in the vehicle. In such case the device will activate a sound and visual alarm. If the baby is not removed from the seat within 30 seconds, and the alert silenced, the mobile APP will send a message including the GPS co-ordinates of the place where the alarm was generated to the predefined associated users. The keyring device must be paired with the APP and can handle up to four seat pads simultaneously. Box content • 1 x PADDY ALERT alarm device • 1 x Key Ring and string • 1 x Owner’s Manual How to use PADDY ALERT When connected to the APP, PADDY ALERT will work as a secondary alarm. If connected directly with the PADDY Smart Pad it will function as primary alarm. 1” EN FR ES IT 5 USING THE DEVICE WITH THE APP PADDY ALERT needs to be activated only the first time by pressing down the switch for 1 second. The actual connection will be confirmed by a red LED flashing once. However, if the battery is charged 20% or less, the red LED will flash continuously, along with an alarm tone, warning that the battery needs to be replaced. To pair the device with the APP, press the icon on the screen and then the connect bar, as shown below. The device will automatically pair with the App and when the device is paired, the photo of the device will switch from black and white to full color. 6 Once paired, press the BACK bar to return to the main APP screen. A new battery charge level indicator will appear above the PADDY logo as shown below. This confirms that the Alert device is now operational. The device is now paired and shall connect to the APP automatically. It will set off an alarm only in case the user has left the mobile phone and an unattended child in the vehicle. EN FR ES IT 7 In case the driver steps away from the vehicle and the mobile phone has been left in the car, along with an unattended child in the car seat, after a distance of approximately 10-15 meters the device will switch to the “alarm mode”, activating a sound alarm and the LED shall flash continuously. The device shall remain in such mode until the alarm is deactivated and the child removed from the seat. If the alarm is not deactivated by pressing the button on the device or by removing the child from the car seat within 30 seconds, the APP will send a message to all the predefined associated users such as: “(NAME OF THE CHILD) HAS BEEN ABANDONED AT GPS 22.3213N 113.9433E)”. The associated users can access the map on the phone and view the exact location where the child was left unattended. Then they can contact the other users and proceed to rescue the unattended child. If the driver presses the PADDY ALERT button for at least one second, the LED will flash from 1 to 4 times and will also show the battery charge. If it only flashes once, then the battery needs to be replaced. 8 USING THE DEVICE WITHOUT THE APP PADDY ALERT can be used with PADDY Smart Pad as an alarm that shall go off when the user moves away from the vehicle and the child has been left unattended in the car seat. The alarm will be both audio and visual and shall remain active until the child is removed from the PADDY Smart Pad. The device must be paired with the PADDY Smart Pad. Press the button for 1 second to turn on the device: a beep will confirm the device is ON. Press the button again for 6 seconds to turn on the pairing mode (only the first time). Press the center of the PADDY Smart Pad until a beep sound is heard: the device is now connected to the Smart Pad. The LED flashes every 8/10 seconds if the battery of the Smart Pad is charged; otherwise the LED will flash continuously. • If the connection with one or more Pads is lost, the device will go into the alarm mode. • To stop the alarm mode, press the button for 1 second. • To cancel the present operating connection press down the button for 6 seconds with the power ON. • To erase all paired PADDY Smart Pad connections, hold down the button for 15 seconds: a confirmation beep will be heard. • If PADDY ALERT is connected the first time with the APP it will act as a secondary alarm, otherwise it will function as primary alarm. EN FR ES IT 9 WARRANTY PADDY ALERT enjoys a Limited Life Warranty against any defects of non-compliance under normal operating conditions of use. Please refer to the Warranty notice enclosed to this Owner’s Manual. Note: the battery is not included in the warranty as it is a consumable item and must be replaced as needed. DECLARATION OF COMPLIANCE Menabò declare that this PADDY ALERT key ring device complies with and conforms to all the necessary EU regulations and directives. The product is CE and FCC certified. It also includes EMC, RED and ROHS compliant. The product can be used in all Eu countries, USA, Canada, UAE, Asia, Oceania and Pacific regions. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo internet www.paddysmartpad.com Customer Support For further information and assistance, please contact us by sending an email to this address: [email protected] 10 FRANÇAIS Manuel d’utilisation EN FR ES IT 11 Concernant le produit Le porte-clés PADDY ALERT est un appareil accessoire fonctionnant avec l’APPLICATION Coussinet Intelligent PADDY: il fonctionne comme un rappel au cas où le conducteur laisse à la fois le téléphone cellulaire et l’enfant dans le véhicule. Dans ce cas, l’appareil déclenchera une alarme sonore et visuelle. Si le bébé n’est pas retiré du siège dans les 30 secondes et que l’alerte a été réduite au silence, l’application mobile (enverra un message inclusif des coordonnées GPS de l’endroit où l’alarme a été déclenchée aux utili…

Text truncated - open the document above for the full version.

FLLI. MENABO’ S.r.l. Agent Authorization Company: FLLI. MENABO’ S.r.l. Address: 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Product Name: PADDY ALERT Trade Mark: Paddy Model Number(s): 000121300000 FCC ID: 2AWIWPADDYALERT We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-06-22 Name: Menabò Domenico Title: CEO Company: FLLI. MENABO’ S.r.l.

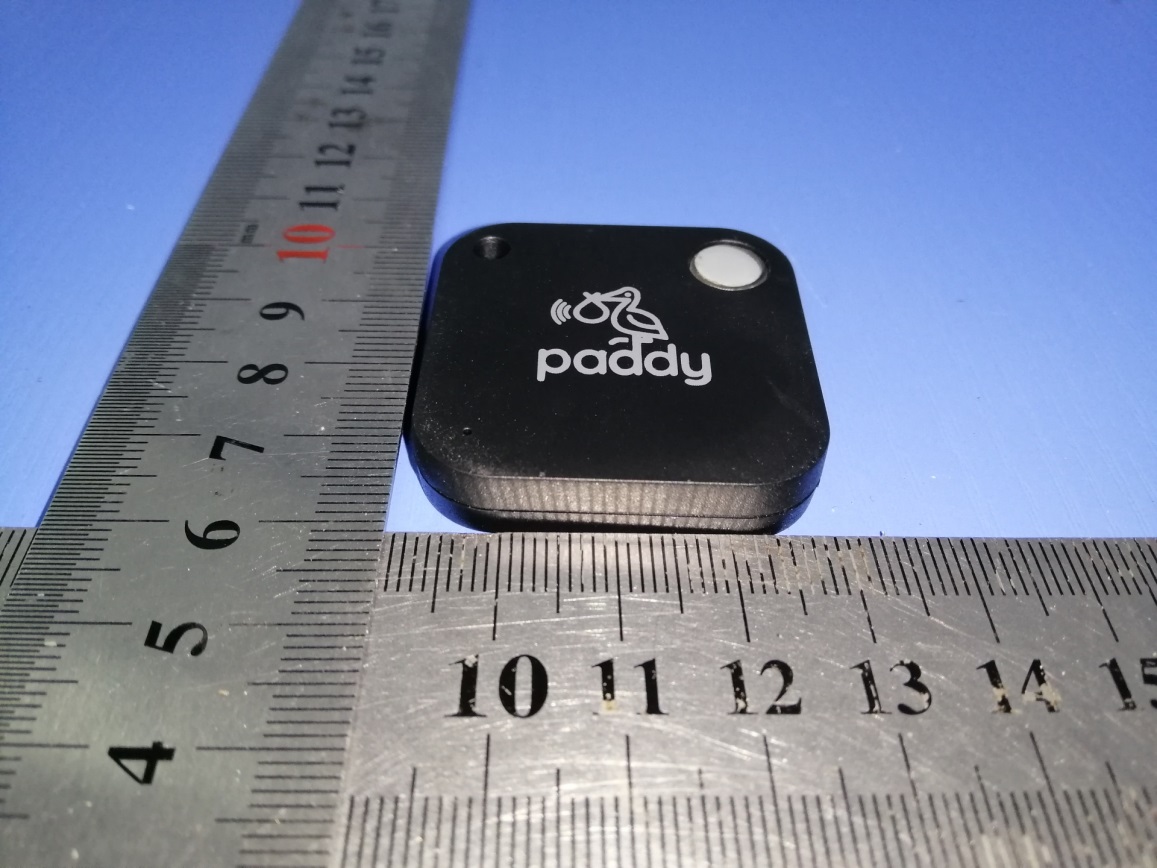

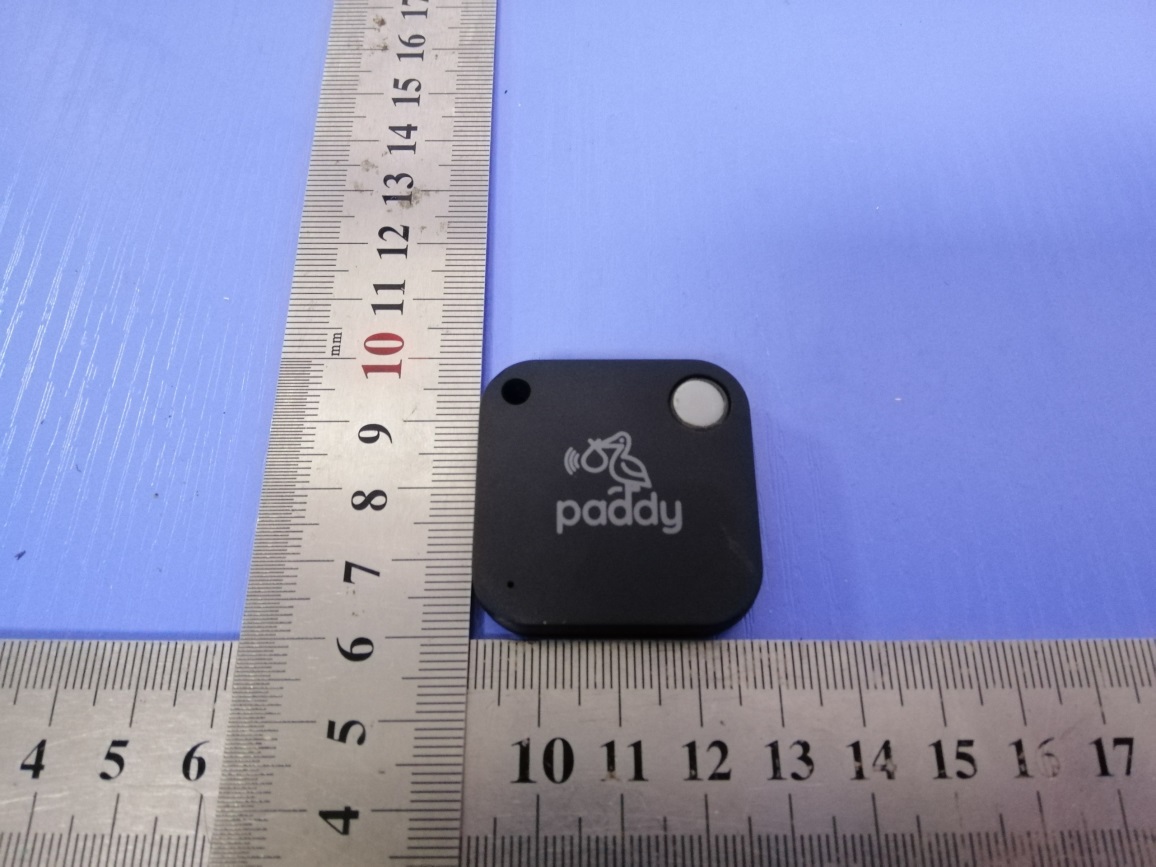

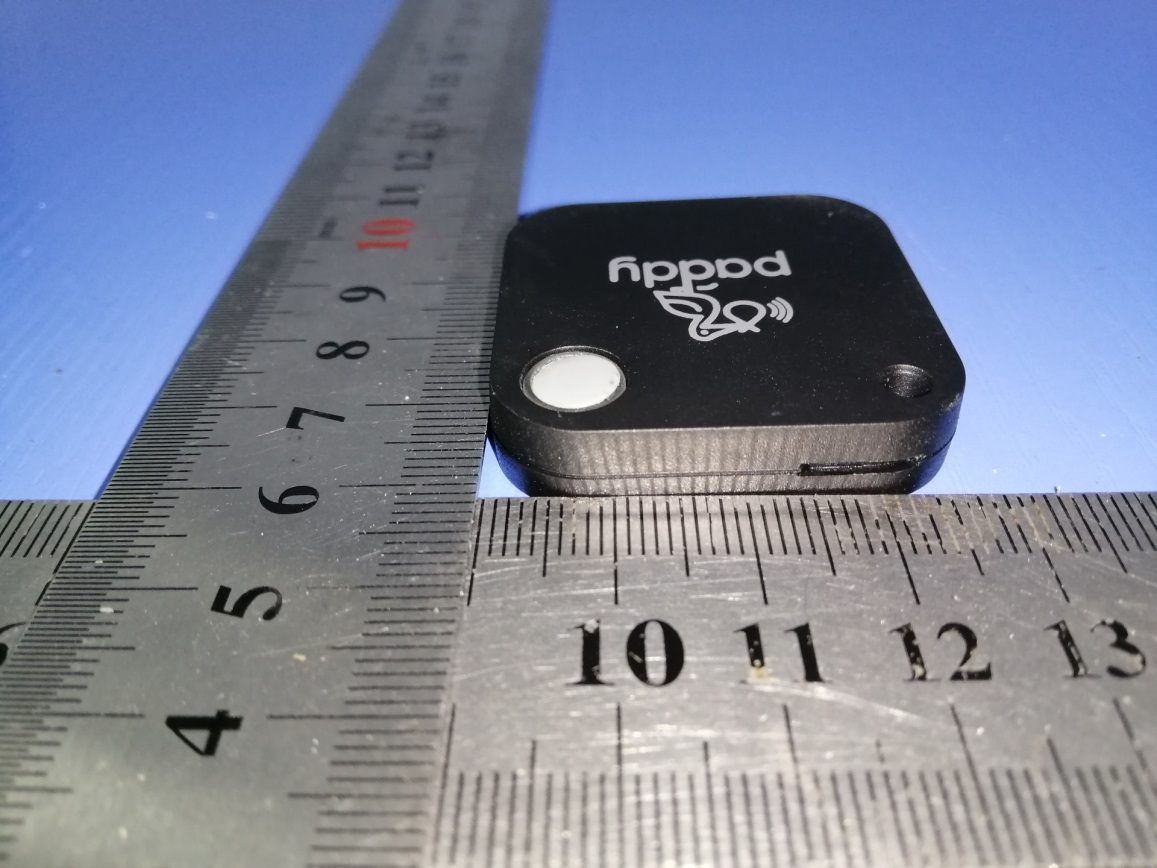

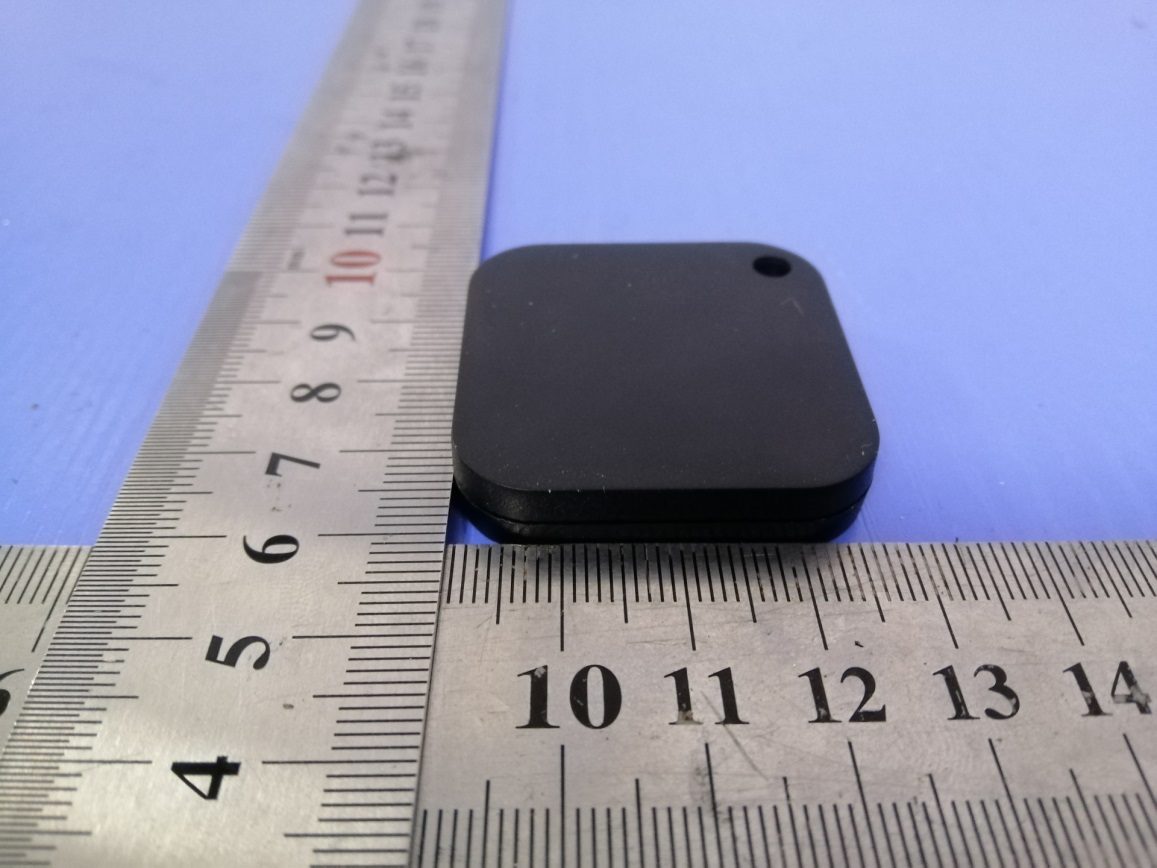

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2 AWIWPADDYALERT FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AWIWPADDYALERT Product name : PADDY ALERT Test Model : 000121300000 Power supply : DC 3V (CR2450) Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V4.1(DTS) Channel Spacing : 2MHz for Bluetooth V4.1(DTS) Modulation Type : GFSK for Bluetooth V4.1(DTS) Bluetooth Version : V4.1 Antenna Type : PCB Antenna Antenna Gain : 0dBi(Max.) Hardware version : 1.0 Software version : 1.0.0 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2 AWIWPADDYALERT When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 1.366 19 2440 1.099 39 2480 0.791 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2 AWIWPADDYALERT 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1 1 1 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.480 5 2 1.59 0.499< 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 6.2 Simultaneous Transmission for SAR Exclusion The sample suppo…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Appendix A RF Test Data for BT V4.1(LE) (Conducted Measurement) Product Name: PADDY ALERT Trade Mark: Paddy Test Model: 000121300000 Environmental Conditions Temperature: 23.3 ° C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: QUXIN Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav Page 1 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.366 30 PASS BT LE MCH 1.099 30 PASS BT LE HCH 0.791 30 PASS Test Graphs LCH MCH Page 2 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT HCH Page 3 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -11.896 8 PASS BT LE MCH -13.322 8 PASS BT LE HCH -15.027 8 PASS Test Graphs LCH MCH Page 4 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT HCH Page 5 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6668 ≥0.5 PASS BT LE MCH 0.6802 ≥0.5 PASS BT LE HCH 0.6833 ≥0.5 PASS Test Graphs LCH MCH Page 6 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT HCH Page 7 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.0272 ≥0.5 PASS BT LE MCH 1.0412 ≥0.5 PASS BT LE HCH 1.0527 ≥0.5 PASS Test Graphs LCH MCH Page 8 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT HCH Page 9 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 3.568 -24.723 -16.432 PASS BT LE MCH 0.066 -33.561 -19.934 PASS BT LE HCH 7.777 -17.221 -12.223 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH Page 10 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH Page 11 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH Page 12 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 3.810 -48.597 -16.19 PASS BT LE HCH 7.934 -37.808 -12.07 PASS Test Graphs LCH HCH Page 13 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi t BT LE 2402 Ant1 2310.0 -43.91 2.0 0 51.35 PEAK 74 PASS Ant1 2310.0 -53.57 2.0 0 41.69 AV 54 PASS Ant1 2390.0 -40.26 2.0 0 54.99 PEAK 74 PASS Ant1 2390.0 -51.77 2.0 0 43.49 AV 54 PASS 2480 Ant1 2483.5 -37.32 2.0 0 57.94 PEAK 74 PASS Ant1 2483.5 -46.62 2.0 0 48.63 AV 54 PASS Ant1 2500.0 -41.56 2.0 0 53.70 PEAK 74 PASS Ant1 2500.0 -52.52 2.0 0 42.74 AV 54 PASS Page 14 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV Page 15 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV Page 16 of 16

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT Report No.: LCS200506097AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 30 FCC TEST REPORT For FLLI. MENABO’ S.r.l. PADDY ALERT Test Model: 000121300000 Prepared for : FLLI. MENABO’ S.r.l. Address : 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 09, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : May 09, 2020 ~ May 14, 2020 Date of Report : May 22, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT Report No.: LCS200506097AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 30 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200506097AEA Date of Issue ................................... : May 22, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : FLLI. MENABO’ S.r.l. Address ........................................... : 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : PADDY ALERT Trade Mark ................................................................: Paddy Test Model ................................................................: 000121300000 Ratings ................................................................: DC 3V (CR2450) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT Report No.: LCS200506097AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 30 FCC -- TEST REPORT Test Model........................... : 000121300000 EUT......................................... : PADDY ALERT Applicant............................... : FLLI. MENABO’ S.r.l. Address.................................. : 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Telephone............................... : / Fax.......................................... : / Manufacturer........................ : BABI Limited Address................................... : 20F Mongkok Commercial Centre, 16 Argyle Street, Mongkok, Kowloon, Hong Kong Telephone............................... : / Fax.......................................... : / Factory................................... : Zhejiang JC Antenna Co., Ltd Address................................... : 398#, Zhenye Road, South Street, Jiaxing, Zhejiang, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200506097AEA May 22, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT Report No.: LCS200506097AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 30 Revision History Revision Issue Date Revisions Revised By 000 May 22, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT Report No.: LCS200506097AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. D ESCRIPTION OF D EVICE (EUT) ........................................................................................................................ 6 1.2. H OST S YSTEM C ONFIGURATION L IST AND D ETAILS .......................................................................................... 6 1.3. E XTERNAL I/O C ABLE ......................................................................................................................................... 6 1.4. D ESCRIPTION OF T EST F ACILITY ........................................................................................................................ 6 1.5. S T…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYALERT IC: 26156-PADDYALERT _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
