2AWIWPADDYSMARTPADPADDY Smart Pad

EN FR ES IT Owner’s manual Manuel d’utilisation Instrucciones Istruzioni d’uso 000121100000 smart pad 2 English Français Español Italiano pag.3 pag.11 pag.19 pag.27 3 FR ES IT EN ENGLISH Owner’s manual smart pad 4 QR BEEP Fig.1Fig.1 Product Description PADDY is a universal smart pad for any brand and model of car baby seat, conceived to monitor the presence of a child in the car seat. PADDY is a device that alerts via APP if the child has been abandoned in the vehicle. The APP warns by means of an acoustic signal, by flashing the LED of the photo camera and by vibrating the phone. This alarm remains active until the child is removed from the seat. If this alarm is not deactivated within 30 seconds, the system sends a message indicating the GPS geographical coordinates of the place where the alarm was generated to other two predefined telephone numbers, such as: parents, grandparents or friends. Box content: • 1x PADDY Smart Pad • 1x Owner’s Manual TECHNICAL SPECIFICATIONS •Compatible with Android OS 6.0 or higher •Compatible with IOS 10.0 or higher •Communication: Bluetooth LOW ENERGY •Long-lasting interchangeable battery: 3v CR2450 •Operating temperature range: from -20°C to + 70°C [ from -4°F to 158°F ] Setting-up the APP Remove the Smart PADDY pad from the box and place it on the base of the car child seat. Insert the seat belt buckle through the slot of the PADDY cushion. Make sure that the PADDY logo is facing upwards, as in figure 1. Product registration Download the PADDY Smart Pad APP available in the Android and IOS stores. The APP may also be downloaded by scanning the QR code here beside. 5 FR ES IT EN When the APP is launched, a menu like the one here below opens. Note: on certain Android phones you might be requested to activate the AutoStart and View permissions on the lock screen. Insert the child’s name. Then press on the icon to load the picture of your child. It is possible to take a picture or download it from the phone’s albums. The child’s name and picture will appear as follows. In order to register the child, press the icon as shown below. The APP allows to register and monitor up to 4 children. 6 To connect the APP to the PADDY Smart Pad press on the PADDY logo on the pad, as shown below, until you hear the sound signal. A new sound signal will confirm the connection between the Pad and the APP. Next to the picture of the child the battery’s charge level of the Pad will appear. The battery charge indicator changes color when the charge drops, turning red when the battery level is very low. Whenever the buzzer sounds 4 times in a row, the battery must be replaced: a notification will also be sent to the phone if the screen is off. To complete the installation of the APP, press the settings icon in the upper right corner where you can activate the vibration, the intermittent flash and select the alarm ringtone. After the sound signal, keep pressing on the pad. Hit the “connect” bar, as shown below. At this point the pad will connect with the APP. BEEP 7 FR ES IT EN Adding other users Once the Smart Pad is connected to the APP, a secondary user can be added. Such user will have to press on CONNECT on his phone as shown below. In the secondary user APP, press on the “SHOW MY QR CODE” bar to display the unique QR code of the device. On the primary user’s phone, press on the “SCAN USER’S QR CODE” bar: at this point the secondary user APP is associated with the main user APP allowing the associated user to receive an alarm notification with the GPS coordinates in case the child has been left unattended in the car. Repeat the same procedure in order to associate the third user. 2 22 1 1 2 1 2 8 Using the product The main screen shows the status of the smart pad. If the child is not on the pad, the child’s image is black and white. When the child is on the pad, the image of the child is colored. Child on padChild not on pad The PADDY smart pad connects to the APP and monitors the presence of the child. When the child is picked up from the car seat, the smart pad turns off, while turning on again when the child is placed back in the car seat. If the smart pad does not connect with the APP, it will beep 3 times every 10 seconds for 2 minutes, and then every 60 seconds. Example of the map visualizing where the child has been left unattended In case the driver walks away from the vehicle and the child has been left in the car child seat, after a distance of approximately 10-15 meters, the driver will receive a message on his phone, such as: “ATTENTION! (BABY’S NAME) HAS BEEN ABANDONED”. At the same time the phone will send a sound (beep) and visual (flashing light) alarm with vibration. If the alarm is not turned off by the driver within 30 seconds, the APP will send a new message to all associated users, such as: “(NAME OF THE CHILD) HAS BEEN ABANDONED AT GPS 22.3213N 113.9433E) The associated users can access the map on the phone and view the exact location where the child was left unattended, as shown in figure 2 below. Then they can contact the other users and proceed to rescue the unattended child. 9 FR ES IT EN Product maintenance The outer lining fabric is waterproof and removable for washing purposes: the ideal washing conditions are shown on the inside label. Open the zip of the pad cover, pull out the device from the pad and save it in a dry and clean place. Battery life-span is estimated at approximately 2 years. If the buzzer sounds 4 times in a row while placing the child in the seat, or while connecting the pad with the phone, it means that the battery needs to be replaced. To replace the battery: open the zip of the smart PADDY pad and pull out the inside device. Open the exposed black box and replace the battery. Reinsert the device into the pad and close the zip. Warranty PADDY Smart Pad enjoys a Limited Life Warranty against any defects of non-compliance under normal operating conditions of use. Please refer to the Warranty notice enclosed to this Owner’s Man…

Text truncated - open the document above for the full version.

Flli. Menabò S.r.l. Agent Authorization Company: Flli. Menabò S.r.l. Address: Via 8 Marzo, 3 - 42025 Cavriago (RE), Italy Product Name: PADDY Smart Pad Trade Mark: Paddy Model Number(s): 000121100000 FCC ID: 2AWIWPADDYSMARTPAD We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-06-22 Name: Menabò Domenico Title: CEO Company: Flli. Menabò S.r.l.

FLLI. MENABO’S.r.l. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-06-22 Subject; Request for Confidentiality FCC ID: 2AWIWPADDYSMARTPAD To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Menabò Domenico Title: CEO

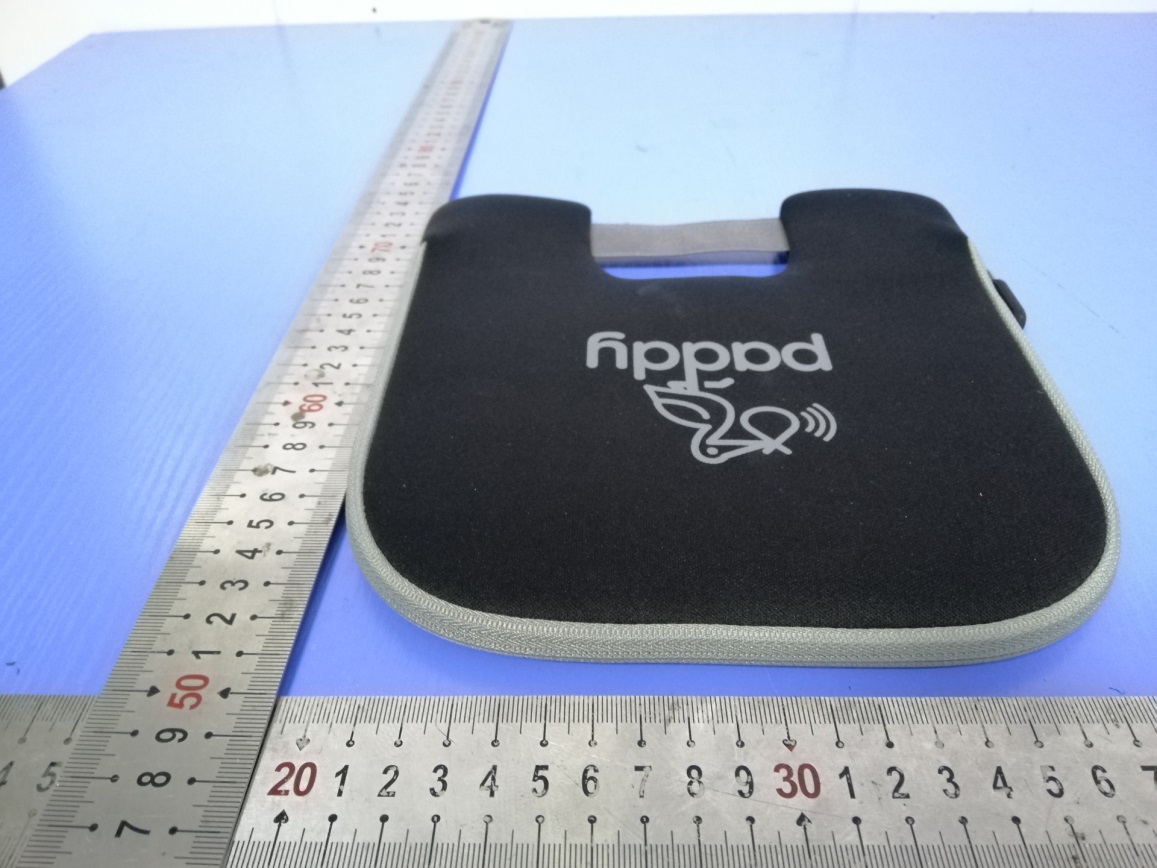

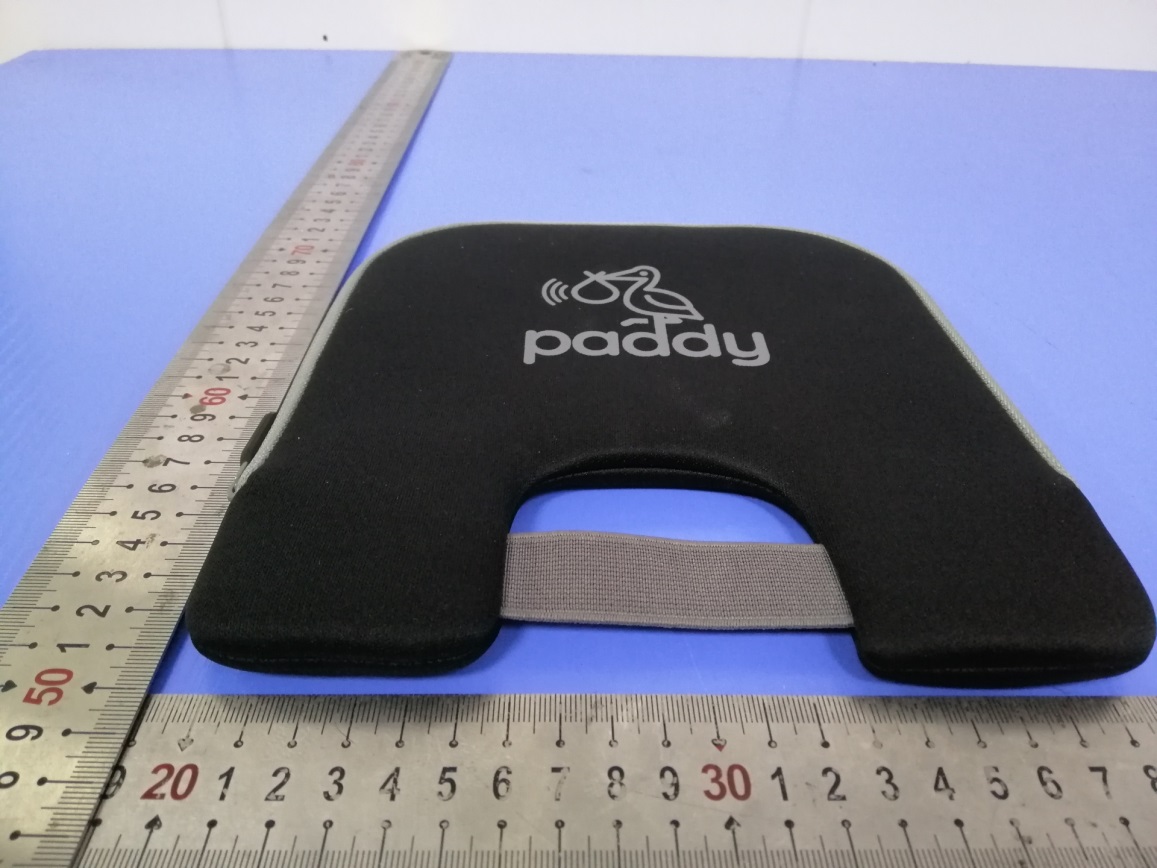

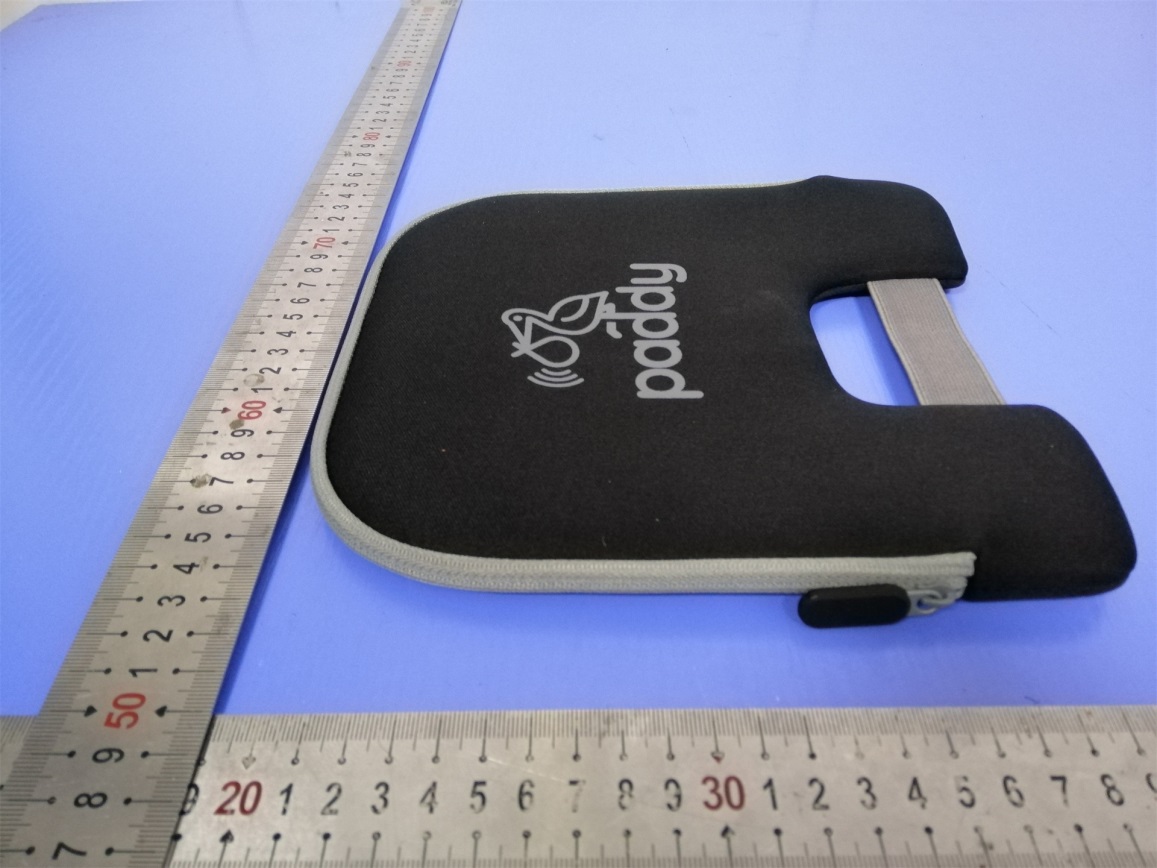

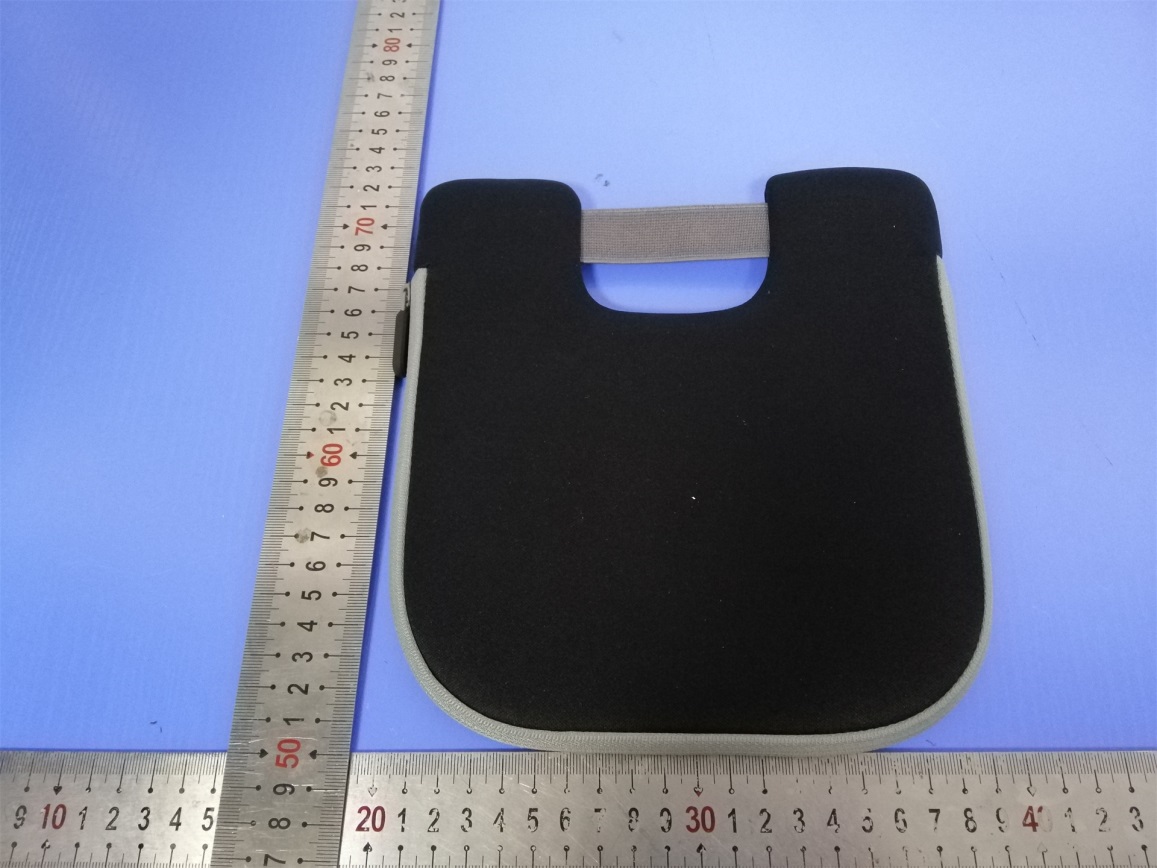

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location PADDY Smart Pad Model No.: 000121100000 FCC ID: 2AWIWPADDYSMARTPAD

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PA D D Y PA D 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PA D D Y PA D Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PA D D Y PA D Fig.5 Fig.6 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PA D D Y PA D Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AWIWPADDYSMARTPAD Product name : PADDY Smart Pad Test Model : 000121100000 Power supply : DC 3V (CR2450) Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V4.1(DTS) Channel Spacing : 2MHz for Bluetooth V4.1(DTS) Modulation Type : GFSK for Bluetooth V4.1(DTS) Bluetooth Version : V4.1 Antenna Type : PCB Antenna Antenna Gain : 0dBi(Max.) Hardware version : 1.0 Software version : 1.0.0 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.843 19 2440 -0.509 39 2480 0.053 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD 5. Manufacturing To l e r a n c e <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.480 5 1 1.26 0.398< 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 6.2 Simultaneous Transmission for SAR Excl…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD Appendix B RF Test Data for BT V4.1(LE) (Conducted Measurement) Product Name: PADDY Smart Pad Trade Mark: Paddy Test Model: 000121100000 Environmental Conditions Temperature: 23.3 ° C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: QUXIN Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav Page 1 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -0.843 30 PASS BT LE MCH -0.509 30 PASS BT LE HCH 0.053 30 PASS Test Graphs LCH MCH Page 2 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD HCH Page 3 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -11.965 8 PASS BT LE MCH -13.347 8 PASS BT LE HCH -15.115 8 PASS Test Graphs LCH MCH Page 4 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD HCH Page 5 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6686 ≥0.5 PASS BT LE MCH 0.7005 ≥0.5 PASS BT LE HCH 0.6979 ≥0.5 PASS Test Graphs LCH MCH Page 6 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD HCH Page 7 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.5 Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.2868 ≥0.5 PASS BT LE MCH 1.3031 ≥0.5 PASS BT LE HCH 1.0674 ≥0.5 PASS Test Graphs LCH MCH Page 8 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD HCH Page 9 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 2.759 -21.520 -17.241 PASS BT LE MCH 3.044 -17.879 -16.956 PASS BT LE HCH 3.862 -23.576 -16.138 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH Page 10 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH Page 11 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH Page 12 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 2.812 -49.309 -17.19 PASS BT LE HCH 3.952 -39.568 -16.05 PASS Test Graphs LCH HCH Page 13 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi t BT LE 2402 Ant1 2310.0 -43.98 2.0 0 53.25 PEAK 74 PASS Ant1 2310.0 -53.51 2.0 0 43.72 AV 54 PASS Ant1 2390.0 -41.70 2.0 0 55.53 PEAK 74 PASS Ant1 2390.0 -51.53 2.0 0 45.70 AV 54 PASS 2480 Ant1 2483.5 -24.23 2.0 0 73.00 PEAK 74 PASS Ant1 2483.5 -52.59 2.0 0 44.64 AV 54 PASS Ant1 2500.0 -39.95 2.0 0 57.28 PEAK 74 PASS Ant1 2500.0 -52.59 2.0 0 44.64 AV 54 PASS Page 14 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV Page 15 of 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV Page 16 of 16

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD Report No.: LCS200506090AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 30 FCC TEST REPORT For FLLI. MENABO’ S.r.l. PADDY Smart Pad Test Model: 000121100000 Prepared for : FLLI. MENABO’ S.r.l. Address : 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 09, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : May 09, 2020 ~ May 14, 2020 Date of Report : May 22, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD Report No.: LCS200506090AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 30 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200506090AEA Date of Issue ................................... : May 22, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : FLLI. MENABO’ S.r.l. Address ........................................... : 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : PADDY Smart Pad Trade Mark ................................................................: Paddy Test Model ................................................................: 000121100000 Ratings ................................................................: DC 3V (CR2450) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD Report No.: LCS200506090AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 30 FCC -- TEST REPORT Test Model........................... : 000121100000 EUT......................................... : PADDY Smart Pad Applicant............................... : FLLI. MENABO’ S.r.l. Address.................................. : 3, Via 8 Marzo Cavriago,Reggio Emilia 42025 Italy Telephone............................... : / Fax.......................................... : / Manufacturer........................ : BABI Limited Address................................... : 20F Mongkok Commercial Centre, 16 Argyle Street, Mongkok, Kowloon, Hong Kong Telephone............................... : / Fax.......................................... : / Factory................................... : Zhejiang JC Antenna Co., Ltd Address................................... : 398#, Zhenye Road, South Street, Jiaxing, Zhejiang, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200506090AEA May 22, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD Report No.: LCS200506090AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 30 Revision History Revision Issue Date Revisions Revised By 000 May 22, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD Report No.: LCS200506090AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. D ESCRIPTION OF D EVICE (EUT) ........................................................................................................................ 6 1.2. H OST S YSTEM C ONFIGURATION L IST AND D ETAILS .......................................................................................... 6 1.3. E XTERNAL I/O C ABLE ......................................................................................................................................... 6 1.4. D ESCRIPTION OF T EST F ACILITY ........................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWIWPADDYSMARTPAD IC : 26156-PADDYPAD _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
