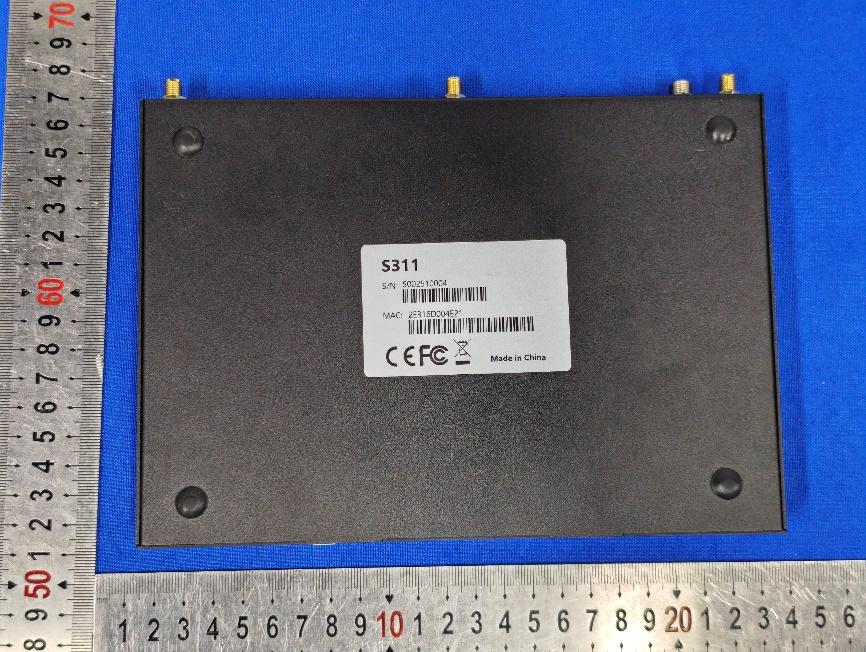

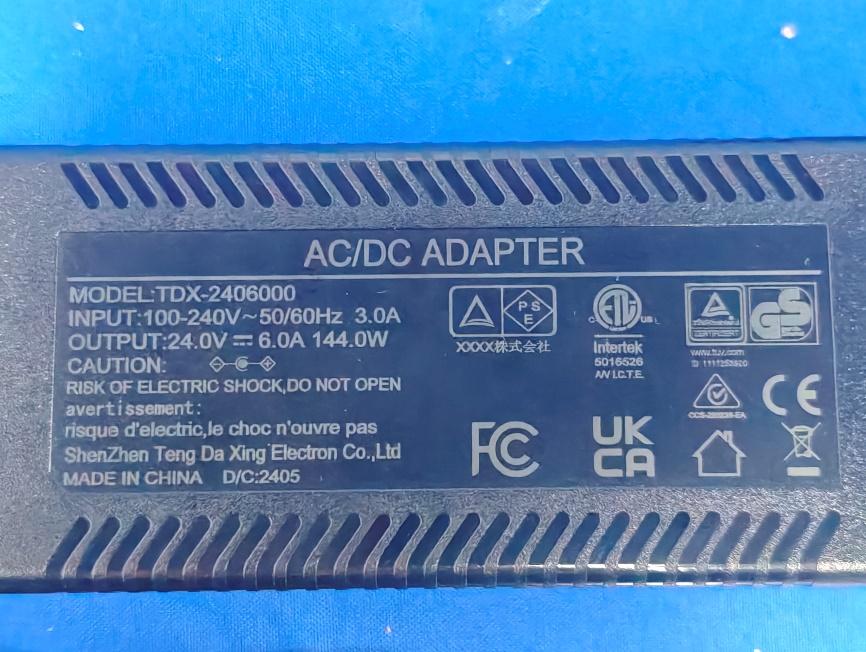

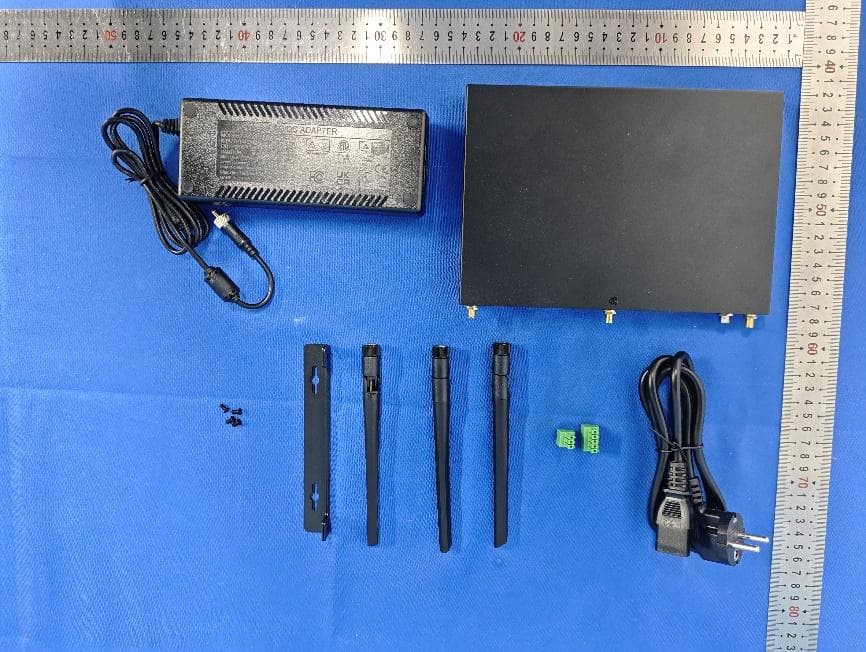

2AWJK-S3113x1 BYOM SWITCHER WITH WIRELESS PRESENTATION

69 / 93 1.6 UCC Device Management 1.6.1 USB Port Settings USB port settings are mainly used to manage the access permissions of the device to USB interfaces (rear panel USB DEVICES interface). There are two USB switching modes:  Follow Source: Switch USB interface devices (such as cameras/microphones, etc.) to be accessed by the current video signal input source. 70 / 93  Manual: Switch USB interface devices (such as cameras/microphones, etc.) to be accessed by the manually selected video signal input source (regardless of whether it is the currently displayed signal source), including HDMI, USB-C, and Wireless three video signal input sources. 1.6.2 USB Camera Allows users to select and monitor UVC and UAC devices connected to the S311 receiver. Allows users to select and view the preview of the current USB video device. When multiple cameras are connected, you can switch the camera to use here. 1.6.3 USB Audio Allows users to select and view the preview of the current USB audio device. When multiple microphones are connected, you can switch the microphone to use here. 71 / 93  Test Speaker: Click this button to test if the audio device outputs sound normally; click again to cancel.  Test Microphone: Click this button to test if the audio device inputs sound normally; click again to cancel. 1.7 System Settings 1.7.1 Date & Time 1. Date & Time Use 24-hour Time Format: When checked, the time will be displayed in 24-hour format; otherwise, it will be in 12-hour format. Time Server Address: 2.android.pool.ntp.org Set Date & Time: ·Use Network Time: Check to use the time provided by the NTP time server as the system time. ·Off: After turning off network time, you can set the date and time manually. 72 / 93  2.Time Zone: Click the "Time Zone" tab to select the appropriate time zone. 1.7.2 Language Allows users to select the display language for the homepage and web page: The default homepage language is English, and the default web page language is English. 73 / 93 1.7.3 Configuration File A configuration file is a downloadable preset that saves all configured parameters so that they can be loaded onto other devices. Upload Configuration: Upload the configuration file. The file name must be "config.dat". Download Configuration: Download the current device configuration to your computer. 74 / 93 1.7.4 Auto Standby If the auto standby mode is activated, S311 will automatically switch to power-saving mode after an optional time following the last wireless dongle disconnection, or when the mobile device's WiFi is disconnected, or when there is no system operation. The time can be selected from "Never" up to 30 minutes. In standby mode, the green LED on the front panel will turn to red, and the HDMI output is turned off. 1.7.5 Scheduled Reboot Allows users to perform scheduled reboots and arrange weekly reboot routines. 75 / 93 Enable Scheduled Reboot Switch: 1.Support setting the scheduled reboot time for the S311 receiver, and select any days yo u need to reboot (from Monday to Sunday). 2.Manually set the reboot time. 3.After confirming the settings, the S311 receiver will reboot at the set date and time. Regardless of whether scheduled reboot is enabled, you can click "Reboot Now" to reboot the device immediately. Note: Before using this function, ensure that the base unit time is set correctly. For convenience, the base unit time can be automatically corrected by connecting the base unit to the Internet. 1.7.6 Restore Factory Settings Allows users to perform factory reset to restore the device to default settings. 76 / 93 1.7.7 Auto Change Password The passwords of all meeting participants remain unchanged while at least one wireless dongle or mobile device is connected to the S311 receiver. After users disconnect, a configurable timeout will start. If the password is changed, users do not need to re-pair the dongle. Options for auto changing password: • Never: Never change the WiFi password (even after POWER-OFF). • 5 Minutes: Change the WiFi password every 5 minutes. • 30 Minutes: Change the WiFi password every 30 minutes. • 1 Hour: Change the WiFi password every 1 hour. • 2 Hours: Change the WiFi password every 2 hours. • 4 Hours: Change the WiFi password every 4 hours. • 24 Hours: Change the WiFi password every 24 hours. 1.8 Firmware Upgrade 1.8.1 Firmware Upgrade Users can upload local update files to upgradeS311. The firmware file format is *.img. 77 / 93 1.9 Security Settings 1.9.1 Security Level According to user needs, three different security levels can be set to meet different security requirements. Click the corresponding item in the menu to adjust the corresponding security functions. The default setting is Level 1. • Level 1: Normal Security; Maintains normal and daily security for any organization (such as classrooms, regular meeting rooms, etc.). • Level 2: Higher Security; Provides higher security for companies, organizations, government agencies, etc., through strong audio and video data encryption; other security functions include restricting "AirPlay" transmission by introducing passwords. • Level 3: For strict security requirements of companies, organizations, authorities, and banks. This level includes all "Level 2" security measures; in addition, all mobile applications and Web settings GUI will be blocked. Moreover, firmware downgrade will be impossible. • Custom: The user can check security level options as needed. The security level will be displayed on the main screen; click the icon. 78 / 93 1.9.2 Login Password This section allows users to change the password to access the web settings GUI. The default password is "admin". • No Password: After checking the setting, the user can log in to the web terminal directly without entering a password in the future. • Current Password: Enter the current login password of the device. • New Password: Enter the new password you want to set. • Confirm New Password: Enter the set new password again. 79 / 93 1.9.3 Clear Record…
