2AWJK-WMT-H16CWireless Presentation System

1 / 103 Wireless AV Content Sharing & BYOD collaboration System (Quad Viewer) User Manual_V1.6 Receiver: WMS-10, WMS-20, WMS-40 Transmitter: WMT-Mini, WMT-H16C,WMT-C16C 2 / 103 Feature List: WMS-10/WMS-20/WMS-40: ⚫ Support quad viewer on one display. ⚫ Support VESA PC resolution input, auto-detecting. ⚫ Can transmit PC’s mirror/extended desktop or Macbook's mirror desktop. ⚫ Can transmit smart devices' mirror, photos, videos, music etc. ⚫ Support the Wireless Media Teleporter "show-me" button. ⚫ Support HDMI/ Type C plug-in auto configuration/pairing for Wireless Media Teleporter "show-me" button. ⚫ Support "Airplay" for apple device. WMT-Mini/WMT-H16C/WMT-C16C: ⚫ Support VESA PC resolution, auto-detecting. ⚫ Can wireless transmit PC's mirror or extended desktop to base unit. ⚫ Quick "Show-me" button to selection switcher the active signal of PC, less than 1s. ⚫ "Show-me" button can independently step in/out the source of PC. ⚫ Dual color LED, green indicates active source signal, red indicates power/link. (Hardware support on USB dongle, HDMI dongle and type C dongle) Version log: Version Revise time Description 1.0 2019, NOV. 21 th Created 1.5 2020, MAR.13 th Updated 3 / 103 Catalogue 1. Overview: ......................................................................................................................................................... 6 2. Specification: ................................................................................................................................................... 8 3. Panel Layout ................................................................................................................................................... 8 3.1 Hardware Interface .......................................................................................................................... 9 3.1.1 WMS-10/WMS-20/WMS-40 Front Panel ..................................................................................... 9 3.1.2 WMS-10/WMS-20/WMS-40 Rear Panel .................................................................................... 11 3.1.3 Factory Reset ................................................................................................................................. 12 3.2 Software Interface ......................................................................................................................... 17 3.2.1 Home Screen ................................................................................................................................. 17 4. Installation ..................................................................................................................................................... 19 4.1 Installation methods for the Base unit ....................................................................................... 19 4.2 Wiring Diagram ............................................................................................................................. 20 4.3 Power Connection ......................................................................................................................... 21 4.4 Video Connection.......................................................................................................................... 21 4.5 Audio Connection ......................................................................................................................... 22 4.6 LAN connection ............................................................................................................................. 24 4.7 Usage of USB device ..................................................................................................................... 24 5. Quick-to-Start ............................................................................................................................................... 25 5.1 Mobile device: Wireless Connection ........................................................................................... 25 5.1.1 Enable portable hotspot: ................................................................................................................... 26 5.1.2 Enable LAN connection: ............................................................................................................... 27 5.2 Pairing transmitter with base unit ............................................................................................... 28 5.3 Mirroring ........................................................................................................................................ 29 5.3.1 PC/Lap-top ..................................................................................................................................... 29 5.3.2 Mobiles Devices............................................................................................................................. 32 5.4 Preview Window ............................................................................................................................ 35 5.5 Whiteboard & Annotation ........................................................................................................... 37 5.5.1 Whiteboard ....................................................................................................................................... 38 5.5.2 Annotation ........................................................................................................................................ 40 1. Web Setting Management Configuration ................................................................................................ 42 4 / 103 6.1 Network settings ........................................................................................................................... 45 6.1.1 Wireless network ........................................................................................................................... 45 6.1.2 Ethernet .......…

Text truncated - open the document above for the full version.

-GrastronTechnologyCO.,LTD- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 3/16/23 Towhomitmayconcern: We,[GrastronTechnologyCO.,LTD],herebycertifythattheequipmentforwhichauthorizationis sought(FCCID:[2AWJK-WMT-H16C])isnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [HaohangHou] [Manager] [GrastronTechnologyCO.,LTD] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

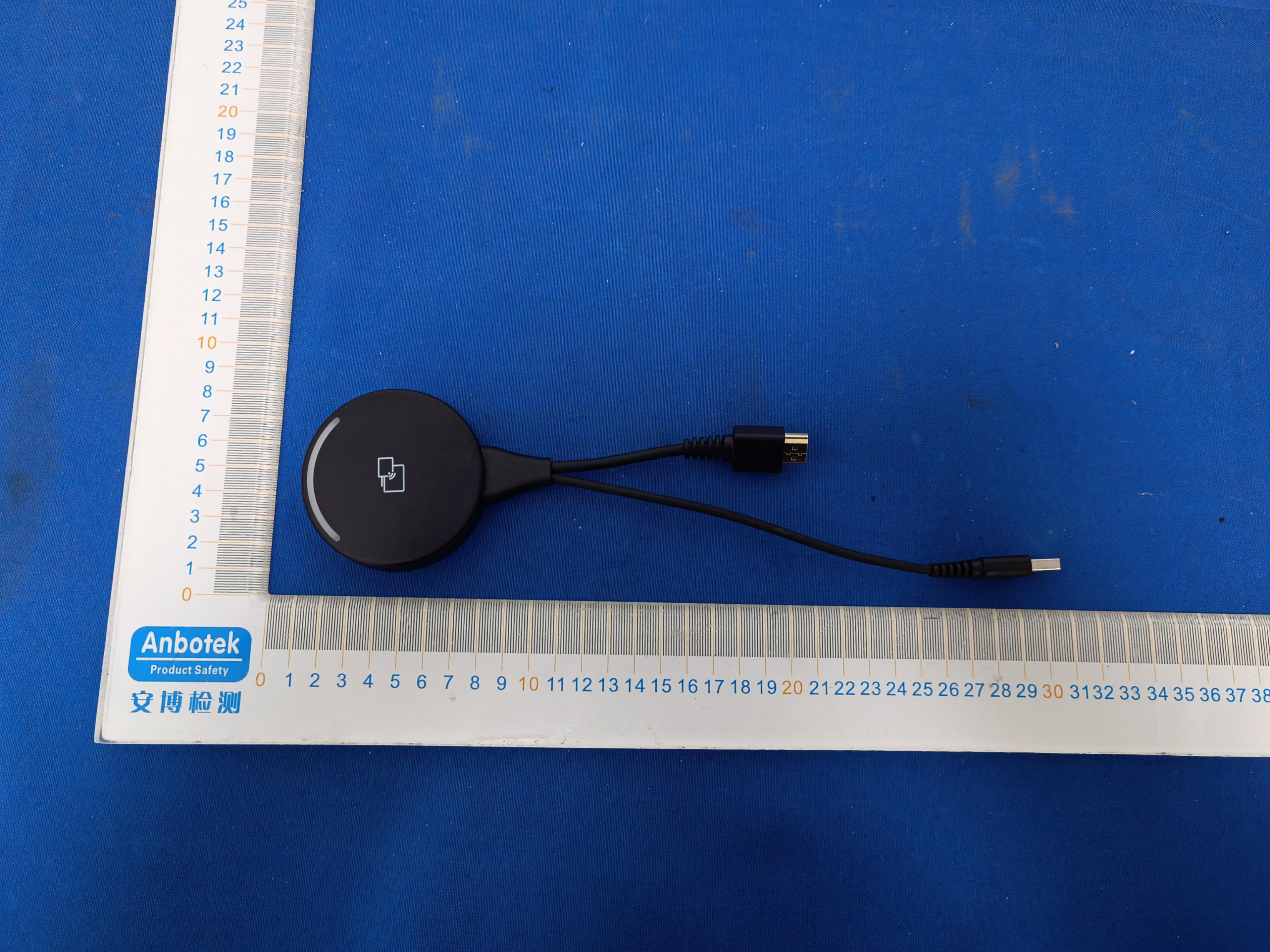

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b ANT2ANT1

version01 GrastronTechnologyCO.,LTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:WMT-H16C,DG-H16,DG-H19,WMT-H10C,WMT-H11C,WMT-H12C,WMT- H13C,WMT-H14C,WMT-H15C,WMT-H17C,WMT-H18C,WMT-H19C FCCID:2AWJK-WMT-H16C fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ANT1: ModelNo.ofantenna:ANT016008LCD2442MA1 Typeofantenna:CeramicAntenna Gainoftheantenna:2.27dBifor2400-2490MHz; 5.18dBifor5150~5250MHz; 4.09dBifor5725~5850MHz ANT2: ModelNo.ofantenna:ANT016008LCD2442MA1 Typeofantenna:CeramicAntenna Gainoftheantenna:2.27dBifor2400-2490MHz; 5.18dBifor5150~5250MHz; 4.09dBifor5725~5850MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:GrastronTechnologyCO.,LTD Address:401Building#BDingxinScienceandTechnologyPark,Honglangbei#2 Road,Xin'anstreet,Baoandistrict,Shenzhen,GuangdongProvince,China City:Shenzhen,GuangdongProvince ZIP/Postalcode:/ Country:China Place:Date:3/23/2023 Signature:

Apr. 2015Ver.2.0 TDK Corporation P/N: Multilayer Antenna For 2.4GHz W-LAN & Bluetooth / 5GHz W-LAN TY PEANT Series ANT016008LCD2442MA1 1608 All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2015Ver.2.0 TDK Corporation Dimensions (mm) LWTabcdef 1.600.800.40 0.215 0.250.20 (0.10) 0.63 (0.10) +/-0.10 +/-0.10Max+/-0.10 +/-0.10 +/-0.10 +/-0.10 Terminal functions (1)(6) (2) (3) (4) (5) *Terminal (2),(3),(5) and (6) :Connected in inner structure –40 to +85 °C Storage temperature –40 to +85 °C Operating temperature Note: These samples are marked with trial sample identification. In mass production, this sample marking will be changed to show in the TDK full specification. ■ SHAPES AND DIMENSIONS ANT016008LCD2442MA1 ■ TEMPERATURE RANGE Feed point Radiator electrode for 2.4GHz ISM Feed point Feed point Radiator electrode for 5.5GHz Feed point All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2015Ver.2.0 TDK Corporation Min.Typ.Max. VSWR2400 to 2484-3.816.5 5150 to 5850-2.654.0 Polarization PCB Size (mm) Antenna keep-out Area (mm) Characteristic Impedance (ohm) * This is typical antenna performance with the standard PCB. Note: Tested antenna has been soldered. Evaluation board size is 120x65x1 mm. ■ FREQUENCY CHARACTERISTICS 50 (Nominal) ■ ELECTRICAL CHARACTERISTICS ParameterFrequency (MHz) TDK Spec ( Measurement ) ANT016008LCD2442MA1 Linear 120x65 8x5 IEEE802.11a -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 5.00 5.20 5.40 5.60 5.80 6.00 Frequency (GHz) Efficiency (dB) 1 2 3 4 5 6 7 8 9 10 11 VSWR IEEE802.11b/g/n -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 2.30 2.35 2.40 2.45 2.50 2.55 2.60 Frequency (GHz) Efficiency (dB) 1 2 3 4 5 6 7 8 9 10 11 VSWR All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2015Ver.2.0 TDK Corporation PCB size : 120mm x 65mm x 1mm Antenna area : 8 x 5 mm Measurement condition for Radiation Pattern 1.5nH(MLG1005S1N5C:TDK) Mt Common ANT016008LCD2442MA1 ■ EVALUATION BOARD Ft 2.4GHz Component P/N 2.5pF(C0603CH1E2R5B:TDK) 0.3pF(C0603CH1E0R3B:TDK)Ft 5.5GHz Z Y X φ θ E EE Eφ φφ φ E EE Eθ θθ θ Er ErEr Er PCB Chip antenna Ft 5.5GHzFt 2.4GHz ANT016008LCD2442MA1 Mt Common All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2015Ver.2.0 TDK Corporation Note: Tested antenna has been soldered. Evaluation board size is 120x65x1 mm. 2.4GHz ISM Band ANT016008LCD2442MA1 ■ Radiation Pattern Frequency[GHz] 2.4002.4422.485Frequency[GHz]2.4002.4422.485 Average[dBi]-7.06-5.44-6.82 Average[dBi] -9.62-8.45-10.13 Maximum[dBi]-2.18-0.48-1.94 Maximum[dBi] -2.82-1.44-3.02 Minimum[dBi] -27.38-44.31-29.46Minimum[dBi]-36.90-34.11-32.46 Frequency[GHz] 2.4002.4422.485Frequency[GHz]2.4002.4422.485 Average[dBi]-5.81-4.32-5.70 Average[dBi] -21.03-19.00-20.43 Maximum[dBi]0.542.271.19 Maximum[dBi] -13.19-12.04-12.29 Minimum[dBi] -26.20-27.25-22.01Minimum[dBi]-48.22-46.88-40.26 Frequency[GHz]2.4002.4422.485 Frequency[GHz] 2.4002.4422.485 Average[dBi]-17.05-15.74-17.47 Average[dBi] -3.21-1.68-3.18 Maximum[dBi]-11.24-9.64-11.46 Maximum[dBi] -0.540.98-0.23 Minimum[dBi] -48.22-51.80-40.53Minimum[dBi]-7.87-6.33-7.97 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi H-Pol.V-Pol. -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi Horizontal PolarizationVertical Polarization Vertical Polarization Vertical Polarization Horizontal Polarization Horizontal Polarization 2.400 2.442 2.485 2.400 2.442 2.485 2.400 2.442 2.485 0° 270°90° Y Z X 0° 270°90° X Z Y 0° 270°90° Z X Y [Unit:GHz] [Unit:GHz] [Unit:GHz] Deg Deg Deg Deg Deg Deg All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2015Ver.2.0 TDK Corporation Note: Tested antenna has been soldered. Evaluation board size is 120x65x1 mm. 5.5GHz Band ANT016008LCD2442MA1 ■ Radiation Pattern Frequency[GHz] 5.1505.5005.850Frequency[GHz]5.1505.5005.850 Average[dBi]-2.39-2.73-3.25 Average[dBi] -7.05-7.06-7.32 Maximum[dBi]4.224.783.29 Maximum[dBi] 0.040.890.31 Minimum[dBi] -42.06-29.06-34.55Minimum[dBi]-27.83-26.31-30.64 Frequency[GHz] 5.1505.5005.850Frequency[GHz]5.1505.5005.850 Average[dBi]-2.74-3.11-3.60 Average[dBi] -17.92-15.62-15.19 Maximum[dBi]5.185.044.09 Maximum[dBi] -9.40-6.43-7.73 Minimum[dBi] -15.95-17.14-16.56Minimum[dBi]-42.06-37.80-33.50 Frequency[GHz]5.1505.5005.850 Frequency[GHz] 5.1505.5005.850 Average[dBi]-11.65-13.95-15.05 Average[dBi] -5.64-4.76-4.21 Maximum[dBi]-3.56-5.67-8.20 Maximum[dBi] -2.18-1.95-1.61 Minimum[dBi] -31.10-32.99-38.35 Minimum[dBi] -15.95-29.68-16.91 -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi -40 -30 -20 -10 0 10 0 45 90 135 180 225 270 315 dBi Horizontal PolarizationVertical Polarization Vertical Polarization Vertical Polarization Horizontal Polarization Horizontal Polarization 5.150 5.500 5.850 5.150 5.500 5.850 5.150 5.500 5.850 0° 270°90° Y Z X 0° 270°90° X Z Y 0° 270°90° Z X Y [Unit:GHz] [Unit:GHz] [Unit:GHz] Deg Deg Deg Deg Deg Deg H-Pol.V-Pol. All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Apr. 2015Ver.2.0 TDK Corporation Center line of Chip antenna Antenna keep out area (All Layer GND off) Ft : Frequency tuning component Mt : Impedance matching component Antenna Pattern VIA : Φ0.2mm GND [ U…

Text truncated - open the document above for the full version.

RF EXPOSUREEVALUATION Accordingto FCC 1.1310:The criterialistedin the followingtableshall be used to evaluatethe environmentimpactof humanexposureto radiofrequency(RF)Radiation as specifiedin §1.1307(b) FCC ID : 2AWJK-WMT-H16C EUTSpecification EUTWireless PresentationSystem Frequencyband(Operating)WLAN:2.412GHz~ 2.462GHz WLAN:5.18GHz~ 5.24GHz WLAN:5.745GHz~ 5825GHz Others: BLE:2402-2480MHz DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure GeneralPopulation/Uncontrolledexposure AntennadiversitySingleantenna Multipleantennas Tx diversity Rx diversity Tx/Rxdiversity Max.outputpowerWiFi2.4G ANT1:16.13dBm(0.0410W) WiFi2.4G ANT2:15.17dBm(0.0329W) WiFi5.2G ANT1:17.45dBm(0.0556W) WiFi5.2G ANT2:17.02dBm(0.0504W) WiFi5.8G ANT1:16.96dBm(0.0497W) WiFi5.8G ANT2:16.96dBm(0.0497W) Antennagain (Max)WiFi2.4G ANT1/ ANT2:2.27dBi WiFi5.2G ANT1/ ANT2:5.18dBi WiFi5.8G ANT1/ ANT2:4.09dBi DirectionalantennagainWiFi2.4G:5.28dBi WiFi5.2G: 8.19dBi WiFi5.8G: 7.10dBi EvaluationappliedMPEEvaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/150030 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm 2 ) (dBm)(dBm)(dBm)(dBi)(mW/cm 2 ) WiFi 2.4G ANT116.1316.13±117.132.270.01731 WiFi 2.4G ANT215.1715.17±116.172.270.01391 WiFi 2.4G MIMO17.6217.62±118.625.280.04891 WiFi 5.2G ANT117.4517.45±118.455.180.04591 WiFi 5.2G ANT217.0217.02±118.025.180.04161 WiFi 5.2G MIMO20.1020.10±121.108.190.16901 WiFi 5.8G ANT116.9616.96±117.964.090.03191 WiFi 5.8G ANT216.9616.96±117.964.090.03191 WiFi 5.8G MIMO19.9719.97±120.977.100.12761 Note: The WiFi 2.4G and WiFi 5G c annot transmit simultaneously.

Page1of102 AppendixTestData ReportNo.:18220WC20283801TestSampleNo.:1-2-2 StartTestDate:2022.12.13FinishTestDate:2023.2.9 TestEngineer:Auditor: Temperature:24.3 °C RelativeHumidity:50% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz]DTSBW[MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict 11B Ant124129.0802407.4802416.560 ≥0.5 PASS Ant224129.5602407.4802417.040≥0.5PASS Ant124379.0802432.4802441.560≥0.5PASS Ant224379.0802432.4402441.520≥0.5PASS Ant124629.5602457.0002466.560 ≥0.5 PASS Ant224629.0402457.4402466.480≥0.5PASS 11G Ant1241216.3602403.8402420.200≥0.5PASS Ant2241216.3602403.8402420.200≥0.5PASS Ant1243716.4402428.7602445.200≥0.5PASS Ant2243716.3202428.8402445.160≥0.5PASS Ant1246216.3202453.8402470.160≥0.5PASS Ant2246216.3602453.8002470.160≥0.5PASS 11N20 Ant1241217.5602403.2402420.800≥0.5PASS Ant2241217.6002403.2002420.800≥0.5PASS Ant1243717.6002428.2002445.800≥0.5PASS Ant2243717.6002428.2002445.800≥0.5PASS Ant1246217.6002453.2002470.800≥0.5PASS Ant2246217.5602453.2002470.760≥0.5PASS 11N40 Ant1242235.4602404.4202439.880≥0.5PASS Ant2242235.8202404.0602439.880≥0.5PASS Ant1243735.4602419.1202454.580≥0.5PASS Ant2243735.7002418.8802454.580≥0.5PASS Ant1245235.7002433.8802469.580≥0.5PASS Ant2245235.7002433.8802469.580≥0.5PASS Page2of102 TestGraphs 11B_Ant1_2412 11B_Ant2_2412 11B_Ant1_2437 Page3of102 11B_Ant2_2437 11B_Ant1_2462 Page4of102 11B_Ant2_2462 11G_Ant1_2412 Page5of102 11G_Ant2_2412 11G_Ant1_2437 Page6of102 11G_Ant2_2437 11G_Ant1_2462 Page7of102 11G_Ant2_2462 11N20_Ant1_2412 Page8of102 11N20_Ant2_2412 11N20_Ant1_2437 Page9of102 11N20_Ant2_2437 11N20_Ant1_2462 Page10of102 11N20_Ant2_2462 11N40_Ant1_2422 Page11of102 11N40_Ant2_2422 11N40_Ant1_2437 Page12of102 11N40_Ant2_2437 11N40_Ant1_2452 Page13of102 11N40_Ant2_2452 Page14of102 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz]OCB[MHz]FL[MHz]FH[MHz] 11B Ant1241212.2822405.93422418.2162 Ant2241212.2942405.92922418.2232 Ant1243712.3002430.84792443.1479 Ant2243712.3092430.83772443.1467 Ant1246212.3402455.82102468.1610 Ant2246212.3332455.80832468.1413 11G Ant1241217.0352403.54072420.5757 Ant2241217.0812403.53302420.6140 Ant1243717.0532428.45502445.5080 Ant2243717.1262428.43592445.5619 Ant1246217.1682453.41452470.5825 Ant2246217.0872453.46122470.5482 11N20 Ant1241217.9372403.10102421.0380 Ant2241217.9852403.07002421.0550 Ant1243717.9842427.99022445.9742 Ant2243717.9442428.03722445.9812 Ant1246217.9182453.03012470.9481 Ant2246217.9662453.01452470.9805 11N40 Ant1242236.0992404.01222440.1112 Ant2242236.0772404.00262440.0796 Ant1243736.1432418.89412455.0371 Ant2243736.1222418.95632455.0783 Ant1245236.1412433.85642469.9974 Ant2245236.1452433.88322470.0282 Page15of102 TestGraphs 11B_Ant1_2412 11B_Ant2_2412 11B_Ant1_2437 Page16of102 11B_Ant2_2437 11B_Ant1_2462 Page17of102 11B_Ant2_2462 11G_Ant1_2412 Page18of102 11G_Ant2_2412 11G_Ant1_2437 Page19of102 11G_Ant2_2437 11G_Ant1_2462 Page20of102 11G_Ant2_2462 11N20_Ant1_2412 Page21of102 11N20_Ant2_2412 11N20_Ant1_2437 Page22of102 11N20_Ant2_2437 11N20_Ant1_2462 Page23of102 11N20_Ant2_2462 11N40_Ant1_2422 Page24of102 11N40_Ant2_2422 11N40_Ant1_2437 Page25of102 11N40_Ant2_2437 11N40_Ant1_2452 Page26of102 11N40_Ant2_2452 Page27of102 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz]PeakPower[dBm]ConductedLimit[dBm] 11B Ant1241216.13≤30.00 Ant2241215.15≤30.00 Ant1243714.91≤30.00 Ant2243715.05≤30.00 Ant1246215.39≤30.00 Ant2246215.17≤30.00 11G Ant1241214.69≤30.00 Ant2241214.45≤30.00 Ant1243714.77≤30.00 Ant2243714.50≤30.00 Ant1246214.59≤30.00 Ant2246214.45≤30.00 11N20 Ant1241214.70≤30.00 Ant2241214.51≤30.00 Ant1243714.58≤30.00 Ant2243714.50≤30.00 Ant1246214.56≤30.00 Ant2246214.46≤30.00 11N40 Ant1242214.23≤30.00 Ant2242214.32≤30.00 Ant1243713.94≤30.00 Ant2243714.03≤30.00 Ant1245213.69≤30.00 Ant2245213.98≤30.00 Page28of102 MIMO TestModeAntennaFrequency[MHz]PeakPower[dBm] Conducted Limit[dBm] Verdict 11N20 Ant1+Ant2241217.62≤30PASS Ant1+Ant2243717.55≤30PASS Ant1+Ant2246217.52≤30PASS 11N40 Ant1+Ant2242217.29≤30PASS Ant1+Ant2243717.00≤30PASS Ant1+Ant2245216.85≤30PASS Note: 1.Total(dBm)=10xlog(10 (ANT1power(dBm)/10) +10 (ANT2power(dBm)/10) ) 2.AsDirectionalgain=10log[(10 G1/20 +10 G2/20 ) 2 /N ANT ]dBi, soMIMOLimit(dBm)=Limit-(Directionalgain-6.00). Page29of102 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict 11B Ant12412-9.63≤8.00PASS Ant22412-6.57≤8.00PASS Ant12437-10.83≤8.00PASS Ant22437-8.91≤8.00PASS Ant12462-9.31≤8.00PASS Ant22462-9.77≤8.00PASS 11G Ant12412-17.2≤8.00PASS Ant22412-17.61≤8.00PASS Ant12437-18.21≤8.00PASS Ant22437-17.72≤8.00PASS Ant12462-17.81≤8.00PASS Ant22462-16.94≤8.00PASS 11N20 Ant12412-16.77≤8.00PASS Ant22412-18.36≤8.00PASS Ant12437-16.16≤8.00PASS Ant22437-17.72≤8.00PASS Ant12462-18≤8.00PASS Ant22462-17.35≤8.00PASS 11N40 Ant12422-17.33≤8.00PASS Ant22422-18.33≤8.00PASS Ant12437-18.23≤8.00PASS Ant22437-19.02≤8.00PASS Ant12452-18.54≤8.00PASS Ant22452-18.01≤8.00PASS Page30of102 MIMO TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict 11N20 Ant1+Ant22412-14.48≤8PASS Ant1+Ant22437-13.86≤8PASS Ant1+Ant22462-14.65≤8PASS 11N40 Ant1+Ant22422-14.79≤8PASS Ant1+Ant22437-15.60≤8PASS Ant1+Ant22452-15.26≤8PASS Note: 1.Total(dBm/3kHz)=10xlog(10 (ANT1power(dBm)/10) +10 (ANT2power(dBm)/10) ) 2.AsDirectionalgain=10log[(10 G1/20 +10 G2/20 ) 2 /N ANT ]dBi, soMIMOLimit(dBm/3kHz)=Limit-(Directionalgain-6.00). Page31of102 TestGraphs 11B_Ant1_2412 11B_Ant2_2412 11B_Ant1_2437 Page32of102 11B_Ant2_2437 11B_Ant1_2462 Page33of102 11B_Ant2_2462 11G_Ant1_2412 Page34of102 11G_Ant2_2412 11G_Ant1_2437 Page35of102 11G_Ant2_2437 11G_Ant1_2462 Page36of102 11G_Ant2_2462 11N20_Ant1_2412 Page37of102 11N20_Ant2_2412 11N20_Ant1_2437 Page38of102 11N20_Ant2_2437 11N20_Ant1_2462 Page39of102 11N20_Ant2_2462 11N40_Ant1_2422 Page40of102 11N40_Ant2_2422 11N40_Ant1_2437 Page41of102 11N40_Ant2_2437 11N40_Ant1_2452 Page42of102 11N40_Ant2_2452 Page43of102 AppendixE:Bandedgemeasurements Tes…

Text truncated - open the document above for the full version.

Page52of102 AppendixF:ConductedSpuriousEmission TestResult TestModeAntennaFrequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant12412 Reference3.163.16---PASS 30~10003.16-68.1≤-16.84PASS 1000~265003.16-53.37≤-16.84PASS Ant22412 Reference1.621.62---PASS 30~10001.62-68.71≤-18.38PASS 1000~265001.62-52.98≤-18.38PASS Ant12437 Reference1.941.94---PASS 30~10001.94-63.13≤-18.06PASS 1000~265001.94-53.28≤-18.06PASS Ant22437 Reference2.532.53---PASS 30~10002.53-68.59≤-17.47PASS 1000~265002.53-53.36≤-17.47PASS Ant12462 Reference2.262.26---PASS 30~10002.26-68.44≤-17.74PASS 1000~265002.26-53.41≤-17.74PASS Ant22462 Reference1.101.10---PASS 30~10001.10-68.63≤-18.9PASS 1000~265001.10-53.22≤-18.9PASS 11G Ant12412 Reference-4.51-4.51---PASS 30~1000-4.51-68.17≤-24.51PASS 1000~26500-4.51-53.31≤-24.51PASS Ant22412 Reference-7.45-7.45---PASS 30~1000-7.45-68.53≤-27.45PASS 1000~26500-7.45-53.01≤-27.45PASS Ant12437 Reference-4.43-4.43---PASS 30~1000-4.43-68.81≤-24.43PASS 1000~26500-4.43-53.12≤-24.43PASS Ant22437 Reference-6.22-6.22---PASS 30~1000-6.22-68.76≤-26.22PASS 1000~26500-6.22-52.48≤-26.22PASS Ant12462 Reference-5.19-5.19---PASS 30~1000-5.19-68.97≤-25.19PASS 1000~26500-5.19-53.37≤-25.19PASS Ant22462 Reference-4.62-4.62---PASS 30~1000-4.62-68.79≤-24.62PASS 1000~26500-4.62-52.98≤-24.62PASS Page53of102 11N20 Ant12412 Reference-7.76-7.76---PASS 30~1000-7.76-69.35≤-27.76PASS 1000~26500-7.76-53.47≤-27.76PASS Ant22412 Reference-7.07-7.07---PASS 30~1000-7.07-68.53≤-27.07PASS 1000~26500-7.07-53.17≤-27.07PASS Ant12437 Reference-7.26-7.26---PASS 30~1000-7.26-69.28≤-27.26PASS 1000~26500-7.26-53.41≤-27.26PASS Ant22437 Reference-4.44-4.44---PASS 30~1000-4.44-68.95≤-24.44PASS 1000~26500-4.44-53.22≤-24.44PASS Ant12462 Reference-5.14-5.14---PASS 30~1000-5.14-68.53≤-25.14PASS 1000~26500-5.14-52.69≤-25.14PASS Ant22462 Reference-6.59-6.59---PASS 30~1000-6.59-68.4≤-26.59PASS 1000~26500-6.59-52.78≤-26.59PASS 11N40 Ant12422 Reference-4.89-4.89---PASS 30~1000-4.89-68.83≤-24.89PASS 1000~26500-4.89-53.64≤-24.89PASS Ant22422 Reference-6.35-6.35---PASS 30~1000-6.35-68.77≤-26.35PASS 1000~26500-6.35-52.97≤-26.35PASS Ant12437 Reference-5.89-5.89---PASS 30~1000-5.89-68.58≤-25.89PASS 1000~26500-5.89-53.21≤-25.89PASS Ant22437 Reference-5.50-5.50---PASS 30~1000-5.50-68.7≤-25.5PASS 1000~26500-5.50-53.72≤-25.5PASS Ant12452 Reference-4.80-4.80---PASS 30~1000-4.80-68.49≤-24.8PASS 1000~26500-4.80-52.87≤-24.8PASS Ant22452 Reference-4.71-4.71---PASS 30~1000-4.71-56.22≤-24.71PASS 1000~26500-4.71-52.77≤-24.71PASS Page54of102 TestGraphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Page55of102 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 Page56of102 11B_Ant2_2412_1000~26500 11B_Ant1_2437_0~Reference Page57of102 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 Page58of102 11B_Ant2_2437_0~Reference 11B_Ant2_2437_30~1000 Page59of102 11B_Ant2_2437_1000~26500 11B_Ant1_2462_0~Reference Page60of102 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Page61of102 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 Page62of102 11B_Ant2_2462_1000~26500 11G_Ant1_2412_0~Reference Page63of102 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Page64of102 11G_Ant2_2412_0~Reference 11G_Ant2_2412_30~1000 Page65of102 11G_Ant2_2412_1000~26500 11G_Ant1_2437_0~Reference Page66of102 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Page67of102 11G_Ant2_2437_0~Reference 11G_Ant2_2437_30~1000 Page68of102 11G_Ant2_2437_1000~26500 11G_Ant1_2462_0~Reference Page69of102 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Page70of102 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 Page71of102 11G_Ant2_2462_1000~26500 11N20_Ant1_2412_0~Reference Page72of102 11N20_Ant1_2412_30~1000 11N20_Ant1_2412_1000~26500 Page73of102 11N20_Ant2_2412_0~Reference 11N20_Ant2_2412_30~1000 Page74of102 11N20_Ant2_2412_1000~26500 11N20_Ant1_2437_0~Reference Page75of102 11N20_Ant1_2437_30~1000 11N20_Ant1_2437_1000~26500 Page76of102 11N20_Ant2_2437_0~Reference 11N20_Ant2_2437_30~1000 Page77of102 11N20_Ant2_2437_1000~26500 11N20_Ant1_2462_0~Reference Page78of102 11N20_Ant1_2462_30~1000 11N20_Ant1_2462_1000~26500 Page79of102 11N20_Ant2_2462_0~Reference 11N20_Ant2_2462_30~1000 Page80of102 11N20_Ant2_2462_1000~26500 11N40_Ant1_2422_0~Reference Page81of102 11N40_Ant1_2422_30~1000 11N40_Ant1_2422_1000~26500 Page82of102 11N40_Ant2_2422_0~Reference 11N40_Ant2_2422_30~1000 Page83of102 11N40_Ant2_2422_1000~26500 11N40_Ant1_2437_0~Reference Page84of102 11N40_Ant1_2437_30~1000 11N40_Ant1_2437_1000~26500 Page85of102 11N40_Ant2_2437_0~Reference 11N40_Ant2_2437_30~1000 Page86of102 11N40_Ant2_2437_1000~26500 11N40_Ant1_2452_0~Reference Page87of102 11N40_Ant1_2452_30~1000 11N40_Ant1_2452_1000~26500 Page88of102 11N40_Ant2_2452_0~Reference 11N40_Ant2_2452_30~1000 Page89of102 11N40_Ant2_2452_1000~26500 Page90of102 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] Transmission Duration[ms] Transmission Period[ms] DutyCycle [%] Factor 11B Ant124128.388.4199.640.02 Ant224128.398.4299.640.02 Ant124378.398.4299.640.02 Ant224378.388.4199.640.02 Ant124628.388.4199.640.02 Ant224628.388.4199.640.02 11G Ant124121.391.4297.890.09 Ant224121.401.4397.900.09 Ant124371.401.4397.900.09 Ant224371.391.4297.890.09 Ant124621.391.4397.200.12 Ant224621.391.4397.200.12 11N20 Ant124121.301.3497.010.13 Ant224121.301.3497.010.13 Ant124371.301.3497.010.13 Ant224371.301.3397.740.10 Ant124621.301.3497.010.13 Ant224621.301.3497.010.13 11N40 Ant124220.640.6894.120.26 Ant224220.650.6994.200.26 Ant124370.640.6894.120.26 Ant224370.650.6895.590.20 Ant124520.650.6895.590.20 Ant224520.650.6994.200.26 Page91of102 TestGraphs 11B_Ant1_2412 11B_Ant2_2412 11B_Ant1_2437 Page92of102 11B_Ant2_2437 11B_Ant1_2462 Page93of102 11B_Ant2_2462 11G_Ant1_2412 Page94of102 11G_Ant2_2412 11G_Ant1_2437 Page95of102 11G_Ant2_2437 11G_Ant1_2462 Page96of102 11G_Ant2_2462 11N20_Ant1_2412 Page97of102 11N20_Ant2_2412 11N20_Ant1_2437 Page98of102 11N20_Ant2_2437 11N20_Ant1_2462 Page99of102 11N20_Ant2_2462 11N40_Ant1_2422 Page100of102 11N40…

Text truncated - open the document above for the full version.

ReportNo.:18220WC20283801FCCID:2AWJK-WMT-H16CPage1of34 Code:AB-RF-05-b FCCTestReport ClientName:GrastronTechnologyCO.,LTD ClientAddress: 401Building#BDingxinScienceand TechnologyPark,Honglangbei#2Road,Xin’an street,Baoandistrict,Shenzhen,Guangdong Province,China ProductName:WirelessPresentationSystem ReportDate:Mar.16,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20283801FCCID:2AWJK-WMT-H16CPage2of34 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................7 1.4.DescriptionofTestConfiguration.........................................................................................................7 1.5.DescriptionofTestSetup.............................................................................................................…

Text truncated - open the document above for the full version.
