2AWKU-SV3100Video Conferencing Room Solution

Video Conferencing Room Soluon User Manual V1.0 This manual introduces the funcons, installaon and operaons for SV3100video conferencing room soluon in details. Please read this manual carefully before installaon and use. Aenons To prevent damage to this product or any product connected to it, this product can only be used within the specified range. 1.1 Do not expose the product to rain or moisture. 1.2 To prevent the risk of electric shock, do not open the case. Installaon and maintenance should only be carried out by qualified technicians. 1.3 Do not use the product beyond the specified temperature, humidity or power supply specificaons. 1.4 Wipe it with a so, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecng the image. 1.How to Use Installaon and use of this product must strictly comply with local electrical safety standards. 2.Electrical Safety Avoid damage to the product caused by heavy pressure, strong vibraon or immersion during transportaon, storage and installaon. 3.Handle with care 4.1 Do not rotate the camera head violently, otherwise it may cause mechanical failure; 4.2 This product should be placed on a stable desktop or other horizontal surface. Do not install the product obliquely, otherwise it may display inclined image; 4.3 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or solids which may corrode the shell. 4.4 Ensure there are no obstacles within rotaon range of the holder. 4.5 Do not power on before compleng installaon. 4.Install with Cauon This product contains no parts which can be maintained by the users themselves. Any damage caused by dismantling the product by the users without permission is not covered by warranty. 5.Do not Disassemble the Product without Permission Electromagnec fields at specific frequencies may affect the image. This product is Class A. It may cause radio interference in household applicaon. The appropriate measure is required. 6.Magnec Interference Content 1.Packing Contents

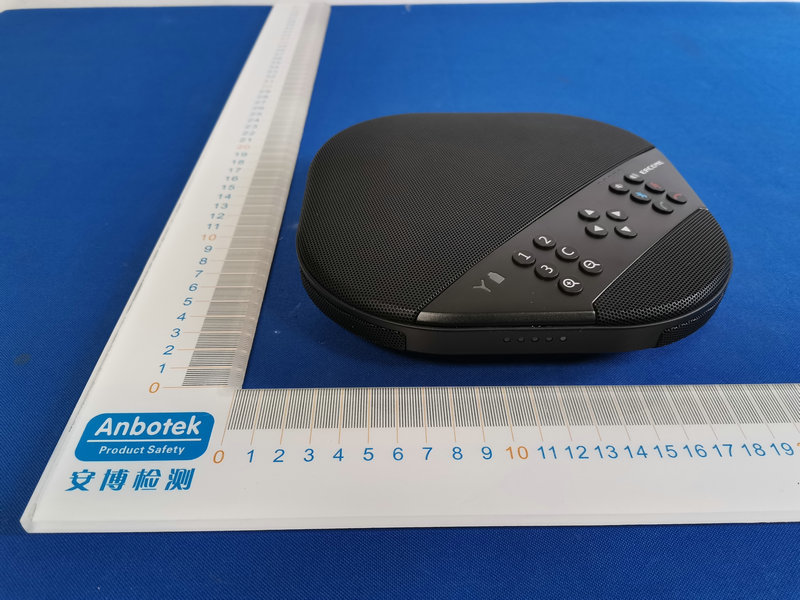

2.Product Overview 2.1 Speakerphone 2.2 VHD-V71CV Camera 2.3 Hub 3. Keys operaon Descripon 3.1 About Remote control 3.2 About Speakerphone 4. Connecon Descripon 5. About Bluetooth pairing 6. The LED Status indicator descripon 7. About Preset 8. Installaon and use of oponal expansion microphone(Oponal) 9. Technical Specificaons Warranty 1 2 2 2 3 3 3 4 5 6 7 7 8 9 13 1. Speakerphone












2. VHD-V71CV Camera 3. Hub





















4. Remote Control 5. 5m DIN6 Cable * 2 pcs

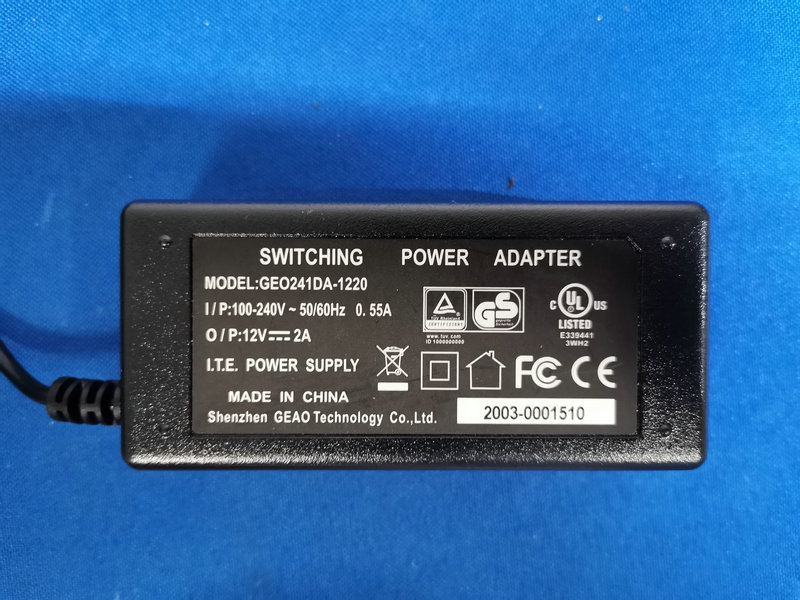

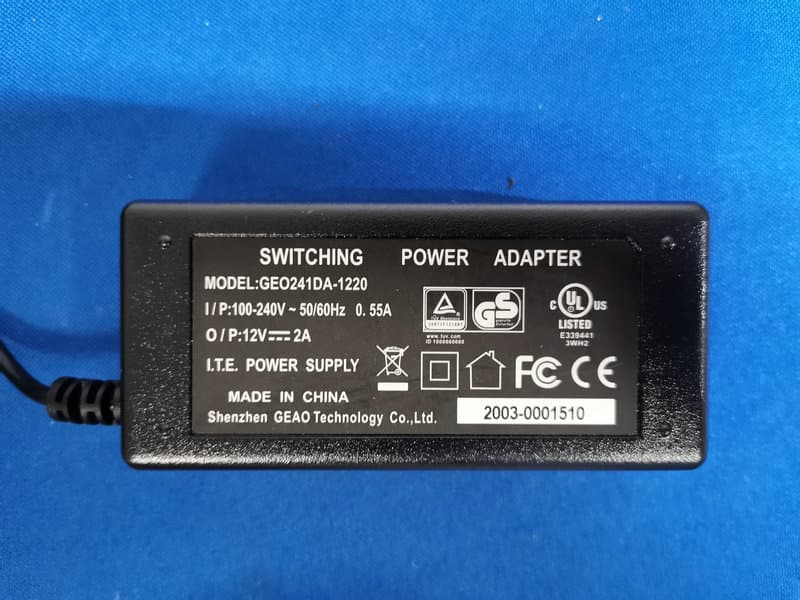

6. 3m USB cable *1 pcs 7. Power supply 1. Packing Contents 1 2 3 4 5 6 7 1 3 C 1 2 2.Product Overview 2.1 Speakerphone 1. Oponal expansion microphone port 1 2. Oponal expansion microphone port 2 3. DIN6 cable port 4. LED Status indicator 5. Bluetooth indicator 6. Funcon keys 7. Volume indicator 2.2 VHD-V71CV Camera 1 23 4 2 3 C 1 2 5 6 7 1. Status indicator 2. Power indicator 3. DIN6 Cable port 1 3 2 2.3 Hub 3. .Keys operaon Descripon 3.1 About Remote control 1: Volume down 2: Volume up 3: Pan / Tilt 4: OK 5: Zoom out 6: Zoom in 7: 1-2 Camera presets 8: Hang up 9: Mute microphone 10: Pick up 11: Turn on/off Bluetooth 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 3 1. DIN6 Cable port 2. USB port 3. Power port 4. Turn on/off 5. Status indicator 3.2 About Speakerphone Keys
Descripon：

Presets buon Those keys represent the camera preset posions 1,2 and 3 respecvely Remote control buon The Camera Zero posion Zoom in/out The camera zooms in/out Volume buon Press the Volume down/up buon Bluetooth buon Turn on/off Bluetooth End call Press the End call Answer call Press the Answer call Mute microphone Turn on/off Microphone mute Echo cancellaon Press the Answer call,End call and Volume up buon at the same me to enter/exit the echo cancellaon mode.When the echo cancellaon mode is entered, the status light blue flashes three mes .When the echo cancellaon mode is exited, the blue light flashes twice + Camera pan / lt Control the direcon of the camera:le, right,up, down,. 4 3 C 1 2 + 5 DIN6
cable Mini USB Power Supply DIN6
cable 4. Connecon Descripon SV3100 can be connected to computer, the hardware video equipment system through Hub USB. It's not only provides 48KHz digital voice bandwidth speakers, but also an ultra-clear video experience. Connecon steps: 1.Connect the camera and Hub with the original DIN6 data cable; 2.Connect the speakerphone and Hub with the original DIN6 data cable; 3.Connect the power supply equipment with the original power adapter; 4.Connect one end of the USB cable to the USB port of the computer and video conference system, and connect the other end to the USB socket of the Hub; 5. Turn on the power switch aer the connecon was confirmed correct, and wait for the speakerphone and Camera self-check completed, turn on the terminal third-party conference soware, and select the corresponding Camera, microphone (Eacome SV3100) and speaker driver (Eacome SV3100) to start the audio and video conference with the device. 6 Common reference Sengs for PC and video devices with USB talking mode: 5.
About
Bluetooth
pairing Once paired with a Bluetooth device, you can use an omnidireconal microphone for audio calls. To pair your Bluetooth device with an omnidireconal microphone, follow these steps: 1. Please adjust the volume of horns and microphones comprehensively to ensure the communicaon is clear and smooth. 2. Don't turn on the speaker and microphone automac gain. 3. Give priority to turning off the audio processing funcons of the computer soware/video soware (such as turning off automac gain, echo cancellaon, noise , reducon etc.). 4. Please use those speeches coding that has a higher sound quality as far as possible. 1. Press the Bluetooth pairing buon and the Y type Bluetooth indicator green light flashes. At this me, the omnidireconal microphone e…

Text truncated - open the document above for the full version.

Eacome Electronics Co.Ltd. Declaration on Model Differences We, Eacome Electronics Co.Ltd. 15th Floor, Block 9A, Baoneng Technology Park, Qingxiang Road, Longhua District, Shenzhen, Guangdong Province, China Declare that the following product(s): Product Name:Video Conferencing Room Solution Model No.:SV3100, SV11x, SV12x, SV13x, SV15X, SV16X, SV17X, SV18X, SV19X, S210X, S220X, M110X, M220X, SV3100X, SV3600X, SV4000X, SV1000X, S310X, S300X, S350X, IP600X (X stands for U/B/W/E/PUE) FCC ID:2AWKU-SV3100 Utilize the identical circuit design, PCB layout, shielding and interface with(SV3100), only the model name different. Therefore this application can be regarded as identical in performance to the submitted test sample. The manufacturer would take all the responsibilities for the above product(s). For and on behalf of Shenzhen, China Authorized personLocation Name:Ruijun Zhou Position:CEO Date of issue:2020-06-30 *I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete.

Eacome Electronics Co.Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/06/22 Subject; Request for Confidentiality FCC ID: 2AWKU-SV3100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ruijun Zhou Title: CEO

Eacome Electronics Co.Ltd. Letter of Authorization Company: Eacome Electronics Co.Ltd. Address: 15th Floor, Block 9A, Baoneng Technology Park, Qingxiang Road, Longhua District, Shenzhen, Guangdong Province, China Product Name: Video Conferencing Room Solution Model Number(s): SV3100, SV11x, SV12x, SV13x, SV15X, SV16X, SV17X, SV18X, SV19X, S210X, S220X, M110X, M220X, SV3100X, SV3600X, SV4000X, SV1000X, S310X, S300X, S350X, IP600X (X stands for U/B/W/E/PUE) Product Description: Video Conferencing Room Solution We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 30/06/2020 Name:Ruijun Zhou Title:CEO Company: Eacome Electronics Co.Ltd.

Model Number: SV3100

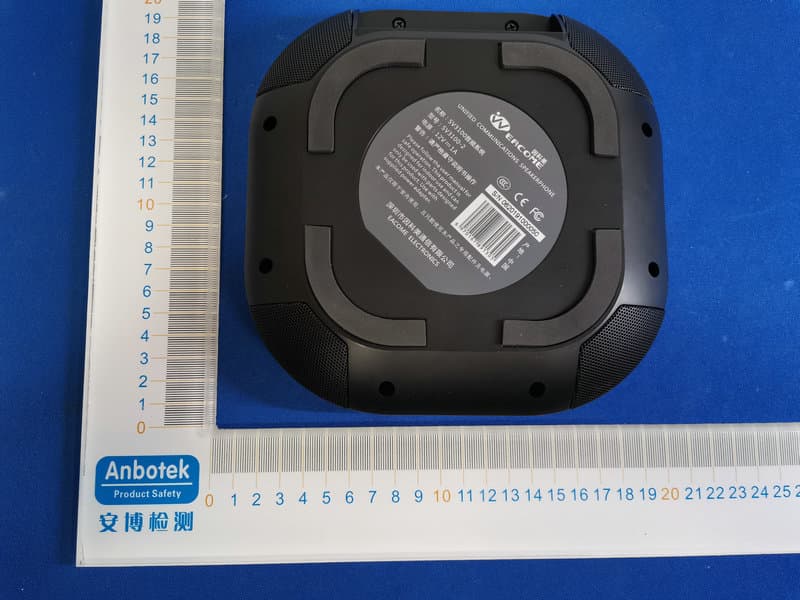

Label Location:

Product Name: Video Conferencing Room Solution Model No.: SV3100 FCC ID: 2AWKU-SV3100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Model Number: SV3100 ANT

RF EXPOSURE EVALUATION FCC ID: 2AWKU-SV3100 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters withoutput power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402-2.124 -2.124±1 -1.12450.2393 BDR+EDR 2441-1.709 -1.709±1 -0.70950.2653 2480-0.779 -0.779±1 0.22150.3313 2402-2.956 -2.956±1 -1.95650.1983 2441-2.740 -2.740±1 -1.74050.2093 2480-1.668 -1.668±1 -0.66850.2703 Test Results:PASS.

Report No.: 18220WC00056801FCC ID: 2AWKU-SV3100Page 1 of 70 Code:AB-RF-05-a FCC TEST REPORT Client Name: Eacome Electronics Co.Ltd. Address: 15th Floor, Block 9A, Baoneng Technology Park, Qingxiang Road, Longhua District, Shenzhen, GuangdongProvince, China Product Name: Video Conferencing Room Solution Date: Jun. 30, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00056801FCC ID: 2AWKU-SV3100Page 2 of 70 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 27 5.1. Test Standard and Limit .......................................................................................................................... 27 5.2. Test Setup .................................................................................................................................................. 27 5.3. Test Procedure .......................................................................................................................................... 27 5.4. Test Data .................................................................................................................................................... 27 6. 20DB Occupy Bandwidth Test ........................................................................................................................... 31 6.1. Test Standard ............................................................................................................................................ 31 6.2. Test Setup .................................................................................................................................................. 31 6.3. Test Procedure .......................................................................................................................................... 31 6.4. Test Data .................................................................................................................................................... 31 7. Carrier Frequency Separation Test ................................................................................................................... 35 7.1. Test Standard and Limit .......................................................................................................................... 35 7.2. Test Setup .................................................................................................................................................. 35 7.3. Test Procedure ............................................................................................…

Text truncated - open the document above for the full version.

PHOTOSOFTESTSETUP Model Number: SV3100 Photo of Conducted Emission Measurement Photo of Radiation Emission Test
