2AWL3-TDM6Two-way Radio

■ FC C Compliance Statements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.Do not use this device when the antenna shows obvious damages. Hold this transmitter approximately 25 mm away from your face and speak normal with the antenna pointed up and away. Use the supplied belt clip for body-worn configuration as other accessories may not comply to the limits.

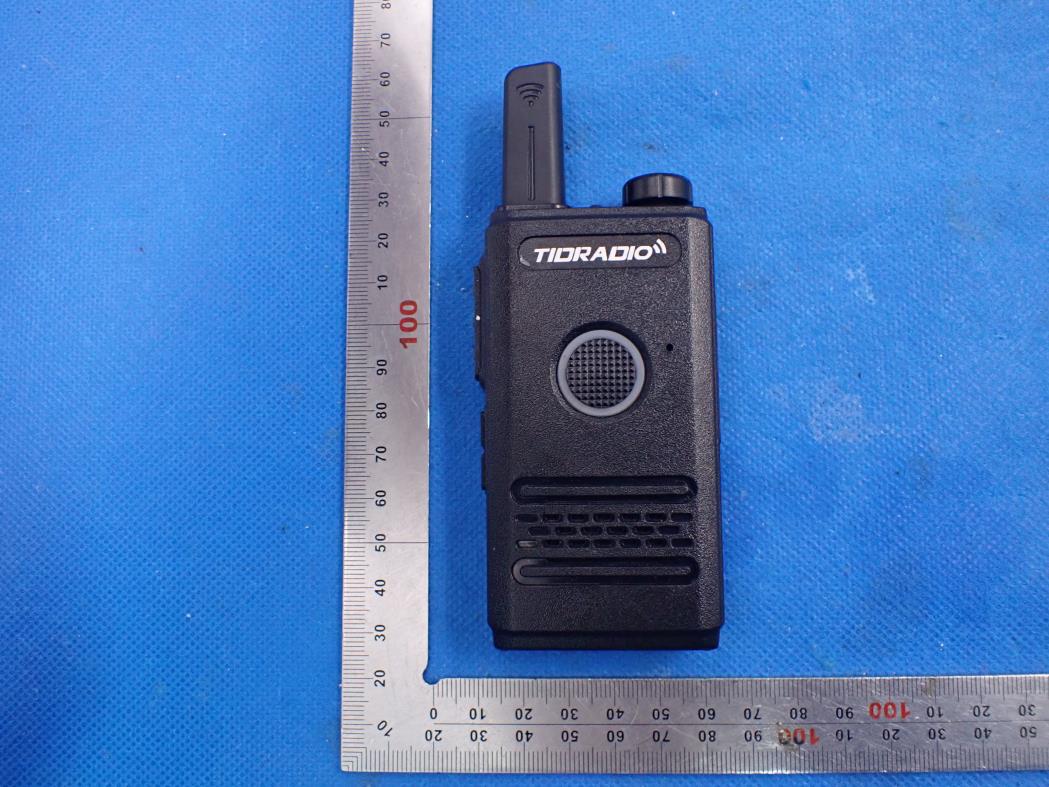

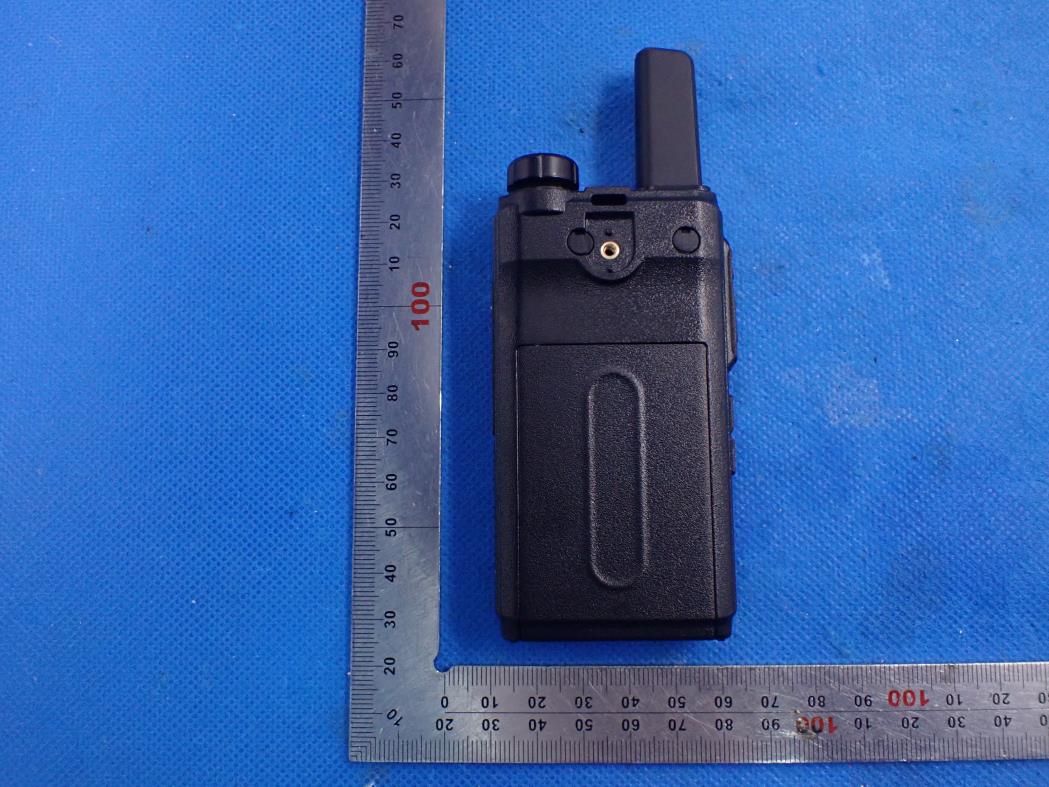

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AWL3-TDM6

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT FRS Antenna INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT

Page 1 of 22 FCC Test Report Report No.: AGC10590210302FE08 FCC ID : 2AWL3-TDM6 PRODUCT DESIGNATION : Two-way radio BRAND NAME : TIDRADIO MODEL NAME : TD-M6 APPLICANT : Quanzhou longtuo electronic technology co. ,Ltd DATE OF ISSUE : Mar. 26, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC10590210302FE08 Page 2 of 22 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 26, 2021 Valid Initial Release Report No.: AGC10590210302FE08 Page 3 of 22 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 4 2. PRODUCT INFORMATION ........................................................................................................................... 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION .............................................................. 6 4. SUPPORT EQUIPMENT LIST ....................................................................................................................... 7 5. SYSTEM DESCRIPTION ............................................................................................................................... 7 6. MEASUREMENT UNCERTAINTY................................................................................................................. 8 7. SUMMARY OF TEST RESULTS ................................................................................................................... 8 8. FCC RADIATED EMISSION TEST ................................................................................................................ 9 8.1 PROVISIONS APPLICABLE ................................................................................................................. 9 8.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 9 8.3 TEST PROCEDURE ........................................................................................................................... 11 8.4 TEST RESULT .................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ......................................................................................................... 16 9.1 PROVISIONS APPLICABLE ............................................................................................................... 16 9.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 16 9.3 TEST PROCEDURE ........................................................................................................................... 17 9.4 TEST RESULT .................................................................................................................................... 18 APPENDIX I PHOTOGRAPHS OF TEST SETUP ........................................................................................... 20 APPENDIX II: PHOTOGRAPHS OF EUT ........................................................................................................ 22 Report No.: AGC10590210302FE08 Page 4 of 22 1. VERIFICATION OF COMPLIANCE Applicant: Quanzhou longtuo electronic technology co. ,Ltd Address: No.17-20, building 16, chenghui international zone B, xiamei quanzhou Fujian Manufacturer: Quanzhou longtuo electronic technology co. ,Ltd Address: No.17-20, building 16, chenghui international zone B, xiamei quanzhou Fujian Factory: Quanzhou longtuo electronic technology co. ,Ltd Address: No.17-20, building 16, chenghui international zone B, xiamei quanzhou Fujian Product Designation: Two-way radio Brand Name: TIDRADIO Test Model: TD-M6 Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: Mar. 08, 2021~Mar. 26, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template； AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Donjon Huang (Project Engineer) Mar. 26, 2021 Reviewed By Calvin Liu (Reviewer) Mar. 26, 2021 Approved By Forrest Lei Authorized Officer Mar. 26, 2021 Report No.: AGC10590210302FE08 Page 5 of 22 2. PRODUCT INFORMATION The EUT is a Two-way radio designed for voice communication. It is designed by way of utilizing the F3E modulation achieves the system operating. A major technical description of EUT is described as following: Communication Type Voice / Tone only Modulation FM RX Frequency Range 462.5625 - 462.7125MHz, 467.5625 - 467.7125MHz, 462.5500 - 462.7250MHz Emission Type F3E Antenna Designation Inseparable Antenna Antenna Gain 1.5dBi Hardware Version JC-003 Ver1.3 Software Version V1.3 Power Supply DC 3.7V,800mAh by battery, charging for DC4.2V I/O Port Information (Applicable Not Applicable) I/O Port of EUT I/O Port Type Q’TY Cable Tested with Antenna Port 1 0 1 Report No.: AGC10590210302FE08 Page 6 of 22 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION List of Test Equipment: TEST EQUIPMENT OF CONDUCTED EMISSION TEST Equipment Manufacturer Model S/N Cal. Date Cal. Due TEST RECEIVER R&S ESPI 101206 May 15, 2020 May 14, 2021 LISN R&S ESH2-Z5 100086 Jul. 03, 2020 Jul. 02, 2021 TEST SOFTWARE FARA EZ-EMC (Ver.AGC-C ON03A1) N/A N/A N/A TEST EQUIPMENT OF RADIATED EMISSION TEST Equipment Manufacturer Model S/N Cal. Date Cal. Due TEST RECEIVER R&S ESPI 101206 May 15, 2020 May 14,…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
