2AWL7-AC01WFMotion sensor

1 Wireless Motion Sensor User’s Manual Contents 2 Start to use – setting Wi-Fi (1) To turn on the wireless motion sensor for the first time, you need setting the Wi-Fi environment through the android app. (2) Click the "Start Setting Device" button below and click the “OK” button in the dialog box to enter the Wi-Fi page system. (3) First switch the device to the setting mode, press and hold the reset button of the wireless motion sensor for 3 seconds. Then select "Wisleep" on the Wi-Fi page system, and return to the previous page. (4) After returning from the Wi-Fi page, select the Wi-Fi ID from the network list and enter the password. If the connection is successful, the indicator light will be green. Note: This step is only required for the first use, and there is no need to repeat settings when using in the same Wi-Fi environment. 3 Instructions (1) Open the web page with a computer or mobile device and use the product specific account/password to log in to the page. *The best display ratio is 1920 X 1080 (2) The wireless motion sensor can be placed in static spaces such as bedroom, study, and living room. Fixed in the detectable range and facing the user. (3) Connect the wireless motion sensor to the power supply and turn it on until the green light flashes (4) After the wireless motion sensor receives the human body signal, the signal is calculated by the cloud, and then the information is transmitted to the Web/APP interface. Function item/description model AC01WF Detection range Detectable number 1 Detect location Bed and bedside Activity detection Detect any active signal in the application field Detect dynamic activity signals, static activity signals, empty environment signals, etc. 4 Placement Sensor installation location Within 180 cm from the ground or within 50 cm from the bottom of the bed, and the distance from the detection target must be at least 10 cm. Fundamental The wireless motion sensor detects the activity status of the application area, and the information after sensing is collected by the cloud server. Users can download personal report from time to time to understand the daily schedule. Personal reports can be used for health care management in daily life. The wireless motion sensor data is provided to third-party software vendors for analysis and judgment. Consumers can view information from time to time via the Web or APP. Hardware architecture RF detection frequency 24GHz Antenna coverage angle | FOV(Field of View) ( V x H ) 24° x 36° Use place General health activity management (Can be used for home/long-term care/postpartum care) Detection limit Vibration and swing devices cannot be placed in the detection range Output data The signal module of the wireless motion sensor outputs the original signal, and the signal characteristics include the signal amplitude of the motion and the signal acquisition time. The following example is used to illustrate that 1) static activity, 2) dynamic activity, and 3) no activity in the detection environment. The value is read through the data output interface, and the software vendor provides value-added services after judgment. 1) static activity: The signal in this part can be used to determine whether the activity is static, such as resting and sleeping. 2) dynamic activity: The signals in this part are irregular and fast in frequency, which are big dynamic activities, such as getting up and leaving, walking, waving 3) no activity: There is no change in the signal in this part, which can be regarded as no activity around, such as no people in the environment, vacant rooms, 5 etc. Report Rate 2.5 / 5 / 10 / 30 / 60 sec function Collect motion signals wirelessly specification s weight 187 g size (length x height x width) 120 x 36.6 x 80 mm Power Supply 5V/2A USB adapter Power supply interface Micro USB Wireless Data connection method Wi-Fi / IEEE 802.11 b, g, n Light status display normal operation Flashing green Operating temperature ambient temperature 0~40° C and 30%-85% relative Humidity Storage temperature -20°~45° C and 10%-90% relative Humidity data display display interface Web Browser (Chrome) 6 Precautions This product is not a medical device, it is only used for the health management of daily life. It cannot be used for medical purposes. If it is used in the medical field, the company will not be responsible for personal injury or product damage. FCC warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. Th…

Text truncated - open the document above for the full version.

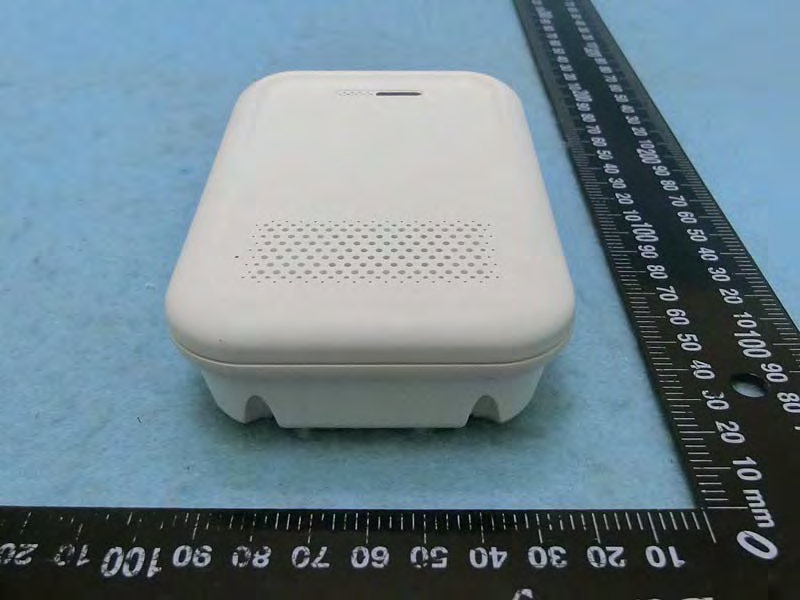

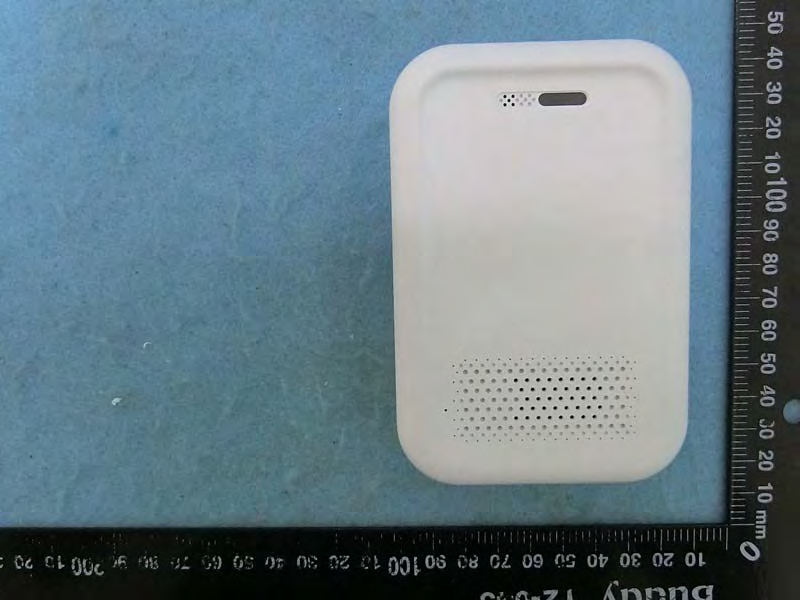

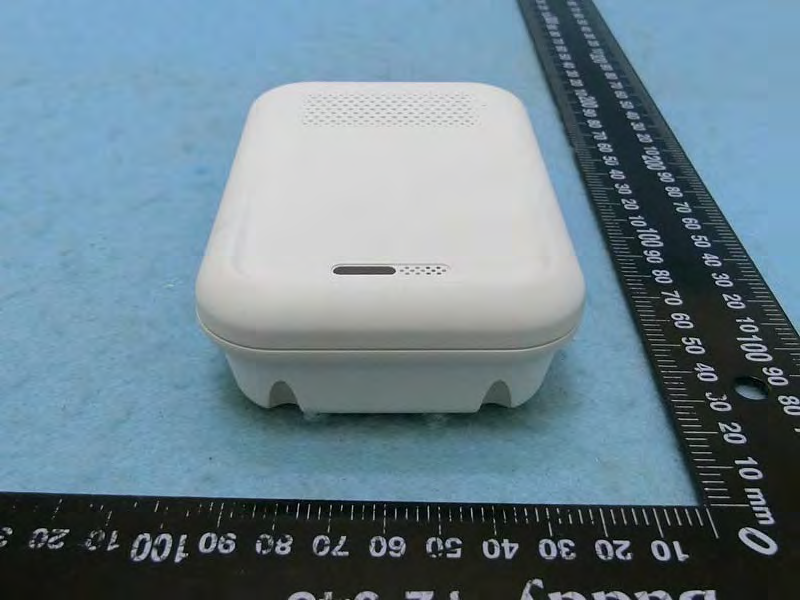

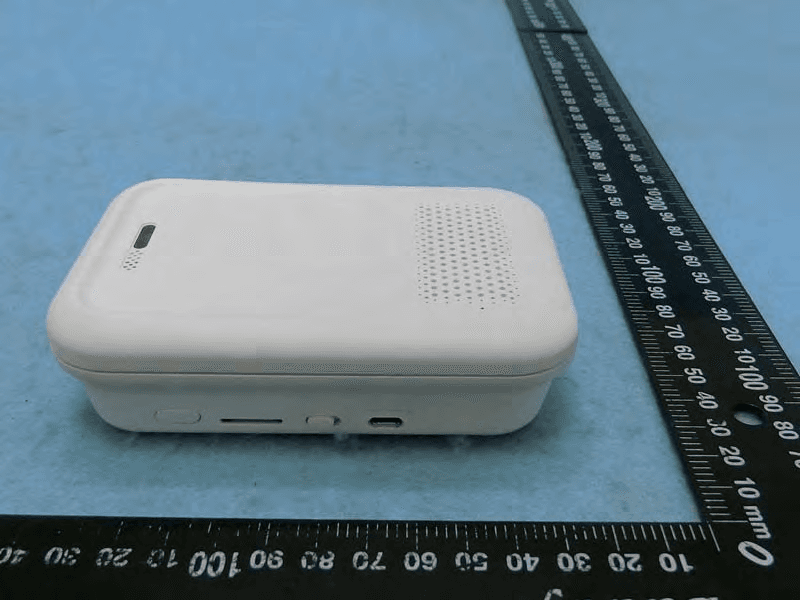

PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: Abilliant Care; BestShape Care Model Name: AC01WF PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

Label Location Side of the EUT Label

PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 7 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 8 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 9 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 10 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 11 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 12 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 13 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 14 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 15 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 16 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 17 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 18 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Adapter PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 19 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP022715-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 20 of 20 TEL : 886-3-656-9065 Issued Date : Dec. 15, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP USB cable

TEL : 886-3-327-3456 Page : 1 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 RF EXPOSURE EVALUATION REPORT FCC ID : 2AWL7-AC01WF Equipment : Motion sensor Brand Name : Abilliant Care; BestShape Care Model Name : AC01WF Applicant : WISTRON MEDICAL TECHNOLOGY CORPORATION 5F., NO.5, XIN-AN RD., SCIENCE-BASED INDUSTRIAL PARK, HSINCHU CITY 30076, TAIWAN, R.O.C. Manufacturer : WISTRON MEDICAL TECHNOLOGY CORPORATION 5F., NO.5, XIN-AN RD., SCIENCE-BASED INDUSTRIAL PARK, HSINCHU CITY 30076, TAIWAN, R.O.C. Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part 2.1091 and it complies with applicable limit. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 6 4. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 7 4.1. Standalone Power Density Calculation ............................................................................................. 7 TEL : 886-3-327-3456 Page : 3 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 History of this test report Report No. Version Description Issued Date FA022715 Rev. 01 Initial issue of report Dec. 15, 2020 TEL : 886-3-327-3456 Page : 4 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Motion sensor Brand Name Abilliant Care; BestShape Care Model Name AC01WF FCC ID 2AWL7-AC01WF Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2400 MHz ~ 2483.5 MHz 24GHz Radar: 24092 MHz ~ 24160 MHz Mode WLAN: 802.11b/g/n HT20/HT40 24GHz Radar: CW HW Version 24GHz board: SD; Main board: SC; MCU board: SW Version Main board: 011; MCU board:M41T2R06_L452 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Reviewed by: Jason Wang Report Producer: Daisy Peng TEL : 886-3-327-3456 Page : 5 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 2. Maximum RF average output power among production units Mode Maximum Average Power (dBm) 2.4GHz WLAN 802.11b 15.20 802.11g 11.30 802.11n-HT20 10.60 802.11n-HT40 10.00 Mode EIRP Output Power (dBm) 24GHz Radar -19.33 TEL : 886-3-327-3456 Page : 6 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 3. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna TEL : 886-3-327-3456 Page : 7 of 7 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Form version: 200414 RF EXPOSURE EVALUATION REPORT Report No. : FA022715 4. Radio Frequency Radiation Exposure Evaluation 4.1. Standalone Power Density Calculation Band Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) Power Density / Limit 2.4GHz WLAN 2.54 15.20 17.740 0.059 59.429 0.012 1.000 0.011829 24GHz Radar -19.330 0.000 0.012 0.000 1.000 0.000002 WLAN Power Density / Limit 24GHz Radar Power Density / Limit Σ(Power Density / Limit) of WLAN+24GHz Radar 0.011829 0.000002 0.011831 Note: 1. Σ(Power Density / Limit): This is a summation of [(power density for each transmitter/antenna included in the simultaneous transmission)/ (corresponding MPE limit)], for WLAN + 24GHz Radar. 2. Considering the WLAN with the 24GHz Radar of the EIRP performance listed in the table above, the aggregated (power density /limit) is smaller than 1, and MPE of 2 collocated transmitters is compliant Conclusion: According to 47 CFR §2.1091, the RF exposure analysis concludes that the RF Exposure is FCC compliant.

TEL : 886-3-327-3456 Page Number : 1 of 38 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR022715 FCC RADIO TEST REPORT FCC ID : 2AWL7-AC01WF Equipment : Motion sensor Brand Name : Abilliant Care; BestShape Care Model Name : AC01WF Applicant : WISTRON MEDICAL TECHNOLOGY CORPORATION 5F., NO.5, XIN-AN RD., SCIENCE-BASED INDUSTRIAL PARK, HSINCHU CITY 30076, TAIWAN, R.O.C. Manufacturer : WISTRON MEDICAL TECHNOLOGY CORPORATION 5F., NO.5, XIN-AN RD., SCIENCE-BASED INDUSTRIAL PARK, HSINCHU CITY 30076, TAIWAN, R.O.C. Standard : FCC Part 15 Subpart C §15.247 The product was received on Feb. 27, 2020 and testing was started from Mar. 19, 2020 and completed on Jun. 02, 2020. We, SPORTON INTERNATIONAL INC., EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 38 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR022715 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description .................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Modification of EUT ........................................................................................................................... 5 1.3 Testing Location ................................................................................................................................ 5 1.4 Applicable Standards ......................................................................................................................... 6 2 Test Configuration of Equipment Under Test .......................................................................................... 7 2.1 Carrier Frequency and Channel ........................................................................................................ 7 2.2 Test Mode .......................................................................................................................................... 7 2.3 Connection Diagram of Test System ................................................................................................. 8 2.4 EUT Operation Test Setup ................................................................................................................ 8 2.5 Measurement Results Explanation Example ..................................................................................... 9 3 Test Result ................................................................................................................................................. 10 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 10 3.2 Output Power Measurement ............................................................................................................ 12 3.3 Power Spectral Density Measurement ............................................................................................ 13 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 15 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 28 3.6 AC Conducted Emission Measurement........................................................................................... 33 3.7 Antenna Requirements .................................................................................................................... 35 4 List of Measuring Equipment ................................................................................................................... 36 5 Uncertainty of Evaluation ......................................................................................................................... 38 Appendix A. Conducted Test Results Appendix B. AC Conducted Emission Test Result Appendix C. Radiated Spurious Emission Appendix D. Radiated Spurious Emission Plots Appendix E. Duty Cycle Plots Appendix F. Setup Photographs TEL : 886-3-327-3456 Page Number : 3 of 38 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR022715 History of this test report Report No. Version Description Issued Date FR022715 01 Initial issue of report Dec. 15, 2020 TEL : 886-3-327-3456 Page Number : 4 of 38 FAX : 886-3-328-4978 Issued Date : Dec. 15, 2020 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR022715 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 15.247(a)(2) 6dB Bandwidth Pass - 3.1 2.1049 99% Occupied Bandwidth Reporting …

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : F1 of F4 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR022715 Appendix F. Setup Photographs <Conducted Emission> Mode 1 Remote View TEL : 886-3-327-3456 Page Number : F2 of F4 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR022715 Rear View TEL : 886-3-327-3456 Page Number : F3 of F4 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR022715 <Radiated Emission> Z Plane LF HF TEL : 886-3-327-3456 Page Number : F4 of F4 FAX : 886-3-328-4978 FCC RADIO TEST REPORT Report No. : FR022715 Above 18GHz ─────THE END─────
