2AWL7-BS02WFWireless Motion Sensor

Wistron confidential AI non-Contact Monitoring System " Best Shape " Care Please read the user manual and follow the instructions to operate this product. " This product involves the collection, processing and use of personal data. Please comply with the Personal Data Protection Act."  Model : BS02WF ------------------------------------------------------------------------------------------- _  Introduction This product is a non-contact monitoring device for indoor that monitors personnel behavior and outputs information. It will send notifications in case of an emergency.  Product Appearance Wistron confidential ■ Overview ■ Product Features This product monitors the behavior pattern of people in the space by non-contact method. The results are not the basis for direct diagnosis. Feature Detection range 5.5 meters x 5.5 meters (including below) detect people in space Presence/Absence setting interface Use a web browser (Chrome) to configure Wistron confidential ■ Product Description 【Sensor Specifications】 hardware specification RF frequency 60-64GHz Antenna FOV 120 x 80 degree (Wall Mount) 100 x 100 degree (corner Wall Mount) power supply power supply 12V/2A DC Adapter arithmetic unit processor Quad-core ARM Cortex-A55 WIFI Module 2.4 GHz WIFI / IEEE 802.11 b, g, n Environmental requirements Temperature range 0° C - 40°C Humidity range 95% IP ratings IP54 Device Specifications Dimension 115.5 x 124.1 x 31mm Weight < 360g 【Data transmission specification】 This product uses the MQTT communication protocol for data transmission and supports device-to-cloud and cloud-to-device message transmission. JSON format for sensor data transmission: Human Presence and Event Notification {"dt":1682054029.666, " sn ": TEST_DEVICE_ID, " target_number ": 1, ( 0: means there is no person in the space ; 1: means there is person in the space) "classifier_output": 1, ( 1: means the sensing object is a person ; 0 : means the detection of non-human body) " fall_score ": 1 ( fall event occurred ) } Wistron confidential ■ LED The status of the sensor LED is defined in the below table. If the connection status of the sensor does not improve, and the problem cannot be solved, please take a picture of the status of the sensor LED and contact customer service. LED Status significance processing method Yellow WIFI is trying to connect Step 1: Confirm that the network settings are correct. Step 2: If not resolved, please notify customer service Yellow blinking 5 times and then stop for 3 seconds (cycle) Can not connect to internet. Step 1: Confirm that the network settings are correct. Step 2: If it is not resolved, please notify the network administrator Red blinking 5 times and then stop for 3 seconds (cycle) Data cannot upload. (MQTT fail) Please notify customer service blue data uploading normal connection White blinking three times AP mode connection Manually setting up the network, please complete the network setting Blue blinking software update Step 1: Please wait for 2-3 minutes. Step 2: If the blue light is still flashing, please restart (reconnect the power cord) Step 3: If the blue light is still blinking, please notify customer service ■ Cleaning and Maintenance 1. Please unplug the power plug before cleaning this product to prevent electric shock or fire. 2. Please use a dry oil-free cloth to clean the plastic parts of the device. 3. When cleaning the device, do not use aggressive or irritating organic solvents to wipe the surface. ■ Warning Please use original accessories and consumables to achieve the best product Wistron confidential performance. In order to ensure the correct operation of the product, before you use this product, please read this "User Manual" carefully, check whether the parts are complete, and pay special attention to the following safety and precautions to prevent potential dangers and damages in advance. 【Installation Related】 1. Please refer to the installation manual and install it at the best sensing position. 2. This product is for indoor use only, please do not use it in humid environment or outdoors. 3. Do not place this product near heat sources. 4. Do not hang any items or cover this product, otherwise it will affect the sensing effect. 5. Do not use liquids, spray cleaners or wet clothes for cleaning. 6. Do not spill water or other liquids on this product. 【Usage Related】 1. When the product is immersed in water, please stop using this product. 2. Do not move this product while it is in operation. 3. Do not hang anything on or cover this product. 4. Except for the agent or our company's maintenance personnel, please do not disassemble the case or repair it by yourself, otherwise your warranty rights will be affected. ■ FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user ‘s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Wistron confidential However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate…

Text truncated - open the document above for the full version.

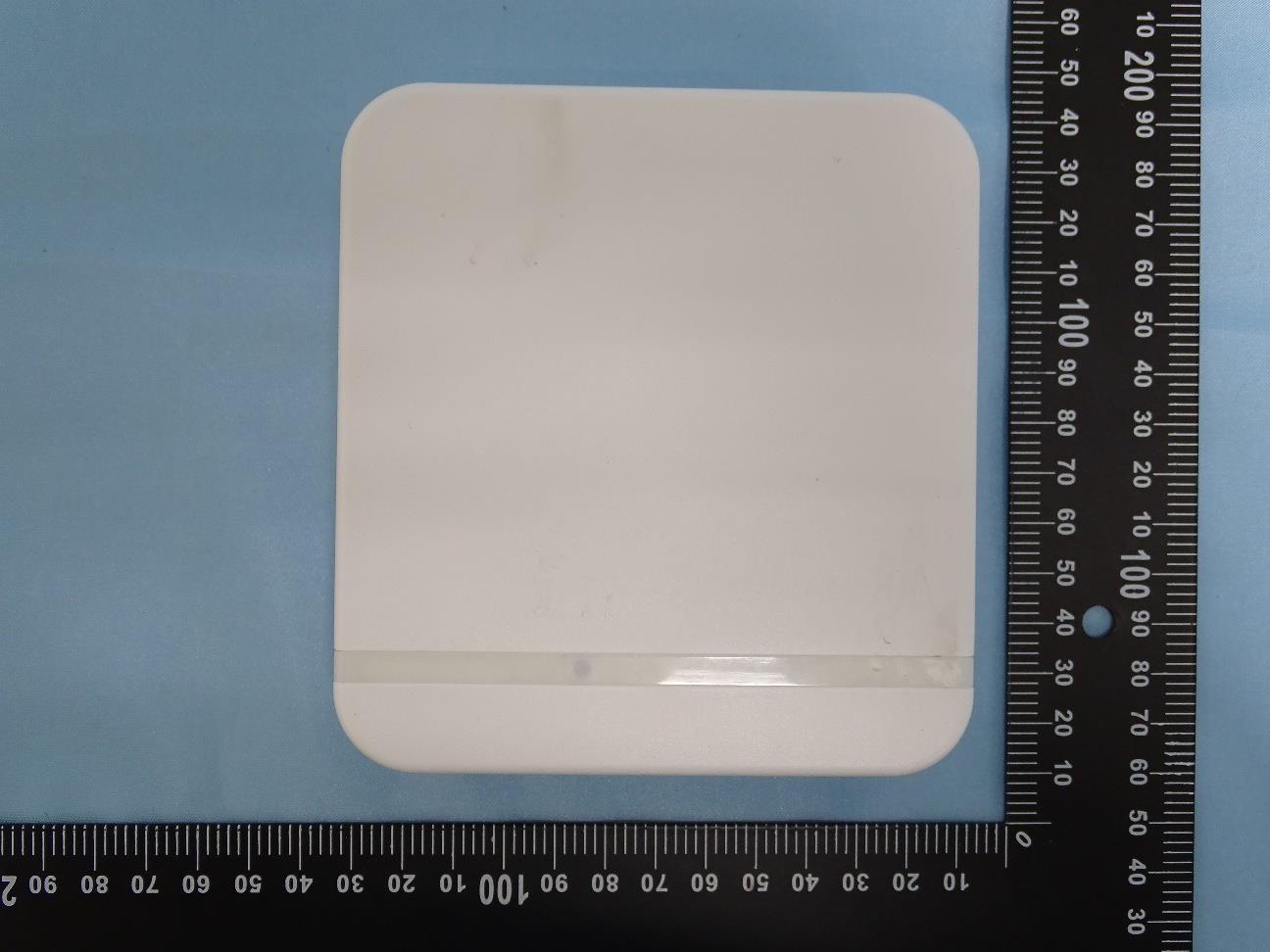

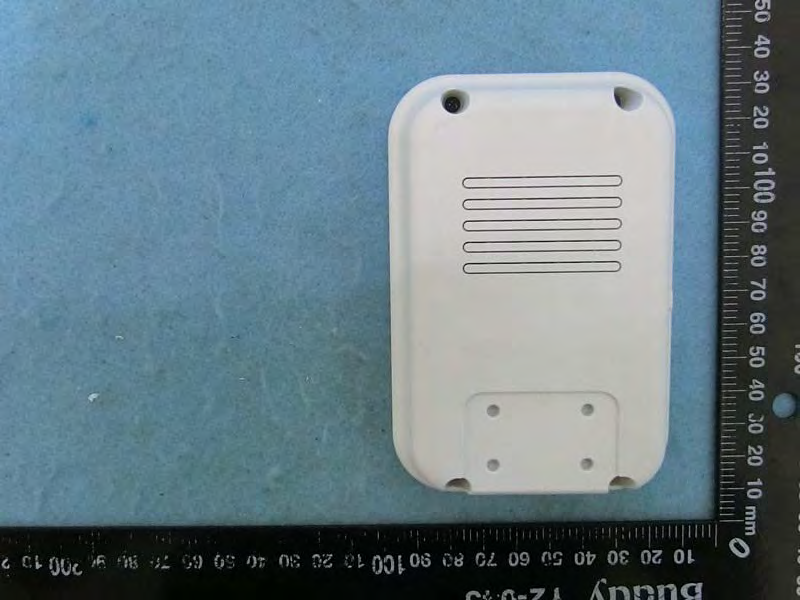

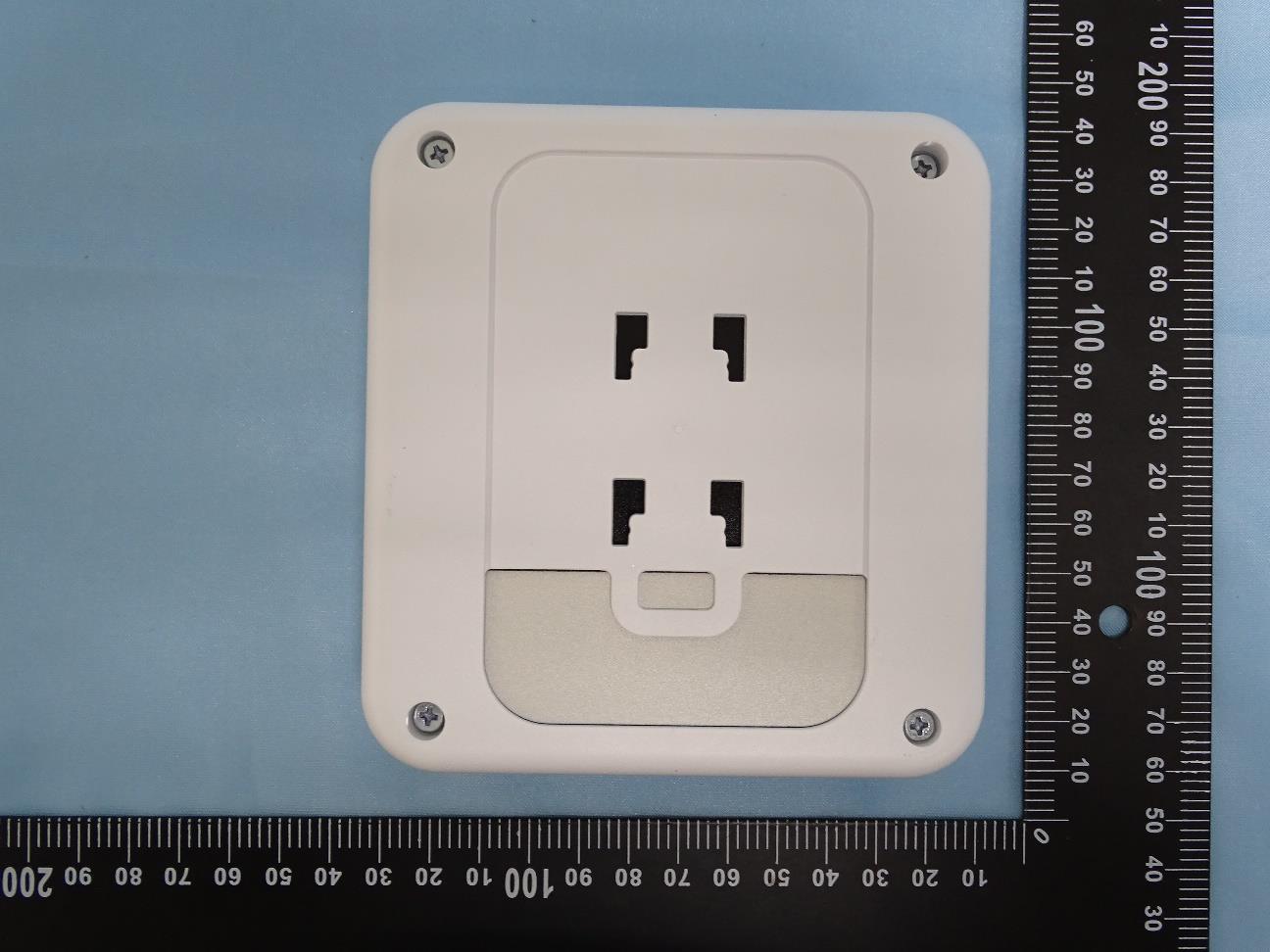

PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 1 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 1. External Photograph of EUT Brand Name: BestShape / Model Name: BS02WF PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 2 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 3 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 4 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 5 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 6 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 7 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 2. Photograph of Accessory Brand Name: BestShape / Model Name: BS02WF Specification of Accessory AC Adapter Brand Name MeanWell Model Name SGA25U12 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 8 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 9 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 AC Adapter

AndarX R40.02H07.0001 MODEL NO.: PART NAME: A/WNO.: SCALE: UNIT: SHEET: OF 1:1 mm 1 1 REVDESCRIPTIONSIGNDATE 1. MATERIAL: WHITE POLYESTER(HTYL50EB)(特多龍)50#(0.05mm)+ADHESIVE(0.025mm) +Matte P.P.(0.02mm)+ADHESIVE(0.015mm)=0.11mm. 2. 3. FINISH: PRINT ON SURFACE 4. PRINT COLOR: BLACK. THE ADHESIVE- 壓花膠 5. PRINTING TOLERANCE OF DIMENSION ARE +0.2/-0.2mm DRAWN:REVIEWED: APPROVED: 1MCP00 Dora Chang 7/25/2023 1MCP00 Andreaus Liu 7/25/2023 LBL SPEC RFID for PD

PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 10 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 3. Internal Photograph of EUT Brand Name: BestShape / Model Name: BS02WF 720510 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 11 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 12 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 13 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 14 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 15 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 16 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 17 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 18 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 19 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 20 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 21 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 22 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 23 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 24 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 25 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 26 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 27 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 28 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 29 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 WLAN Antenna PHOTOGRAPHS OF EUT Report No.: EP332423 TEL : 886-3-327-3456 Page Number : 30 of 30 FAX : 886-3-328-4978 Issue Date : Aug. 22, 2023 Report Version : 01 ─────THE END──── 720510 60GHz Antenna

TEL : 886-3-327-3456 Page : 1 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA332423 RF EXPOSURE EVALUATION REPORT FCC ID : 2AWL7-BS02WF Equipment : Wireless Motion Sensor Brand Name : BestShape Model Name : BS02WF Applicant : Wistron Medical Technology Corporation 5F., No.5, Xin'anRd., East Dist., Hsinchu City 300, Taiwan (ROC) Manufacturer : Wistron Corporation No.5, Hsin An Road, Hsinchu Science ParkHsinchu, Taiwan, R.O.C. Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA332423 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 4 3. DETERMINATION OF EXEMPTION ........................................................................................................... 5 4. RF EXPOSURE EVALUATION ................................................................................................................... 6 4.1. Standalone assessment .................................................................................................................... 6 TEL : 886-3-327-3456 Page : 3 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA332423 History of this test report Report No. Version Description Issued Date FA332423 Rev. 01 Initial issue of report Jul. 31, 2023 TEL : 886-3-327-3456 Page : 4 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA332423 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Wireless Motion Sensor Brand Name BestShape Model Name BS02WF FCC ID 2AWL7-BS02WF Wireless Technology and Frequency Range WLAN 2.4 GHz Band: 2400 MHz ~ 2483.5 MHz 60GHz ~ 64GHz Mode WLAN: 802.11b/g/n HT20 60GHz HW Version 22B000 Reviewed by: Jason Wang Report Producer: Paula Chen 2. Maximum RF average output power among production units Mode Maximum Average power(dBm) 2.4GHz Band 20 Mode Maximum Average EIRP power(dBm) 60GHz 13.76 TEL : 886-3-327-3456 Page : 5 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA332423 3. Determination of exemption Per 1.1307(b)(3), (i) For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time- averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation TEL : 886-3-327-3456 Page : 6 of 6 FAX : 886-3-328-4978 Issued Date : Jul. 31, 2023 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA332423 4. RF Exposure Evaluation 4.1. Standalone assessment Band Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) 2.4GHz Band 2.74 20.00 22.7 0.19 187.93 0.037 1.000 60GHz 13.76 13.76 0.02 23.77 0.005 1.000 Conclusion: According to 47 CFR §1.1307, the RF exposure analysis concludes that the RF Exposure is FCC compliant.

TEL: 886-3-327-0868 Page Number : 1 of 24 FAX: 886-3-327-0855 Issue Date : Jul. 26, 2023 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR332423A FCC RADIO TEST REPORT FCC ID : 2AWL7-BS02WF Equipment : Wireless Motion Sensor Brand Name : BestShape Model Name : BS02WF Applicant : Wistron Medical Technology Corporation 5F., No.5, Xin'anRd., East Dist., Hsinchu City 300, Taiwan (ROC) Manufacturer : Wistron Corporation No.5, Hsin An Road, Hsinchu Science ParkHsinchu, Taiwan, R.O.C. Standard : FCC Part 15 Subpart C §15.247 The product was received on Apr. 14, 2023 and testing was performed from Apr. 25, 2023 to May 26, 2023. We, Sporton International Inc. Wensan Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval from Sporton International Inc. Wensan Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu Sporton International Inc. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan (R.O.C.) TEL: 886-3-327-0868 Page Number : 2 of 24 FAX: 886-3-327-0855 Issue Date : Jul. 26, 2023 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR332423A Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description .................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Modification of EUT ........................................................................................................................... 5 1.3 Testing Location ................................................................................................................................ 5 1.4 Applicable Standards ......................................................................................................................... 6 2 Test Configuration of Equipment Under Test .......................................................................................... 7 2.1 Carrier Frequency and Channel ........................................................................................................ 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system .......................................................................... 9 2.5 EUT Operation Test Setup ................................................................................................................ 9 2.6 Measurement Results Explanation Example ................................................................................... 10 3 Test Result ................................................................................................................................................. 11 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 12 3.3 Power Spectral Density Measurement ............................................................................................ 13 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 14 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 15 3.6 AC Conducted Emission Measurement........................................................................................... 19 3.7 Antenna Requirements .................................................................................................................... 21 4 List of Measuring Equipment ................................................................................................................... 22 5 Measurement Uncertainty ........................................................................................................................ 24 Appendix A. Conducted Test Results Appendix B. AC Conducted Emission Test Result Appendix C. Radiated Spurious Emission Appendix D. Radiated Spurious Emission Plots Appendix E. Duty Cycle Plots Appendix F. Setup Photographs TEL: 886-3-327-0868 Page Number : 3 of 24 FAX: 886-3-327-0855 Issue Date : Jul. 26, 2023 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR332423A History of this test report Report No. Version Description Issue Date FR332423A 01 Initial issue of report Jul. 26, 2023 TEL: 886-3-327-0868 Page Number : 4 of 24 FAX: 886-3-327-0855 Issue Date : Jul. 26, 2023 Report Template No.: BU5-FR15CWL AC MA Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR332423A Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 15.247(a)(2) 6dB Bandwidth Pass - 3.1 2.1049 99% Occupied Bandwidth Reporting only - 3.2 15.247(b) Power Output Measurement Pass - 3.3 15.247(e) Power Spectral Density Pass - 3.4 15.247(d) Conducted Band Edges Pass - Conducted S…

Text truncated - open the document above for the full version.

Antenna Specification TEST DATES2022/7/20 test method Spherical Near-Field Antenna Measurement measurement standards WiFiAntenna testing SPEC. names of commercial test software being used WaveProNFC-500S test site Wistron B5Antenna Lab equipment information Keysight PNA-L N5239A test setup up including photos As next page names of test personnel Nick J Chou Antenna Type PIFA Antenna Brand & Model BSPIFAANT Antenna manufacturer's company address 21F., No. 88, Sec. 1, Xintai5th Rd., Xizhi Dist., New Taipei City221, Taiwan (R.O.C.) Antenna Brand : Wistron Model name : BSPIFAANT Test site AntennaDimension length :37mm Width:11.5mm Antenna efficiency testing result Antenna return loss & Smith Chart XY XZ YZ 2.45GHZ Radiation Pattern of 2.45GHz Antenna

TEL : 886-3-327-0868 Page Number : F1 of F4 FAX : 886-3-327-0855 FCC RADIO TEST REPORT Report No. : FR332423A Appendix F. Setup Photographs <Conducted Emission> Remote View TEL : 886-3-327-0868 Page Number : F2 of F4 FAX : 886-3-327-0855 FCC RADIO TEST REPORT Report No. : FR332423A Rear View TEL : 886-3-327-0868 Page Number : F3 of F4 FAX : 886-3-327-0855 FCC RADIO TEST REPORT Report No. : FR332423A <Radiated Emission> Y Plane LF HF TEL : 886-3-327-0868 Page Number : F4 of F4 FAX : 886-3-327-0855 FCC RADIO TEST REPORT Report No. : FR332423A SHF ─────THE END─────
