a611 UHF App Manual ✔️Main screen to select functions ✔️Reference of technical terms in RFID Technical terms ▪Access Timeout: Time out when Read/Write on module or chip register. Access Retry Interval: Retry interval value when fail to Read/Write in Access Timeout ▪TxOn Time: Activation time for RF Tx. Affects to setting related to frequency or frequency hopping. ▪TxOff Time:Deactivationtime for RF Tx. Affects to setting related to frequency or frequency hopping. ▪DwellTime: Dwelling time for Logical Antenna ▪Singulation: Algorithm for inventory of Tag data (specific). SELECTIONQUERYEPC MATCH ACCESS RFIDCommend Sequence Inventory Tag Grouping (S0, S1, S2, S3, SL) Select Tag Group (Session, Target SL Flag) Match EPCvalue Read/Write/Lock/Kill etc. ✔️Main screen of RFID READERApp Information 1. DEMO VERSION 2.LIBRARY VERSION 3.FIRMWARE VERSION 4.REGULATORY REGION 5. GLOBAL BAND 6.CONNECTION STATE Function Menu 1. INVENTORY 2.READ/WRITE 3. LOCK/KILL 4. SETTINGS 5. CERTIFICATION Admin. Mode Unlocked Admin. Mode Locked ✔️INVENTORYScreen Time/ Speed status 1. Elapsed Time : Time passed once reading 2.Speed : Instant reading speed 3.Avg. Speed: Average reading speed Tag list window List of read tags Setting values 1.Continuous Mode: Continuous reading 2.Remove PC: Remove PC information 3.Toggle:Toggles Inventory target A/B 4.RSSI: Indication of signal strength information 5.Filter: Filter of duplicated tag 6.Sound:Sound on/off when read 7.Power Gain: RF power adjustment Tag number Above0:Total read tag number Center0:Tag number(By Filtered or not) Function button 1.INVENTORY: Start/ Stop to inventory of tag 2.CLEAR: Clear all read tag list on the screen 3.SELECTION MASK: Set tagselection and query Settings Go to Settings Previous Page Go back to previous page SELECTIONMASKStatus Indication of SELECTION and Inventory setting status ✔️INVENTORY Screen–How to filter No Filtering option Select Filtering option ✔️SELECTION MASKSetting SELECTIONSetting Buttons 1.ADD: Add new SELECTION setting 2.REMOVE: Remove selected setting 3.CLEAR: Remove All SELECTION setting INVENTORYSettings 1.Session: Inventory session 2.Target: Inventory target 3.SL Flag: Inventory SL flag SELECTION Mask Use or not Check to use Selection Mask Setting before inventory Inventory Setting Buttons 1.SAVE: Save changed settings 2.CANCEL: cancel or back to setting SELECTION Mask Setting List List of setting list applies during inventory. ✔️SELECTION MASKSetting Remove Open Add or change setting Remove all ✔️SELECTION MASKSetting 클릭 Use or not Selection Mast Set Inventory Setting status Indication ✔️EPC MATCH Setting Click and stay Select EPC MATCH setting ✻EPC Match setting value will be removed when out of Read/Write,Lock/Kill screen. Enable to remove the setting by CLEARbotton ✔️READ/WRITEScreen READ/WRITEselection tap Output screen of Memory Setting 1.Bank: Memory bank to select 2.Offset: Start position to read/write 3.Length: Memory length to read/write 4.Power Gain: RF Power adjustment Function buttons 1.READ/WRITE: read/write memory 2.CLEAR: clear read/write value on the screen 3.SELECTION MASK: Set tag selection Mask and query 4.ACCESS PASSWORD: Set access password ✔️READ/WRITE화면 Byte Result indication of read/ write ✔️READ/WRITE화면-ACCESS PASSWORD Setting Click Current password Input new password Change Tag password Save Access password ✔️LOCK/KILLScreen Function bottons 1.LOCK: Lock memory 2.KILL:Make a tag invalid 3.SELECTION MASK: Set selection Mask and query 4.CLEAR: ClearEPCMatch and result 5.ACCESS PASSWORD:Set access password 6.KILL PASSWORD: Set Kill password Operation settings 1.Power Gain: RF power adjustment Lock setting 1.Memory: Select memory to lock/unlock 2.Lock Operation: list of lock/unlock options Unlock: Unlock memory 3.PermaUnlock:Permanent unlock Lock:Lock memory PermaLock:Permanent lock ✔️LOCK/KILLscreen-LOCK Lock EPCUnlock EPC ✔️LOCK/KILLScreen-KILL PASSWORD setting Enable to set multiple memory Lock setting. click Current Kill password Input new password Change and write Kill password to tag Change Kill Password ✔️LOCK/KILLScreen-KILL click ✔️SETTINGSscreen ACCESS Settings 1.Timeout: Read/Writetimeout 2.Interval:retry interval value to Read/Write RF Settings 1.TxOn Time: Activation time of RF Tx 2.Power Gain: RF Power adjustment 3.RF Channel:Set RF channel ADMIN Settings Admin function unlock ✔️ADVANCEDScreen Click Input unlock code PERSISTENTSetting 1.Baudrate: UARTSpeed 2.Region:Country setting 3.RF Mode: RF link profile setting NONPERSISTENTSetting 1.LBT: RF frequency hopping mode setting 2.TxTiming: SetTxOn/Off Timing 3.Dwell Time: Antenna dwelling time setting 4.Singulation: Inventory algorithm setting Function buttons 1.RESET TO DEFAULTS:Reset as default value 2.UPDATE FIRMWARE: Firmware update 3.MODULE REBOOT: Reboot Module 4.SAVE: Save changed setting value 5.CANCEL: Cancel and back to set ✔️ADVANCEDScreen ✔️CERTIFICATIONScreen -Applied model : : a611 (UHF PDA Reader) -Application : Shopping Experience. -Solution: With real-time inventory and product information at your employees’ fingertips and the ability to process payments on a mobile device, customers will enjoy personalized service and less wait time. 01 Retail Ports -Applied model : a611 (UHF PDA Reader) -Application : Automate storage and Retrieval system 02 Administration of physical distribution -Solution: Monitoring of the entire distribution system. RFID allows for real-time tracking and batch automation through every process of The istributionchannel. -Applied model : a611 (UHF PDA Reader) -Application : Automate storage and Retrieval system 03 Administration of physical distribution -Solution: Monitoring of the entire distribution system. RFID allows for real-time tracking and batch automation through every process of the distribution channel. -Applied model : a611 (UHF PDA Reader) -Application: Record history of Inventory 04 Farm archival history -Solution: Detailed records for individual identification, breed, sex, place of birth…

Text truncated - open the document above for the full version.

APULSETECHNOLOGY Co., Ltd APPROVAL SHEET WLAN Antenna MODEL FREQUENCY a611-WIFI/BT 2400MHz ~ 2484MHz ANTENNA SPECIFICATION 1. Model Name : a611-WIFI/BT 2. Antenna Type : PIFA Antenna 3. Features - For WLAN Application 4. Antenna Drawing 5. Electrical Properties 5. 2400MHz ~ 2484MHz No. ELECTRICAL DATA SPECIFCATION REMARK 1 Frequency Range 2400MHz ~ 2484MHz 2 Impedance 50Ώ 3 V.S.W.R Less Than 1:2.0 4 Gain 0.07dBi 5 Radiation Pattern OMNI-Directional 6 Polarization VERTICAL 6. VSWR 7. Radiation Pattern 7-1. 2400MHz ~ 2484MHz APULSETECHNOLOGY Co., Ltd APPROVAL SHEET RFID Antenna MODEL FREQUENCY a611-RFID 902.75 ~ 927.25 MHz CIRCULARLY POLARIZED ANTENNA AP44-RFID-915UHF DATA SHEET FEATURES - FOR UHF RFID APPLICATIONS IN USA - EXCELLENT AXIAL RATIO - WIDE BANDWIDTH - COMPACT SIZE AND LIGHT WEIGHT MODEL AP44-RFID-915UHF Manufacture Apulsetech Type PCB Patch Polarization LHCP Frequency Range 902 – 928 MHz Gain (Circular Polarization) 0.89dBi (Max) Beam Width ( ° ) Hor:120, Ver :130 VSWR 1.5 : 1 MAX Power Handling 3W MAX SIZE 44(L)X44(W)X8(T)mm LENGTH10cm AP44-RFID-UHF Ant S11 AP44-RFID-UHF Ant Smith chart RADIATION PATTERN

FCC Agent Authorization letter September 22, 2022 Federal Communications Commission Apulse Technology Co., Ltd Authorization and Evaluation Division 7435 Oakland Mills Road, Add: C-1211, Columbia, MD 21046 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do 14322, Republic of Korea To Whom It May Concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; FCC Agent Authorization letter e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, (Sign) Name/Title : CEO / Robin Jang Company Name : Apulse Technology Co., Ltd

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Apulse TechnoIogy Co., Ltd Address C-1211, 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do 14322, Republic of Korea Grantee Code 2AWMD FCC ID 2AWMDA611 Authorized Contact Name Robin Jang Contact Email [email protected] Contact Phone +82-10-5526-0605 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2022-09-13 Print Name: Robin Jang Title: CEO *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

FCC Confidentiality Request Letter September 22, 2022 Federal Communications Commission Apulse Technology Co., Ltd Authorization and Evaluation Division R&D 7435 Oakland Mills Road, Add: C-1211, Columbia, MD 21046 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do 14322, Republic of Korea RE : Request of Confidentiality for FCC ID : 2AWMDA611 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Apulse Technology Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Apulse Technology Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune-up Procedure Short-Term 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual FCC Confidentiality Request Letter The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, (Sign) Name/Title : CEO / Robin Jang Company Name : Apulse Technology Co., Ltd

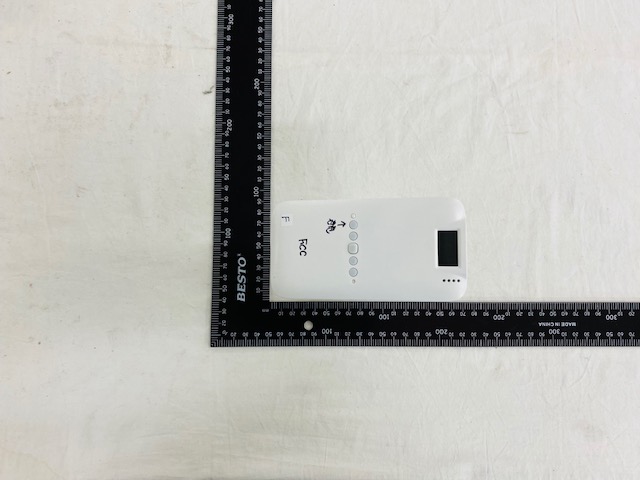

Model name: a611 External photos of EUT Model name: a611 Top view of EUT Bottom view of EUT Model name: a611 Side view of EUT Model name: a611

49.8 LABEL Area 2AWMDA611 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -Bottom view of EUT Label Information

Model name: a611 Internal photos of EUT Model name: a611 Internal view of EUT Model name: a611 Top view of Main PCB Bottom view of Main PCB Model name: a611 Top view of Sub PCB1 Bottom view of Sub PCB1 Model name: a611 Top view of Sub PCB2 Bottom view of Sub PCB2 Model name: a611 View of Bluetooth, WLAN Antenna & Module PIFA Antenna Bluetooth, WLAN Module Model name: a611 View of RFID Antenna & Module RFID Module PCB Patch Antenna

FCC ID: 2AWMDA611 According to KDB 447498 D01 General RF Exposure Guidance At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 7.5 This EUT operates in the hand, so 10-g extremity SAR test exclusion power thresholds was applied. 1. SAR test exclusion threshold -RFID Frequency: 928 ㎒ (min. separation distances = 0 ㎜) SAR test exclusion thresholds(5 ㎜) = 7.5 x 5 / (√ 0.928 ) = 38.928 ㎽ Max. tune-up tolerance (㎽) SAR Test Exclusion Thresholds (5 ㎜) (㎽) 15.740 38.928 Calculation value: 15.740 (㎽) / 5 (㎜) x √ 0.928 = 3.033 So, Calculation value ≤ 7.5 Remark; - Max. RFID tolerance power of EUT is 21.0 (㏈m) - Max. RFID tolerance power of EUT with applied duty cycle 12.5% is 15.740 (㎽). - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. - Bluetooth Frequency: 2 480 ㎒ (min. separation distances = 0 ㎜) SAR test exclusion thresholds(5 ㎜) = 7.5 x 5 / (√ 2.480 ) = 23.81 ㎽ Max. tune-up tolerance (㎽) SAR Test Exclusion Thresholds (5 ㎜) (㎽) 6.310 23.81 Calculation value: 6.310 (㎽) / 5 (㎜) x √ 2.480 = 1.987 So, Calculation value ≤ 7.5 Remark; - Max. Bluetooth tolerance power of EUT is 8.0 (㏈m) - Max. Bluetooth tolerance power of EUT is 6.310 (㎽). - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. - WLAN2.4G Frequency: 2 462 ㎒ (min. separation distances = 0 ㎜) SAR test exclusion thresholds(5 ㎜) = 7.5 x 5 / (√ 2.462 ) = 23.899 ㎽ Max. tune-up tolerance (㎽) SAR Test Exclusion Thresholds (5 ㎜) (㎽) 10.0 23.899 Calculation value: 10.0 (㎽) / 5 (㎜) x √ 2.462 = 3.138 So, Calculation value ≤ 7.5 Remark; - Max. WLAN2.4G tolerance power of EUT is 10.0 (㏈m) - Max. WLAN2.4G tolerance power of EUT is 10.0 (㎽). - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. 2.Conclusion: No SAR is required. Simultaneous transmission of RF Exposure test exclusion for worst case configuration. RFID: the ratio is 3.033 WLAN: the ratio is 3.138 Confirm the sum result of individual threshold value is ≤ 7.5; RFID + WLAN: 3.033 + 3.138 = 6.171 ≤ 7.5 BT and WLAN cannot operate simultaneous

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002336 Page: 2 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ---------- 9 3. 6 ㏈ Bandwidth ------------------------------------------------------------------------------------------ 34 4. Maximum Peak Conducted Output Power --------------------------------------------------------- 39 5. Power Spectral Density --------------------------------------------------------------------------------- 42 6. Antenna Requirement ----------------------------------------------------------------------------------- 47 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002336 Page: 3 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Apulse Technology Co., Ltd Address : C-1211, 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do, South Korea, 14322 Contact Person : Jang, Robin Phone No. : +82 10 5526 0605 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product RFID Smart Reader Model Name a611 Serial Number Conducted: 001, Radiated: 002 Power Supply DC 4 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) Antenna Type PIFA Antenna Antenna Gain 0.07 ㏈i H/W Version V1.0 S/W Version V095 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002336 Page: 4 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Ju n. 16, 2021 Annual Ju n. 16, 2022 Signal Generator R&S SMBV100A 255834 May 31, 2021 Annual May 31, 2022 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 Attenuator AEROFLEX / INMET 26A-10dB 3 Mar. 24, 2021 Annual Mar. 24, 2022 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-6SS 21 Jun. 04, 2021 Annual Jun. 04, 2022 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 11 May 17, 2021 Annual May 17, 2022 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-2 Feb. 08, 2021 Annual Feb. 08, 2022 Power Sensor R&S NRP-Z81 102779 Dec. 07, 2020 Annual Dec. 07, 2021 DC Power Supply R&S HMP2020 020089489 May 14, 2021 Annual May 14, 2022 Preamplifier H.P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Signal Conditioning Unit R&S SCU-18 10117 Jun. 09, 2021 Annual Jun. 09, 2022 Pre Amplifier TESTEK TK-PA1840H 130016 Jan. 07, 2021 Annual Jan. 07, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Horn Antenna R&S HF906 100326 Feb. 04, 2021 Annual Feb. 04, 2022 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 BBHA9170223 Sep. 16, 2020 Annual Sep. 16, 2021 EMI Test Receiver R&S ESU26 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 May 27, 2021 Semi- Annual Nov. 27, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 May 27, 2021 Semi- Annual Nov. 27, 2021 Coaxial Cable RFONE PL360P-292M292M-1.5 M-A 20200324002 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Note; - For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibraition due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002336 Page: 5 of 47 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C Section Test Item(s) Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2) 6 ㏈ Bandwidth Complied 15.247(b)(3) Maximum Peak Conducted Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.8. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.10-2013) and the guidance provided in KDB 558074 D01 15.247 Meas Guidance v05r02 were used in the measurement of the DUT. 1.9.…

Text truncated - open the document above for the full version.

Model name: a611 Test setup photos of EUT Model name: a611 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis Model name: a611 Model name: a611 2. Photo of Radiated Spurious Emission Test (Below 1㎓) Model name: a611 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of Conducted test
