2AWMN-PTR9611PTR9611

ABLUE TECHNOLOGY COPYRIGHT ©2020 ALLRIGHTS RESERVED ABLUE TechnologyE-mail: [email protected] 1 Bluetooth 5.1 Direction Finding Module Bluetooth Long range Mode support Embedded Cortex™ M4F 32 bit processor Ideal choice of IoT and Smart product The PTR9611 ultra-low power Bluetooth 5 ready multiprotocol System on Module based on the nRF52811 from Nordic Semiconductor. The module can support Bluetooth 5.1 by upgrading the protocol stack. The module with an ARM® Cortex™ M4 32 bit processor, 192KB Flash/24KB RAM, Bluetooth 5.1 Direct Finding AOA/AOD support ， provide a complete solution with no additional RF design, Bluetooth 5, allowing faster time to market, while simplifying designs, reducing BOM costs, also reduce the burden of Regulatory approvals to enter the world market. Making you more quickly into the Bluetooth smart application and remove the worries. Direction Finding enables positioning solutions to not only rely on received signal strength indicator (RSSI), but also the actual direction of a signal. This improves accuracy significantly and opens new possibilities for applications in this segment. There are two types of methods for determining direction, angle of arrival (AoA), where the direction of the received signal is calculated, and angle of departure (AoD), where the direction of the transmitted signal is calculated. The Module is the perfect choice as a transmitter in both the AoA or AoD scenarios, with its low power character and connectivity features. Features System on Module(SOM) base on Nordic nRF52811 Bluetooth® 5.1 • -97dBm sensitivity in 1 Mbps Bluetooth® low energy mode • -104dBm sensitivity in 125 kbps Bluetooth ® low energy mode (long range) • -20 to +4dBm TX power, configurable in 4 dB steps • On-air compatible with nRF52, nRF51, nRF24L, and nRF24AP Series • Supported data rates: • Bluetooth® 5.1: 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps • Angle-of-arrival (AoA) and angle-of-departure (AoD) direction finding using Bluetooth® • Single-ended antenna output (on-chip balun) • 4.6 mA peak current in TX (0dBm) • 4.6 mA peak current in RX • RSSI (1 dB resolution) ARM® Cortex®-M4 32-bit processor, 64 MHz Flexible power management • 1.7 V to 3.6 V supply voltage range PTR9611 ABLUE TECHNOLOGY COPYRIGHT ©2020 ALLRIGHTS RESERVED ABLUE TechnologyE-mail: [email protected] 2 • Fully automatic LDO and DC/DC regulator system • Fast wake-up using 64 MHz internal oscillator • 0.3μA at 3 V in System OFF mode, no RAM retention • 0.5μA at 3 V in System OFF mode with full 24 kB RAM retention • 1.5μA at 3 V in System ON mode, with full 24 kB RAM retention, wake on RTC • 1.4μA at 3 V in System ON mode, no RAM retention, wake on RTC  192 kB flash and 24 kB RAM  Nordic SoftDevice ready  Support for concurrent multi-protocol  12-bit, 200 ksps ADC - 8 configurable channels with programmable gain  64 level comparator， Temperature sensor  Up to 32 general purpose I/O pins  4-channel pulse width modulator (PWM) unit with EasyDMA  Digital microphone interface (PDM)  3x 32-bit timer with counter mode，2x real-time counter (RTC)  2x SPI master/slave with EasyDMA，I2C compatible 2-wire master/slave  UART (CTS/RTS) with EasyDMA，Programmable peripheral interconnect (PPI)  Single crystal operation  Dimensions: 24.3 x 17.5 x1.8mm with Antenna，1.27mm pin pitch. Typical Applications: Beacons Real time locating systems Asset tracking Smart home- Bluetooth Low Energy GateWay - iBeacons™, Eddystone™, Indoor navigation - Lighting Products - Fitness devices, Wearables Real time locating system the above figure shows the principle of a real time locating system (RTLS), ABLUE TECHNOLOGY COPYRIGHT ©2020 ALLRIGHTS RESERVED ABLUE TechnologyE-mail: [email protected] 3 where the AoA method is used to determine the location of a tag. The tag is a transmitter, while the locators are receivers. Each locator determines which direction the signal is coming from using AoA, and together with the location engine they are able to calculate the location of the tag. Quick Specifications: Multi-protocol SupportBluetooth 5.1 Microprocessor Core64 MHz 32-bit Arm Cortex-M4 Memory192 KB Flash + 24 KB RAM Radio Frequency2.402GHz to 2.480GHz ModulationsGFSK at 2/1 Mbps, Long range 125/500kbps Transmit power+4dBm to -20dBm in 4 dB steps. Receiver sensitivityBluetooth 5.1: -104dBm at 125 kbps -100dBM at 500 kbps -97dBm at 1 Mbps -94dBm at 2 Mbps AntennaIntegrated PCB Antenna/ Ext.IPX Antenna Current Consumption TX only @ +4dBm, @ 3V, DC/DC enabled7 mA TX only @ 0 dBm, @ 3V, DC/DC enabled4.6 mA RX only @ 1 Mbps @ 3V, DC/DC enabled4.6 mA CPU @ 64MHz from flash @ 3V, DC/DC2.2 mA System On with RAM retention1.5 μA System Off with no RAM retenion0.3μA Operating conditions Power supply1.7~3.6V Operating temperature-25~+85 °C ABLUE TECHNOLOGY COPYRIGHT ©2020 ALLRIGHTS RESERVED ABLUE TechnologyE-mail: [email protected] 4 Block diagram: Pin Description of Module（Top View）: ABLUE TECHNOLOGY COPYRIGHT ©2020 ALLRIGHTS RESERVED ABLUE TechnologyE-mail: [email protected] 5 PinNameDescriptionNote Pin1P0.23Digital I/O Pin2P0.22Digital I/O Pin3P0.21Digital I/OConfigurable as pin reset. Pin4P0.20Digital I/O Pin5SWDCLKHW debug and flash programming I/O Pin6SWDIOHW debug and flash programming I/O Pin7P0.19Digital I/O Pin8P0.18Digital I/O Pin9P0.17Digital I/O Pin10P0.16Digital I/O Pin11P0.15Digital I/O Pin12P0.14Digital I/O Pin13P0.13Digital I/O Pin14P0.12Digital I/O Pin15P0.11Digital I/O Pin16P0.10Digital I/ONFC2 Pin17P0.09Digital I/ONFC1 Pin18P0.08Digital I/O Pin19P0.07Digital I/O Pin20P0.06Digital I/O Pin21P0.05Digital I/OAIN3 Pin22P0.04Digital I/OAIN2 Pin23P0.03Digital I/OAIN1 Pin24P0.02Digital I/OAIN0 Pin25P0.01/XL2Digital I/O Pin26P0.00/XL1Digital I/O Pin27P0.31Digital I/OAIN7 Pin28P0.30Digital I/OAIN6 Pin29P0.29Digital I/OAIN5 Pin30P0.28Digital I/OAIN4 Pin31P0.27Digital I/O Pin32P0.26Digital I/O Pin33P0.25Digital I/O Pin34VDDPower Supply +1.7~3.6V Pin35P0.24Digital I/O Pin36GNDGround Note: An internal 4.7μF bulk capacit…

Text truncated - open the document above for the full version.

Compliance list INTEGRATIO N INST RUCTIO NS for 996369 D03 O EM the and 996369 D03 O EM b y Section s 2.2 thro ugh 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Ti tle 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Integral antenna with antenna gain 0 dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host envir onment that the limited module is used with. The manufacturer of a limited module must describe, both in the f iling and in the installat ion instruct ions , the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limit ing condit ions. A limited module manufacturer has the flexibility to define its alternat ive method to address the condit ions that limit t he init ia l approval, such as: shie lding, minimum N/A Not applicable signa ling amplitude, buffered modulat ion/data inputs , or power supply regulat ion. The alternative method could inc lude that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product int o which the modular transmitter will be insta lled will be mainta ined such that full compliance of the product is always ensured. For addit iona l hosts other than the specific host or iginally granted with a limited module, a Class II permissive change is required on the module grant to register the addit iona l host as a specific host also approved wit h the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publ i cati on 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requi rements. 4 a) Information that includes permitted variances (e.g., trace boundary limits , thickness, lengt h, w idth, shape(s), die lectric constant, and impedance as applicable for each type of antenna); b) Each design sha ll be considered a different type (e.g., antenna length in mult iple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the pr inted circuit (P C) board layout; d) Appropr iate parts by manufacturer and specifications; e) Test procedures for design verif ication; and N/A Not applicable f) Production test procedures for ensuring compliance. The module grantee shall provide a noti ce that any de vi ati on( s ) f rom the de fi ne d parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notif y the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufactu re r t o use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Ante nnas A list of antennas inc luded in the application for certification must be provided in the instruct ions. For modular transmitters approved as limited modules, all applicable professiona l installer instructions must be inc luded as part of the informat ion to the host product manufacturer. The antenna list shall also ident ify the antenna types (monopole, P IFA, dipole, etc. (note that…

Text truncated - open the document above for the full version.

Single Modular approval declaration letter We, SHENZHEN CHUANGHONGXIN INTELLIGENT TECHNOLOGY CO.,LTD apply Single modular approval for Product Name: Bluetooth Module Model: PTR9611 FCC ID: 2AWMN-PTR9611 According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer ：Yes ； both side shielded 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Ye s ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Ye s ；A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Ye s ；Device is equipped with PCB antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are longer than 10cm ，refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Ye s ；The modular has a permanent fixed label, and below statement was listed in the User Manual ; The host device must be labeled to display the FCC ID of the module Contains FCC ID: 2AWMN-PTR9611 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Ye s ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Ye s ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual. <Signature> Name Tanhui Company Shenzhen Chuanghongxin Intelligent technology Co.,Ltd

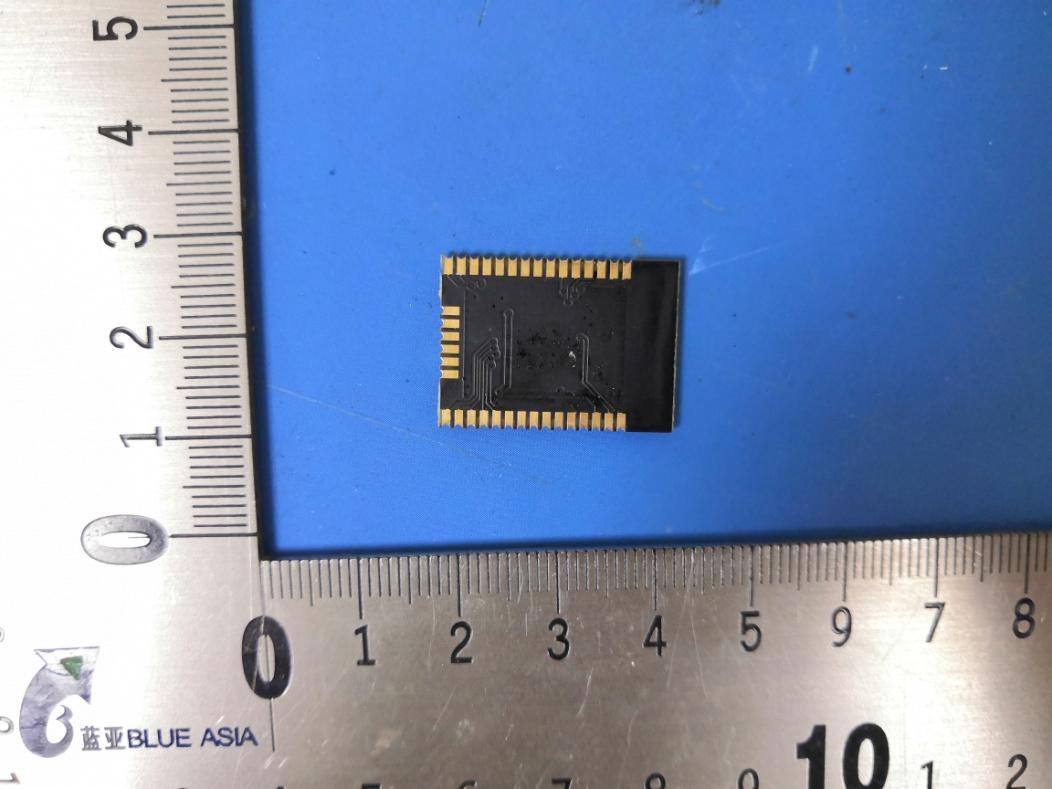

Model No.: PTR9611

ABLUE TECH Model:PTR9611 FCC ID:2AWMN-PTR9611 PTR9611 标签 标签文字： ABLUE TECH Model:PTR9611 FCC ID:2AWMN-PTR9611 标签尺寸： 长16mm x 宽7mm

Model No.: PTR9611

Page 1 of3 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Bluetooth module Brand Mark : ABLUE TECH Model No. : PTR9611 FCC ID : 2AWMN-PTR9611 Report Number : BLA-EMC-202006-A3502 Date of Sample Receipt : 2020/6/15 Date of Test : 2020/6/15 to 2020/7/6 Date of Issue : 2020/7/6 Test Standard : 47 CFR Part 1.1307, Part 2.1093, KDB 447498 Test Result : Pass Prepared for: SHENZHEN CHUANGHONGXIN INTELLIGENT TECHNOLOGY CO.,LTD Room703 of Block WanHai Building B, 1031 South Sea Avenue, Nanshan district, Shenzhen, China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by Date: 2020/7/6 Report No.: BLA-EMC-202006-A3502 Page 2 of3 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] RF EXPOSURE EVALUATION 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Report No.: BLA-EMC-202006-A3502 Page 3 of3 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 1.1.3 EUT RF Exposure Operational Mode: BLE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402 0.02 ±1 1.02 1.26 0.39 3 2442 -0.34 ±1 0.66 1.16 0.36 2480 -0.64 ±1 0.36 1.09 0.34 Conclusion: the calculated value ≤3.0, SAR is exempted. ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Page 1 of55 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Bluetooth module Brand Mark : ABLUE TECH Model No. : PTR9611 FCC ID : 2AWMN-PTR9611 Report Number : BLA-EMC-202006-A3501 Date of Sample Receipt : 2020/6/15 Date of Test : 2020/6/15 to 2020/7/6 Date of Issue : 2020/7/6 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: SHENZHEN CHUANGHONGXIN INTELLIGENT TECHNOLOGY CO.,LTD Room703 of Block WanHai Building B, 1031 South Sea Avenue, Nanshan district, Shenzhen, China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/7/6 Report No.: BLA-EMC-202006-A3501 Page 2 of55 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/7/6 Original Report No.: BLA-EMC-202006-A3501 Page 3 of55 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ)..................................................... 13 1.1 LIMITS ................................................................................................................................................................... 13 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 13 1.3 PROCEDURE .......................................................................................................................................................... 14 1.4 TEST DATA .............................................................................................................................................................. 15 2 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 17 2.1 LIMITS ................................................................................................................................................................... 17 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 17 2.3 TEST DATA .............................................................................................................................................................. 18 3 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 19 3.1 LIMITS ................................................................................................................................................................... 19 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 20 3.3 PROCEDURE .......................................................................................................................................................... 20 3.4 TEST DATA .............................................................................................................................................................. 22 4 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 27 4.1 LIMITS ................................................................................................................................................................... 27 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 28 4.3 PROCEDURE .......................................................................................................................................................... 28 4.4 TEST DATA .............................................................................................................................................................. 30 5 CONDUCTED SPUR…

Text truncated - open the document above for the full version.

Model No.: PTR9611
