21.5" Capacitive Touch PC i5-7300u FT215I5CAPOB faytech’s Capacitive PC series stands out among competition with its fanless silent operation, IP65 front panel design, high reliability and fine craftwork. It is the perfect choice for industrial and business application. It has flat edge to edge glass with IP65 water- and dust proof front panels and a sturdy aluminum case with stable VESA 100 fixation bolts (VESA 400 for 32" and up). The PC is powered by the high-end Kaby Lake U industrial mainboard. It has an Intel ® Core ™ i5-7300U processor with 2.60 GHz, 8GB RAM, a 128GB SSD and Intel ® ’s HD graphics Chipset. These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more. •Intel ® Core ™ i5-7300U CPU • 8GB RAM memory, 128GB Industrial SSD • Supports Windows 10 & Linux (32Bit, 64Bit) • Anti-glare surface treatment (chemical etching) • 10-Finger-Multi Touch Capacitive Touch Panel • 1.1mm cover glass with 7H surface hardness • Optically bonded Touch Panel to LCD Panel • Patented IP65 front with silicon seal • Integrated W-LAN • 2 year guarantee • Optional: i3-7100U / i7-7600U Core CPU W-LAN +60 ̊C -10 ̊C Optically BondedSupports Clamps ✓ LCD Panel Screen diagonal (Inch/cm) Display active screen size (cm) Aspect ratio Physical resolution External Maximum showable resolution - HDMI, DP Colours displayed Brightness (cd/m 2 ) Contrast Typical reaction time Tr / Tf (ms) Visual Angle horizontal / vertical (°) Backlight / Backlight Lifetime (hours) IP Rating IP65 Front / IP40 Back Operation / Mechanical Operating Temperature (°C)-10 ~ +60 Humidity Range (RH)10% - 90% Net weight (kg) Gross weight (kg) Housing materialRubber front case, Aluminum IPC back case Housing (mm) L × W × H532.0 × 331.0 × 72.0 Power Power IndicatorGreen LED Power Supply100-240V ACDC active switching; 12V DC-Out Working Power (V)12 42Power Consumption (W) Stand-By Consumption (W)<1 Touch Panel Touch TechnologyProjected Capacitive 10-Point Multitouch Touch ConnectorUSB Touch Life (Contacts)Unlimited Surface Hardness7H Surface TreatmentAnti-glare (chemical etching) PC System CPUIntel ® Core ™ i5-7300U Processor Kaby Lake Graphic GPUIntel ® HD Graphics Audio Memory8GB DDR4 non-ECC (max. 16GB) Storage (switchable)faytech Industrial 128GB SSD Network Driver Support Preinstalled OSLinux Ubuntu Realtek ALC3236 Audio CODEC Win10; Linux; 32Bit/64Bit 2x Realtek PCIe GB LAN 8111G (1000Mbps) M.2 E-key Wi-Fi module Product name Model number / EAN number 21.5" Capacitive Touch PC i5-7300U FT215I5CAPOB / 6920734002153 21.5/54.69 47.70×26.80 16:9 1920×1080 1920×1200 16.7M 250 1000:1 1.5/3.5 170/160 LED / 40,000 5.20 7.80 (incl. cartonage) Tolerance: ± 1mm External Connectors 1x HDMI 1x DP 2x USB 3.0 2x USB 3.0 1x W-LAN antenna connector (RP-SMA male) 1x MIC-In & EAR-Out 1x 8-PIN DIO as RJ45 2x COM port Full-PIN - RS232/485; 5V/12V 2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V 2x 10/100/1000Mbit RJ45 Ports 1x S/PDIF-Out (1x Cinch, 1x Torx module) 1x 2.5" module slot, changeable SSD included 1x 12V DC-In (screwable) Included in the Delivery Power Supply (see Power section) W-LAN antenna (RP-SMA female) Short Installation Manual Standard Stand Expansion Slots 1x mSATA full size (occupied by SSD) 1x M.2 E-Key Slot (occupied by Wifi card) 1x SATA connector 1x External PCIe x1 Straddle connector Cut-out for clamp supports (mm) L × H508.0 × 307.0 MountingVESA 100 Amount of clamps required6 Internal Connectors (occupied) 1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory 3x RS232/RS485 COM connectors switchable in BIOS 2x LCD Backlight control/LCD panel voltage box 1x 12V DC power connector (2-pin)1x 5V/12V SATA power connector 1x 4-pin SATA power connector1x S/PDIF output pin header 1x 8-bit Digital I/O interface1x Line-out / Mic-in header 1x MIPI CSI connector1x LVDS box header 1x Front Panel box header1x Serial ATA 6Gb/s 2x USB 3.0 box header 27.2477.727.2 532 34.5 269.1 27.5 331 24 72 216100216 115.5 100 115.5 168.8194.5168.8 72.5 186 72.5 R12 China: +86 755 8958 0612 Germany: +49 5542 30374 10 USA: +1 646 205 3214 India: +91 11 49707436 Japan: +070 4127 5167 [email protected] [email protected] www.faytech.com Troubleshooting If you encounter problems or ambiguities during the usage, please first refer to the detailed instruction manual (available on the driver DVD and on www.faytech.com). In case you are unable to resolve the issue this way please contact us directly. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two cond itions: (1) this device may not cause harmful interference, and (2) this device must accept any int erference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However, there is no guarantee th at interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to c orrect the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment…

Text truncated - open the document above for the full version.

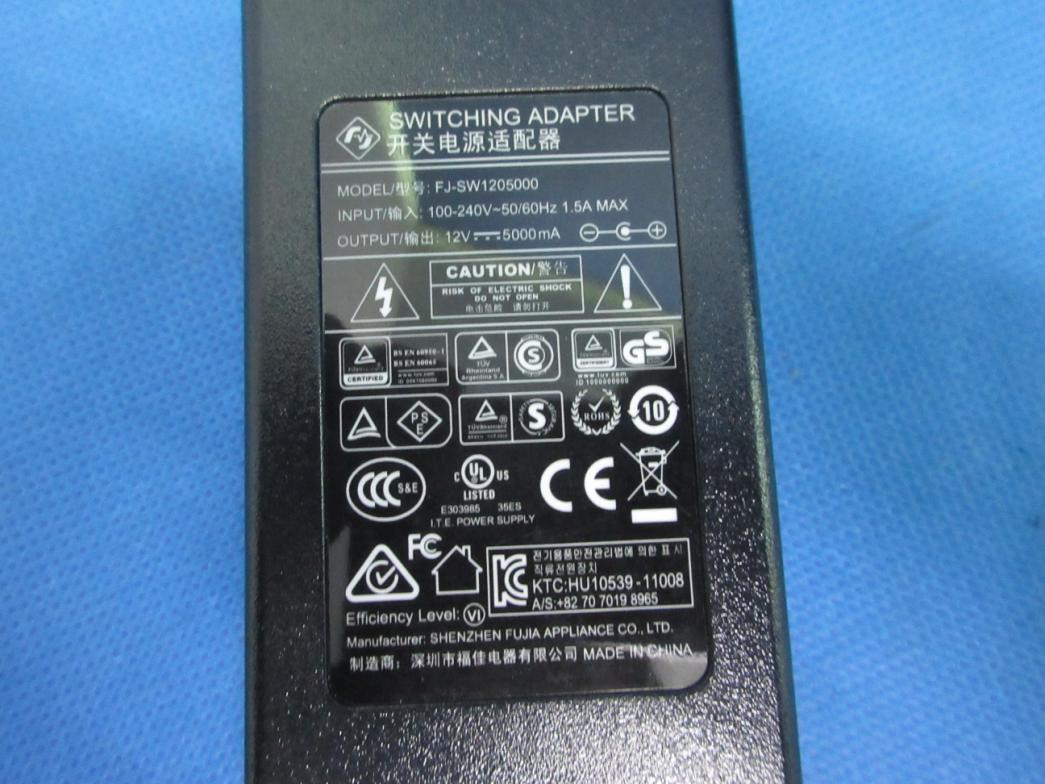

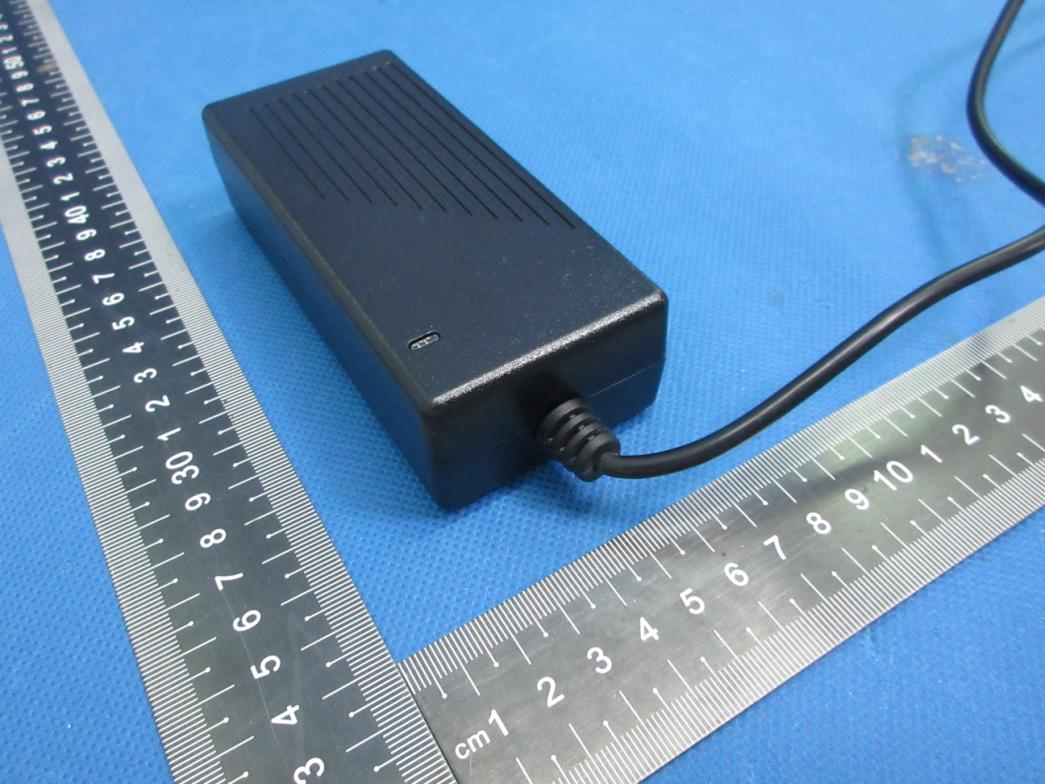

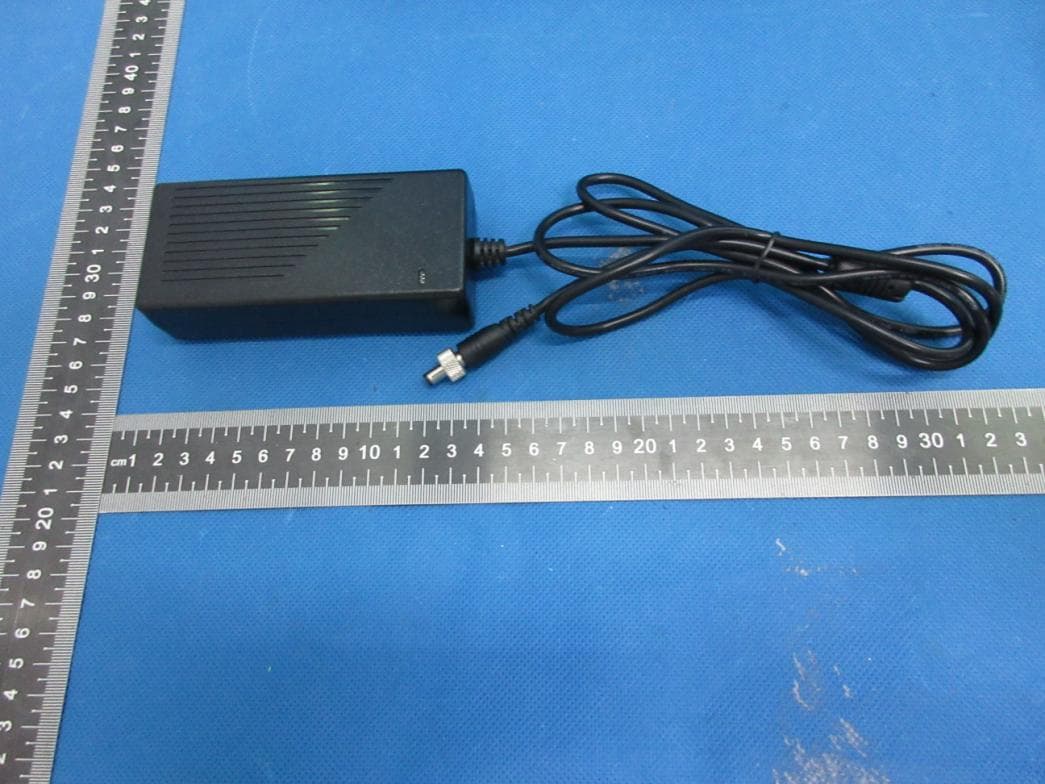

S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 1 Photo 2 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 3 Photo 4 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 5 Photo 6 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 7 Photo 8 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 9 Photo 10 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 11 Photo 12 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 13

A0 Noah 215inch-PC 2020-04-07 8 12345678 1345672 faytech UNITmm Scale 1:1 REV. Description Designed Checked Approved Date Date Date - No. Rev. Revision Record Date 168.8 Tolerance: ± 1mm 216100216 115.5 100 115.5 194.5168.8 72.5 186 72.5

S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 1 Photo 2 ANT S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 3 Photo 4 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 5 Photo 6 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 7 Photo 8 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 9 Photo 10 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 11 Photo 12 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 13 Photo 14 Photo 15 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 16 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 17 Photo 18 S20040202003 Model: FT215I5CAPOB N20190309V1 Photo 19 Photo 20

version01 Faytech Tech.Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: FT215I5CAPOB,FT07I5CAPOB, FT08I5CAPOB, FT10I5CAPOB, FT101I5CAPOB, FT121I5CAPOB, FT133I5CAPOB, FT15I5CAPOB, FT156I5CAPOB, FT17I5CAPOB, FT185I5CAPOB, FT19I5CAPOB, FT24I5CAPOB, FT27I5CAPOB FCC ID: 2AWNGFTI5CAP fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Reverse SMA interface External antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Reverse SMA interface External Antenna (1/4 wave antenna) built into the housing) 2.4G WIFI: Gain of the antenna: Frequency range: 0.8 dBi 2412 to 2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Faytech Tech.Co., Ltd. Address: Flr 3, Bld D, Phase 2, Hongmen Industry Park, No.399, Jihua Road, Shuijing, City: District Longgang, Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 06/16/2020 Name: yan.guo Signature:

FCC ID: 2AWNGFTI5CAP RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. MAX OUTPUT POWER WIFI Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 802.11b 2412 Ant 1 12.64 30 Pass NVNT 802.11b 2437 Ant 1 11.95 30 Pass NVNT 802.11b 2462 Ant 1 12.08 30 Pass NVNT 802.11g 2412 Ant 1 12.22 30 Pass NVNT 802.11g 2437 Ant 1 11.57 30 Pass NVNT 802.11g 2462 Ant 1 11.64 30 Pass NVNT 802.11n(HT20) 2412 Ant 1 10.51 30 Pass NVNT 802.11n(HT20) 2437 Ant 1 11.91 30 Pass NVNT 802.11n(HT20) 2462 Ant 1 11.87 30 Pass NVNT 802.11n(HT40) 2422 Ant 1 10.13 30 Pass NVNT 802.11n(HT40) 2437 Ant 1 11.52 30 Pass NVNT 802.11n(HT40) 2452 Ant 1 11.15 30 Pass Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.412 12.64 18.365 12±113 19.953<56.197537.50YES 2.437 11.95 15.668 12±113 19.953<56.229577.50YES 2.462 12.08 16.144 12±113 19.953<56.261447.50YES 2.412 12.22 16.672 12±113 19.953<56.197537.50YES 2.437 11.57 14.355 12±113 19.953<56.229577.50YES 2.462 11.64 14.588 12±113 19.953<56.261447.50YES 2.412 10.51 11.246 11±112 15.849<54.922877.50YES 2.437 11.91 15.524 11±112 15.849<54.948327.50YES 2.462 11.87 15.382 11±112 15.849<54.973647.50YES 2.422 10.13 10.304 11±112 15.849<54.933077.50YES 2.437 11.52 14.191 11±112 15.849<54.948327.50YES 2.452 11.15 13.032 11±112 15.849<54.963537.50YES 802.11b 802.11g 802.11n HT20 802.11n HT40 Conclusion: For the max result : 6.26144≤ 7.5 for 10-g SAR, No SAR is required. Signature: Date: 2020-06-16 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20040202002001 Version.1.3 Page 1 of 74 FCC RADIO TEST REPORT FCC ID: 2AWNGFTI5CAP Product: 21.5" Capacitive Touch PC Trade Mark: N/A Model No.: FT215I5CAPOB Family Model: FT07I5CAPOB, FT08I5CAPOB, FT10I5CAPOB, FT101I5CAPOB, FT121I5CAPOB, FT133I5CAPOB, FT15I5CAPOB, FT156I5CAPOB, FT17I5CAPOB, FT185I5CAPOB, FT19I5CAPOB, FT24I5CAPOB, FT27I5CAPOB Report No.: S20040202002001 Issue Date: 30 May. 2020 Prepared for Faytech Tech.Co., Ltd. Flr 3, Bld D, Phase 2, Hongmen Industry Park,No.399, Jihua Road, Shuijing, District Longgang , Shenzhen , China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20040202002001 Version.1.3 Page 2 of 74 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES ....................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................................... 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 30 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 32 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 34 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 36 7.9 ANTENNA APPLICATION .......................................................................................................................... 37 8 TEST RESULTS ................................................................................................................................................... 38 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 38 8.2 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 39 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 46 8.4 BAND EDGE .................................................................................................................................................... 53 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 62 Report No.: S20040202002001 Version.1.3 Page 3 of 74 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Faytech Tech.Co., Ltd. Address ....................................... : Flr 3, Bld D, Phase 2, Hongmen Industry Park,No.399, Jihua Road, Shuijing, District Longgang , Shenzhen , China Manufacturer's Name .................. : Sichuan faytech Tech .Co. Address ....................................... : No.29 attached to No. 3, Guo Jun Avenue, Suining economic and Technological Development Zone, Sichuan, China Product description Product name .............................. : 21.5" Capacitive Touch PC Model and/or type reference ..... : FT215I5CAPOB Family Model ............................... : FT07I5CAPOB, FT08I5CAPOB, FT10I5CAPOB, FT101I5CAPOB, FT121I5CAPOB, FT133I5CAPOB, FT15I5CAPOB, FT156I5CAPOB, FT17I5CAPOB, FT185I5CAPOB, FT19I5CAPOB, FT24I5CAPOB, FT27I5CAPOB Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J …
