15" Embedded Touch PC FT15V40CAPOB • Allwinner ® V40 Cortex ™ A7 QuadCore Processor • 1GB RAM Memory & 8GB FLASH Storage • Pre-installed Android 6.0 operating system • Anti-glare surface treatment (chemical etching) • 10-Finger-Multi Touch Capacitive Touch Panel • 1.1mm cover glass with 7H surface hardness • Optically bonded Touch Panel to LCD Panel • Patented IP65 front with silicon seal • Integrated W-LAN module • 2 year guarantee faytech's Embedded Touch PCs have a pre-installed Android 6.0 operating system and are equipped with W-LAN module. The device has IP65 water- and dust proof front panels and capacitive 10-finger multitouch. All the PCs have VESA 75 or VESA 100 screw patterns on the back, while the 13.3" to 21.5" come with their own desktop stand included. The Embedded PC is powered by the powerful embedded V40 QuadCore mainboard, with 1G DDR3 RAM, 8GB flash memory, a SATA connector and SD card slot for further storage expansion. This device has an optically bonded touch panel, which will improve the stability, reduce the reflection, increase the viewing angle, and enhance the perceived brightness. It also provides resistance to dust particles and shows a better image in general. It is the perfect choice for a wide variety of applications, including industrial automation, control panels and digital signage. +60 ̊C -10 ̊C W-LAN Optically BondedSupports Clamps ✓ China: +86 755 8958 0612 India: +91 11 49707436 Germany: +49 5542 30374 10 USA: +1 646 205 3214 Japan: +070 4127 5167 [email protected] [email protected] www.faytech.com Power Power IndicatorGreen LED Power Supply100-240V ACDC active switching; 12V DC-Out Working Power (V)8~18 Power Consumption (W)16 Stand-By Consumption (W)<1 PC System CPUAllwinner ® V40 QuadCore ChipsetCortex A7 Graphic GPUARM ® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1 Audio Memory1GB DDR3 Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier Storage8GB EMMC Flash Network10/100Mbit Network; W-LAN OSAndroid 6.0 Touch Panel Touch TechnologyProjected Capacitive 10-Point Multitouch Touch ConnectorUSB Touch Life (Contacts)Unlimited Surface Hardness7H Surface TreatmentAnti-glare (chemical etching) 34.5 229.0 34.5 27.0305.027.0 359.0 298.0 23.0 45.0 65.1228.965.1 69.1 159.9 69.1 99.0 100.0 99.0 129.5100.0129.5 Internal Connectors 1x SD-card 1x SIM-card 2x Serial 4x TTL UART 2x USB 2.0 18/24Bit LVDS 6x GPIO 1x Line-In 1x Line-Out 1x Amplifier for 2x6W loudspeaker 1x SATA-Port 1x RTC 1x CAN Bus External Connectors 1x 8-18V DC-In (screwable) 1x HDMI 2x USB 2.0 1x USB OTG 1x 10/100Mbit RJ45 Port 1x Audio-In 1x Audio-Out 1x Serial 1x RJ10 (4P4C) 1x SD-card slot 1x SIM-card slot 1x W-LAN antenna connector (RP-SMA male) IP Rating IP65 Front / IP40 Back LCD Panel Screen diagonal (Inch/cm)15/38.10 Display active screen size (cm)30.40×22.80 Aspect ratio4:3 Physical resolution1024×768 External Maximum showable resolution - HDMI1920×1080 Colours displayed16.7M Brightness (cd/m 2 )300 Contrast700:1 Typical reaction time Tr/ Tf (ms)8/12 Visual Angle horizontal/vertical (°)160/160 Backlight / Backlight Lifetime (hours)LED / 30,000 Included in the Delivery Power Supply (see Power section) W-LAN Antenna (RP-SMA female) Short Installation Manual Standard Stand Expansion slots MiniPCIe Operation / Mechanical Operating Temperature (°C)-10 ~ +60 Humidity Range (RH)10% - 90% Net weight (kg)4.10 Gross weight (kg)5.10 (incl. cartonage) Housing materialRubber Front Case, Plastic Back Case Housing (mm) L × W × H359.0 × 298.0 × 45.0 Cut-out for clamp supports (mm) L × H335.0 × 274.0 MountingVESA 100 Amount of clamps required6 Global Article CodeEuropean Article CodeRelease date Product name Model number / EAN number 15" Embedded Touch PC FT15V40CAPOB / 6920734015801 Global Article CodeEuropean Article CodeRelease date 3030501862 101050157314/03/2019 Label's content and size： Label & Location FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only …

Text truncated - open the document above for the full version.

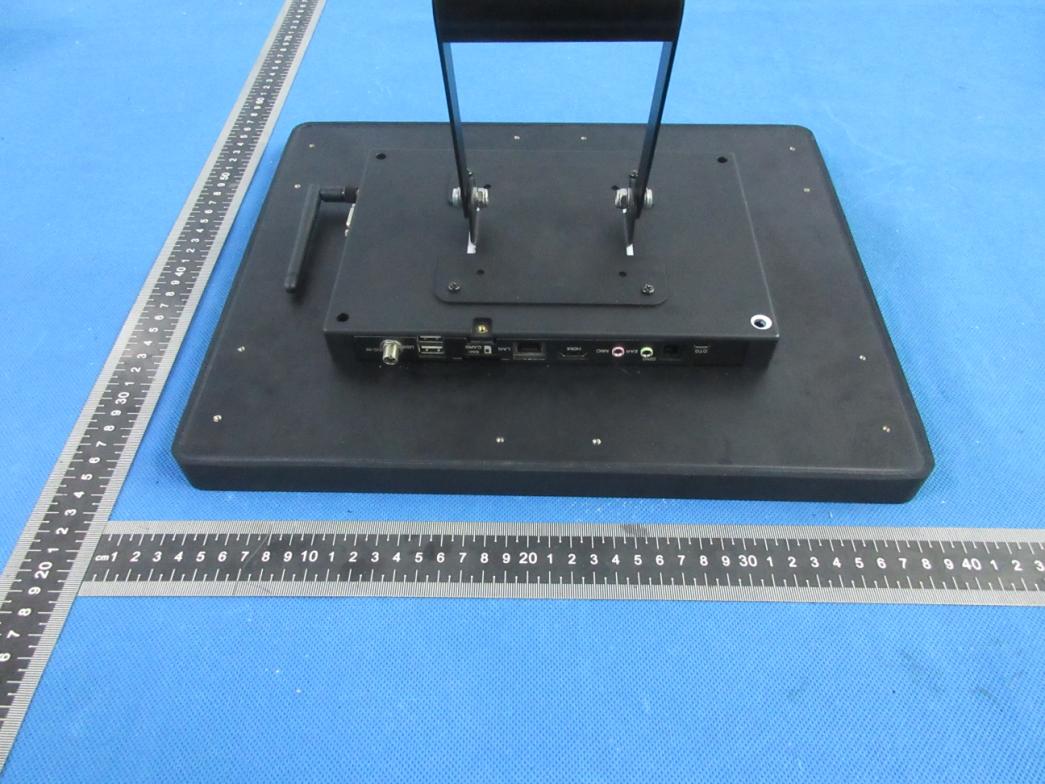

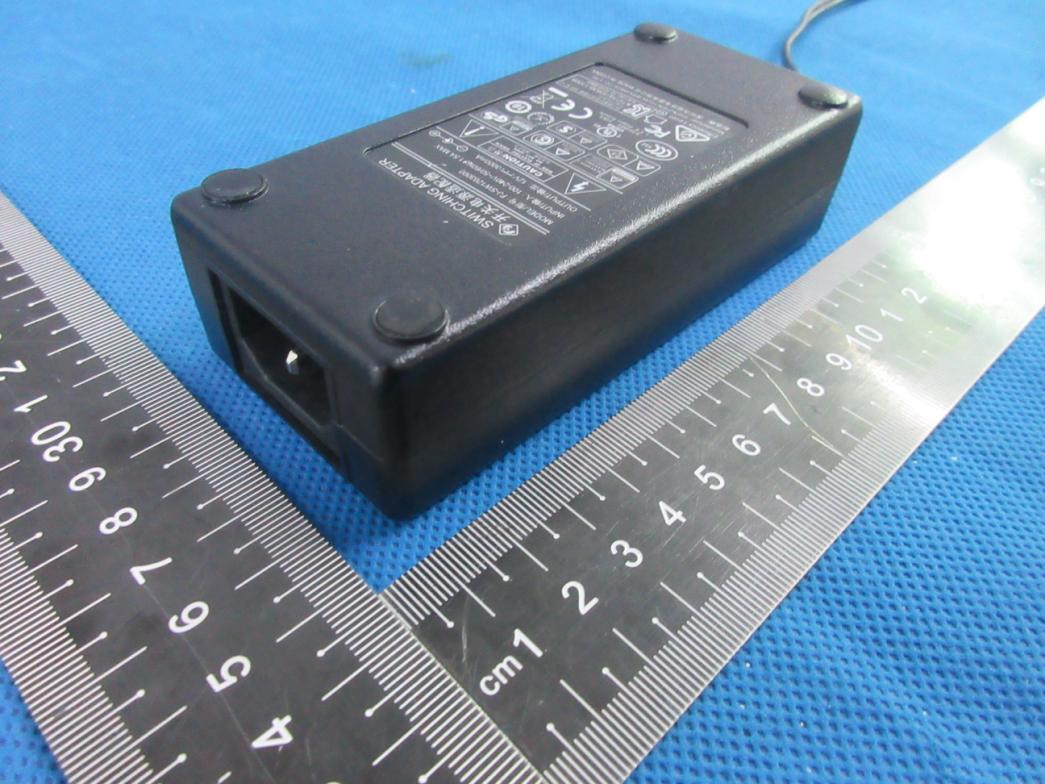

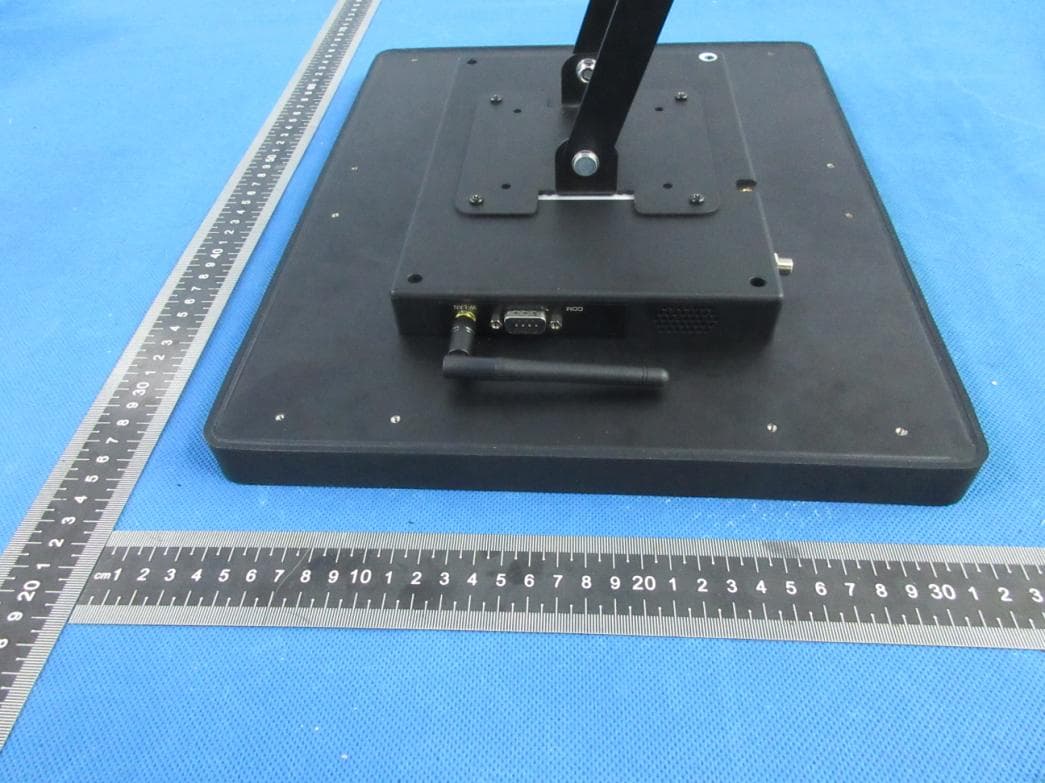

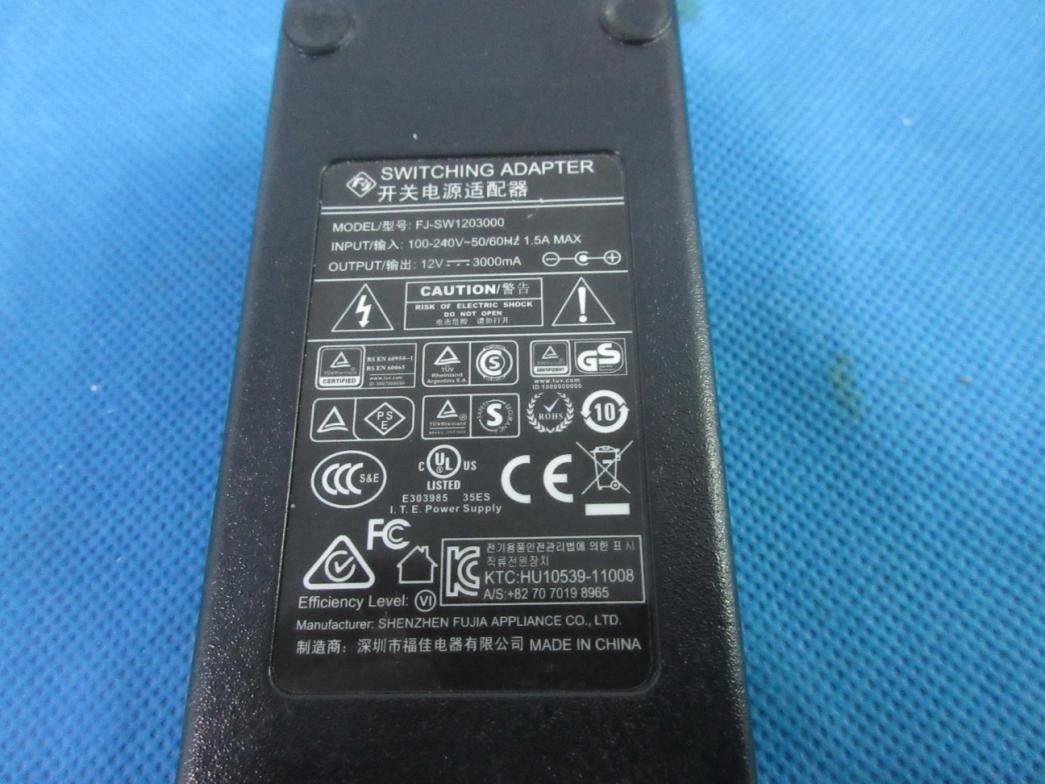

S20061902903 Model: FT15V40CAPOB Photo 1 Photo 2 S20061902903 Model: FT15V40CAPOB Photo 3 Photo 4 S20061902903 Model: FT15V40CAPOB Photo 5 Photo 6 S20061902903 Model: FT15V40CAPOB Photo 7 Photo 8 S20061902903 Model: FT15V40CAPOB Photo 9 Photo 10

Label & Location Label's content and size：

S20061902903 Model: FT15V40CAPOB Photo 1 Photo 2 S20061902903 Model: FT15V40CAPOB Photo 3 Photo 4 S20061902903 Model: FT15V40CAPOB Photo 5 Photo 6 S20061902903 Model: FT15V40CAPOB Photo 7 Photo 8 S20061902903 Model: FT15V40CAPOB Photo 9 Photo 10 S20061902903 Model: FT15V40CAPOB Photo 11 Photo 12 ANT S20061902903 Model: FT15V40CAPOB Photo 13

Faytech Tech.Co., Ltd. Declaration concerninq Antenna Specification It is hereby declared that the product Model No.: FT15V40CAPOB,FT07V40CAPOB,FT08V40CAPOB,FT10V40CAPOB,FT101V40CAP OB,FT116V40CAPOB,FT121V40CAPOB,FT133V40CAPOB,FT15V40CAPOB,FT156V 40CAPOB,FT17V40CAPOB,FT185V40CAPOB,FT19V40CAPOB,FT215V40CAPOB,F T24V40CAPOB, FT27V40CAPOB FCC ID: 2AWNGFTV40CAP fulfills the requirement in FCC test relating to the antenna type The device specified above confirms to the FCC recommendations for External antenna type(s) described below: Model No. of antenna: N/A Type of antenna: External Antenna 2.4G WIFI: Gain of the antenna: 3 dBi Frequency range: 2412 to 2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Address: City: ZIP/ Postal code: Country: Place: Name: yan.guo Faytech Tech.Co., Ltd. Fir 3, Bid D, Phase 2, Hongmen Industry Park, No.399, Jihua Road, Shuijing, District Longgang, Shenzhen China Shenzhen Date: 04/20/2021 Signature: J On . 尸 versionOl

FCC ID: 2AWNGFTV40CAP RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: WIFI: 2412-2462MHz Power density limited: 1mW/ cm 2 Antenna Type: External antenna Antenna gain: 3dBi, R=20cm conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 241211.39 11±112 15.8493.002.000.00631 243710.94 11±112 15.8493.002.000.00631 246210.83 11±112 15.8493.002.000.00631 241211.12 11±112 15.8493.002.000.00631 243710.83 11±112 15.8493.002.000.00631 246210.65 11±112 15.8493.002.000.00631 241211.07 11±112 15.8493.002.000.00631 243710.79 11±112 15.8493.002.000.00631 246210.73 11±112 15.8493.002.000.00631 242210.33 11±112 15.8493.002.000.00631 243711.16 11±112 15.8493.002.000.00631 245210.66 11±112 15.8493.002.000.00631 802.11n40 (mW/cm2 )(mW/cm2) Antenna Gain 802.11b Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) 802.11g 802.11n20 Conclusion: For the max result : 0.0063≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2021-04-26 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20061902903001 Version.1.3 Page 1 of 74 FCC RADIO TEST REPORT FCC ID: 2AWNGFTV40CAP Product: 15” Embedded Touch PC Trade Mark: N/A Model No.: FT15V40CAPOB Family Model: FT07V40CAPOB,FT08V40CAPOB,FT10V40CAPOB, FT101V40CAPOB,FT116V40CAPOB,FT121V40CAPOB, FT133V40CAPOB,FT15V40CAPOB,FT156V40CAPOB, FT17V40CAPOB,FT185V40CAPOB,FT19V40CAPOB, FT215V40CAPOB,FT24V40CAPOB,FT27V40CAPOB Report No.: S20061902903001 Issue Date: 03 Feb. 2021 Prepared for Faytech Tech.Co., Ltd. Flr 3, Bld D, Phase 2, Hongmen Industry Park,No.399, Jihua Road,Shuijing,District Longgang , Shenzhen , China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel:400-800-6106 , 0755-3699-5508 Website:http://www.ntek.org.cn Report No.: S20061902903001 Version.1.3 Page 2 of 74 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES ....................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................................... 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 30 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 32 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 34 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 36 7.9 ANTENNA APPLICATION .......................................................................................................................... 37 8 TEST RESULTS ................................................................................................................................................... 38 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 38 8.2 OCCUPIED CHANNEL BANDWIDTH ........................................................................................................................ 39 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ..................................................................................................... 46 8.4 BAND EDGE ........................................................................................................................................................... 53 8.5 CONDUCTED RF SPURIOUS EMISSION ................................................................................................................... 62 Report No.: S20061902903001 Version.1.3 Page 3 of 74 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Faytech Tech.Co., Ltd. Address ....................................... : Flr 3, Bld D, Phase 2, Hongmen Industry Park,No.399, Jihua Road, Shuijing,District Longgang , Shenzhen , China Manufacturer's Name .................. : Sichuan faytech Tech .Co. Address ....................................... : No.29 attached to No. 3, Guo Jun Avenue, Suining economic and Technological Development Zone, Sichuan,China Product description Product name .............................. : 15” Embedded Touch PC Model and/or type reference ..... : FT15V40CAPOB Family Model ............................... : FT07V40CAPOB,FT08V40CAPOB,FT10V40CAPOB, FT101V40CAPOB,FT116V40CAPOB,FT121V40CAPOB, FT133V40CAPOB,FT15V40CAPOB,FT156V40CAPOB, FT17V40CAPOB,FT185V40CAPOB,FT19V40CAPOB, FT215V40CAPOB,FT24V40CAPOB,FT27V40CAPOB Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE …
