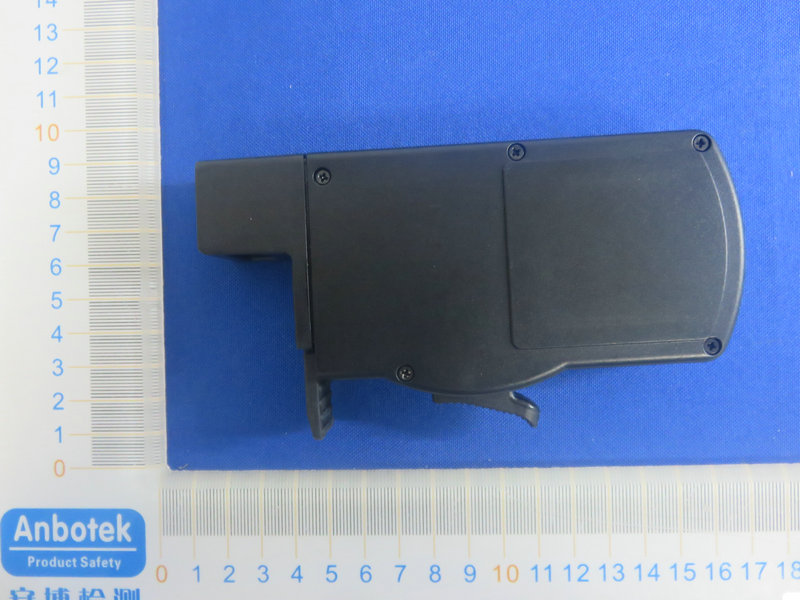

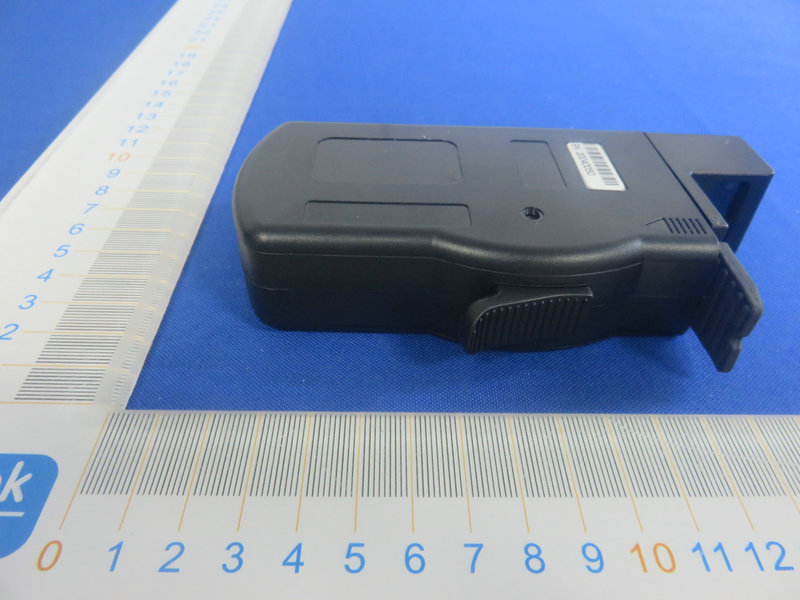

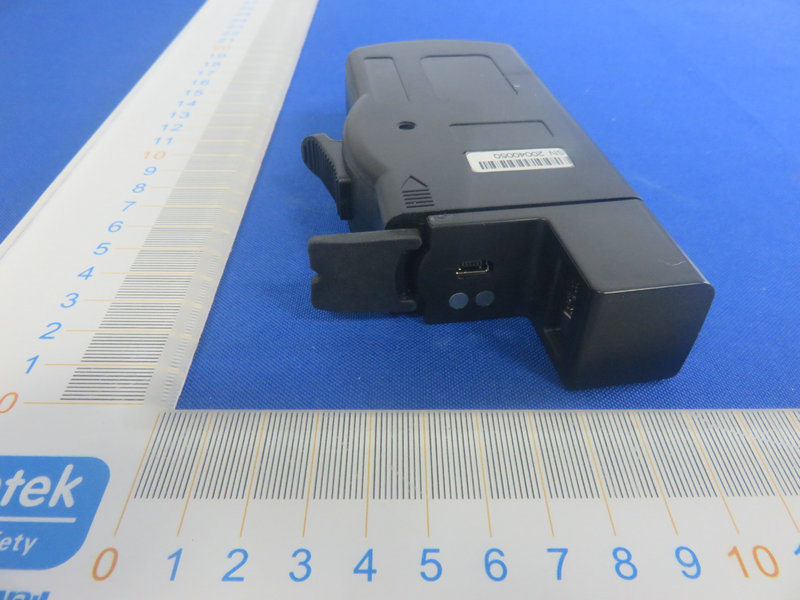

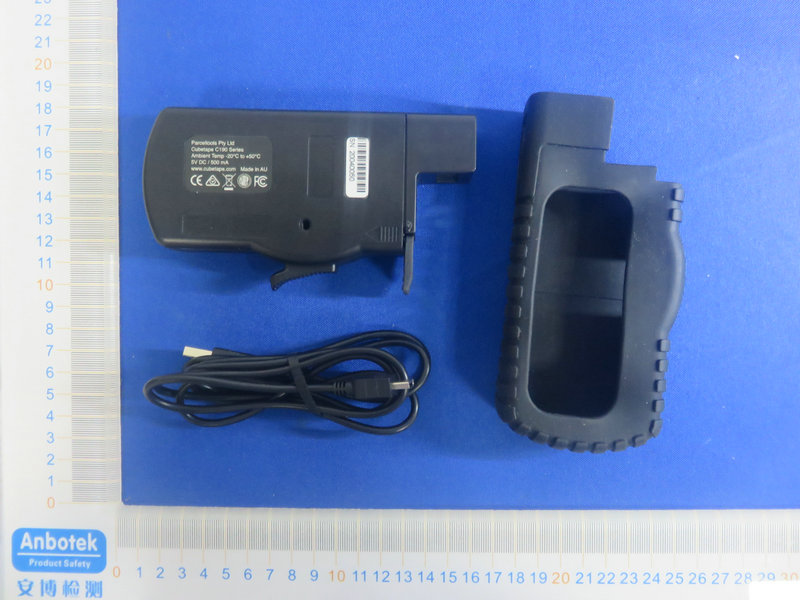

2AWQV-C190POSCubetape Dimensioning Products

Quick Start Guide for C190SHP, C190POS, C190DSK – Page 1 C190SHP, C190 POS, C190 DSK User Guide Page 1 Cubetape C190 POS C190DSK Cradle C190CRC USB Cable www.cubetape.com Quickstart Guide Contents of C190SHP: Powering On/Off and Bluetooth Pairing: •Power on Cubetape by pressing and holding m button for 3 seconds Power off Cubetape by pressing and holding m button for 6 seconds •To pair with cradle, scan the pairing barcode on the front of the cradle •Connection is successful when the Blue LED indicators on Cubetape and the cradle are permanently ON. If the Blue LED indicators continue to flash, re-scan the Bluetooth pairing barcode on the cradle. •Cubetape will remain ON while it has an active Bluetooth connection, otherwise it will power OFF after around 3 minutes P airing barcode Operations and Measuring: √ CORRECT INCORRECT x Extend the tape, press the ‘m’ button to scan the barcode measurement on the tape •Blue LED indicators are on permanently when connected •To scan a barcode ID, press ‘m’ DIP switches beneath cradle: USB Cable PC Cradle Installation: OFF ON DEFAULT RESERVED COMMS MODE RESERVED RESERVED -- USB-VPC -- -- -- USB-HID -- -- OFF ON OFF OFF # 2018001 Quick Start Guide for C190SHP, C190POS, C190DSK – Page 2 www.cubetape.com Battery Tape Cassette Tape Compartment C190POS General Settings Suffix TAB (Default) Suffix CR Off floor or Inside Measure ON {G2043/1/ } Bluetooth Cradle Mode (Default) Bluetooth SPP Mode Bluetooth HID Mode Bluetooth Reset 00000058 00000008 00000038 00000007 www.cubetape.com/documents/C190POS-user guide C190SHP, C190 POS, C190 DSK User Guide Page 2 Place device in the cradle Low battery warning will signal with ĂŵďĞƌ >ĨůĂƐŚ and ĂŵďĞƌ LED on cubetape will be solid when charging Charging: Device LED RED KE- CUBETAPE charging ZK&&ͲhdWĐŚĂƌŐĞĚ Battery Compartment FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an tenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. -English:" ThisdevicecomplieswithIndustryCanadalicence-exemptRSSstandard( s).Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseinterference,and (2)thisdevicemustacceptanyinterference,includinginterferencethat maycauseundesiredoperationofthedevice." -French:" LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicables auxappareilsradioexemptsdelicence.L'exploitationestautorisée auxdeuxconditionssuivantes: (1)l'appareilnedoitpasproduiredebrouillage,et (2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectrique subi,mêmesilebrouillageestsusceptibled'encompromettrele fonctionnement."

FCC ID: 2AWQV-C190POS

Label Location On EUT Label Product Name: Cubetape Dimensioning Products Model No.: C190POS FCC ID: 2AWQV-C190POS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AWQV-C190POS ANT

version01 ParceltoolsPtyLtd Declaration concerning Antenna Specification It is hereby declared that the product Model No.: C190POS FCC ID : 2AWQV-C190POS fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna:PCB Antenna Gain of the antenna: 0 dBi Frequency range:2402-2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Parceltools Pty Ltd Address: 18 Larkin St, Waverton, NSW, 2060, Australia City: Waverton, NSW ZIP / Postal code: N/A Country:Australia Place:AustraliaDate: 2020-07-07 Signature:

RF EXPOSURE EVALUATION FCC ID: 2AWQV-C190POS According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters withoutput power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 24023.722 3.722±1 4.72250.9193 BDR+EDR 24413.026 3.026±14.026 5 0.790 3 24803.309 3.309±1 4.30950.8493 24024.088 4.088±1 5.08851.0003 24413.948 3.948±14.948 5 0.976 3 24803.781 3.781±1 4.78150.9473 Test Results:PASS.

Report No.: 18220WC00069701FCC ID: 2AWQV-C190POSPage 1 of 59 Code:AB-RF-05-a FCC TEST REPORT Client Name: Parceltools Pty Ltd Address: 18 Larkin St, Waverton, NSW, 2060, Australia Product Name: Cubetape Dimensioning Products Date: Jul. 06, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00069701FCC ID: 2AWQV-C190POSPage 2 of 59 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 27 5.1. Test Standard and Limit .......................................................................................................................... 27 5.2. Test Setup .................................................................................................................................................. 27 5.3. Test Procedure .......................................................................................................................................... 27 5.4. Test Data .................................................................................................................................................... 27 6. 20DB Occupy Bandwidth Test ........................................................................................................................... 31 6.1. Test Standard ............................................................................................................................................ 31 6.2. Test Setup .................................................................................................................................................. 31 6.3. Test Procedure .......................................................................................................................................... 31 6.4. Test Data .................................................................................................................................................... 31 7. Carrier Frequency Separation Test ................................................................................................................... 35 7.1. Test Standard and Limit .......................................................................................................................... 35 7.2. Test Setup .................................................................................................................................................. 35 7.3. Test Procedure .......................................................................................................................................... 35 7.4. Test Data .............…

Text truncated - open the document above for the full version.

FCC ID: 2AWQV-C190POS Photo of Conducted Emission Measurement Photo of Radiation Emission Test
