2AWSI-KWP022Wireless microphone

Product features Common function description Vol:Adjust volume Treble:Adjust treble Bass: Adjust bass Mic Vol:Adjust microphone volume Echo:Adjust Echo Mic:Wired microphone input This system can be used with PC, DVD, VCD, MP3, Electronic piano and any device with audio output. The amplifying circuit is designed with high performance and high fidelity, and equipped with professional and high quality speaker, it can make the sound field positioning clear and layered. The system voice effect is outstanding, the bass is surging and shocking, the middle tone is strong and bright, the treble is crisp and pleasant. Professional electronic frequency division circuit, so that the division point of the machine more accurate, better effect. The use of professional design and manufacture of large capacity batteries, as well as audio power supply capacitor makes the local power reserve margin more larger,more stable,better dynamic,higher SNR. Charging instructions When charging, connect a matched power adapter to AC 100~240V.Charging time is approximately 6 to 8 hours.Once fully charged unplug the power supply as leaving a full battery on charge may cause damage to the battery. Battery charge indicator:LED panel has battery status indicator.In the middle of the shape of the battery have four horizontal lines,each horizontal line represents 25% of electricity remaining.When no horizontal line in the shape of the battery or the shape flashes,please power off and promptly charge to avoid damage to the battery.When charging,the charge indicator on the back of the speaker flashes.The indicator stop blinking after full charged.Then please contiue to charge the battery for 1-2 hours to extend the battery life. Warning:If the battery is under voltage,please fully charge it within 48 hours.If the speaker have to be left unused for a long time,please let the battery fully charged,otherwise it will cause damage to the battery! In the process of playing,keep unit away from high temperature environments,high magnetic fields and high frequencies.If the system is fails to work,turn off the power source or pull out the USB disc/TF card,then reinsert it and it will resume play. Output power------------------------------------ Input sensitivity---------------------------------- SNR------------------------------------------ Frequency response-------------------------- Power supply--------------------- ≤30W 320mV ≥71dB 60Hz~20KHz AC 100-240V~,60Hz/50Hz Main technical specifications Portable bLUEBOOTH speaker sPortable bLUEBOOTH speaker sPortable bLUEBOOTH speaker VS-0866VS-0866VS-0866 Instruction Manual Trouble shooting guide *Above specifications are the specifications of the sampling machine and are for reference purpose only. *Because of continuous product improvement.specifications will keep changing at any time without prior notification. Remote control instructions *Image diagram, for reference only*Image diagram, for reference only 1.Under normal circumstances, the remote control should be used within a range of about 20 feet and 30 degrees from the remote reception window. 2.When operating the remote control, point the remote control at the receiver window of the machine. There should be no obstacles between the remote control and the machine. 3.If the receiving window is in the position of strong light, the remote control may fail. In this case, please remove the machine to avoid direct exposure to strong light. 4.Please don't make both new and old batteries work together,and regularly check whether the remote control batteries need to be replaced. 2 0 f e e t Mute Music number Input selection Turn up the volume Play/Pause Next Turn down the volume USB Sound field effect Play the record Record Bluetooth Previous MIC priority Repeat one/Random/Repeat all 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Description of controls *Image diagram, for reference only Guitar USB/TF Microphone controls and basic operation Guitar jack: Connect guitar. Guitar Volume: Adjust the guitar volume. Recording funtion Recording funtion Recording funtion Bluetooth operation FM function 1.Microphone on 2.Microphone off 3.Screen Music files in USB and TF cards should be formatted as FAT32 on the computer. The order about music play is based on file name,if the music file names are as"01,02,03"in sequence.This product will play the file "01"first. Copy MP3 or WMA music files to USB/TF cards. It is recommended to delete unnecessary files and folders to speed up card reading and reduce card reading problems. 1 2 3 Please insert USB or TF card first and then press “●/►” into recording mode. When recording music at the first time, an new file "RECORD" will be created in the card and all recordings will be saved into the file. These recording files are automatically named as REC0001,REC0002,REC0003... in sequence. When recording music, press “●/►” to pause it and press again to continue. Press INPUT or “●/►” to quit recording mode. Please press “●/►” into recording-play mode(automatically play the musics recording before). Usually the machine will play the last recording music first. Press PREV( |◄◄) or NEXT( ►►|) to select the music. Press Replay on the remote control to replay music. If you would like to replay single music or all musics, please press Replay repeatedly. USB port: insert USB and play music. TF port: insert TF card and play music. Supports MP3, WMA, and WAV music formats, outstanding sound performance, high fax stereo design. INPUT: to switch external audio, MP3 / Bluetooth functions. ►||: press this key to pause the music, and press again to continue. |◄◄ / ►►|: when playing, select the PREVIOUS/NEXT music. Bluetooth connection method:Turn on the speaker,press the‘INPUT’key on the speaker panel,and the screen will show‘bT’.Use your phone to connect the Bluetooth of the speaker.The Bluetooth name is VS-0866. If the connection fails,please restart the device or the phone and try again. The use range of the Bluetooth is 32…

Text truncated - open the document above for the full version.

Fujian Yiyun Vegue Electronic Technology Co., Ltd. Room 3-D, Building D, No.24 Houyu Road, Jinan District, Fuzhou City, Fujian Province, China Tel: +86- 133 2886 3865 E-mail: [email protected] Series Models Description Date: 2020/07/06 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AWSI-KWP022 Dear Sir/Madam, We, Fujian Yiyun Vegue Electronic Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Wireless microphone Model no.: KWP022, KWP012, KWP032, KWP052, KWP062, KWP072, KWP082, KWP092 Sincerely, Name: Hong Ying Company: Fujian Yiyun Vegue Electronic Technology Co., Ltd. Address: Room 3-D, Building D, No.24 Houyu Road, Jinan District, Fuzhou City, Fujian Province, China Phone: +86- 133 2886 3865 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: July 06, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AWSI-KWP022 KWP022, KWP012, KWP032, KWP052, KWP062, KWP072, KWP082, KWP092 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Hong Ying Company: Fujian Yiyun Vegue Electronic Technology Co., Ltd. Address: Room 3-D, Building D, No.24 Houyu Road, Jinan District, Fuzhou City, Fujian Province, China Phone: +86- 133 2886 3865 Fax: N/A E-Mail: [email protected]

Fujian Yiyun Vegue Electronic Technology Co., Ltd. Room 3-D, Building D, No.24 Houyu Road, Jinan District, Fuzhou City, Fujian Province, China Tel: +86- 133 2886 3865 E-mail: [email protected] Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/6/2020 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AWSI-KWP022 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Hong Ying Company: Fujian Yiyun Vegue Electronic Technology Co., Ltd. Address: Room 3-D, Building D, No.24 Houyu Road, Jinan District, Fuzhou City, Fujian Province, China Phone: +86- 133 2886 3865 Fax: N/A E-Mail: [email protected]

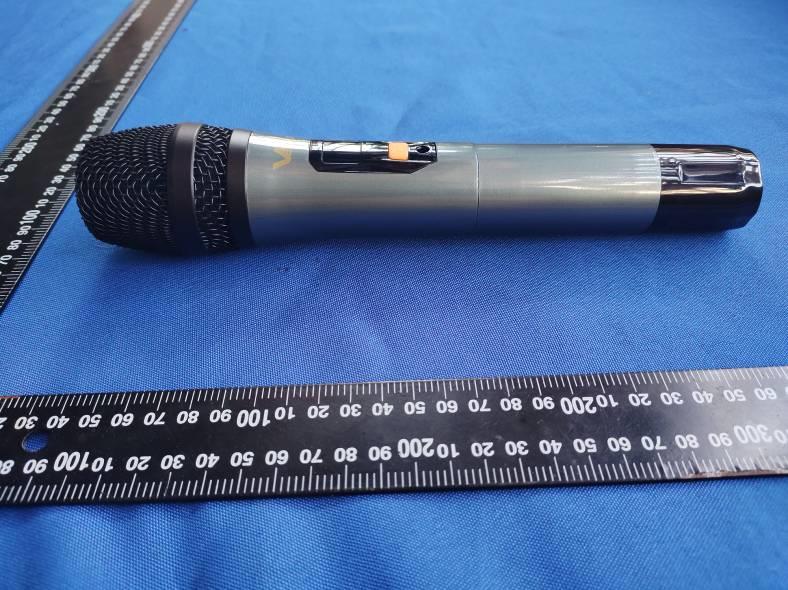

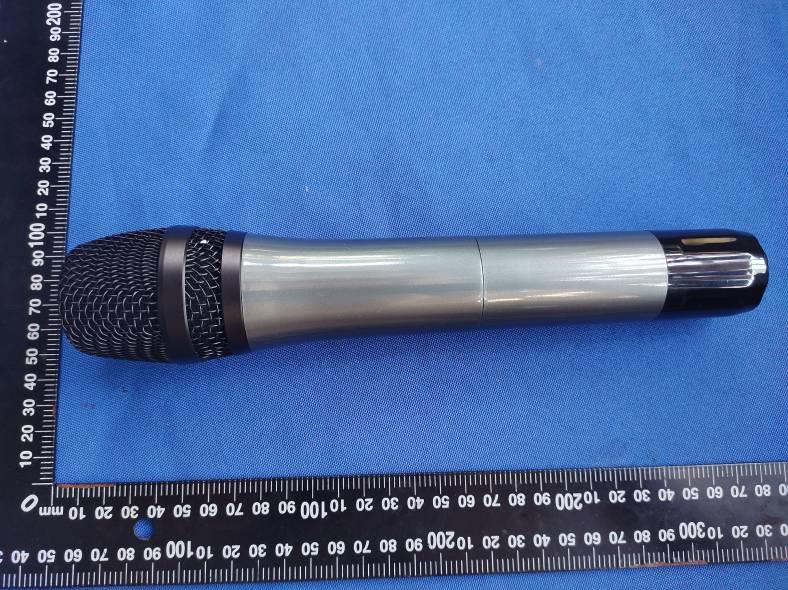

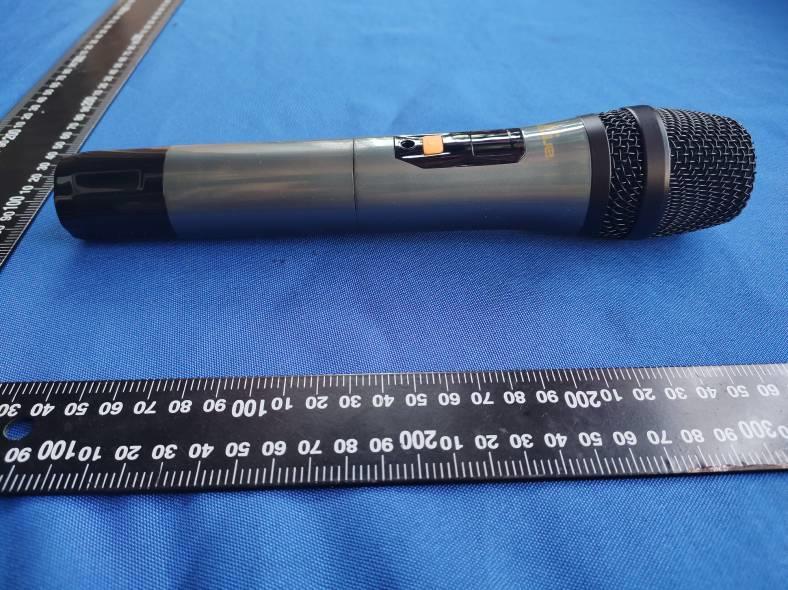

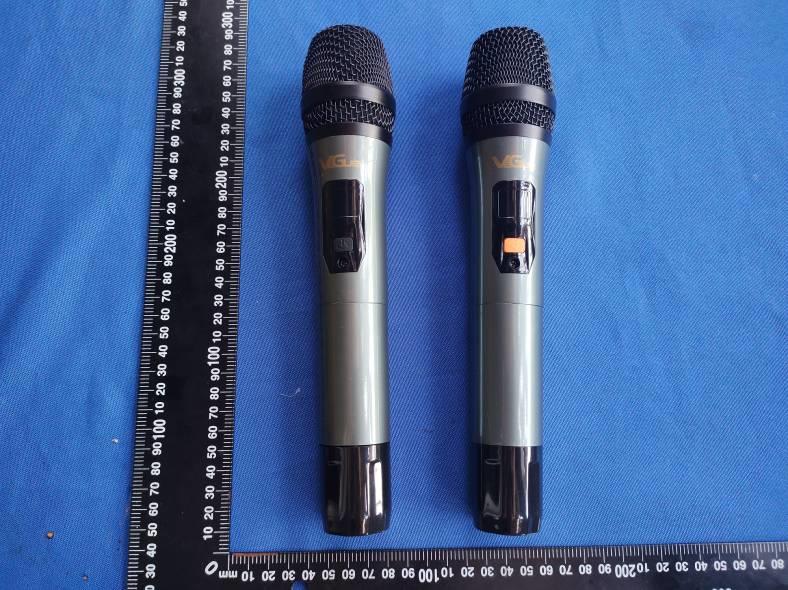

FCC ID: 2AWSI-KWP022 FCC ID: 2AWSI-KWP022 FCC ID: 2AWSI-KWP022

FCC ID: 2AWSI-KWP022 FCC ID: 2AWSI-KWP022

FCC ID: 2AWSI-KWP022 Wireless Microphone TX antenna

RF Exposure evaluation FCC ID: 2AWSI-KWP022 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance FM Channel 556.5MHz 561.5MHz 566.5MHz Target (dBm) 10.0 10.0 10.0 Tolerance ±(dB) 1.0 1.0 1.0 FM Channel 585.5MHz 588.9MHz 592.5MHz Target (dBm) 10.0 11.0 10.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW FM 0.5565 5 11 12.589 1.9<3.0 Yes FM 0.5889 5 12 15.849 2.4<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART CTEST REPORT FCC PART 15.236 Report Reference No. ..................... : FCC ID. .............................................: GTS20200615007-1-8 2AWSI-KWP022 Compiled by ( position+printedname+signature) ... : File administrators Jimmy Wang Supervised by (position+printedname+signature) .... : Test Engineer Aaron Tan Approved by (position+printedname+signature) .... : Manager Jason Hu Date of issue ..................................... : June 29, 2020 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Fujian Yiyun Vegue Electronic Technology Co., Ltd. Address ............................................ : Room 3-D, Building D, No.24 Houyu Road, Jinan District, Fuzhou City, Fujian Province，China Test specification ...........................: Standard ........................................... : FCC Part 15.236 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Wireless microphone Trade Mark ....................................... : vegue Manufacturer .................................... : Fujian Yiyun Vegue Electronic Technology Co., Ltd. Model/Type reference....................... : KWP022 Listed Models .................................. : KWP012, KWP032, KWP052, KWP062, KWP072, KWP082, KWP092 Modulation Type ............................... : FM Operation Frequency ........................ : 556.5MHz-566.5MHz, 585.5MHz-592.5MHz Rating ............................................... : 3.0V120mA Result................................................ : PASS Report No.: GTS20200615007-1-8 Page 2 of 28 T E S T R E P O R T Test Report No. : GTS20200615007-1-8 June 29, 2020 ____________________________________________________________________________________ Date of issue Equipment under Test : Wireless microphone Model /Type : KWP022 Listed Models : KWP012, KWP032, KWP052, KWP062, KWP072, KWP082, KWP092 Applicant : Fujian Yiyun Vegue Electronic Technology Co., Ltd. Address : Room 3-D, Building D, No.24 Houyu Road, Jinan District Fuzhou City, Fujian Province, China Manufacturer : Fujian Yiyun Vegue Electronic Technology Co., Ltd. Address : Room 3-D, Building D, No.24 Houyu Road, Jinan District Fuzhou City, Fujian Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20200615007-1-8 Page 3 of 28 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U MM A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Test Sample 6 2.4 Equipment Under Test 6 2.5 Short description of the Equipment under Test (EUT) 6 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Related Submittal(s) / Grant (s) 6 2.9 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 8 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Maximum Output Power 11 4.3 Occupied Bandwidth 13 4.4 Necessary Bandwidth 15 4.5 Transmitter spurious emissions 18 4.6 Frequency Stability 21 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 24 6 P H O T O S O F T H E E U T ........................................................... 25 Report No.: GTS20200615007-1-8 Page 4 of 28 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.236: Operation of wireless microphones in the bands 54-72 MHz, 76-88 MHz, 174-216 MHz, 470-608 MHz and 614-698 MHz. ANSI C63.10-2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices Report No.: GTS20200615007-1-8 Page 5 of 28 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : June 09, 2020 Testing commenced on : June 10, 2020 Testing concluded on : June 28, 2020 2.2 Product Description Product Name: Wireless microphone Model/Type reference: KWP022 Power supply: DC 3V from battery Hardware version: BP-TX02FS V3.0 Software version: V1.0 Sample ID: GTS20200615007-1-8-1#/ GTS20200615007-1-8-2# Wireless microphone Frequency: Band A:556.5MHz-566.5MHz Band B:585.5MHz-592.5MHz Channel number: Band A:51 Band B:36 Nominal channel bandwidth 200KHz Modulation Type: FM Antenna type: PCB Antenna Antenna gain: 1.0dBi Note: For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Report No.: GTS20200615007-1-8 Page 6 of 28 2.3 Test Sample The application provides 2 samples to meet r…

Text truncated - open the document above for the full version.

FCC ID: 2AWSI-KWP022
