2AWW4-DOT-V14Dot v1.4

Sensize Limited
Dot v1.4 - FCC ID 2AWW4-DOT-V14 - Sensize Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 11, 2022
Application Purpose
Original Equipment
Date of Application
Jul 11, 2022
Equipment Note
Dot v1.4
Frequency Range
2402.00000000 - 2480.00000000
Company
Sensize Limited
Country
United Kingdom

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Sensize DT1.4 User Manual Sensize Dot DT1.4L is an ultra-long battery life, low-cost tracker with Bluetooth technology. The size and shape of its enclosure makes it particularly easy to secure onto plastic pallets and containers. Part of Sensize’s Parent/Child tracking architecture, Dot v1.4L, when used in a system with Sensize Access Points, Cellular Trackers, Scanners and Gateways, offers a low cost, highly effective way to track and monitor assets such as pallets, roll cages and reusable plastic crates. FCC Accreditation The Sensize Dot v1.4 device complies with part 15 of the FCC Rules. Model number: Dot v1.4 FCC ID: 2AWW4-DOT-V14 Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. Physical Characteristics Product Variant DT1.4L Child Tracker Dimensions 35x40x50mm IP Rating IP67 Dust ingress/Waterproof Material ABS Temperature rating Continuous operation at -30°C to +60°C. Extended periods at temperature extremes may affect the battery life. Short periods at higher/lower temperatures are acceptable. Fixing Two threaded fixing holes that accept M3 machine screws Key Features Bluetooth Bluetooth Smart v4 Wireless range 50-100m Sensors Temperature sensor (optional) Battery Battery life 10 years Battery Chemistry CR (LiMnO2) FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

External Photos

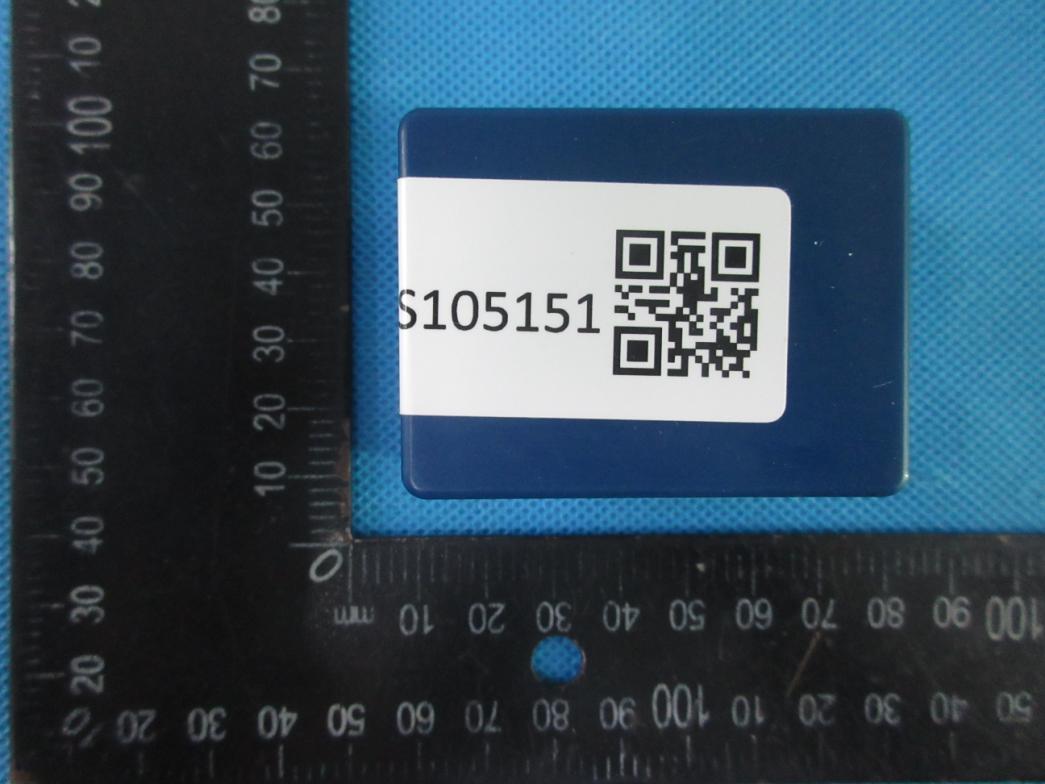

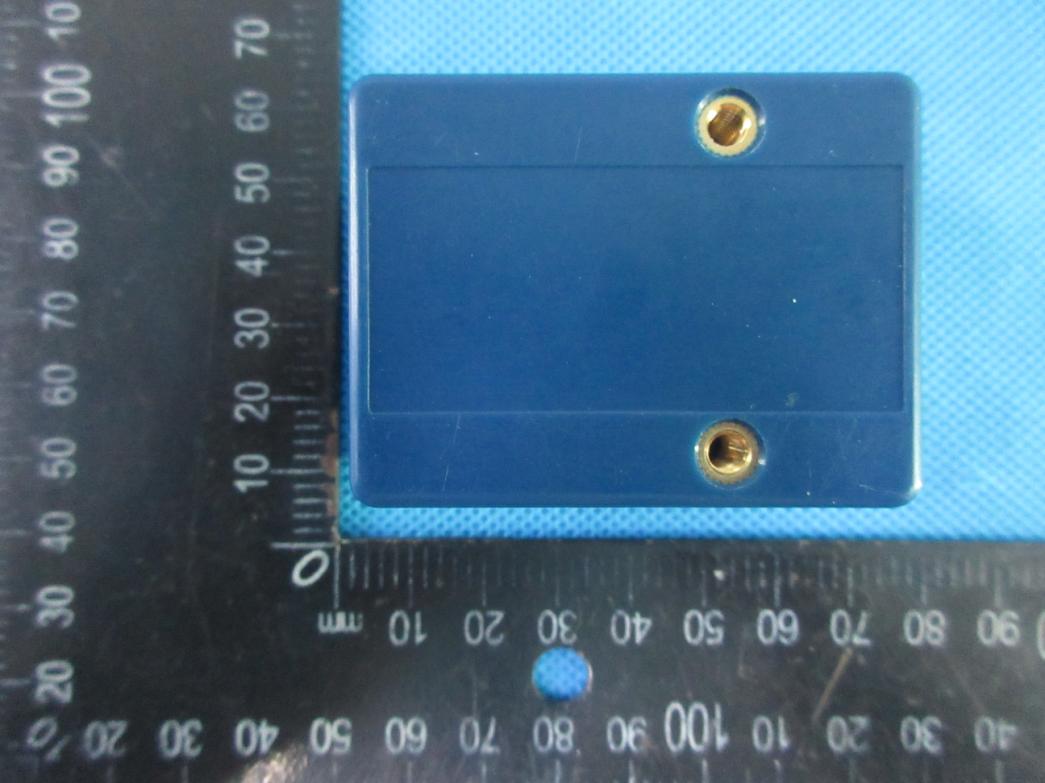

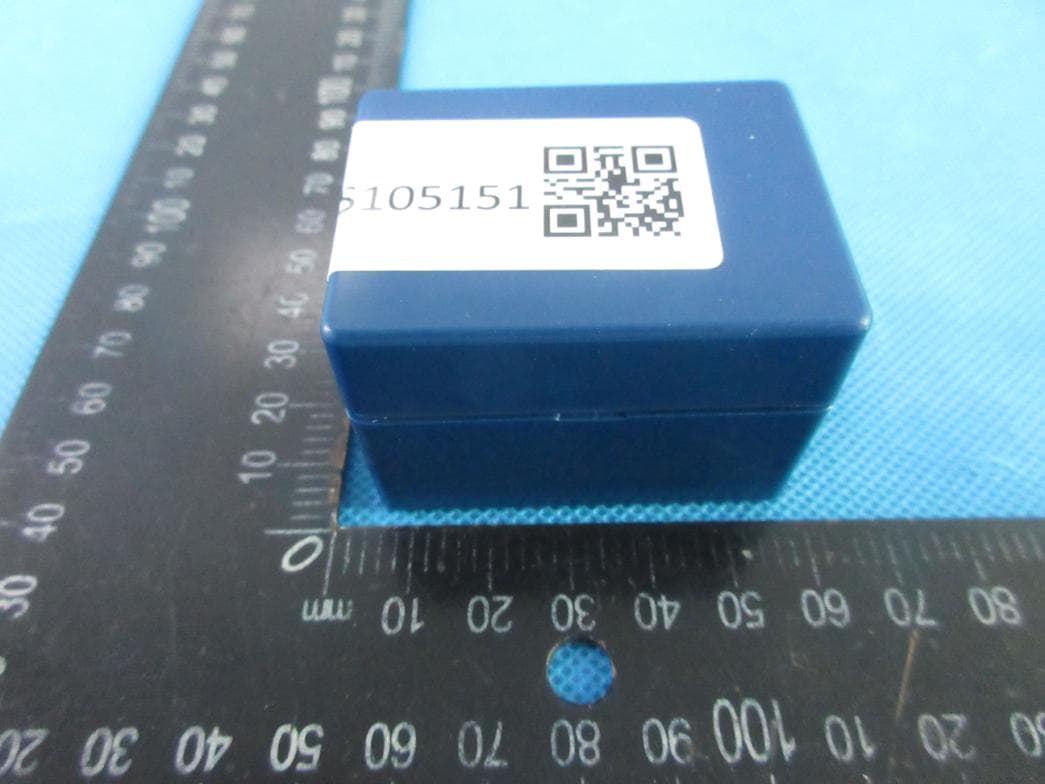

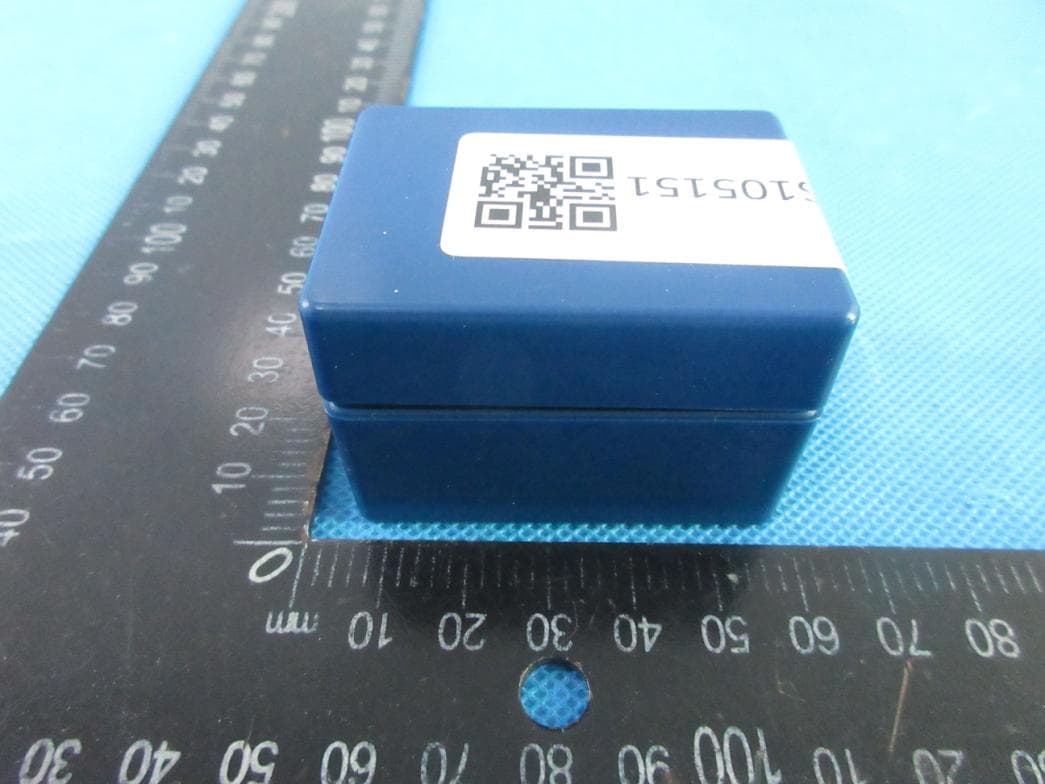

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

ID Label/Location Info

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. DOT v1.4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. DOT v1.4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. DOT v1.4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. DOT v1.4 48mm 20mm 54mm 41mm Dot v1.4 enclosure underside 1mm depression area to protect sticker Dot v1.4 FCC Label FCC ID: 2AWW4-DOT-V14 FCC ID: 2AWW4-DOT-V14

Internal Photos

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Ant Photo 13 Photo 14 Photo 15 Photo 16 Photo 17

Operational Description

version01 Sensize Limited Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Dot v1.4, V1.4,P23258A-333W0015B#DOTv1 FCC ID: 2AWW4-DOT-V14 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Chip Antenna antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Chip Antenna Gain of the antenna: -0.3 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Sensize Limited Address: Sensize, Future Business Centre,Kings Hedges Road,CambridgeCB4 2HY, United Kingdom City: Cambridge ZIP / Postal code: Country: United Kingdom Name: Luke DArcy Date: 2022/05/07 Signature:

RF Exposure Info

FCC ID: 2AWW4-DOT-V14 Maximum Permissible Exposure (MPE) According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) = d GP**30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB antenna WIFI antenna gain: -0.3dBi; R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(-0.3/10)=0.93 Channel Freq. (MHz) modulation conducted power Tune-up power (dBm) MaxAntenna Evaluation result Power density Limits (dBm) tune-up powerGain (mW/cm2 )(mW/cm2) (dBm)(mW)(dBi)Numeric GFSK 0.447-0.30 0.93 0.00011 0.447-0.30 0.93 0.00011 0.447-0.30 0.93 0.00011 2402 2440 2480 -3.831 -5.164 -3.54 -4.5±1-3.5 -4.5±1-3.5 -4.5±1-3.5 Conclusion: The conclusion should be 0.0001< 1 for Max Power Density, Compliance the RF Exposure requirement. Signature: Date: 2022-02-28 NAME AND TITLE (Please print or type): alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.
