2AWXK-ABKOE10True wireless stereo

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the equipment and receiver. 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

<ABKO CO.,LTD> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-09-04 Subject; Request for Confidentiality FCC ID: 2AWXK-ABKOE10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lim Title: manager

ABKO CO.,LTD Letter of Authorization Company: ABKO CO.,LTD Address: M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, South Korea Product Name: True wireless stereo Model Number: E10 FCC Identifier: 2AWXK-ABKOE10 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Lim Date: 2020-09-04 Title: manager Signature of applicant:

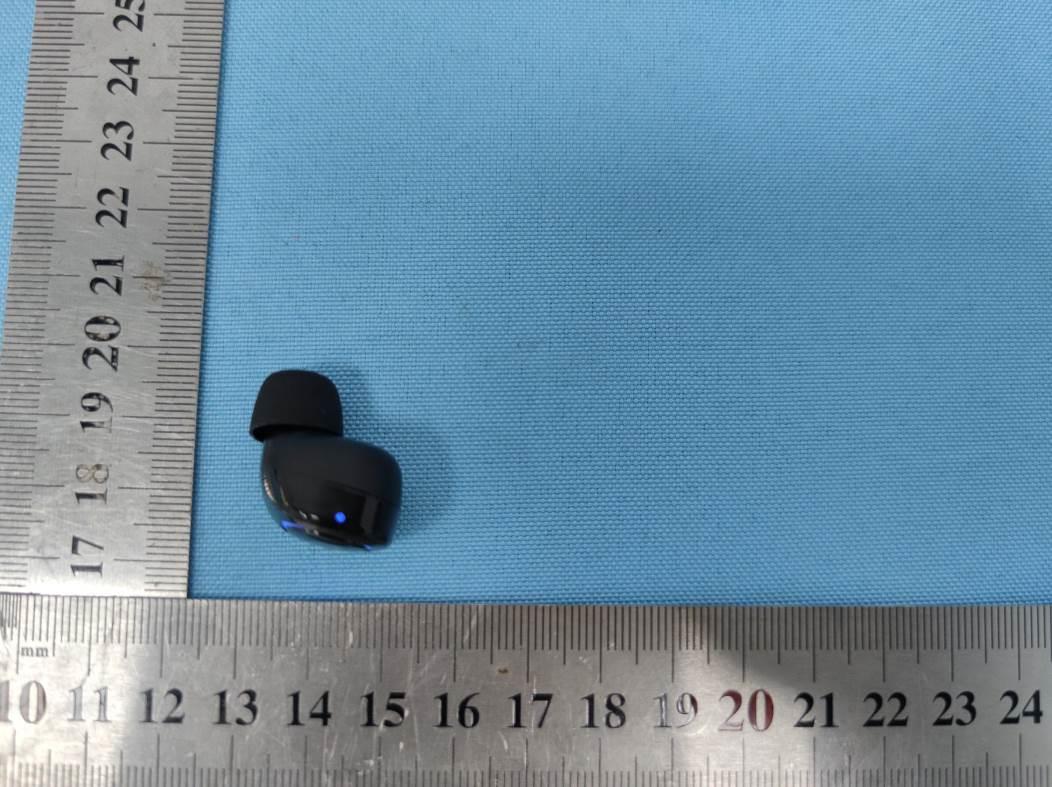

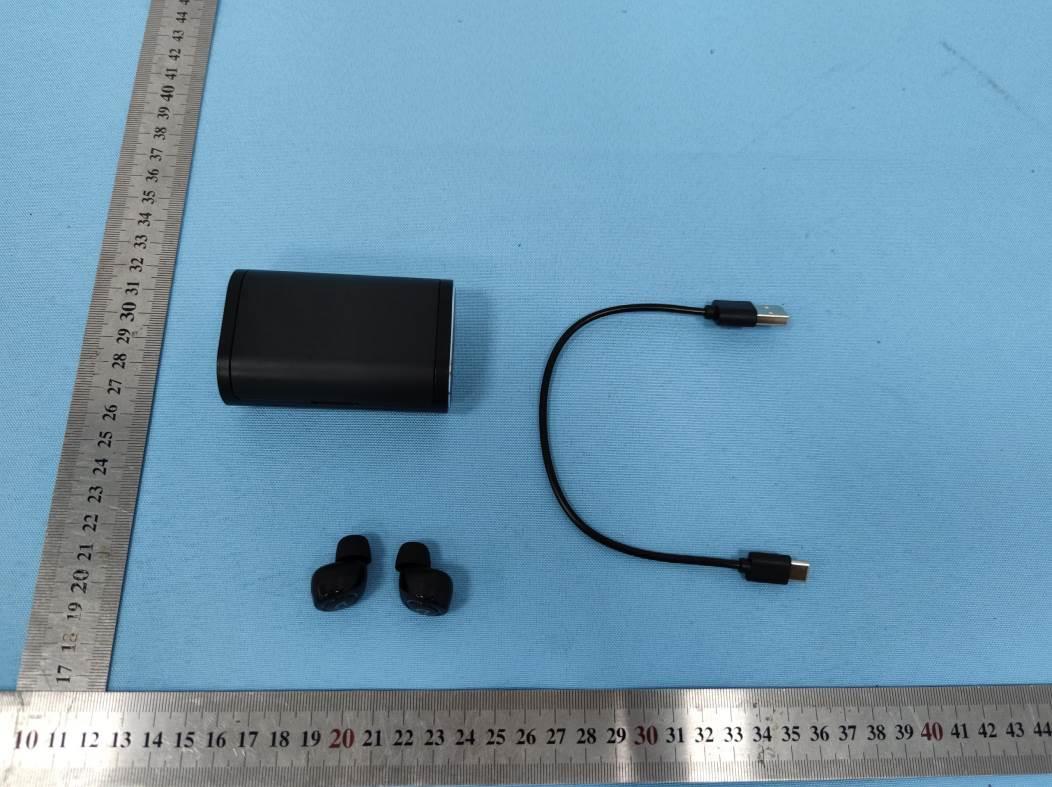

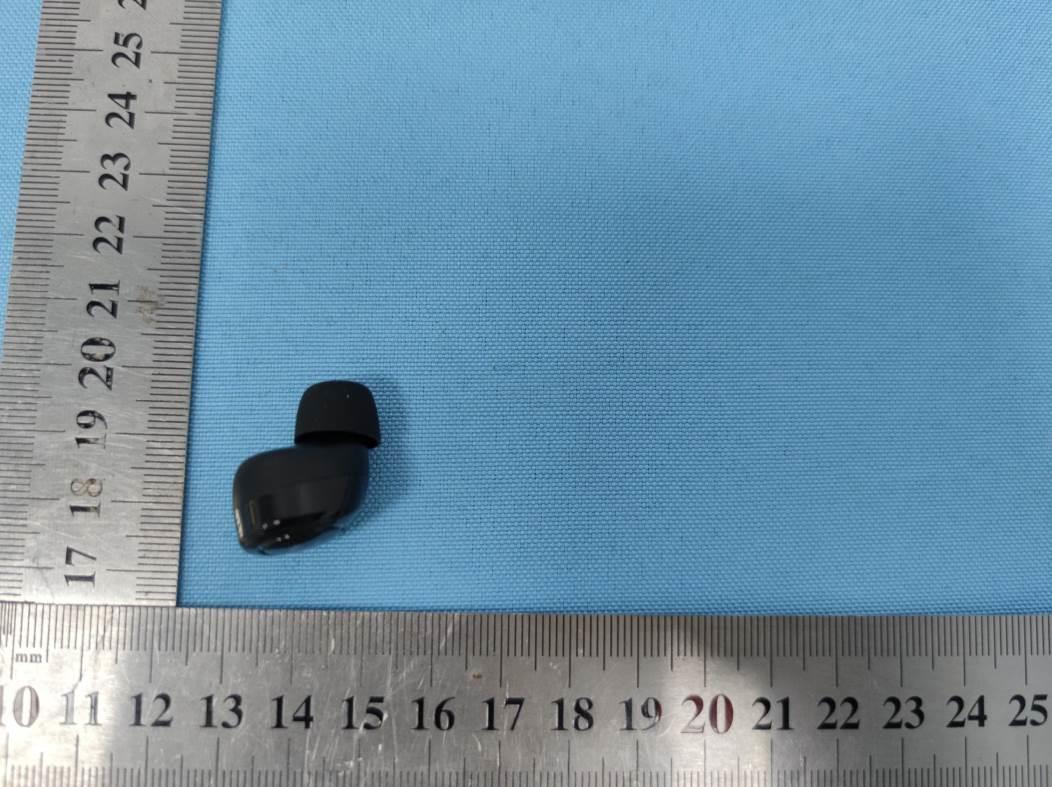

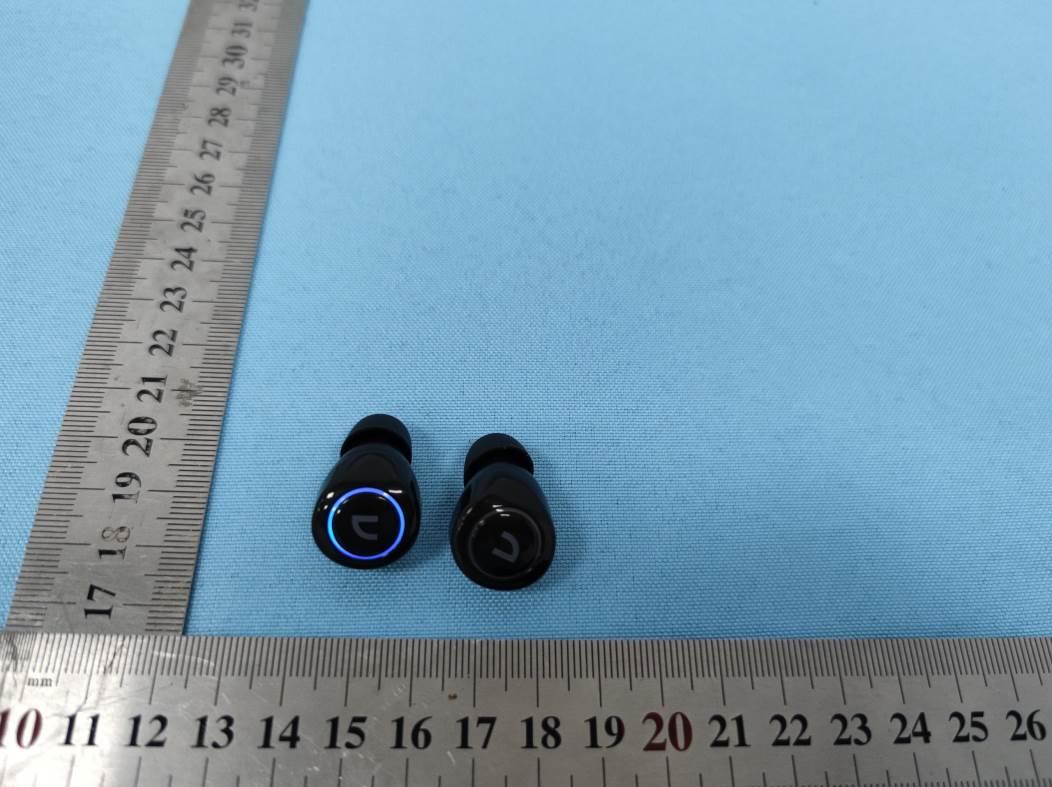

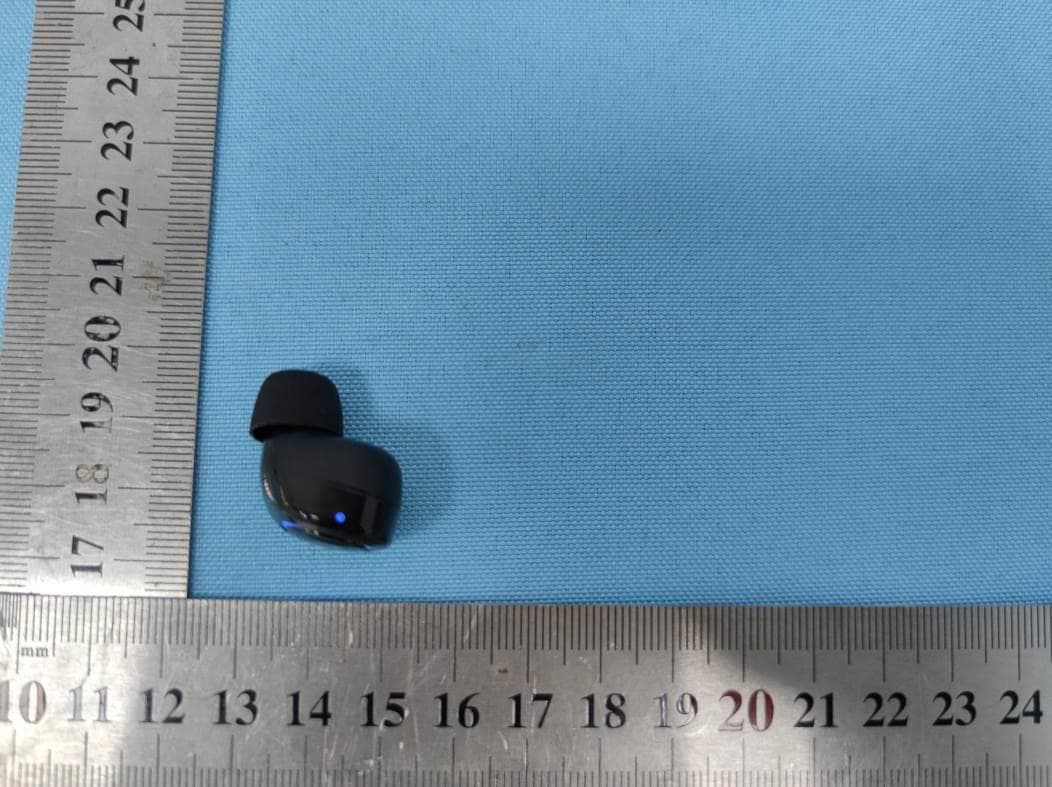

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. EXRIOR PHOTOGRAPHS Fig.1 Fig.2 Auxiliary Equipment SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L1.0cm*W0.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location FCC ID: 2AWXK-ABKOE10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 BT Antenna Port SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AWXK-ABKOE10 Product name True wireless stereo Model number E10 Power supply Earbuds: Input: DC 5V, 40mA DC 3.7V by Li-ion Battery(40mAh) Charging Case: Input: DC 5V, 1A DC 3.6V By Li-ion Battery(2600mAh) Operation frequency Bluetooth: 2402MHz-2480MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 (DTS) Channel Number 79 Channels for Bluetooth V5.0(DSS) 40 channels for Bluetooth V5.0(DTS) Antenna Type FPC Antenna Antenna Gain 0 dBi(Max.) Hardware version TWS606-L-V2 / TWS606-R-V2 Software version 5.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 0 2402 4.237 39 2441 3.744 78 2480 3.900 π/4DQPSK 0 2402 3.666 39 2441 3.050 78 2480 3.118 8DPSK 0 2402 3.683 39 2441 3.102 78 2480 3.217 [BLE Max Conducted Power] Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 0 2402 4.736 19 2440 3.908 39 2480 4.411 5. Manufacturing tolerance BT GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AWXK-ABKOE10 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 BLE BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results BT Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.402 5 5.0 3.1623 0.98 < 3.0 Yes π/4DQPSK 2.402 5 4.0 2.5119 0.78 < 3.0 Yes 8DPSK 2.402 5 4.0 2.5119 0.78 < 3.0 Yes BLE Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.402 5 5.0 3.1623 0.98 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 1 of 14 Appendix B RF Test Data for BT LE V5.0(DTS) (Conducted Measurement) Product Name: True wireless stereo Trade Mark: ABKO Test Model: E10 Environmental Conditions Temperature: 23.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 4.736 30 PASS BT LE MCH 3.908 30 PASS BT LE HCH 4.411 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -10.002 8 PASS BT LE MCH -10.881 8 PASS BT LE HCH -10.669 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6627 ≥0.5 PASS BT LE MCH 0.6614 ≥0.5 PASS BT LE HCH 0.6650 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 4.639 -33.227 -15.361 PASS BT LE MCH 3.856 -34.315 -16.144 PASS BT LE HCH 4.34 -33.701 -15.660 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 4.471 -48.773 -15.53 PASS BT LE HCH 4.365 -48.942 -15.64 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.39 2.0 0 52.87 PEAK 74 PASS Ant1 2310.0 -53.26 2.0 0 42.00 AV 54 PASS Ant1 2390.0 -43.45 2.0 0 51.81 PEAK 74 PASS Ant1 2390.0 -52.83 2.0 0 42.43 AV 54 PASS 2480 Ant1 2483.5 -41.62 2.0 0 53.64 PEAK 74 PASS Ant1 2483.5 -52.26 2.0 0 43.00 AV 54 PASS Ant1 2500.0 -41.84 2.0 0 53.42 PEAK 74 PASS Ant1 2500.0 -52.26 2.0 0 43.00 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For ABKO CO., LTD True wireless stereo Test Model: E10 Prepared for : ABKO CO., LTD Address : M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, South Korea Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 18, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : August 18, 2020 ~ August 31, 2020 Date of Report : September 04, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200818025AEB Date of Issue .................................. : September 04, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : ABKO CO., LTD Address .......................................... : M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, South Korea Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : True wireless stereo Trade Mark ..................................... : ABKO Test Model ...................................... : E10 Ratings ........................................... : Earbuds: Input: DC 5V, 40mA DC 3.7V by Li-ion Battery(40mAh) Charging Case: Input: DC 5V, 1A DC 3.6V By Li-ion Battery(2600mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Lh Li / Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model............................... : E10 EUT......................................... : True wireless stereo Applicant............................... : ABKO CO., LTD Address.................................. : M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, South Korea Telephone............................... : Fax.......................................... : Manufacturer........................ : ABKO CO., LTD Address................................... : M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, South Korea Telephone............................... : Fax.......................................... : Factory................................... : ABKO CO., LTD Address................................... : M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, South Korea Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200818025AEB September 04, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 September 04, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 Report No.: LCS200818025AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ............................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 (Below 1GHz) Fig. 2 (Above 1GHz) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AWXK-ABKOE10 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Test Setup Photo of Line Conducted Emissions Measurement AC Conducted Emission of charge from power adapter mode
