2AWXK-ACD01Wireless Charger Stand

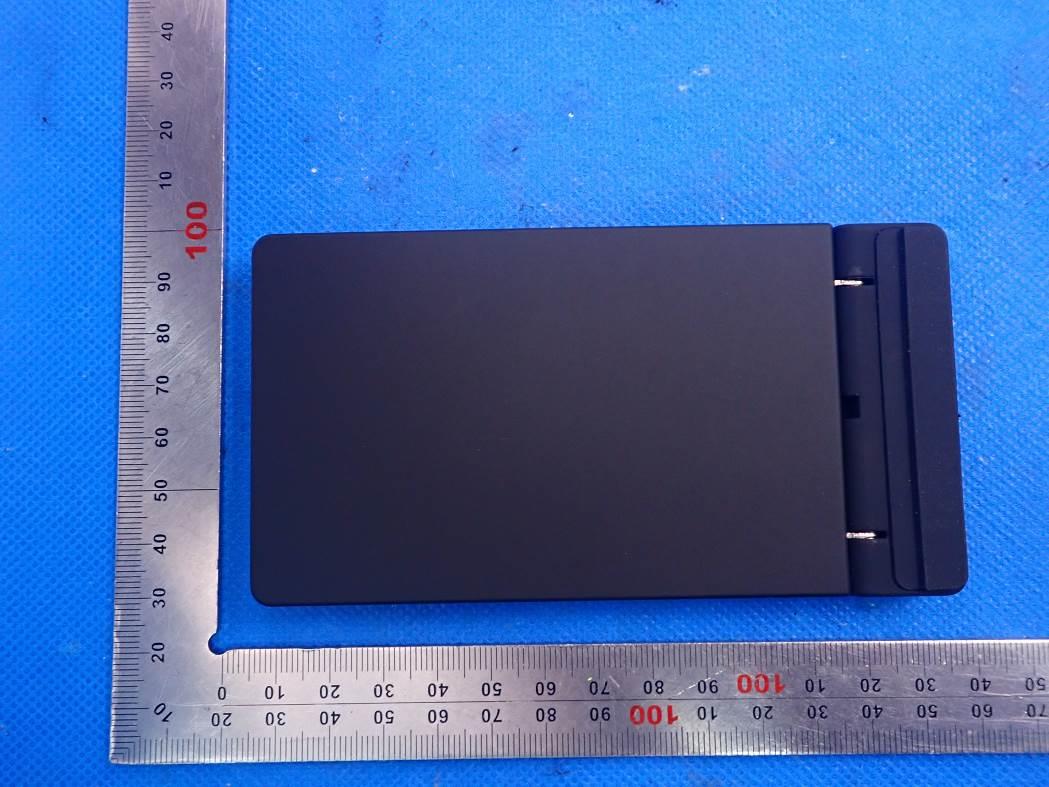

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT PORT VIEW OF EUT

FCC ID Label Location FCC ID: 2AWXK-ACD01

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna 1 Antenna 2

ABKO CO., LTD Declaration concerning Antenna Specification It is hereby declared that the product Model No.: ACD01 FCC ID: 2AWXK-ACD01 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Type of antenna: Coil Antenna Frequency range: 110KHz-205KHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: ABKO CO., LTD Address: M Signature 7th floor, 20, Magokjungang 1-ro, Gangseo-gu, Seoul, Republic of Korea Date: 2021-02-24 Signature:

Page 1 of 14 RF Exposure Report Report No.: AGC10706210101FH03 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Charger Stand BRAND NAME : ABKO MODEL NAME : ACD01 APPLICANT : ABKO CO., LTD DATE OF ISSUE : Feb. 23, 2021 STANDARD(S) : KDB680106 D01 RF Exposure Wireless Charging Base App v03 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC10706210101FH03 Page 2 of 14 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 23, 2021 Valid Initial Release Report No.: AGC10706210101FH03 Page 3 of 14 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. DESCRIPTION OF TEST MODES................................................................................................................. 6 4. SYSTEM TEST CONFIGURATION ............................................................................................................... 6 5. TEST FACILITY ............................................................................................................................................. 7 6. RADIO FREQUENCY (RF) EXPOSURE TEST ............................................................................................. 8 6.1. LIMITS ..................................................................................................................................................... 8 6.2. TEST SETUP ........................................................................................................................................... 8 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ......................................................................................... 11 Report No.: AGC10706210101FH03 Page 4 of 14 1. VERIFICATION OF CONFORMITY Applicant ABKO CO., LTD Address M Signature 7th floor, 20, Magokjungang 1-ro, Gang seo-gu, Seoul, Republic of Korea Manufacturer ABKO CO., LTD Address M Signature 7th floor, 20, Magokjungang 1-ro, Gang seo-gu, Seoul, Republic of Korea Factory ABKO CO., LTD Address M Signature 7th floor, 20, Magokjungang 1-ro, Gang seo-gu, Seoul, Republic of Korea Product Designation Wireless Charger Stand Brand Name ABKO Test Model ACD01 Sample ID Number 210107074 Date of test Jan. 09, 2021 to Feb. 23, 2021 Deviation No any deviation from the test method Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in KDB680106 D01. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Feb. 23, 2021 Reviewed By Max Zhang (Reviewer) Feb. 23, 2021 Approved By Forrest Lei (Authorized Officer) Feb. 23, 2021 Report No.: AGC10706210101FH03 Page 5 of 14 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110KHz-205KHz Test Frequency 133kHz Maximum field strength 52.80dBuV/m(PK)@3m Number of channels 1 Antenna Designation Coil Antenna (Met 15.203 Antenna requirement) Hardware Version V70 Software Version IP6806_AA2_HL01_TDFNJ Power Supply(Input) DC 5V2A; DC 9V1.8A Wireless Charging Output power 5W /7.5W /10W Report No.: AGC10706210101FH03 Page 6 of 14 3. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Wireless charging Mode(Full load)-10W 2 Wireless charging Mode(Half load) -10W 3 Wireless charging Mode(Null load) -10W 4 Wireless charging Mode(Full load) -7.5W 5 Wireless charging Mode(Half load) -7.5W 6 Wireless charging Mode(Null load) -7.5W 7 Wireless charging Mode(Full load) -5W 8 Wireless charging Mode(Half load) -5W 9 Wireless charging Mode(Null load) -5W Note: 1. The mode 1 was the worst case and only the data of the worst case record in this report. 2. The antenna 1 and antenna 2 can't work at the same time and each antenna has been tested. The antenna 1 is the worst case and recorded in the report. 4. SYSTEM TEST CONFIGURATION Item Equipment Model No. ID or Specification Remark 1 Wireless Charger Stand ACD01 N/A EUT 2 Adapter TPA-46050100VU N/A AE 3 Wireless Load N/A 10W AE Report No.: AGC10706210101FH03 Page 7 of 14 5. TEST FACILITY TEST EQUIPMENT LIST Description Manufacturer Model S/N Cal. Date Cal. Due Broadband Field Meter Narda Safety Test Solutions GmbH ELT-400 J-0004 May 25,2020 May 24,2021 Probe FHP Narda Safety Test Solutions GmbH 2300/90.10 J-0015 May 25,2020 May 24,2021 TestSite Attestation of Global Compliance(Shenzhen) Co., Ltd Location 1-2/F,Building19,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiSt reet,Bao'anDistrict,Shenzhen,Guangdong,China Designation Number CN1259 FCC Test Firm Registration Number 975832 A2LA Cert. No. 5054.02 Description Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by A2LA Report No.: AGC10706210101FH03 Page 8 of 14 6. RADIO FREQUENCY (RF) EXPOSURETEST 6.1. LIMITS For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section…

Text truncated - open the document above for the full version.

Page 1 of 29 FCC Test Report Report No.: AGC10706210101FE04 FCC ID : 2AWXK-ACD01 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Charger Stand BRAND NAME : ABKO MODEL NAME : ACD01 APPLICANT : ABKO CO., LTD DATE OF ISSUE : Feb. 23, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC10706210101FE04 Page 2 of 29 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 23, 2021 Valid Initial Release Report No.: AGC10706210101FE04 Page 3 of 29 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. RADIATED EMISSION ................................................................................................................................. 10 7.1TEST LIMIT ............................................................................................................................................. 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.3. TEST SETUP ......................................................................................................................................... 12 7.4. TEST RESULT ....................................................................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. MEASUREMENT RESULTS .................................................................................................................. 17 9. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 18 9.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 18 9.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .............................................................. 18 9.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 19 9.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 19 9.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 20 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 22 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 24 Report No.: AGC10706210101FE04 Page 4 of 29 1. VERIFICATION OF CONFORMITY Applicant ABKO CO., LTD Address M Signature 7th floor, 20, Magokjungang 1-ro, Gang seo-gu, Seoul, Republic of Korea Manufacturer ABKO CO., LTD Address M Signature 7th floor, 20, Magokjungang 1-ro, Gang seo-gu, Seoul, Republic of Korea Factory ABKO CO., LTD Address M Signature 7th floor, 20, Magokjungang 1-ro, Gang seo-gu, Seoul, Republic of Korea Product Designation Wireless Charger Stand Brand Name ABKO Test Model ACD01 Sample ID Number 210107074 Date of test Jan. 09, 2021 to Feb. 23, 2021 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2020) and the energy emitted by the sample EUT tested as described in this report is in compliance with Section 15.207, 15.209, 15.203 of the FCC Part 15, Subpart C Rules. The results of testing in this report apply to the product/system which was tested only. Prepared By Sky Dong (Project Engineer) Feb. 23, 2021 Reviewed By Max Zhang (Reviewer) Feb. 23, 2021 Approved By Forrest Lei (Authorized Officer) Feb. 23, 2021 Report No.: AGC10706210101FE04 Page 5 of 29 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 110KHz-205KHz Test Frequency 133kHz Maximum field str…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC LINE CONDUCTED EMISSION TEST SETUP
