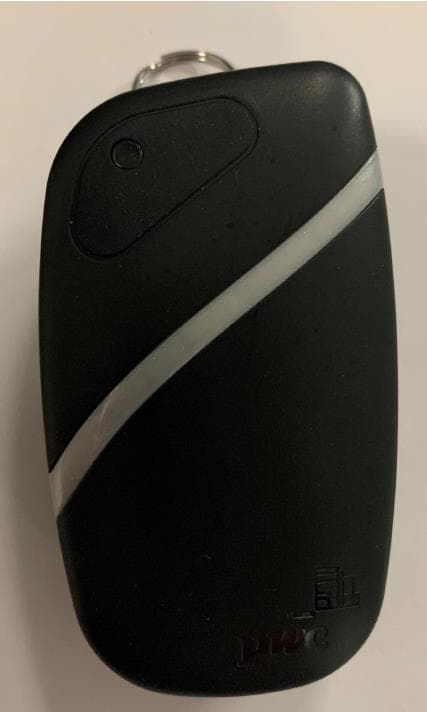

2AX52-LRSM0005IoT Wearable Device

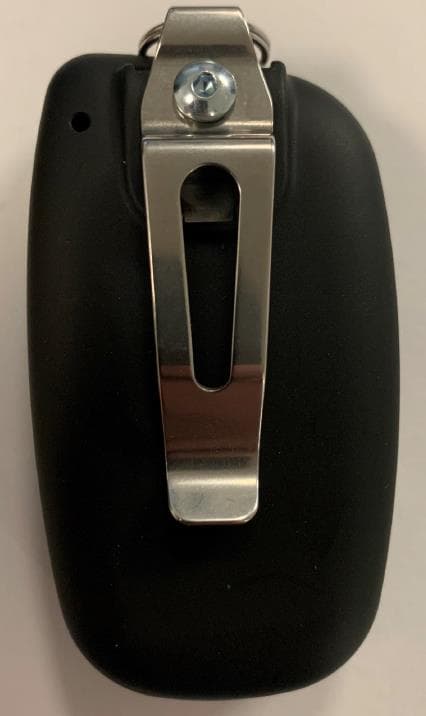

What’s in the box? Contact Tracing Device End User Guide ●On 1st power on, the device will attempt to connect to cellular and apply any first-time updates ○During this process, the device may flash blue --this is expected, do not power it off. If the device is stuck on red, please find better cellular reception and restart the device ●Once all updates have been applied, the device will flash solid green. It is now ready to be used 1 TURN ON Hold button for 5 secs. Wait until light becomes solid green 2 WEAR Attach outside your clothing while device is in use 3 TURN OFF Hold button for 5 secs. Light will flash red -green -blue and then turn off Confidential and for sole use of PwC’s Client. © 2020 PwC. All rights reserved. PwC refers to the US member firm or one of its subsidiaries or affiliates, and many sometimes refer to the PwC network. Each member firm is a separate legal entity. Please see www.pwc.com/structure for further details. Lanyard +USB Charging CableContact Tracing Device + How to use the device? ●Use the clip or included lanyard to ensure the device is worn outside your clothing ●Press the button once to check the device status: green is functional, red flashes indicate low battery ●Press and hold the button for 5 seconds ●The device will flash red, green, blue, and then turn off. The device will stop collecting data while off 1 (1) LED Statuses Activation: Alternate b etween red, green and blue. Device i s activated. Power O n: Solid green for 3 seconds after b eing turned on. Device i s powered on. Solid red for 3 seconds after b eing turned on. Device c annot connect to the c ellular network Flashing blue. Device is updating firmware. Power O ff: Alternate b etween red, green and blue.Device i s successfully turned off. Charging: Flash green while charging. Device i s being charged. Solid green while charging. Device i s f ully charged. Device status check: Solid green after button press. Device i s i n normal operation. Solid red after b utton press. Device is in error state. Contact your support team. Device operation: Solid red. Device must upload data. Go to an area with LTE-M coverage. Flash red. Low battery. Charge the device. Contact Tracing Device User Guide | Device Functionality and Package Contents (1) LED (2) Button (3) Charging Port (4) Lanyard R ing (5) Reset P in (6) Belt Clip (7) Device ID (8) Lanyard (9) USB Cable (2) Button Device activation(first t ime u se of t he device only): ●Press the button and hold for 1 second Power on / o ff device: ●Press and hold for 5 s econds Check device status: ●Single press (3) Charging Port Micro-USB charging port. Use the included cable to charge the device. (4) Lanyard Ring Attach the i ncluded lanyard to the ri ng and wear the d evice. (5) Reset Pin Reset the d evice by p ressing the p in. (6) Belt Clip Attach the d evice to your belt or clothing as an alternate way t o wear the d evice. (7) Device ID FCC ID: Product FCC cert ID QR C ode: Scan the QR code to return the d evice ID Device ID:Unique identifier for the device (8) Lanyard A l anyard i s included for out-of-the-box device usage. Simply clip it onto the Lanyard Ring. (9) USB Cable A s ix-inch micro USB charging cable is included. Connect t he cable to any standard USB charger to charge the device. Device Specs: Model: LRSM0005C Dimensions: 74 x 42 x 21mm Battery:400mAh Lithium-Polymer Operating Temp:0C to 45C Operating Humidity: 90% RH IP Rating:IP-X4 Bluetooth Version:5.1 Radio Frequency: LTE-M Band 13 FCC ID: FCC ID: 2AX52-LRSM0005 5. 0 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This Device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Warning: Any changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the Device. 2 What should I consider when using the Contact Tracing Device? Frequently asked questions to ensure proper usage of the Contact Tracing Device. What information do Contact Tracing Devices collect? Much like the Mobile App, Contact Tracing Device data collection is limited to Bluetooth iBeacon identifiers (UUID, Major, Minor) and RSSI (Relative Signal Strength Indicator). These identifiers cannot be associated with any personally identifiable information (i.e. email addresses or names). Will this track my location? No, the Contact Tracing Device features an on/off button that should be enabled upon entry to the tracing environment and disabled once the tracing environment has been left. Can the Contact Tracing Device be switched on/off? Yes, the device can be turned on and off. To turn the device on or off, follow these steps: ●Turn On & Enable: Press and hold button for 5 seconds. For first time setup, the device will flash blue. Wait until the lightis sol…
