2AX5I-DR-05712.4G induction remote control

Familiar with this product Products matching product installation technical specification matters needing attention Familiar with this product Remote control Light-sensing key: the remote control senses the key when the hand is near the light-sensing area of the remote control about 10CM, and then sends a wireless signal out. LED indicating lamp The LED will go on for 2 seconds when the remote control senses the button Battery compartment: The remote control needs 3 AAA batteries Receiver Battery box: Install 4 AA batteries; Motor wire: connected to external motor Working principle: the remote control send the wireless data TO Receiver at the same time control motor Products matching 1. The electric buzzer on the receiver box rings 2. The battery LED on the remote control displays twice, and the receiver box buzzer rings once 3. Repeat the two steps three times, and the receiver box will ring once to indicate successful pairing Technical parameters: Operating frequency: 2421MHz, a total of 1 channel Modulation: GFSK Transmission rate: 500kbps Rf transmission power: 7DBM; Operating temperature: -40°C ~ 85°C; Precautions for Use: the products to avoid get wet in rain directly; if the sensor is invalid, with the battery needs to wait for 20 seconds before induction, 20 seconds later the system will automatically reset. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ECO(XIAMEN) TECHNOLOGY INC. Agent Authorization Company: ECO(XIAMEN) TECHNOLOGY INC. Address: No.2 Xiafei East Road, Haicang District , Xiamen 361028 Product Name: 2.4G induction remote control Model Number(s): DR-0571 Product Description: 2.4G induction remote control We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-25 Name: Shengjin Rao Company: ECO(XIAMEN) TECHNOLOGY INC.

ECO(XIAMEN) TECHNOLOGY INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-01-25 Subject; Request for Confidentiality FCC ID: 2AX5I-DR-0571 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely ECO(XIAMEN) TECHNOLOGY INC. Contact person: Shengjin Rao

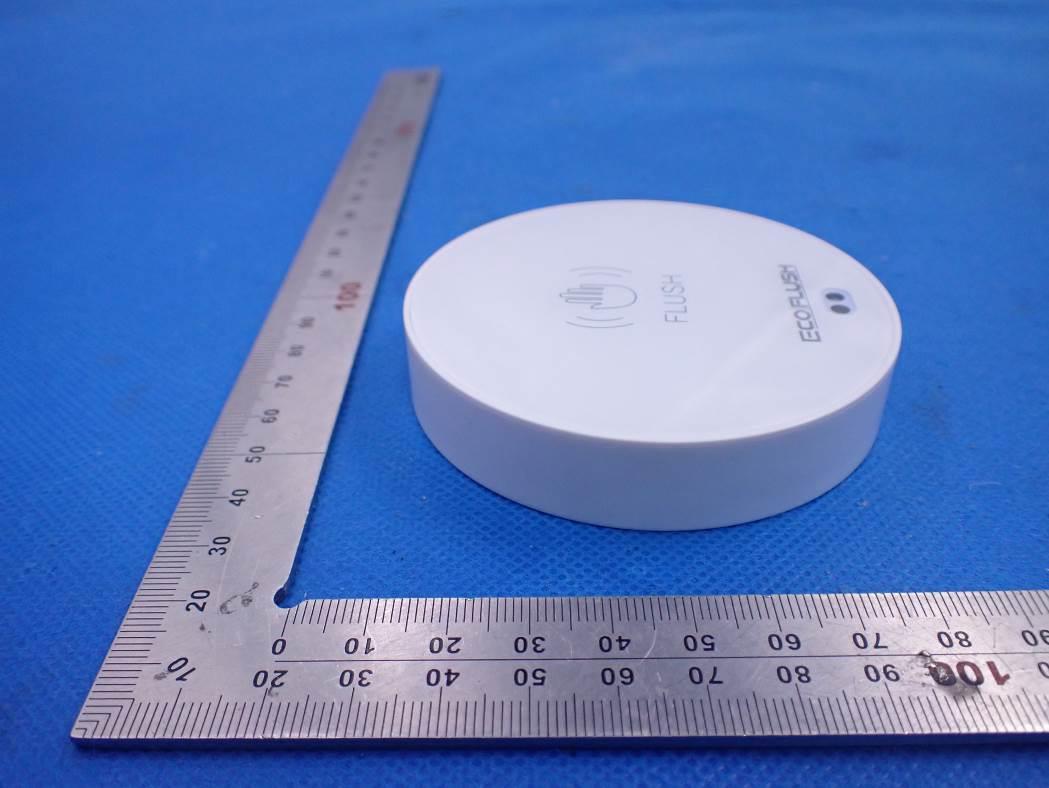

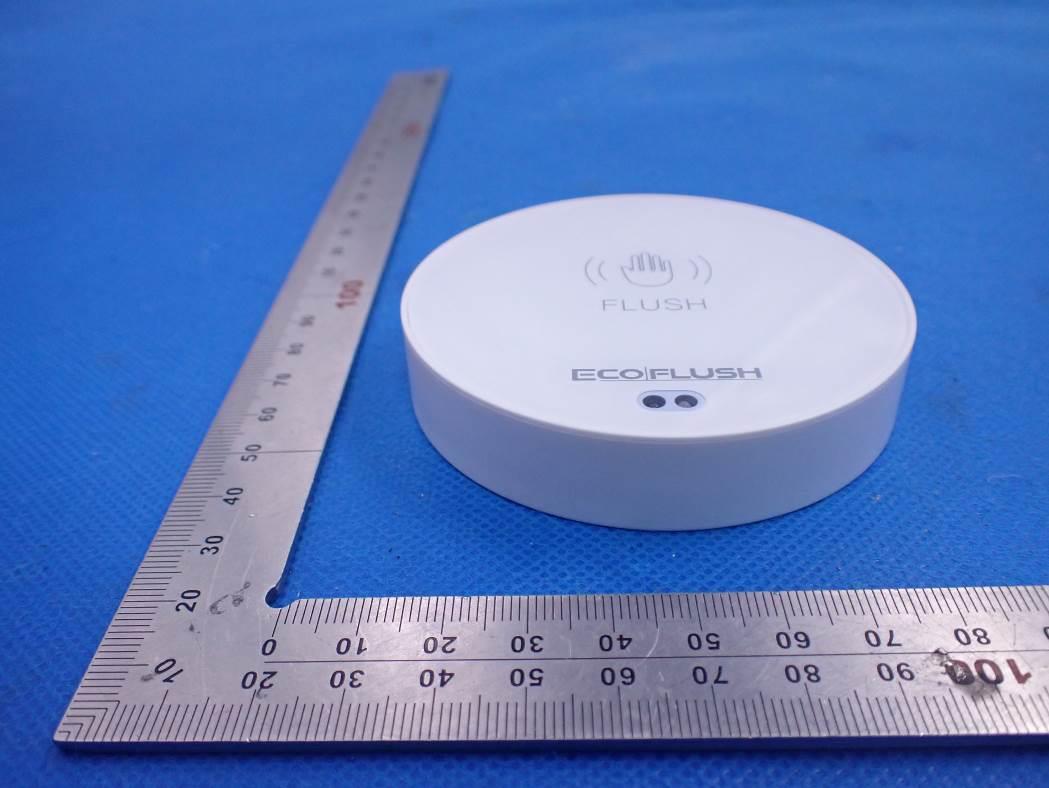

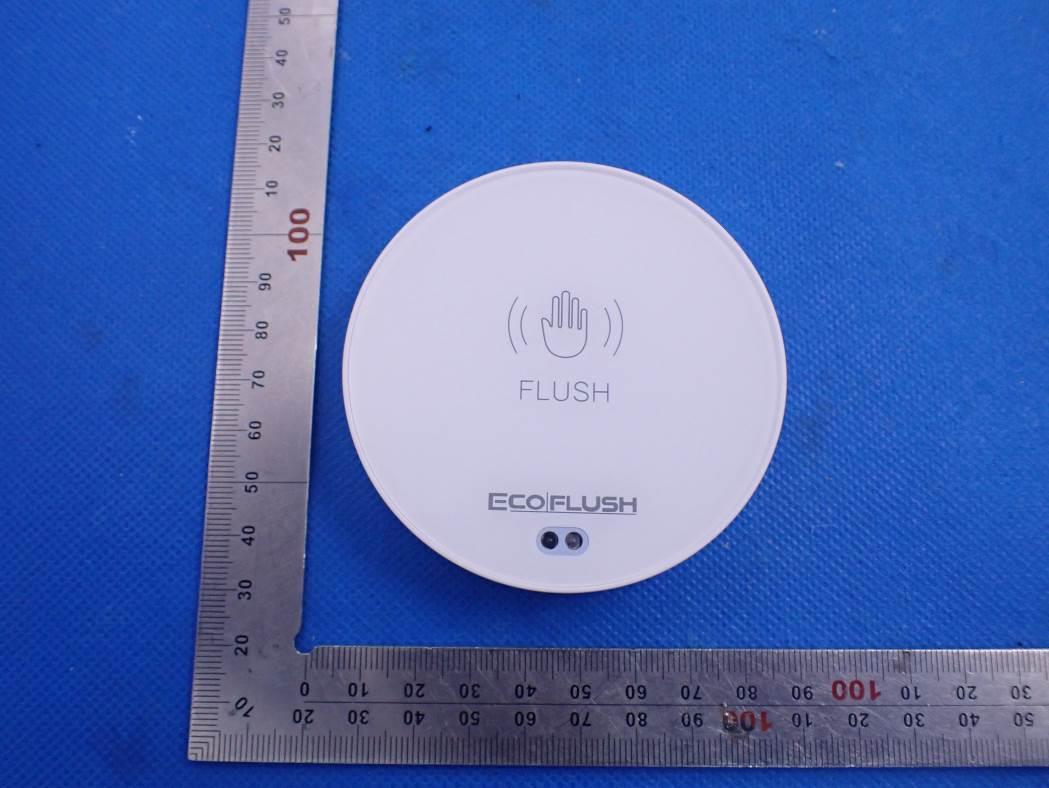

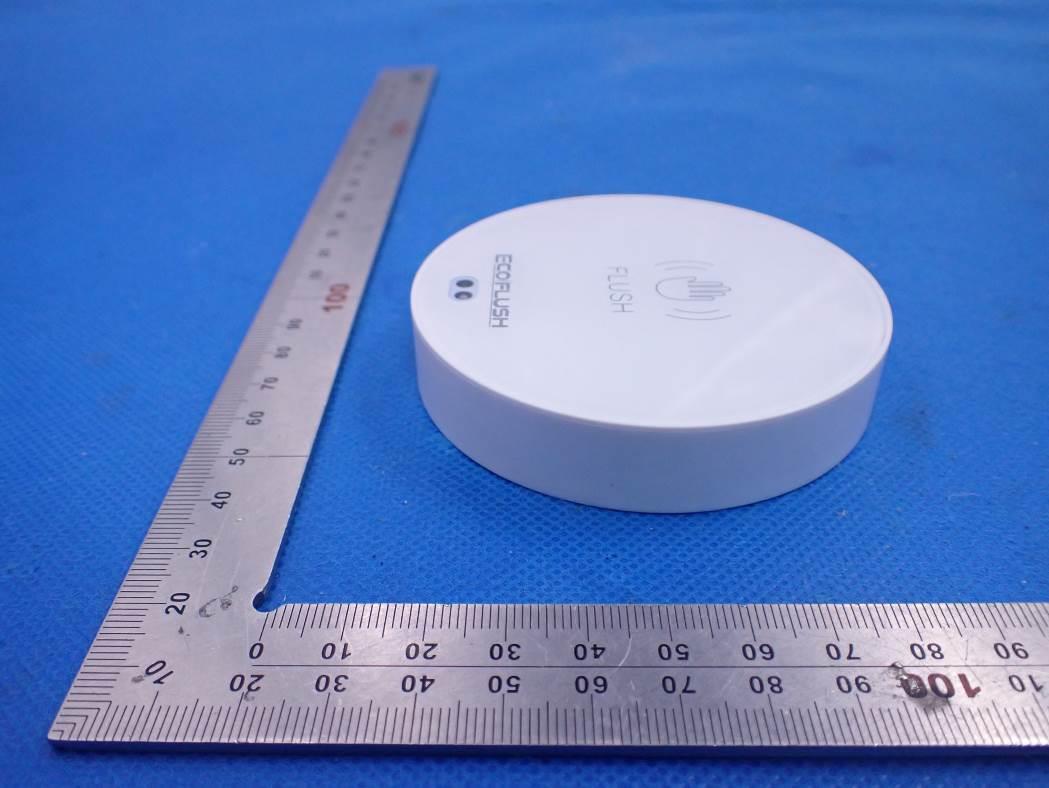

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID:2AX5I-DR-0571

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna
