2AX5J-RAP2200ERG-RAP2200(E)

-1- SafetyInformation 1/English英语 2/Čeština捷克语 3/Dansk丹麦语 4/Nederlands荷兰语 5/Français法语 6/Deutsch德语 7/Ελληνικά希腊语 8/Magyar匈牙利语 9/BahasaIndonesia印尼语 10/Italiano意大利语 11/日本語日语 12/한국어韩语 13/Norsk挪威语 14/Polski波兰语 15/Português葡萄牙语 16/Română罗马尼亚语 17/Русскийязык俄语 18/Español西班牙语 19/Svenska瑞典语 20/Türkçe土耳其语 21/ul泰语 22/TiếngViệt越南语 23/阿拉伯语 24/繁体中文繁体中文 25/希伯来语希伯来语 SafetyInformation •Donotuseyourdeviceifusingthedeviceisprohibited.Donotusethedeviceifdoingsocauses dangerorinterferencewithotherelectronicdevices. Donotattempttodisassemble,repair,ormodifythedevice.Ifyouneedservice,pleasecontactus. •Avoiddusty,damp,ordirtyenvironments.Avoidmagneticfields.Usingthedeviceinthese environmentsmayresultincircuitmalfunctions. •Idealoperatingtemperaturesare0°Cto40°C.Idealstoragetemperaturesare-40°Cto+70°C. Extremeheatorcoldmaydamageyourdeviceoraccessories.Fordetaileddeviceoperation circumstanceinformation,pleaserefertotheuserguide. •Thedeviceshouldbeinstalledandoperatedwithaminimumdistanceof20cmbetweentheradiator andyourbody. -2- •Usinganunapprovedorincompatiblepoweradapter,charger,powercord,cableorbatterymay damageyourdevice,shortenitslifespan,orcauseafire,explosion,orotherhazards. •Forpluggabledevices,thesocket-outletshallbeinstallednearthedevicesandshallbeeasily accessible. Adaptershallbeinstalledneartheequipmentandshallbeeasilyaccessible. •Donottouchthedeviceorthechargerwithwethands.Doingsomayleadtoshortcircuits, malfunctions,orelectricshocks. Plugtheproductintothewalloutletswithearthingconnectionthroughthepowersupplycord whichprovidedbythemanufacturer. Donotblockanyventilationopenings.Installthisapparatusinaccordancewiththemanufacturer’s instructions. Donotinstallthisapparatusnearanyheatsourcessuchasradiators,heatregisters,stovesor otherapparatus(includingamplifiers)thatproduceheat. Protectthepowercordfrombeingwalkedonorpinched,particularlyatplugs,convenience receptaclesandthepointwheretheyexitfromtheapparatus. Useonlyattachments/accessoriesspecifiedbythemanufacturer. Useonlywiththecart,stand,tripod,bracketortablespecifiedbythemanufacturerorsoldwith theapparatus.Whenacartisused,usecautionwhenmovingthecart/apparatuscombinationto avoidinjuryfromtip-over. 1/English英语 2/Čeština捷克语 3/Dansk丹麦语 4/Nederlands荷兰语 5/Français法语 6/Deutsch德语 7/Ελληνικά希腊语 8/Magyar匈牙利语 9/Italiano意大利语 10/Norsk挪威语 11/Polski波兰语 12/Português葡萄牙语 13/Română罗马尼亚语 14/Español西班牙语 15/Svenska瑞典语 16/Türkçe土耳其语 EUdeclarationofconformity RuijieNetworksCo.,Ltd.herebydeclaresthatthedeviceisincompliancewiththeessential requirementsandotherrelevantprovisionsofdirectives2014/53/EU,2009/125/EC,2011/65/EUand (EU)2015/863,andUKRadioEquipmentRegulations. TheoriginalEUandUKdeclarationofconformitymaybefoundathttps://www.ruijienetworks.com/support -3- Restrictionsinthe5GHzband: The5150to5350MHzfrequencyrangeisrestrictedtoindooruseonlyin:AT,BE,BG,CH,CY,CZ,DE, DK,EE,EL,ES,FI,FR,HR,HU,IE,IS,IT,LI,LT,LU,LV,MT,NL,NO,PL,PT,RO,SE,SI,SK,TR,UK. FrequencyBandsandPower Thefrequencybandsandtransmittingpower(radiatedand/orconducted)nominallimitsapplicableto thisradioequipmentareasfollows:Wi-Fi2400-2483.5MHz:20dBm,Wi-Fi5G:5150-5350MHz:23dBm, 5470-5725MHz:30dBm. Disposalandrecyclinginformation ThisproductbearstheselectivesortingsymbolforWasteelectricalandelectronicequipment(WEEE). ThismeansthatthisproductmustbehandledpursuanttoEuropeandirective2012/19/EUinorderto berecycledordismantledtominimizeitsimpactontheenvironment. Userhasthechoicetogivehisproducttoacompetentrecyclingorganizationortotheretailerwhen hebuysanewelectricalorelectronicequipment. Formoreinformation,pleasecontactyourlocalauthorities,retailer,orhouseholdwastedisposal service. ThisproductisRoHScompliant. ThisproductisincompliancewithDirective2011/65/EUandUKTheRestrictionoftheUseofCertainHazardous SubstancesinElectricalandElectronicEquipmentRegulations2012,anditsamendments,ontherestrictionof theuseofcertainhazardoussubstancesinelectricalandelectronicequipment. -4- CAUTIONFCCANDICSTATEMENTFORUSERS AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser'sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterference willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment. Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator& yourbody. ForaClassAdigitaldevice： NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.This equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructionmanual,maycauseharmfulinterferencetoradiocommunications. Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcase theuserwillberequiredtocorrecttheinterferenceathis…

Text truncated - open the document above for the full version.

＠ Ethernet kablosunu LAN baglant1 noktasma baglaym. 0 .J I II II. / II \\'J. \\ I " Eri�im Noktasmm arkasmdaki kare ayag1 baglant1 par9as1 uzerindeki montaj delikleri uzerine hizalaym. Eri�im Noktasm1 yerine oturana kadar delikler i9erisine dogru kayd1nn. Ag Yap1land1rma Yontem 1 (Tavsiye Edilen) Ruijie Bulut Uygulamasm1 kar�1dan yuklemek i9in El kitab1 veya ayg1t uzerindeki Kare kodu taraym ve Uygulamadaki k1lavuza gore ag1 yap1land1nn. Yontem 2 SSID'ye (Birden fazla ayg1t oldugunda @Ruijie-mxxxx ve sadece bir ayg1t oldugunda @Ruijie-sxxxx) baglanin, ya da kabloyu LAN portuna baglayin ve http://10.44. 77.253 adresini ziyaret edin (varsay1lan parola: "admin" dir). IP adresinin 10.44. 77.250 olarak yap1land1rilmas1 tavsiye edilir. 30

RuijieNetworksCo.,Ltd. SDoCAttestationLetter To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2AX5J-RAP2200E Productdescription:WirelessAccessPoint Typedesignation:RG-RAP2200(E) Trademark:,,,, ToWhomItMayConcern: HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartwillbe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Client’sSignature: ChaoJiang Date:2023.1.4 RuijieNetworksCo.,Ltd.

RuijieNetworksCo.,Ltd. Rev11/20/07 ConfidentialityLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AX5J-RAP2200E PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram CircuitSchematic OperationDescription SoftwareSecurityInfo RG-RAP2200(E)_BlockDiagram RG-RAP2200(E)_CircuitSchematic RG-RAP2200(E)_OperationDescription RG-RAP2200(E)_SoftwareSecurityInfo Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow foraperiodof180days: ExhibitTypeFileName UserManual ExternalPhotos InternalPhotos TestSetupPhotos RG-RAP2200(E)_UserManual RG-RAP2200(E)_ExternalPhotos RG-RAP2200(E)_InternalPhotos RG-RAP2200(E)_TestSetupPhotos Client’sSignature: ChaoJiang Date:2023.1.4 RuijieNetworksCo.,Ltd.

RuijieNetworksCo.,Ltd. U-NII-DTSDeclarationLetter Towhomitmayconcern: WehavedeclaredbelowfeaturedforFCCequipmentauthorization, DeviceFCCID:2AX5J-RAP2200E (1)DFSDevice--Master,ClientwithRadardetectioncapability, Clientwithoutradardetectioncapability,N/A (2)Active/PassiveScanning,adhocmodeaccesspointcapability FrequencyBand (MHz) ActiveScanning (thedevicecan transmitaprobe (beacon)) passivescanning (wherethedeviceis canlistenonlywith noprobes) AdHocModeor WIFIDirect capability Accesspoint capability 5180-5240Yes,NoYes,NoYes,NoYes,No 5745-5825Yes,NoYes,NoYes,NoYes,No 5190-5230Yes,NoYes,NoYes,NoYes,No 5270-5310Yes,NoYes,NoYes,NoYes,No 5755-5795Yes,NoYes,NoYes,NoYes,No 5210-5210Yes,NoYes,NoYes,NoYes,No 5290-5290Yes,NoYes,NoYes,NoYes,No 5775-5775Yes,NoYes,NoYes,NoYes,No (3)Countrycodeselectionability-Yes,No Ifyes,plsexplainhowitwasimplemented:(plsalsohelptoprovidedetailofoptionsforeachcountryselection) (4)Meet15.202requirement-Yes,No, plscheckbelow: Amasterdeviceisdefinedasadeviceoperatinginamodeinwhichithasthecapabilitytotransmitwithout receivinganenablingsignal.Inthismodeitisabletoselectachannelandinitiateanetworkbysendingenabling signalstootherdevices Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsofthedeviceareunder controlofthemaster.Adeviceinclientmodeisnotabletoinitiateanetwork. (5)Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferentmodes(activescanningin someandpassivescanninginothers)indifferentbands(deviceswithmultipleequipmentclassesorthosethat operateonnon-DFSfrequencies)ormodulardeviceswhichconfigurethemodesofoperationsthroughsoftware,the applicationmustprovidesoftwareandoperationsdescriptiononhowthesoftwareand/orhardwareisimplemented toensurethatproperoperationsmodescannotbemodifiedbyenduseroraninstaller. Apply,NoApply, (Ifapply,plshelptoprovideexplanationonitwasimplement,andhowsoftwarewascontrolled) Client’sSignature: ChaoJiang Date:2023.1.10 RuijieNetworksCo.,Ltd.

RuijieNetworksCo.,Ltd. POALetter FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 FCCApplicationforFCCID:2AX5J-RAP2200E ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.onour behalf,toapplytotheFederalCommunicationsCommissiononourequipment.Anyandallacts carriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethesameeffectasacts ofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,theapplicant, arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof 1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefits pursuanttothatsection. Client’sSignature: ChaoJiang Date:2023.1.4 RuijieNetworksCo.,Ltd.

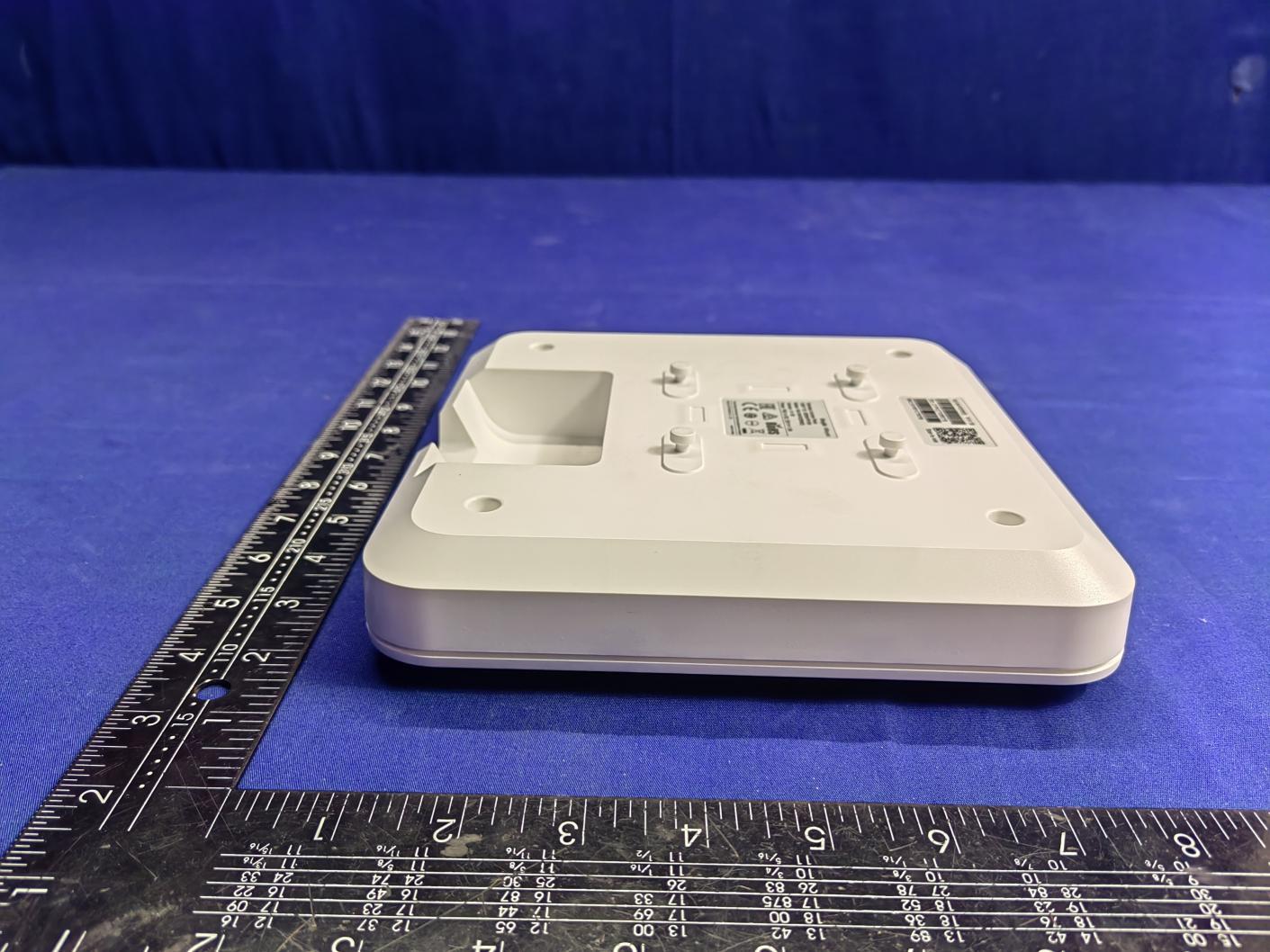

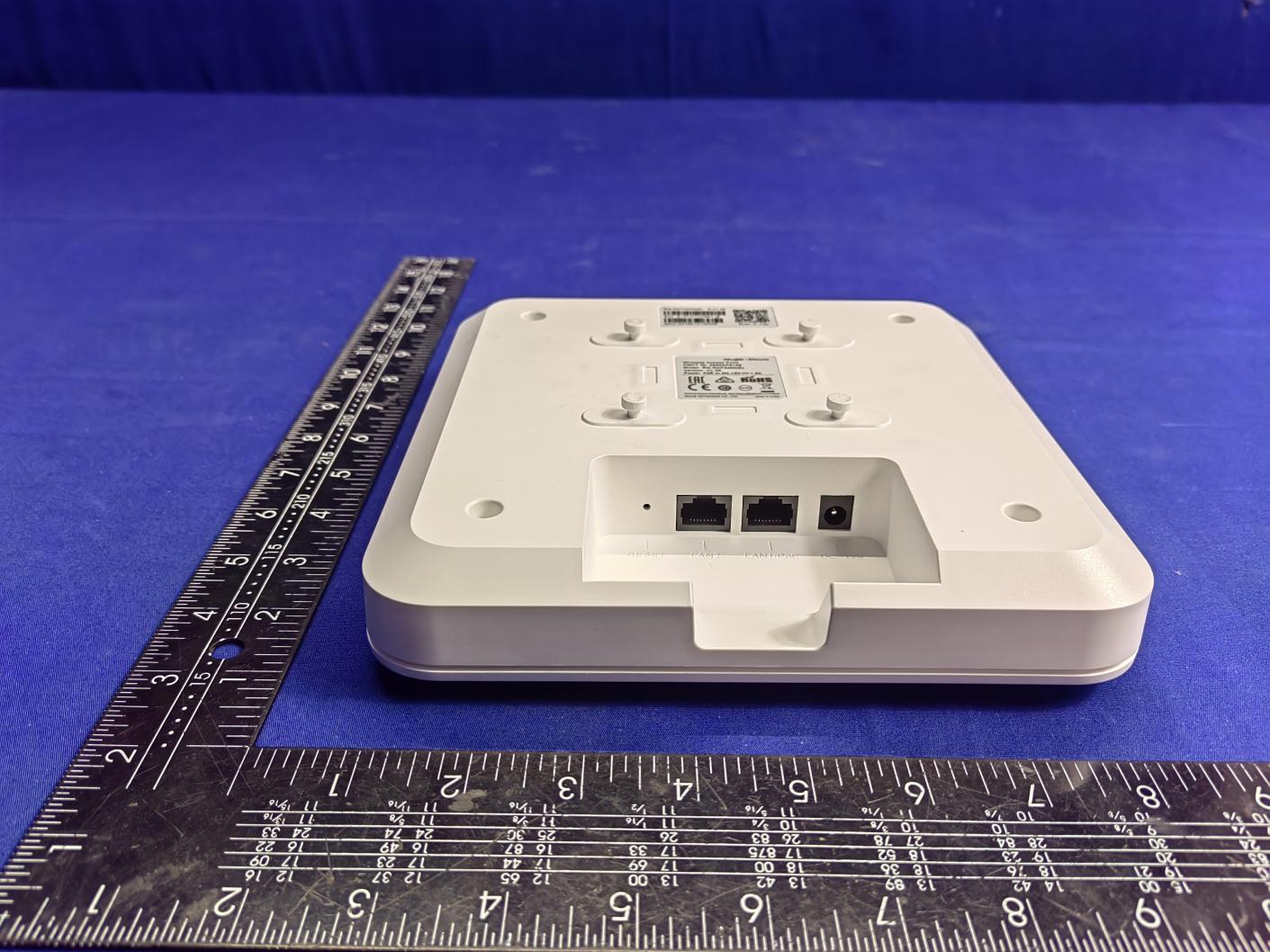

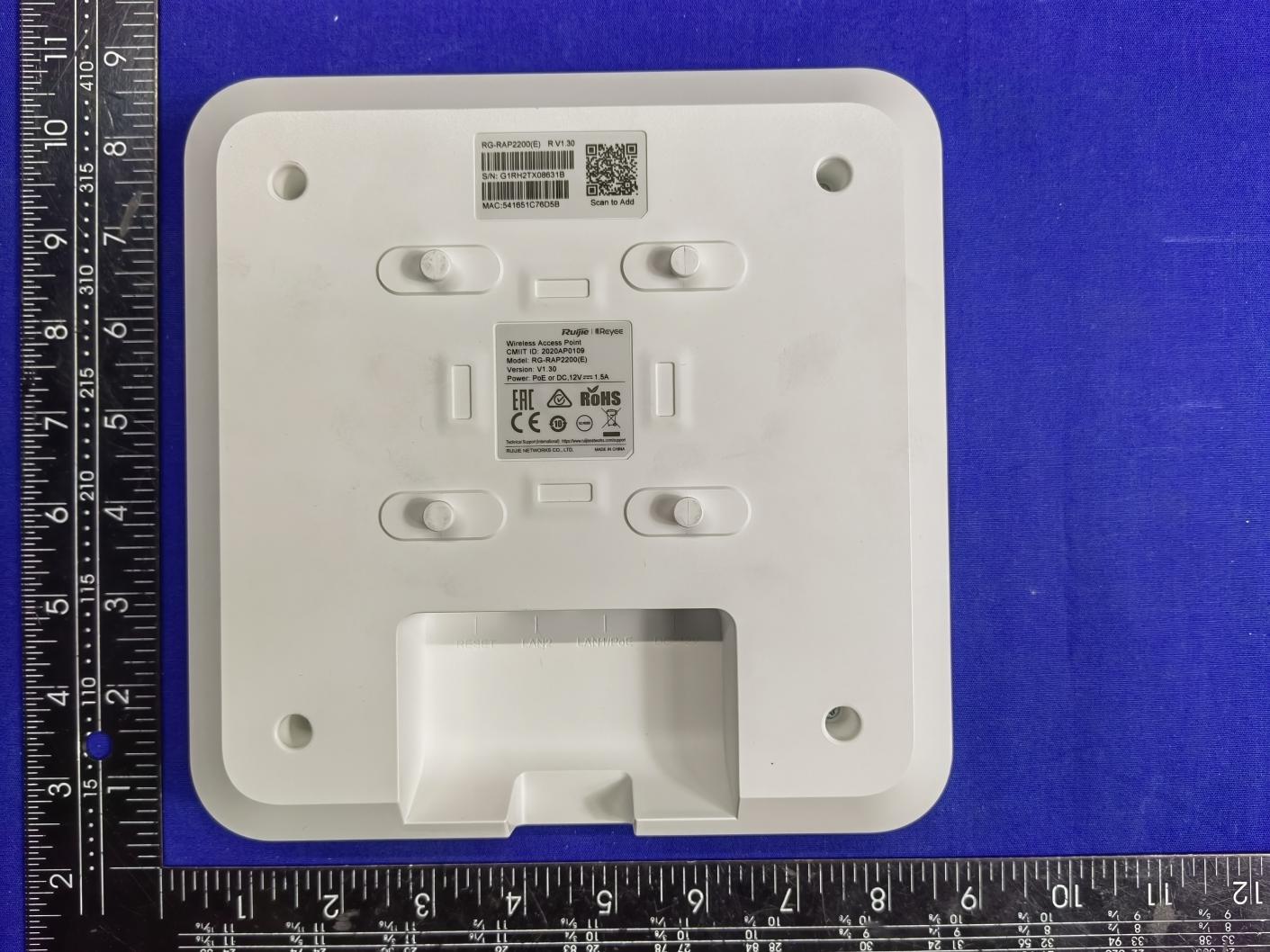

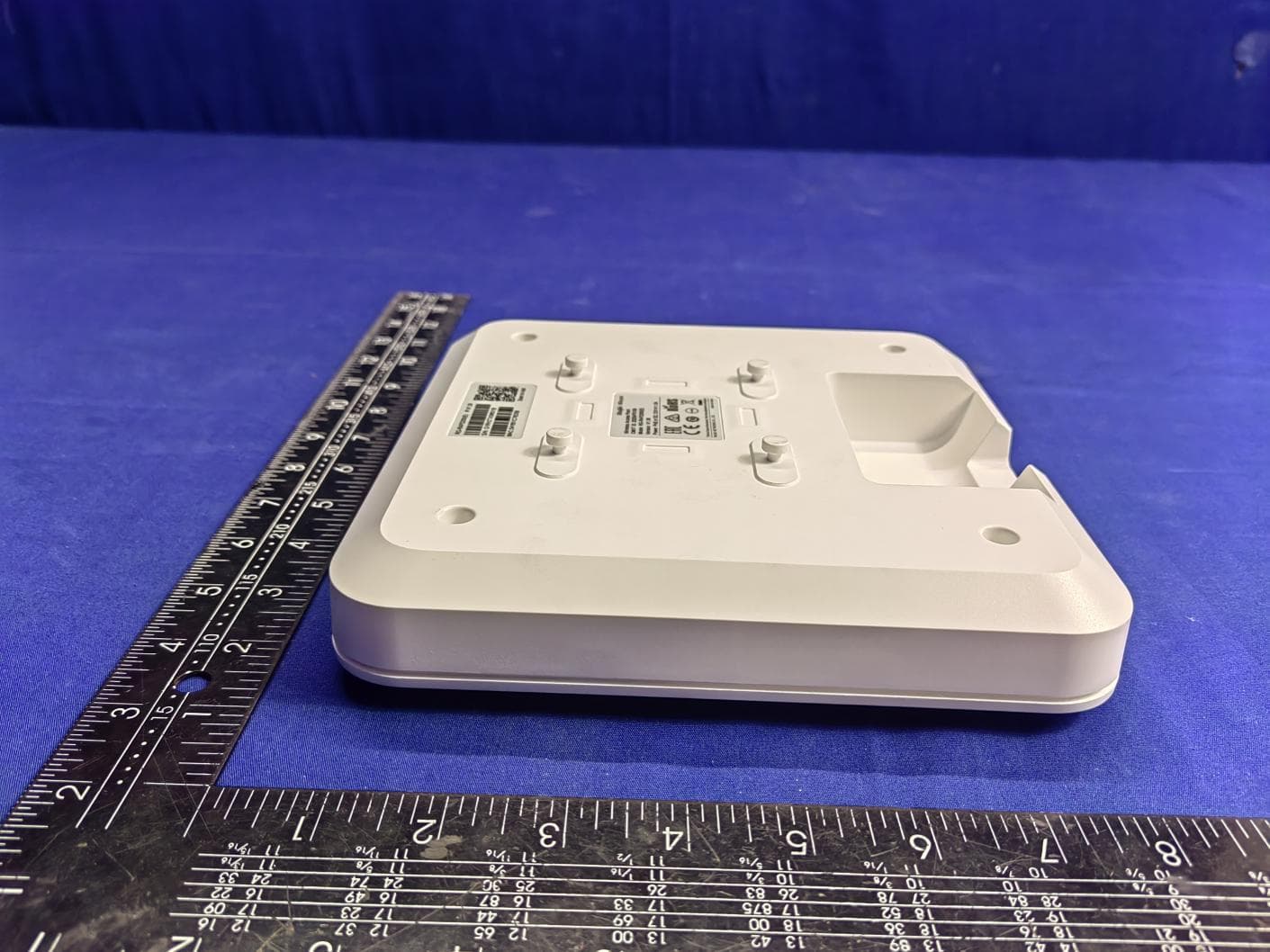

Page1of3 EXTERNALPHOTOS Page2of3 Page3of3 -----TheEnd-----

1.Label 2.labellocation

Page1of5 INTERNALPHOTOS 5GAnt1 5GAnt2 2.4GAnt2 2.4GAnt1 Page2of5 Page3of5 Page4of5 Page5of5 -----TheEnd-----

FCCID:2AX5J-RAP2200E 1.RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b). LimitsforMaximumPermissibleExposure(MPE). Frequency Range(MHz) ElectricField Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2. Pout=outputpowertoantennainmW. G=Numericgainoftheantennarelativetoisotropicantenna. Pi=3.1416. R=distancebetweenobservationpointandcenteroftheradiatorin20cm. PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotal. powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. 2.EUTTECHNICALDESCRIPTION CharacteristicsDescription ProductWirelessAccessPoint ModelNumberRG-RAP2200(E) WifiType UNII-1:5150MHz-5250MHzBand UNII-2A:with5250MHz-5350MHzBand UNII-2C:with5470MHz-5725MHzBand UNII-3with5725MHz-5850MHzBand WLANSupported 802.11a 802.11n(20MHzchannelbandwidth) 802.11n(40MHzchannelbandwidth) 802.11ac(20MHzchannelbandwidth) 802.11ac(40MHzchannelbandwidth) 802.11ac(80MHzchannelbandwidth) DataRate 802.11a:54/48/36/24/18/12/9/6Mbps 802.11n:upto600Mbps 802.11ac:upto1.733Gbps Modulation OFDMwithBPSK/QPSK/16QAM/64QAMfor802.11a/n OFDMwithBPSK/QPSK/16QAM/64QAM/256QAMfor802.11ac FrequencyRange UNII-1:5150MHz-5250MHzBand 5180-5240MHzfor802.11a 5180-5240MHzfor802.11n(HT20) 5180-5240MHzfor802.11ac(HT20) 5190-5230MHzfor802.11n(HT40) 5190-5230MHzfor802.11ac(HT40) 5210MHzfor802.11ac(HT80) UNII-2A:with5250MHz-5350MHzBand 5260-5320MHzfor802.11a 5260-5320MHzfor802.11n(HT20) IEEE802.11WLAN ModeSupported 802.11b 802.11g 802.11n(20MHzchannelbandwidth) 802.11n(40MHzchannelbandwidth) Modulation DSSSwithDBPSK/DQPSK/CCKfor802.11b OFDMwithBPSK/QPSK/16QAM/64QAMfor802.11g/n OperatingFrequency Range 2412-2462MHzfor802.11b/g/n(HT20) 2422-2452MHzfor802.11b/g/n(HT40) NumberofChannels 11channelsfor802.11b/g/n(HT20) 7Channelsfor802.11n(HT40) AntennaTypeIntegratedAntenna AntennaGainAnt1:3.79dBi,Ant2:3.79dBi 5260-5320MHzfor802.11ac(HT20) 5270-5310MHzfor802.11n(HT40) 5270-5310MHzfor802.11ac(HT40) 5290MHzfor802.11ac(HT80) UNII-2C:with5470MHz-5725MHzBand 5500-5700MHzfor802.11a 5500-5700MHzfor802.11n(HT20) 5500-5700MHzfor802.11ac(HT20) 5510-5670MHzfor802.11n(HT40) 5510-5670MHzfor802.11ac(HT40) 5530-5610MHzfor802.11ac(HT80) UNII-3with5725MHz-5850MHzBand 5745-5825MHzfor802.11a 5745-5825MHzfor802.11n(HT20) 5745-5825MHzfor802.11ac(HT20) 5755-5795MHzfor802.11n(HT40) 5755-5795MHzfor802.11ac(HT40) 5775MHzfor802.11ac(HT80) TPCFunctionApplicableNotApplicable AntennaTypeIntegratedAntenna AntennaGain 5150-5250MHz:Ant1:4.67dBi,Ant2:4.67dBi 5250-5350MHz:Ant1:4.67dBi,Ant2:4.67dBi 5470-5725MHz:Ant1:4.67dBi,Ant2:4.67dBi 5725-5850MHz:Ant1:4.67dBi,Ant2:4.67dBi 3.MeasurementResult Belowmodecan’ttransmitsimultaneously. Mode Max Conducted Power(dBm) Antenna gain(dBi) Antenna GainNumeric R (cm) Evaluation result (mW/cm2) Power densityLimits (mW/cm2) 2.4GWIFI20.153.792.393200.04931 5GWIFI23.274.672.931200.12381 Note:Allthemodesaretested,onlytheworstdataaredescribedinthetable. -----TheEnd-----

福 州 捷 雷 电 子 科 技 有 限 公 司 Fuzhou JieLei Electronic Technology Co.,Ltd. 文档编码：FRKF-0007版本：1.1 1 1. Electrical Performance A.Electrical Characteristics S.W.R＜=2.0@2400-2500MHz Frequency Range(MHz)2400-2500MHz Impedance50 Ohm GainMAX：3.79dBi@2400-2500MHz B.Material ConnectorIPEX Cable Length80MM Cable1.13 C.Environmental Operation Temperature-20°C~65°C Storage Temperature 福 州 捷 雷 电 子 科 技 有 限 公 司 Fuzhou JieLei Electronic Technology Co.,Ltd. 文档编码：FRKF-0007版本：1.1 2 2. Measurement Setup (1)Reflection coefficient Measurement: (a)Instrument: Network Analyzer (b)Setup: (I )Calibrate the Network Analyzer by one port calibration using Agilent calibration kits. (II )Connect the antenna under test to the Network Analyzer (III )Measure the S11 ( reflection coefficient) shown in Fig.1 Fig.1 Measure S11 on Network Analyze 福 州 捷 雷 电 子 科 技 有 限 公 司 Fuzhou JieLei Electronic Technology Co.,Ltd. 文档编码：FRKF-0007版本：1.1 3 福 州 捷 雷 电 子 科 技 有 限 公 司 Fuzhou JieLei Electronic Technology Co.,Ltd. 文档编码：FRKF-0007版本：1.1 4 3. Mechanical Dimension Drawing

ReportNo.ENS2211290156W00201RPage1of97Ver.1.0 $印章$ TESTREPORT ProductName： WirelessAccessPoint ModelNumber： RG-RAP2200(E) FCCID：2AX5J-RAP2200E Preparedfor:RuijieNetworksCo.,Ltd. Address:Building19,JuyuanzhouIndustrialPark,No.618Jinshan Road,CangshanDistrict,Fuzhou,Fujian,China Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2211290156W00201R Date(s)ofTests:December08,2022toDecember30,2022 DateofIssue:December30,2022 $二维码$ ReportNo.ENS2211290156W00201RPage2of97Ver.1.0 TABLEOFCONTENTS 1EUTTECHNICALDESCRIPTION.....................................................................................................................5 2SUMMARYOFTESTRESULT ........................................................................................................................... 6 3TESTMETHODOLOGY ....................................................................................................................................... 7 3.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS.........................................................................7 3.2MEASUREMENTEQUIPMENTUSED......................................................................................................7 3.3DESCRIPTIONOFTESTMODES.............................................................................................................8 4FACILITIESANDACCREDITATIONS...............................................................................................................9 4.1FACILITIES ..................................................................................................................................................... 9 4.2EQUIPMENT ................................................................................................................................................... 9 4.3LABORATORYACCREDITATIONSANDLISTINGS...............................................................................9 5TESTSYSTEMUNCERTAINTY......................................................................................................................10 6SETUPOFEQUIPMENTUNDERTEST........................................................................................................11 6.1RADIOFREQUENCYTESTSETUP1.....................................................................................................11 6.2RADIOFREQUENCYTESTSETUP2 ..................................................................................................... 11 6.3CONDUCTEDEMISSIONTESTSETUP ................................................................................................ 14 6.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM.................................................................15 6.5SUPPORTEQUIPMENT............................................................................................................................15 7TESTREQUIREMENTS....................................................................................................................................16 7.1MINIMUM(6DB)OCCUPIEDBANDWIDTH...........................................................................................16 7.2MAXIMUMPEAKCONDUCTEDOUTPUTPOWER ............................................................................. 26 7.3MAXIMUMPOWERSPECTRALDENSITY ............................................................................................ 36 7.4UNWANTEDSPURIOUSEMISSIONS....................................................................................................46 7.5RADIATEDEMISSION................................................................................................................................79 7.6CONDUCTEDEMISSIONTEST ............................................................................................................... 93 7.7ANTENNAAPPLICATION .......................................................................................................................... 96 ReportNo.ENS2211290156W00201RPage3of97Ver.1.0 ModifiedInformation VersionReportNo.RevisionDateSummary Ver.1.0ENS2211290156W00201R/OriginalReport ReportNo.ENS2211290156W00201RPage4of97Ver.1.0 TESTRESULTCERTIFICATION Applicant: RuijieNetworksCo.,Ltd. Address: Building19,JuyuanzhouIndustrialPark,No.618JinshanRoad, CangshanDistrict,Fuzhou,Fujian,China Manufacturer: RuijieNetworksCo.,Ltd. Address: Building19,JuyuanzhouIndustrialPark,No.618JinshanRoad, CangshanDistrict,Fuzhou,Fujian,China EUT:WirelessAccessPoint ModelName:RG-RAP2200(E) Trademark: MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart15,SubpartC PASS TheaboveequipmentwastestedbyEMTEK(SHENZHEN)CO.,LTD.Thetestdata,dataevaluation, testprocedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththe proceduresgiveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribed inthisreportisincompliancewiththerequirementsofFCCRulesPart2andPart15.247. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport. DateofTest:December08,2022toDecember30,2022 Preparedby: UnaYu/Editor Reviewer: JoeXia/Supervisor Approved&AuthorizedSigner: LisaWang/Manager ReportNo.ENS2211290156W00201RPage5of97Ver.1.0 1EUTTECHNICALDESCRIPTION CharacteristicsDescription ProductWirelessAccessPoint ModelNumberRG-RAP2200(E) IEEE802.11WLAN ModeSupported 802.11b 802.11g 802.11n(20MHzchannelbandwidth) 802.11n(40MHzchannelbandwidth) Modulation DSSSwithDBPSK/DQPSK/CCKfor802.11b OFDMwithBPSK/QPSK/16QAM/64QAMfor802.11g/n OperatingFrequency Range 2412-2462MHzfor802.11b/g/n(HT20) 2422-2452MHzfor802.11b/g/n(HT40) NumberofChannels 11channelsfor802.11b/g/n(HT20) 7Channelsfor802.11n(HT40) AntennaTypeIntegratedAntenna AntennaGainAnt1:3.79dBi,Ant2:3.79dBi PowerSupply DC48VbyPOEadapter DC12VbyPoweradapter TemperatureRange 0°C~40°C ReportNo.ENS2211290156W00201RPage6of97Ver.1.0 2SUMMARYOFTESTRESULT FCCPartClauseTestParameterVerdictRe…

Text truncated - open the document above for the full version.

ReportNo.ENS2211290156W00201RPage51of97Ver.1.0 11G_Ant1_High_2462 11G_Ant2_High_2462 11N20MIMO_Ant1_Low_2412 ReportNo.ENS2211290156W00201RPage52of97Ver.1.0 11N20MIMO_Ant2_Low_2412 11N20MIMO_Ant1_High_2462 11N20MIMO_Ant2_High_2462 ReportNo.ENS2211290156W00201RPage53of97Ver.1.0 11N40MIMO_Ant1_Low_2422 11N40MIMO_Ant2_Low_2422 11N40MIMO_Ant1_High_2452 ReportNo.ENS2211290156W00201RPage54of97Ver.1.0 11N40MIMO_Ant2_High_2452 ReportNo.ENS2211290156W00201RPage55of97Ver.1.0 Emissionlevelmeasurement 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 ReportNo.ENS2211290156W00201RPage56of97Ver.1.0 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 11B_Ant2_2412_1000~26500 ReportNo.ENS2211290156W00201RPage57of97Ver.1.0 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 ReportNo.ENS2211290156W00201RPage58of97Ver.1.0 11B_Ant2_2437_0~Reference 11B_Ant2_2437_30~1000 11B_Ant2_2437_1000~26500 ReportNo.ENS2211290156W00201RPage59of97Ver.1.0 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 ReportNo.ENS2211290156W00201RPage60of97Ver.1.0 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 11B_Ant2_2462_1000~26500 ReportNo.ENS2211290156W00201RPage61of97Ver.1.0 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 ReportNo.ENS2211290156W00201RPage62of97Ver.1.0 11G_Ant2_2412_0~Reference 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 ReportNo.ENS2211290156W00201RPage63of97Ver.1.0 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 ReportNo.ENS2211290156W00201RPage64of97Ver.1.0 11G_Ant2_2437_0~Reference 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 ReportNo.ENS2211290156W00201RPage65of97Ver.1.0 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500

ReportNo.ENS2211290156W00201RPage66of97Ver.1.0 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 ReportNo.ENS2211290156W00201RPage67of97Ver.1.0 11N20MIMO_Ant1_2412_0~Reference 11N20MIMO_Ant1_2412_30~1000 11N20MIMO_Ant1_2412_1000~26500 ReportNo.ENS2211290156W00201RPage68of97Ver.1.0 11N20MIMO_Ant2_2412_0~Reference 11N20MIMO_Ant2_2412_30~1000 11N20MIMO_Ant2_2412_1000~26500 ReportNo.ENS2211290156W00201RPage69of97Ver.1.0 11N20MIMO_Ant1_2437_0~Reference 11N20MIMO_Ant1_2437_30~1000 11N20MIMO_Ant1_2437_1000~26500 ReportNo.ENS2211290156W00201RPage70of97Ver.1.0 11N20MIMO_Ant2_2437_0~Reference 11N20MIMO_Ant2_2437_30~1000 11N20MIMO_Ant2_2437_1000~26500 ReportNo.ENS2211290156W00201RPage71of97Ver.1.0 11N20MIMO_Ant1_2462_0~Reference 11N20MIMO_Ant1_2462_30~1000 11N20MIMO_Ant1_2462_1000~26500 ReportNo.ENS2211290156W00201RPage72of97Ver.1.0 11N20MIMO_Ant2_2462_0~Reference 11N20MIMO_Ant2_2462_30~1000 11N20MIMO_Ant2_2462_1000~26500 ReportNo.ENS2211290156W00201RPage73of97Ver.1.0 11N40MIMO_Ant1_2422_0~Reference 11N40MIMO_Ant1_2422_30~1000 11N40MIMO_Ant1_2422_1000~26500 ReportNo.ENS2211290156W00201RPage74of97Ver.1.0 11N40MIMO_Ant2_2422_0~Reference 11N40MIMO_Ant2_2422_30~1000 11N40MIMO_Ant2_2422_1000~26500 ReportNo.ENS2211290156W00201RPage75of97Ver.1.0 11N40MIMO_Ant1_2437_0~Reference 11N40MIMO_Ant1_2437_30~1000 11N40MIMO_Ant1_2437_1000~26500 ReportNo.ENS2211290156W00201RPage76of97Ver.1.0 11N40MIMO_Ant2_2437_0~Reference 11N40MIMO_Ant2_2437_30~1000 11N40MIMO_Ant2_2437_1000~26500 ReportNo.ENS2211290156W00201RPage77of97Ver.1.0 11N40MIMO_Ant1_2452_0~Reference 11N40MIMO_Ant1_2452_30~1000 11N40MIMO_Ant1_2452_1000~26500 ReportNo.ENS2211290156W00201RPage78of97Ver.1.0 11N40MIMO_Ant2_2452_0~Reference 11N40MIMO_Ant2_2452_30~1000 11N40MIMO_Ant2_2452_1000~26500 ReportNo.ENS2211290156W00201RPage79of97Ver.1.0 7.5RADIATEDEMISSION 7.5.1ApplicableStandard AccordingtoFCCPart15.247(d)and15.209andKDB558074D0115.247MeasGuidancev05r02. 7.5.2ConformanceLimit AccordingtoFCCPart15.247(d):radiatedemissionswhichfallintherestrictedbands,asdefinedin §15.205(a),mustalsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). AccordingtoFCCPart15.205,Restrictedbands: MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300-14278.025-8.5 4.17725-4.1777537.5-38.251435-1626.59.0-9.2 4.20725-4.2077573-74.61645.5-1646.59.3-9.5 6.215-6.21874.8-75.21660-171010.6-12.7 6.26775-6.26825123-1382200-230014.47-14.5 8.291-8.294149.9-150.052310-239015.35-16.2 8.362-8.366156.52475-156.525252483.5-250017.7-21.4 8.37625-8.38675156.7-156.92690-290022.01-23.12 8.41425-8.41475162.0125-167.173260-326723.6-24.0 12.29-12.293167.72-173.23332-333931.2-31.8 12.51975-12.52025240-2853345.8-335836.43-36.5 12.57675-12.57725322-335.43600-4400(2) 13.36-13.41 AccordingtoFCCPart15.205thelevelofanytransmitterspuriousemissioninRestrictedbandsshallnot exceedtheleveloftheemissionspecifiedinthefollowingtable. Restricted Frequency(MHz) FieldStrength(μV/m)FieldStrength (dBμV/m) Measurement Distance 0.009-0.4902400/F(KHz)20log(uV/m)300 0.490-1.70524000/F(KHz)20log(uV/m)30 1.705-303029.530 30-88100403 88-21615043.53 216-960200463 Above960500543 7.5.3TestConfiguration Testaccordingtoclause6.2radiofrequencytestsetup2. 7.5.4TestProcedure ThistestisrequiredforanyspuriousemissionthatfallsinaRestrictedBand,asdefinedinSection 15.205.Itmustbeperformedwiththehighestgainofeachtypeofantennaproposedforusewiththe EUT.Usethefollowingspectrumanalyzersettings: ForAbove1GHz: TheEUTwasplacedonaturntablewhichis1.5mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured. RBW=1MHz. VBW  RBW. Sweep=auto. ReportNo.ENS2211290156W00201RPage80of97Ver.1.0 Detectorfunction=peak. Trace=maxhold. ForBelow1GHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured. RBW=100kHz. VBW  RBW. Sweep=auto. Detectorfunction=peak. Trace=maxhold. ForBelow30MHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured. RBW=9kHz. VBW  RBW. Sweep=auto. Detectorfunction=peak. Trace=maxhold. ForBelow150KHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured. RBW=200Hz. VBWRBW. Sweep=auto. Detectorfunction=peak. Trace=maxhold. FollowtheguidelinesinANSIC63.10withrespecttomaximizingtheemissionbyrotatingtheEUT, measuringtheemissionwhiletheEUTissituatedinthreeorthogonalplanes(ifappropriate),adjusting themeasurementantennaheightandpolarization,etc.Apre-ampandahighpassfilterarerequired forthistest,inordertoprovidethemeasuringsystemwithsufficientsensitivity.Allowthetraceto stabilize.Thepeakreadingoftheemission,afterbeingcorrectedbytheantennafactor,cableloss, pre-ampgain,etc.,isthepeakfieldstrength,whichmustcomplywiththelimit.Submitthisdata. NowsettheVBWto10Hz,whilemaintainingalloftheotherinstrumentsettings.Thispeaklevel,once corrected,mustcomplywiththelimit.Ifthedwelltimeperchannelofthehoppingsignalislessthan 100ms,thenthereadingobtainedwiththe10HzVBWmaybefurtheradjustedbya“dutycycle correctionfactor”,derivedfrom20log(dwelltime/100ms),inanefforttodemonstratecompliancewiththe limit.Submitthisdata. Repeataboveproceduresuntilallfrequencymeasuredwascomplete. 7.5.5TestResults Temperature: 28.1C RelativeHumidity: 43  ATMPressure:1011mbar ReportNo.ENS2211290156W00201RPage81of97Ver.1.0 SpuriousEmissionbelow30MHz(9KHzto30MHz) Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit3m(dBuV/m)Over(dB) H/VPKAVPKAVPKAV ---------------- Note:Dataofmeasurementwithinthisfrequencyrangeshown“--”inthetableabovemeansthe readingofemissionsareattenu…

Text truncated - open the document above for the full version.

ReportNo.ENS2211290156W00201RPage90of97Ver.1.0 SuspectedDataList NO. Freq. [MHz] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1132.922920.3143.5023.19100359Horizontal 2161.081135.4443.508.06100359Horizontal 3191.181226.3643.5017.14100359Horizontal 4375.665730.9646.0015.04100338Horizontal 5445.575630.1446.0015.8610030Horizontal 6880.570630.9846.0015.02100214Horizonta…
