2AX5JHR56G01Wireless Router

RG-EW1200G PRO 1300M Dual-band Wireless Router Confidentiality: D Document attribution: Product Management Department Target users: All RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router V1.1 Ruijie Networks Co., Ltd. All rights reserved RG-EW1200G PRO 1300M Dual-band Wireless Router Revision Record Revision date Version Revised section Details Author 2020/4/24 1.0 All First draft Lei Lin 2020/7/22 1.1 All Second draft(Logo change, delete unavailable content such as reyee app, wechat function, etc) MJ RG-EW1200G PRO 1300M Dual-band Wireless Router Preface This document includes the product pictures, overview, features, technical specifications, typical applications and ordering information of RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Router (Enhanced Edition) for marketing purpose. Note： This document can be used directly for product datasheet printing by the Marketing Department.  If you have any enquiries, please contact the document author. RG-EW1200G PRO 1300M Dual-band Wireless Router Contents 1 Product Photo .................................................................................................................................................... 1 2 Product Overview .............................................................................................................................................. 2 3 Product Features ................................................................................................................................................ 3 4 Hardware Specifications .................................................................................................................................... 5 5 Software Specifications ..................................................................................................................................... 6 6 Typical Applications .......................................................................................................................................... 7 7 Ordering Information .......................................................................................................... 错误!未定义书签。 RG-EW1200G PRO 1300M Dual-band Wireless Router 1 Product Photo RG-EW1200G PRO 1 RG-EW1200G PRO 1300M Dual-band Wireless Router 2 Product Overview Ruijie Reyee RG-EW1200G PRO is a Gigabit dual-band wireless consumer router designed for one-story homes, villas, small shops, SOHO and other scenarios. The device can meet the needs of Gigabit Internet access with its excellent performance, while providing strong signals and coverage. Integrated with Ruijie’s exclusive Reyee Mesh Technology, it eliminates the configuration difficulties of multi-device networking and adding new equipment to the network. The simple app management coupled with features such as children's Internet protection, gaming mode, and smart home Wi-Fi makes it a practical and easy-to-use wireless router for men, women and children. The router offers 1 10/100/1000Mbps WAN port and 3 10/100/1000Mbps LAN ports, with maximum access bandwidth of 1000Mbps. The recommended number of clients is 64, including 32 wireless terminals. The device supports both 2.4GHz and 5GHz, offering maximum wireless rate of 400Mbps at 2.4G, 867Mbps at 5G and 1267Mbps per router. Equipped with the 802.11ac Wave2 chip, the device supports MU-MIMO, which can support more terminals, provide faster wireless speed and more stable connection, thereby improving the terminals’ Internet access performance and users’ Internet experience. In addition to Ruijie’s Reyee Mesh Technology, the router also supports network deployment with Ruijie Reyee Series enterprise gateways and APs for unified management and configuration. No matter which networking method is used, the RF adjustment algorithm applied to millions of Ruijie enterprise-grade APs can provide seamless roaming between devices and fast switching between 2.4GHz and 5GHz. Users can move around the Wi-Fi coverage area without service interruption thanks to the seamless roaming. Collaborative management can be authorized to others temporarily or permanently. Local or remote management and configuration can be performed via various methods such as local web, Ruijie Cloud app, etc. to achieve fault diagnosis and maintenance, providing multi-end management on mobile phone and PC anytime anywhere, and offering worry-free maintenance. 2 RG-EW1200G PRO 1300M Dual-band Wireless Router 3 Product Features High-performance Gigabit Routing The device supports 4 Gigabit Ethernet ports and wireless access rate of up to 1267M. The powerful dual-core hyper-threading CPU, combined with the hardware NAT feature, performs high-speed data forwarding and maximizes the broadband performance. For gigabit broadband speed test of the wired network port, after deducting the basic network overhead, the measured network speed can reach more than 980M. 1267M Dual-Band Integration Offering Low Interference and Fast Internet Speed Affected by the actual application environment, the 2.4GHz frequency band has high interference and the testing speed is usually only 40 to 50M, which is unlikely to reach 100M. RG-EW1200G PRO provides both 2.4GHz and 5GHz wireless frequency bands at the same time. The 2.4GHz frequency band offers good penetration, long transmission and wide coverage, providing good basic signal coverage. The 5GHz frequency band features low interference, high speed, and low latency, providing better experience when watching HD videos and playing online games. The SSIDs of 2.4GHz and 5GHz can be set separately, or the two can be combined into one, offering dual-band concurrent access, 5G priority and smart identification, which provides better Internet experience. Optimize 2.4G to Increase the Limit of Smart Terminal Connections In view of the widespread adoption of smart terminals such as smart homes and wireless cameras, the device has applied the Wi-Fi 5 chip for Wi-Fi 4 device access to increase the maximum access r…

Text truncated - open the document above for the full version.

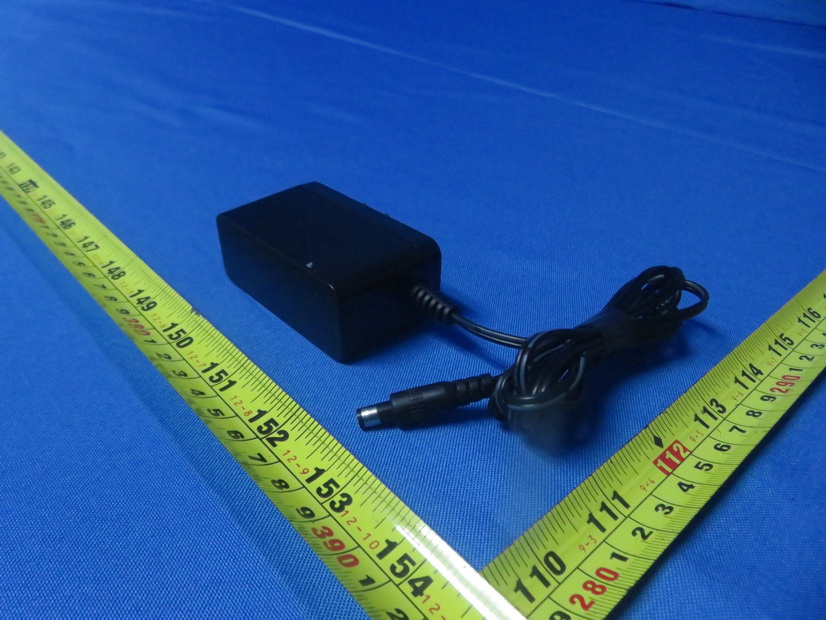

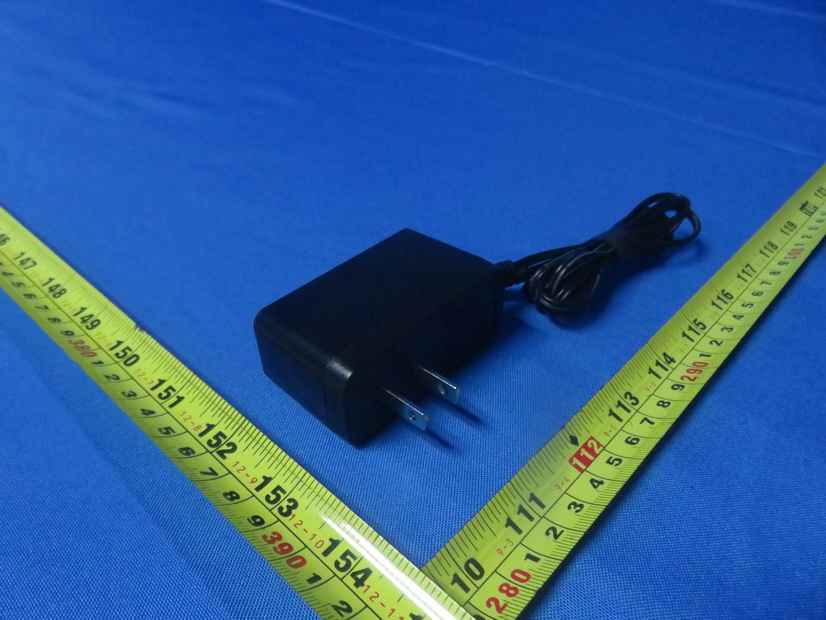

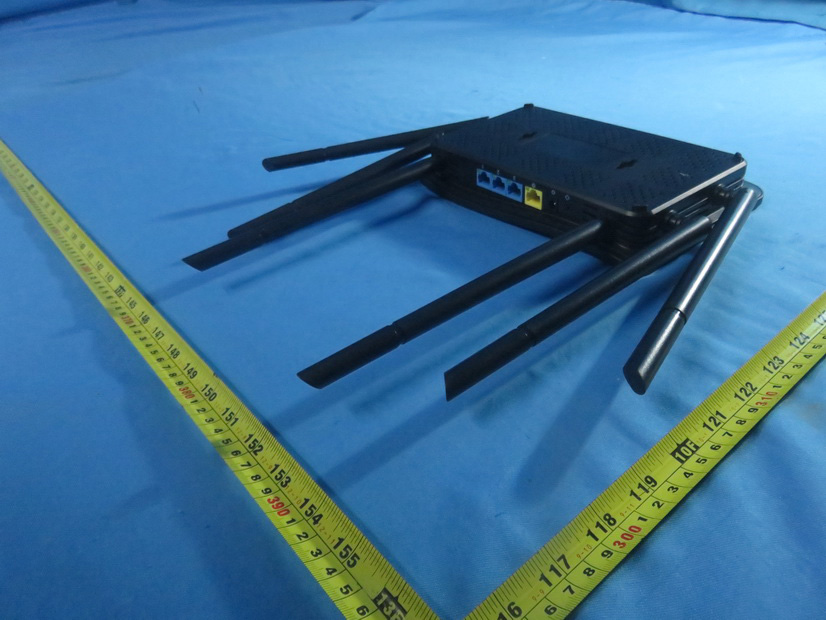

Report No.: 2006C205A Page 2 of 11 Report No.: 2006C205A Page 3 of 11 Report No.: 2006C205A Page 4 of 11 Report No.: 2006C205A Page 5 of 11 Report No.: 2006C205A Page 6 of 11

Report No.: 2006C205A Page 6 of 10 2.4G Ant. 1 2.4G Ant. 2 5G Ant. 2 5G Ant. 1 Report No.: 2006C205A Page 7 of 10 Report No.: 2006C205A Page 8 of 10 Report No.: 2006C205A Page 9 of 10 Report No.: 2006C205A Page 10 of 10

Report No.: BTL-FCCP-4-2006C205A Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: 2AX5JHR56G01 Project No. : 2006C205A Equipment : 1300M Dual Band Gigabit Wireless Router Brand Name : Test Model : RG-EW1200G PRO Series Model : N/A Applicant : Ruijie Networks Co., Ltd. Address : Building 19, Juyuanzhou Industrial Park, No. 618 Jinshan Road, Cangshan District, Fuzhou, Fujian, China Manufacturer : Ruijie Networks Co., Ltd. Address : Building 19, Juyuanzhou Industrial Park, No. 618 Jinshan Road, Cangshan District, Fuzhou, Fujian, China Date of Receipt : Jun. 29, 2020 Aug. 07, 2019 Date of Test : Jun. 30, 2020 ~ Aug. 07, 2020 Aug. 08, 2019 ~ Oct. 16, 2020 Issued Date : Dec. 17, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG2020063020 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-2006C205A Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Nov. 13, 2020 R01 Changed the applicant and manufacturer information. Dec. 17, 2020 Report No.: BTL-FCCP-4-2006C205A Page 3 of 4 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 RF21C05165A Dipole N/A 5.27 2 RF21C05164A Dipole N/A 4.97 Note: This EUT supports CDD, and antenna gains are not equal, so Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 5.27/20 +10 4.97/20 ) 2 /2]dBi =8.13. So, the output power limit is 30-(8.13-6)=27.87, the power spectral density limit is 8-(8.13-6)=5.87 For 5GHz Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 RF21C05166A Dipole N/A 5.37 2 RF21C05194A Dipole N/A 5.37 Note: This EUT supports CDD, and all antennas have the same gain, so, Di rectional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=5.37. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi=5.37+10log(2/1)dBi=8.38. Then, the UNII-1 power spectral density limit is 17-(8.38-6)=14.62, the UNII-2A, UNII-2C power spectral density limit is 11-(8.38-6)=8.62, the UNII-3 power spectral density limit is 30-(8.38-6)=27.62 Report No.: BTL-FCCP-4-2006C205A Page 4 of 4 3. TEST RESULTS For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.13 6.5013 24.14 259.4179 0.21485 1 Complies For 5GHz UNII-1: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.38 6.8865 29.47 885.1156 0.77648 1 Complies For 5GHz UNII-2A: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.38 6.8865 23.99 250.6109 0.21985 1 Complies For 5GHz UNII-2C: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.38 6.8865 23.97 249.4595 0.21884 1 Complies For 5GHz UNII-3: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.38 6.8865 29.03 799.8343 0.70167 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.21485 0.77648 0.99133 1 Complies Note: The calculated distance is 25 cm. End of Test Report

Report No.: BTL-FCCP-3-2006C205A Page 1 of 193 FCC Radio Test Report FCC ID: 2AX5JHR56G01 This report concerns: Original Grant Project No. : 2006C205A Equipment : 1300M Dual Band Gigabit Wireless Router Brand Name : Test Model : RG-EW1200G PRO Series Model : N/A Applicant : Ruijie Networks Co., Ltd. Address : Building 19, Juyuanzhou Industrial Park, No. 618 Jinshan Road, Cangshan District, Fuzhou, Fujian, China Manufacturer : Ruijie Networks Co., Ltd. Address : Building 19, Juyuanzhou Industrial Park, No. 618 Jinshan Road, Cangshan District, Fuzhou, Fujian, China Date of Receipt : Aug. 07, 2019 Date of Test : Aug. 08, 2019 ~ Oct. 22, 2020 Issued Date : Jan. 12, 2021 Report Version : R02 Test Sample : Engineering Sample No.: DG2020063020 Standard(s) : FCC Part 15, Subpart E (Section 15.407) FCC KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2006C205A Page 2 of 193 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2006C205A Page 3 of 193 Table of Contents Page REPORT ISSUED HISTORY 4 1 . TEST FACILITY 5 2 . TEST ENVIRONMENT CONDITIONS 5 3 . EUT INFORMATION 6 3.1 EUT SPECIFICATION TABLE 6 3.2 CONDUCTED OUTPUT POWER AND EIRP 8 3.3 TRANSMIT POWER CONTROL (TPC) 9 4 .U -NII DFS RULE REQUIREMENTS 10 4.1 WORKING MODES AND REQUIRED TEST ITEMS 10 4.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 11 5 . TEST INSTRUMENTS 13 6 . DYNAMIC FREQUENCY SELECTION (DFS) TEST 14 6.1 DFS MEASUREMENT SYSTEM 14 6.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL 18 6.3 DEVIATION FROM TEST STANDARD 18 7 . TEST RESULTS 19 7.1 SUMMARY OF TEST RESULT 19 7.2 TEST MODE 20 7.3 DFS DETECTION THRESHOLD 20 7.4 CHANNEL AVAILABILITY CHECK TIME 160 7.5 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 169 7.6 NON- OCCUPANCY PERIOD 185 7.7 U-NII DETECTION BANDWIDTH 187 8 . EUT TEST PHOTO 193 Report No.: BTL-FCCP-3-2006C205A Page 4 of 193 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Nov. 13, 2020 R01 Changed the applicant and manufacturer information. Dec. 17, 2020 R02 Added the test site information. Jan. 12, 2021 Report No.: BTL-FCCP-3-2006C205A Page 5 of 193 1. TEST FACILITY The test facilities used to collect the test data in this report is TR16 at the location of No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. 2. TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By Dynamic Frequency Selection (DFS) 26°C 52% DC 12V Young Zou Report No.: BTL-FCCP-3-2006C205A Page 6 of 193 3. EUT INFORMATION 3.1 EUT SPECIFICATION TABLE Table 1: Specification of EUT Equipment 1300M Dual Band Gigabit Wireless Router Brand Name Test Model RG-EW1200G PRO Series Model N/A Model Difference(s) N/A Power Source DC voltage supplied from AC adapter. Model: S18822-120A150-C4 Power Rating I/P: 100-240V~ 50/60Hz 0.6A O/P: 12.0V1.5A Operational Mode Master Operation Frequency Bands UNII-2A: 5250 MHz ~ 5350 MHz UNII-2C: 5470 MHz ~ 5725 MHz Modulation Type OFDM Note: This device was functioned as a Master Slave device without radar detection Slave device with radar detection Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. 2. Channel List: IEEE 802.11a IEEE 802.11n (HT20) IEEE 802.11ac (VHT20) IEEE 802.11n (HT40) IEEE 802.11ac (VHT40) IEEE 802.11ac (VHT80) UNII-2A UNII-2A UNII-2A Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 52 5260 54 5270 58 5290 56 5280 62 5310 60 5300 64 5320 IEEE 802.11a IEEE 802.11n (HT20) IEEE 802.11ac (VHT20) IEEE 802.11n (HT40) IEEE 802.11ac (VHT40) IEEE 802.11ac (VHT80) UNII-2C UNII-2C UNII-2C Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 100 5500 102…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2006C205A Page 170 of 193 TX (IEEE 802.11n (HT40) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2006C205A Page 171 of 193 TX (IEEE 802.11ac (VHT80) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2006C205A Page 172 of 193 IEEE 802.11a Mode Item Measured Value(s) Limit(s) Channel Move Time 0.2369941 10 Channel Close Time 0.0234994 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11n (HT40) Mode Item Measured Value(s) Limit(s) Channel Move Time 1.0329742 10 Channel Close Time 0.0194995 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11ac (VHT80) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.2369941 10 Channel Close Time 0.0519987 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. Report No.: BTL-FCCP-3-2006C205A Page 173 of 193 TX (IEEE 802.11a Mode) Table 1: Short Pulse Radar Test Waveforms. Radar Type Pulse Width (μsec) PRI (μsec) Number of Pulses Pass times Fail times Percentage of Successful Detection (%) 1 1 27 3 90 2 1-5 150-230 23-29 27 3 90 3 6-10 200-500 16-18 26 4 87 4 11-20 200-500 12-16 27 3 90 Aggregate (Radar Types 1-4) - 107 13 89 Table 2: Long Pulse Radar Test Waveform Radar Type Pulse Width (μsec) Chirp Width (MHz) PRI (μsec) Number of Pulses Per Burst Number of Bursts Pass times Fail times Percentage of Successful Detection (%) 5 50-100 5-20 1000-2000 1-3 8-20 29 1 97 Table 3: Frequency Hopping Radar Test Waveform Radar Type Pulse Width (μsec) PRI (μsec) Pulses per Hop Hopping Rate (kHz) Hopping Sequence Length (msec) Pass times Fail times Percentage of Successful Detection (%) 6 1 333 9 0.333 300 29 1 97 Report No.: BTL-FCCP-3-2006C205A Page 174 of 193 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type1 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 NO 19 YES 5 NO 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 NO Type2 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 NO 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 NO 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 NO Report No.: BTL-FCCP-3-2006C205A Page 175 of 193 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type3 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 NO 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 NO 12 NO 27 NO 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Type4 1 YES 16 YES 2 YES 17 YES 3 YES 18 NO 4 YES 19 YES 5 NO 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 NO 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2006C205A Page 176 of 193 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type5 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 NO 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type6 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 NO 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2006C205A Page 177 of 193 TX (IEEE 802.11n (HT40) Mode) Table 1: Short Pulse Radar Test Waveforms. Radar Type Pulse Width (μsec) PRI (μsec) Number of Pulses Pass times Fail times Percentage of Successful Detection (%) 1 1 27 3 90 2 1-5 150-230 23-29 28 2 93 3 6-10 200-500 16-18 27 3 90 4 11-20 200-500 12-16 28 2 93 Aggregate (Radar Types 1-4) - 110 10 92 Table 2: Long Pulse Radar Test Waveform Radar Type Pulse Width (μsec) Chirp Width (MHz) PRI (μsec) Number of Pulses Per Burst Number of Bursts Pass times Fail times Percentage of Successful Detection (%) 5 50-100 5-20 1000-2000 1-3 8-20 28 2 93 Table 3: Frequency Hopping Radar Test Waveform Radar Type Pulse Width (μsec) PRI (μsec) Pulses per Hop Hopping Rate (kHz) Hopping Sequence Length (msec) Pass times Fail times Percentage of Successful Detection (%) 6 1 333 9 0.333 300 29 1 97 Report No.: BTL-FCCP-3-2006C205A Page 178 of 193 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type1 1 NO 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 NO 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 NO 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Type2 1 YES 16 YES 2 YES 17 YES 3 NO 18 YES 4 NO 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2006C205A Page 179 of 193 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type3 1 YES 16 YES 2 YES 17 NO 3 YES 18 YES 4 YES 19 YES 5 YES 20 YES 6 YES 21 NO 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 YES 12 YES 27 YES 13 YES 28 YES 14 NO 29 YES 15 YES 30 YES Type4 1 YES 16 YES 2 YES 17 YES 3 YES 18 YES 4 YES 19 YES 5 YES 20 YES 6 YES 21 YES 7 YES 22 YES 8 YES 23 YES 9 YES 24 YES 10 YES 25 YES 11 YES 26 NO 12 YES 27 YES 13 NO 28 YES 14 YES 29 YES 15 YES 30 YES Report No.: BTL-FCCP-3-2006C205A Page 180 of 193 Radar Type Trial # Detection Trial # Detection YES / NO YES / NO Type5 1 YES 16 YES 2 YES 17 YES 3 YES 18…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2006C205A Page 1 of 278 FCC Radio Test Report FCC ID: 2AX5JHR56G01 This report concerns: Original Grant Project No. : 2006C205A Equipment : 1300M Dual Band Gigabit Wireless Router Brand Name : Test Model : RG-EW1200G PRO Series Model : N/A Applicant : Ruijie Networks Co., Ltd. Address : Building 19, Juyuanzhou Industrial Park, No. 618 Jinshan Road, Cangshan District, Fuzhou, Fujian, China Manufacturer : Ruijie Networks Co., Ltd. Address : Building 19, Juyuanzhou Industrial Park, No. 618 Jinshan Road, Cangshan District, Fuzhou, Fujian, China Date of Receipt : Jun. 29, 2020 Aug. 07, 2019 Date of Test : Jun. 30, 2020 ~ Aug. 07, 2020 Aug. 08, 2019 ~ Oct. 22, 2020 Issued Date : Dec. 17, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG2020063020 for conducted, DG2020063021 for radiated. Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2006C205A Page 2 of 278 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2006C205A Page 3 of 278 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 16 2.4 DUTY CYCLE 18 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 20 2.6 SUPPORT UNITS 20 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 21 3.1 LIMIT 21 3.2 TEST PROCEDURE 21 3.3 DEVIATION FROM TEST STANDARD 21 3.4 TEST SETUP 22 3.5 EUT OPERATION CONDITIONS 22 3.6 TEST RESULTS 22 4 . RADIATED EMISSIONS TEST 23 4.1 LIMIT 23 4.2 TEST PROCEDURE 24 4.3 DEVIATION FROM TEST STANDARD 24 4.4 TEST SETUP 25 4.5 EUT OPERATION CONDITIONS 26 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 26 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 26 4.8 TEST RESULTS - ABOVE 1000 MHz 26 5 . BANDWIDTH TEST 27 5.1 LIMIT 27 5.2 TEST PROCEDURE 27 5.3 DEVIATION FROM STANDARD 28 5.4 TEST SETUP 28 5.5 EUT OPERATION CONDITIONS 28 Report No.: BTL-FCCP-2-2006C205A Page 4 of 278 Table of Contents Page 5.6 TEST RESULTS 28 6 . MAXIMUM OUTPUT POWER TEST 29 6.1 LIMIT 29 6.2 TEST PROCEDURE 29 6.3 DEVIATION FROM STANDARD 29 6.4 TEST SETUP 29 6.5 EUT OPERATION CONDITIONS 29 6.6 TEST RESULTS 29 7 . POWER SPECTRAL DENSITY TEST 30 7.1 LIMIT 30 7.2 TEST PROCEDURE 30 7.3 DEVIATION FROM STANDARD 30 7.4 TEST SETUP 30 7.5 EUT OPERATION CONDITIONS 30 7.6 TEST RESULTS 30 8 . FREQUENCY STABILITY MEASUREMENT 31 8.1 LIMIT 31 8.2 TEST PROCEDURE 31 8.3 DEVIATION FROM STANDARD 31 8.4 TEST SETUP 31 8.5 EUT OPERATION CONDITIONS 31 8.6 TEST RESULTS 31 9 . MEASUREMENT INSTRUMENTS LIST 32 10 . EUT TEST PHOTOS 34 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 38 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 43 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 48 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 51 APPENDIX E - BANDWIDTH 206 APPENDIX F - MAXIMUM OUTPUT POWER 223 APPENDIX G - POWER SPECTRAL DENSITY 248 APPENDIX H - FREQUENCY STABILITY 274 Report No.: BTL-FCCP-2-2006C205A Page 5 of 278 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Nov. 13, 2020 R01 Changed the applicant and manufacturer information. Dec. 17, 2020 Report No.: BTL-FCCP-2-2006C205A Page 6 of 278 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PASS ------ 15.407(a) Maximum Out…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2006C205A Page 194 of 278 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT40) Mode 5755 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2006C205A Page 195 of 278 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT40) Mode 5755 MHz Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2006C205A Page 196 of 278 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT40) Mode 5795 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2006C205A Page 197 of 278 Orthogonal Axis X Test Mode UNII-3_TX AC (VHT40) Mode 5795 MHz Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2006C205A Page 198…
