FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 14.8 cm 10.5 cm FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 15 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement.

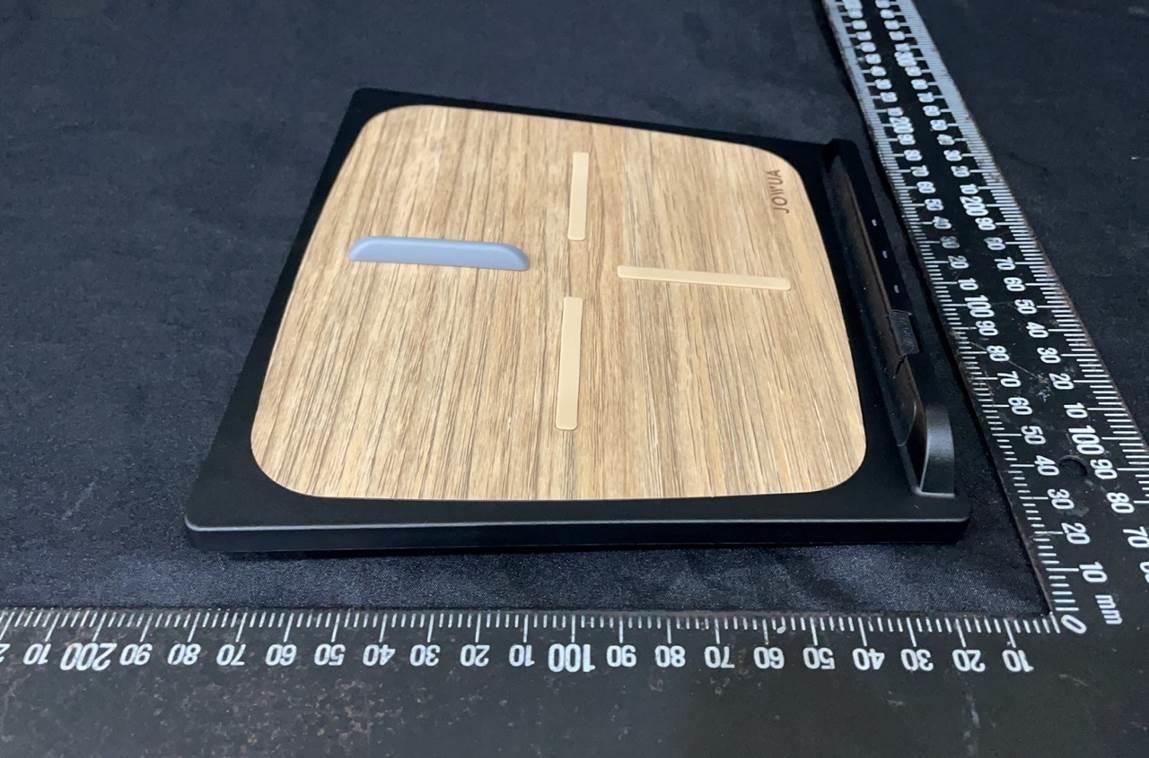

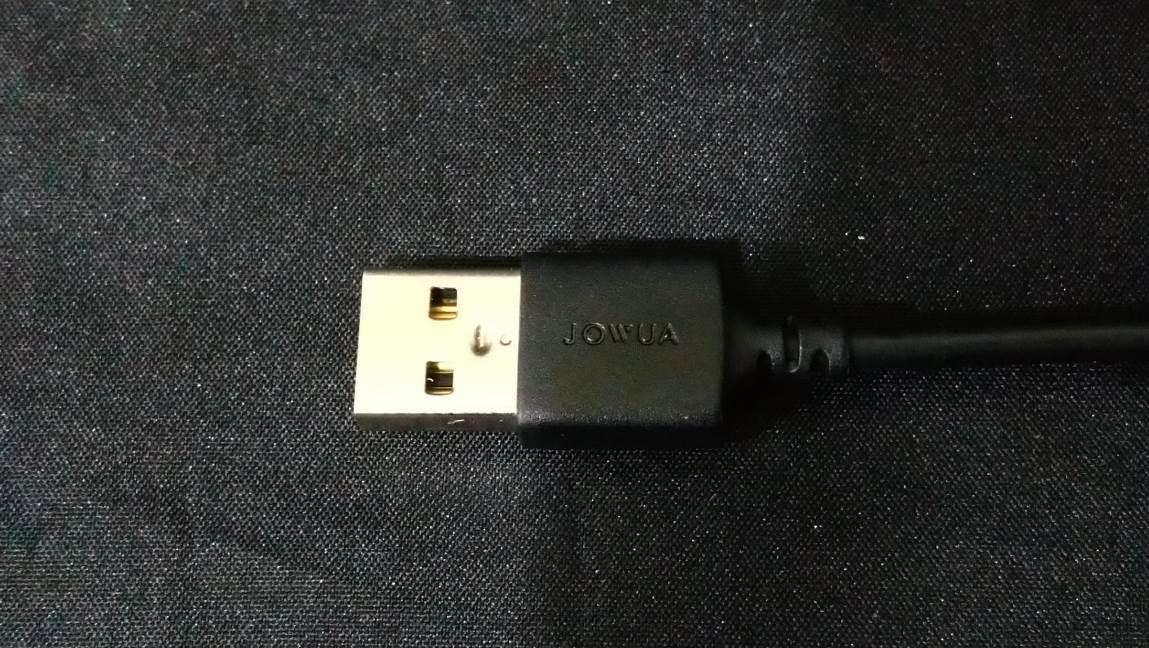

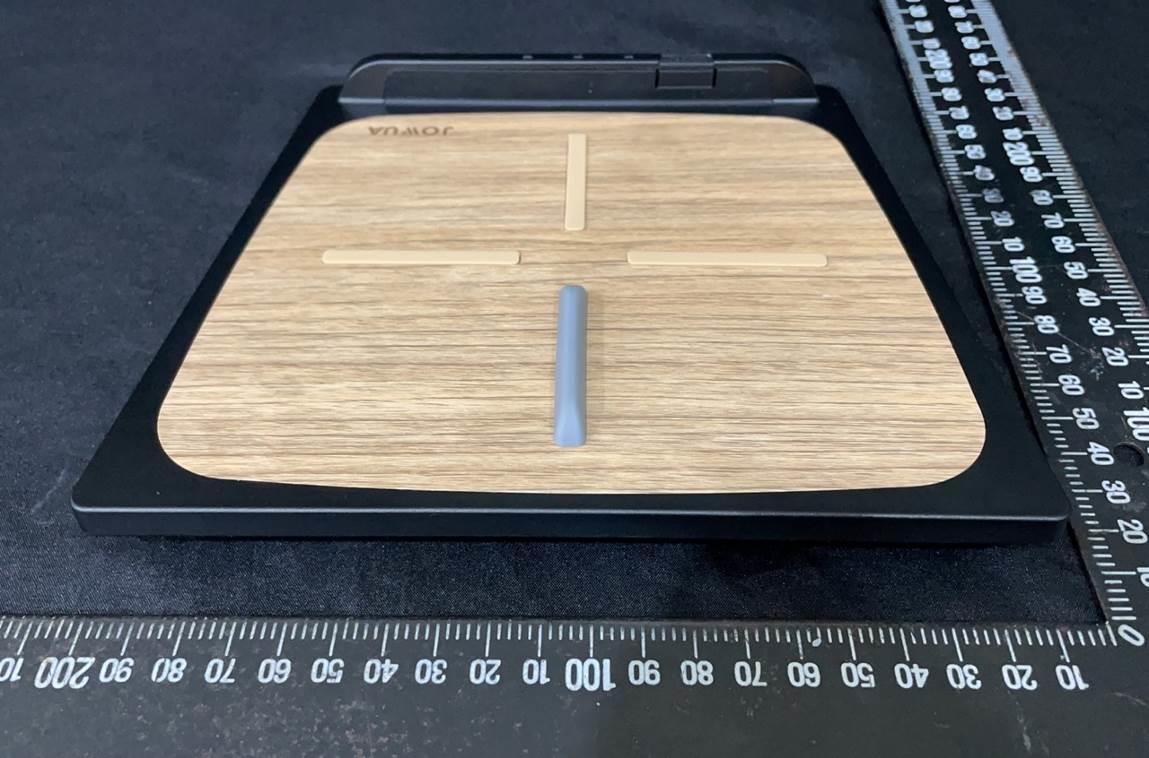

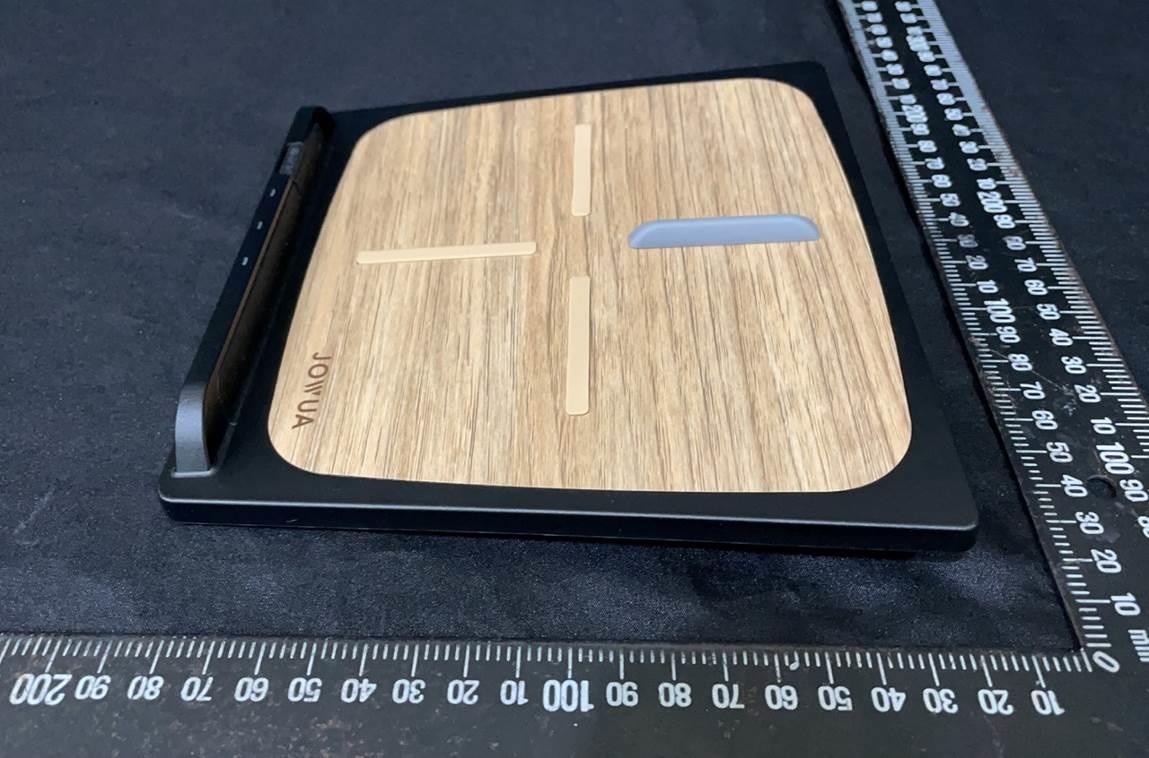

Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 1 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 2 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 3 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 4 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 5 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 6 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 7 of 13

Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 8 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 9 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 10 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 11 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 12 of 13 Appendix No.: EP-2009T076-1 APPENDIX-EUT PHOTOS Project No.: 2009T076 Page 13 of 13

Report No.: BTL-FCCP-2-2009T076 Project No.: 2009T076 Page 1 of 16 Report Version: R01 Human Exposure Report FCC ID: 2AX7X-JOWUAWC1 Report No. : BTL-FCCP-2-2009T076 Equipment : Wireless Charger Model Name : JOWUAWC1 Brand Name : JOWUA Applicant : JOWUA INTERNATIONAL LIMITED TAIWAN BRANCH Address : 9F.,No.156, Sec. 3,Minsheng E. Rd.,Songshan Dist.,Taipei City 105, Taiwan (R.O.C.) Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 KDB680106 D01 RF Exposure Wireless Charging Apps v03 Date of Receipt : 2020/11/4 Date of Test : 2020/11/4 ~ 2020/11/18 Issued Date : 2020/12/24 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-2-2009T076 Project No.: 2009T076 Page 2 of 16 Report Version: R01 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2009T076 Project No.: 2009T076 Page 3 of 16 Report Version: R01 CONTENTS REPORT ISSUED HISTORY 4 1 GENERAL INFORMATION 5 1.1 TEST FACILITY 5 2 TEST RESULTS 5 2.1 LIMITS 5 2.2 MEASUREMENT DATA 6 3 LIST OF MEASURING EQUIPMENTS 10 4 EUT TEST PHOTO 11 Report No.: BTL-FCCP-2-2009T076 Project No.: 2009T076 Page 4 of 16 Report Version: R01 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. 2020/12/8 R01 Revised report to address TCB’s comments. 2020/12/24 Report No.: BTL-FCCP-2-2009T076 Project No.: 2009T076 Page 5 of 16 Report Version: R01 1 GENERAL INFORMATION 1.1 TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan The test sites and facilities are covered under FCC RN: 674415 and DN: TW0659. 2 TEST RESULTS 2.1 LIMITS For 47 CFR PART 1, Subpart I, Section 1.1310: Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (m/W/cm 2 ) Averaging time (minutes) (A) Limits for Occupational / Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100000 / / 5 6 (B) Limits for General Population / Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310 (use the 300kHz limits for 150kHz: 614V/m, 1.63A/m). For KDB680106 D01: For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Report No.: BTL-FCCP-2-2009T076 Project No.: 2009T076 Page 6 of 16 Report Version: R01 2.2 MEASUREMENT DATA Electric Field Emissions: Test Position(0 cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Front 84.16 614 Back 79.75 614 Left 36.71 614 Right 34.05 614 Top 40.03 614 Bottom 45.21 614 Test Position(2 cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Front 66.75 614 Back 62.15 614 Left 29.26 614 Right 21.44 614 Top 33.21 614 Bottom 31.75 614 Test Position(4 cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Front 36.30 614 Back 41.51 614 Left 18.82 614 Right 16.38 614 Top 20.11 614 Bottom 24.54 614 Test Position(6 cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Front 22.58 614 Back 35.77 614 Left 14.81 614 Right 12.47 614 Top 1…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2009T076 Project No.: 2009T076 Page 1 of 38 Report Version: R00 FCC Radio Test Report FCC ID: 2AX7X-JOWUAWC1 Report No. : BTL-FCCP-1-2009T076 Equipment : Wireless Charger Model Name : JOWUAWC1 Brand Name : JOWUA Applicant : JOWUA INTERNATIONAL LIMITED TAIWAN BRANCH Address : 9F.,No.156, Sec. 3,Minsheng E. Rd.,Songshan Dist.,Taipei City 105, Taiwan (R.O.C.) Radio Function : WPC-Qi (110 kHz to 205 kHz) FCC Rule Part(s) : FCC Part15, Subpart C (15.209) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2020/11/4 Date of Test : 2020/11/4 ~ 2020/11/18 Issued Date : 2020/12/8 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-1-2009T076 Project No.: 2009T076 Page 2 of 38 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2009T076 Project No.: 2009T076 Page 3 of 38 Report Version: R00 CONTENTS REPORT ISSUED HISTORY 4 1 SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 2 GENERAL INFORMATION 7 2.1 DESCRIPTION OF EUT 7 2.2 TEST MODES 8 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 SUPPORT UNITS 10 3 AC POWER LINE CONDUCTED EMISSIONS TEST 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 11 3.3 DEVIATION FROM TEST STANDARD 11 3.4 TEST SETUP 12 3.5 TEST RESULT 12 4 RADIATED EMISSIONS TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 14 4.3 DEVIATION FROM TEST STANDARD 14 4.4 TEST SETUP 14 4.5 EUT OPERATING CONDITIONS 15 4.6 TEST RESULT – 9 KHZ TO 30 MHZ 15 4.7 TEST RESULT – 30 MHZ TO 1 GHZ 15 5 20 DB BANDWIDTH 16 5.1 LIMIT 16 5.2 TEST PROCEDURE 16 5.3 DEVIATION FROM TEST STANDARD 16 5.4 TEST SETUP 16 5.5 EUT OPERATING CONDITIONS 16 5.6 TEST RESULT 16 6 LIST OF MEASURING EQUIPMENTS 17 7 EUT TEST PHOTO 18 8 EUT PHOTOS 18 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 19 APPENDIX B RADIATED EMISSIONS - 9 KHZ TO 30 MHZ 24 APPENDIX C RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 33 APPENDIX D 20 DB BANDWIDTH 36 Report No.: BTL-FCCP-1-2009T076 Project No.: 2009T076 Page 4 of 38 Report Version: R00 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. 2020/12/8 Report No.: BTL-FCCP-1-2009T076 Project No.: 2009T076 Page 5 of 38 Report Version: R00 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. FCC Part 15, Subpart C (15.209) Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.209 Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.215(c) 20 dB Bandwidth APPENDIX D Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-1-2009T076 Project No.: 2009T076 Page 6 of 38 Report Version: R00 1.1 TEST FACILITY The test facilities used to collect the test data in this report: No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan The test sites and facilities are covered under FCC RN: 674415 and DN: TW0659. ☒ C05 ☐ CB08 ☐ CB11 ☒ CB15 ☐ CB16 ☐ SR06 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expanded uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k = 2, providing a level of confidence of approximately 95 %. The measurement instrumentation uncertainty considerations contained in CISPR 16-4-2. The BTL measurement uncertainty is less than the CISPR 16-4-2 U cispr requirement. A. AC power line conducted emissions test: Test Site Method Measurement Frequency Range U (dB) C05 CISPR 150 kHz ~ 30MHz 3.44 B. Radiated emissions below 1 GHz test : Test Site Measurement Frequency Range U,(dB) CB15 0.03 GHz ~ 0.2 GHz 4.17 0.2 GHz ~ 1 GHz 4.72 1 GHz ~ 6 GHz 5.21 6 GHz ~ 18 GHz 5.51 18 GHz ~ 26 GHz 3.69 26 GHz ~ 40 GHz 4.23 C. Conducted test : Test Item U,(dB) Bandwidth 1.13 NOTE: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance o…

Text truncated - open the document above for the full version.

Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 1 of 7 AC Power Line Conducted Emissions test photos Both Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 2 of 7 Radiated emissions test photos 9 kHz to 30 MHz Right Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 3 of 7 Radiated emissions test photos 9 kHz to 30 MHz Left Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 4 of 7 Radiated emissions test photos 9 kHz to 30 MHz Both Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 5 of 7 Radiated emissions test photos 30 MHz to 1 GHz Right Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 6 of 7 Radiated emissions test photos 30 MHz to 1 GHz Left Appendix No.: TP-2009T076-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2009T076 Page 7 of 7 Radiated emissions test photos 30 MHz to 1 GHz Both
