2AX8NBATPACKPOWER BANK

Battery Pack Technical characteristics: -Voltage and rated current: Micro B Input 5V,2A/9V,2A/12V,1.5A Type C Input 5V,3A/9V,2A/12V,1.5A Type C output 5V,3A/9V,2A/12V,1.5A USB 1 output 5V,1A USB 2 output 5V,3A/9V,2A/12V,1.5A -Capacity: 10000 mAh , 37Wh -Wireless Transmiter (top side with logo) -USB port for LED power supply (1) (symbol: One Flash) -USB port for SMARTPHONE recharging (2) (symbol: Two Flashes) -5 LED indicator light (3) -1 Micro-USB port (4) -1 Type C port (5) -Blue Tooth Button (6) -Power Button (7) Functions: Battery Pack on/off: -Quick pressing of the Power button (7) (less than one second): the power bank turns on (activating smartphone charging), indicated the battery capacity with LEDs -Long pressing of the Power button (7) will turn the device off. In case wireless charging is on, long pressing of the Power button will turn the wireless charging off. When the wireless charging was off, apply long pressing of the Power button (7) will turn the device off. In case, the battery pack is charging the SMARTPHONE or a tablet, the charging process will be stopped. -When on, it is possible to recharge a compatible smartphone wirelessly by resting it on and aligning it with the transmitter (top side with BAGMOTIC wording). -iPhone® devices are not compatible with wireless chargers. In this case, you can request a wireless receiver free of charge by registering in the dedicated section of the website www.piquadro.com. LED Strip Power Supply Low consumption light source power supply -The USB port for LED power supply (1) (symbol: One flash) is designed only for supplying power to low consumption light sources (1A) -When on, the Battery Pack supplies power to a low consumption light source (max. 1A with USB output) connected to the specific USB port (1) (symbol: One Flash) if the command is given by the Piquadro CONNEQU app Notes Since the battery pack is a lithium battery (power bank), air transport policies require that it travels in the cabin. In the case of air transport, the power bank must have enough charge so that it can be turned on for any necessary checks. In any case, it is the owner’s responsibility to look into any other specific instructions and/or restrictions enforced by the airline or competent authorities. Piquadro declines all responsibility for the owner’s failure to comply with these or other applicable instructions regarding every specific flight. Wireless Charging to SMARTPHONE 6 7 3 Top Side Bottom Side -The Bluetooth peripheral is always activated. Always turn off the Battery Pack when not in use. - The battery pack will switch itself off after 20 seconds of non-use. Pairing with the Piquadro CONNEQU app -Start the Bluetooth pairing procedure on the Piquadro CONNEQUE app by briefly pressing (3 second) the Bluetooth button (6) with one beep sound notice start pairing. -The LED remains flashing in yellow as long as the pairing procedure is active. When the pairing has completed, the LED switches off. -To pair the app and battery pack, the battery pack pairing procedure must be activated. When completed, press the app pairing button (important: perform the two operations in the order indicated). The pairing procedure lasts 30 seconds at the most, after which time it stops and the user can start it again. -If after several attempts the pairing procedure has still not been completed, try to: •Restart the app after disabling and re-enabling the Bluetooth peripheral of the smartphone; •Move it away from other Bluetooth devices and start the pairing procedure again. Piquadro CONNEQU app functions with systems iOs (iPhone® 4S, iPod® touch 5 gen, iPad® 3 gen and all later versions) and Android (Samsung Galaxy® S3/ S4/ Note 2/ Note 3 and all later versions. For the other Android devices from release 4.3 and later versions). It does not work with Windows phones/tablets and Blackberry. The power of the Bluetooth signal of the battery Pack is 10/20 metres in open spaces without obstacles such as walls. Thanks to the Piquadro CONNEQU app, you can: -Check the charge status of your battery Pack and you will be warned by a message when it drops below 20% and below 10%. When the battery pack is 100% charged, you will get the notice, too. -Check the most recent positions of your Battery Pack -Enable and Disable the wireless charging function -Turn on and off the low consumption light source, if any, connected to the specific USB port (1) (symbol: One Flash) - By double quick pressing the Bluetooth button (6) twice, it will ring the phone for searching the phone. Recharging the Battery Pack -Let the battery pack recharge for at least 12 hours before using the first time and pairing it with the Piquadro CONNEQU app at the first time. You can check the status directly on the Piquadro CONNEQU app for subsequent charges. -It is recommended to not let the battery pack run down completely with each use; charge it before the remaining capacity is completely depleted. -Recharge the battery pack via cable with a wall power supply unit through the dedicated micro-USB port or Type C port. -The battery pack also recharges when off (both via cable and wireless). -Do not use the other functions (for example, do not charge a smartphone) while the Battery Pack is charging. -The LED flashes, turning on and off every second, during the battery pack charge. Recharging a device (smartphone or tablet) -The battery pack charges other devices ONLY when it is turned on. -When on, the battery pack recharges the device connected by cable to the specific USB port (2) (symbol: Two Flashes) •Start the Battery Pack reset procedure by pressing the Bluetooth button (6) for 10 seconds: system reset, indicated by 2 beeps sound and 2 flashings of the LED in yellow; FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interf…

Text truncated - open the document above for the full version.

DongguanTechplusTechnologyCo.,ltd AgentAuthorization Company:DongguanTechplusTechnologyCo.,ltd Address:6&7/F,BuildingE,FengzhimeiIndustrialZone,JinfenghuangStreet, Fenggang,Dongguan,Guangdong,China ProductName:POWERBANK ModelNumber(s):BATPACK10000 Trademark:N/A FCCID:2AX8NBATPACK WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021/2/6 Name:KathyWang Title:Manager Company:DongguanTechplusTechnologyCo.,ltd

DongguanTechplusTechnologyCo.,ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021/2/6 Subject;RequestforConfidentiality FCCID:2AX8NBATPACK ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:KathyWang Title:Manager

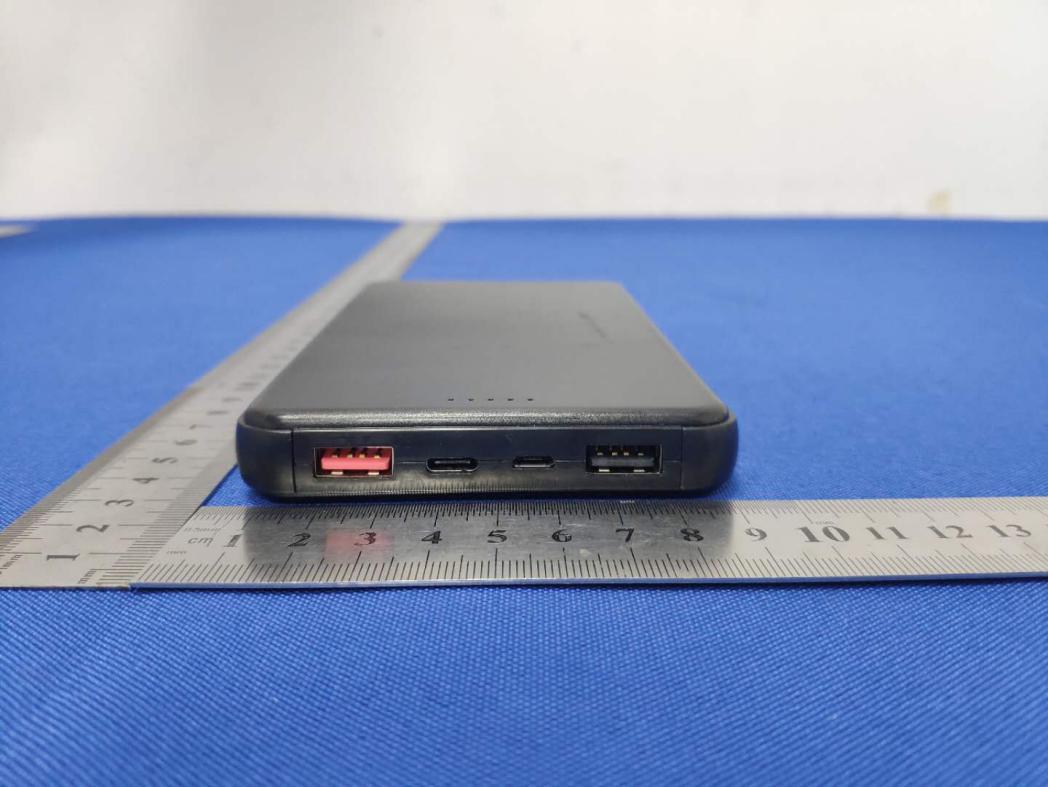

ExternalPhotos

Label&labellocation POWERBANK FCCID:2AX8NBATPACK

InternalPhotos Antenna BTAntenna

No.：BCTC/RF-EMC-005Page 1 of 22 Edition：A.2 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2009001409-2E Applicant:DongguanTechplusTechnologyCo.,ltd ProductName:POWERBANK Model/TypeRef.:BATPACK10000 TestedDate:Sep,17,2020toNov.09,2020 IssuedDate:Nov.09,2020 ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 2 of 22 Edition：A.2 FCCID:2AX8NBATPACK Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthisreport referonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,thisreport can’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedbytheclient. ProductName:POWERBANK Trademark: N/A Model/TypeRef.: BATPACK10000 PreparedFor: DongguanTechplusTechnologyCo.,ltd Address: 6&7/F,BuildingE,FengzhimeiIndustrialZone, JinfenghuangStreet,Fenggang,Dongguan,Guangdong, China Manufacturer: DongguanTechplusTechnologyCo.,ltd Address: 6&7/F,BuildingE,FengzhimeiIndustrialZone, JinfenghuangStreet,Fenggang,Dongguan,Guangdong, China PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2F,EastofBBuilding,PengzhouIndustrial,Fuyuan1st Road,QiaotouCommunity,FuyongStreet,Bao’anDistrict, Shenzhen,China SampleReceivedDate: Sep,17,2020 SampletestedDate: Sep,17,2020toNov.09,2020 IssueDate: Nov.09,2020 ReportNo.:BCTC2009001409-2E TestStandards FCCCFR47part1,1.1307(b),1.1310 TestResults PASS Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 3 of 22 Edition：A.2 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ............................................................................................................................... 4 2.PRODUCTINFORMATION ................................................................................................ 5 2.1ProductInformation ......................................................................................................... 5 2.2SupportEquipment ......................................................................................................... 5 2.3TestMode ......................................................................................................................... 5 3.TESTFACILITYANDTESTINSTRUMENTUSED ....................................................... 6 3.1TestFacility ...................................................................................................................... 6 3.2TestInstrumentUsed ..................................................................................................... 6 4.METHODOFMEASUREMENT ........................................................................................ 7 4.1ApplicableStandard ........................................................................................................ 7 4.2BlockDiagramOfTestSetup ........................................................................................ 7 4.3Limit ................................................................................................................................... 8 4.4Testprocedure ................................................................................................................. 8 4.5EquipmentApprovalConsiderations ............................................................................ 9 4.6EandHfieldStrength .................................................................................................. 10 5.PHOTOGRAPHSOFTESTSET-UP .............................................................................. 17 (Note:N/Ameansnotapplicable) ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 4 of 22 Edition：A.2 1.VERSION ReportNo.IssueDate DescriptionApproved BCTC2009001409-2ENov.09,2020OriginalValid ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 5 of 22 Edition：A.2 2.PRODUCTINFORMATION 2.1ProductInformation Model/TypeRef.: BATPACK10000 Modeldifferences: N/A ProductDescription: POWERBANK OperationFrequency:110.5kHz-205kHz Antennainstallation: Inductiveloopcoilantenna Ratings: DC3.7VFromBattery Input(Micro):DC5V/3A,DC9V/2A,DC12V/1.5A Input(Type-c):DC5V/3A,DC9V/2A,DC12V/1.5A Output(USB):DC5V/3A,DC9V/2A,DC12V/1.5A Output(Type-c):DC5V/3A,DC9V/2A,DC12V/1.5A Wirelssoutput:10W HardwareVersion: N/A SoftwareVersion: N/A 2.2SupportEquipment DeviceTypeBrandModelSeriesNo.DataCableRemark POWERBANKN/ABATPACK10000N/AN/AAuxiliary Notes: 1.Alltheequipment/cableswereplacedintheworst-caseconfigurationtomaximizetheemissionduring thetest. 2.Groundingwasestablishedinaccordancewiththemanufacturer’srequirementsandconditionsforthe intendeduse. 2.3TestMode . TestModes1Charging TestModes2Wireless5W TestModes3Wireless7.5W TestModes4Wireless10W ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 6 of 22 Edition：A.2 3.TESTFACILITYANDTESTINSTRUMENTUSED 3.1TestFacility AllmeasurementfacilitiesusedtocollectthemeasurementdataarelocatedatShenzhen BCTCTestingCo.,Ltd.Address:1-2F,EastofBBuilding,PengzhouIndustrial,Fuyuan1st Road,QiaotouCommunity,FuyongStreet,Bao’anDistrict,Shenzhen,China.Thesiteand apparatusareconstructedinconformancewiththerequirementsofANSIC63.4andCISPR 16-1-1otherequivalentstandards. FCCTestFirmRegistrationNumber:712850 ICRegisteredNo.:23583 3.2TestInstrumentUsed EquipmentManufacturerModelNo.SerialNo.LastCal.NextCal. Exposure LevelTester NardaELT-400N-0231Jul.15,2020Jul.14,2021 Magnetic fieldprobe 100cm2 Narda B-FieldProbe 100cm2 M0675Jul.15,2020Jul.14,2021 843ChamberETS84384301Aug.27,2020Aug.26,2023 ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 7 of 22 Edition：A.2 4.METHODOFMEASUREMENT 4.1ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines.Accordingto§1.1310and§2.1093RF exposureiscalculated.AccordingKDB680106D01v03:RFExposureWirelessCharging Appsv02. 4.2BlockDiagramOfTestSetup Note:Measurementsshouldbemadefromallsidesandthetopofthe primary/clientpair,withthe15cmmeasuredfromthec…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005Page 1 of 23 Edition：A.2 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2009001409-1E Applicant:DongguanTechplusTechnologyCo.,ltd ProductName:POWERBANK Model/TypeRef.:BATPACK10000 TestedDate:Sep,17,2020toNov.09,2020 IssuedDate:Nov.09,2020 ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 2 of 23 Edition：A.2 FCCID:2AX8NBATPACK Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthisreport referonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,thisreport can’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedbytheclient. ProductName:POWERBANK Trademark: N/A Model/TypeRef.: BATPACK10000 PreparedFor: DongguanTechplusTechnologyCo.,ltd Address: 6&7/F,BuildingE,FengzhimeiIndustrialZone,Jinfenghuang Street,Fenggang,Dongguan,Guangdong,China Manufacturer: DongguanTechplusTechnologyCo.,ltd Address: 6&7/F,BuildingE,FengzhimeiIndustrialZone,Jinfenghuang Street,Fenggang,Dongguan,Guangdong,China PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2F,EastofBBuilding,PengzhouIndustrial,Fuyuan1stRoad, QiaotouCommunity,FuyongStreet,Bao’anDistrict,Shenzhen, China SampleReceivedDate: Sep,17,2020 SampletestedDate: Sep,17,2020toNov.09,2020 IssueDate: Nov.09,2020 ReportNo.: BCTC2009001409-1E TestStandards FCCPart15.209 ANSIC63.10-2013 TestResultsPASS Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 3 of 23 Edition：A.2 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ............................................................................................................................... 4 2.TESTSUMMARY ................................................................................................................. 5 3.MEASUREMENTUNCERTAINTY .................................................................................... 6 4.PRODUCTINFORMATIONANDTESTSETUP ............................................................ 7 4.1ProductInformation ......................................................................................................... 7 4.2TestSetupConfiguration ............................................................................................... 7 4.3SupportEquipment ......................................................................................................... 8 4.5TestMode ......................................................................................................................... 8 5.TESTFACILITYANDTESTINSTRUMENTUSED ....................................................... 9 5.1TestFacility ...................................................................................................................... 9 5.2TestInstrumentUsed ..................................................................................................... 9 6.CONDUCTEDEMISSIONS .............................................................................................. 11 6.1BlockDiagramOfTestSetup ...................................................................................... 11 6.2Limit ................................................................................................................................. 11 6.3Testprocedure ............................................................................................................... 11 6.4EUToperatingConditions ............................................................................................ 11 6.5TestResult ..................................................................................................................... 12 7.RADIATEDEMISSIONS ................................................................................................... 14 7.1BlockDiagramOfTestSetup ...................................................................................... 14 7.2Limit ................................................................................................................................. 15 7.3Testprocedure ............................................................................................................... 15 7.4TestResult ..................................................................................................................... 17 8.EUTPHOTOGRAPHS ...................................................................................................... 20 9.EUTTESTSETUPPHOTOGRAPHS ............................................................................ 21 (Note:N/Ameansnotapplicable) ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 4 of 23 Edition：A.2 1.VERSION ReportNo.IssueDate DescriptionApproved BCTC2009001409-1ENov.09,2020OriginalValid ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 5 of 23 Edition：A.2 2.TESTSUMMARY TheProducthasbeentestedaccordingtothefollowingspecifications: No.TestParameter Clause No Results 1ConductedEmission15.207PASS 2RadiatedEmission15.209PASS 3AntennaRequirement15.203PASS ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 6 of 23 Edition：A.2 3.MEASUREMENTUNCERTAINTY Whererelevant,thefollowingmeasurementuncertaintylevelshavebeenestimated fortestsperformedontheProductasspecifiedinCISPR16-4-2.Thisuncertaintyrepresents anexpandeduncertaintyexpressedatapproximatelythe95%confidencelevelusinga coveragefactorofk=2. No.ItemUncertainty 1 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.3dB 2ConductedEmission(150kHz-30MHz)U=3.2dB 3humidityuncertaintyU=5.3% 4Temperatureuncertainty U=0.59°C ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 7 of 23 Edition：A.2 4.PRODUCTINFORMATIONANDTESTSETUP 4.1ProductInformation Model/TypeRef.: BATPACK10000 Modeldifferences: N/A ProductDescription:POWERBANK OperationFrequency:110.5kHz-205kHz Antennainstallation: Inductiveloopcoilantenna Ratings: DC3.7VFromBattery Input(Micro):DC5V/3A,DC9V/2A,DC12V/1.5A Input(Type-c):DC5V/3A,DC9V/2A,DC12V/1.5A Output(USB):DC5V/3A,DC9V/2A,DC12V/1.5A Output(Type-c):DC5V/3A,DC9V/2A,DC12V/1.5A Wirelessou…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 21 of 23 Edition：A.2 9.EUTTESTSETUPPHOTOGRAPHS Conductedemissions ReportNo.:BCTC2009001409-1E No.：BCTC/RF-EMC-005Page 22 of 23 Edition：A.2 RadiatedMeasurementPhotos ReportNo.:BCTC2009001409-3E No.：BCTC/RF-EMC-007Page: 40 of 42 Edition：A.2 15.EUTTESTSETUPPHOTOGRAPHS Conductedemissions ReportNo.:BCTC2009001409-3E No.：BCTC/RF-EMC-007Page: 41 of 42 Edition：A.2 RadiatedMeasurementPhotos ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 11 of 16 Edition：A.2 5.PHOTOGRAPHSOFTESTSET-UP 15cm 15cm ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 12 of 16 Edition：A.2 15cm 15cm ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 13 of 16 Edition：A.2 20cm 0cm ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 14 of 16 Edition：A.2 0cm 0cm ReportNo.:BCTC2009001409-2E No.：BCTC/RF-EMC-005Page 15 of 16 Edition：A.2 0cm 0cm
