Connequ Anti-lost Keyfinder Instruction Setting up a new Keyfinder 1. Download and install from APP store or Google Play by search for “Connequ”. 2. Register the user name and password 3. Enable Bluetooth on your mobile phone 4. Press right upper corner “+” to setup product, setup “Connequ, battery pack, TSA lock” 5. Type a name of the device and choose “Connequ” 6. Start pairing with keyfinder. Keyfinder also need 3seconds press button to start pairing. Using new Key Finder with Connequ APP Cell Capacity 1. The cell capacity shows the CR2032 cell capacity in %. Connection 1. The connection shows “DISCONNECTED” when the keyfinder disconnected with the phone. 2. The connection shows “CONNECTED” when the keyfinder connected with the phone. Distance 1. Based on distance between phone and keyfinder, distance changed to “Very Close”, “Close”, “Far”, “Very far” and blank when disconnection. Phone alert 1. On the app, turn on the phone alert. 2. When connection was broken, the phone alert will alarm for 20 seconds. Find me 1. On the app, press “FIND ME” and the keyfinder will alarm 20 seconds. 2. When press “ALARM OFF”, the keyfinder will stop alarm immediately. Locate 1. On the app, press “LOCATE” and it will show the google map where the keyfinder last time disconnected. Specification: Dimensions: L36.5mm x W36.5mm x H6.3mm Weight: 8g (with cell) Wireless: Bluetooth 4.2 GFSK Buzzer: 70dB ref. Indicator: Blue LED Temperature Range: -40°C to +85°C Replacing the cell 1. Open the outer shell of the keyfinder. 2. Replace with CR2032 cell, please mind the polarity of battery. 3. Close and tighten the outer shell. Safety instruction 1. The Key Finder cannot be used without installing and running the App on your phone. 2. Keep it dry and away from moisture and corrosive material. 3. Do not disassemble this product or attempt to repair or modify it in any manner. 4. Battery and battery-cab are included in the product. they are all small parts to children. The product should not be used without the adult supervision in case children swallow or get choked by these small parts. Consult your doctor immediately if that happens. 5. All products have gone through a thorough quality assurance inspection, feel free to use it. 6. Always return used button batteries to your local battery-recycling center. FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Rev11/20/07 (DongguanTechplusTechnologyCo.,ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AX8NT1 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram, Schematics, OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, (KathyWang)

(DongguanTechplusTechnologyCo.,ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020.11.18 SUBJECT:FCCApplicationforFCCID:2AX8NT1 ToWhomItMayConcern: We,theundersigned,herebyauthorizeAlanMeiatShenzhenBCTCTestingCo.,Ltd.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyAlanMeiofShenzhenBCTCTestingCo.,Ltd.onourbehalf shallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, (KathyWang)

ExternalPhotos

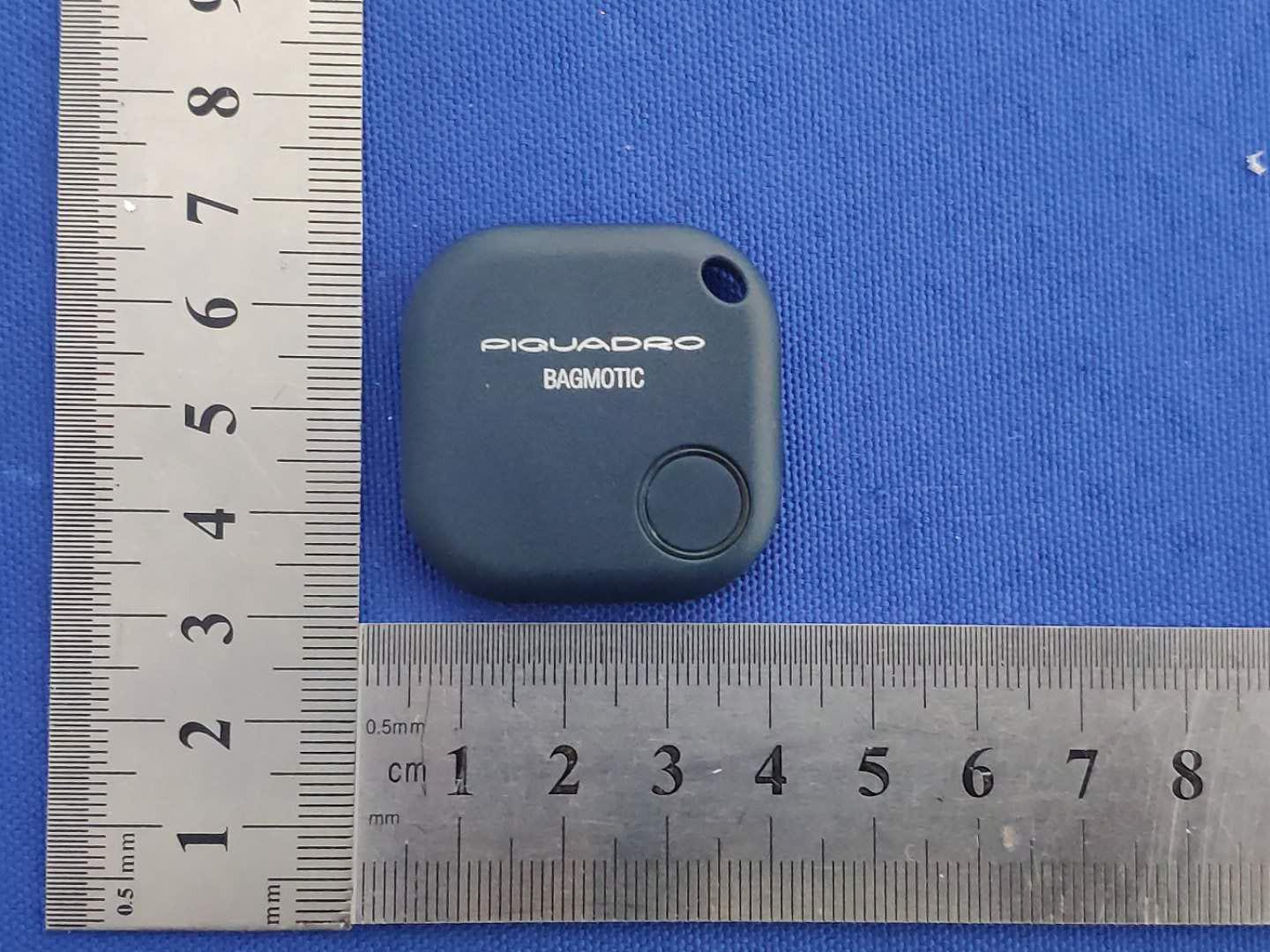

Label&labellocation Anti-lost FCCID:2AX8NT1

InternalPhotos Antenna

RFEXPOSUREEVALUATIONMETHOD FCCID:2AX8NT1 SARTestExclusionThresholdsfor100MHz – 6GHzand ≤ 50mm ApproximateSARTestExclusionPowerThresholdsatSelectedFrequenciesandTestSeparation DistancesareillustratedinthefollowingTable. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances ≤ 50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)] · [ √ f(GHz)] ≤ 3.0for1-gSARand ≤ 7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtest exclusion. BLE maxpossibleoutputpower(PK,conducted)：0±1dbm -3dBilogarithmictermsconverttonumericresultisnearly0.501 -3dbm=1.26mW 2402MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]1.26/5*√2.402=0.39≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Modulation Frequency (MHz) OutputPower (dBm) MaxAntenna Gain(dBi) GFSK2402 -0.89 -3 GFSK 2440 -0.51 -3 GFSK 2480 -0.47 -3 2440MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=1.26/5*√2.440=0.39≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Conclusion:NoSARisrequired. 2480MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=1.26/5*√2.48=0.40≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm.

No.：BCTC/RF-EMC-005Page: 1 of 41 Edition：A.1 TESTREPORT ReportNo.:BCTC2009001407E Applicant:DongguanTechplusTechnologyCo.,ltd ProductName:Anti-lost Model/TypeRef.:T1 TestedDate:Sep.17,2020toSep.27,2020 IssuedDate:Sep.27,2020 ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2009001407E No.：BCTC/RF-EMC-005Page: 2 of 41 Edition：A.1 FCCID:2AX8NT1 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthisreport referonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,thisreport can’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedbytheclient. ProductName: Anti-lost Trademark: N/A Model/TypeRef.: T1 PreparedFor: DongguanTechplusTechnologyCo.,ltd Address: 6&7/F,BuildingE,FengzhimeiIndustrialZone,Jinfenghuang Street,Fenggang,Dongguan,Guangdong,China Manufacturer: ShenzhenGoldmedalTechnologyCo.,Ltd Address: 2ndfloor,buildingB4,blocka,FuyongFuhaiIndustrialPark, Bao'anDistrict,Shenzhen,China PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2F,EastofBBuilding,PengzhouIndustrial,Fuyuan1st Road,QiaotouCommunity,FuyongStreet,Bao’anDistrict, Shenzhen,China SampleReceivedDate: Sep.17,2020 SampletestedDate: Sep.17,2020toSep.27,2020 IssueDate: Sep.27,2020 ReportNo.: BCTC2009001407E TestStandards FCCPart15.247 ANSIC63.10-2013 TestResults PASS Remark:ThisisBluetoothBLEradiotestreport. Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2009001407E No.：BCTC/RF-EMC-005Page: 3 of 41 Edition：A.1 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ............................................................................................................................... 5 2.TESTSUMMARY ................................................................................................................. 6 3.MEASUREMENTUNCERTAINTY .................................................................................... 7 4.PRODUCTINFORMATIONANDTESTSETUP ............................................................ 8 4.1ProductInformation ......................................................................................................... 8 4.2TestSetupConfiguration ............................................................................................... 8 4.3SupportEquipment ......................................................................................................... 9 4.4ChannelList ..................................................................................................................... 9 4.5TestMode ......................................................................................................................... 9 4.6Tableofparametersoftextsoftwaresetting ............................................................. 10 5.TESTFACILITYANDTESTINSTRUMENTUSED ..................................................... 11 5.1TestFacility .................................................................................................................... 11 5.2TestInstrumentUsed ................................................................................................... 12 6.CONDUCTEDEMISSIONS .............................................................................................. 13 6.1BlockDiagramOfTestSetup ...................................................................................... 13 6.2Limit ................................................................................................................................. 13 6.3Testprocedure ............................................................................................................... 13 6.4EUToperatingConditions ............................................................................................ 13 6.5TestResult ..................................................................................................................... 14 7.RADIATEDEMISSIONS ................................................................................................... 15 7.1BlockDiagramOfTestSetup ...................................................................................... 15 7.2Limit ................................................................................................................................. 16 7.3Testprocedure ............................................................................................................... 17 7.4EUToperatingConditions ............................................................................................ 18 7.5TestResult ..................................................................................................................... 19 8.RADIATEDBANDEMISSIONMEASUREMENTANDRESTRICTEDBANDSOF OPERATION ........................................................................................................................... 23 8.1BlockDiagramOfTestSetup ...................................................................................... 23 8.2Limit ................................................................................................................................. 23 8.3Testprocedure ............................................................................................................... 24 8.4EUToperatingConditions ............................................................................................ 24 8.5TestResult ..................................................................................................................... 25 9.POWERSPECTRALDENSITYTEST ........................................................................... 26 9.1BlockDiagramOfTestSetup ...................................................................................... 26 9.2Limit ................................................................................................................................. 26 9.3Testprocedure ..............................................................................................................…
