2AX8U-D136Tablet PC

Security&privacy ●App security,device lock,per- missions Location ●On/3 apps have access to location Memory Expansion ● Use the ejection pin to open the card slot on the right side of the tablet. ●lnstall the microSD card into the right side of the tablet slot and go to Quick Setting. ●Tap SET UP, Set the microSD card as portable storage by selecting Explore. Enter MicroSD Card storage to open with Files by Google or Files. HOW WILL YOU USE THIS SD CARD? 9 / Tip: Go to Settings-Display-Lock display-Screen timeout to set the time gap for initiating “sleep mode". * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment without restriction.

contents 凯达 规格书 APPROVAL SHEET 供应商： 信诺山 CUSTOMER: 品 名： Antenna DISCRIPTION: 型 号： GPS/WIFI/BT MODEL NO: 供应商料号： WBP802-1B76B-A CUSTOMER P/N: 机 种： D136A CUSTOMER MODEL: 天线类型: Ant type: WIFI:PIFA 制作 DRADWN 品管 Q.C.DEPT 结构 FAE 检测 TESTED BY 核准 APPROVED BY 王丽 李霞 王明 邹龙 周工 客户 CUSTOMER 客户品管 CUSTOMER Q.C.DEPT 客户结构 CUSTOMER FAE 客户检测 CUSTOMER TESTED BY 客户审核 CUSTOMER APPROVED BY Address: Room 211, Hengbo science and technology Industrial Park, Qingning road, Long hua District, Shenzhen 第2页- 1. Project information and Electrical Specification Those specifications were specially defined for GPS/WIFI/BT, and all characteristics were measured under the model’s handset testing jig . 1-1 Project picture 1-2 Frequency Band: Frequency Band MHz GPS/WIFI/BT 1575.42/2400-2500/5150- 5850 1-3 Impedance matching DUT的RF线路上的所有匹配器件都保持不变All matching devices on the RF circuit of DUT remain unchanged 2. VSWR 2-1 Measuring Method: 1. A 50Ωcoaxial cable is connected to the antenna. Then this cable is connected to a network analyzer to measure the VSWR, 2. Keeping this jig away from metal at least 20cm. 测试示意图如下The test diagram is as follows： 第3页- 2-2 S11 parameter values-WIFI/BT 频率（MHZ） 2400 2500 5050 5400 5850 驻波 1.45 1.67 1.44 1.29 1.42 3. Efficiency and Gain *measuring and test instruments: 第4页- 微波暗室Microwave anechoic chamber Agilent网络分析仪Microwave anechoic chamber Agilent频谱分析仪Spectrum analyzer 8960综合测试仪Network analyzer 标准天线Standard antenna *test method: equipment以H面放于转台中心位置固定，与喇叭天线中心位置在同一个水平线上。 3-1 Efficiency/Gain- WIFI/BT BAND WIFI/BT Freq.[MHZ] 2400 2450 2500 5050 5450 5850 Eff.[%] 48.78 48.95 50.56 45.16 45.47 46.28 Gain [dBi] 1.7 1.7 1.9 0.5 0.5 0.6 第5页- 第6页- 第7页- 第8页- 4. The production index 6.天线量产时，以驻波比作为量产测试标准In the mass production of antenna, the standing-wave ratio is used as the test standard. 7. 8.根据项目本身的差异,给出如下标准According to the differences of the project itself, the 9.following standards are given： 10. 频率Frequency（MHZ） 量产标准Mass production standard 1575.42/2400-2500/5150- 5850 VSWR（量产产品Mass production products）<）<VSWR(设计样品Design sample)+)+0.5 第9页- 5.structural drawings 第10页- 第11页-

ModelNo.: D136 RadiatedEmissions(30MHz-1GHz) RadiatedEmissions(above1GHz) BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd Tel:+86-755-23059481 Email:[email protected] ConductedEmissionsatMainsTerminals(150kHz-30MHz) DFSRFTest

ReportNo.:BLA-EMC-202601-A1003 Page 95 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTn402422MHzAnt1Emission Tx.SpuriousNVNTn402437MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 96 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTn402437MHzAnt1Emission ReportNo.:BLA-EMC-202601-A1003 Page 97 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTn402452MHzAnt1Ref Tx.SpuriousNVNTn402452MHzAnt1Emission ReportNo.:BLA-EMC-202601-A1003 Page 98 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 AppendixB:photographsoftestsetup RadiatedEmissions(30MHz-1GHz) RadiatedEmissions(above1GHz) ReportNo.:BLA-EMC-202601-A1003 Page 99 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 ConductedEmissionsatMainsTerminals(150kHz-30MHz) ReportNo.:BLA-EMC-202601-A1003 Page 100 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 AppendixC:photographsofEUT Referencetothetestreportno.BLA-EMC-202601-A1001. ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,theresult(s)showninthisreportrefer onlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tereproducedexceptinfull.

ReportNo.:BLA-EMC-202601-A1003 Page 69 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 7.4MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaMaxPSD (dBm/100kHz) MaxPSD(dBm/3kHz)Verdict ResultLimit NVNTb2412Ant1-11.596-26.8268Pass NVNTb2437Ant1-9.332-24.5628Pass NVNTb2462Ant1-9.702-24.9328Pass NVNTg2412Ant1-12.351-27.5818Pass NVNTg2437Ant1-10.789-26.0198Pass NVNTg2462Ant1-11.345-26.5758Pass NVNTn202412Ant1-12.568-27.7988Pass NVNTn202437Ant1-6.994-22.2248Pass NVNTn202462Ant1-6.311-21.5418Pass NVNTn402422Ant1-12.637-27.8678Pass NVNTn402437Ant1-12.408-27.6388Pass NVNTn402452Ant1-18.730-33.9608Pass Note:dBm/3kHz=dBm/100kHz-10*log(0.1/0.003)=dBm/100kHz-15.23 ReportNo.:BLA-EMC-202601-A1003 Page 70 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 PSDNVNTb2412MHzAnt1 PSDNVNTb2437MHzAnt1 PSDNVNTb2462MHzAnt1 ReportNo.:BLA-EMC-202601-A1003 Page 71 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 PSDNVNTg2412MHzAnt1 PSDNVNTg2437MHzAnt1 ReportNo.:BLA-EMC-202601-A1003 Page 72 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 PSDNVNTg2462MHzAnt1 PSDNVNTn202412MHzAnt1 ReportNo.:BLA-EMC-202601-A1003 Page 73 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 PSDNVNTn202437MHzAnt1 PSDNVNTn202462MHzAnt1 ReportNo.:BLA-EMC-202601-A1003 Page 74 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 PSDNVNTn402422MHzAnt1 PSDNVNTn402437MHzAnt1 ReportNo.:BLA-EMC-202601-A1003 Page 75 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 PSDNVNTn402452MHzAnt1 ReportNo.:BLA-EMC-202601-A1003 Page 76 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 7.5BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-46.18-20Pass NVNTb2462Ant1-46.52-20Pass NVNTg2412Ant1-44.59-20Pass NVNTg2462Ant1-44.55-20Pass NVNTn202412Ant1-43.17-20Pass NVNTn202462Ant1-44.56-20Pass NVNTn402422Ant1-42.11-20Pass NVNTn402452Ant1-40.39-20Pass ReportNo.:BLA-EMC-202601-A1003 Page 77 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTb2412MHzAnt1Ref BandEdgeNVNTb2412MHzAnt1Emission BandEdgeNVNTb2462MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 78 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTb2462MHzAnt1Emission BandEdgeNVNTg2412MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 79 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTg2412MHzAnt1Emission BandEdgeNVNTg2462MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 80 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTg2462MHzAnt1Emission BandEdgeNVNTn202412MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 81 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTn202412MHzAnt1Emission BandEdgeNVNTn202462MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 82 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTn202462MHzAnt1Emission BandEdgeNVNTn402422MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 83 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTn402422MHzAnt1Emission BandEdgeNVNTn402452MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 84 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 BandEdgeNVNTn402452MHzAnt1Emission ReportNo.:BLA-EMC-202601-A1003 Page 85 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 7.6ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTb2412Ant1-36.3-20Pass NVNTb2437Ant1-35.42-20Pass NVNTb2462Ant1-36.69-20Pass NVNTg2412Ant1-32.32-20Pass NVNTg2437Ant1-33.86-20Pass NVNTg2462Ant1-33.09-20Pass NVNTn202412Ant1-33.83-20Pass NVNTn202437Ant1-33.06-20Pass NVNTn202462Ant1-33.46-20Pass NVNTn402422Ant1-32.14-20Pass NVNTn402437Ant1-31.5-20Pass NVNTn402452Ant1-31.51-20Pass ReportNo.:BLA-EMC-202601-A1003 Page 86 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTb2412MHzAnt1Ref Tx.SpuriousNVNTb2412MHzAnt1Emission Tx.SpuriousNVNTb2437MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 87 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTb2437MHzAnt1Emission Tx.SpuriousNVNTb2462MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 88 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTb2462MHzAnt1Emission Tx.SpuriousNVNTg2412MHzAnt1Ref ReportNo.:BLA-EMC-202601-A1003 Page 89 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 Tx.SpuriousNVNTg2412MHzAnt1Emission Tx.SpuriousNVNTg2437…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202601-A1003 Page 35 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 6.9Radiatedemissionswhichfallintherestrictedbands TestStandard47CFRPart15,SubpartC15.247(d) TestMethodANSIC63.10-2020+Cor.1-2023Section6.3,6.5,6.6,11.12.1 TestMode(Pre-Scan)TX TestMode(FinalTest)TX 6.9.1Limit Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above9605003 Remark:TheemissionlimitsshownintheabovetablearebasedonmeasurementsemployingaCISPR quasi-peakdetectorexceptforthefrequencybands9-90kHz,110-490kHzandabove1000MHz.Radiated emissionlimitsinthesethreebandsarebasedonmeasurementsemployinganaveragedetector,thepeakfield strengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecifiedabovebymorethan20 dBunderanyconditionofmodulation. ReportNo.:BLA-EMC-202601-A1003 Page 36 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 6.9.2Testsetup Below1GHz： 30MHz-1GHz： Above1GHz： ReportNo.:BLA-EMC-202601-A1003 Page 37 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 6.9.3Procedure a)Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundat a3or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethe positionofthehighestradiation. b)Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundat a3meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionof thehighestradiation. c)TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmounted onthetopofavariable-heightantennatower. d)Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaare settomakethemeasurement. e)Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawas tunedtoheightsfrom1meterto4meters(forthetestfrequencyofbelow30MHz,theantennawas tunedtoheights1meter)andtherotatabletablewasturnedfrom0degreesto360degreestofind themaximumreading. f)Thetest-receiversystemwassettoPeakDetectFunctionandSpecifiedBandwidthwithMaximum HoldMode. g)IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthelimitspecified,thentesting couldbestoppedandthepeakvaluesoftheEUTwouldbereported.Otherwisetheemissionsthat didnothave10dBmarginwouldbere-testedonebyoneusingpeak,quasi-peakoraverage methodasspecifiedandthenreportedinadatasheet. h)TesttheEUTinthelowestchannel,themiddlechannel,thehighestchannel. i)TheradiationmeasurementsareperformedinX,Y,ZaxispositioningforTransmittingmode,and foundtheXaxispositioningwhichitistheworstcase. j)Repeataboveproceduresuntilallfrequenciesmeasuredwascomplete. Note1:Level(dBuV)=Reading(dBuV)+Factor(dB/m) Note2:Forfrequenciesabove1GHz,thefieldstrengthlimitsarebasedonaveragelimits.However,thepeakfield strengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecifiedabovebymorethan20 dBunderanyconditionofmodulation.Fortheemissionswhosepeaklevelislowerthantheaveragelimit,only thepeakmeasurementisshowninthereport. ReportNo.:BLA-EMC-202601-A1003 Page 38 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 6.9.4Testdata [Testmode:TX802.11blowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 39 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11blowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 40 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11bHighchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 41 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11bHighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 42 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11glowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 43 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11glowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 44 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11gHighchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 45 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11gHighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 46 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11n20lowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 47 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11n20lowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202601-A1003 Page 48 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 [Testmode:TX802.11n20Highchannel];[Polarity:Horizontal] TestResult:Pass ReportNo…

Text truncated - open the document above for the full version.

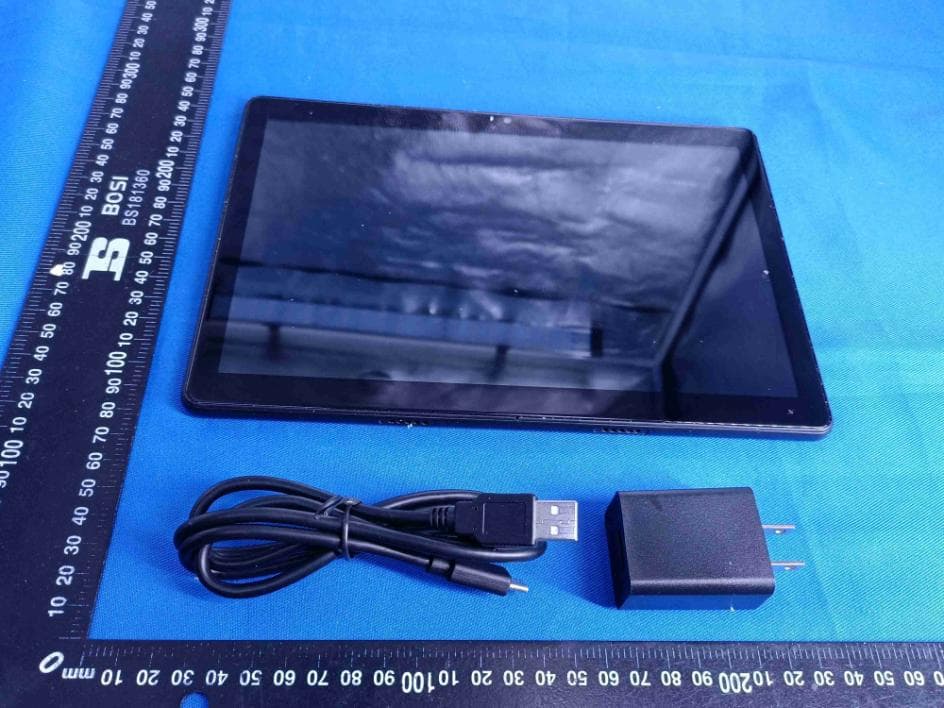

Page1of100 Website:www.cblueasia.com Tel:+86-755-23059481 Email:[email protected] ThetestreportiseffectiveonlywithbothsignatureandspecializedstampandTheresult(s)showninthisreportreferonlytothesample(s)tested.Without writtenapprovalofBlueAsia,thisreportcan ’ tbereproducedexceptinfull.Theresultsdescribedinthisreportdonotrepresentthequalityorcharacteristicsofthe sampledbatch,nordotheyrepresentanysimilaroridenticalproductsthatarenotexplicitlystated. TestReport Applicant: ShenzhenKaiDatechnologydigitalco,LTD Address: 4/F,buildingC,YunliZhigu,No.9,XincunAvenueXuexiang, BantianStreet,LonggangDistrict,Shenzhen ProductName:TabletPC BrandMark:N/A Model:D136 Seriesmodel:F101,F102,F103,F105,F106,F107,F108,F109,F110,F111 FCCID:2AX8U-D136 ReportNumber:BLA-EMC-202601-A1003 DateofReceipt:Jan.08,2026 DateofTest:Jan.08,2026toFeb.26,2026 TestStandard:47CFRPart15,SubpartC15.247 TestResult:Pass Compiledby:Reviewby:Approvedby: IssuedDate:Mar.25,2026 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd. Address:No.41,SouthofBeihuanRoad,ShangwuCommunity,Shiyan Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China ReportNo.:BLA-EMC-202601-A1003 Page 2 of 100 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected] Version:v1.2 TableofContents 1Generalinformation......................................................................................................................................................5 1.1Generalinformation.................................................................................................................................................5 1.2GeneraldescriptionofEUT.....................................................................................................................................5 2Testsummary................................................................................................................................................................7 3TestConfiguration........................................................................................................................................................8 3.1Testmode................................................................................................................................................................8 3.2OperationFrequencyeachofchannel....................................................................................................................8 3.3Testchannel.............................................................................................................................................................9 3.4ConfigurationdiagramofEUT.................................................................................................................................9 3.5Auxiliaryequipment.................................................................................................................................................9 3.6Testenvironment.....................................................................................................................................................9 4Laboratoryinformation..............................................................................................................................................10 4.1Laboratoryandaccreditations...............................................................................................................................10 4.2Measurementuncertainty......................................................................................................................................10 5Testequipment............................................................................................................................................................11 6Testresult....................................................................................................................................................................14 6.1Antennarequirement.............................................................................................................................................14 6.2ConductedemissionsatACpowerline(150kHz-30MHz)..................................................................................15 6.3ConductedpeakoutputPower..............................................................................................................................19 6.4Minimum6dBbandwidth.......................................................................................................................................20 6.5Powerspectrumdensity........................................................................................................................................21 6.6ConductedBandEdgesMeasurement.................................................................................................................22 6.7Conductedspuriousemissions.............................................................................................................................23 6.8Radiatedspuriousemissions................................................................................................................................24 6.9Radiatedemissionswhichfallintherestrictedbands..........................................................................................35 7AppendixA..................................................................................................................................................................54 7.1MaximumConductedOutputPower.....................................................................................................................54 7.2-6dBBandwidth.....................................................................................................................................................55 7.3OccupiedChannelBandwidth...............................................................................................................................62…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202601-A1001 Page71of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 Tx.SpuriousNVNTBLE2M2478MHzAnt1Ref Tx.SpuriousNVNTBLE2M2478MHzAnt1Emission ReportNo.:BLA-EMC-202601-A1001 Page72of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 AppendixB:photographsoftestsetup RadiatedEmissions(30MHz-1GHz) RadiatedEmissions(above1GHz) ReportNo.:BLA-EMC-202601-A1001 Page73of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ConductedEmissionsatMainsTerminals(150kHz-30MHz) ReportNo.:BLA-EMC-202601-A1001 Page74of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 AppendixC:photographsofEUT ViewofProduct-1 ViewofProduct-2 ReportNo.:BLA-EMC-202601-A1001 Page75of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-3 ViewofProduct-4 ReportNo.:BLA-EMC-202601-A1001 Page76of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-5 ViewofProduct-6 ReportNo.:BLA-EMC-202601-A1001 Page77of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-7 ViewofProduct-8 ReportNo.:BLA-EMC-202601-A1001 Page78of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-9 ViewofProduct-10 ReportNo.:BLA-EMC-202601-A1001 Page79of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-11 ViewofProduct-12 ReportNo.:BLA-EMC-202601-A1001 Page80of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-13 ViewofProduct-14 ReportNo.:BLA-EMC-202601-A1001 Page81of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-15 ViewofProduct-16 ReportNo.:BLA-EMC-202601-A1001 Page82of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-17 ViewofProduct-18 ReportNo.:BLA-EMC-202601-A1001 Page83of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-19 ViewofProduct-20 ReportNo.:BLA-EMC-202601-A1001 Page84of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-21 ViewofProduct-22 ReportNo.:BLA-EMC-202601-A1001 Page85of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 ViewofProduct-23 ViewofProduct-24 ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,theresult(s)showninthisreportrefer onlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tbereproducedexceptinfull.

ReportNo.:BLA-EMC-202601-A1001 Page36of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 [Testmode:TXHighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202601-A1001 Page37of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 6.9Radiatedemissionswhichfallintherestrictedbands TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10-2020+Cor.1-2023Clause6.12 TestMode(Pre-Scan)TX TestMode(FinalTest)TX 6.9.1Limit Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above9605003 Remark:TheemissionlimitsshownintheabovetablearebasedonmeasurementsemployingaCISPR quasi-peakdetectorexceptforthefrequencybands9-90kHz,110-490kHzandabove1000MHz.Radiated emissionlimitsinthesethreebandsarebasedonmeasurementsemployinganaveragedetector,thepeakfield strengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecifiedabovebymorethan20 dBunderanyconditionofmodulation. ReportNo.:BLA-EMC-202601-A1001 Page38of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 6.9.2Testsetup Below1GHz： 30MHz-1GHz： Above1GHz： ReportNo.:BLA-EMC-202601-A1001 Page39of85 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Tel:+86-755-23059481 Email:[email protected]:v1.3 6.9.3Procedure a)Forbelow1GHz,theEUTwasplacedonthetopofarotatingtable0.8metersabovethegroundat a3or10metersemi-anechoicchamber.Thetablewasrotated360degreestodeterminethe positionofthehighestradiation. b)Forabove1GHz,theEUTwasplacedonthetopofarotatingtable1.5metersabovethegroundat a3meterfully-anechoicchamber.Thetablewasrotated360degreestodeterminethepositionof thehighestradiation. c)TheEUTwasset3or10metersawayfromtheinterference-receivingantenna,whichwasmounted onthetopofavariable-heightantennatower. d)Theantennaheightisvariedfromonemetertofourmetersabovethegroundtodeterminethe maximumvalueofthefieldstrength.Bothhorizontalandverticalpolarizationsoftheantennaare settomakethemeasurement. e)Foreachsuspectedemission,theEUTwasarrangedtoitsworstcaseandthentheantennawas tunedtoheightsfrom1meterto4meters(forthetestfrequencyofbelow3…
