Shenzhen KaiDa technology digital co, LTD 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China Statement Product: Tablet Model: K106 Additional Model: K110, K111, K112, K113, K116, K118, K710, K711, K712 Trademark:N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/11/30 Name: Jianmin Li Title: Product Engineering Tel/Fax: +86075523716150/+860755-84745471 E-mail: [email protected]

Shenzhen KaiDa technology digital co, LTD 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China Agent Authorization Company:Shenzhen KaiDa technology digital co, LTD Address: 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China Product Name: Tablet Model Number(s): K106, K110, K111, K112, K113, K116, K118, K710, K711, K712 Product Description: Tablet PC We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-30 Name:Jianmin Li Title:Product Engineering Company: Shenzhen KaiDa technology digital co, LTD

Shenzhen KaiDa technology digital co, LTD 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China 2020-11-30 To: Federal Communications Commission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia, MD FCC ID: 2AX8U-K106 To Whom It May Concern: This letter is to ascertain that Shenzhen KaiDa technology digital co, LTD Product Tablet has been the units used for conducting FCC compliance testing, the sDoC part will be tested by FCC accredited testlab. The result shows that the EUT has complied to unintentional Radiators requirements (15.101). Test lab information: FCC-Registration No.: 645098 Shenzhen Tongce Testing Lab. Adress: 1B/F., Building 1, Yibaolaustrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China If you have any question or concerns, pls. contact us. Sincerely, (signed) Name: Jianmin Li Title: Product Engineering Tel/Fax: +86075523716150/+860755-84745471 E-mail: [email protected]

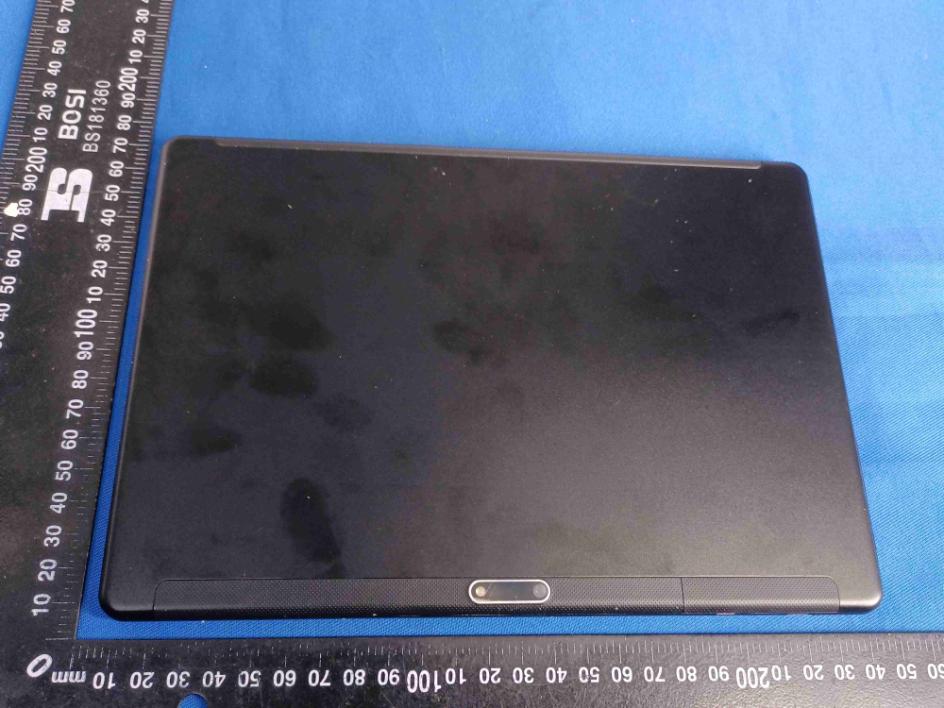

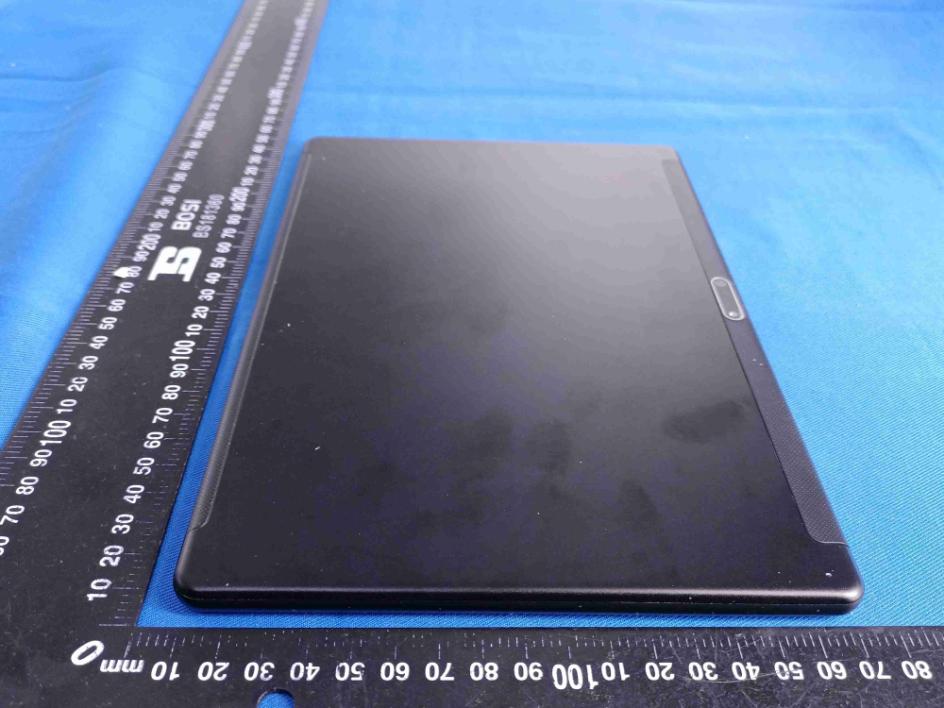

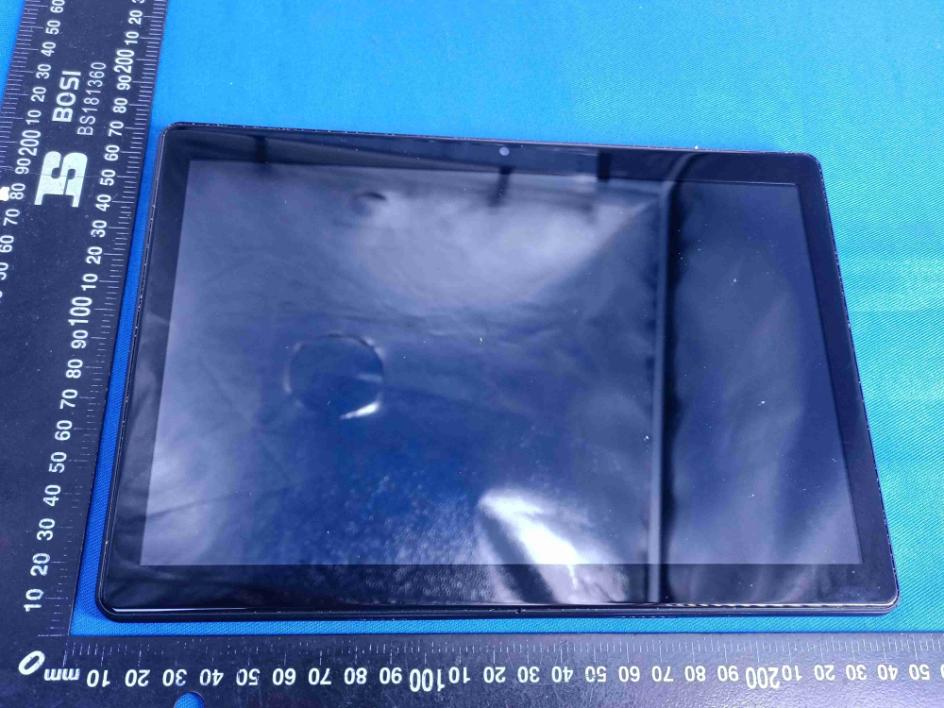

Page 1 of 4 Appendix B: Photographs of EUT Product: Tablet Model: K106 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: K106 Label: Size: L*W=50*25mm Location FCC ID: 2AX8U-K106

Page 1 of 5 Appendix B: Photographs of EUT Product: Tablet Model: K106 Internal Photos ANT Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison For BDR+EDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 -0.50 0±1 1 1.26 5 0.40 3.0 For WIFI: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 06 2.437 7.69 7.0±1 8.0 6.31 5 1.97 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AX8U-K106 Product: Tablet Model No.: K106 Additional Model No.: K110, K111, K112, K113, K116, K118, K710, K711, K712 Trade Mark: N/A Report No.: TCT200810E060 Issued Date: Nov. 10, 2020 Issued for: Shenzhen KaiDa technology digital co, LTD 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200810E060 Page 2 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200810E060 Page 3 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Tablet Model No.: K106 Additional Model No.: K110, K111, K112, K113, K116, K118, K710, K711, K712 Trade Mark: N/A Applicant: Shenzhen KaiDa technology digital co, LTD Address: 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen KaiDa technology digital co, LTD Address: 4/F, Building C, No.9 huayuan Xincun Avenue, Xiangjiaotang Community, Bsntian Street, Longgang District, Shenzhen, China Date of Test: Oct. 12, 2020 – Nov. 09, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Nov. 09, 2020 Brave Zeng Reviewed By: Date: Nov. 10, 2020 Beryl Zhao Approved By: Date: Nov. 10, 2020 Tomsin Report No.: TCT200810E060 Page 4 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200810E060 Page 5 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Tablet Model No.: K106 Additional Model No.: K110, K111, K112, K113, K116, K118, K710, K711, K712 Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) Modulation Technology (IEEE 802.11b): Direct Sequence Spread Spectrum (DSSS) Modulation Technology (IEEE 802.11g/802.11n): Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps Dat…

Text truncated - open the document above for the full version.

Report No.: TCT200810E060 Page 51 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT200810E060 Page 52 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200810E060 Page 53 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 -2.94 -47.44 <=-32.94 PASS High 2462 -2.70 -56.89 <=-32.70 PASS 11G Ant1 Low 2412 -6.65 -44.50 <=-36.65 PASS High 2462 -6.76 -56.66 <=-36.76 PASS 11N20SISO Ant1 Low 2412 -7.02 -42.98 <=-37.02 PASS High 2462 -5.95 -56.58 <=-35.95 PASS Report No.: TCT200810E060 Page 54 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Report No.: TCT200810E060 Page 55 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Report No.: TCT200810E060 Page 56 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200810E060 Page 57 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -3.03 -3.03 --- PASS 30~1000 30~1000 -68.6 <=-33.033 PASS 1000~26500 1000~26500 -42.745 <=-33.033 PASS 2437 Reference -2.47 -2.47 --- PASS 30~1000 30~1000 -68.099 <=-32.471 PASS 1000~26500 1000~26500 -43.103 <=-32.471 PASS 2462 Reference -2.68 -2.68 --- PASS 30~1000 30~1000 -68.39 <=-32.68 PASS 1000~26500 1000~26500 -42.762 <=-32.68 PASS 11G Ant1 2412 Reference -7.01 -7.01 --- PASS 30~1000 30~1000 -68.972 <=-37.008 PASS 1000~26500 1000~26500 -42.625 <=-37.008 PASS 2437 Reference -6.82 -6.82 --- PASS 30~1000 30~1000 -69.226 <=-36.819 PASS 1000~26500 1000~26500 -42.917 <=-36.819 PASS 2462 Reference -6.79 -6.79 --- PASS 30~1000 30~1000 -68.797 <=-36.792 PASS 1000~26500 1000~26500 -43.038 <=-36.792 PASS 11N20SISO Ant1 2412 Reference -6.86 -6.86 --- PASS 30~1000 30~1000 -69.2 <=-36.859 PASS 1000~26500 1000~26500 -43.621 <=-36.859 PASS 2437 Reference -6.28 -6.28 --- PASS 30~1000 30~1000 -68.925 <=-36.282 PASS 1000~26500 1000~26500 -43.369 <=-36.282 PASS 2462 Reference -6.29 -6.29 --- PASS 30~1000 30~1000 -69.133 <=-36.292 PASS 1000~26500 1000~26500 -43.377 <=-36.292 PASS Report No.: TCT200810E060 Page 58 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: TCT200810E060 Page 59 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 Report No.: TCT200810E060 Page 60 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 Report No.: TCT200810E060 Page 61 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 Report No.: TCT200810E060 Page 62 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 Report No.: TCT200810E060 Page 63 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 Report No.: TCT200810E060 Page 64 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 Report No.: TCT200810E060 Page 65 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 Report No.: TCT200810E060 Page 66 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Report No.: TCT200810E060 Page 67 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200810E060 Page 68 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS Report No.: TCT200810E060 Page 69 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report No.: TCT200810E060 Page 70 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: TCT200810E060 Page 71 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: TCT200810E060 Page 72 of 73 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200810E060 Page 73 of 73 Hotline: 400-6611-140 Tel: 86-7…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Tablet Model: K106 Radiated Emission Page 2 of 2 Conducted Emission
