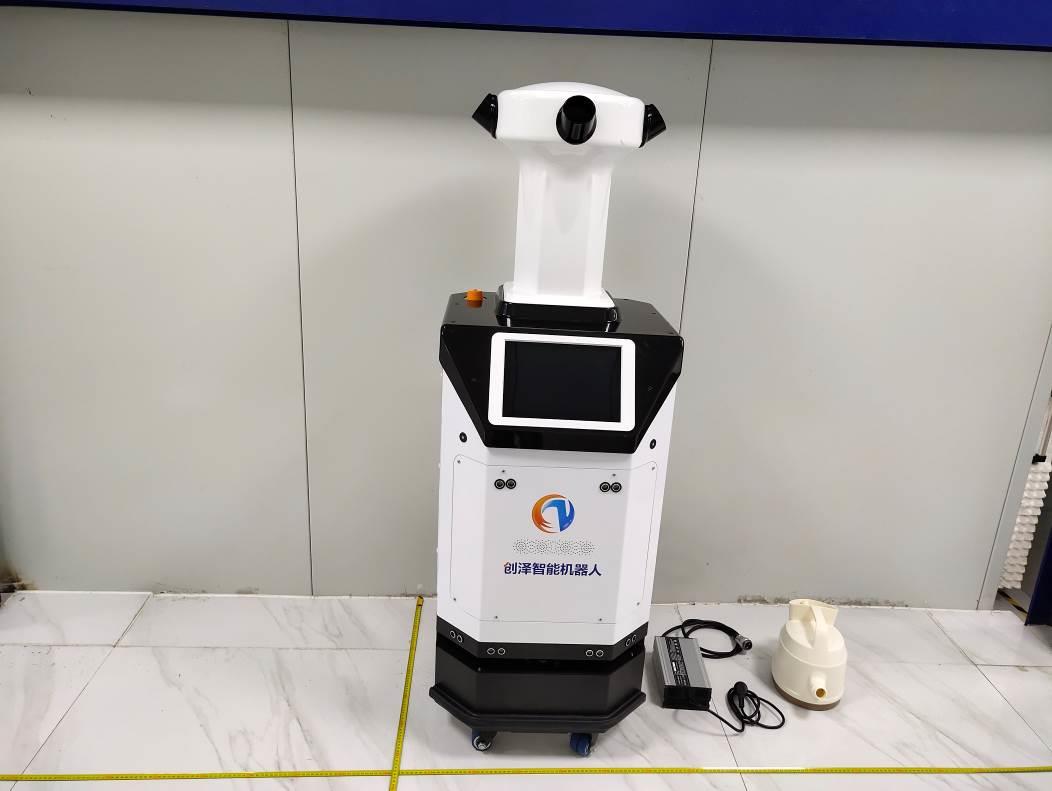

2AXBRCZ-ROBOTDF-AZChuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type)

Chuangze brand CZ-RobotDf-AZ autonomous mobile Intelligent Disinfection Robot User manual Chuang Ze Intelligent Robot Group Co., Ltd 2 Chuang Ze Intelligent Robot Group Co., Ltd Product Description Before using this product, be sure to read this product specification carefully. Please take good care of the book so that it can be consulted at any time in the future. Please use it correctly on the basis of full understanding of the content. Address :71 Taiyuan Road, Beijing Road, Rizhao Development Zone, Shandong Province Tel :0633-8856000 zip code: version 276800: v1.0 Published :2020.6 3 Introduction Thank you for using Chuangze CZ-RobotDf-AZ autonomous mobile intelligent disinfection robot. Chuangze Intelligent Robot Group Co., Ltd. will provide you with high quality and efficient service. This specification is to guide the product installation, operation, detailed description of the document. For the first time, read the instructions carefully before installation. Use and management considerations: This product must operate and run in the specified usage scenario. 1) Do not arbitrarily discard the outer packaging of products and related parts, please follow the local waste disposal regulations; 2) Do not arbitrarily discard the product matching use and its outer packaging; 3) Disassembly of equipment by persons not authorized by the Company is prohibited; 4) This information belongs to the equipment random document, please keep properly, uses; 5) If any problems or ambiguities are found during use, please contact customer service telephone in time. Version Statement: Chuangze Intelligent Robot Group Co., Ltd. reserves all copyright in this information. Chuang Ze Intelligent Robot Group Co., Ltd Web site: http://www.chuangze.cn Address :71 Taiyuan Road, Beijing Road, Rizhao Development Zone, Shandong Province Tel :0633-8856000 4 Directory Chapter I Overview ........................................................................................................................... 4 Product Description Product Name .......................................................................................... 4 II. Main functions and characteristics ....................................................................................... 5 III. Schematic illustration of the structure of the disinfection robot ........................................ 6 IV. Working principles................................................................................................................ 8 V. Main bactericidal factors and their intensity ........................................................................ 9 VI. Key performance .................................................................................................................. 9 VII. Technical performance indicators ..................................................................................... 10 Chapter II Installation ...................................................................................................................... 12 Chapter III Basic Operation of Disinfection Robot .......................................................................... 13 Chapter 4: The Use of Routine Disinfection Robot ......................................................................... 30 Chapter V Packaging, Transportation and Storage ......................................................................... 31 Chapter VI Attention to Disinfection Robot .................................................................................... 32 I. Matters needing attention in charging power supply.......................................................... 32 II. Precautions for daily use ..................................................................................................... 32 Chapter I Overview I. Product description Product name Chuangze brand CZ-RobotDf-AZ independent mobile intelligent disinfection robot. Product description Chuangze brand CZ-RobotDf-AZ autonomous mobile intelligent disinfection robot, hereinafter referred to as disinfection robot. The disinfection robot has self-navigation 5 technology and can move independently according to the set route to meet the needs of automatic, timing and accurate disinfection in the indoor environment with more rooms or duplicate layout. It can realize multi-mode intelligent disinfection such as plasma disinfection and ultraviolet disinfection, and is equipped with "man-machine coexistence" and "unmanned disinfection" two disinfection modes, which makes disinfection more humanized. Scope and Use of Products This standard is suitable for ultraviolet plasma disinfection robot which is composed of ultraviolet sterilization lamp, filter device, fan and plasma generator. It is suitable for rapid disinfection of indoor air and object surface. II. Main functions and characteristics 1. equipped with laser navigation module, it can realize autonomous walking and automatic obstacle avoidance, and at the same time, it can realize automatic charging function and reduce the working intensity of staff; 2. can realize multi-mode intelligent disinfection, such as plasma disinfection and ultraviolet disinfection, with "man-machine coexistence" and "unmanned disinfection" two disinfection modes, make disinfection more humanized; 3. can be implemented remotely, the top of the robot is equipped with a wide angle camera, which can realize the remote operation in various complex environments, reduce the contact of personnel, and effectively reduce the risk of infection. Its equipped with human induction device, can real-time perception of the activities of the surrounding personnel, when there are personnel into the ultraviolet disinfection range, can intelligently achieve the closure of ultraviolet lights, to protect the safety of the surrounding personnel, better service to the user group; 4. can achieve multi-mode disinfection, a disinfection robot can complete a variety of disinfection m…

Text truncated - open the document above for the full version.

Chuangze Intelligent Robot Group Co., Ltd Agent Authorization Company: Chuangze Intelligent Robot Group Co., Ltd Address: No.71 Taiyuan Road, Rizhao, Shandong, China Product Name: Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) Model Number(s): CZ-RobotDf-AZ Product Description: Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) FCC ID: 2AXBRCZ-ROBOTDF-AZ We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-08 Name: Xiang Li Title: Hardware Director Company: Chuangze Intelligent Robot Group Co., Ltd

Chuangze Intelligent Robot Group Co., Ltd No.71 Taiyuan Road, Rizhao, Shandong, China Date: April 08, 2021 FCC ID: 2AXBRCZ-ROBOTDF-AZ Model Number: CZ-RobotDf-AZ To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Chuangze Intelligent Robot Group Co., Ltd declare that this EUT (FCC ID: 2AXBRCZ-ROBOTDF-AZ) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Xiang Li / Hardware Director Company: Chuangze Intelligent Robot Group Co., Ltd Address: No.71 Taiyuan Road, Rizhao, Shandong, China Tel: 400-8128-728 Fax: 0633-2299333 E-mail: [email protected]

2AXBRCZ-ROBOTDF-AZ 2021-04-08

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L6.0m x 4.0cm) Material: Tagboard Glue: adhesive sticker Font color: Blue Label color: White Label Location Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) Model No.: CZ-RobotDf-AZ FCC ID: 2AXBRCZ-ROBOTDF-AZ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 16 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 16 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 16 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 16 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 16 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 16 Fig.11 Fig.12 BT WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 16 Fig.13 Fig.14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 8 of 16 Fig.15 Fig.16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 9 of 16 Fig.17 Fig.18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 10 of 16 Fig.19 Fig.20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 11 of 16 Fig.21 Fig.22 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 12 of 16 Fig.23 Fig.24 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 13 of 16 Fig.25 Fig.26 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 14 of 16 Fig.27 Fig.28 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 15 of 16 Fig.29 Fig.30 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 16 of 16 Fig.31

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AXBRCZ-ROBOTDF-AZ Product name Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) Model number CZ-RobotDf-AZ Power supply Output: DC 54.6V, 15A DC 48V by Battery, 39Ah Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2(DSS) GFSK for Bluetooth V4.2(DTS) IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type Internal Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / FCC Operation frequency 2402MHz ~ 2480MHz 2412MHz-2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna 2402MHz ~ 2480MHz 2412MHz-2462MHz 0dBi BT WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 6. Conducted Power < BT Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 3.263 39 2441 4.817 78 2480 3.250 π/4DQPSK 0 2402 2.491 39 2441 3.980 78 2480 2.426 8DPSK 0 2402 2.542 39 2441 4.100 78 2480 2.613 < BT LE Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 3.068 19 2440 4.578 39 2480 3.050 <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 15.23 6 2437 15.43 11 2462 14.65 IEEE 802.11g 1 2412 14.12 6 2437 14.95 11 2462 13.99 IEEE 802.11n HT20 1 2412 14.67 6 2437 14.88 11 2462 13.94 IEEE 802.11n HT40 3 2422 15.84 6 2437 15.01 9 2452 14.91 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 7. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 3.0 5.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 4.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 8…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: Chuangze brand autonomous mobile intelligent disinfection robot (CZ- RobotDf-AZ type) Trade Mark: N/A Test Model: CZ-RobotDf-AZ Environmental Conditions Temperature: 22.1 C Relative Humidity: 53.2% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 3.263 21 PASS MCH 4.817 21 PASS HCH 3.250 21 PASS π/4DQPSK LCH 2.491 21 PASS MCH 3.980 21 PASS HCH 2.426 21 PASS 8DPSK LCH 2.542 21 PASS MCH 4.100 21 PASS HCH 2.613 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.032 Not Specified PASS MCH 1.034 Not Specified PASS HCH 1.030 Not Specified PASS π/4DQPSK LCH 1.287 Not Specified PASS MCH 1.290 Not Specified PASS HCH 1.289 Not Specified PASS 8DPSK LCH 1.289 Not Specified PASS MCH 1.299 Not Specified PASS HCH 1.292 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.998 0.689 PASS MCH 1.010 0.689 PASS HCH 1.138 0.689 PASS π/4DQPSK LCH 1.184 0.860 PASS MCH 1.136 0.860 PASS HCH 1.000 0.860 PASS 8DPSK LCH 0.956 0.866 PASS MCH 1.212 0.866 PASS HCH 1.042 0.866 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.864 -36.481 -17.136 PASS MCH 4.53 -37.497 -15.470 PASS HCH 2.933 -37.718 -17.067 PASS π/4DQPSK LCH 1.308 -37.165 -18.692 PASS MCH 2.368 -37.341 -17.632 PASS HCH 0.775 -37.094 -19.225 PASS 8DPSK LCH 1.487 -38.462 -18.513 PASS MCH 2.985 -38.149 -17.015 PASS HCH 1.211 -36.568 -18.789 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS21…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Chuangze Intelligent Robot Group Co., Ltd Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) Test Model: CZ-RobotDf-AZ Prepared for : Chuangze Intelligent Robot Group Co., Ltd Address : No.71 Taiyuan Road, Rizhao, Shandong China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 25, 2021 Number of tested samples : 2 Sample No. : 210222107A-1, 210222107A-2 Serial number : Prototype Date of Test : February 25, 2021 ~ March 11, 2021 Date of Report : March 12, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210222107AEA Date of Issue ................................... : March 12, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Chuangze Intelligent Robot Group Co., Ltd Address ........................................... : No.71 Taiyuan Road, Rizhao, Shandong China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) Trade Mark ...................................... : N/A Test Model ...................................... : CZ-RobotDf-AZ Ratings ............................................ : Output: DC 54.6V, 15A DC 48V by Battery, 39Ah Result ........................................... : Positive Tested by: Compiled by: Approved by: Cherry Chen/ Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-AZ Report No.: LCS210222107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210222107AEA March 12, 2021 Date of issue Test Model.............................. : CZ-RobotDf-AZ EUT......................................... : Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-AZ type) Applicant............................... : Chuangze Intelligent Robot Group Co., Ltd Address................................... : No.71 Taiyuan Road, Rizhao, Shandong China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Chuangze Intelligent Robot Group Co., Ltd Address................................... : No.71 Taiyuan Road, Rizhao, Shandong China Telephone............................…
