2AXBRCZ-ROBOTDF-DZChuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type)

ChuangzebrandCZ-RobotDf-DZautonomous mobile IntelligentDisinfectionRobot Usermanual ChuangZeIntelligentRobotGroupCo.,Ltd 2 ChuangZeIntelligentRobotGroupCo.,Ltd ProductDescription Beforeusingthisproduct,besuretoreadthisproductspecificationcarefully. Pleasetakegoodcareofthebooksothatitcanbeconsultedatanytimeinthe future. Pleaseuseitcorrectlyonthebasisoffullunderstandingofthecontent. Address:71TaiyuanRoad,BeijingRoad,RizhaoDevelopmentZone,ShandongProvince Tel:0633-8856000 zipcode:version276800:v1.0 Published:2020.6 3 Introduction ThankyouforusingChuangzeCZ-RobotDf-DZautonomousmobileintelligentdisinfection robot.ChuangzeIntelligentRobotGroupCo.,Ltd.willprovideyouwithhighqualityandefficient service. Thisspecificationistoguidetheproductinstallation,operation,detaileddescriptionofthe document. Forthefirsttime,readtheinstructionscarefullybeforeinstallation. Useandmanagementconsiderations: Thisproductmustoperateandruninthespecifiedusagescenario. 1)Donotarbitrarilydiscardtheouterpackagingofproductsandrelatedparts,pleasefollowthe localwastedisposalregulations; 2)Donotarbitrarilydiscardtheproductmatchinguseanditsouterpackaging; 3)DisassemblyofequipmentbypersonsnotauthorizedbytheCompanyisprohibited; 4)Thisinformationbelongstotheequipmentrandomdocument,pleasekeepproperly,uses; 5)Ifanyproblemsorambiguitiesarefoundduringuse,pleasecontactcustomerservice telephoneintime. VersionStatement: ChuangzeIntelligentRobotGroupCo.,Ltd.reservesallcopyrightinthisinformation. ChuangZeIntelligentRobotGroupCo.,Ltd Website:http://www.chuangze.cn Address:71TaiyuanRoad,BeijingRoad,RizhaoDevelopmentZone,ShandongProvince Tel:0633-8856000 4 Directory ChapterIOverview .............................................................................................................................. 4 ProductDescriptionProductName ............................................................................................ 4 II.Mainfunctionsandcharacteristics ......................................................................................... 5 III.Schematicillustrationofthestructureofthedisinfectionrobot .......................................... 6 IV.Workingprinciples .................................................................................................................. 8 V.Mainbactericidalfactorsandtheirintensity .......................................................................... 9 VI.Keyperformance .................................................................................................................... 9 VII.Technicalperformanceindicators ....................................................................................... 10 ChapterIIInstallation ........................................................................................................................ 12 ChapterIIIBasicOperationofDisinfectionRobot ............................................................................ 13 Chapter4:TheUseofRoutineDisinfectionRobot ........................................................................... 30 ChapterVPackaging,TransportationandStorage ........................................................................... 31 ChapterVIAttentiontoDisinfectionRobot ...................................................................................... 32 I.Mattersneedingattentioninchargingpowersupply ........................................................... 32 II.Precautionsfordailyuse ....................................................................................................... 32 ChapterIOverview I.Productdescription Productname ChuangzebrandCZ-RobotDf-DZindependentmobileintelligentdisinfectionrobot. Productdescription ChuangzebrandCZ-RobotDf-DZautonomousmobileintelligentdisinfectionrobot, hereinafterreferredtoasdisinfectionrobot.Thedisinfectionrobothasself-navigation 5 technologyandcanmoveindependentlyaccordingtothesetroutetomeettheneedsof automatic,timingandaccuratedisinfectionintheindoorenvironmentwithmoreroomsor duplicatelayout.Itcanrealizemulti-modeintelligentdisinfectionsuchasplasmadisinfectionand ultravioletdisinfection,andisequippedwith"man-machinecoexistence"and"unmanned disinfection"twodisinfectionmodes,whichmakesdisinfectionmorehumanized. ScopeandUseofProducts Thisstandardissuitableforultravioletplasmadisinfectionrobotwhichiscomposedof ultravioletsterilizationlamp,filterdevice,fanandplasmagenerator.Itissuitableforrapid disinfectionofindoorairandobjectsurface. II.Mainfunctionsandcharacteristics 1.equippedwithlasernavigationmodule,itcanrealizeautonomouswalkingandautomatic obstacleavoidance,andatthesametime,itcanrealizeautomaticchargingfunctionandreduce theworkingintensityofstaff; 2.canrealizemulti-modeintelligentdisinfection,suchasplasmadisinfectionandultraviolet disinfection,with"man-machinecoexistence"and"unmanneddisinfection"twodisinfection modes,makedisinfectionmorehumanized; 3.canbeimplementedremotely,thetopoftherobotisequippedwithawideanglecamera, whichcanrealizetheremoteoperationinvariouscomplexenvironments,reducethecontactof personnel,andeffectivelyreducetheriskofinfection.Itsequippedwithhumaninductiondevice, canreal-timeperceptionoftheactivitiesofthesurroundingpersonnel,whentherearepersonnel intotheultravioletdisinfectionrange,canintelligentlyachievetheclosureofultravioletlights,to protectthesafetyofthesurroundingpersonnel,betterservicetotheusergroup; 4.canachievemulti-modedisinfection,adisinfectionrobotcancompleteavarietyofdisinfection methodsatthesametime,disinfectionrobotcanprovidetiming,fixedarea,fixedtaskthree modesofoperation;canachieve360°inthedisinfectionrangewithoutdeadanglecoverage,at thesametime,hasalongtimetowork,comparedwithasingleandpoorstandardmanual disinfection,disinfectionrobotcanavoidcross-infection,butalsosavealotoflaborcosts; 6 III.Schematicillustrationofthestructureofthe disinfectionrobot 1RobotFace-to-faceDiagram Figure1 7 2RobotBackView Figure2 8 3RobotSideViewDiagram Figure3 IV.Workingprinciples Forthedailydisinfectiontask,thedisinfectionmo…

Text truncated - open the document above for the full version.

Chuangze Intelligent Robot Group Co., Ltd Agent Authorization Company: Chuangze Intelligent Robot Group Co., Ltd Address: No.71 Taiyuan Road, Rizhao, Shandong, China Product Name: Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type) Model Number(s): CZ-RobotDf-DZ Product Description: Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type) FCC ID: 2AXBRCZ-ROBOTDF-DZ We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-03 Name: Xiang Li Title: Hardware Director Company: Chuangze Intelligent Robot Group Co., Ltd

Chuangze Intelligent Robot Group Co., Ltd No.71 Taiyuan Road, Rizhao, Shandong, China Date: November 03, 2020 FCC ID: 2AXBRCZ-ROBOTDF-DZ Model Number: CZ-RobotDf-DZ To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Chuangze Intelligent Robot Group Co., Ltd declare that this EUT (FCC ID: 2AXBRCZ-ROBOTDF-DZ) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Xiang Li / Hardware Director Company: Chuangze Intelligent Robot Group Co., Ltd Address: No.71 Taiyuan Road, Rizhao, Shandong, China Tel: 400-8128-728 Fax: 0633-2299333 E-mail: [email protected]

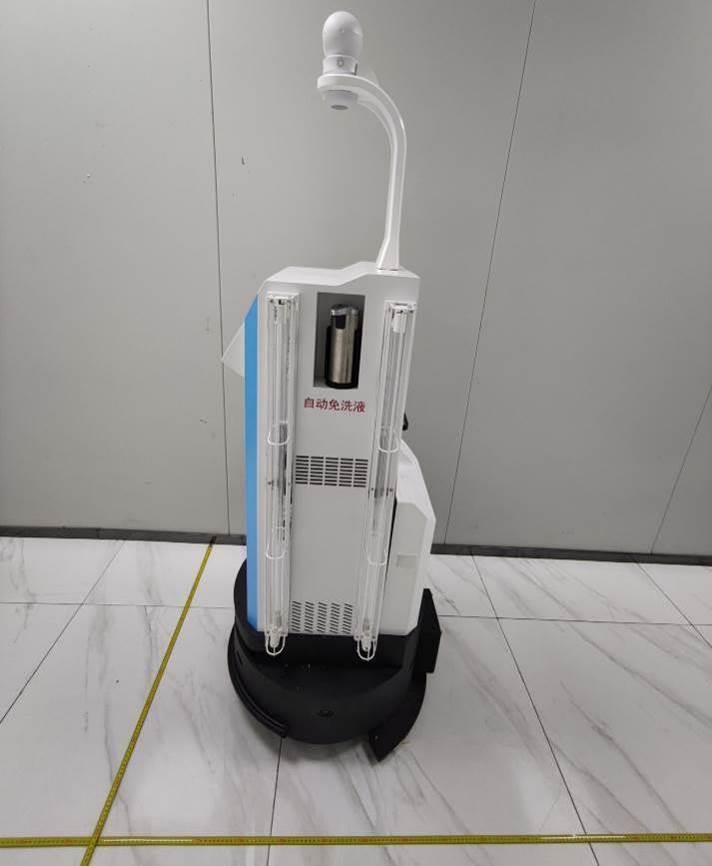

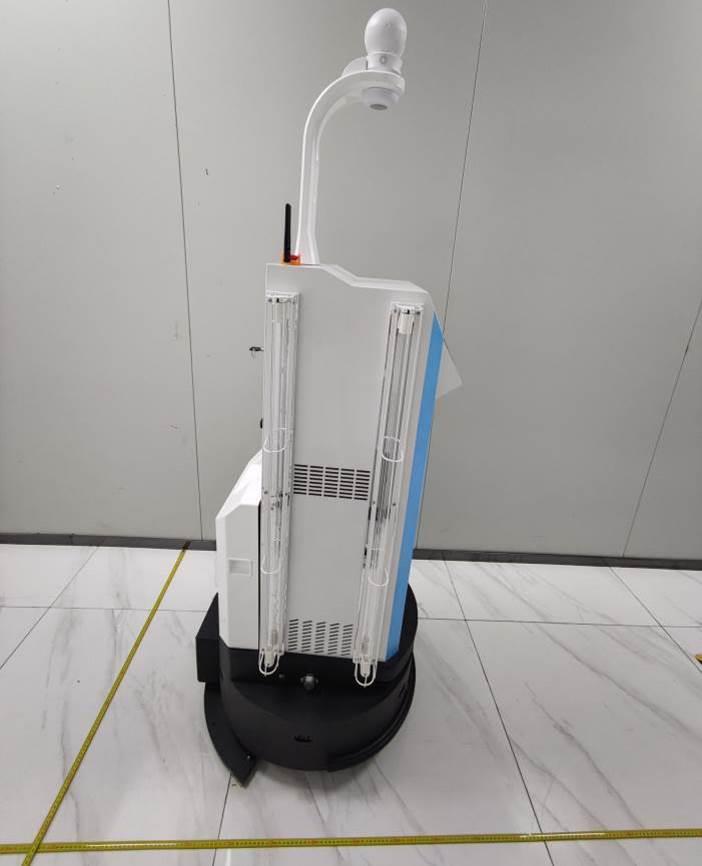

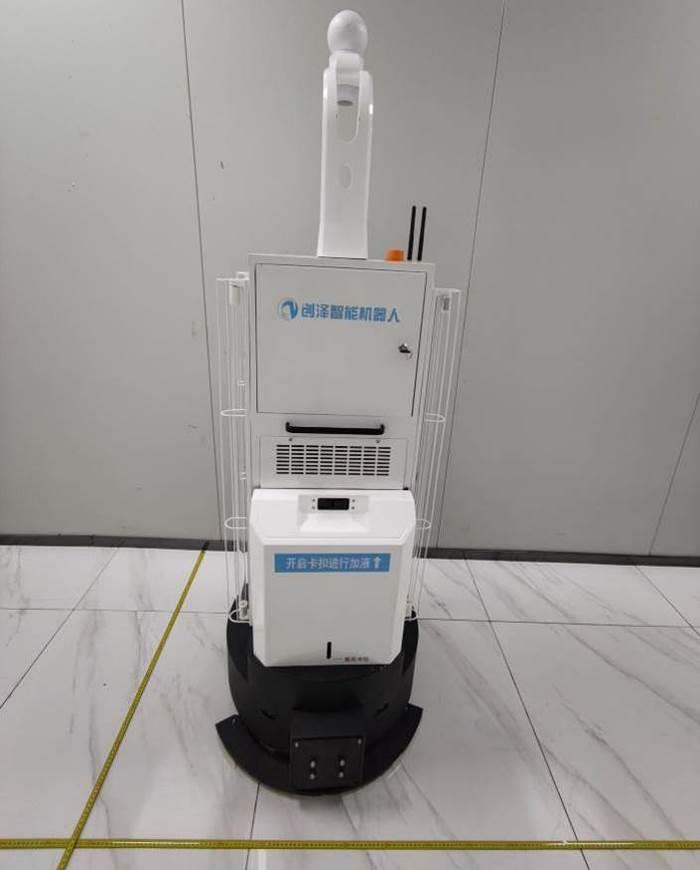

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L5.0cm x 4.0cm) Material: Tagboard Glue: adhesive sticker Font color: Blue Label color: White Label Location Model No.: CZ-RobotDf-DZ FCC ID: 2AXBRCZ-ROBOTDF-DZ Input: AC 220V, 50Hz, 180W max Output: DC 29V, 6A DC 25.9V by Battery, 60Ah This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 15 Internal Photos of the EUT Fig.1 Fig.2 BT WIFI Antenna Reserved Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 15 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 15 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 15 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 15 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 15 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 15 Fig.13 Fig.14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 8 of 15 Fig.15 Fig.16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 9 of 15 Fig.17 Fig.18 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 10 of 15 Fig.19 Fig.20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 11 of 15 Fig.21 Fig.22 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 12 of 15 Fig.23 Fig.24 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 13 of 15 Fig.25 Fig.26 BT WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 14 of 15 Fig.27 Fig.28 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 15 of 15 Fig.29 Fig.30

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AXBRCZ-ROBOTDF-DZ Product name Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type) Model number CZ-RobotDf-DZ Power supply Input: AC 100-240V, 50/60Hz, 180W max Output: DC 29V, 6A DC 25.9V by Battery, 60Ah Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2(DSS) GFSK for Bluetooth V4.2(DTS) IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type External Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / FCC Operation frequency 2402MHz ~ 2480MHz 2412MHz-2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna External Antenna 2402MHz ~ 2480MHz 2412MHz-2462MHz 0dBi BT WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 6. Conducted Power < BT Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 1.059 39 2441 2.267 78 2480 1.128 π/4DQPSK 0 2402 0.266 39 2441 1.429 78 2480 0.343 8DPSK 0 2402 0.351 39 2441 1.578 78 2480 0.451 < BT LE Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 0.938 19 2440 2.138 39 2480 1.016 <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 13.72 6 2437 13.48 11 2462 13.71 IEEE 802.11g 1 2412 14.69 6 2437 14.4 11 2462 14.28 IEEE 802.11n HT20 1 2412 14.06 6 2437 14.33 11 2462 14.4 IEEE 802.11n HT40 3 2422 14.19 6 2437 14.23 9 2452 14.05 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 7. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 2.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 1.0 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 1 of 47 Appendix A RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: Chuangze brand autonomous mobile intelligent disinfection robot (CZ- RobotDf-DZ type) Trade Mark: N/A Test Model: CZ-RobotDf-DZ Environmental Conditions Temperature: 22.5 C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 1.059 21 PASS MCH 2.267 21 PASS HCH 1.128 21 PASS π/4DQPSK LCH 0.266 21 PASS MCH 1.429 21 PASS HCH 0.343 21 PASS 8DPSK LCH 0.351 21 PASS MCH 1.578 21 PASS HCH 0.451 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.038 Not Specified PASS MCH 1.033 Not Specified PASS HCH 1.035 Not Specified PASS π/4DQPSK LCH 1.288 Not Specified PASS MCH 1.288 Not Specified PASS HCH 1.288 Not Specified PASS 8DPSK LCH 1.291 Not Specified PASS MCH 1.293 Not Specified PASS HCH 1.292 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.980 0.692 PASS MCH 1.212 0.692 PASS HCH 0.878 0.692 PASS π/4DQPSK LCH 0.918 0.859 PASS MCH 1.046 0.859 PASS HCH 1.050 0.859 PASS 8DPSK LCH 1.096 0.862 PASS MCH 0.918 0.862 PASS HCH 1.062 0.862 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 17 of 47 Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 0.215 -37.859 -19.785 PASS MCH 1.96 -37.911 -18.040 PASS HCH 0.791 -38.548 -19.209 PASS π/4DQPSK LCH -0.892 -38.082 -20.892 PASS MCH 0.138 -38.668 -19.862 PASS HCH -1.275 -37.123 -21.275 PASS 8DPSK LCH -0.802 -36.906 -20.800 PASS MCH 0.442 -38.146 -19.558 PASS HCH -0.597 -37.025 -20.597 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT FOR Chuangze Intelligent Robot Group Co., Ltd Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type) Test Model: CZ-RobotDf-DZ Prepared for : Chuangze Intelligent Robot Group Co., Ltd Address : No.71 Taiyuan Road, Rizhao, Shandong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 07, 2020 Number of tested samples : 2 Sample No. ： 200818065A-1, 200818065A-2 Serial number : Prototype Date of Test : September 07, 2020 ~ September 17, 2020 Date of Report : September 24, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200818065AEA Date of Issue ................................... : September 24, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Chuangze Intelligent Robot Group Co., Ltd Address ........................................... : No.71 Taiyuan Road, Rizhao, Shandong, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type) Trade Mark ...................................... : N/A Test Model ...................................... : CZ-RobotDf-DZ Ratings ............................................ : Input: AC 100-240V, 50/60Hz, 180W max Output: DC 29V, 6A DC 25.9V by Battery, 60Ah Result ........................................... : Positive Tested by: Compiled by: Approved by: Cherry Chen/ Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXBRCZ-ROBOTDF-DZ Report No.: LCS200818065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200818065AEA September 24, 2020 Date of issue Test Model.............................. : CZ-RobotDf-DZ EUT......................................... : Chuangze brand autonomous mobile intelligent disinfection robot (CZ-RobotDf-DZ type) Applicant............................... : Chuangze Intelligent Robot Group Co., Ltd Address................................... : No.71 Taiyuan Road, Rizhao, Shandong, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Chuangze Intelligent Robot Group Co., Ltd Address................................... : No.71 Taiyuan Road, Rizhao, Shandong, China Telephone............................... : / Fax.......................................... : / Factory................................... : Chuangze Intelligent Robot Group Co., Ltd Address................................... : No.71 Taiyuan Road, Rizhao, Shandong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A…

Text truncated - open the document above for the full version.
