2AXCI-XPAW002Mibro Color

Mibro Color Home button Product overview Buttons and touch Product description Please read this manual carefully before using the product and keep it properly Packing list: Mibro Skin (including strap) X 1, Quick GuideX1,User manual X 1 Magnetic charging X 1. Charging port (Anode) Charging port （Cathode） Heart rate sensor Home button Full touch display Swipe up: Information interface Swipe down: Call out the control center Swipe left: Functions hot key Swipe right: Split screen menu interface Turning On: Holding the button for 2 seconds until the screen lights up Turning Off: Long press the button for 2 seconds until the screen turn off Return: Click Tips： 1. For better use experience, please update the App to the latest version according to the prompt. 2. The system requires Android 5.0 or iOS 10.0 or above. Please scan the QR code to download the “Mibro Fit”App 1. For the first use, Please press and hold the home button of the watch for 2 seconds to turn it on; 2. Scan the QR code on the right side with your phone, download the “Mibro Fit”App, or search for the "Mibro Fit" App in the Android App Store/iOS App Store, download and install. Turn on and Install App Tips: 1. Do not pair directly through Bluetooth in the phone settings. 2. After connecting with the App in Apple's iOS system for the first time, it will prompt a Bluetooth pairing request. Click "Pairing" to connect, and the watch can synchronously receive notifications such as incoming calls and text messages from iOS. 3. After the Android device is connected to the App for the first time, it will prompt the application permission activation prompt. Please follow the prompts to activate the permission, otherwise there will be a small probability of unstable connection. Connect the watch Please use "mibro fit" scanning QR code to pairing Swipe down the dial interface to swift to the control center, click the QR code, and use the QR code scan function in the App to scan the QR code to connect to the watch to complete the pairing. Or use the connection management function in the App to search for the device, and select "Mibro Skin" and click to complete the pairing. Android Device Open Permissions Enable self-starting permission Backstage power consumption protection Clean up backstage protection Turn on message notification Operating Instructions 1. Key definition 1). Press and hold for 2 seconds to turn on and off; 2). On the dial page, short press to enter the menu and return to the dial; 3). When the screen is off, press briefly to light up the screen; 4). Other pages short press to return to dial page. 2. Dial page touch gesture 1). Split screen application: the dial page appears on the right side, click the physical button or click the left side to return; 2). Intelligent components: slide left on the dial page to enter the intelligent components. The system preset 3 components. Click "Add component" at the right end to add up to 5 components. Long press the component to enter the "Delete component" page; 3). Dial switch: press the screen in the dial page length to select the dial. Select the corresponding dial and return to the main dial page. Note: Six dials are preset in the system, and the last dial is "Custom dial page". The thumbnail will be displayed only after the custom dial is set in the "Mibro Fit" App, so that it can be selected as the main dial; 4). Shortcut menu: slide down on the dial page to return; 5). Message notification: slide on the dial page, slide or right slide back; 6). When a message is sent to the watch, the information details will pop up. Right slide or press the physical key to return to the dial. Detect heart rate anytime and anywhere, make scientific chart analysis, and record the latest 7 heart rate data. Heart rate Blood oxygen was detected anytime and anywhere, and scientific chart analysis was made to record the blood oxygen data of the last 7 times. Blood oxygen Sports Different frequency and time can be set for respiratory adjustment training. Breath training After connecting the mobile phone, you can control the music playing of the mobile phone. Music control Features Data Record the daily exercise data, including the number of steps, distance, calories, activity time, activity times. Intelligent monitoring of your sleep quality, scientific analysis of sleep time, record 7 days of sleep data. Sleep Treadmill, Outdoor running, Walking, Football, Badminton, Tennis, Basketball, Cycling, Elliptical machine, On foot, Yoga, Strength Training, Trekking, Free training. 3. Function page operation Function page: in the menu page, click each application icon to enter the corresponding function, right slide back, and press the physical key to return to the main dial page. After connecting the mobile phone, you can synchronize the weather in the App. Weather Start the stopwatch function. Stopwatch Watch quick timer. Timer Record the change of your exercise intensity and effective value in a week. Mett Monitor the change of your stress value in a day and form an analysis icon. Pressure Watch mini calculator. Calculator Setting Brightness, Screen off time, Wrist up screen on, Do not disturb, Vibration, Language, Connection to phone, About watch, Restore factory, Restart, Off and other settings. Smart do not disturb and timed do not disturb function of the watch, all reminders will be turned off after opening. Alarm reminder. Sitting for a certain period of time, the watch will remind you to stand up. Do not disturb Alarm clock Sedentary reminder Please align the metal port surface of the magnetic charging cable and be close to the charging contacts of the watch. The magnetic charging cable will automati- cally be attached to the charging contacts of the watch to start charging, and the charging instructions will be displayed on the watch screen. Note: 1. Do not charge in a humid environment; 2. Make sure that the metal port surface on the watch body and the magnetic charging cable are not dirty or c…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-4> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AXCI-XPAW002 XPAW002 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Wei Liu/Senior Engineer of Supplier Quality Control Company: Zhenshi Information Technology Shanghai Co.,Ltd Address: Room 4015, Building 2, 588 Zixing Road, Minhang District, Shanghai, China Phone: 021-61890896 Fax: 021-61890896 E-Mail: [email protected]

Zhenshi Information Technology Shanghai Co.,Ltd Room 4015, Building 2, 588 Zixing Road, Minhang District, Shanghai, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-4 To whom it may concern: We, Zhenshi Information Technology Shanghai Co.,Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AXCI-XPAW002 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Wei Liu/Senior Engineer of Supplier Quality Control Company: Zhenshi Information Technology Shanghai Co.,Ltd Address: Room 4015, Building 2, 588 Zixing Road, Minhang District, Shanghai, China Phone: 021-61890896 Fax: 021-61890896 E-Mail: [email protected]

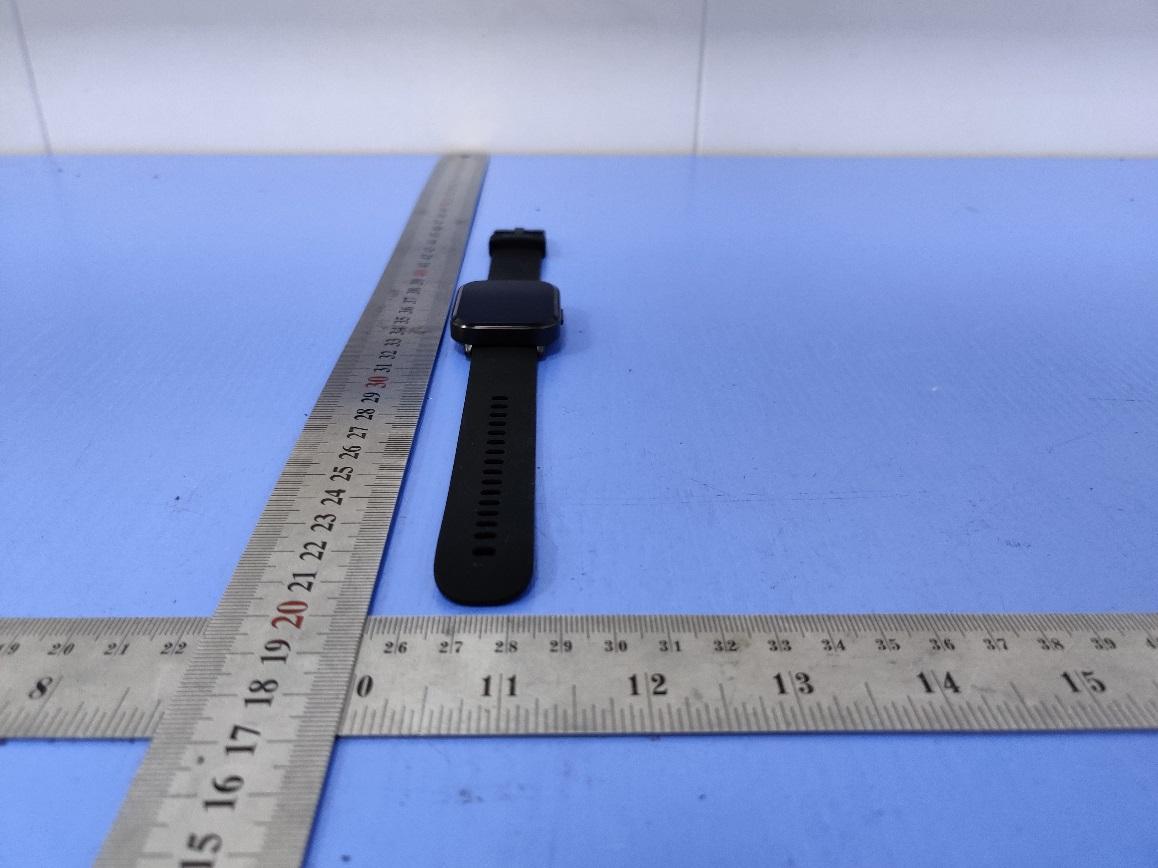

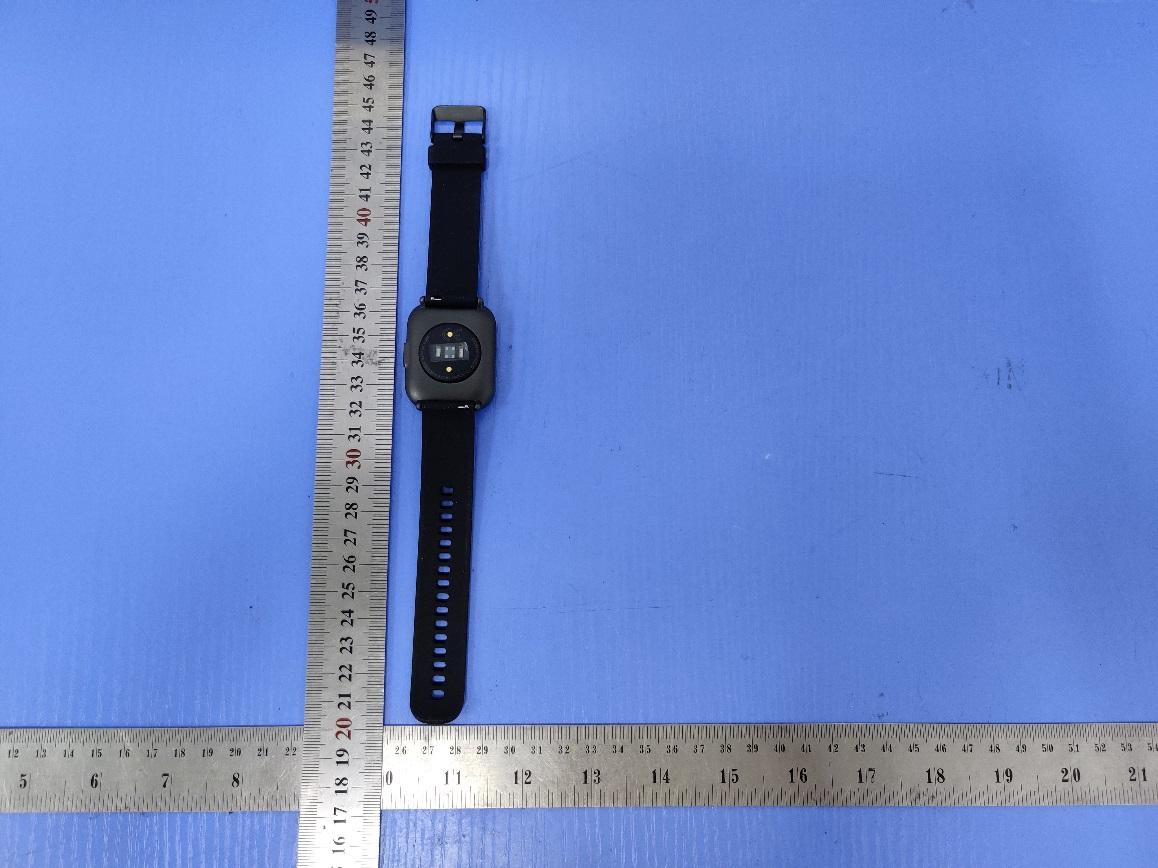

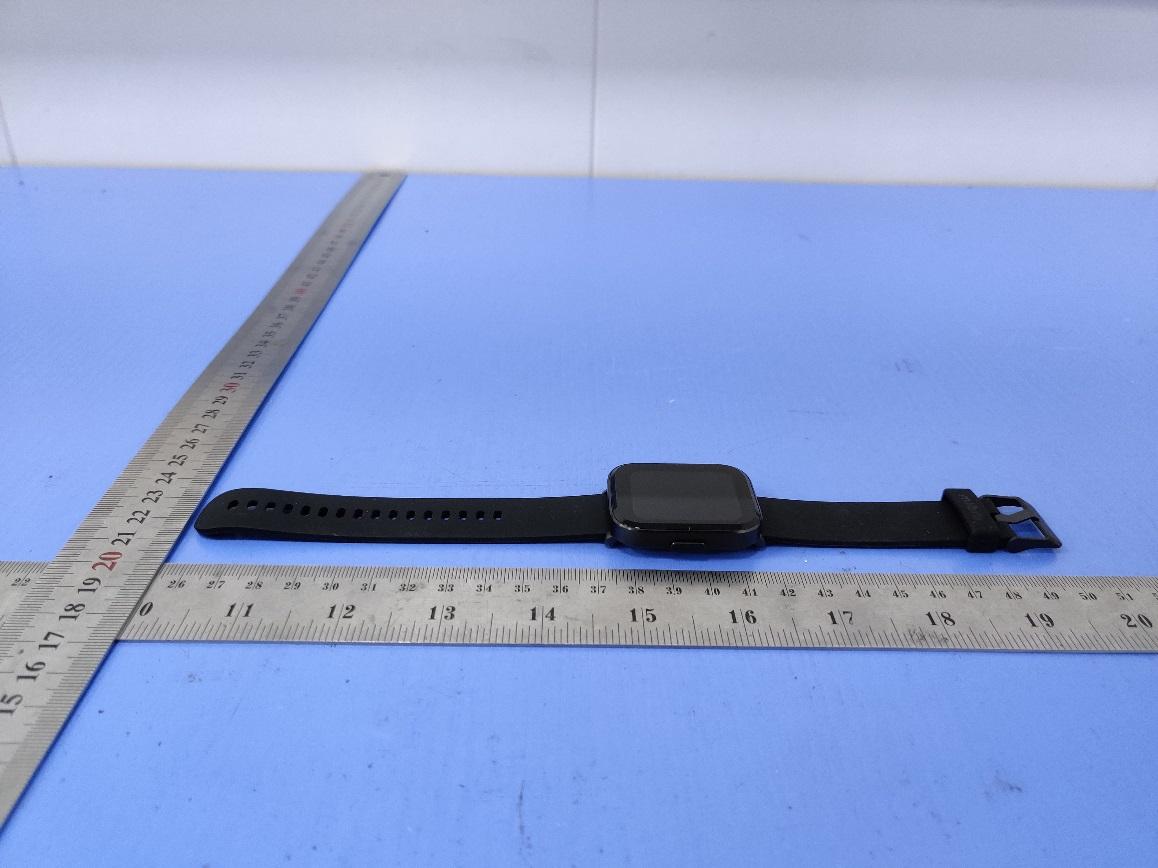

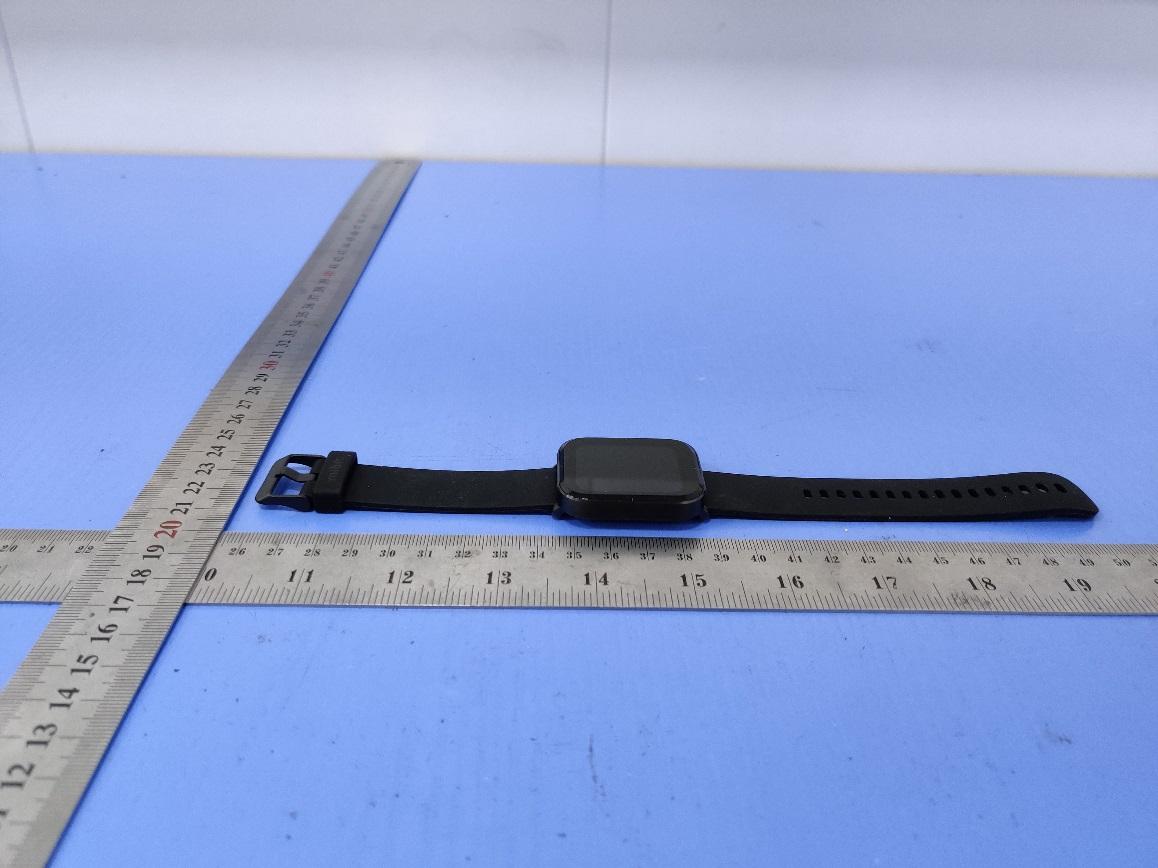

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W0.5cm Label Location Mibro Color Model No.: XPAW002 FCC ID: 2AXCI-XPAW002

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AXCI-XPAW002 Product name : Mibro Color Test Model : XPAW002 Power supply : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 270mAh Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V5.0(DTS) Channel Spacing : 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK for Bluetooth V5.0(DTS) Bluetooth Version : V5.0 Antenna Type : Internal Antenna Antenna Gain : 0dBi(Max.) Hardware version : V1.0 Software version : 1.54 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 1.216 19 2440 -0.274 39 2480 -2.257 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1 0 -2 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.440 5 2.0 1.5849 0.4951< 3.0 Yes Remar…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 1 of 14 Appendix A RF Test Data for BT V5.0(BLE) (Conducted Measurement) Product Name: Mibro Color Trade Mark: Test Model: XPAW002 Environmental Conditions Temperature: 24.2  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.216 30 PASS BT LE MCH -0.274 30 PASS BT LE HCH -2.257 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -13.969 8 PASS BT LE MCH -15.401 8 PASS BT LE HCH -17.314 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6884 ≥0.5 PASS BT LE MCH 0.6939 ≥0.5 PASS BT LE HCH 0.6929 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 8 of 14 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 1.07 -38.247 -18.930 PASS BT LE MCH -0.412 -38.000 -20.412 PASS BT LE HCH -2.437 -37.284 -22.437 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 11 of 14 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 1.081 -48.381 -18.92 PASS BT LE HCH -2.414 -48.668 -22.41 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 12 of 14 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.07 2.0 0 54.16 PEAK 74 PASS Ant1 2310.0 -53.37 2.0 0 43.86 AV 54 PASS Ant1 2390.0 -43.02 2.0 0 54.21 PEAK 74 PASS Ant1 2390.0 -53.01 2.0 0 44.22 AV 54 PASS 2480 Ant1 2483.5 -43.17 2.0 0 54.06 PEAK 74 PASS Ant1 2483.5 -52.47 2.0 0 44.76 AV 54 PASS Ant1 2500.0 -42.53 2.0 0 54.70 PEAK 74 PASS Ant1 2500.0 -52.36 2.0 0 44.87 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For Zhenshi Information Technology Shanghai Co.,Ltd Mibro Color Test Model: XPAW002 Prepared for : Zhenshi Information Technology Shanghai Co.,Ltd Address : Room 4015, Building 2, 588 Zixing Road, Minhang District, Shanghai, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 12, 2021 Number of tested samples : 2 Sample No. : 210409046A-1, 210409046A-2 Serial number : Prototype Date of Test : April 12, 2021 ~ April 17, 2021 Date of Report : April 20, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210409046AEA Date of Issue ................................... : April 20, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Zhenshi Information Technology Shanghai Co.,Ltd Address ........................................... : Room 4015, Building 2, 588 Zixing Road, Minhang District, Shanghai, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Mibro Color Trade Mark .......................................................................................................................................... : Test Model .......................................................................................................................................... : XPAW002 Ratings ................................................................................................................................................ : Input: DC 5V DC 3.7V by Rechargeable Li-ion Battery, 270mAh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model........................... : XPAW002 EUT......................................... : Mibro Color Applicant............................... : Zhenshi Information Technology Shanghai Co.,Ltd Address.................................. : Room 4015, Building 2, 588 Zixing Road, Minhang District, Shanghai, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Wakeup Technology Co., Ltd. Address................................... : 1501, Block E, Phase II, Galaxy WORLD, Minle Community, Minzhi Street, Longhua District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Liangyan Technology co., Ltd. Address................................... : 256-9 Xintian Avenue, Xintian community, Fuhai street, Bao'an District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210409046AEA April 20, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 April 20, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 Report No.: LCS210409046AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION O…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXCI-XPAW002 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
